The document proposes a site plan for a maintenance campus on Tissue Lane. The plan aims to minimize impact on the landscape and preserve the experience of Tissue Lane. It takes advantage of solar gains by placing buildings with southern exposure and integrating structures into the hillside. A courtyard is created through building placement for indoor and outdoor opportunities. Parking is linked by gardens and opportunities for employees and hikers. Sustainable strategies like green roofs and recycled materials will be used.

1. DANIEL LAPINSKITISSUE LANE SITE PROPOSALOCTOBER 12, 2009

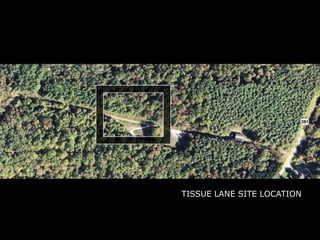

2. TISSUE LANE SITE LOCATION

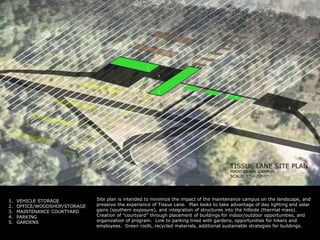

3. 13254Site plan is intended to minimize the impact of the maintenance campus on the landscape, and preserve the experience of Tissue Lane. Plan looks to take advantage of day lighting and solar gains (southern exposure), and integration of structures into the hillside (thermal mass). Creation of “courtyard” through placement of buildings for indoor/outdoor opportunities, and organization of program. Link to parking lined with gardens, opportunities for hikers and employees. Green roofs, recycled materials, additional sustainable strategies for buildings.VEHICLE STORAGEOFFICE/WOODSHOP/STORAGEMAINTENANCE COURTYARDPARKINGGARDENS

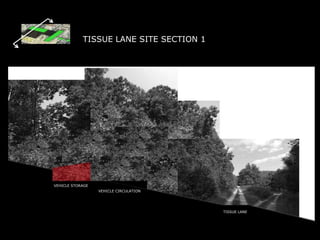

4. TISSUE LANE SITE SECTION 1VEHICLE STORAGEVEHICLE CIRCULATIONTISSUE LANE

5. TISSUE LANE SITE SECTION 2VEHICLE STORAGEVEHICLE CIRCULATIONVEHICLE STORAGECOURTYARDOFFICE/STORAGE/WORKSHOPTISSUE LANE

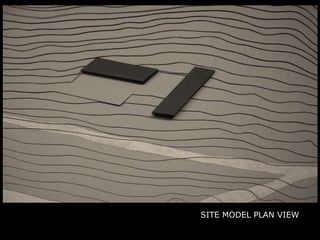

6. SITE MODEL PLAN VIEW

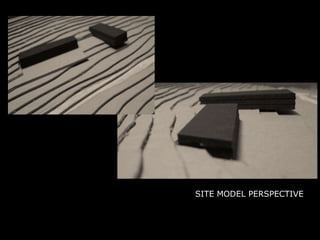

7. SITE MODEL PERSPECTIVE

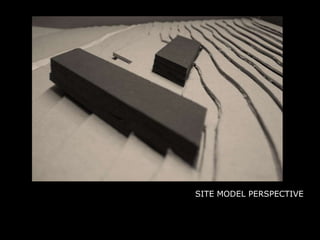

8. SITE MODEL PERSPECTIVE
