2. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

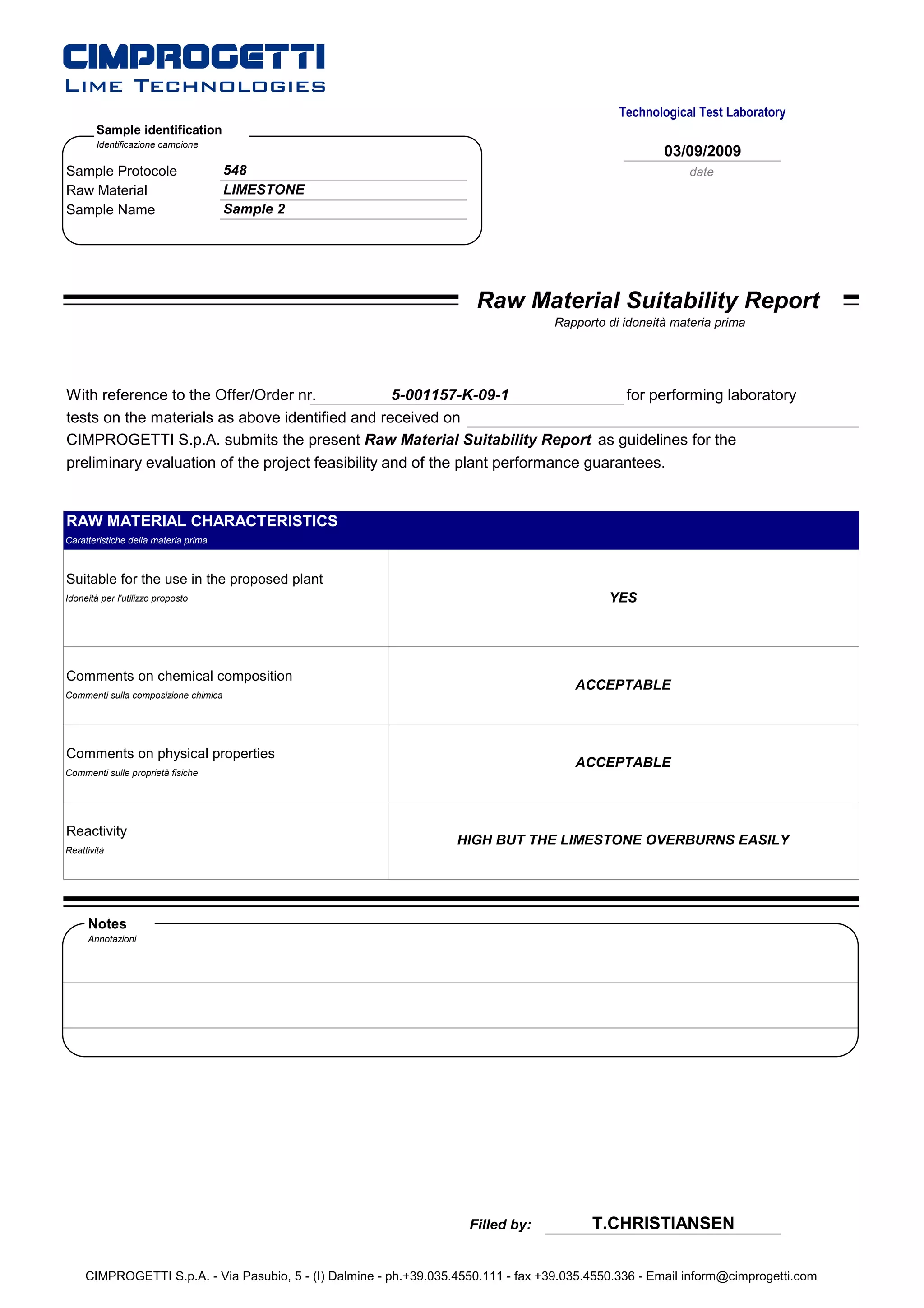

Raw Material Suitability Report
Rapporto di idoneità materia prima
With reference to the Offer/Order nr. 5-001157-K-09-1 for performing laboratory
tests on the materials as above identified and received on
CIMPROGETTI S.p.A. submits the present Raw Material Suitability Report as guidelines for the
preliminary evaluation of the project feasibility and of the plant performance guarantees.
RAW MATERIAL CHARACTERISTICS
Caratteristiche della materia prima
Suitable for the use in the proposed plant
Idoneità per l'utilizzo proposto YES
Comments on chemical composition
ACCEPTABLE
Commenti sulla composizione chimica
Comments on physical properties
ACCEPTABLE
Commenti sulle proprietà fisiche
Reactivity
HIGH BUT THE LIMESTONE OVERBURNS EASILY
Reattività
Notes
Annotazioni
Filled by: T.CHRISTIANSEN
CIMPROGETTI S.p.A. - Via Pasubio, 5 - (I) Dalmine - ph.+39.035.4550.111 - fax +39.035.4550.336 - Email inform@cimprogetti.com
3. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

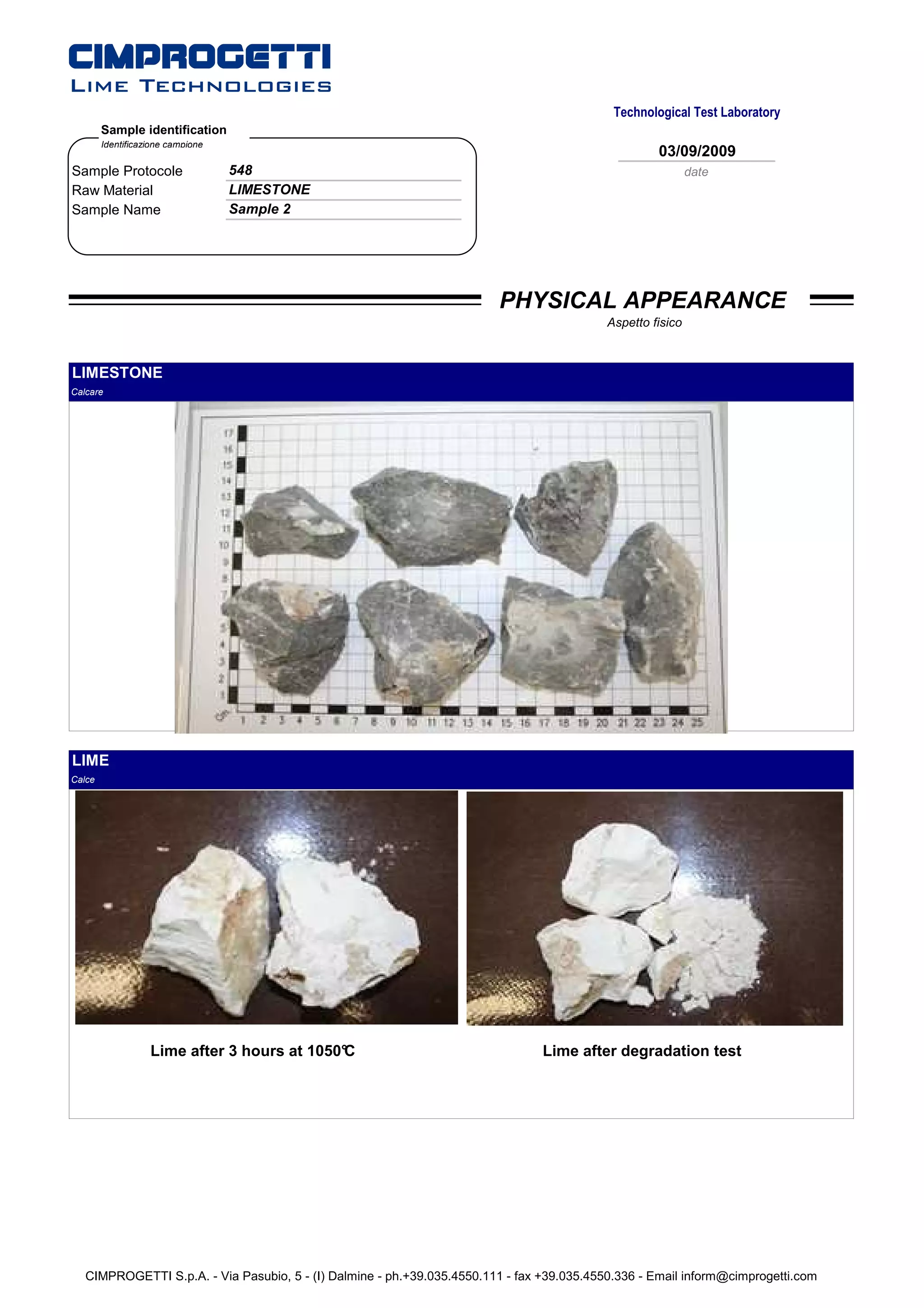

PHYSICAL APPEARANCE
Aspetto fisico
LIMESTONE
Calcare
LIME
Calce
Lime after 3 hours at 1050°
C Lime after degradation test
CIMPROGETTI S.p.A. - Via Pasubio, 5 - (I) Dalmine - ph.+39.035.4550.111 - fax +39.035.4550.336 - Email inform@cimprogetti.com
4. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

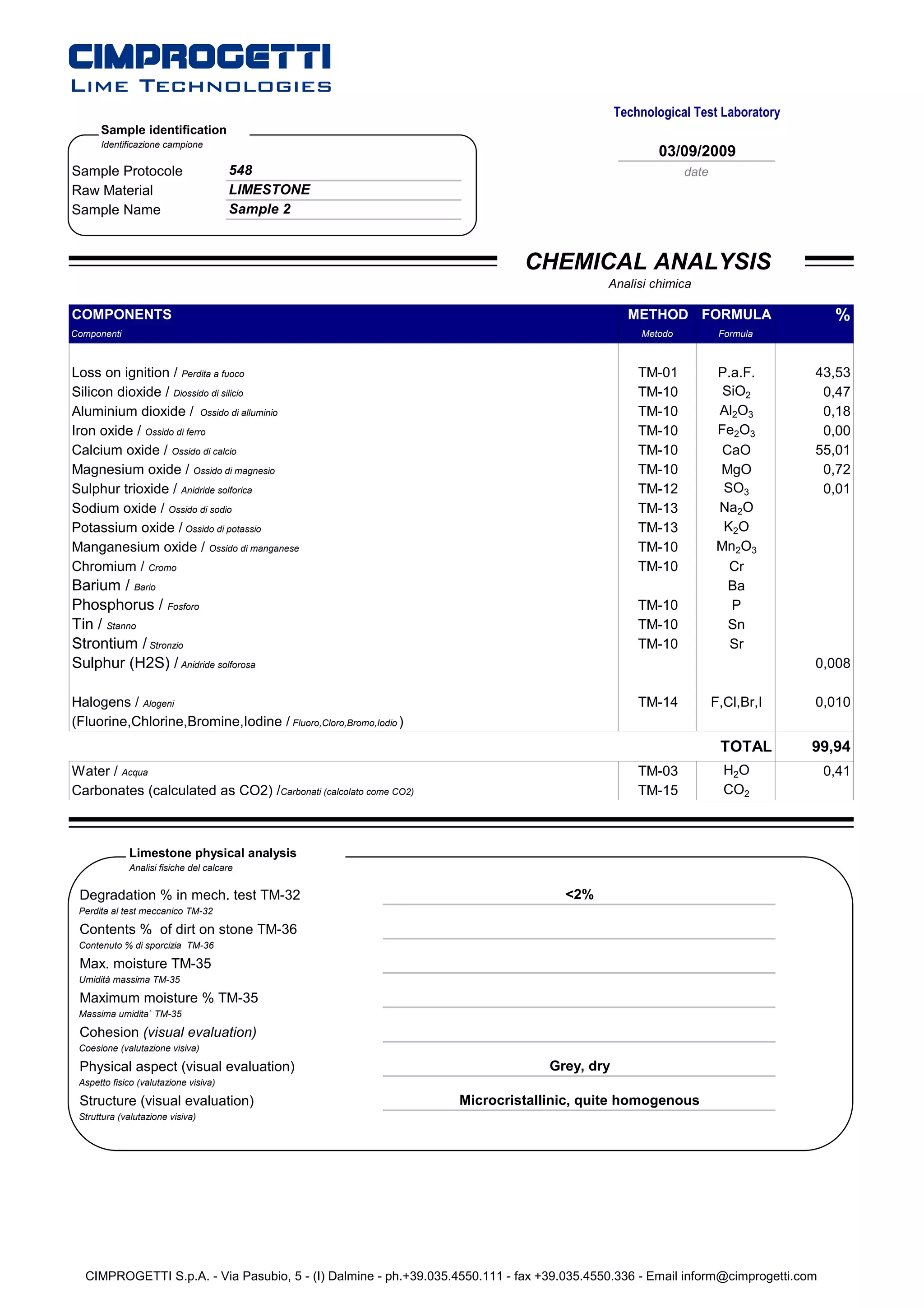

CHEMICAL ANALYSIS
Analisi chimica
COMPONENTS METHOD FORMULA %
Componenti Metodo Formula
Loss on ignition / Perdita a fuoco TM-01 P.a.F. 43,53
Silicon dioxide / Diossido di silicio TM-10 SiO2 0,47
Aluminium dioxide / Ossido di alluminio TM-10 Al2O3 0,18
Iron oxide / Ossido di ferro TM-10 Fe2O3 0,00
Calcium oxide / Ossido di calcio TM-10 CaO 55,01
Magnesium oxide / Ossido di magnesio TM-10 MgO 0,72
Sulphur trioxide / Anidride solforica TM-12 SO3 0,01
Sodium oxide / Ossido di sodio TM-13 Na2O
Potassium oxide / Ossido di potassio TM-13 K2 O
Manganesium oxide / Ossido di manganese TM-10 Mn2O3
Chromium / Cromo TM-10 Cr
Barium / Bario Ba
Phosphorus / Fosforo TM-10 P
Tin / Stanno TM-10 Sn
Strontium / Stronzio TM-10 Sr
Sulphur (H2S) / Anidride solforosa 0,008
Halogens / Alogeni TM-14 F,Cl,Br,I 0,010
(Fluorine,Chlorine,Bromine,Iodine / Fluoro,Cloro,Bromo,Iodio )
TOTAL 99,94
Water / Acqua TM-03 H2O 0,41
Carbonates (calculated as CO2) /Carbonati (calcolato come CO2) TM-15 CO2
Limestone physical analysis
Analisi fisiche del calcare
Degradation % in mech. test TM-32 <2%
Perdita al test meccanico TM-32
Contents % of dirt on stone TM-36
Contenuto % di sporcizia TM-36
Max. moisture TM-35
Umidità massima TM-35
Maximum moisture % TM-35
Massima umidita` TM-35
Cohesion (visual evaluation)
Coesione (valutazione visiva)
Physical aspect (visual evaluation) Grey, dry
Aspetto fisico (valutazione visiva)
Structure (visual evaluation) Microcristallinic, quite homogenous
Struttura (valutazione visiva)
CIMPROGETTI S.p.A. - Via Pasubio, 5 - (I) Dalmine - ph.+39.035.4550.111 - fax +39.035.4550.336 - Email inform@cimprogetti.com
5. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

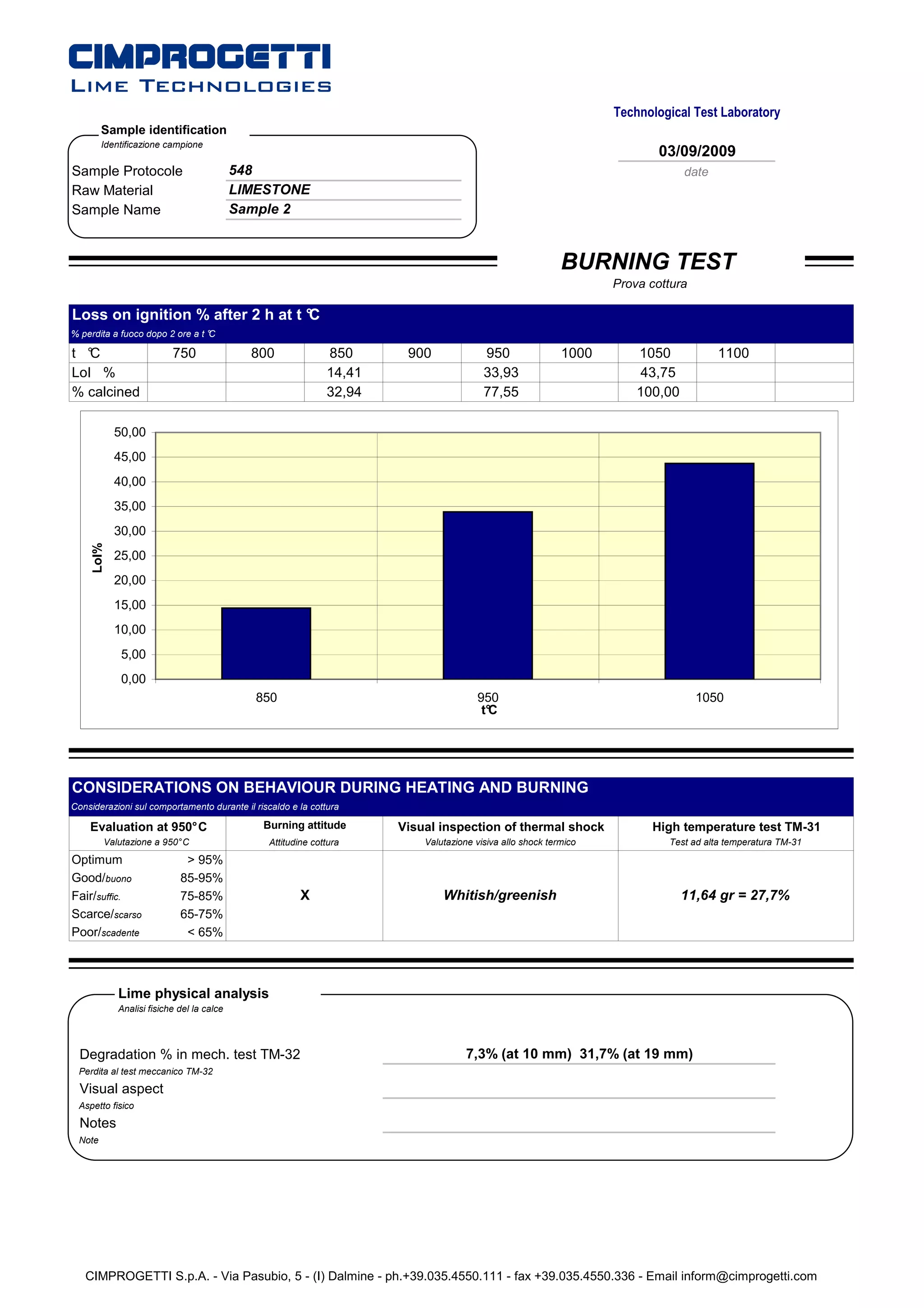

BURNING TEST
Prova cottura
Loss on ignition % after 2 h at t °
C
% perdita a fuoco dopo 2 ore a t °
C
t °C 750 800 850 900 950 1000 1050 1100
LoI % 14,41 33,93 43,75
% calcined 32,94 77,55 100,00
50,00
45,00
40,00
35,00
30,00
LoI%
25,00
20,00
15,00
10,00
5,00
0,00
850 950 1050
t°C
CONSIDERATIONS ON BEHAVIOUR DURING HEATING AND BURNING
Considerazioni sul comportamento durante il riscaldo e la cottura
Evaluation at 950° C Burning attitude Visual inspection of thermal shock High temperature test TM-31
Valutazione a 950° C Attitudine cottura Valutazione visiva allo shock termico Test ad alta temperatura TM-31
Optimum > 95%
Good/buono 85-95%
Fair/suffic. 75-85% X Whitish/greenish 11,64 gr = 27,7%
Scarce/scarso 65-75%
Poor/scadente < 65%
Lime physical analysis
Analisi fisiche del la calce
Degradation % in mech. test TM-32 7,3% (at 10 mm) 31,7% (at 19 mm)
Perdita al test meccanico TM-32
Visual aspect
Aspetto fisico
Notes
Note
CIMPROGETTI S.p.A. - Via Pasubio, 5 - (I) Dalmine - ph.+39.035.4550.111 - fax +39.035.4550.336 - Email inform@cimprogetti.com
6. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

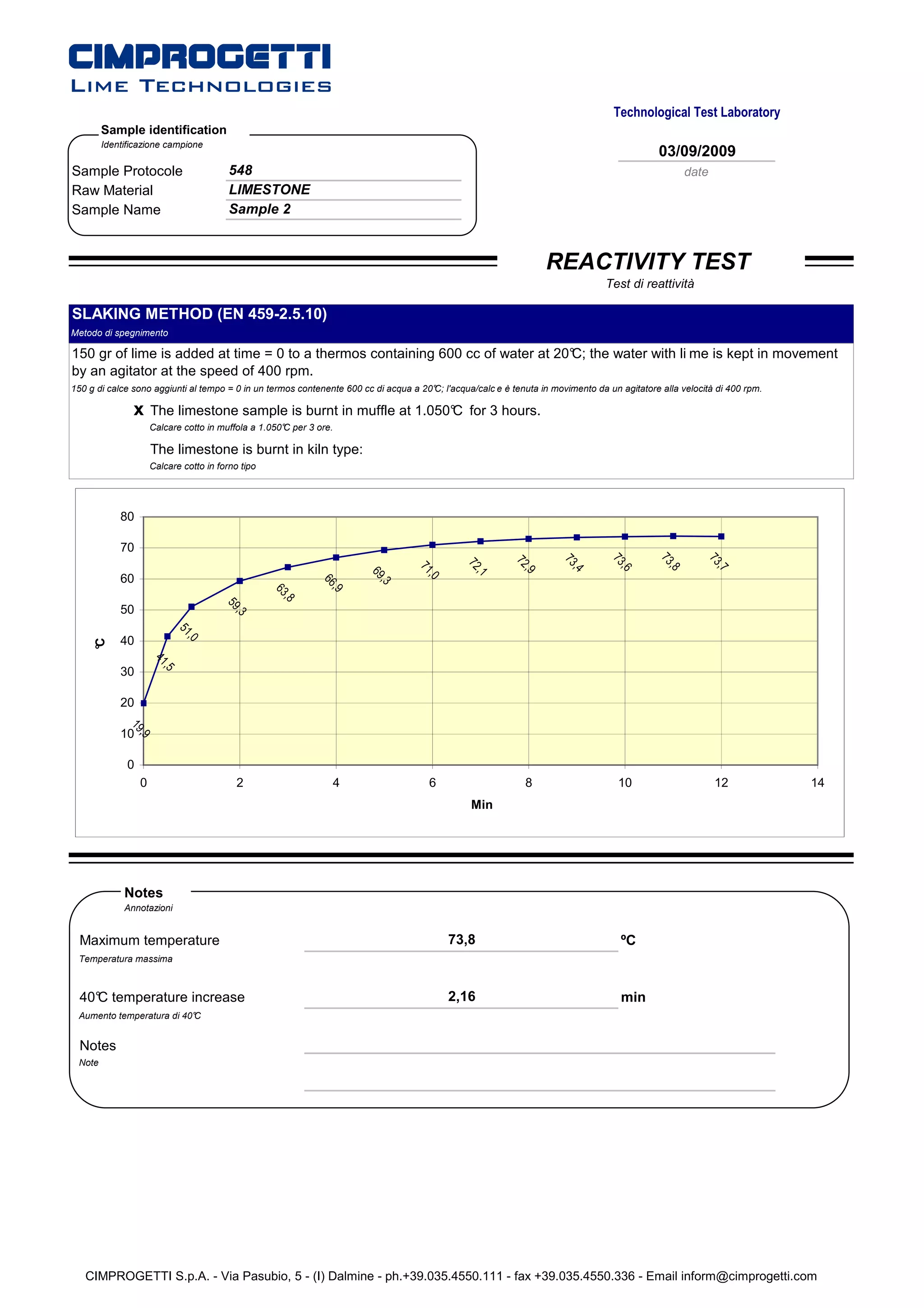

REACTIVITY TEST
Test di reattività
SLAKING METHOD (EN 459-2.5.10)
Metodo di spegnimento
150 gr of lime is added at time = 0 to a thermos containing 600 cc of water at 20° the water with li me is kept in movement
C;
by an agitator at the speed of 400 rpm.
150 g di calce sono aggiunti al tempo = 0 in un termos contenente 600 cc di acqua a 20° l'acqua/calc e è tenuta in movimento da un agitatore alla velocità di 400 rpm.
C;
x The limestone sample is burnt in muffle at 1.050° for 3 hours.
C
Calcare cotto in muffola a 1.050° per 3 ore.
C
The limestone is burnt in kiln type:
Calcare cotto in forno tipo
80
70
73
73
73
73
72
72
,8
,7
71
,6
,4
,9
,1
69
60
,0
66
,3
,9
63
,8
59
50
,3
51
40
,0
C
°
41
,5
30
20
19
10
,9
0
0 2 4 6 8 10 12 14
Min
Notes
Annotazioni
Maximum temperature 73,8 ºC
Temperatura massima
40° temperature increase
C 2,16 min
Aumento temperatura di 40°
C
Notes
Note
CIMPROGETTI S.p.A. - Via Pasubio, 5 - (I) Dalmine - ph.+39.035.4550.111 - fax +39.035.4550.336 - Email inform@cimprogetti.com
7. Technological Test Laboratory
Sample identification
Identificazione campione
03/09/2009
Sample Protocole 548 date
Raw Material LIMESTONE
Sample Name Sample 2

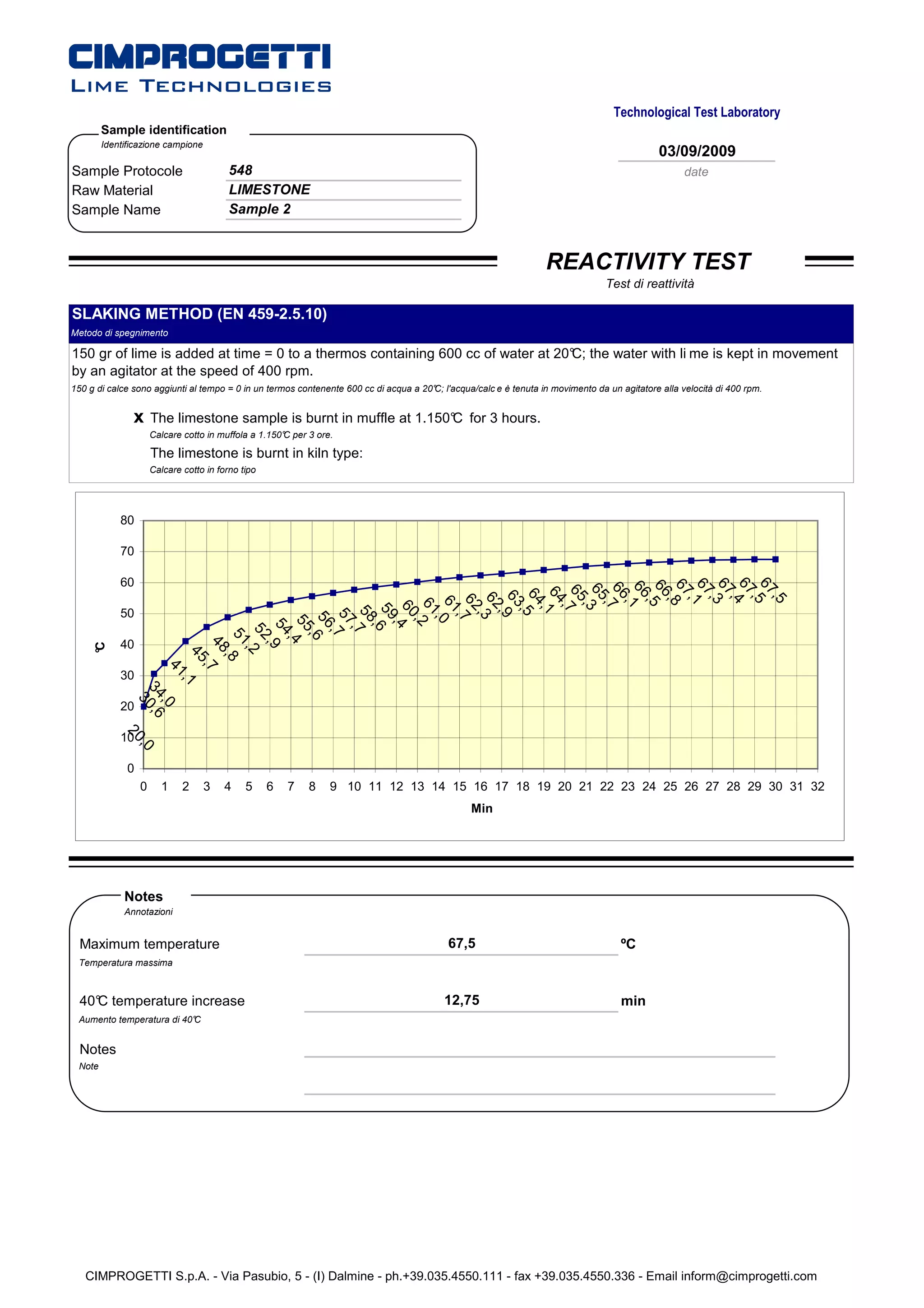

REACTIVITY TEST
Test di reattività
SLAKING METHOD (EN 459-2.5.10)
Metodo di spegnimento
150 gr of lime is added at time = 0 to a thermos containing 600 cc of water at 20° the water with li me is kept in movement
C;
by an agitator at the speed of 400 rpm.
150 g di calce sono aggiunti al tempo = 0 in un termos contenente 600 cc di acqua a 20° l'acqua/calc e è tenuta in movimento da un agitatore alla velocità di 400 rpm.
C;
x The limestone sample is burnt in muffle at 1.150° for 3 hours.
C
Calcare cotto in muffola a 1.150° per 3 ore.
C
The limestone is burnt in kiln type:
Calcare cotto in forno tipo
80
70
60
67 4
67
67 3
67
67 8
66 5
66
66 7
65
65 7
64 1
64
,5
,5
63 9
,
,
,1
62
,
,
62 7
,1
,
61 0
,3
61
,
60 4
,
,5
50
59
,
58 7
,3
,
57 7
,
56
,2
55 4
,
,6
54
,
52 2
,
,6
51 8
,
40
,9
48
C
,
°
45 1
,
,7
41
30
,
34 0,6
3
,0
20
20
10
,0
0
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Min
Notes
Annotazioni
Maximum temperature 67,5 ºC
Temperatura massima
40° temperature increase
C 12,75 min
Aumento temperatura di 40°
C
Notes
Note
