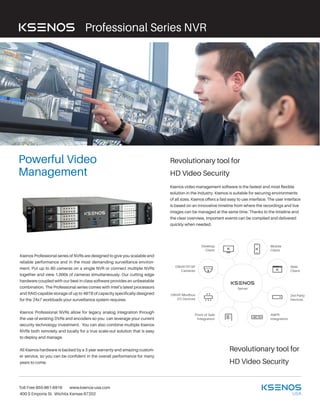

1. Toll Free 855-861-6916 www.ksenos-usa.com
400 S Emporia St. Wichita Kansas 67202
Ksenos Professional series of NVRs are designed to give you scalable and
reliable performance and in the most demanding surveillance environ-
ment. Put up to 80 cameras on a single NVR or connect multiple NVRs
together and view 1,000s of cameras simultaneously. Our cutting edge
hardware coupled with our best in class software provides an unbeatable
combination. The Professional series comes with Intel’s latest processors
and RAID capable storage of up to 48TB of capacity specifically designed
for the 24x7 workloads your surveillance system requires.
Ksenos Professional NVRs allow for legacy analog integration through
the use of existing DVRs and encoders so you can leverage your current
security technology investment. You can also combine multiple Ksenos
NVRs both remotely and locally for a true scale-out solution that is easy
to deploy and manage.
All Ksenos hardware is backed by a 3 year warranty and amazing custom-
er service, so you can be confident in the overall performance for many
years to come.
Ksenos video management software is the fastest and most flexible
solution in the industry. Ksenos is suitable for securing environments
of all sizes. Ksenos offers a fast easy to use interface. The user interface
is based on an innovative timeline from where the recordings and live
images can be managed at the same time. Thanks to the timeline and
the clear overview, important events can be compiled and delivered
quickly when needed.
Revolutionary tool for
HD Video Security
Powerful Video
Management
Revolutionary tool for
HD Video Security
Professional Series NVR

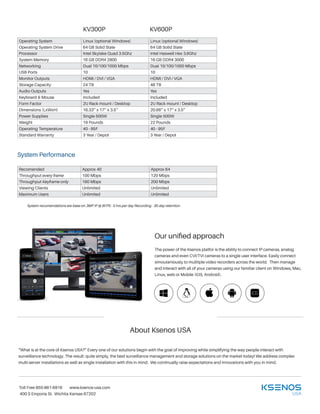

2. Toll Free 855-861-6916 www.ksenos-usa.com
400 S Emporia St. Wichita Kansas 67202
Operating System Linux (optional Windows) Linux (optional Windows)
Operating System Drive 64 GB Solid State 64 GB Solid State
Processor Intel Skylake Quad 3.5Ghz Intel Haswell Hex 3.6Ghz
System Memory 16 GB DDR4 2800 16 GB DDR4 3000
Networking Dual 10/100/1000 Mbps Dual 10/100/1000 Mbps
USB Ports 10 10
Monitor Outputs HDMI / DVI / VGA HDMI / DVI / VGA
Storage Capacity 24 TB 48 TB
Audio Outputs Yes Yes
Keyboard & Mouse Included Included
Form Factor 2U Rack mount / Desktop 2U Rack mount / Desktop
Dimensions (LxWxH) 16.33’’ x 17’’ x 3.5’’ 20.66’’ x 17’’ x 3.5’’
Power Supplies Single 500W Single 500W
Weight 19 Pounds 22 Pounds
Operating Temperature 40 - 95F 40 - 95F
Standard Warranty 3 Year / Depot 3 Year / Depot
KV300P KV600P
The power of the Ksenos platfor is the ability to connect IP cameras, analog
cameras and even CVI/TVI cameras to a single user interface. Easily connect
simoutaniously to mulitiple video recorders across the world. Then manage
and interact with all of your cameras using our familiar client on Windows, Mac,
Linux, web or Mobile (iOS, Android).
Our unified approach
Recomended Approx 40 Approx 64
Throughput every frame 100 Mbps 120 Mbps
Throughput Keyframe only 160 Mbps 200 Mbps
Viewing Clients Unlimited Unlimited
Maximum Users Unlimited Unlimited
System Performance
About Ksenos USA
“What is at the core of Ksenos USA?” Every one of our solutions begin with the goal of improving while simplifying the way people interact with
surveillance technology. The result: quite simply, the best surveillance management and storage solutions on the market today! We address complex
multi-server installations as well as single installation with this in mind. We continually raise expectations and innovations with you in mind.
System recomendations are base on 3MP IP @ 8FPS - 5 hrs per day Recording - 30 day retention
