The KDC200 is a compact and lightweight laser barcode data collector that enables mobile auto-identification applications. It decodes 1D barcodes and optional PDF417 with a bright OLED display to verify scanned data. It has a rechargeable battery that powers over 300 scans and stores over 10,000 barcodes on its 190KB of onboard memory. It connects to Windows applications via Bluetooth and KTSync software for synchronization and data import.

1. KDC200 Laser Barcode Data Collector
A New Wave in Auto-ID
Auto- ADVANCED FEATURES
The KDC200 enables diverse mobile Auto-Identification
applications for collecting and storing barcode data
data. Ultra Compact & Lightweight
With an OLED display to verify scanned data, no more Decodes 1D Symbologies &
blind or erroneous data collection.
PDF417 (optional)
And no more power shortages because of an easy-to- Bluetooth® V2.0+EDR, Class 2
replace battery that powers up more than 300 times
and recharges from any USB port. With 190KB of Bright 1” OLED Display
on-board memory for storing over 10,000 barcodes,
no more memory shortages either. Rechargeable Li-Poly Battery
All KDC products come with state-of-the-art KTSync ® Stores 10,000+ Barcodes
software for synchronization and terminal emulation that
directly imports scanned data into any Windows KTSync® Wedge & Sync. SW
application. And FREE for developers, is our SDK
including technical support from our top engineers and
development staff.
Transportation
Logistics
Healthcare Services
Field Services
Distribution
Retail
Property Management
116 Village Boulevard, Suite 200, Princeton, NJ 08540
A New Wave in Auto ID © 2009 KoamTac, Inc. KDC200-090701
TEL: 609-734-4335 EMAIL: info@koamtac.com www.koamtac.com

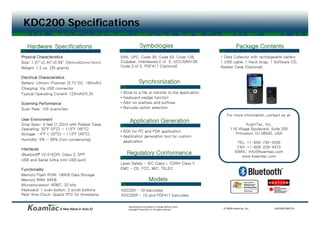

2. KDC200 Specifications
Hardware Specifications Symbologies Package Contents
Physical Characteristics EAN, UPC, Code 39, Code 93, Code 128, 1 Data Collector with rechargeable battery
Size: 1.37 2 44” 0 59” 35mmx62mmx15mm)
Si : 1 37”x2.44 x0.59 (35 62 15 ) Codabar,
Codabar Interleaved 2 of 5 UCC/EAN128
5, UCC/EAN128, 1 USB cable 1 Neck strap 1 Software CD
cable, strap, CD,
Weight: 1.2 oz. (35 grams) Code 3 of 5, PDF417 (Optional) Rubber Case (Optional)
Electrical Characteristics
Battery: Lithium-Polymer (3.7V DC, 190mAh) Synchronization
Charging: Vi USB connector
Ch i Via t
Typical Operating Current: 120mA@3.3V • Store to a file or transfer to the application
• Keyboard wedge function
Scanning Performance • Add-on prefixes and suffixes
Scan Rate: 100 scans/sec • Barcode option selection
For more information, contact us at:
User Environment
Application Generation
Drop Spec: 4 feet (1.22m) with Rubber Case KoamTac, Inc.
Operating: 32oF (0oC) ~ 113oF (45oC) 116 Village Boulevard, Suite 200
• SDK for PC and PDA application
Storage: -4oF (-20oC) ~ 113oF (45oC) Princeton, NJ 08540, USA
• Application generation tool for custom
Humidity:
H idit : 5% ~ 85% ( (non condensing)
d i ) application TEL: +1-609-734-4335
FAX: +1-609-228-4373
Interfaces
Regulatory Conformance EMAIL: info@koamtac.com
Bluetooth® V2.0+EDR, Class 2, SPP www.koamtac.com
USB and Serial (Ultra mini USB port)
Laser Safety - IEC Class I CDRH Class II
I,
Functionality EMC - CE, FCC, MIC, TELEC
Memory Flash ROM: 190KB Data Storage
Memory RAM: 64KB Models
Microprocessor: ARM7, 32 bits
Keyboard: 1 scan button 2 scroll buttons
button, KDC200 – 1D barcodes
Real-time Clock: Quartz RTC for timestamp KDC200P – 1D and PDF417 barcodes
Specifications are subject to change without notice.
A New Wave in Auto ID Copyright® KoamTac, Inc. All rights reserved. © 2009 KoamTac, Inc. KDC200-090701

3. KDC SOLUTIONS A New Wave in AUTO-ID
AUTO-
Transportation & Logistics Healthcare Services
Ultra compact, economically designed The healthcare industry is under enormous
KDC100/200/300 data collector provides pressure to reduce medical costs while still
sophisticated solutions for managing delivering quality patient care. KoamTac’s
couriers, packages, deliveries, and shipments ultra compact data collectors,
worldwide. Integrated with the latest GPS KDC100/200/300 connect to a PC, PDA, or
/ /
and 3G wireless technologies, the features smartphone, providing speedy access to
and functionality of KoamTac’s scanners patients’ medical data and insurance
stand out compared to any legacy or records at a fraction of the cost for
industrial solutions available today. traditional Auto-ID solutions.
Field Services Property Management
Throughout the field service industries like KoamTac’s powerful KDC100/200/300
pest control, equipment installation, repair connects to your host computer making
and maintenance, and industrial cleaning, management of multiple properties, hotel
quality customer service is the key to guests, or conference attendees simple. Scan
keeping loyal customers. Field service a guest’s ID, vendor’s badge, or driver’s
technicians carrying KoamTac’s license for instant access to accurate data
sophisticated KDC100/200/300 with quick verified remotely using a PC, PDA, or
access to accurate, up-to-the-second, smartphone. Trade your bulky legacy solution
customer data is the new wave in Auto-ID f an affordable new wave i A t ID
for ff d bl in Auto-ID.
solutions that’s affordable, too.
Distribution & Retail
With KoamTac’s KDC100/200/300, employees For more information, contact us at:
easily stock and restock items instantly access
items,
customer history, and quickly query inventory KoamTac, Inc.
with accurate, real time data, necessary for 116 Village Boulevard, Suite 200
delivering quality service your customers Princeton, NJ 08540, USA
demand. Faster checkout lines, accurate TEL: +1-609-734-4335
product pricing and streamlined order entry
pricing, entry, FAX: +1 609 228 4373
+1-609-228-4373
KoamTac’s Auto-ID technology increase retail EMAIL: info@koamtac.com
sales by delivering quality customer service www.koamtac.com
through affordable Auto-ID technology.
