The document describes the Kawasaki Ninja ZX-14 supersport motorcycle. It highlights features like the 1,352cc engine, radial-mount front brake calipers, multi-function LCD instrumentation, and quadruple projector-beam headlights. Additional details provided include specifications, available accessories, financing options through Kawasaki, and an emphasis on safe and responsible riding.

1. ONESTOPMOTORS.COM Inc.
2950 South Rancho, Suite 200
Las Vegas, Nevada, 89102
Sales: (877) 566-6686
http://www.onestopmotors.com/

2. From its monocoque aluminum frame to its wind-tunnel tested bodywork to the sheer
audaciousness of its 1,352cc In-Line Four engine, the Kawasaki Ninja ZX-14 exists for one
reason only – to be the meanest, strongest, baddest and best supersport of them all.
Kawasaki's committed every detail to reflect this mission of providing the ultimate supersport
thrill. So if you’re ready, climb aboard.
Radial-Mount Front
Brake Calipers
High rigidity gives the ZX-14’s
twin radial-mount front brake
calipers extraordinary feel, while
four separate brake pads per
caliper improve cooling efficiency
while reducing brake fade. The
result is maximum stopping
power and enhanced rider
confidence, corner after corner.
Black finish is highly resistant to
heat, brake dust and road grime.
Multi-Function LCD
Instrumentation
Easy-to-read white-faced analog
speedometer and tachometer are
joined by a multi-function LCD
display featuring an odometer
and twin trip meters, a fuel
gauge, gear-position indicator
and clock. A programmable shift
indicator lamp signals when to
upshift, while a programmable
clutch-engagement lamp signals
to engage the clutch.

3. Quadruple Projector-
Beam Headlights
Unmistakable for anything else
on the road, the ZX-14’s
quadruple projector-beam
headlights provide terrific
visibility by day – and blaze a
brilliant path through the night.
The inner headlights are the low
beams, while the outer high-
beam headlights double as
position lamps. Center Ram Air
inlet provides a signature
Kawasaki look.
Standard Rear Seat
Cowl
Aerodynamically styled rear seat
cowl attaches quickly, turning
the ZX-14 from a two-person
road burner into a one-person
drag strip master. Color
coordinated in Ebony, the
lightweight cowl integrates
beautifully with either ZX-14
color. For added security, the
rear seat cowl cannot be
removed without first unlocking
the seat.
Hydraulic Clutch
Premium-quality radial-pump
hydraulic clutch master cylinder
provides smooth, precise
engagement and outstanding
feel. The clutch master cylinder
has its own transparent reservoir
allowing easy fluid-level
inspection. The black-finish
clutch lever is quickly adjustable
with a simple thumbwheel,
letting you fine-tune the lever
position for your hand size and
preference.

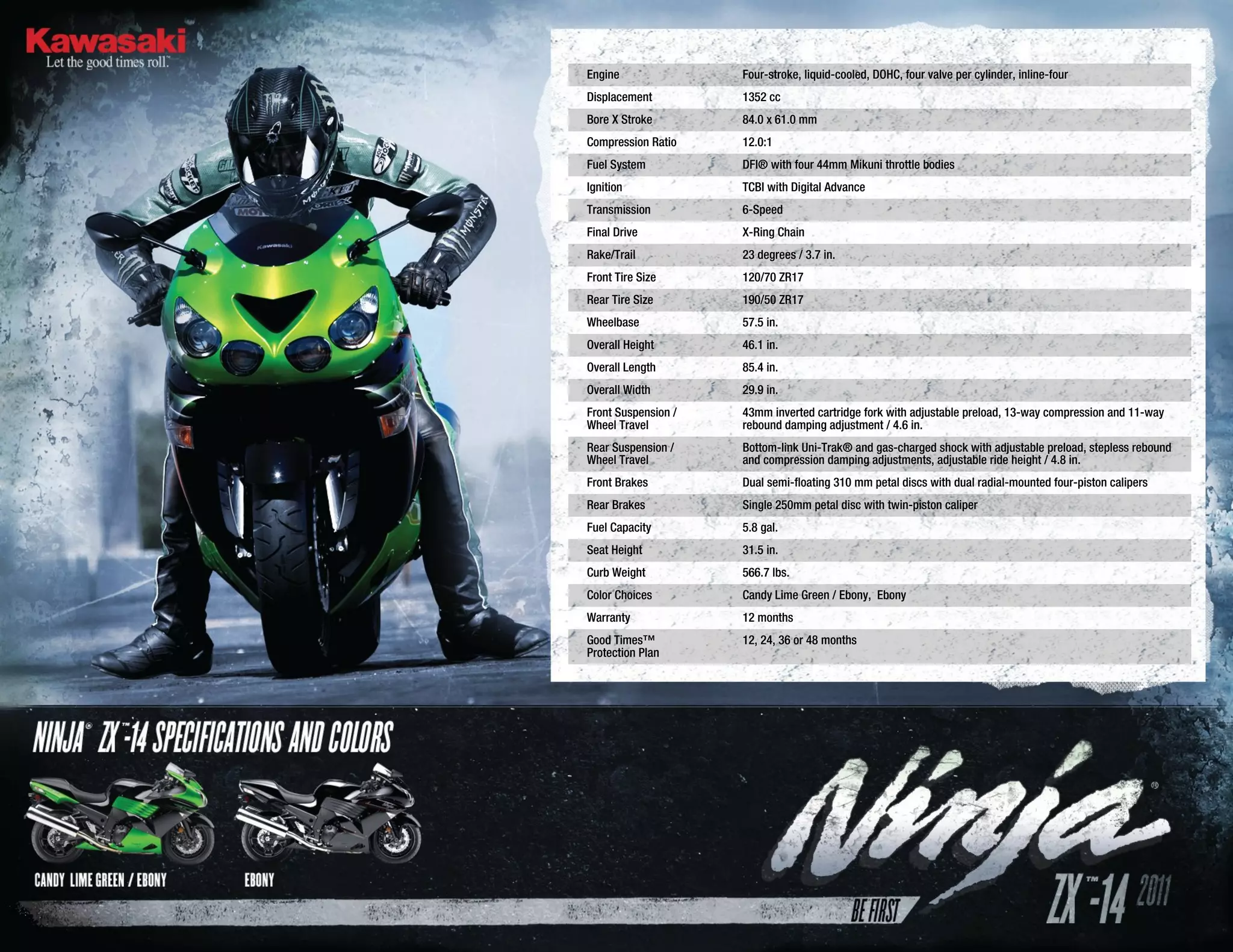

4. Engine Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four
Displacement 1352 cc
Bore X Stroke 84.0 x 61.0 mm
Compression Ratio 12.0:1
Fuel System DFI® with four 44mm Mikuni throttle bodies
Ignition TCBI with Digital Advance
Transmission 6-Speed
Final Drive X-Ring Chain
Rake/Trail 23 degrees / 3.7 in.
Front Tire Size 120/70 ZR17
Rear Tire Size 190/50 ZR17
Wheelbase 57.5 in.
Overall Height 46.1 in.
Overall Length 85.4 in.
Overall Width 29.9 in.
Front Suspension /
Wheel Travel
43mm inverted cartridge fork with adjustable preload, 13-way compression and 11-way
rebound damping adjustment / 4.6 in.
Rear Suspension /
Wheel Travel
Bottom-link Uni-Trak® and gas-charged shock with adjustable preload, stepless rebound
and compression damping adjustments, adjustable ride height / 4.8 in.
Front Brakes Dual semi-floating 310 mm petal discs with dual radial-mounted four-piston calipers
Rear Brakes Single 250mm petal disc with twin-piston caliper
Fuel Capacity 5.8 gal.
Seat Height 31.5 in.
Curb Weight 566.7 lbs.
Color Choices Candy Lime Green / Ebony, Ebony
Warranty 12 months
Good Times™
Protection Plan
12, 24, 36 or 48 months

5. CHROME PASSENGER
GRAB HANDLE
Give your passenger additional
comfort with style with this
gleaming triple-plated chrome-
finished grab handle.
CHROME PASSENGER
FOOTPEG MOUNT
Give your passenger additional
comfort with style with this
gleaming triple-plated chrome-
finished footpeg mount.
CHROME DRIVER
FOOTPEG MOUNT/
HEELGUARD
Protect your bike with shiny triple
chrome-plated driver footpeg
mounts.
CHROME BAR ENDS
Add some bling to your bike with
these ultra glossy triple chrome-
plated finished bar ends.
NINJA TAGGED T-
SHIRT
Stylish and comfortable with
graphics for a lived-in feel.
NINJA SPEED CAP
Keep the sun off your face in this
fitted cap with exclusive
embroidery.

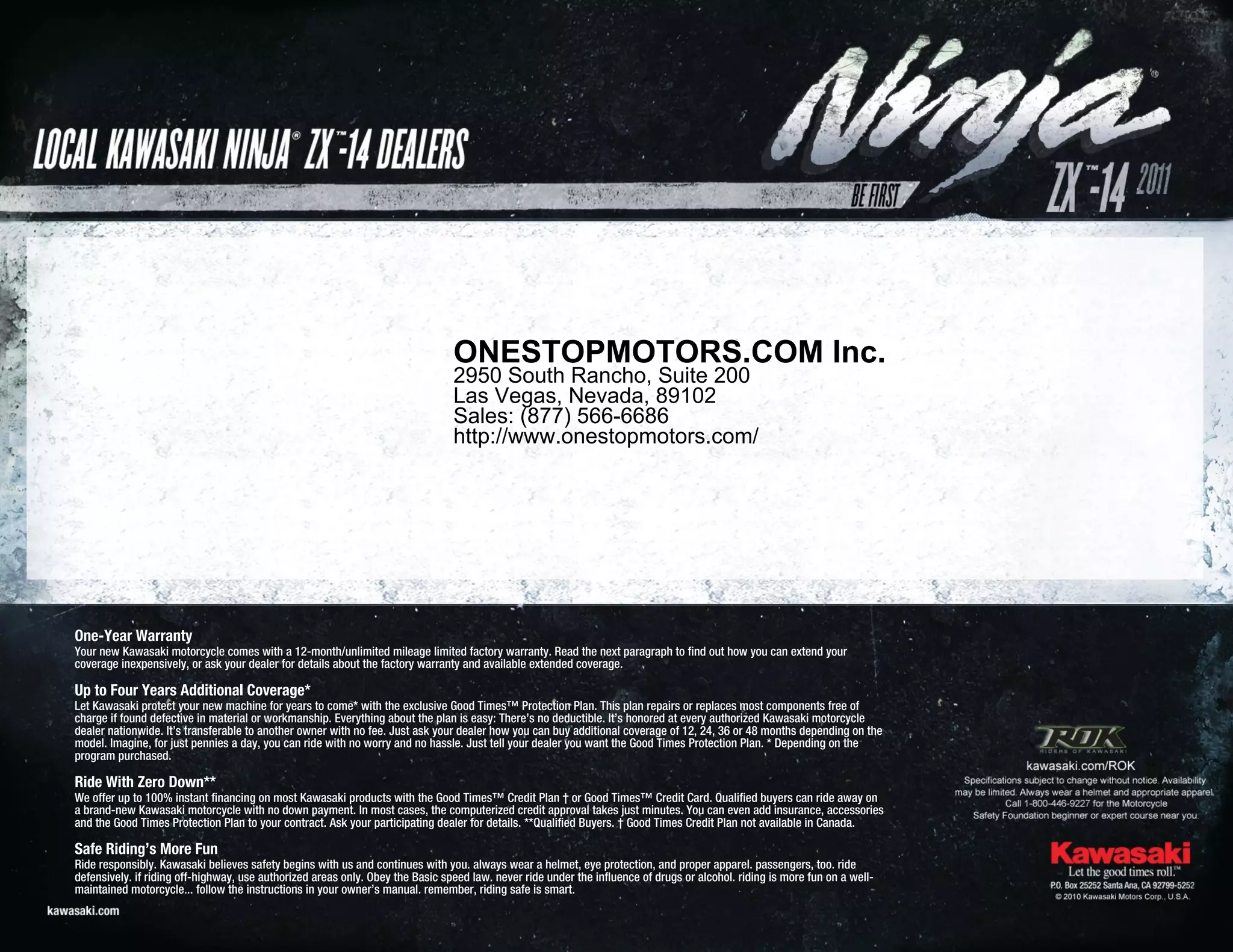

6. One-Year Warranty
Your new Kawasaki motorcycle comes with a 12-month/unlimited mileage limited factory warranty. Read the next paragraph to find out how you can extend your
coverage inexpensively, or ask your dealer for details about the factory warranty and available extended coverage.
Up to Four Years Additional Coverage*
Let Kawasaki protect your new machine for years to come* with the exclusive Good Times™ Protection Plan. This plan repairs or replaces most components free of
charge if found defective in material or workmanship. Everything about the plan is easy: There’s no deductible. It’s honored at every authorized Kawasaki motorcycle
dealer nationwide. It’s transferable to another owner with no fee. Just ask your dealer how you can buy additional coverage of 12, 24, 36 or 48 months depending on the
model. Imagine, for just pennies a day, you can ride with no worry and no hassle. Just tell your dealer you want the Good Times Protection Plan. * Depending on the
program purchased.
Ride With Zero Down**
We offer up to 100% instant financing on most Kawasaki products with the Good Times™ Credit Plan † or Good Times™ Credit Card. Qualified buyers can ride away on
a brand-new Kawasaki motorcycle with no down payment. In most cases, the computerized credit approval takes just minutes. You can even add insurance, accessories
and the Good Times Protection Plan to your contract. Ask your participating dealer for details. **Qualified Buyers. † Good Times Credit Plan not available in Canada.
Safe Riding’s More Fun
Ride responsibly. Kawasaki believes safety begins with us and continues with you. always wear a helmet, eye protection, and proper apparel. passengers, too. ride
defensively. if riding off-highway, use authorized areas only. Obey the Basic speed law. never ride under the influence of drugs or alcohol. riding is more fun on a well-
maintained motorcycle... follow the instructions in your owner’s manual. remember, riding safe is smart.
