Varnish is a reverse proxy cache that is designed to accelerate HTTP-based websites. It uses a domain-specific configuration language called VCL to define backend servers, caching rules, and other settings. Key aspects of the Varnish configuration covered include backend definitions, directors, vcl_recv for caching rules, vcl_hash for object identification, and vcl_fetch for backend object handling. The document discusses using Varnish to cache the homepage of a website called KeezMovies, addressing challenges of geolocation, analytics cookies, and non-idempotent requests.

1. Varnish– A brief introductionNicolas A. Bérard-NaultJune 15, 2011

2. Regular page view

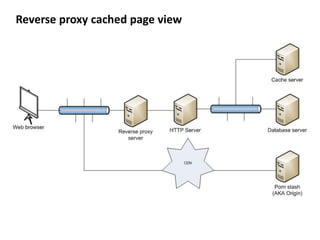

3. Reverse proxy cached page view

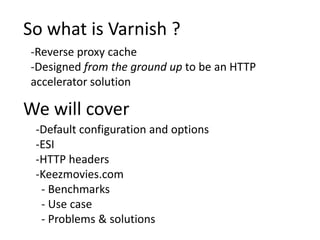

4. So whatisVarnish ?Reverse proxy cache

5. Designedfrom the ground up to be an HTTP accelerator solutionWewillcoverDefault configuration and options

6. ESI

7. HTTP headers

8. Keezmovies.com - Benchmarks - Use case - Problems & solutions

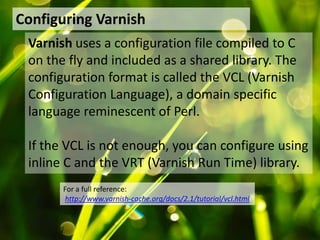

9. ConfiguringVarnishVarnish uses a configuration file compiled to C on the fly and included as a sharedlibrary. The configuration format iscalled the VCL (Varnish Configuration Language), a domainspecificlanguagereminescent of Perl.If the VCL is not enough, youcan configure usinginline C and the VRT (VarnishRun Time) library.For a full reference: http://www.varnish-cache.org/docs/2.1/tutorial/vcl.html

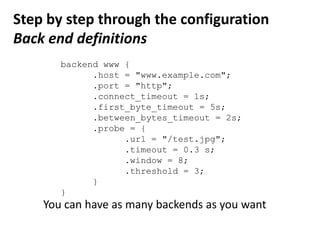

10. Step by stepthrough the configurationBack end definitionsbackend www { .host = "www.example.com"; .port = "http"; .connect_timeout = 1s; .first_byte_timeout = 5s; .between_bytes_timeout = 2s; .probe = { .url = "/test.jpg"; .timeout = 0.3 s; .window = 8; .threshold = 3; } }You can have as manybackends as youwant

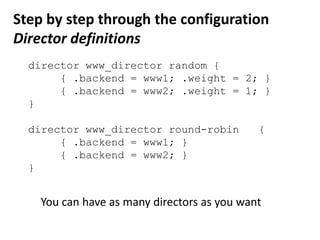

11. Step by stepthrough the configurationDirectordefinitionsdirector www_director random { { .backend = www1; .weight = 2; } { .backend = www2; .weight = 1; } }director www_directorround-robin { { .backend = www1; } { .backend = www2; } }You can have as manydirectors as youwant

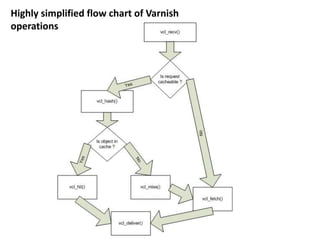

12. Highlysimplified flow chartof Varnishoperations

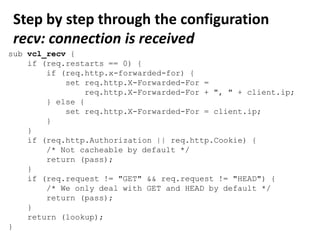

13. Step by stepthrough the configurationrecv: connectionisreceivedsub vcl_recv { if (req.restarts == 0) { if (req.http.x-forwarded-for) { set req.http.X-Forwarded-For =req.http.X-Forwarded-For + ", " + client.ip; } else { set req.http.X-Forwarded-For = client.ip; }}if (req.http.Authorization || req.http.Cookie) { /* Not cacheable by default */ return (pass); } if (req.request != "GET" && req.request != "HEAD") { /* We only deal with GET and HEAD by default */ return (pass); } return (lookup);}

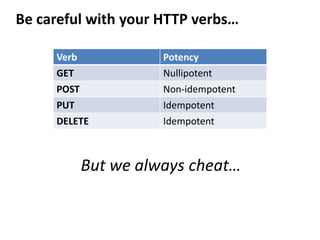

14. Be carefulwithyour HTTP verbs…But wealwayscheat…

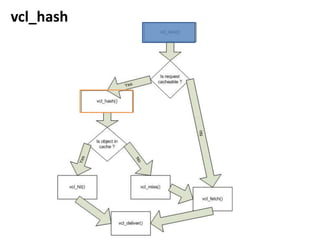

15. vcl_hash

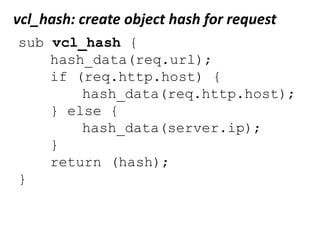

16. vcl_hash: createobject hash for requestsub vcl_hash {hash_data(req.url); if (req.http.host) {hash_data(req.http.host); } else {hash_data(server.ip); } return (hash);}

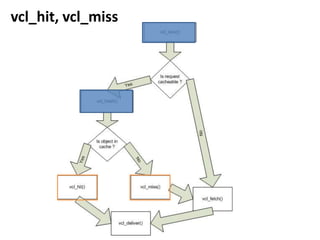

17. vcl_hit, vcl_miss

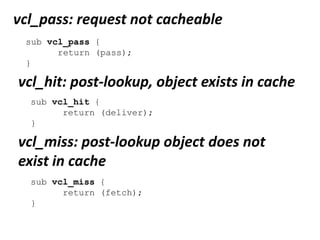

18. vcl_pass: request not cacheablesub vcl_pass{ return (pass);}vcl_hit: post-lookup, objectexists in cachesub vcl_hit { return (deliver);}vcl_miss: post-lookupobjectdoes not exist in cachesub vcl_miss { return (fetch);}

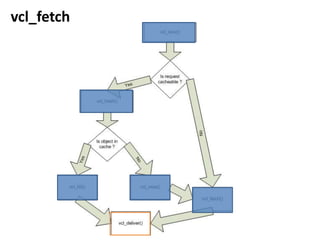

19. vcl_fetch

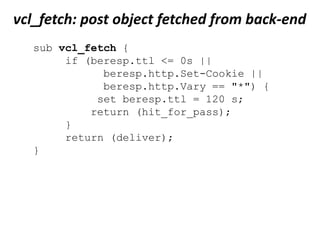

20. vcl_fetch: post objectfetchedfrom back-endsub vcl_fetch { if (beresp.ttl <= 0s || beresp.http.Set-Cookie || beresp.http.Vary== "*") { set beresp.ttl = 120 s; return (hit_for_pass); } return (deliver);}

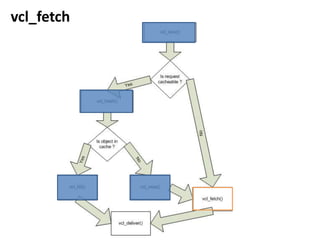

21. vcl_fetch

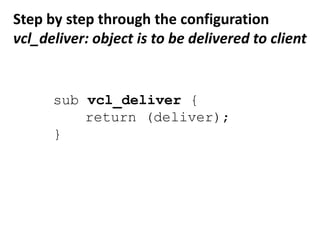

22. Step by stepthrough the configurationvcl_deliver: objectis to bedelivered to clientsub vcl_deliver { return (deliver);}

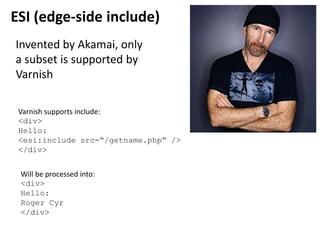

23. ESI (edge-sideinclude)Invented by Akamai, only a subsetissupported by VarnishVarnish supports include:<div>Hello:<esi:includesrc=“/getname.php“ /></div>Will beprocessedinto:<div>Hello:Roger Cyr</div>

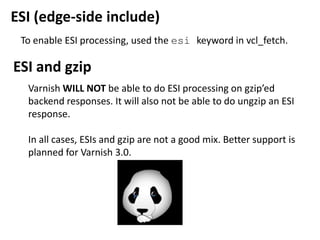

24. ESI (edge-sideinclude)To enable ESI processing, used the esikeyword in vcl_fetch.ESI and gzipVarnishWILL NOT be able to do ESI processing on gzip’edbackendresponses. It willalso not be able to do ungzip an ESI response.In all cases, ESIs and gzip are not a good mix. Better support isplanned for Varnish 3.0.

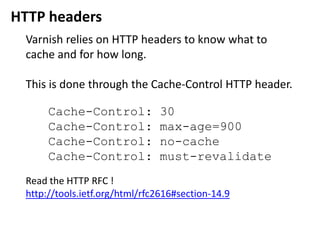

25. HTTP headersVarnish relies on HTTP headers to know what to cache and for how long.This isdonethrough the Cache-Control HTTP header.Cache-Control: 30Cache-Control: max-age=900Cache-Control: no-cacheCache-Control: must-revalidateRead the HTTP RFC !http://tools.ietf.org/html/rfc2616#section-14.9

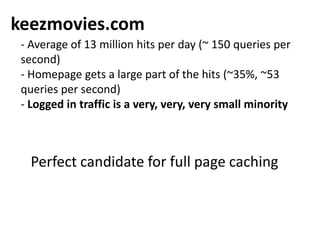

26. keezmovies.com

27. keezmovies.comAverage of 13 million hits per day (~ 150 queries per second)

28. Homepagegets a large part of the hits (~35%, ~53 queries per second)

29. Logged in trafficis a very, very, verysmallminorityPerfect candidate for full page caching

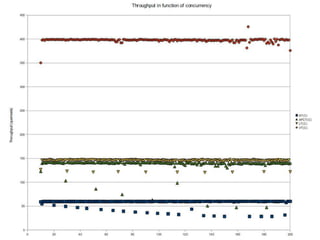

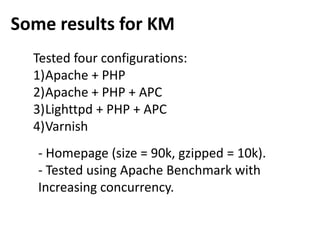

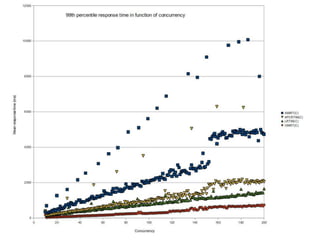

30. Someresults for KMTested four configurations:Apache + PHPApache + PHP + APCLighttpd + PHP + APCVarnish- Homepage (size = 90k, gzipped = 10k).- Testedusing Apache Benchmark withIncreasingconcurrency.

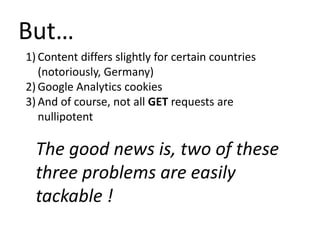

34. But…Content differsslightly for certain countries (notoriously, Germany)Google Analytics cookiesAnd of course, not all GETrequests are nullipotentThe good news is, two of thesethreeproblems are easilytackable !

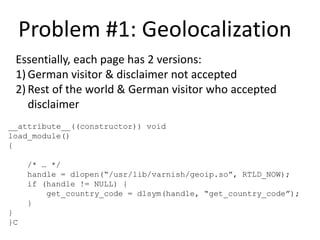

35. Problem #1: GeolocalizationEssentially, each page has 2 versions:Germanvisitor & disclaimer not acceptedRest of the world & Germanvisitorwhoaccepteddisclaimer__attribute__((constructor)) voidload_module(){ /* … */handle = dlopen(“/usr/lib/varnish/geoip.so”, RTLD_NOW);if (handle != NULL) {get_country_code= dlsym(handle, “get_country_code”);}}}C

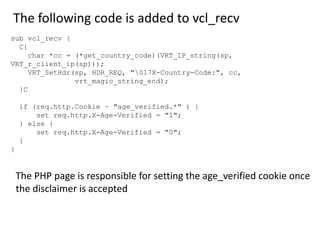

36. The following code isadded to vcl_recvsubvcl_recv { C{ char *cc = (*get_country_code)(VRT_IP_string(sp, VRT_r_client_ip(sp)));VRT_SetHdr(sp, HDR_REQ, "\017X-Country-Code:", cc, vrt_magic_string_end); }C if (req.http.Cookie ~ "age_verified.*" ) { set req.http.X-Age-Verified = "1"; } else { set req.http.X-Age-Verified = "0"; }}The PHP page isresponsible for setting the age_verified cookie oncethe disclaimerisaccepted
