JavaOne 2014: Next Step in Automation: Elastic Build Environment
- 1. Next Step inAutomation: Elastic Build Environment Kohsuke Kawaguchi / CloudBees, Inc. kk@kohsuke.org / @kohsukekawa Jesse Glick / CloudBees, Inc. jglick@cloudbees.com / @tyvole ©2013 CloudBees, Inc. All Rights Reserved 1
- 2. Have You MetJenkins? http://jenkins-ci.org/ ©2013 CloudBees, Inc. All Rights Reserved 2
- 3. ©2013 CloudBees, Inc.All Rights Reserved 3
- 4. ©2013 CloudBees, Inc.All Rights Reserved 4

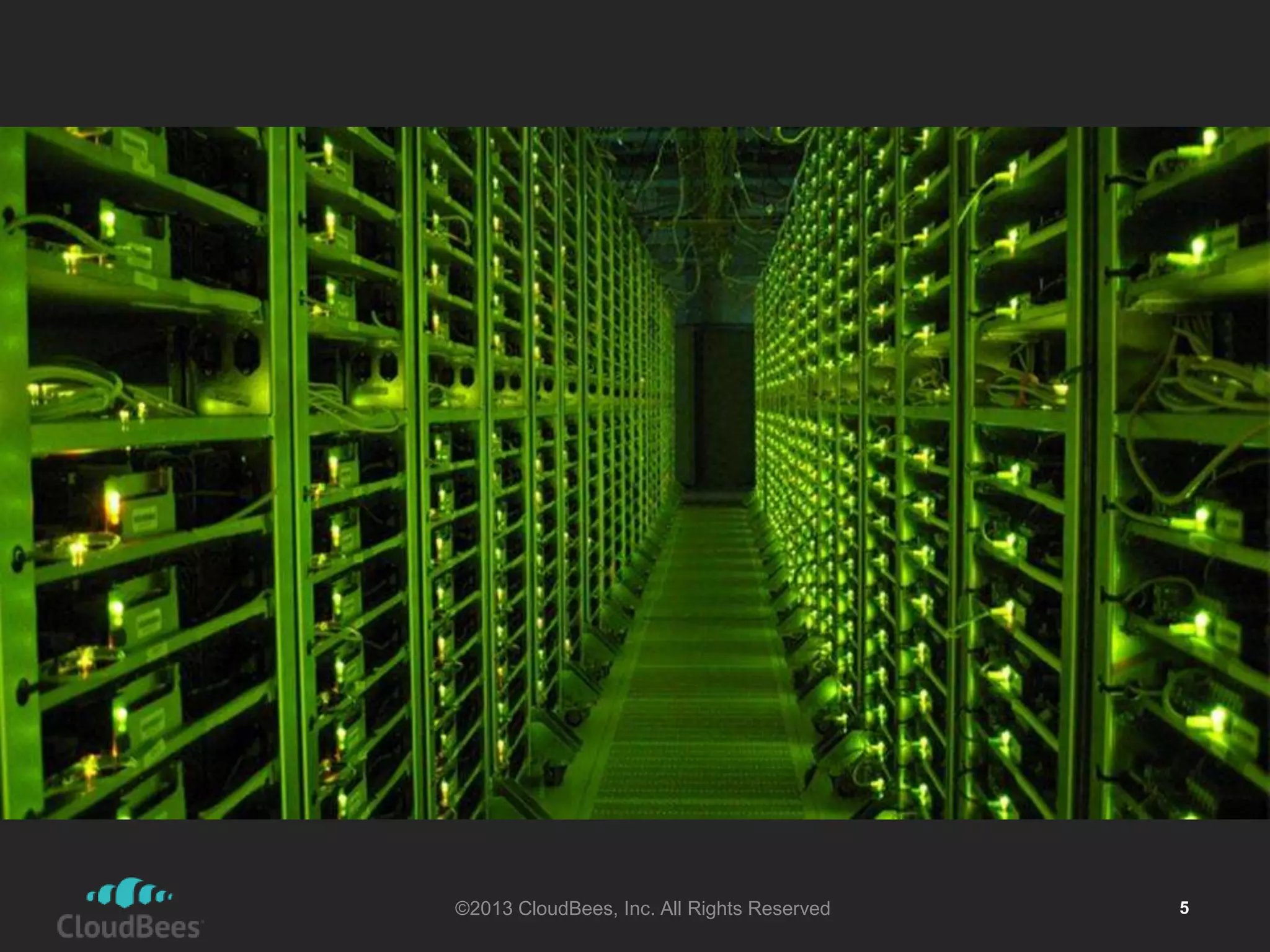

- 5. ©2013 CloudBees, Inc.All Rights Reserved 5

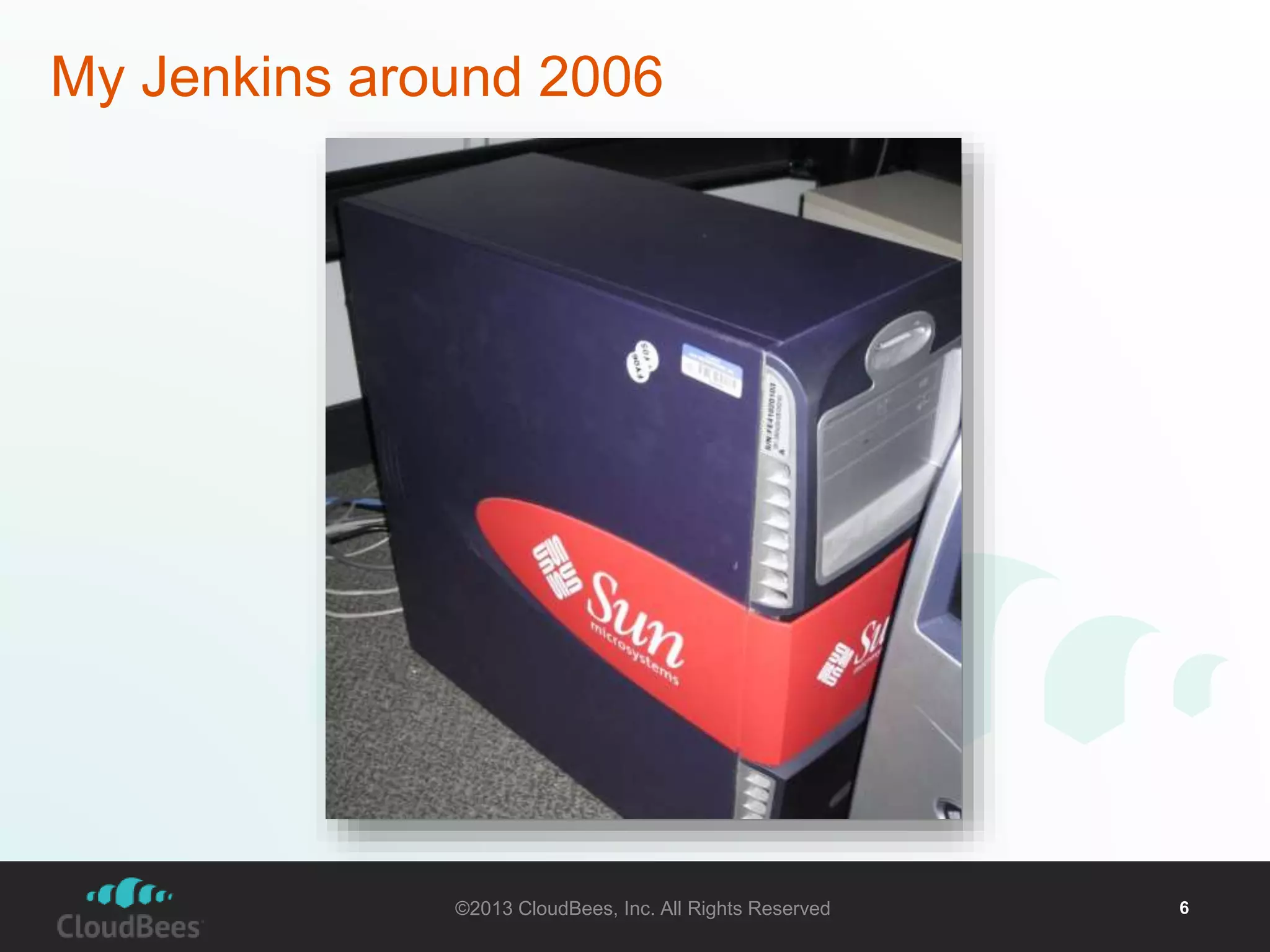

- 6. My Jenkins around2006 ©2013 CloudBees, Inc. All Rights Reserved 6

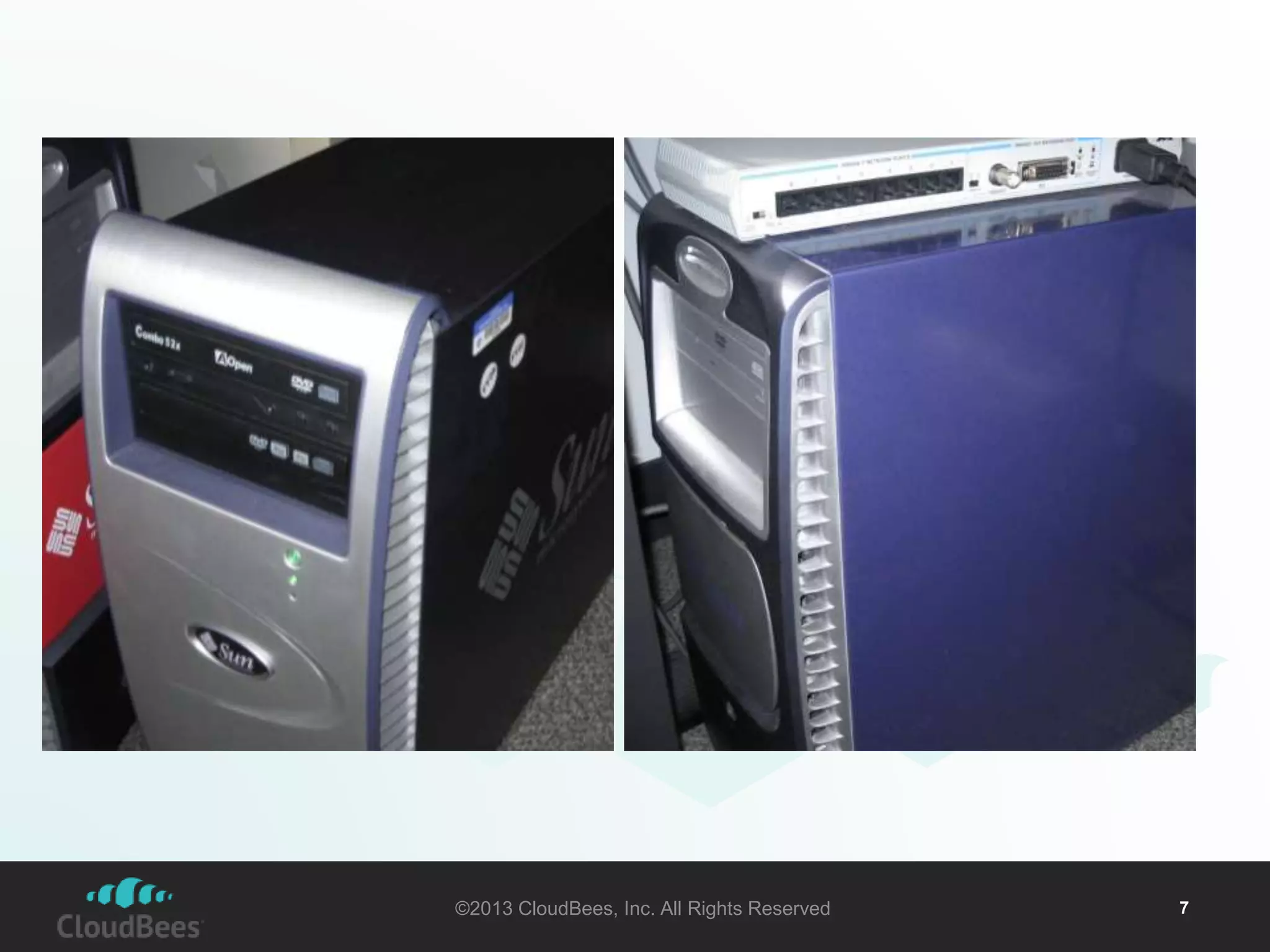

- 7. ©2013 CloudBees, Inc.All Rights Reserved 7

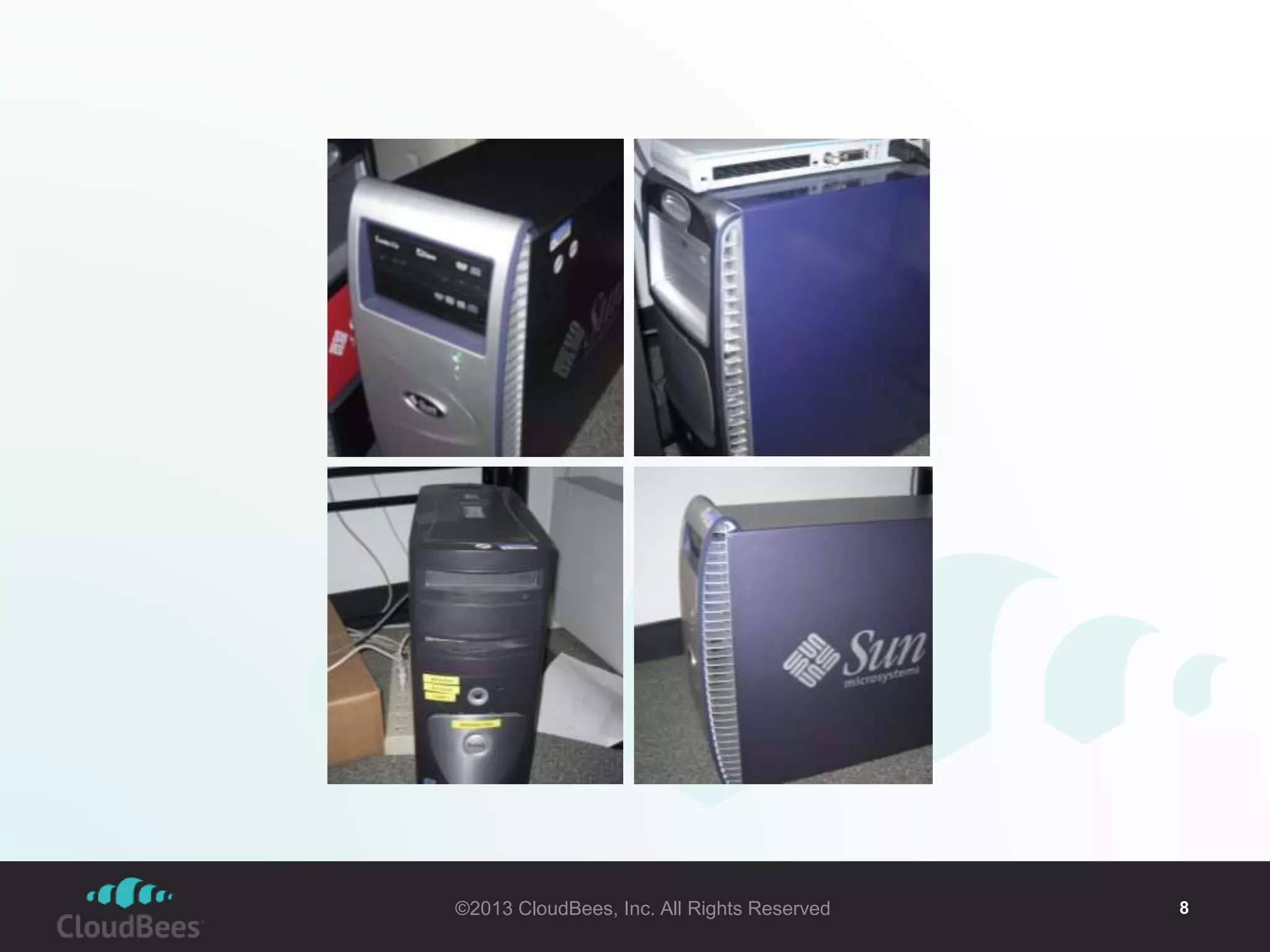

- 8. ©2013 CloudBees, Inc.All Rights Reserved 8
- 9. ©2013 CloudBees, http://www.flickr.com/pIhnoct.o As/lgl bRyirgnhetss/ 9R1e25s7e6rv8e83d/ 9

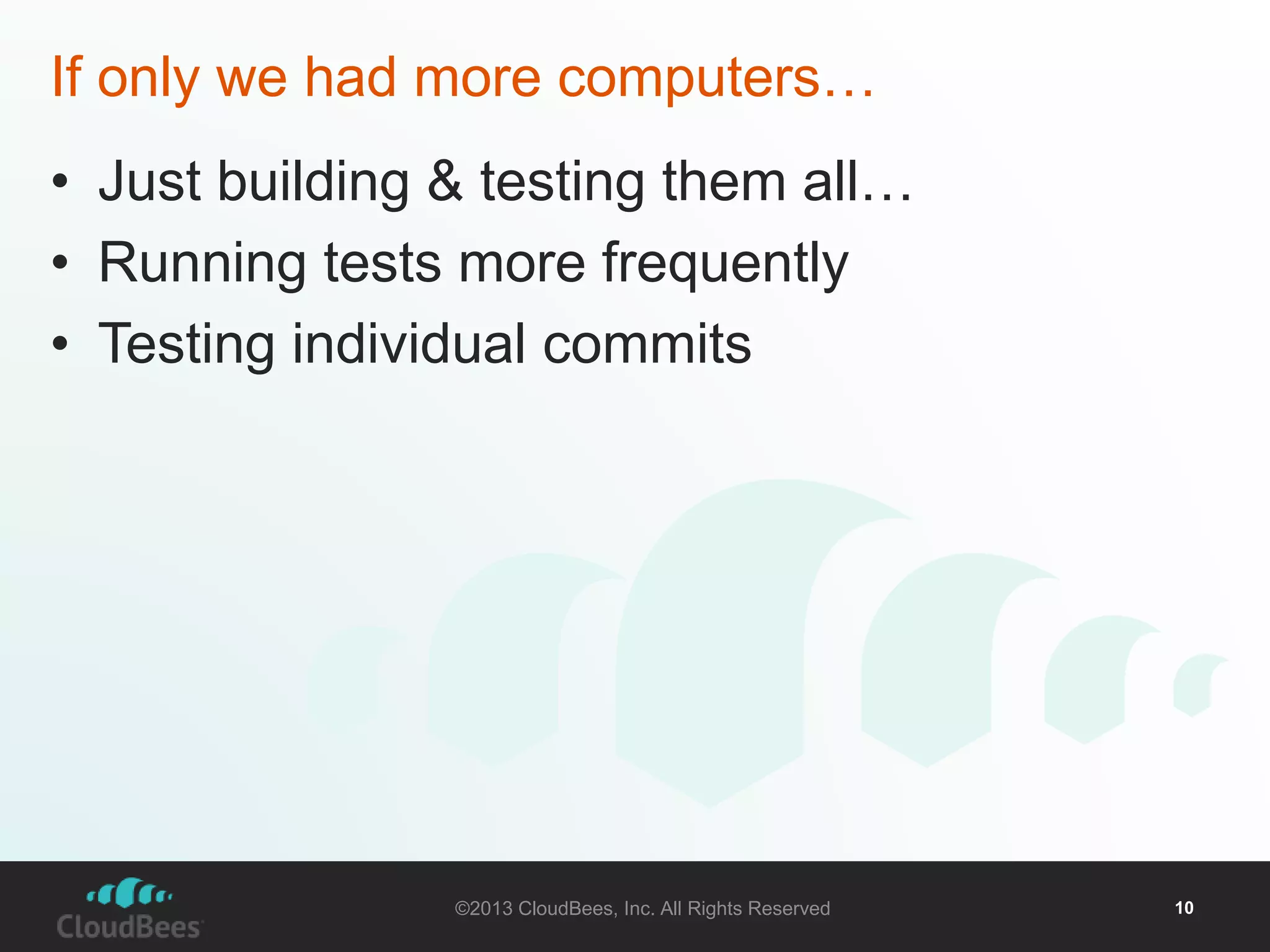

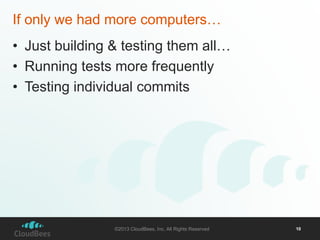

- 10. If only wehad more computers… • Just building & testing them all… • Running tests more frequently • Testing individual commits ©2013 CloudBees, Inc. All Rights Reserved 10
- 11. ©2013 CloudBees, Inc.All Rights Reserved 11 http://www.flickr.com/photos/drocpsu/8546730021/

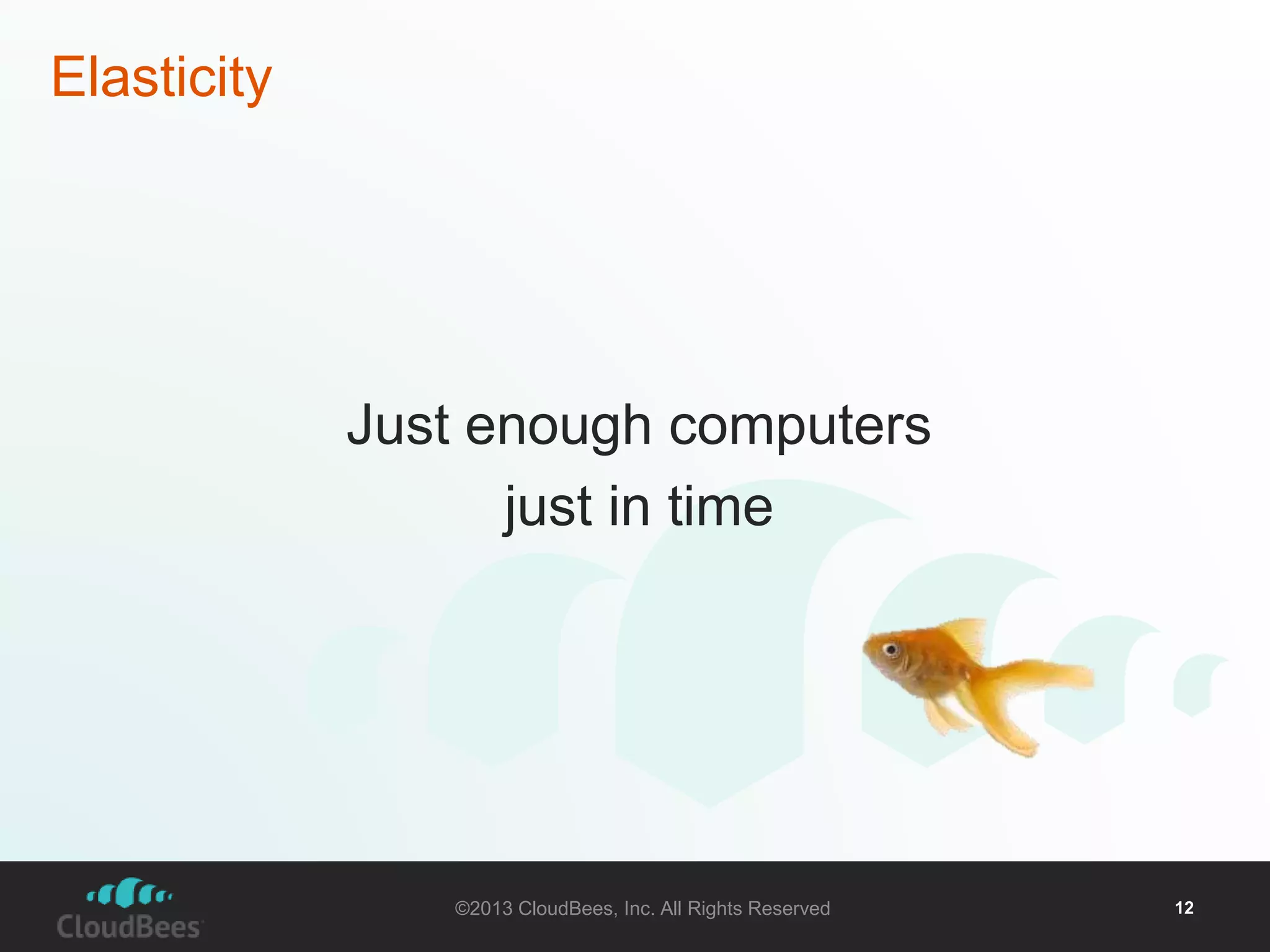

- 12. Just enough computers just in time ©2013 CloudBees, Inc. All Rights Reserved 12 Elasticity

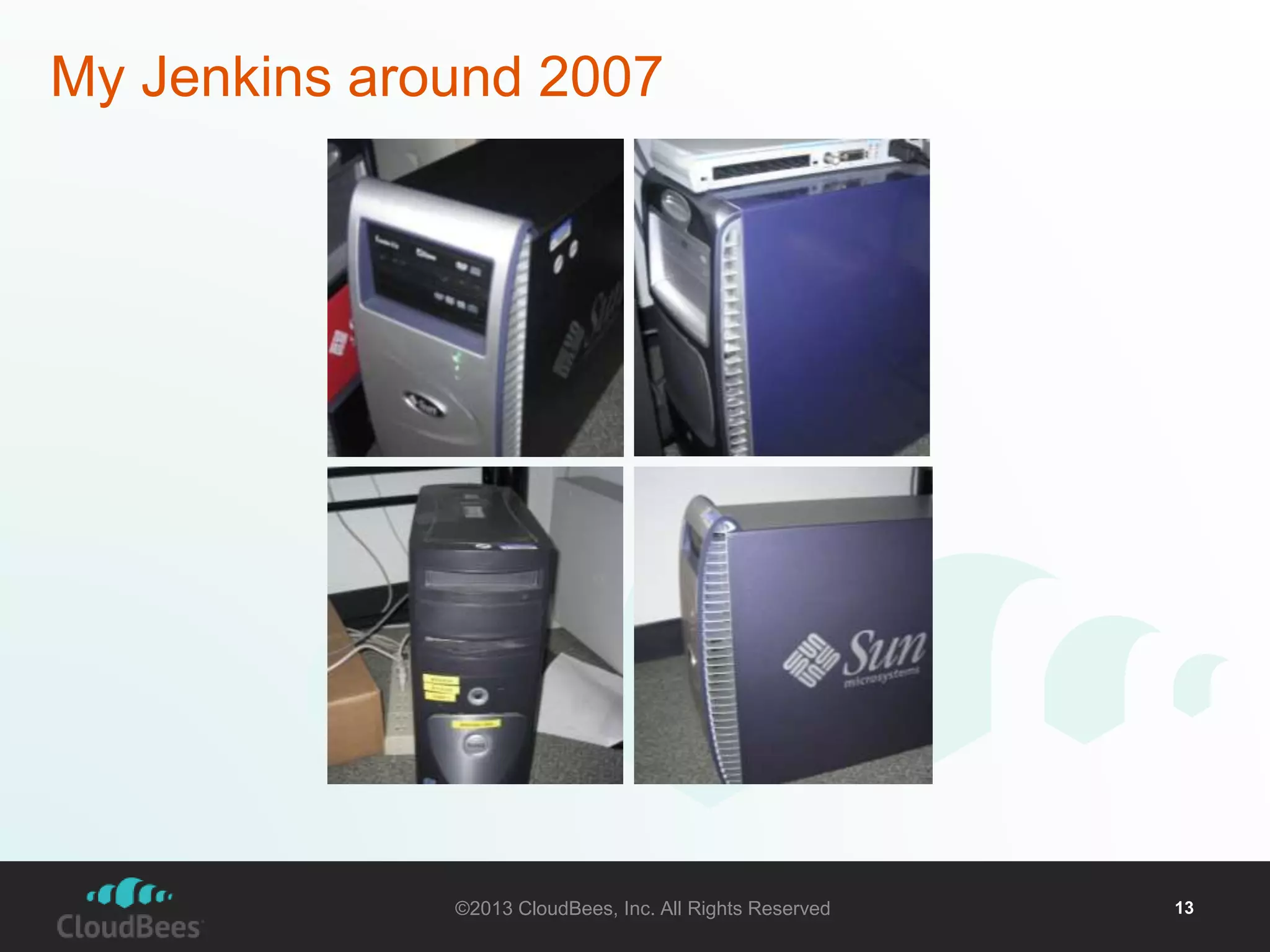

- 13. My Jenkins around2007 ©2013 CloudBees, Inc. All Rights Reserved 13

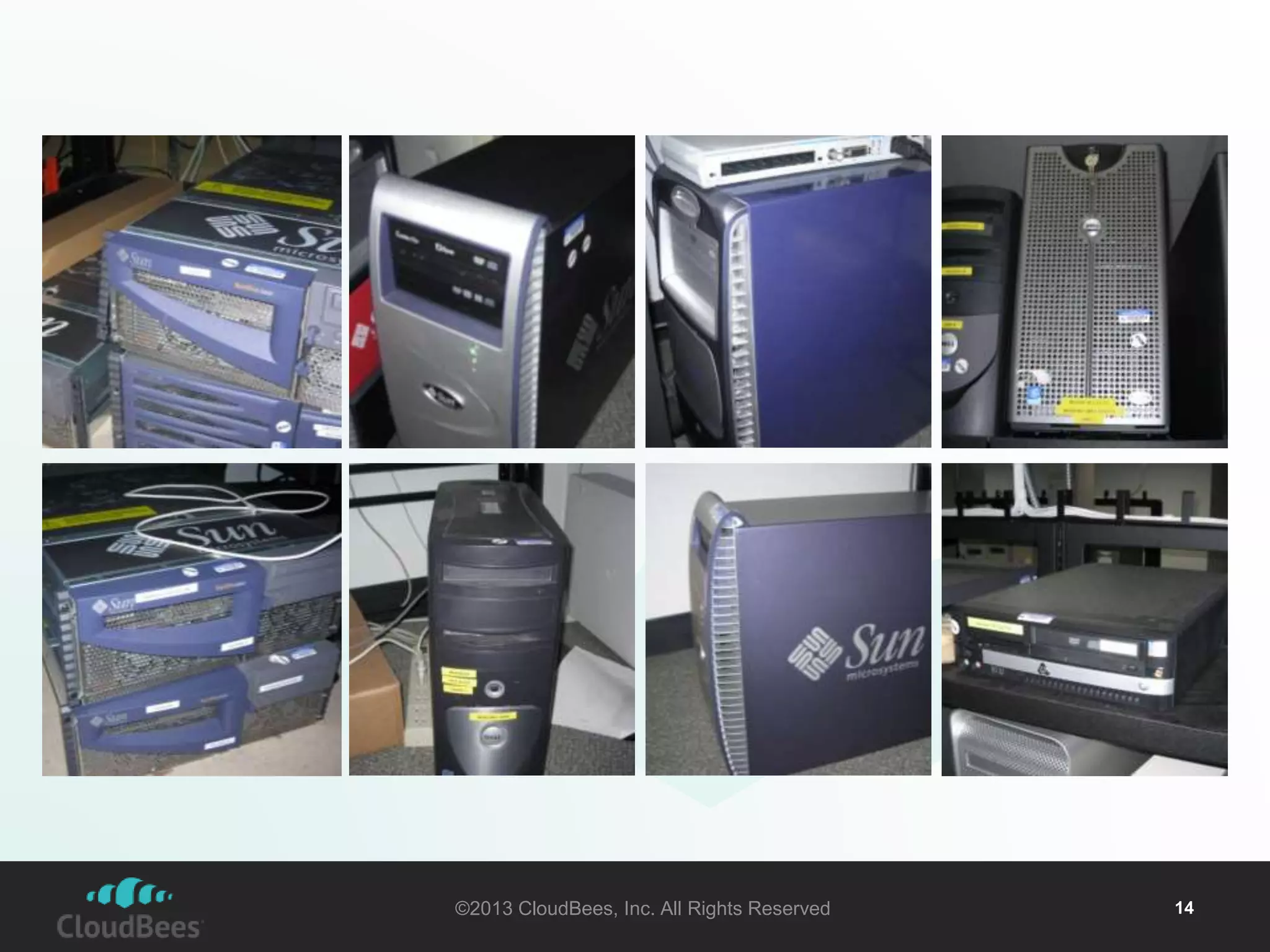

- 14. ©2013 CloudBees, Inc.All Rights Reserved 14

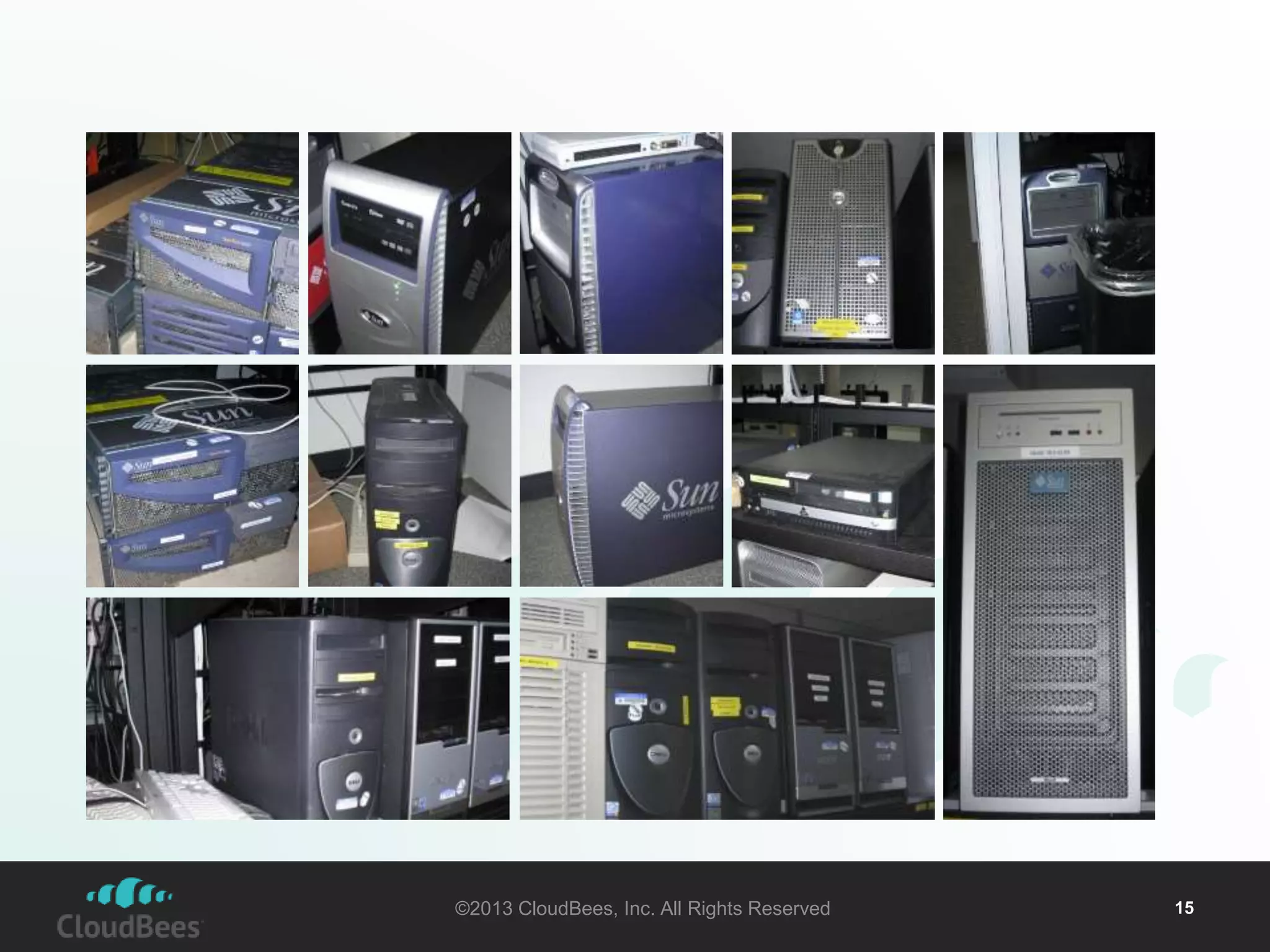

- 15. ©2013 CloudBees, Inc.All Rights Reserved 15
- 16. ©2013 CloudBees, Inc.All Rights Reserved 16
- 17. ©2013 CloudBees, Inc.All Rights Reserved 17 http://www.flickr.com/photos/drocpsu/8546730021/
- 18. ©2013 CloudBees, Inc.All Rights Reserved 18 18

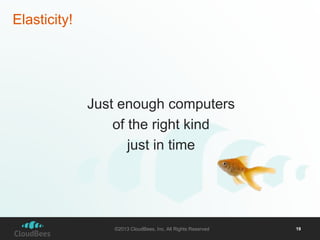

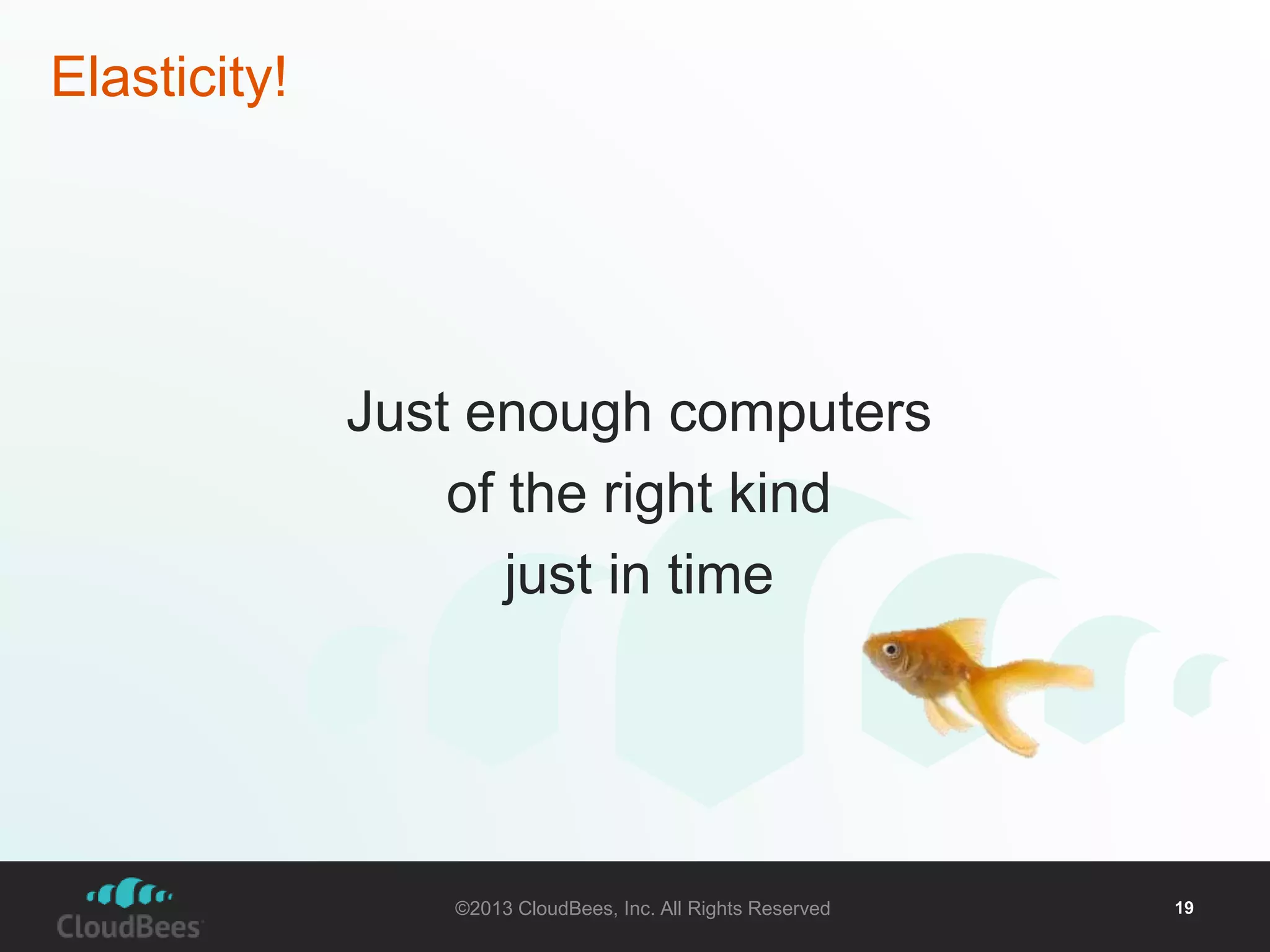

- 19. Just enough computers of the right kind just in time ©2013 CloudBees, Inc. All Rights Reserved 19 Elasticity!
- 20. ©2013 CloudBees, http://www.flickr.com/phInotco. sA/8ll2 R21ig9h20ts6 @ReNs0e0r/v7e00d3641975/ 20

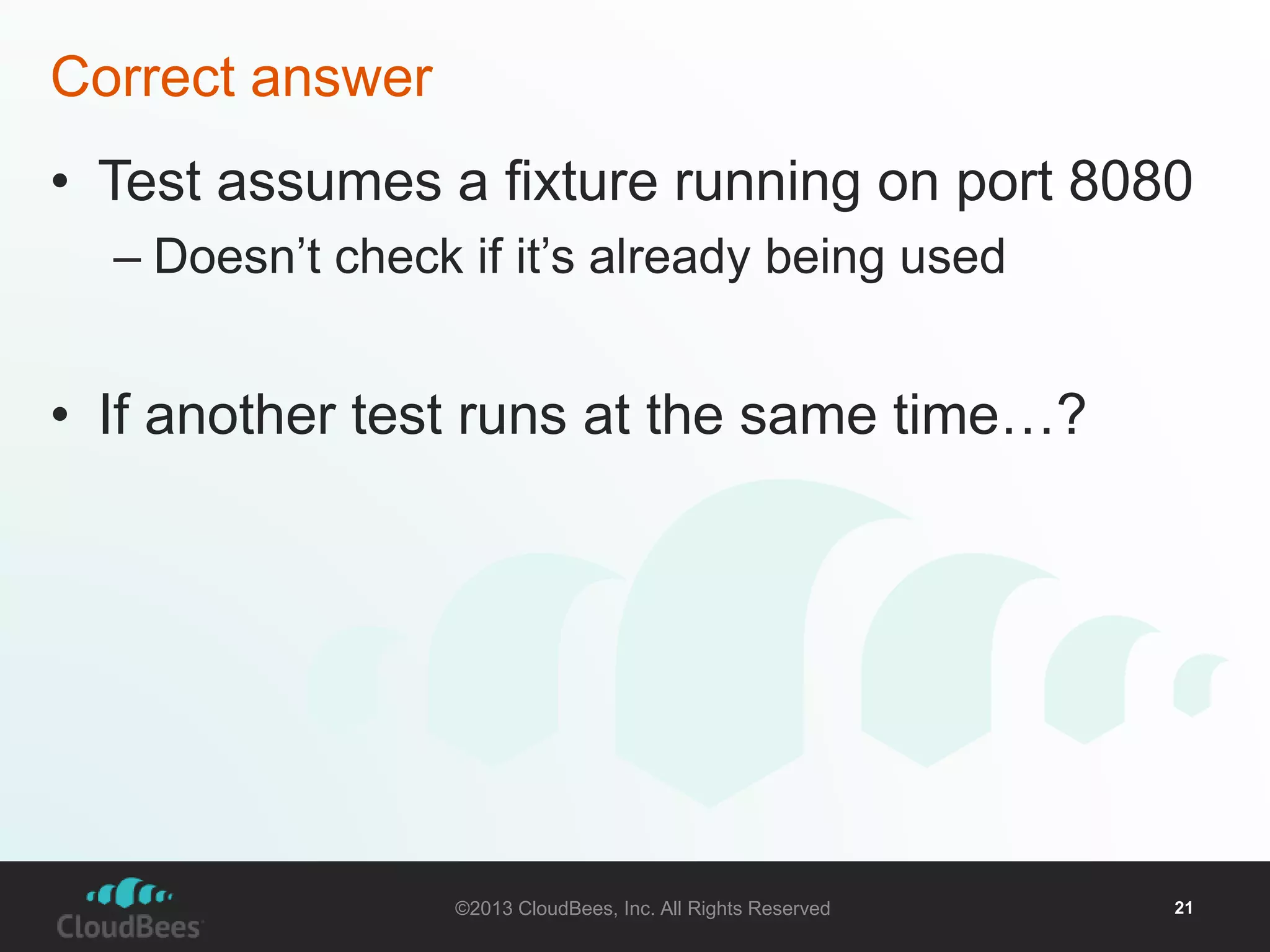

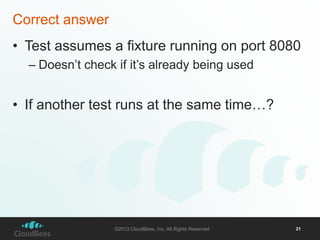

- 21. Correct answer •Test assumes a fixture running on port 8080 – Doesn’t check if it’s already being used • If another test runs at the same time…? ©2013 CloudBees, Inc. All Rights Reserved 21
- 22. ©2013 CloudBees, http://www.flickr.com/phInotco. sA/8ll2 R21ig9h20ts6 @ReNs0e0r/v7e00d3641975/ 22

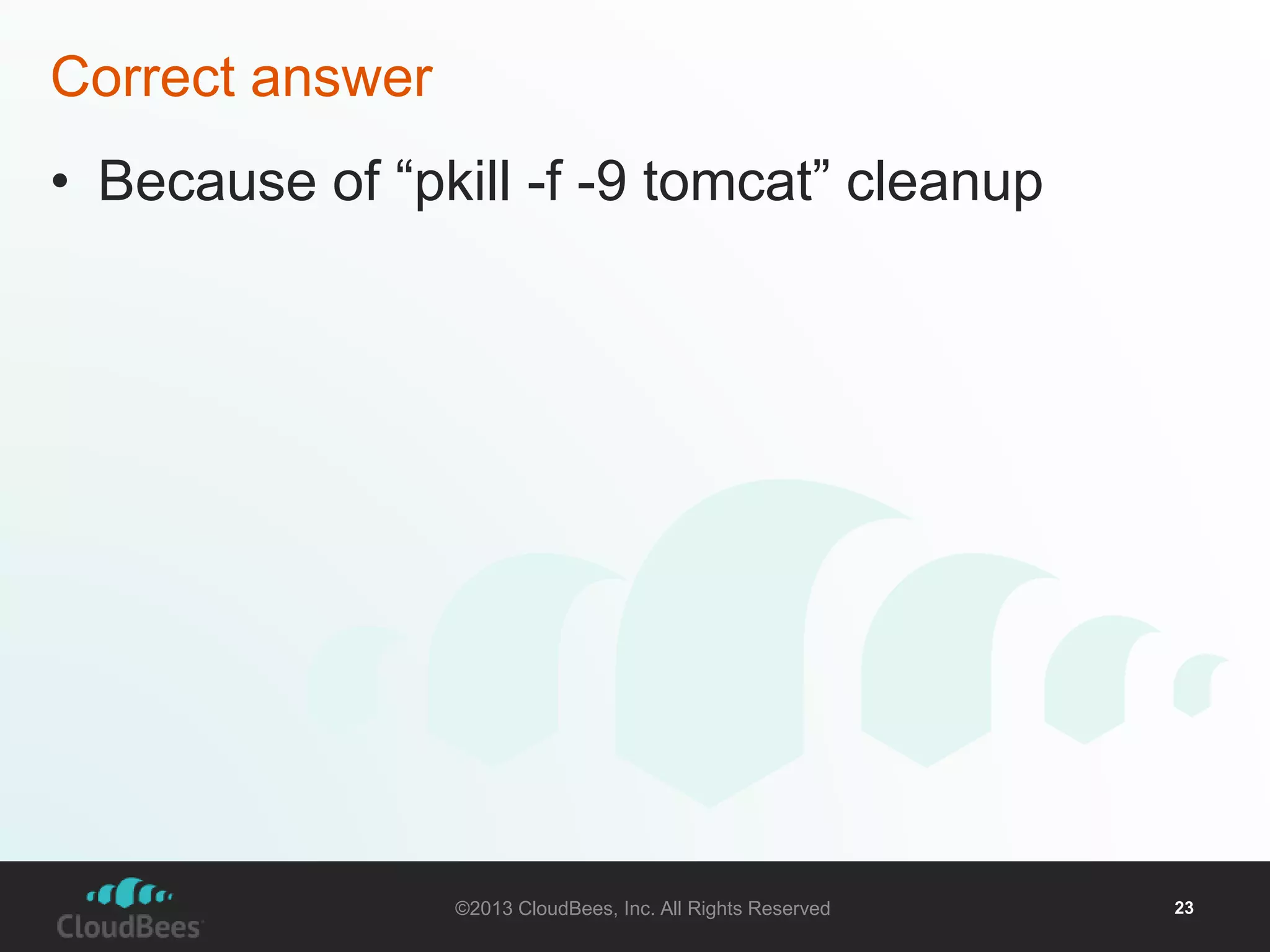

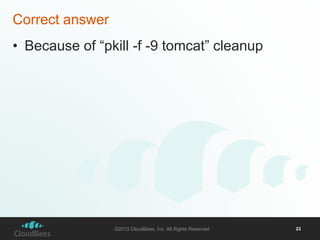

- 23. Correct answer •Because of “pkill -f -9 tomcat” cleanup ©2013 CloudBees, Inc. All Rights Reserved 23

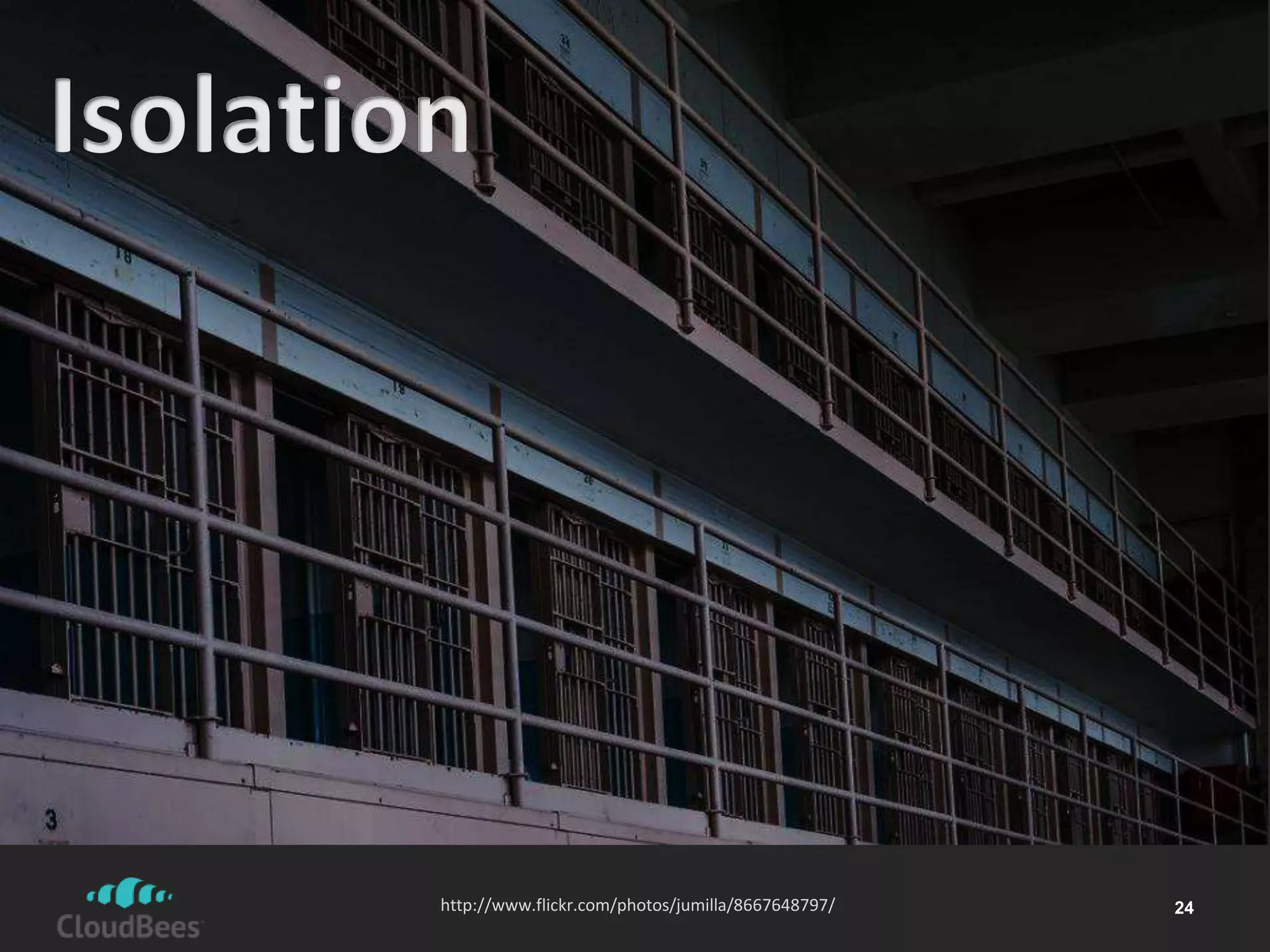

- 24. ©2013 CloudBees, http://www.flickr.com/pIhnoct.o As/ljlu Rmiigllha/ts8 6R6e76s4e8rv7e97d/ 24

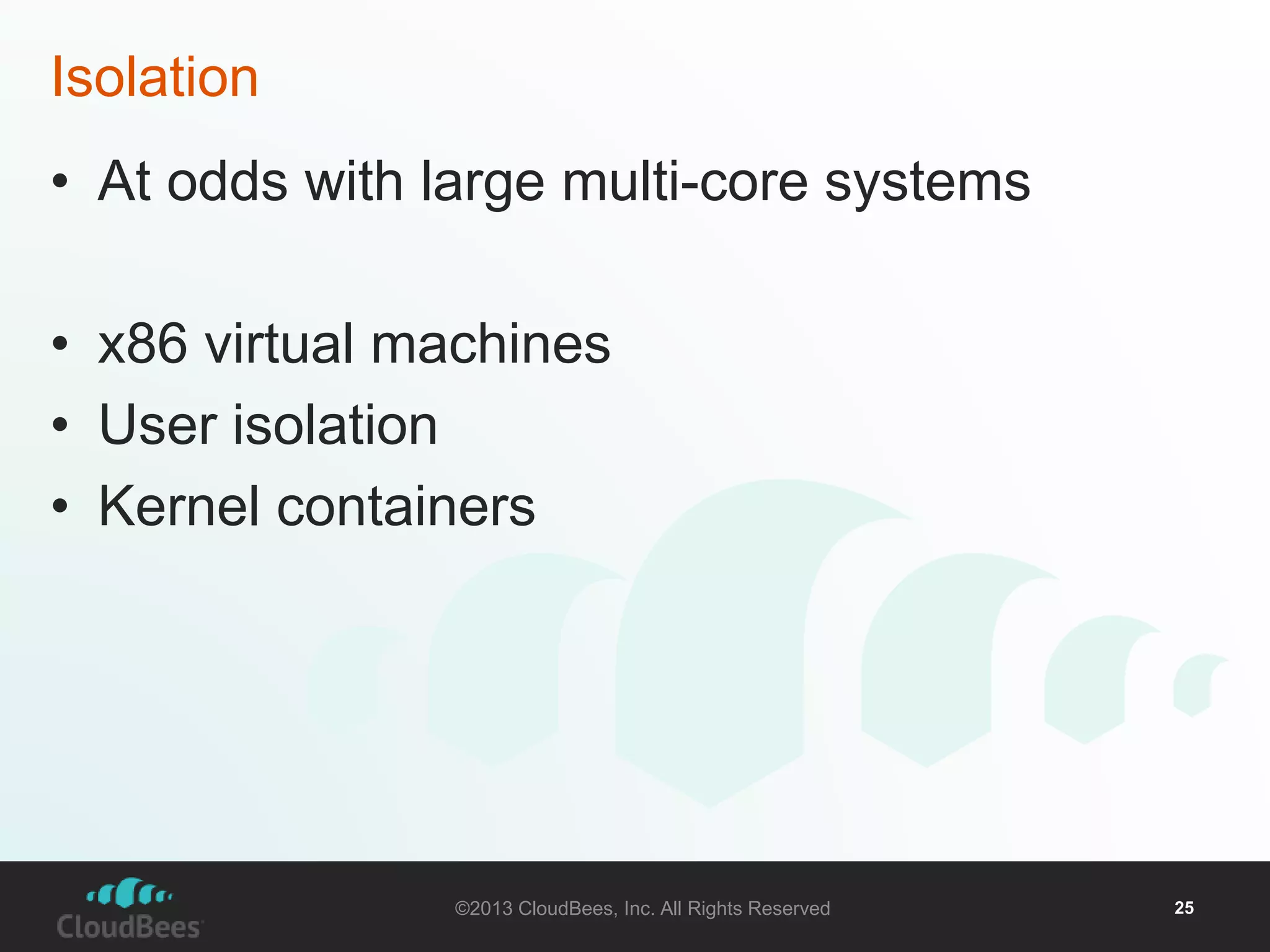

- 25. Isolation • Atodds with large multi-core systems • x86 virtual machines • User isolation • Kernel containers ©2013 CloudBees, Inc. All Rights Reserved 25
- 26. ©2013 CloudBees, Inc.All Rights Reserved 26
- 27. ©2013 CloudBees, http://www.flickr.com/phInotco. sA/8ll2 R21ig9h20ts6 @ReNs0e0r/v7e00d3641975/ 27

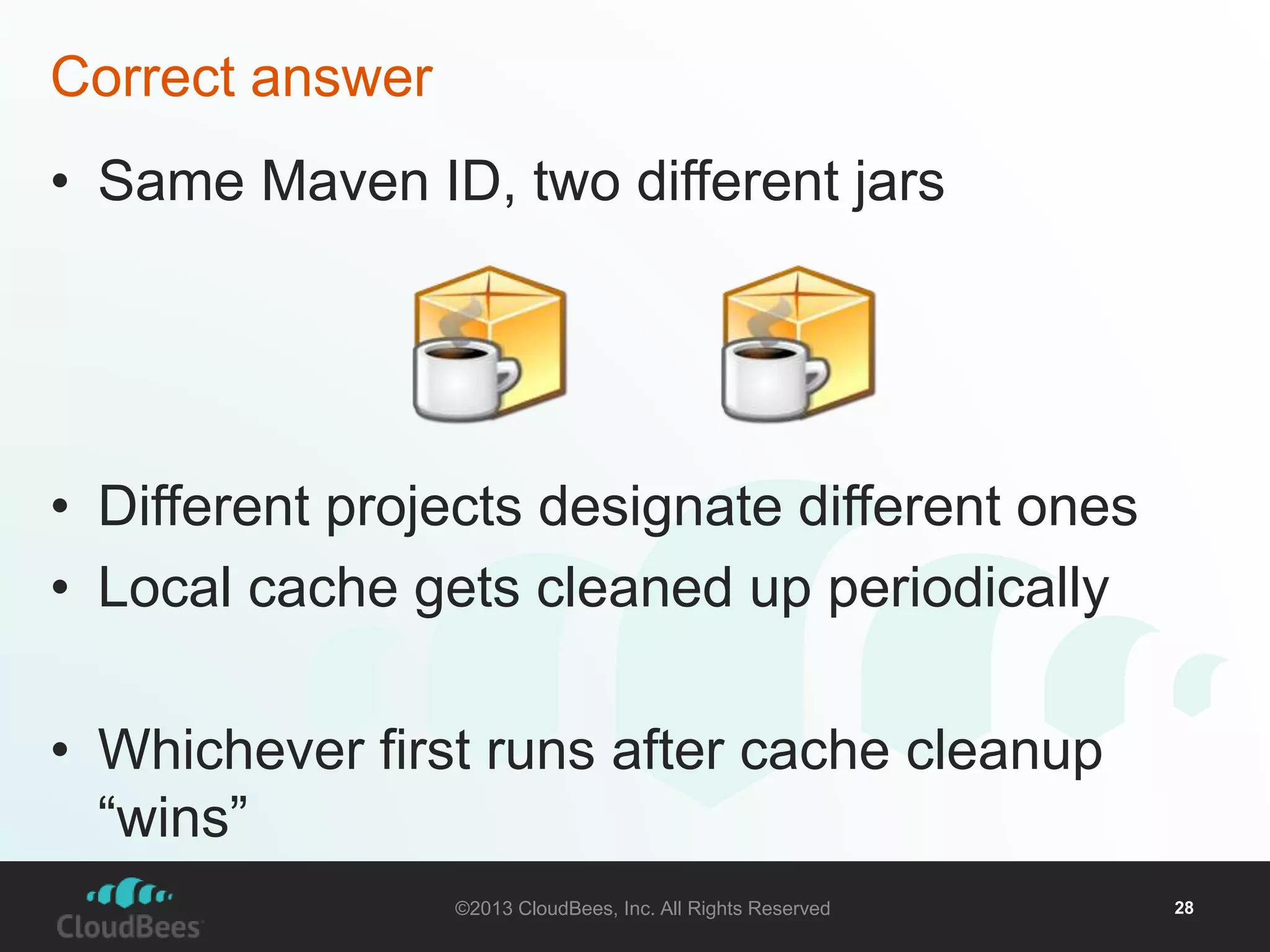

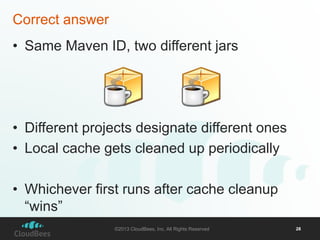

- 28. Correct answer •Same Maven ID, two different jars • Different projects designate different ones • Local cache gets cleaned up periodically • Whichever first runs after cache cleanup “wins” ©2013 CloudBees, Inc. All Rights Reserved 28
- 29. ©2013 CloudBees, http://www.flickr.com/phInotco. sA/8ll2 R21ig9h20ts6 @ReNs0e0r/v7e00d3641975/ 29

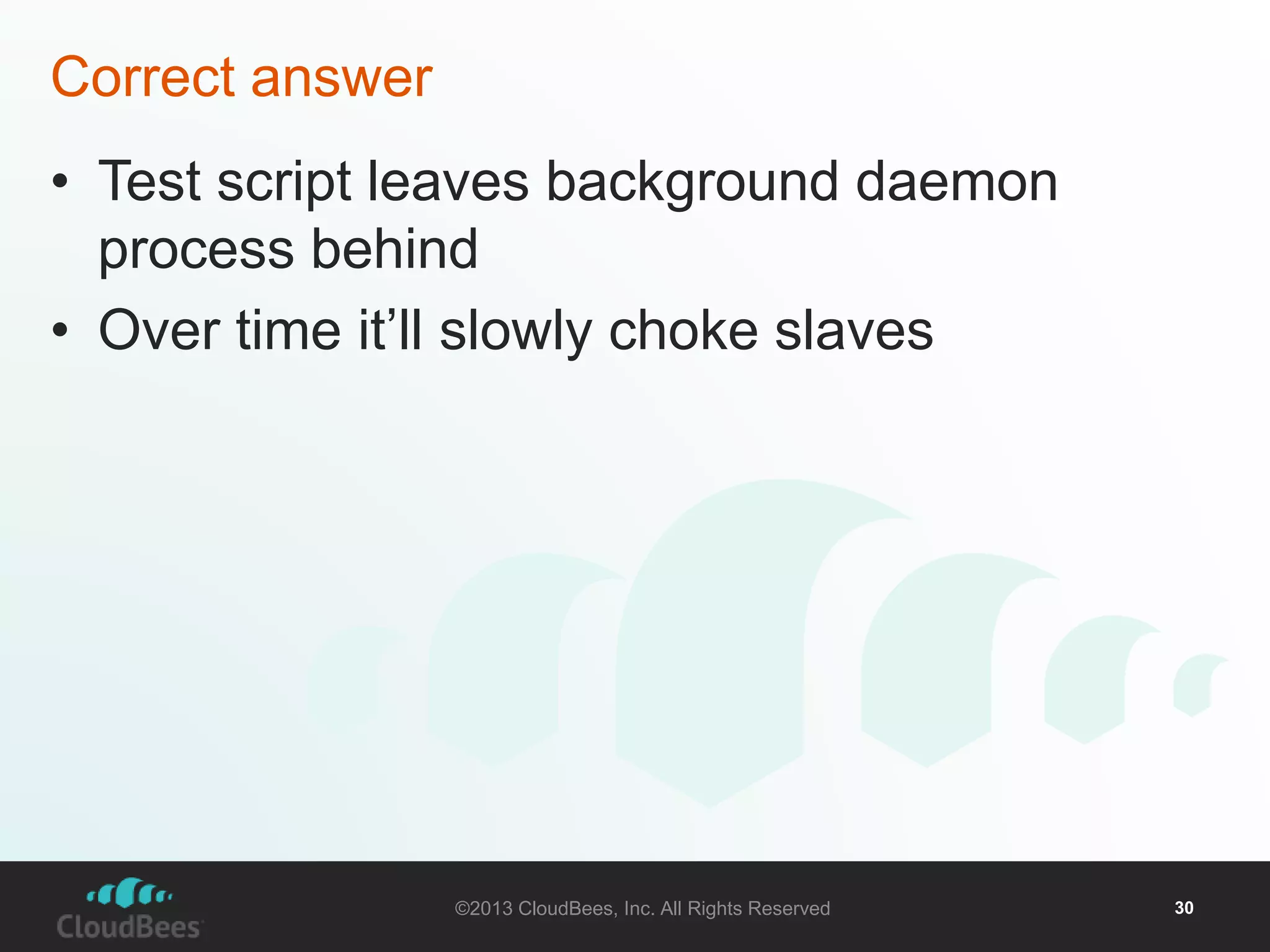

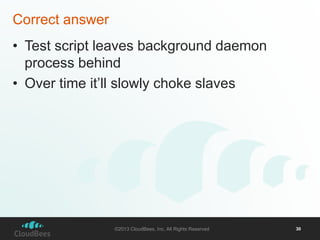

- 30. Correct answer •Test script leaves background daemon process behind • Over time it’ll slowly choke slaves ©2013 CloudBees, Inc. All Rights Reserved 30

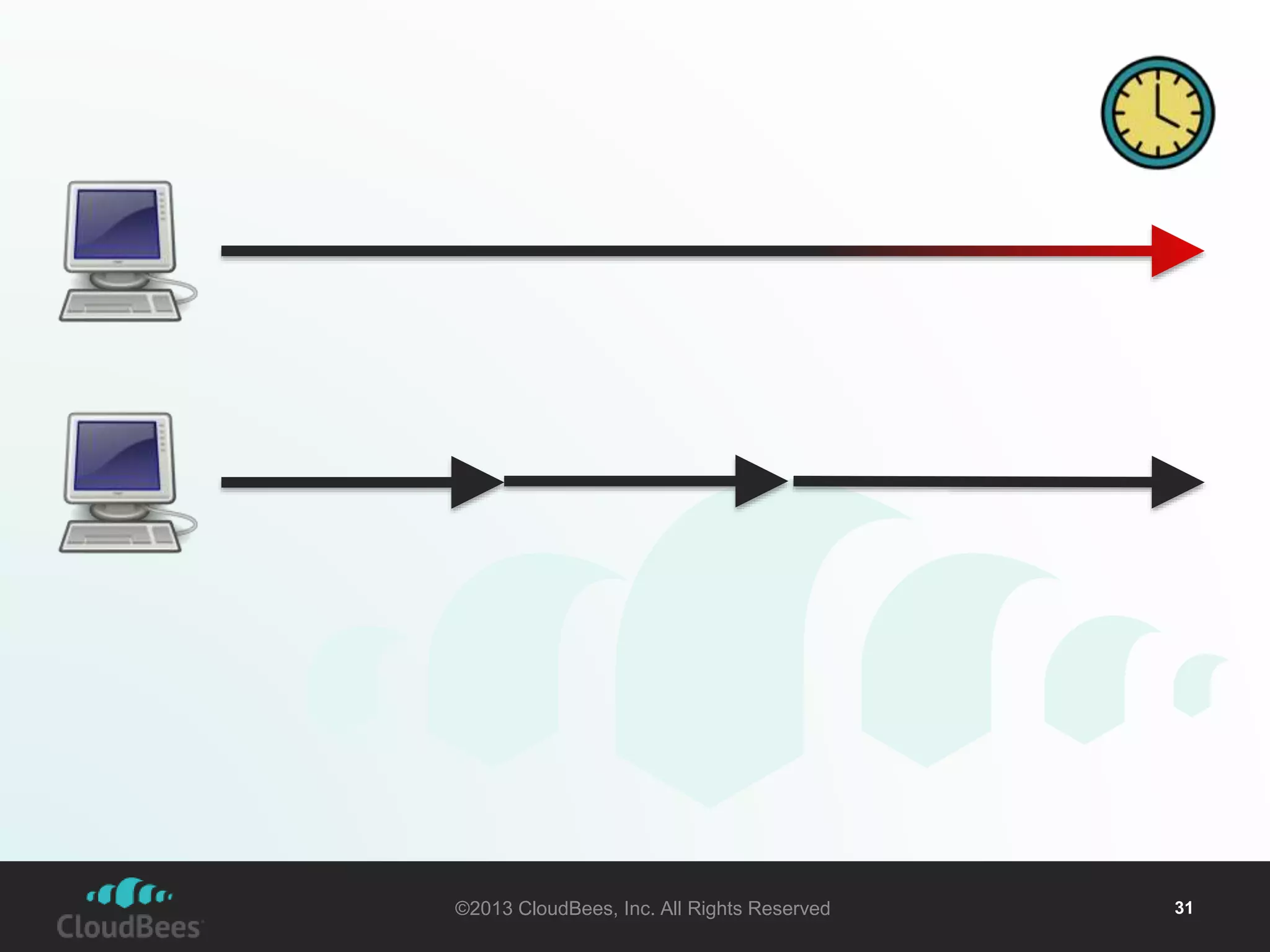

- 31. ©2013 CloudBees, Inc.All Rights Reserved 31

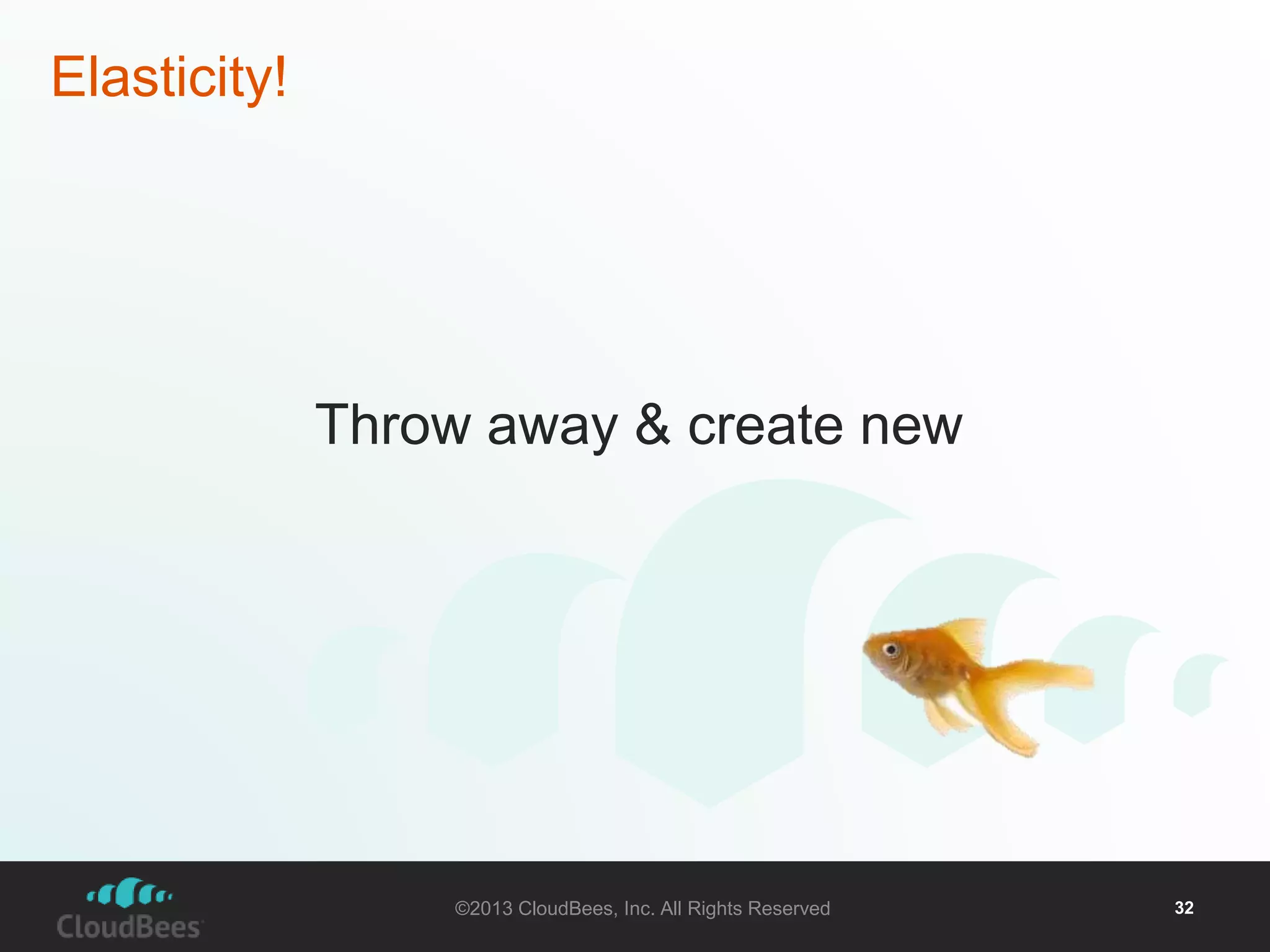

- 32. Throw away &create new ©2013 CloudBees, Inc. All Rights Reserved 32 Elasticity!
- 33. ©2013 CloudBees, Inc.All Rights Reserved 33

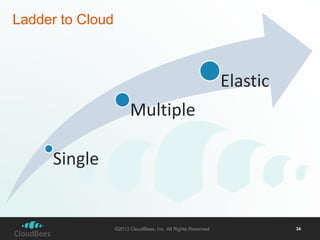

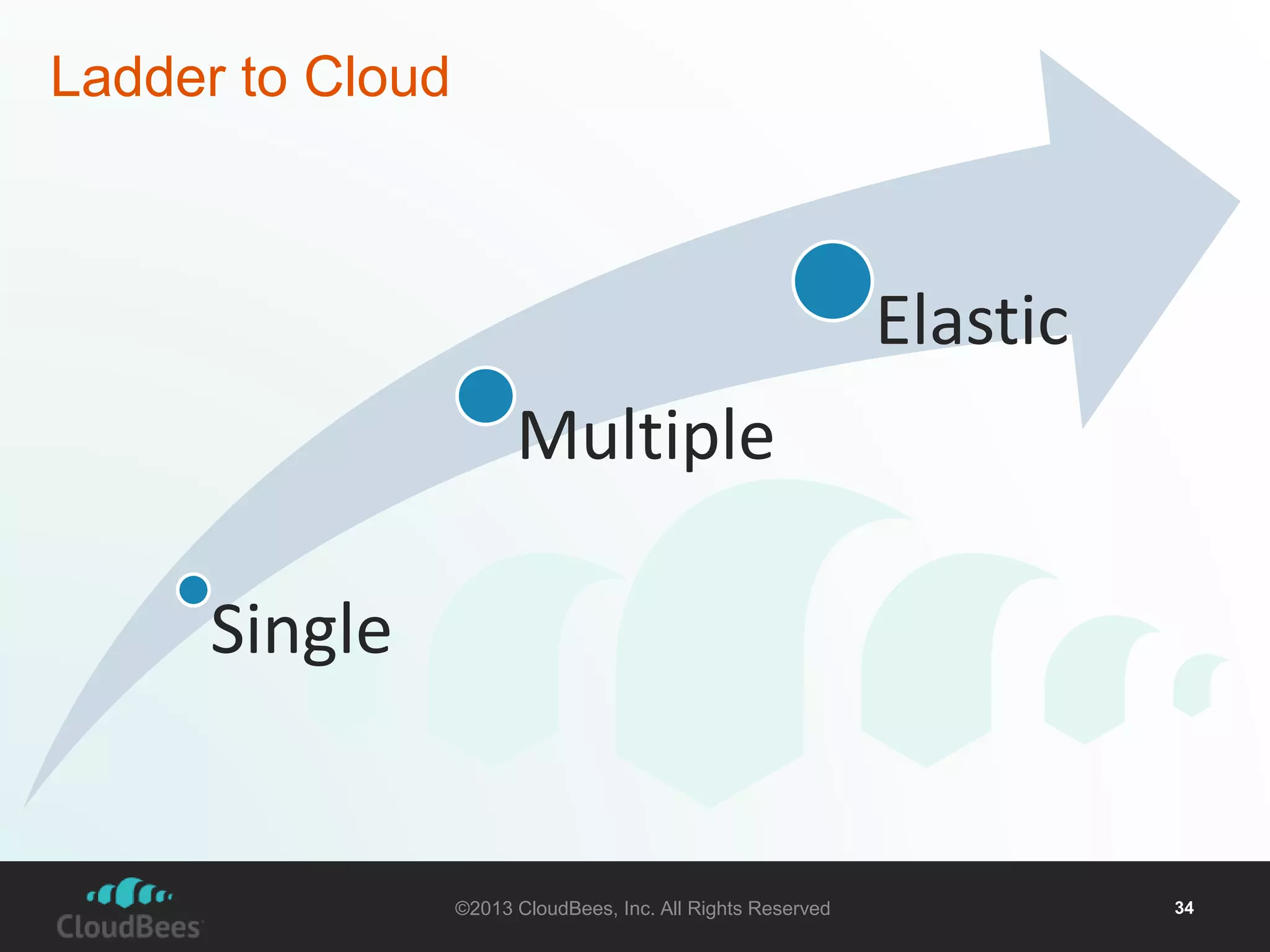

- 34. ©2013 CloudBees, Inc.All Rights Reserved 34 Ladder to Cloud Single Multiple Elastic

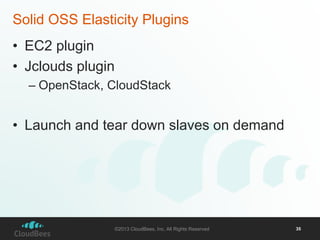

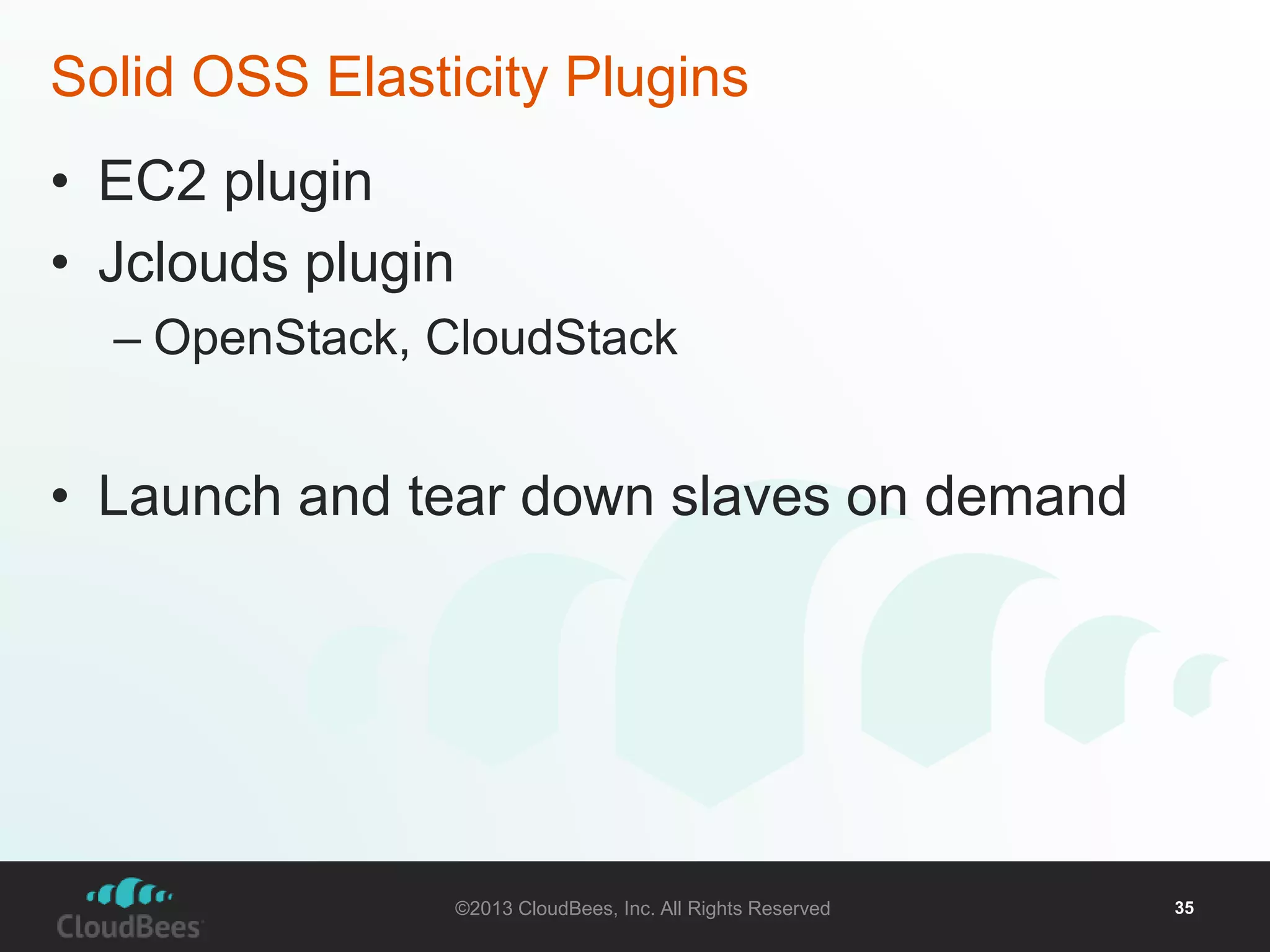

- 35. Solid OSS ElasticityPlugins • EC2 plugin • Jclouds plugin – OpenStack, CloudStack • Launch and tear down slaves on demand ©2013 CloudBees, Inc. All Rights Reserved 35

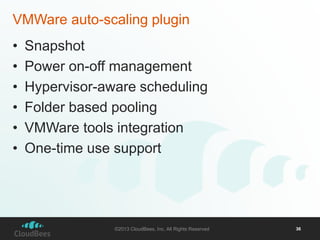

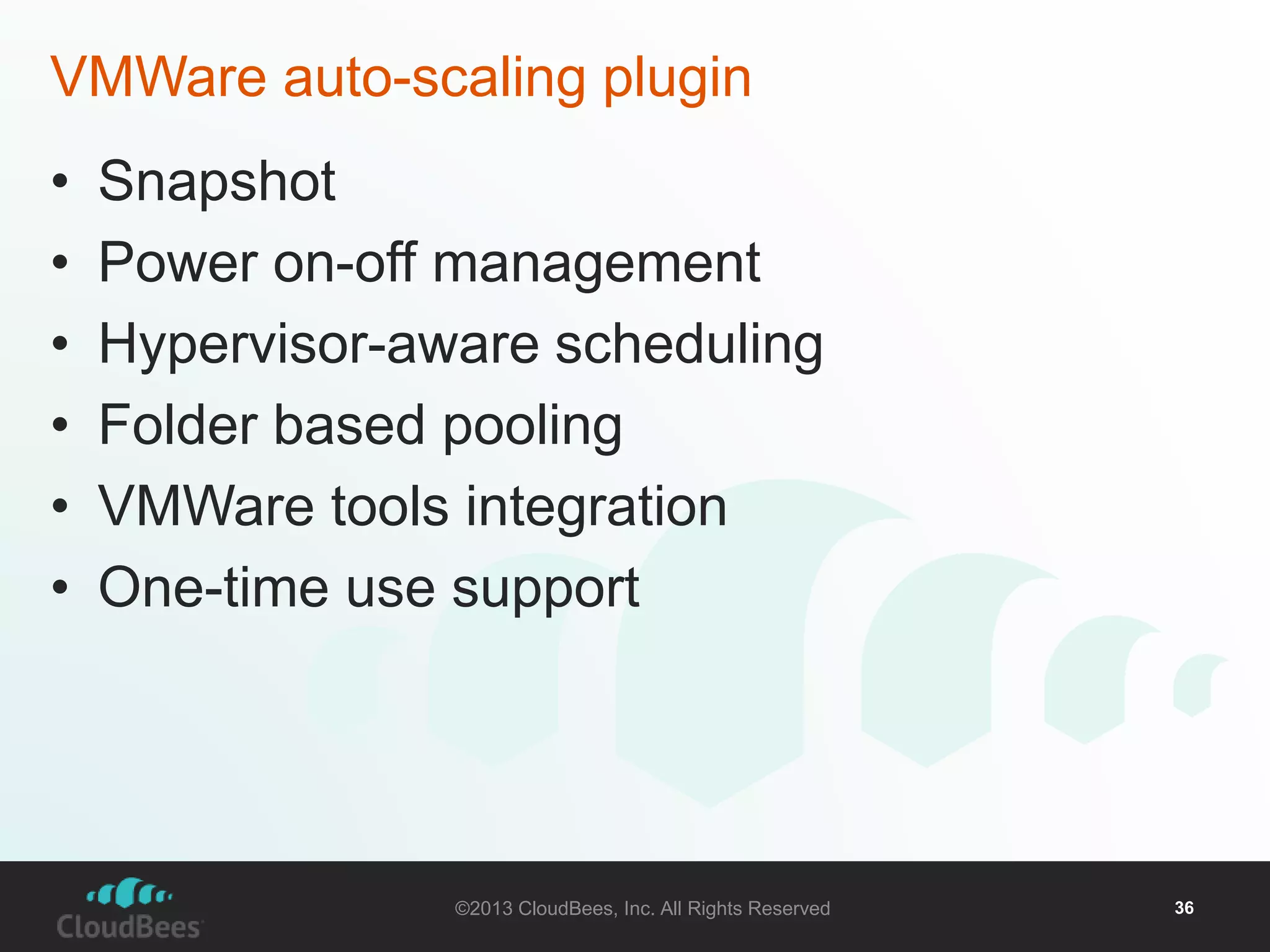

- 36. VMWare auto-scaling plugin • Snapshot • Power on-off management • Hypervisor-aware scheduling • Folder based pooling • VMWare tools integration • One-time use support ©2013 CloudBees, Inc. All Rights Reserved 36

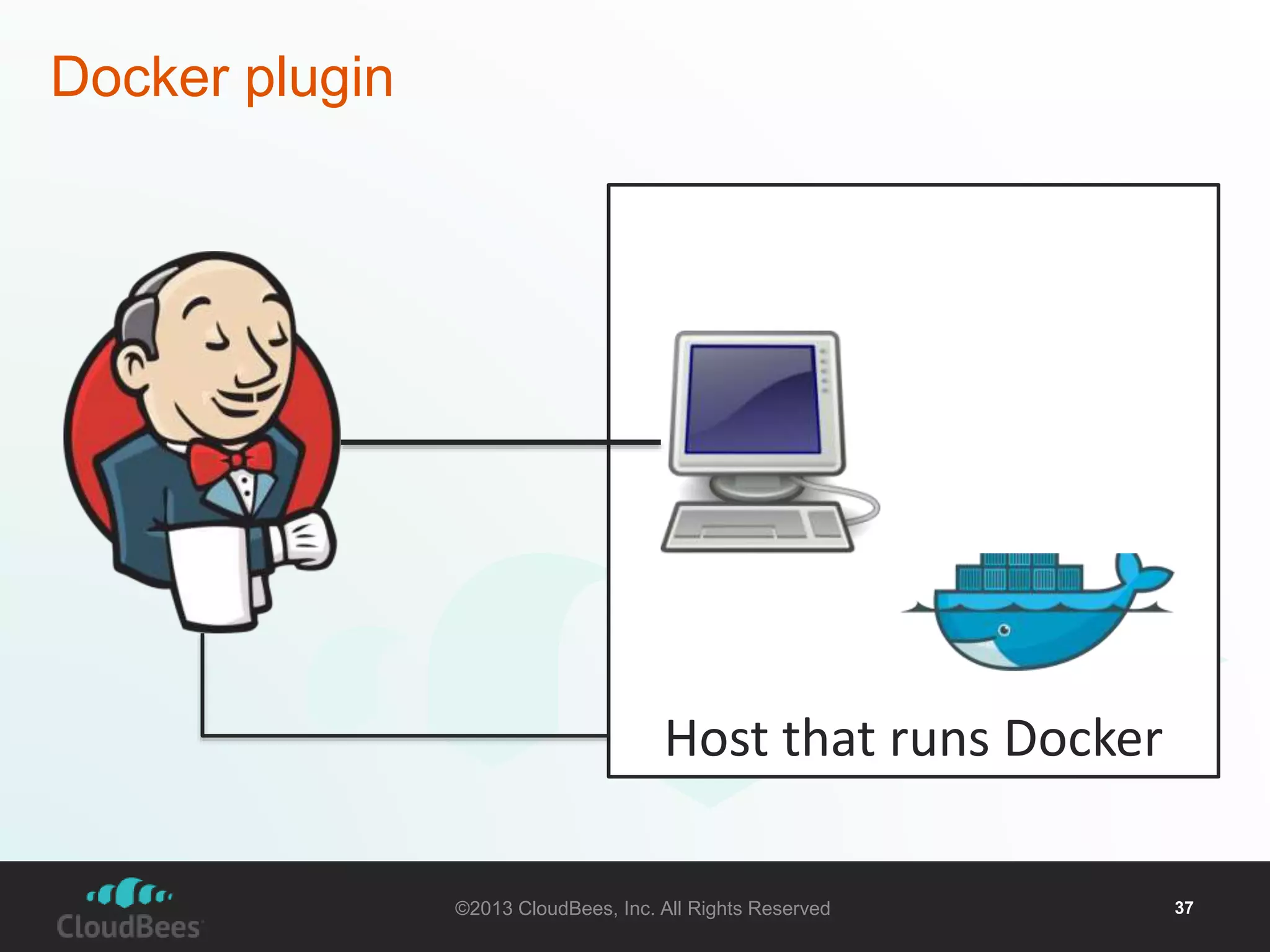

- 37. Host that runsDocker ©2013 CloudBees, Inc. All Rights Reserved 37 Docker plugin

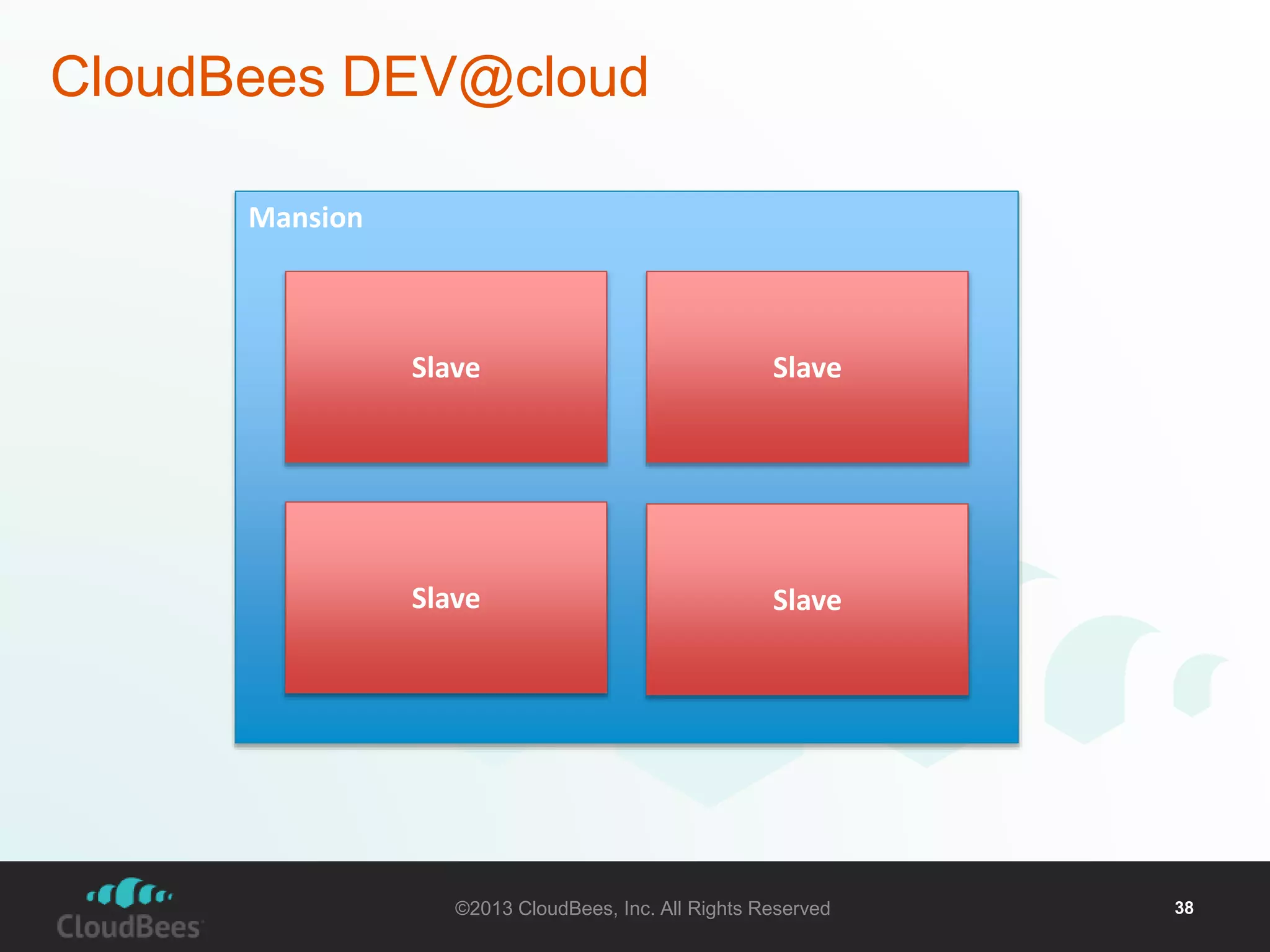

- 38. CloudBees DEV@cloud ©2013CloudBees, Inc. All Rights Reserved 38 Mansion Slave Slave Slave Slave

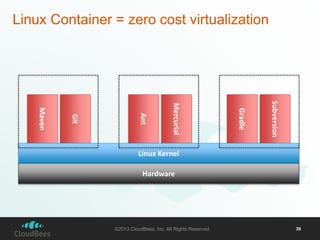

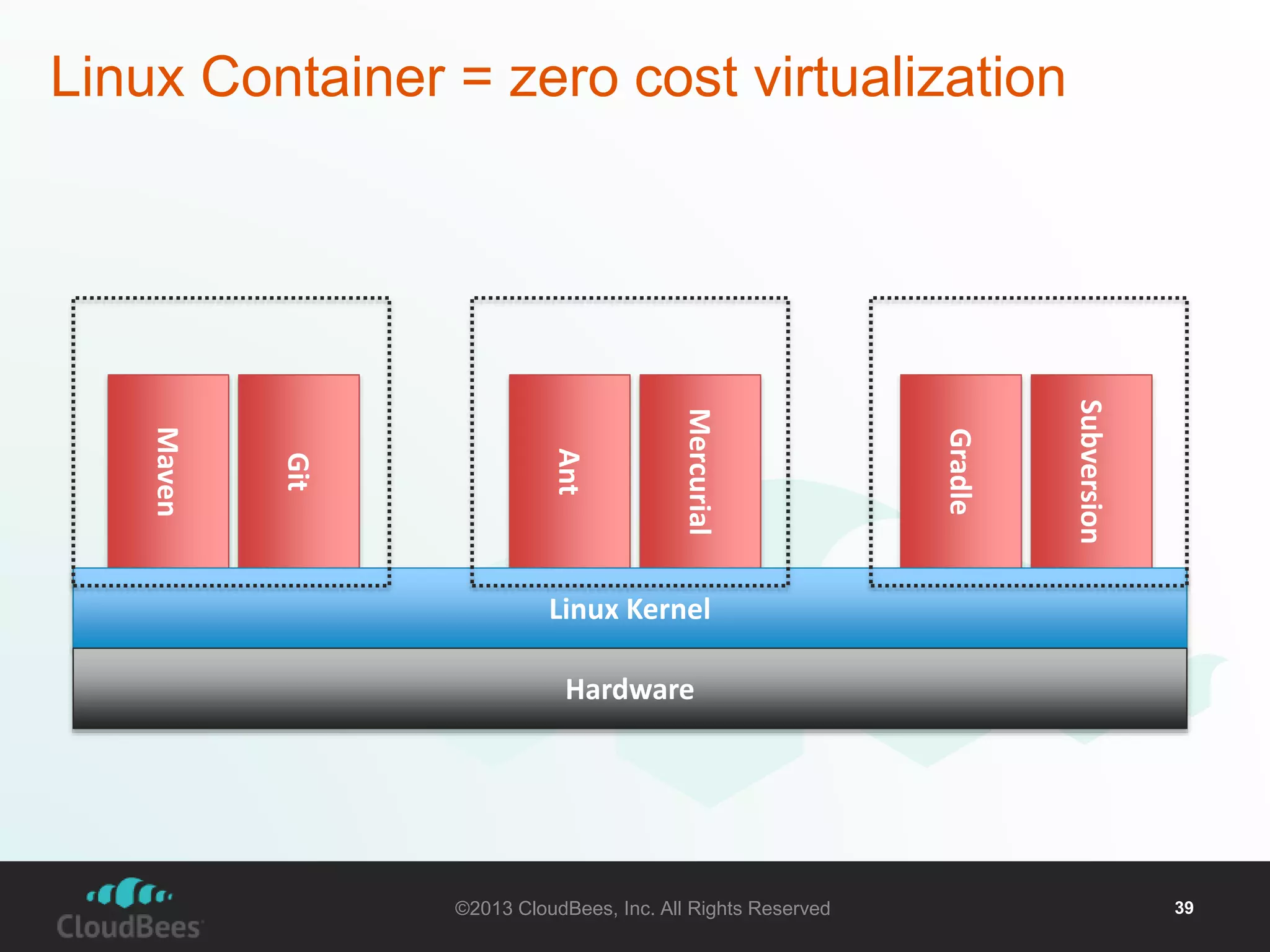

- 39. Linux Container =zero cost virtualization ©2013 CloudBees, Inc. All Rights Reserved 39 Maven Git Ant Mercurial Gradle Subversion Linux Kernel Hardware

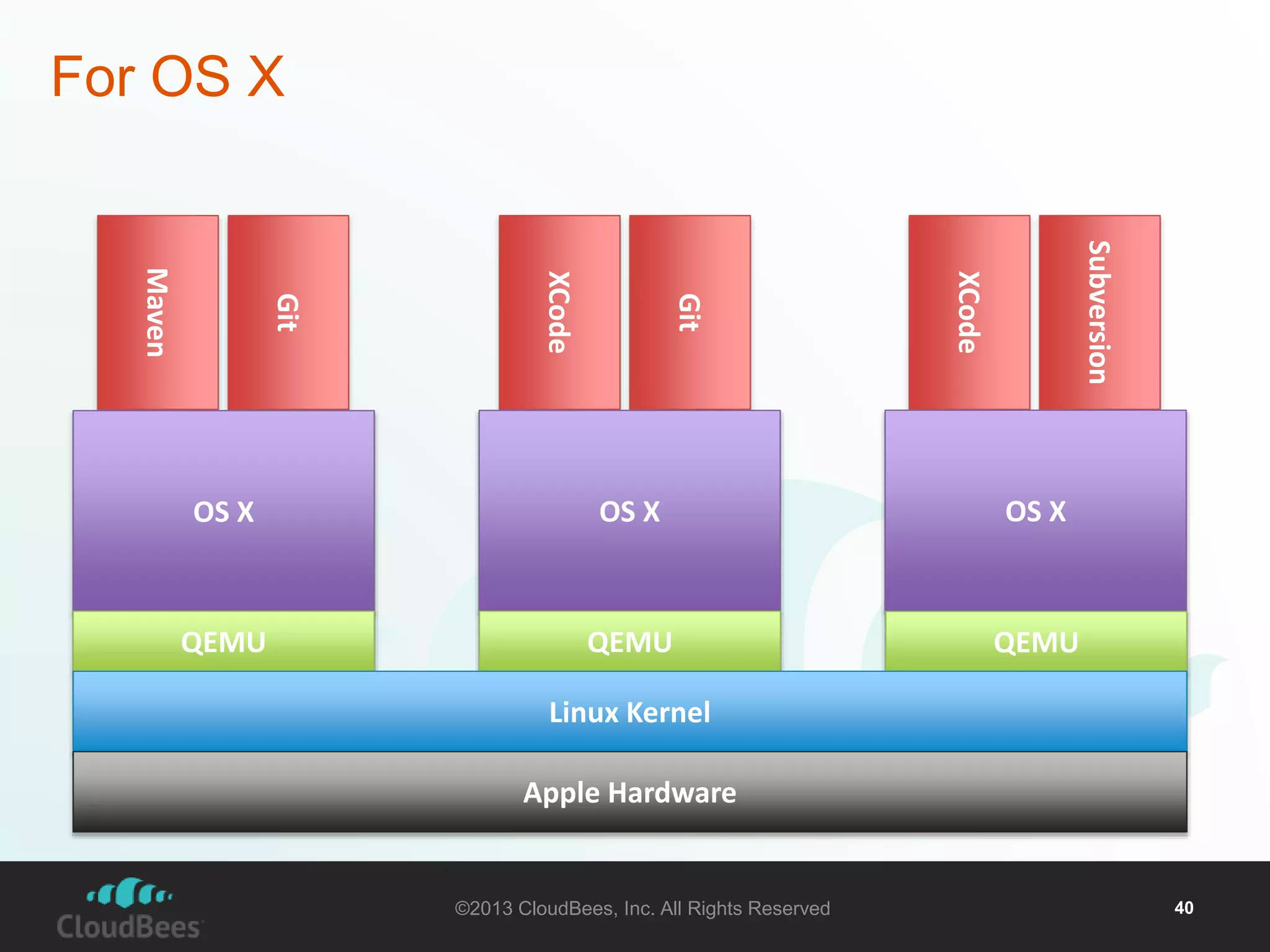

- 40. ©2013 CloudBees, Inc.All Rights Reserved 40 For OS X Maven Git XCode Git XCode Subversion OS X OS X OS X QEMU QEMU QEMU Linux Kernel Apple Hardware
- 41. Kernel Same-page Merging OS X OS X OS X ©2013 CloudBees, Inc. All Rights Reserved 41
- 42. ©2013 CloudBees, Inc.All Rights Reserved 42

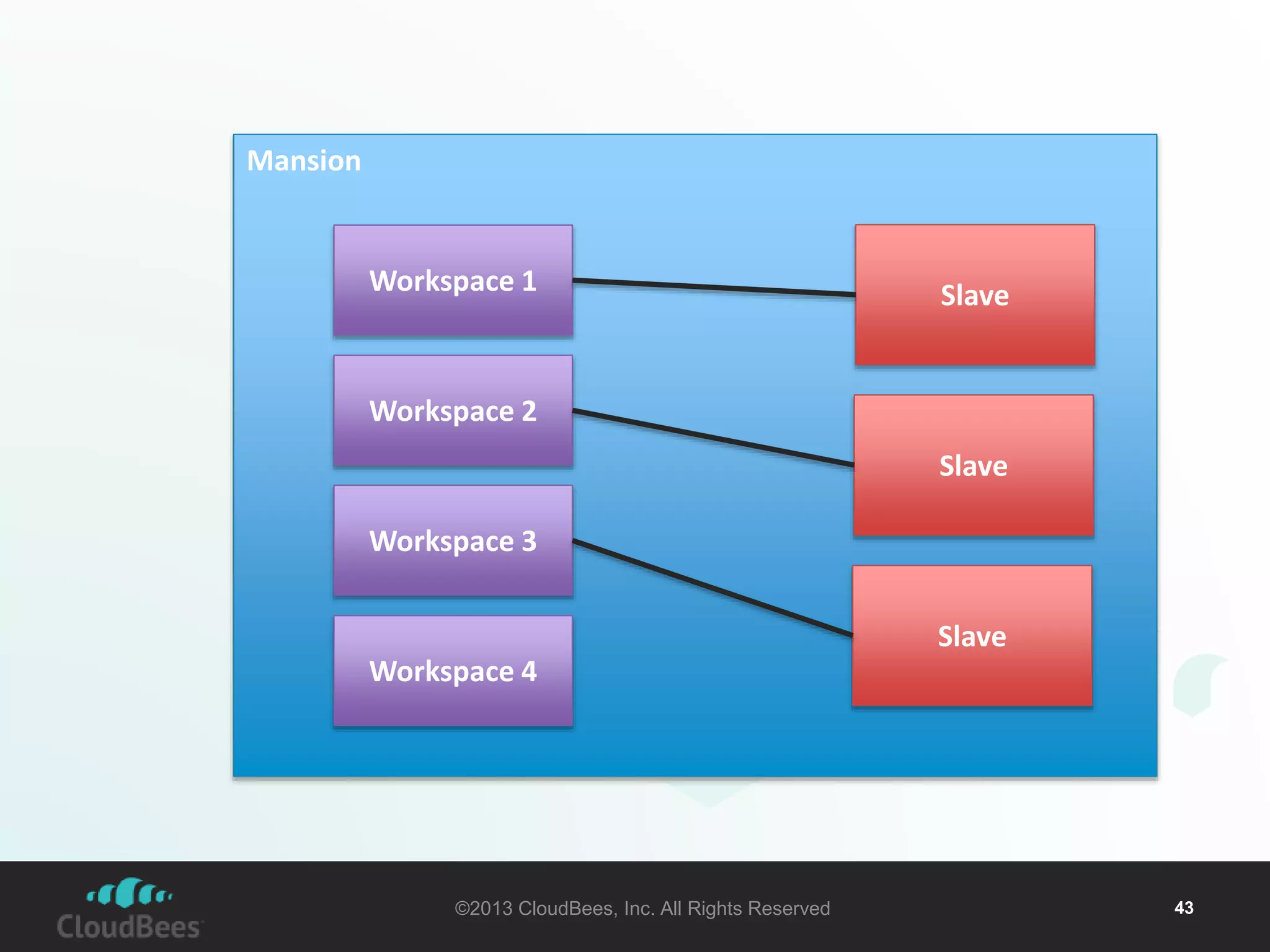

- 43. ©2013 CloudBees, Inc.All Rights Reserved 43 Mansion Slave Slave Slave Workspace 1 Workspace 2 Workspace 3 Workspace 4

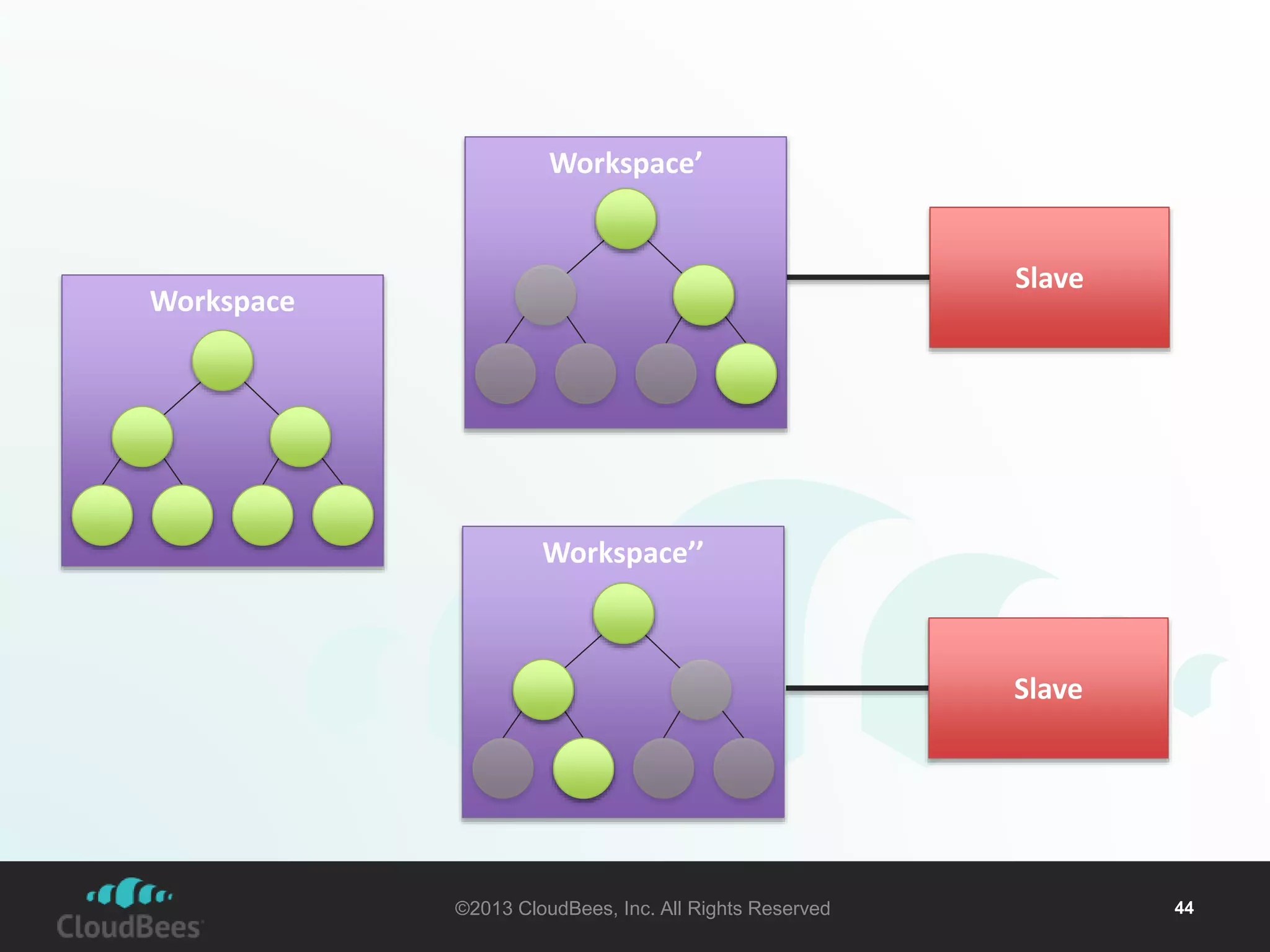

- 44. Slave Slave Workspace’ ©2013 CloudBees, Inc. All Rights Reserved 44 Workspace Workspace’’

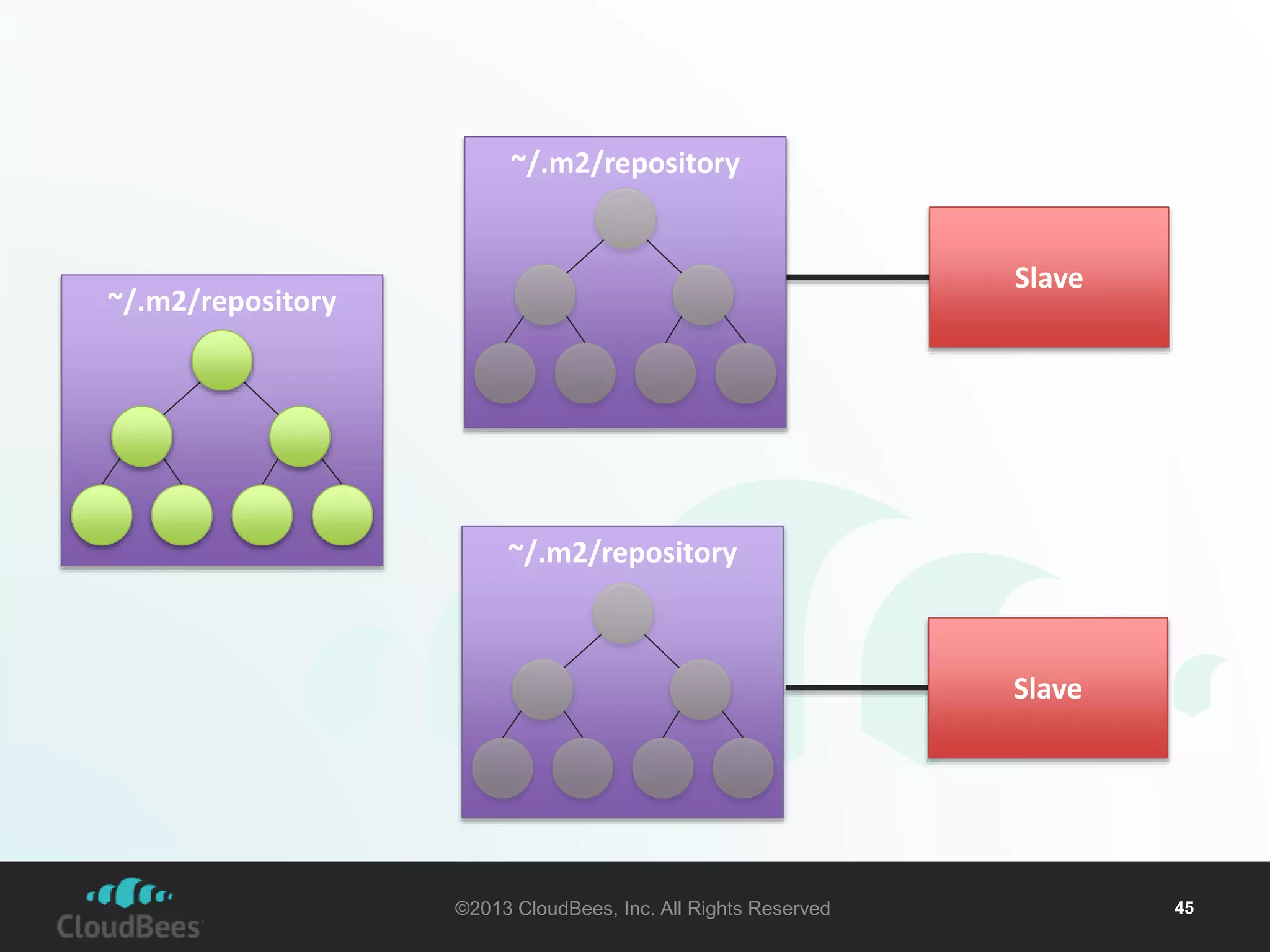

- 45. Slave Slave ~/.m2/repository ©2013 CloudBees, Inc. All Rights Reserved 45 ~/.m2/repository ~/.m2/repository

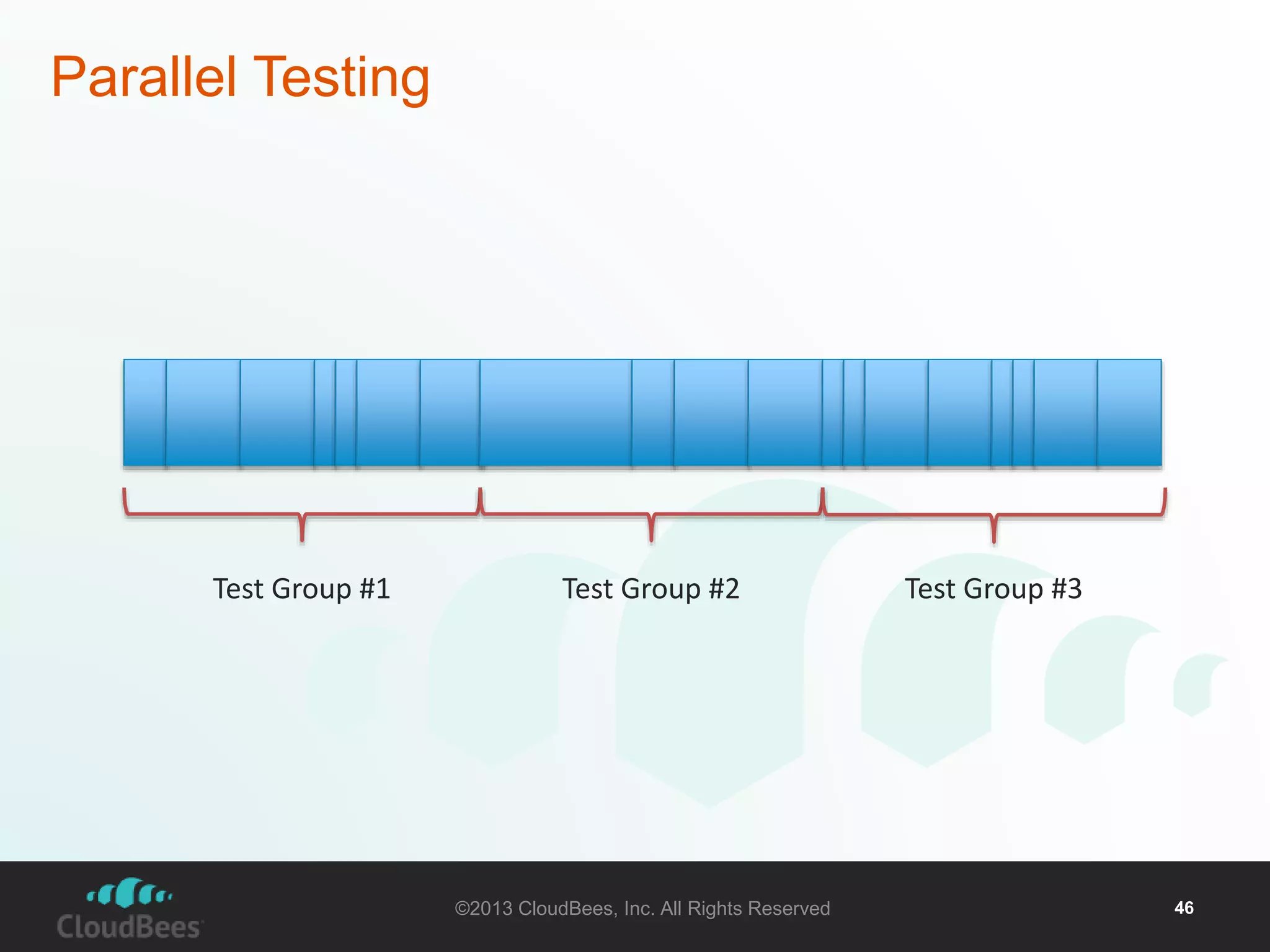

- 46. ©2013 CloudBees, Inc.All Rights Reserved 46 Parallel Testing Test Group #1 Test Group #2 Test Group #3

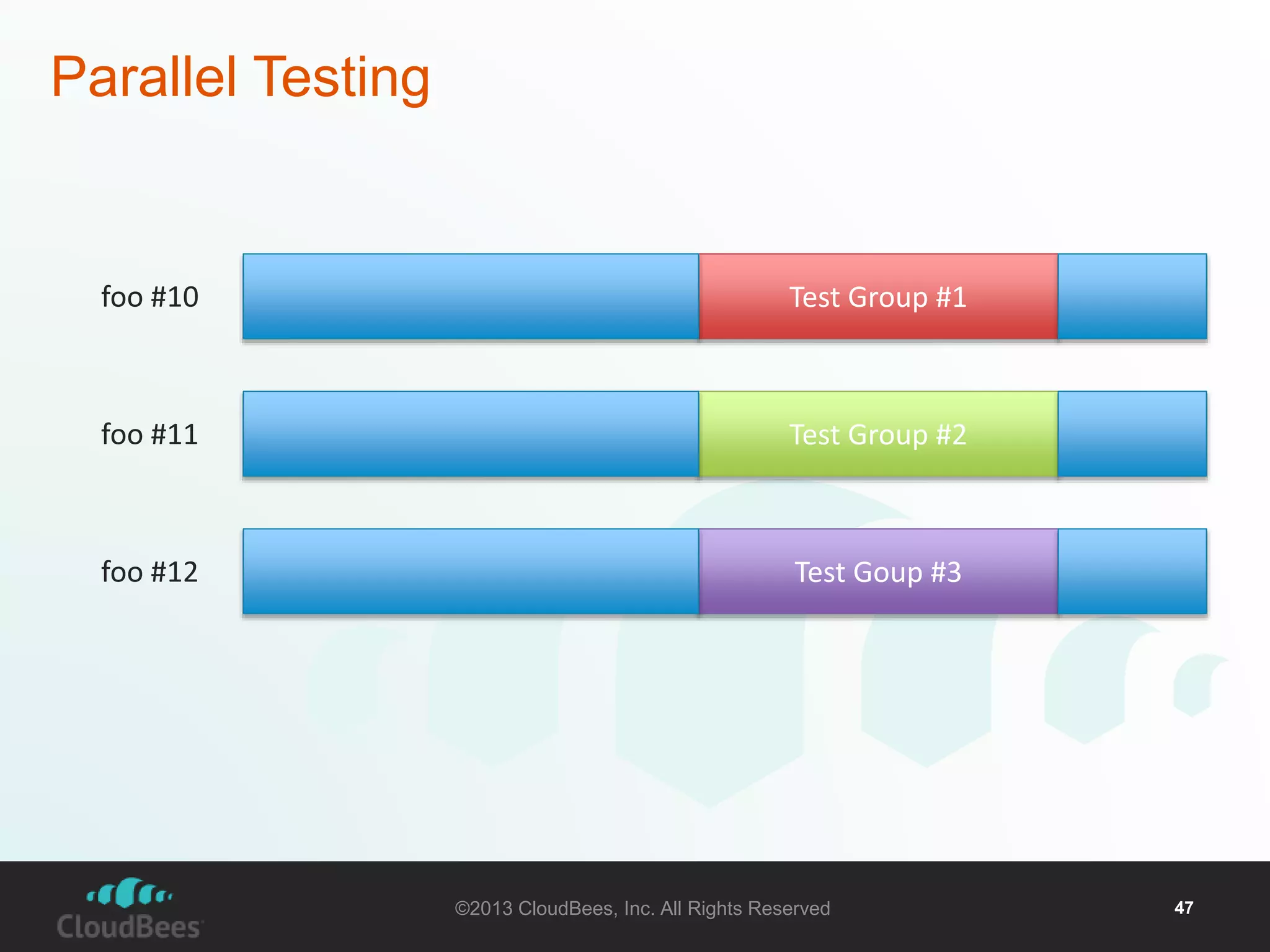

- 47. ©2013 CloudBees, Inc.All Rights Reserved 47 Parallel Testing foo #10 Test Group #1 foo #11 Test Group #2 foo #12 Test Goup #3

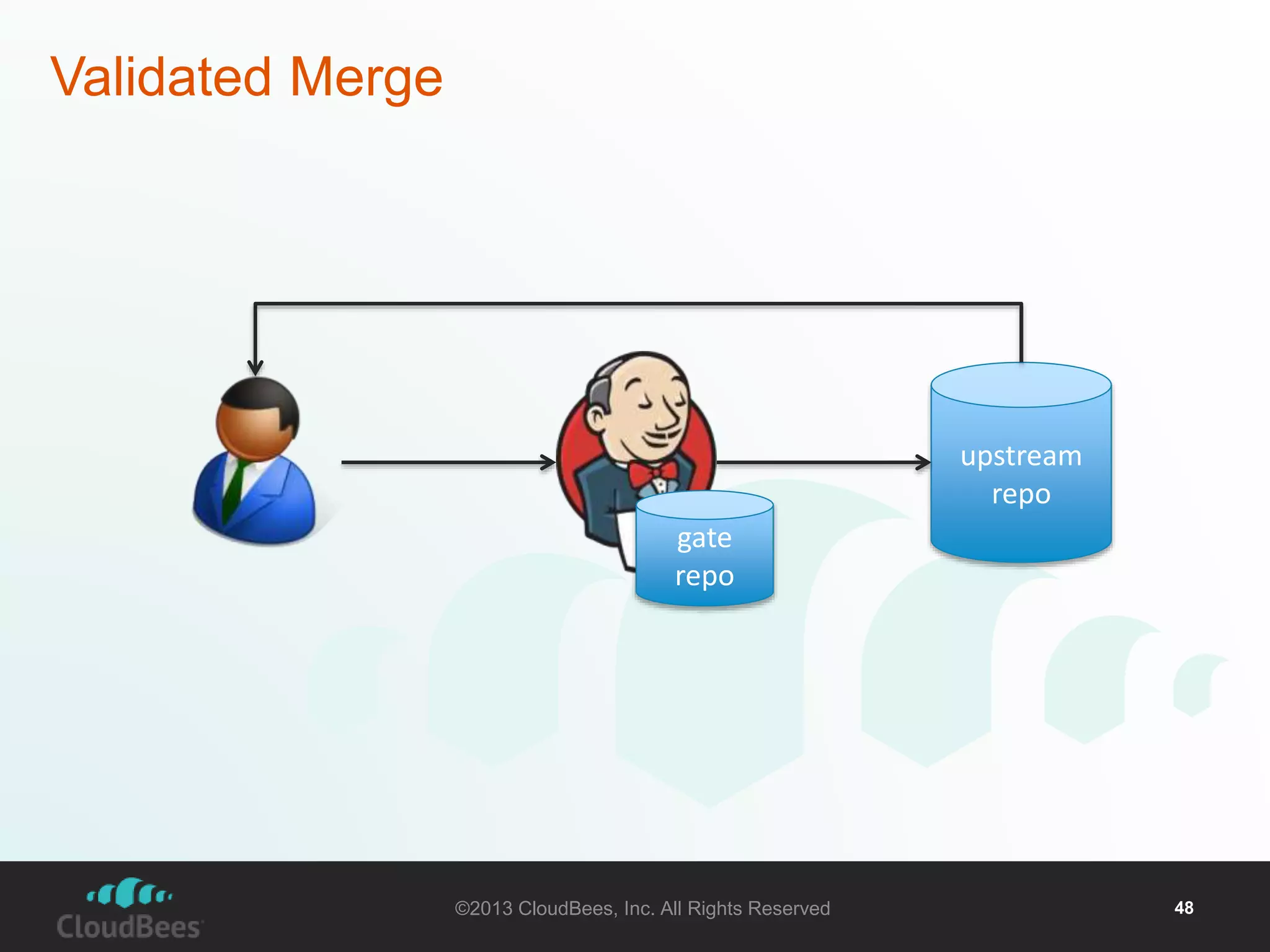

- 48. ©2013 CloudBees, Inc.All Rights Reserved 48 Validated Merge upstream repo gate repo
- 49. ©2013 CloudBees, Inc.All Rights Reserved 49

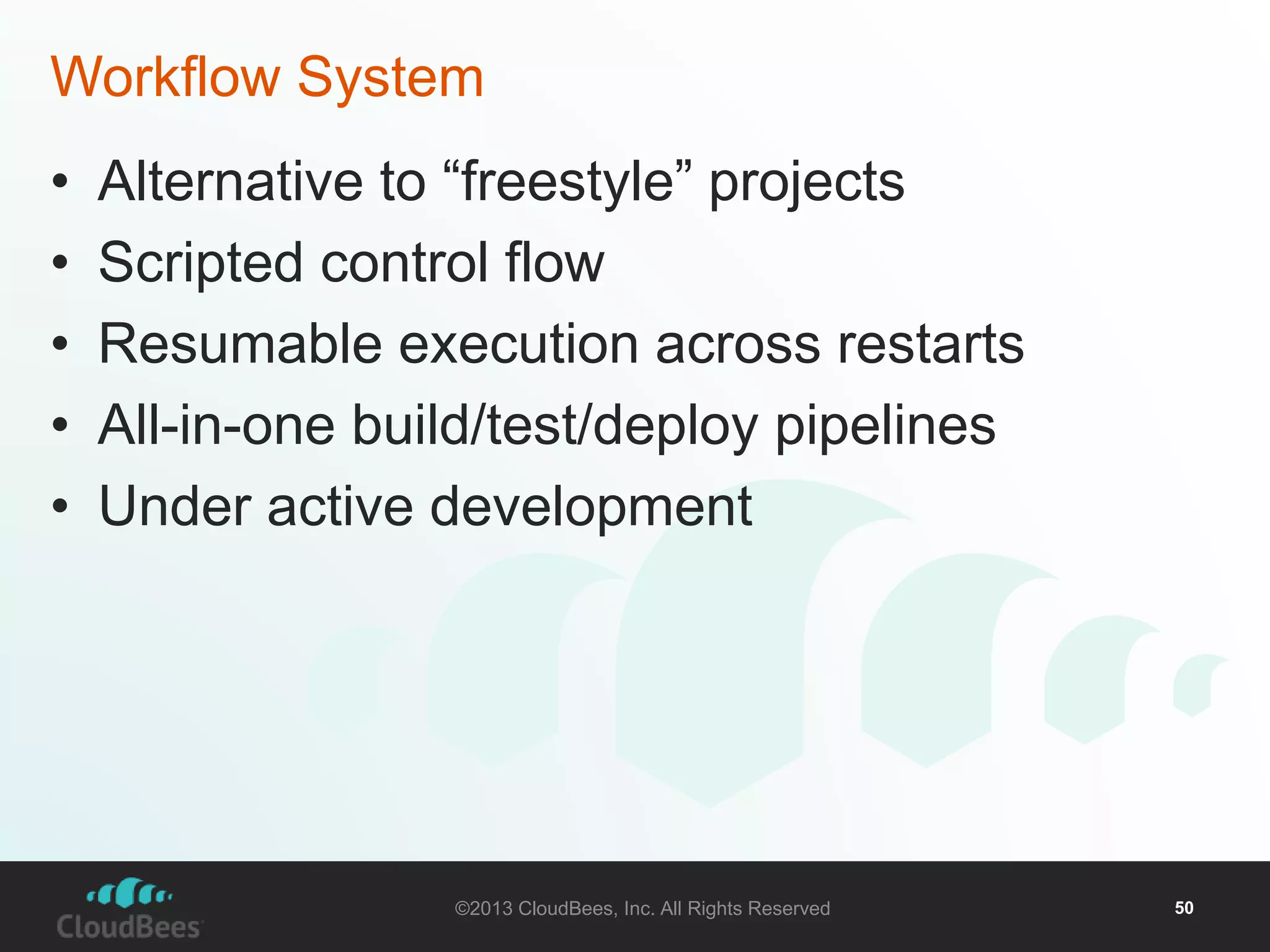

- 50. Workflow System •Alternative to “freestyle” projects • Scripted control flow • Resumable execution across restarts • All-in-one build/test/deploy pipelines • Under active development ©2013 CloudBees, Inc. All Rights Reserved 50

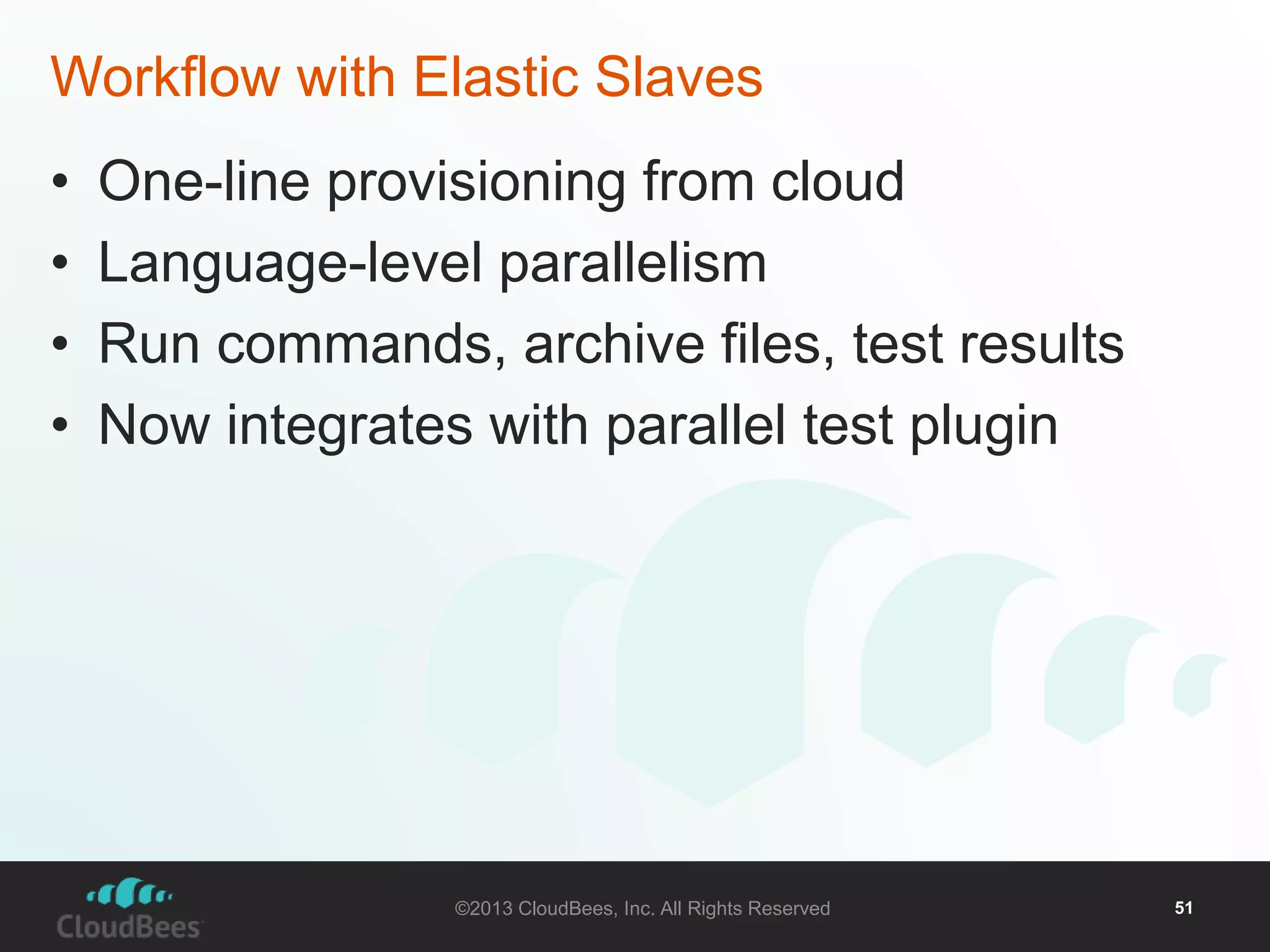

- 51. Workflow with ElasticSlaves • One-line provisioning from cloud • Language-level parallelism • Run commands, archive files, test results • Now integrates with parallel test plugin ©2013 CloudBees, Inc. All Rights Reserved 51
- 52. ©2013 CloudBees, Inc.All Rights Reserved 52

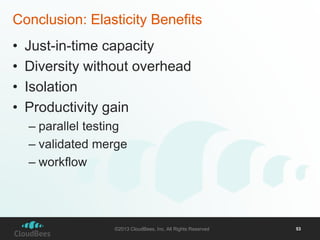

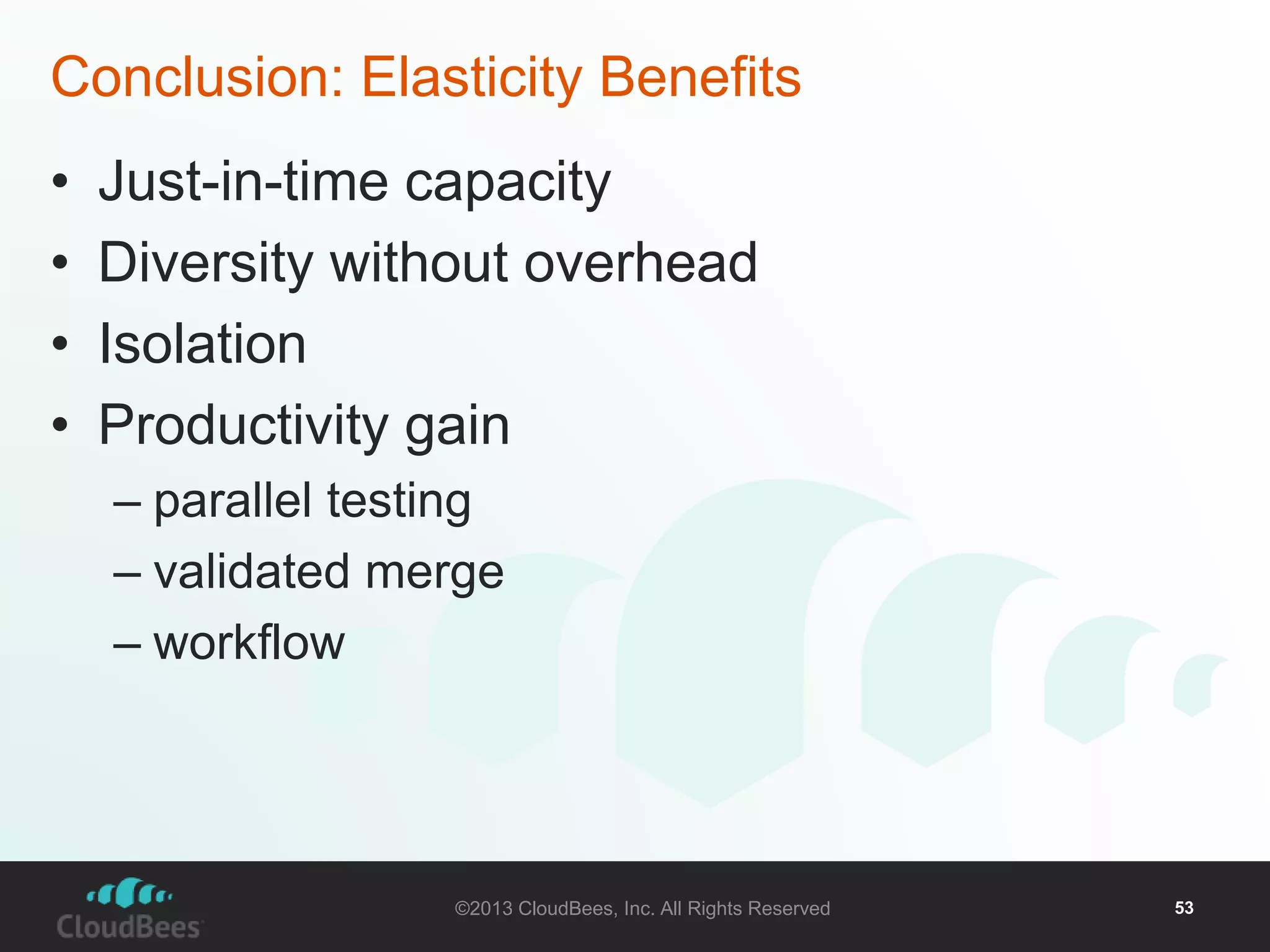

- 53. Conclusion: Elasticity Benefits • Just-in-time capacity • Diversity without overhead • Isolation • Productivity gain – parallel testing – validated merge – workflow ©2013 CloudBees, Inc. All Rights Reserved 53
- 54. ©2013 CloudBees, Inc.All Rights Reserved 54
Editor's Notes
- #3 Java OSS
- #4 More than 30% uses no slaves at all or just one
- #5 50+ slaves. There’s a divide here.
- #6 Growing “Cloud divide”
- #10 Because if you are doing it right, just building and testing will require a dozen or computers.
- #11 As I get used to controlling a handful of computers, I started thinking what more we can do. If you don’t think more computers are helpful, you are doing it wrong / Can’t be said about people.
- #12 Don’t build up capacity that’s enough on a few days a year but go idle most other time.
- #17 One of the reasons I needed so many computers is because I needed all the different environments / some combinations were very rare and old, keeping them pristine was hard.
- #18 Needing to have diversity in the environment adds to the capacity planning problem.
- #19 But you don’t want to make everything too slow by over-subscribing. I’ve seen hypervisors used to run many virtual machines.
- #21 Hey Kohsuke, my builds are failing. Can you take a look?
- #23 Hey Kohsuke, my builds are failing. Can you take a look?
- #25 So the lesson and the best practice = isolate builds and tests / treat them like untrusted code
- #26 Various techniques has been deployed successfully today
- #27 but as I found out the hard way, this isn’t enough to solve this problem
- #28 Hey Kohsuke, my builds are failing. Can you take a look?
- #30 Hey Kohsuke, my builds are failing. Can you take a look?
- #32 Turns out isolation in the time dimension is just as important / somewhat like a human body --- if you live long enough, things tend to break down / beyond certain point it becomes unsalvageable, as Windows users know all too well!
- #33 Turns out elasticity solves this problem, too, by allowing you to simply throw away and create new instances in the same predictable state /
- #34 Episode from scalability summit / everyone explains their monitoring system
- #36 Either this slide or more details Jenkins.
- #39 If you are willing to invest on creating a great slave virtualization environment, you can.
- #45 HS: if somebody misses the CoW concept, he’d be lost for the next two slides
- #50 brand-new job type / based on feedback from many / scalability summit
