1. JavaFX 8

2. 自己紹介
•hakurai
•Backlog開発チーム@ヌーラボ
•関ジャバ
•hoge駆動
•奈良模型愛好会

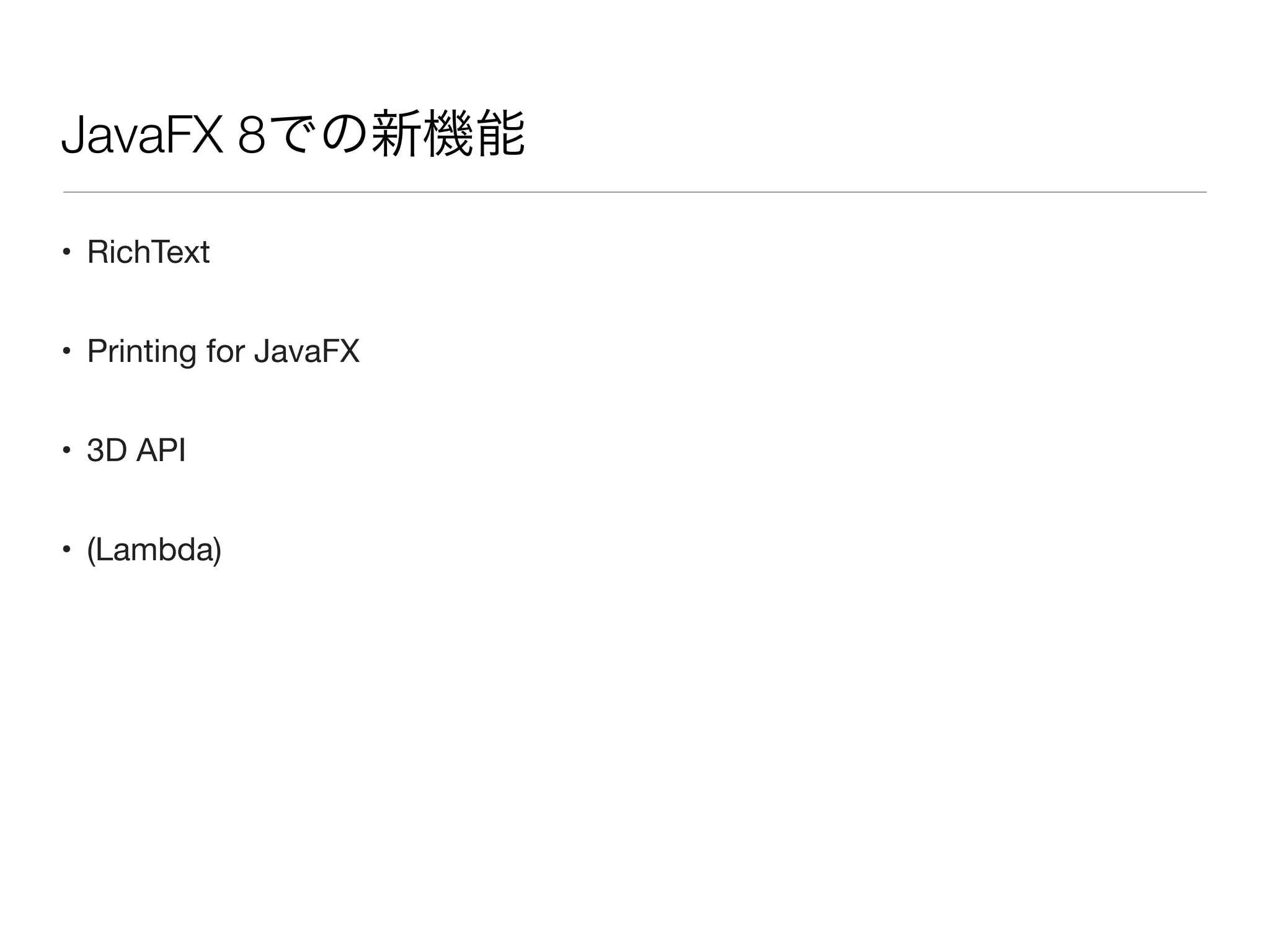

3. JavaFX 8での新機能
• RichText
• Printing for JavaFX
• 3D API
• (Lambda)

4. What is JavaFX
• Swingに換わる新しいGUI フレームワーク
• XML(FXML)による画面定義
• CSSによるスタイリング
• アニメーション/エフェクト
• データバインディング

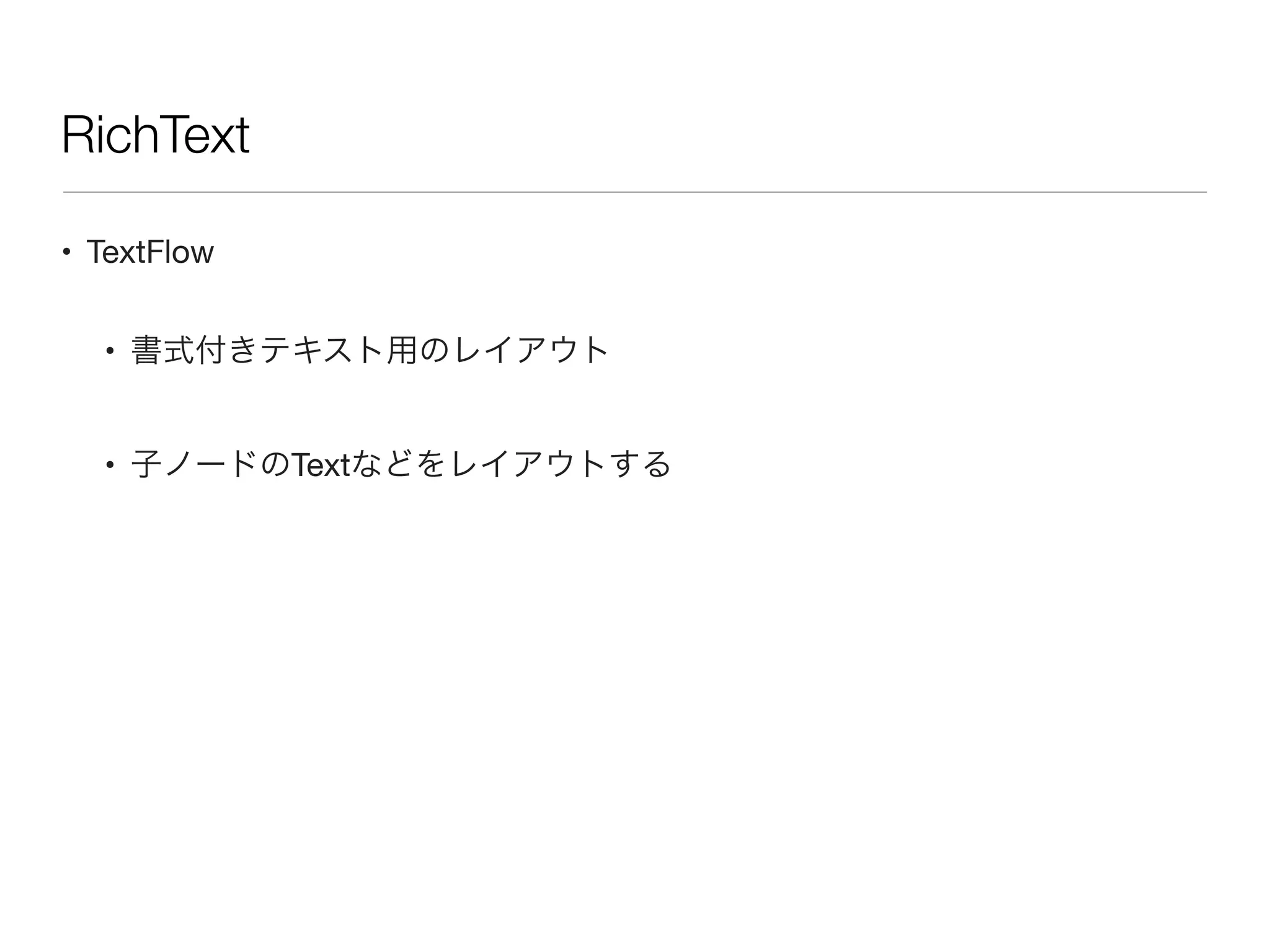

5. RichText
• TextFlow
• 書式付きテキスト用のレイアウト
• 子ノードのTextなどをレイアウトする

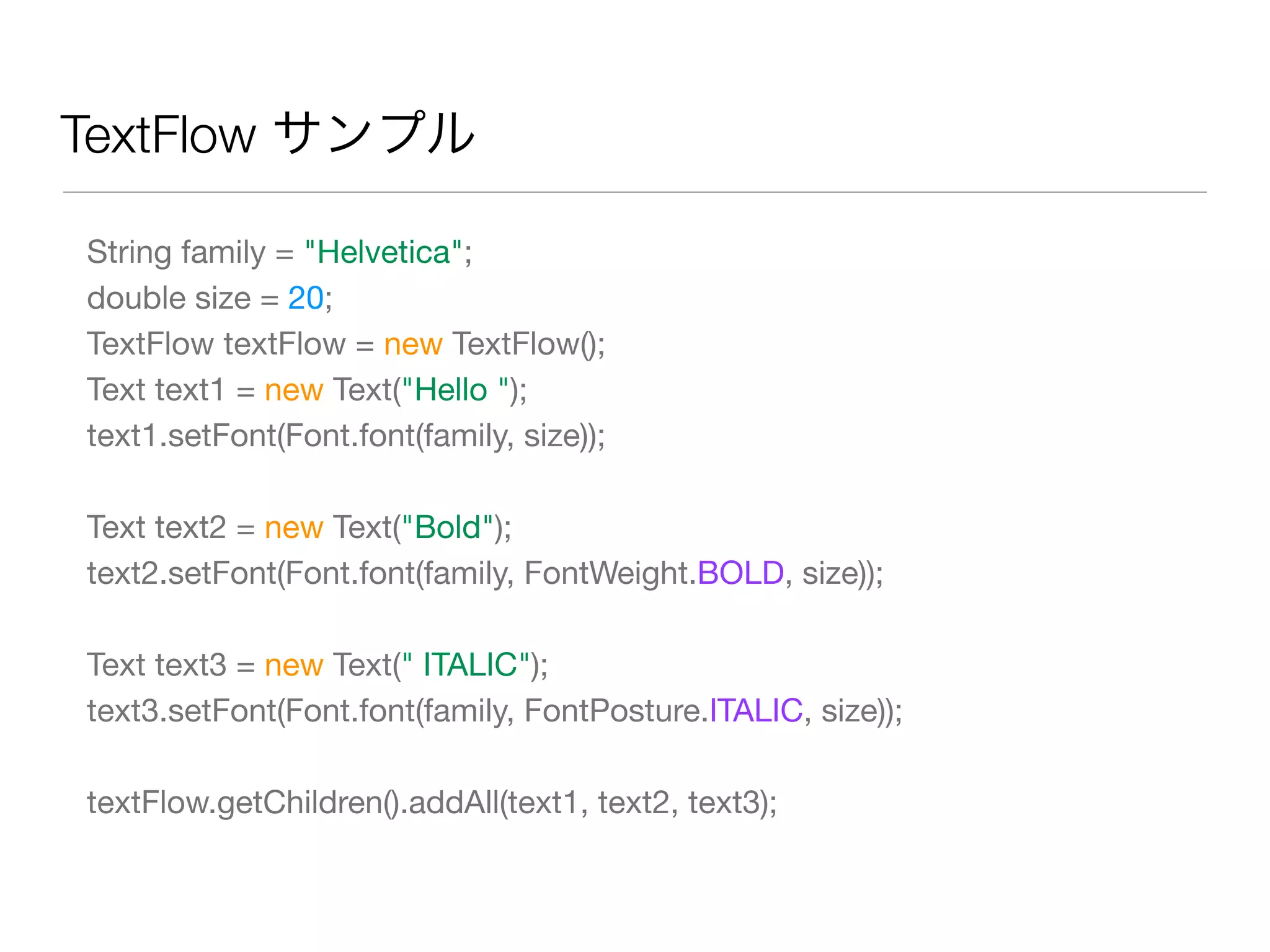

6. TextFlow サンプル
String family = "Helvetica";
double size = 20;
TextFlow textFlow = new TextFlow();
Text text1 = new Text("Hello ");
text1.setFont(Font.font(family, size));
Text text2 = new Text("Bold");
text2.setFont(Font.font(family, FontWeight.BOLD, size));
Text text3 = new Text(" ITALIC");
text3.setFont(Font.font(family, FontPosture.ITALIC, size));
textFlow.getChildren().addAll(text1, text2, text3);

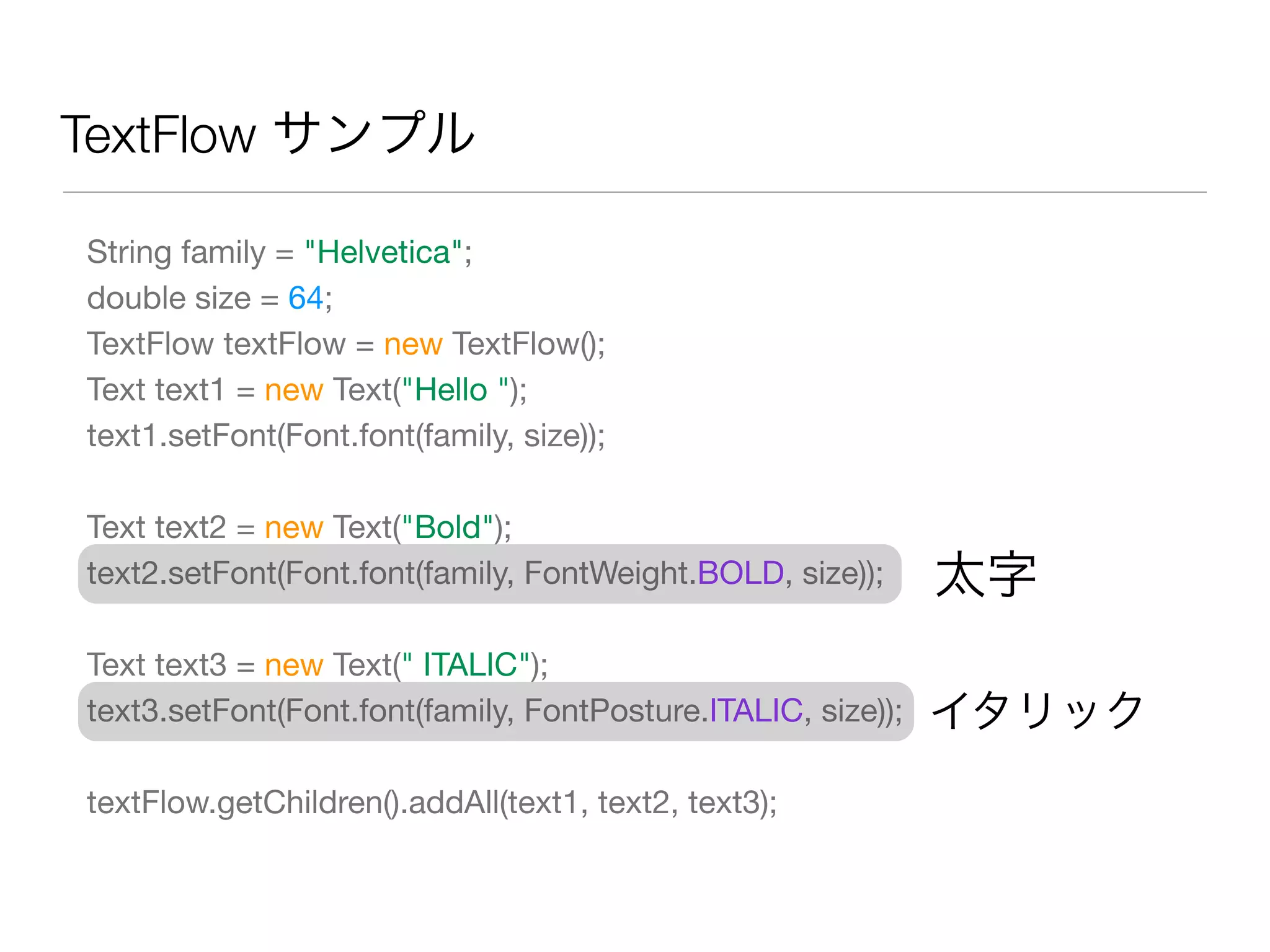

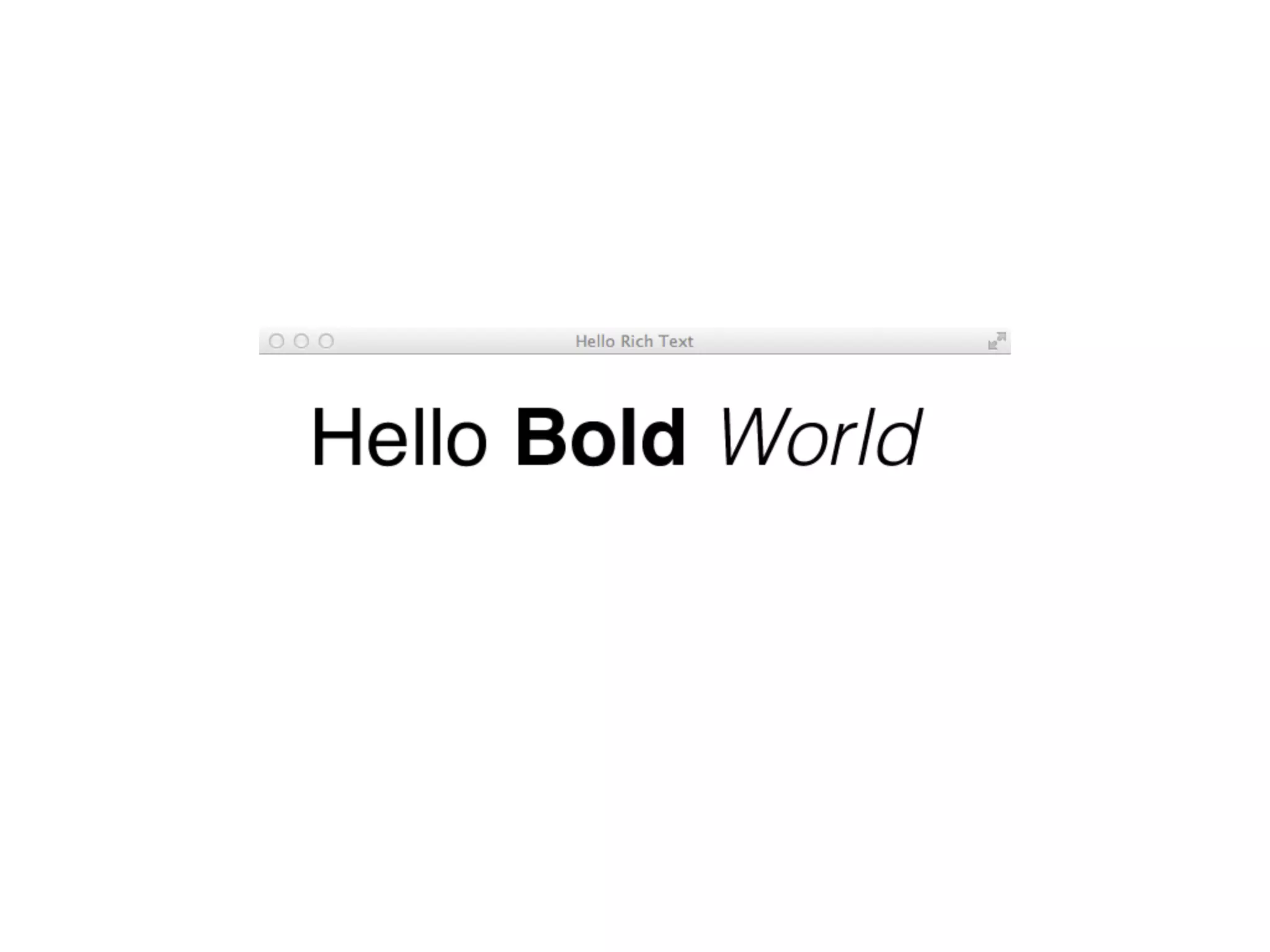

7. TextFlow サンプル
String family = "Helvetica";
double size = 64;
TextFlow textFlow = new TextFlow();
Text text1 = new Text("Hello ");
text1.setFont(Font.font(family, size));
Text text2 = new Text("Bold");
text2.setFont(Font.font(family, FontWeight.BOLD, size));
Text text3 = new Text(" ITALIC");
text3.setFont(Font.font(family, FontPosture.ITALIC, size));
textFlow.getChildren().addAll(text1, text2, text3);
太字
イタリック

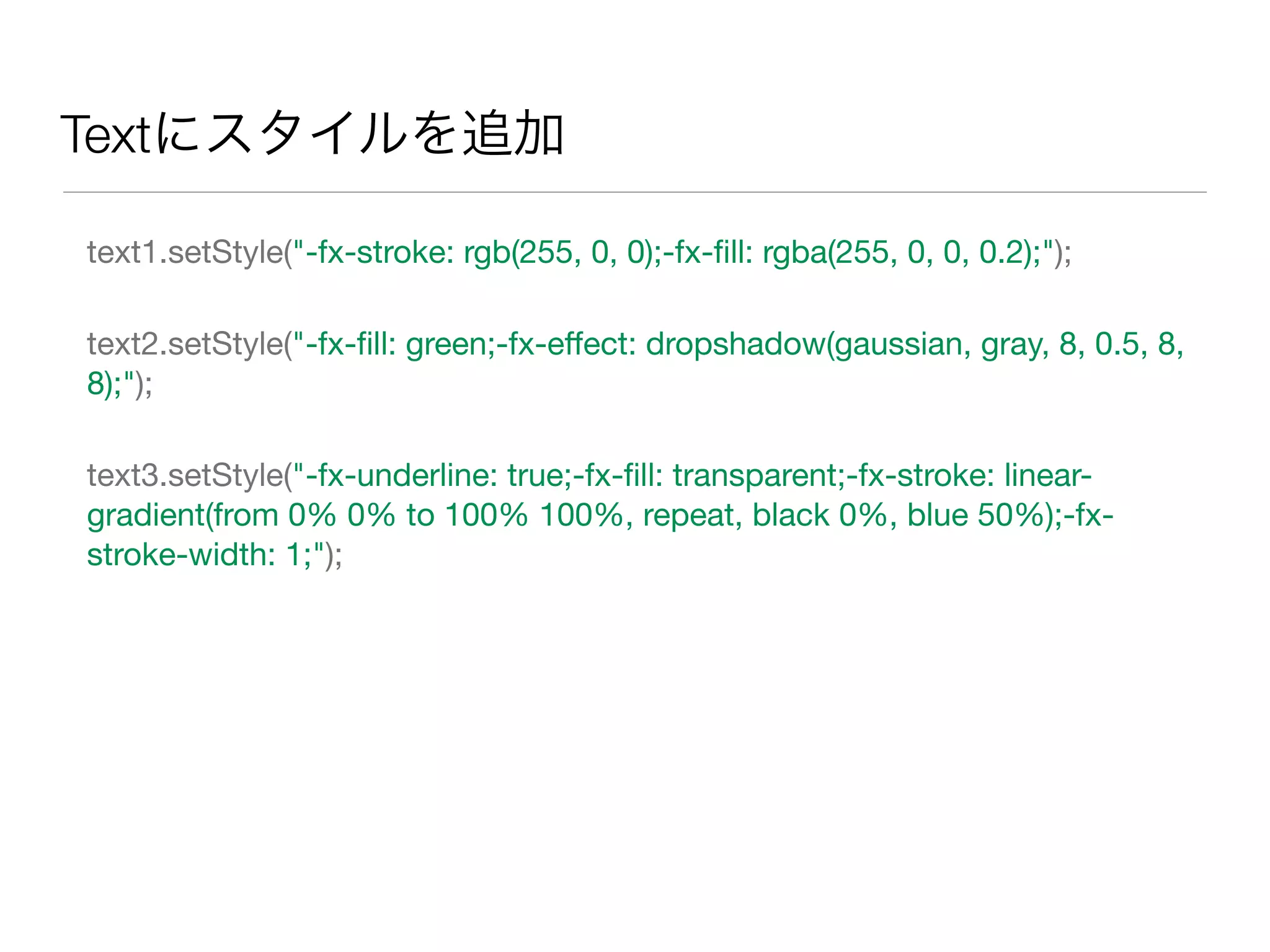

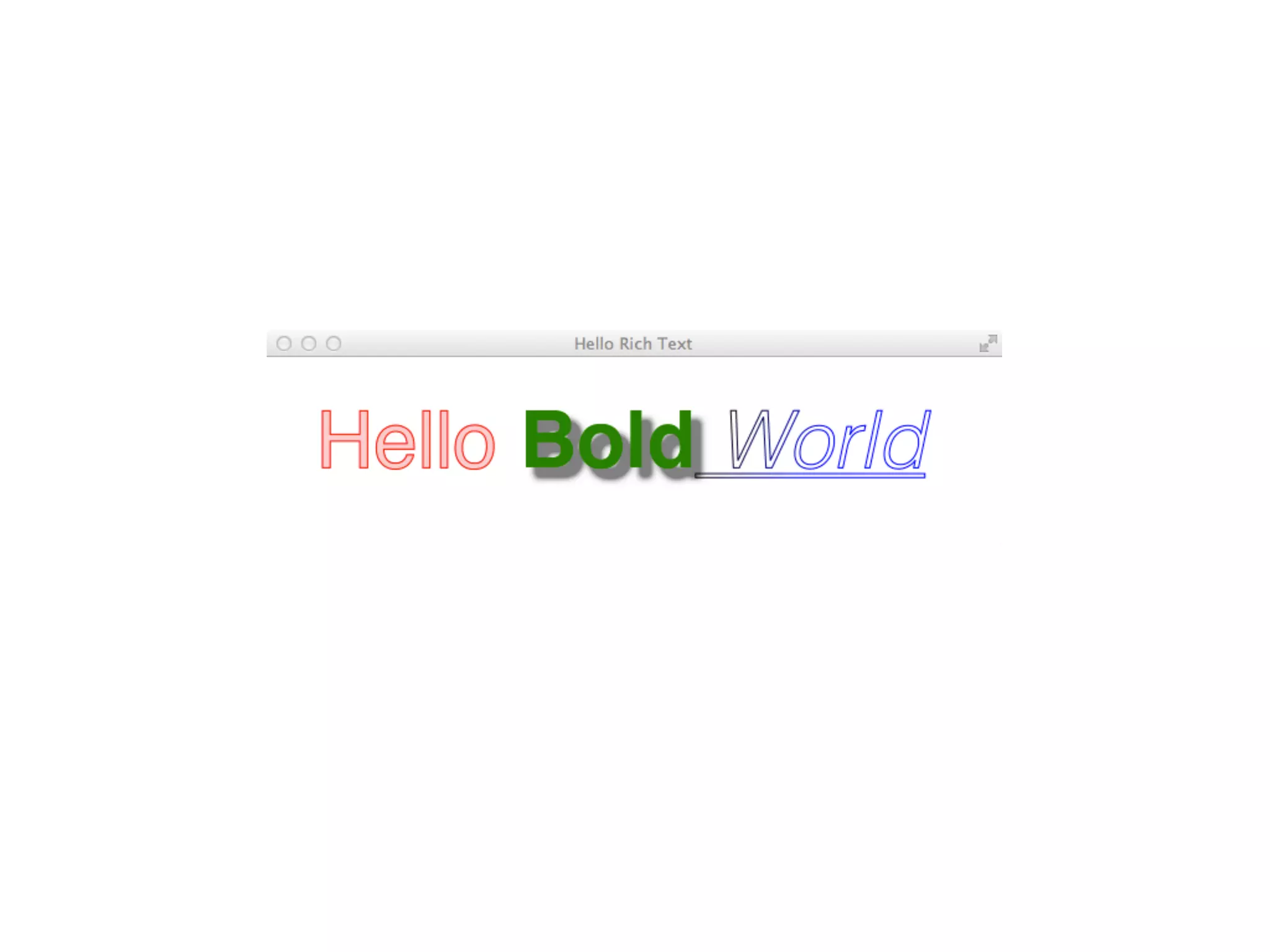

9. Textにスタイルを追加
text1.setStyle("-fx-stroke: rgb(255, 0, 0);-fx-fill: rgba(255, 0, 0, 0.2);");
text2.setStyle("-fx-fill: green;-fx-effect: dropshadow(gaussian, gray, 8, 0.5, 8,
8);");
text3.setStyle("-fx-underline: true;-fx-fill: transparent;-fx-stroke: linear-
gradient(from 0% 0% to 100% 100%, repeat, black 0%, blue 50%);-fx-
stroke-width: 1;");

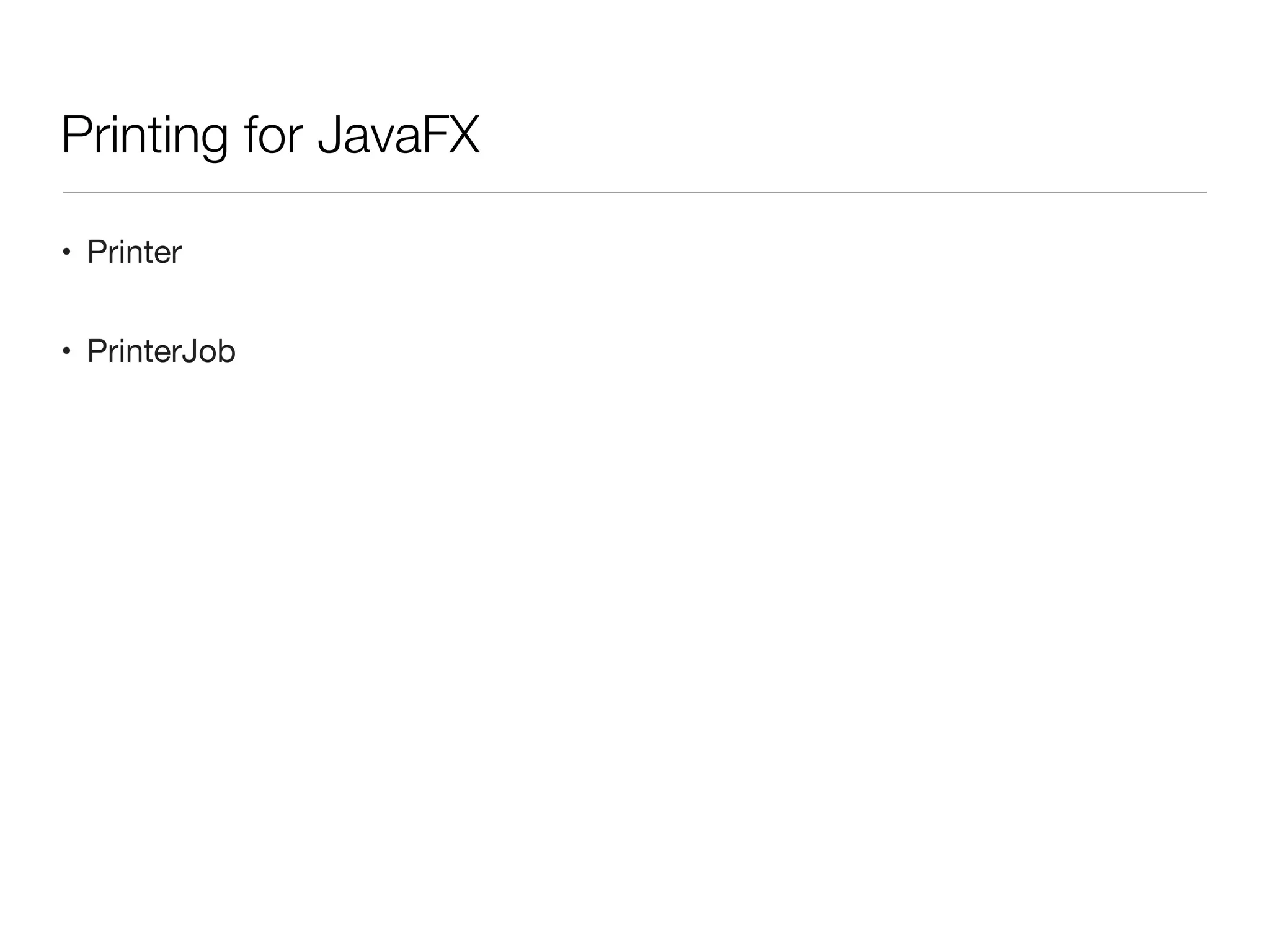

11. • Printer
• PrinterJob
Printing for JavaFX

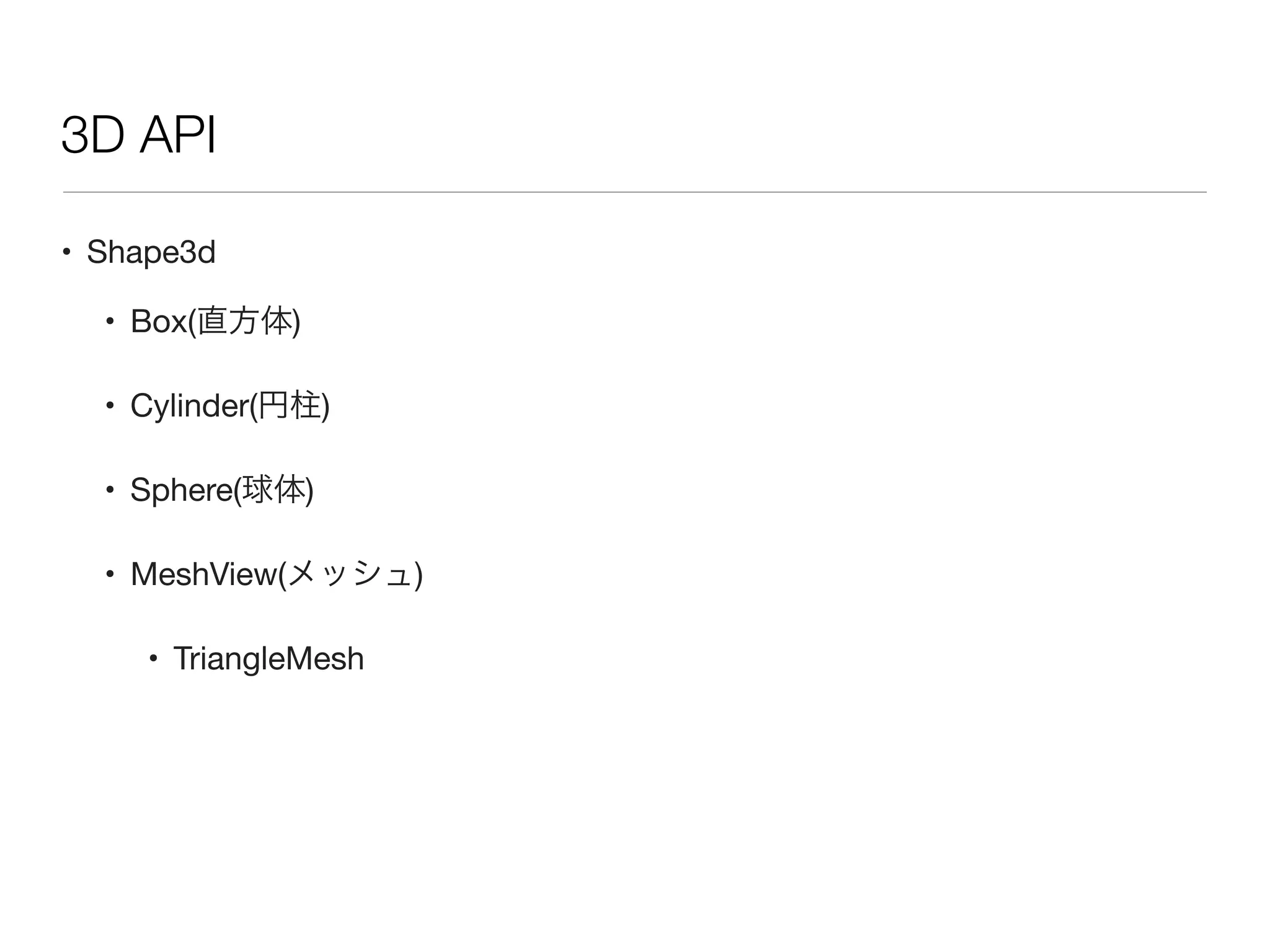

12. • Shape3d
• Box(直方体)
• Cylinder(円柱)
• Sphere(球体)
• MeshView(メッシュ)
• TriangleMesh
3D API

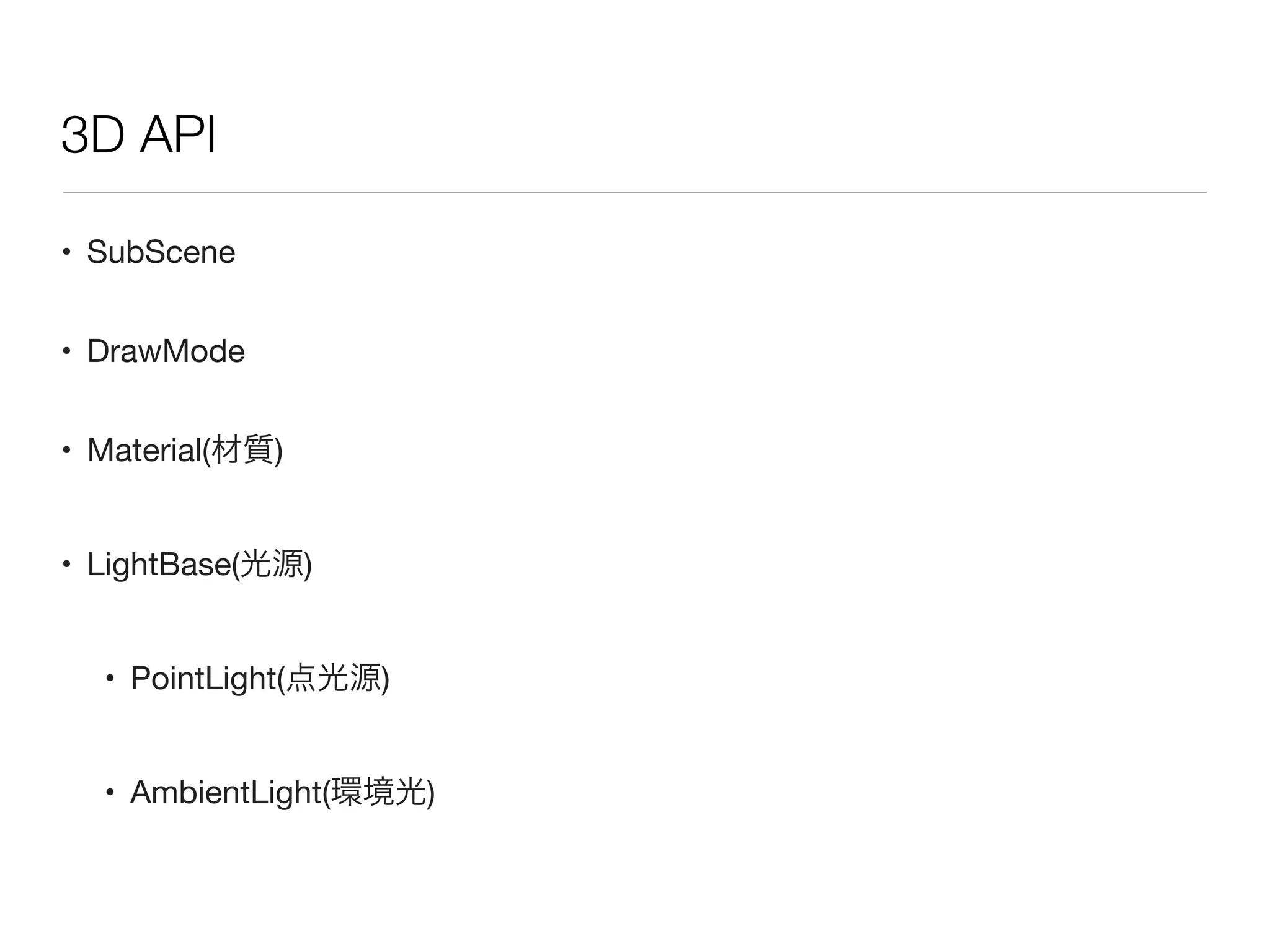

13. • SubScene
• DrawMode
• Material(材質)
• LightBase(光源)
• PointLight(点光源)
• AmbientLight(環境光)
3D API

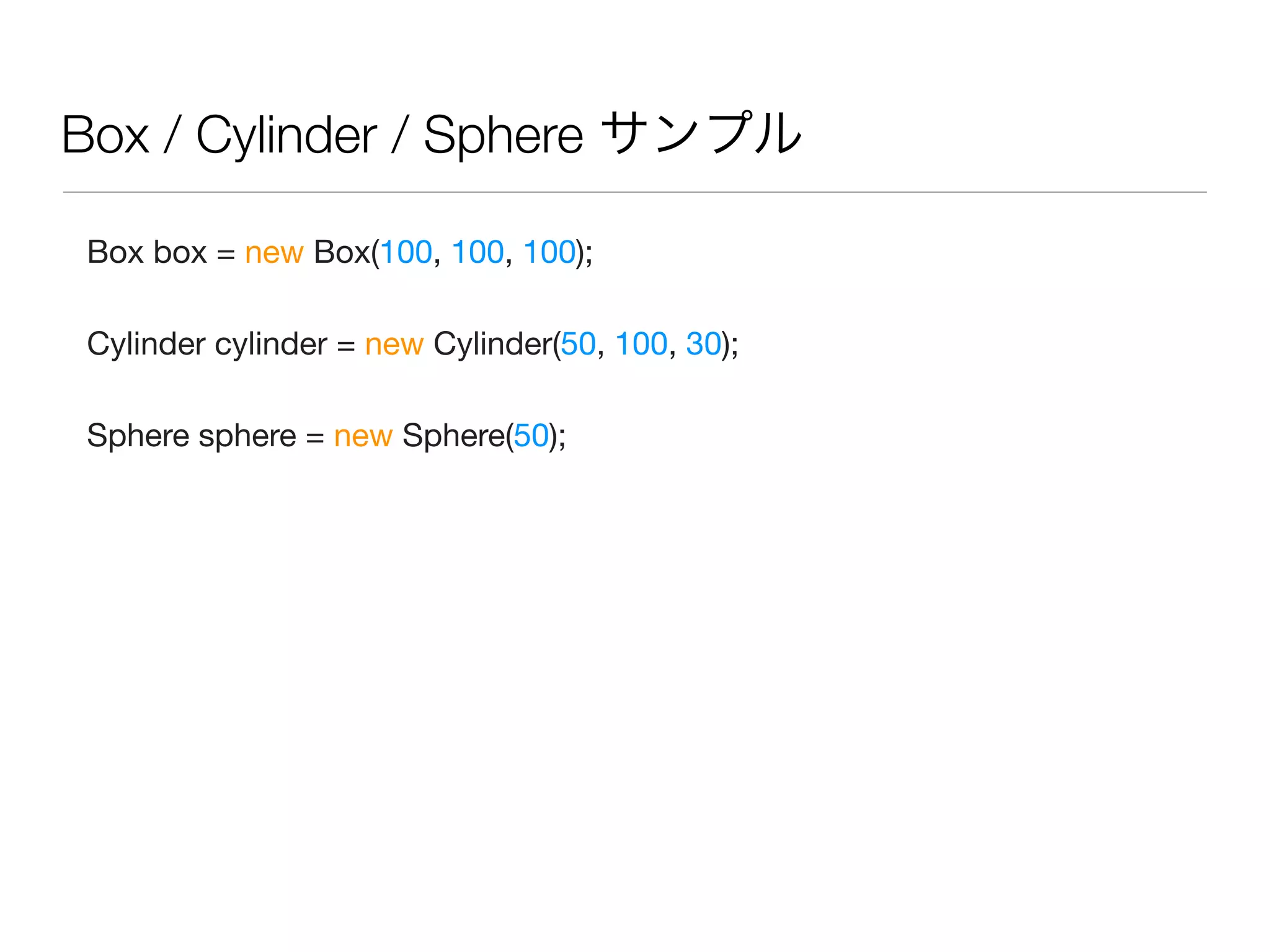

14. Box / Cylinder / Sphere サンプル
Box box = new Box(100, 100, 100);
Cylinder cylinder = new Cylinder(50, 100, 30);
Sphere sphere = new Sphere(50);

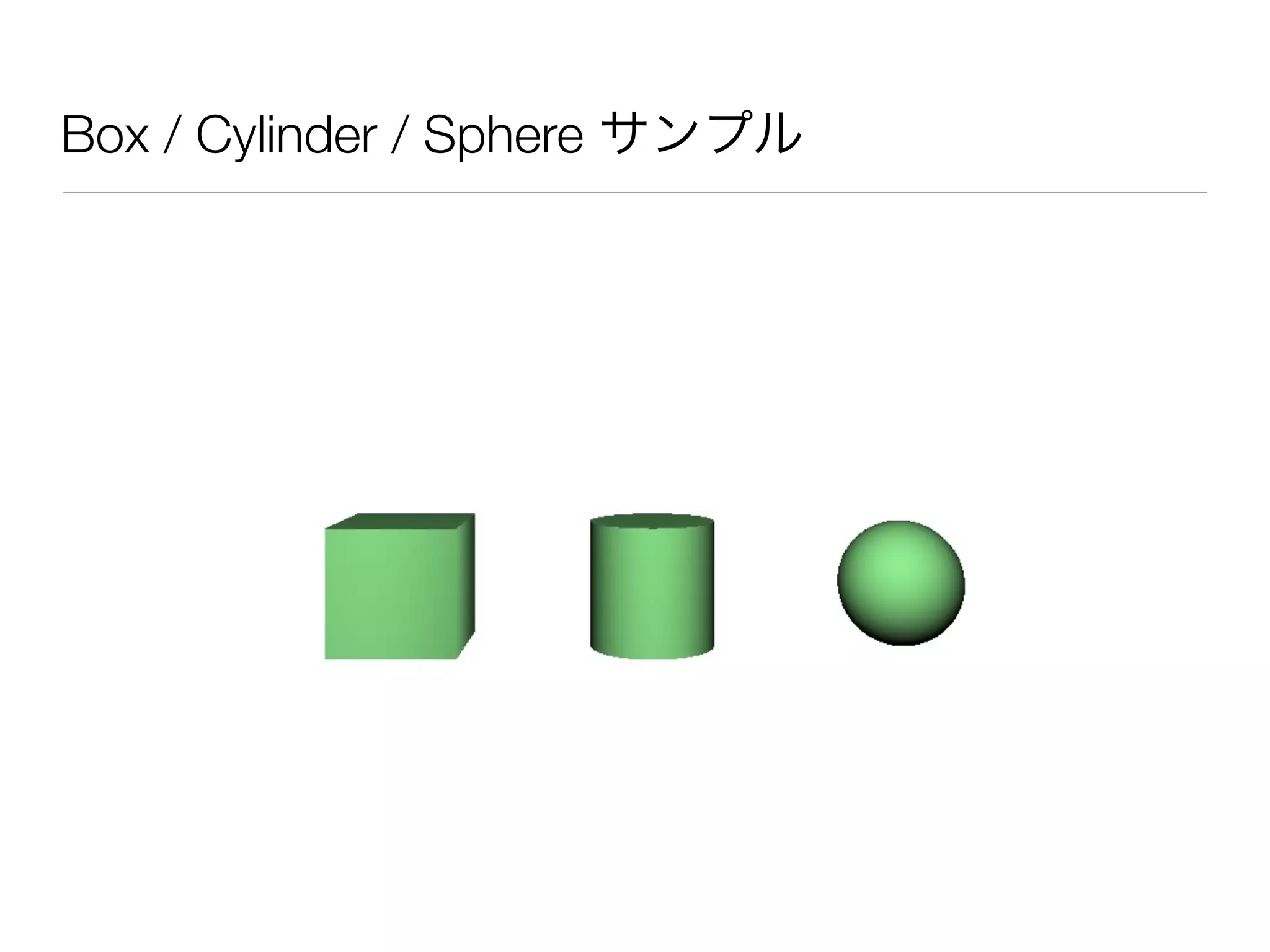

15. Box / Cylinder / Sphere サンプル

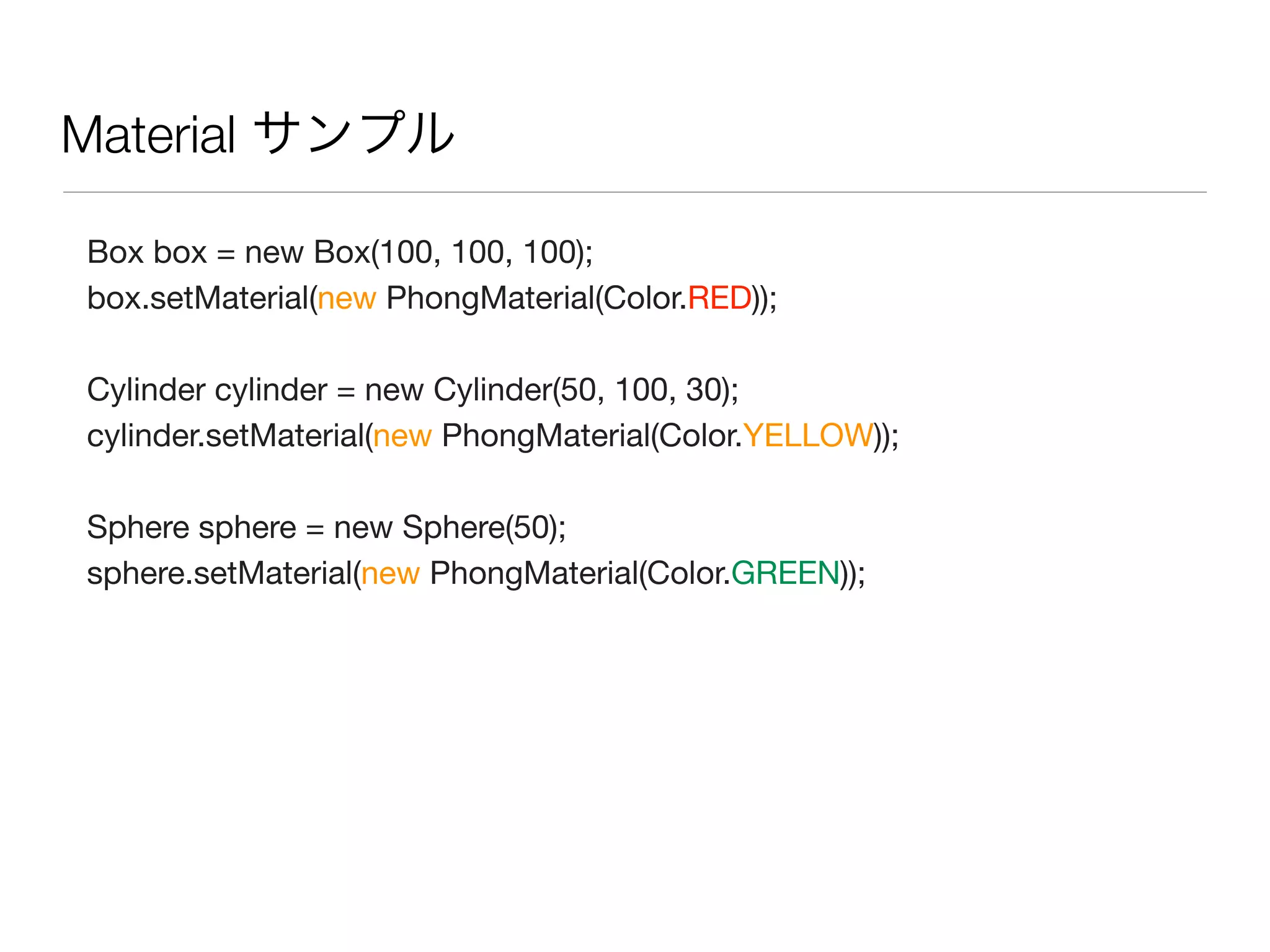

16. Material サンプル
Box box = new Box(100, 100, 100);
box.setMaterial(new PhongMaterial(Color.RED));
Cylinder cylinder = new Cylinder(50, 100, 30);
cylinder.setMaterial(new PhongMaterial(Color.YELLOW));
Sphere sphere = new Sphere(50);
sphere.setMaterial(new PhongMaterial(Color.GREEN));

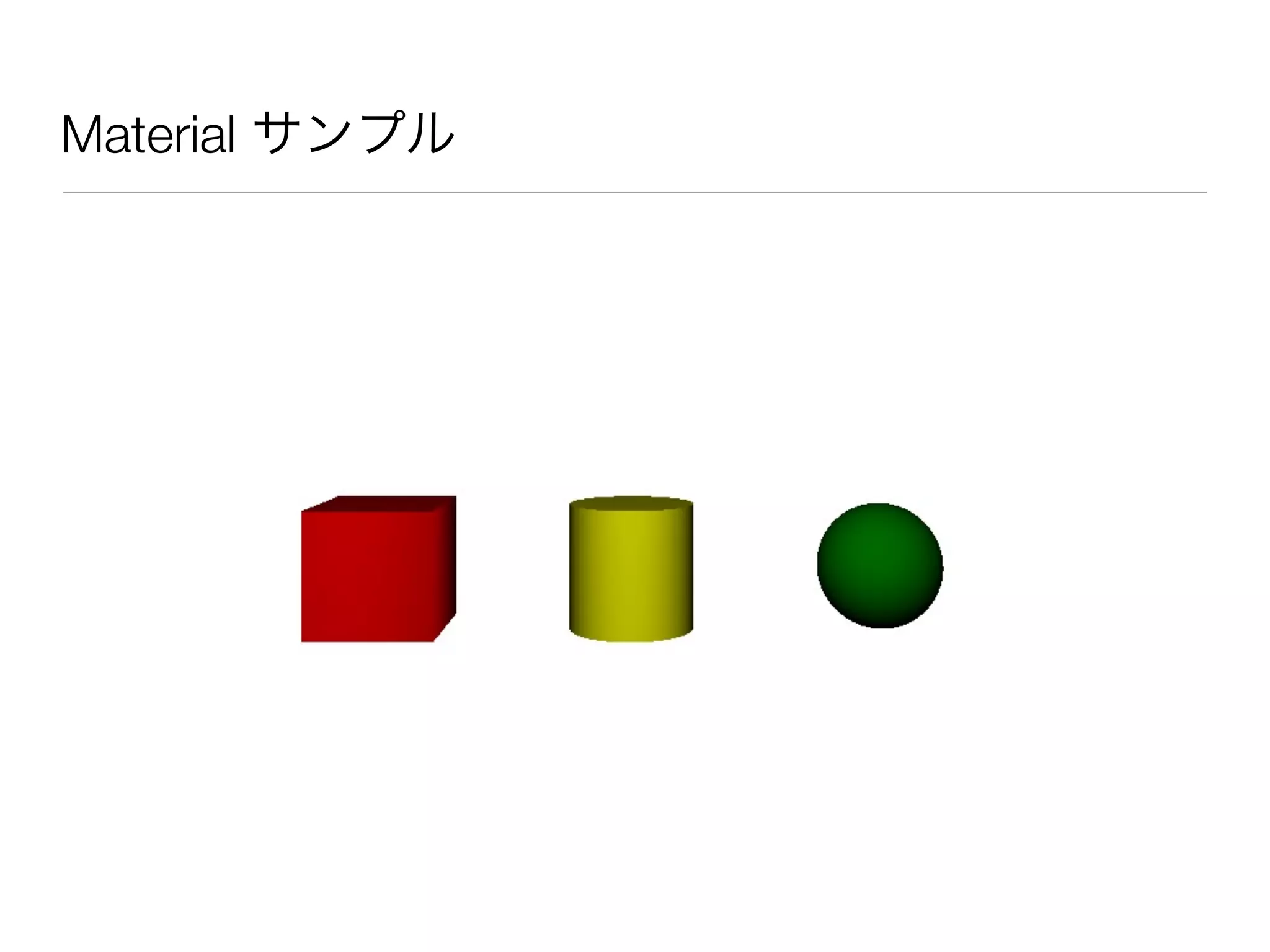

17. Material サンプル

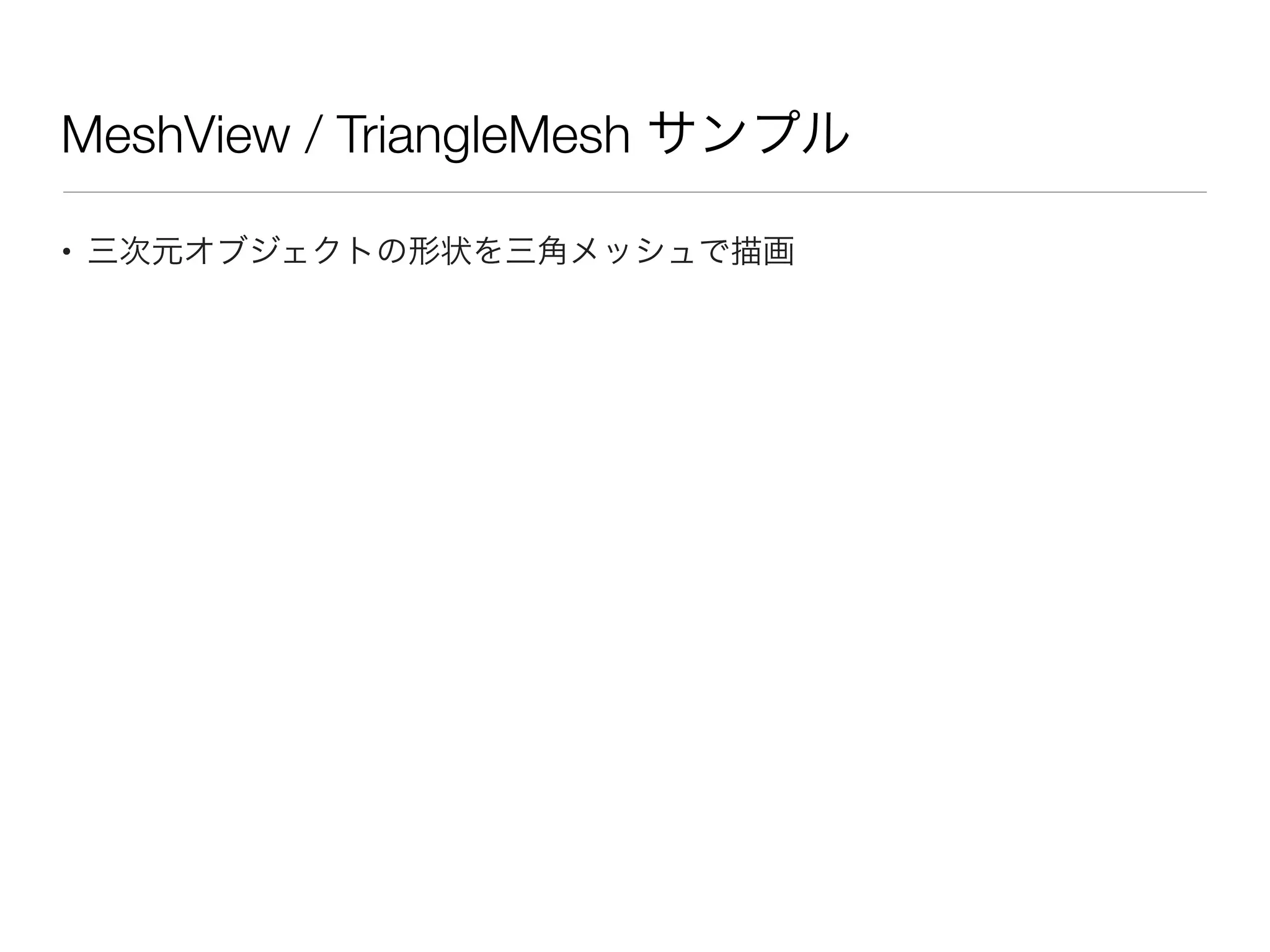

18. MeshView / TriangleMesh サンプル
• 三次元オブジェクトの形状を三角メッシュで描画

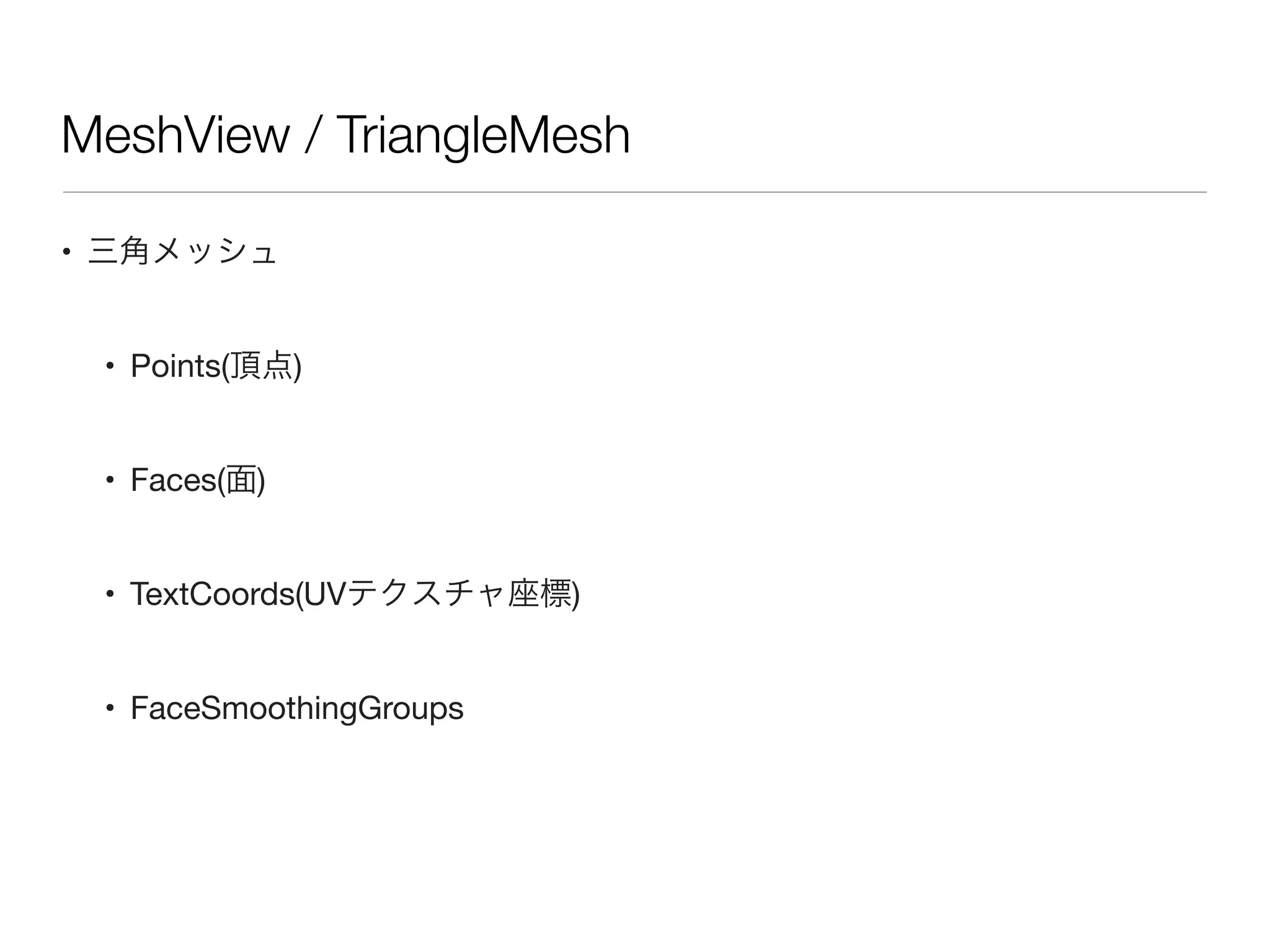

19. MeshView / TriangleMesh
• 三角メッシュ
• Points(頂点)
• Faces(面)
• TextCoords(UVテクスチャ座標)
• FaceSmoothingGroups

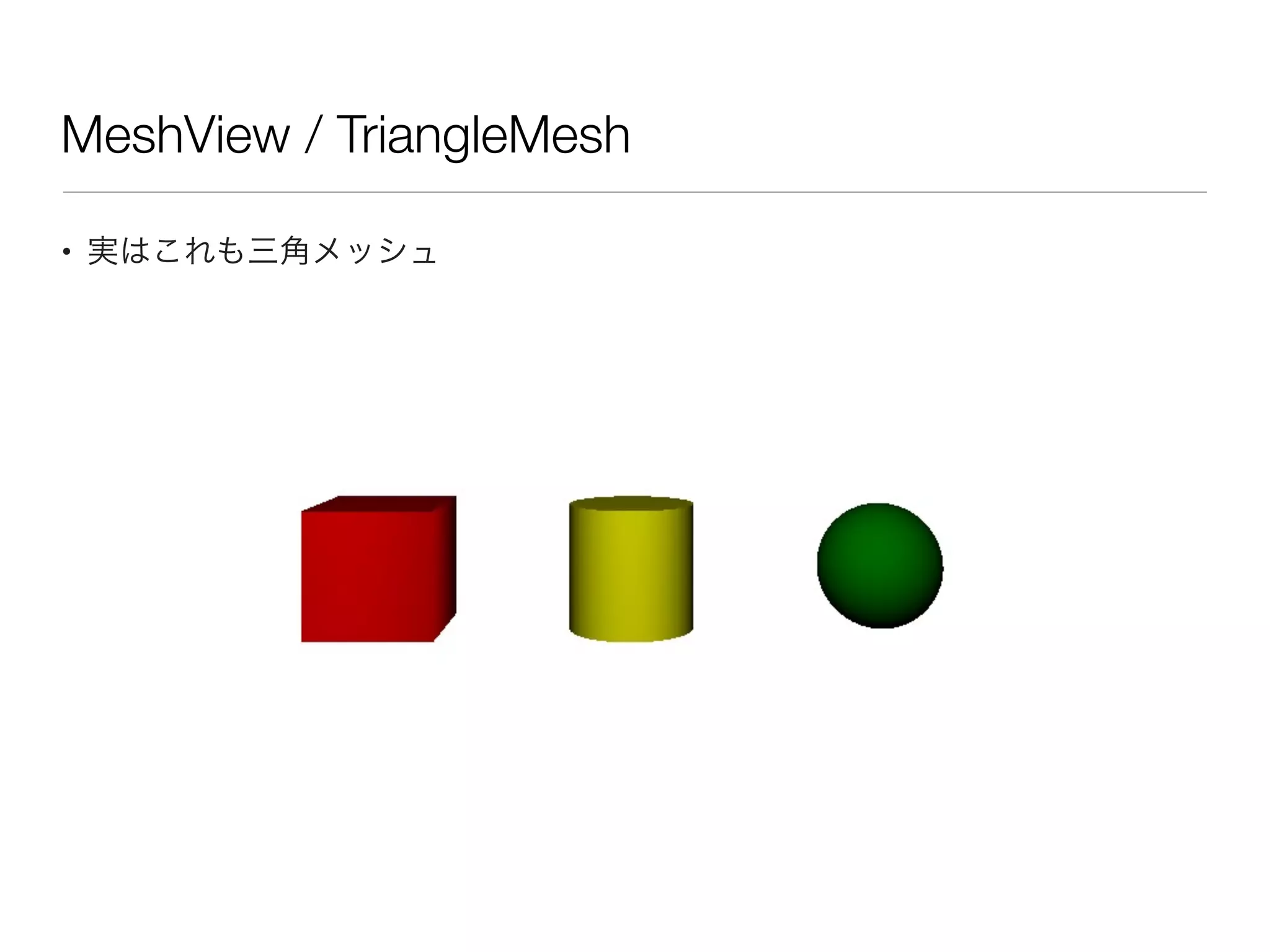

20. MeshView / TriangleMesh
• 実はこれも三角メッシュ

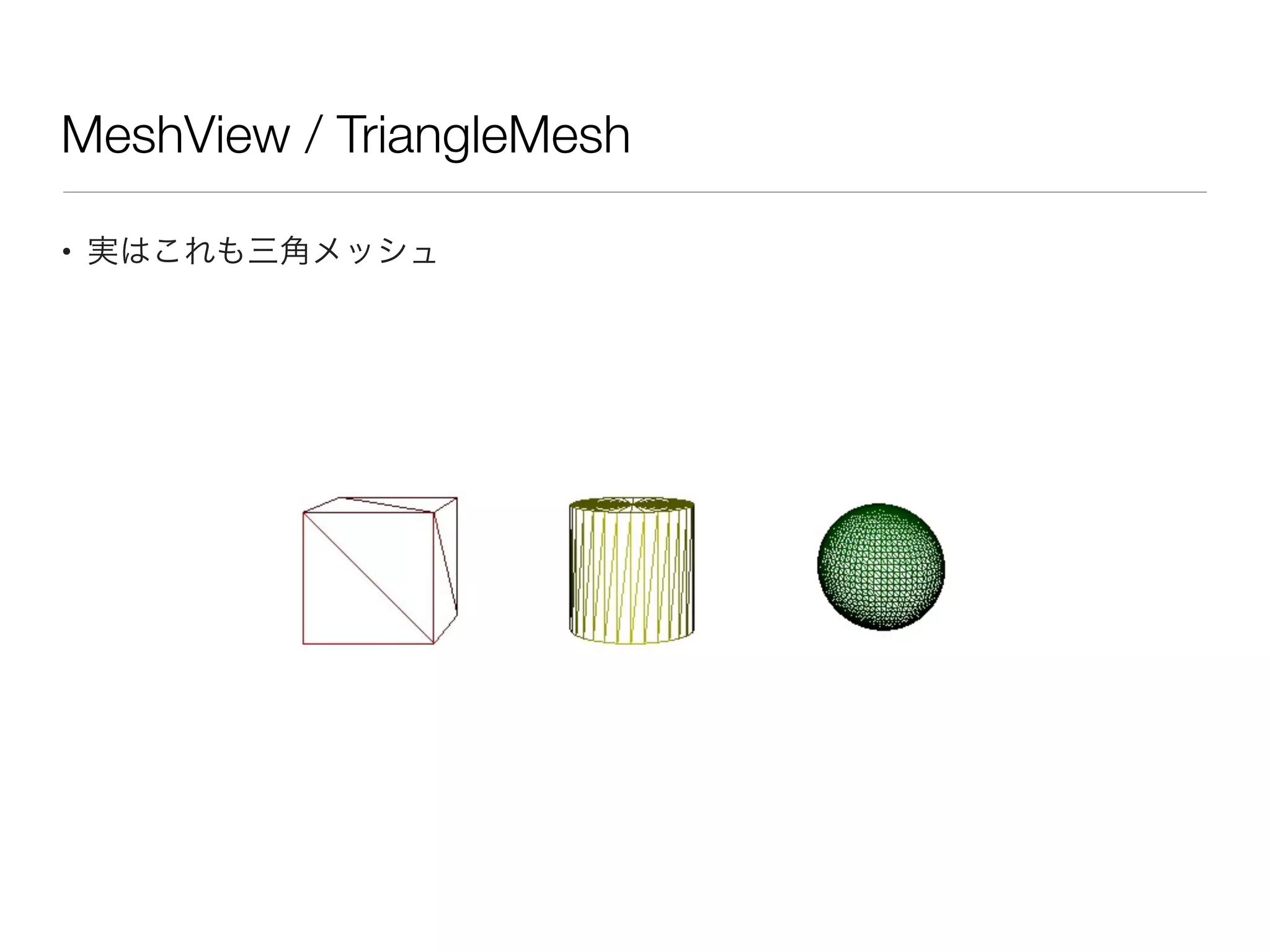

21. MeshView / TriangleMesh
• 実はこれも三角メッシュ

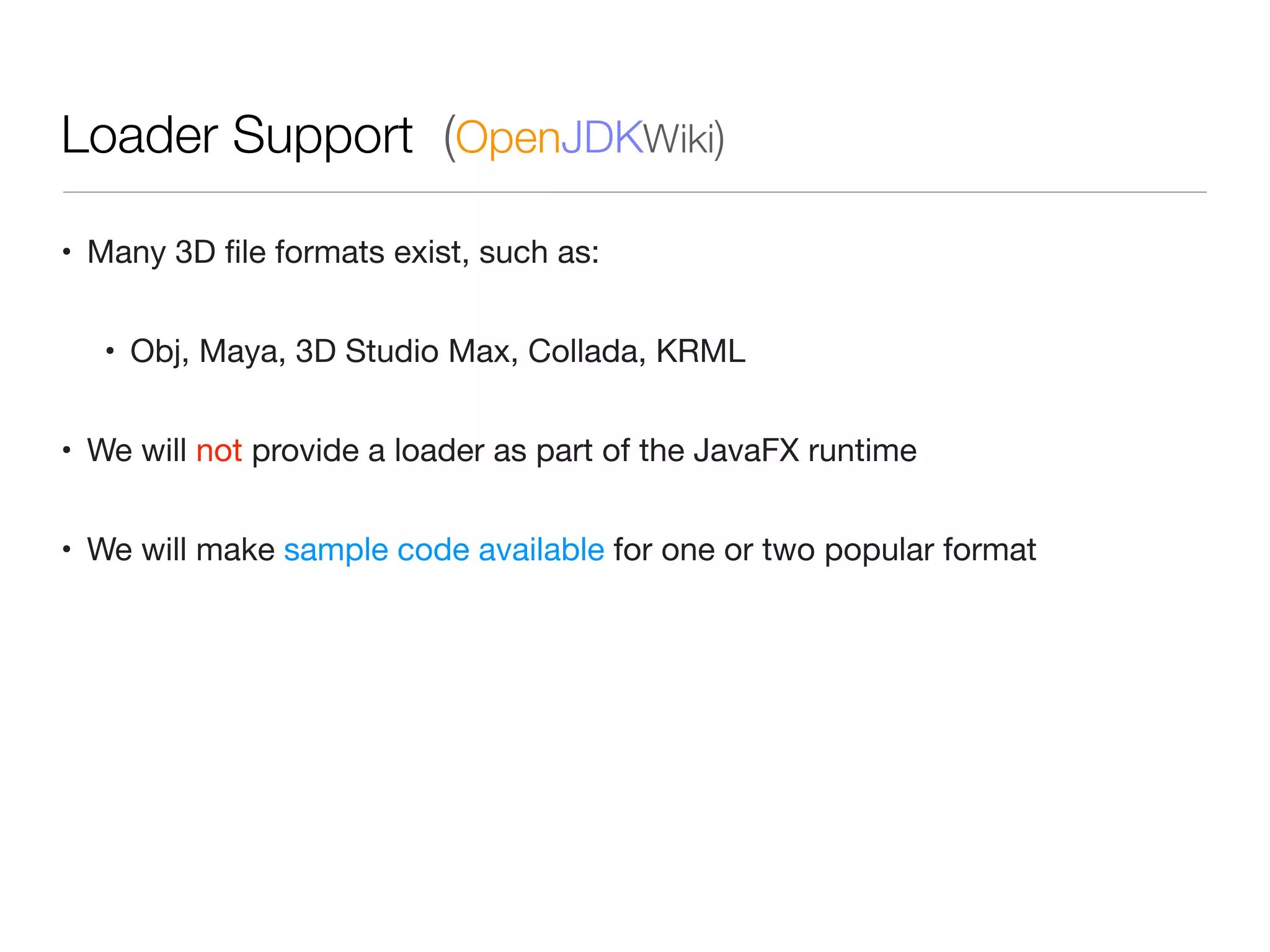

22. Loader Support (OpenJDKWiki)
• Many 3D file formats exist, such as:
• Obj, Maya, 3D Studio Max, Collada, KRML
• We will not provide a loader as part of the JavaFX runtime
• We will make sample code available for one or two popular format

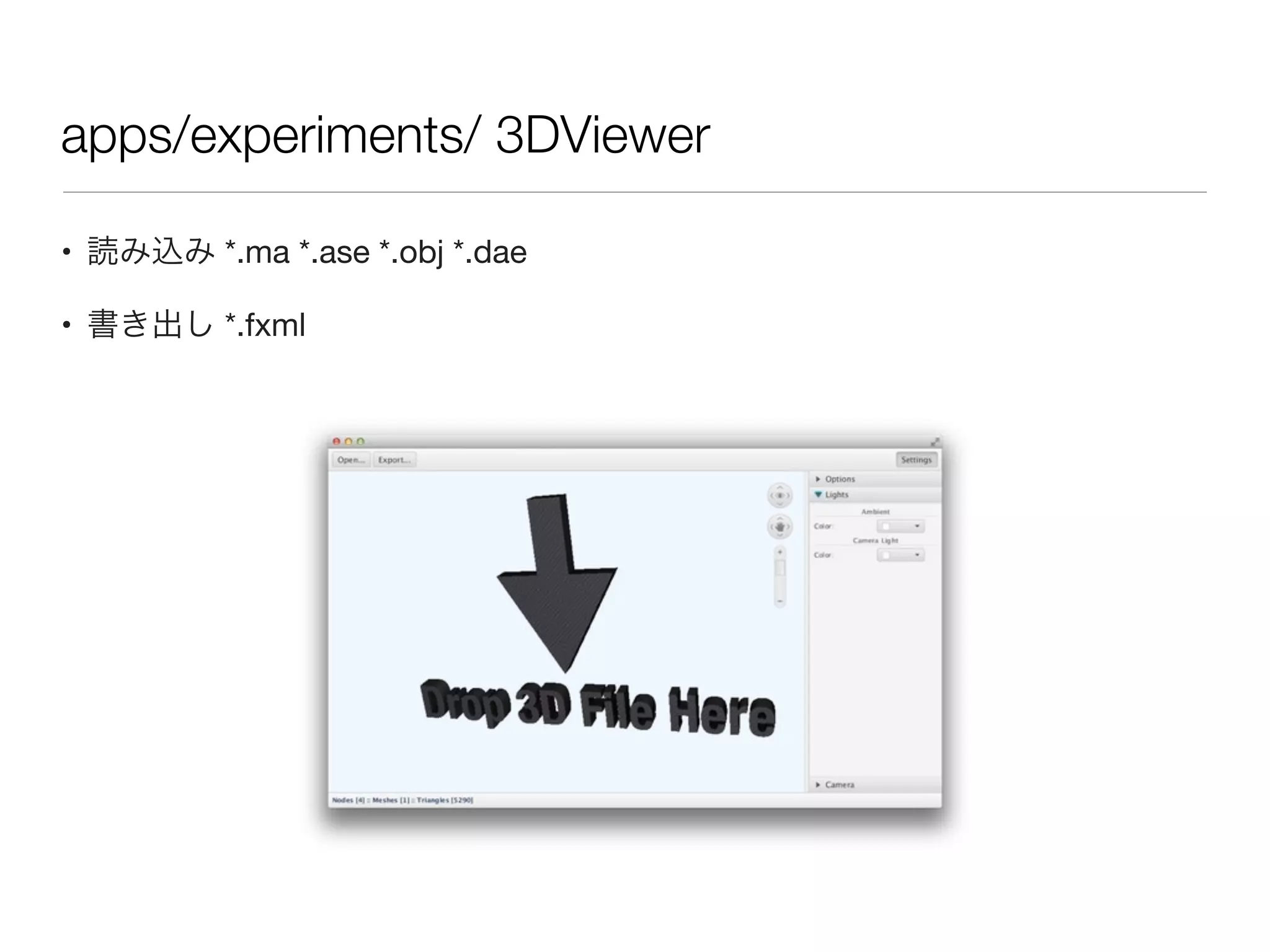

23. apps/experiments/ 3DViewer
• 読み込み *.ma *.ase *.obj *.dae
• 書き出し *.fxml

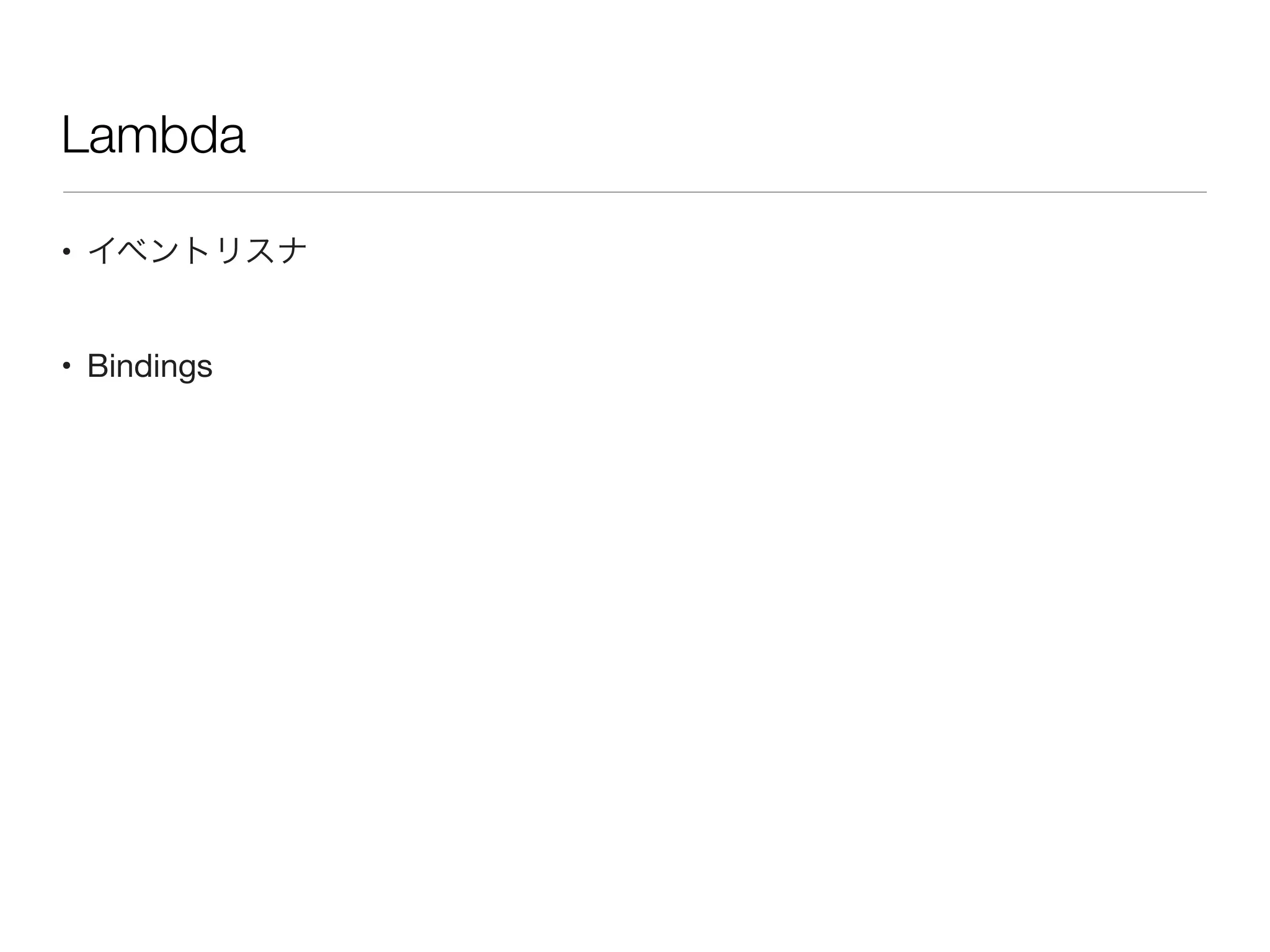

24. Lambda
• イベントリスナ
• Bindings

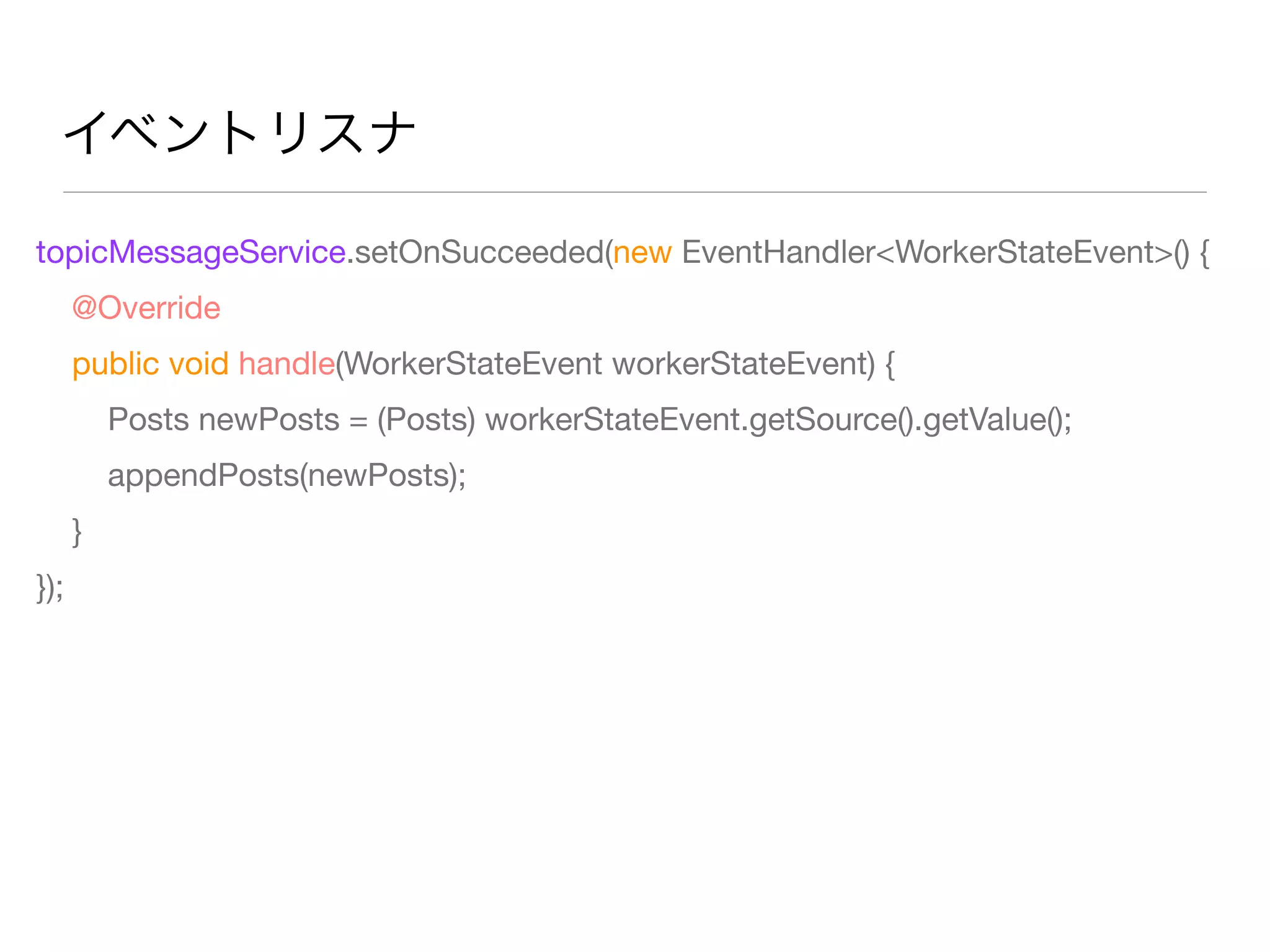

25. イベントリスナ
topicMessageService.setOnSucceeded(new EventHandler<WorkerStateEvent>() {
@Override
public void handle(WorkerStateEvent workerStateEvent) {
Posts newPosts = (Posts) workerStateEvent.getSource().getValue();
appendPosts(newPosts);
}
});

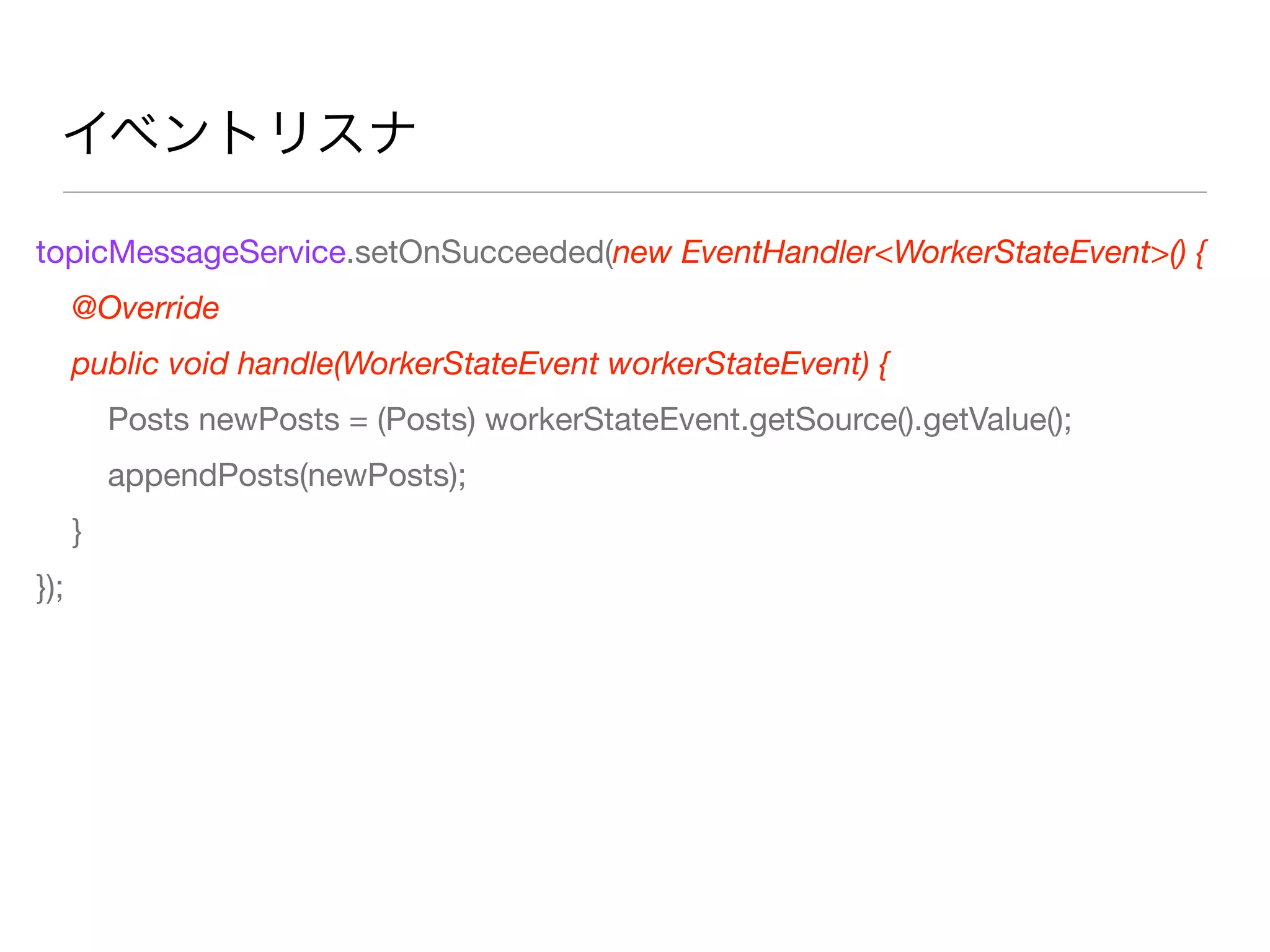

26. イベントリスナ
topicMessageService.setOnSucceeded(new EventHandler<WorkerStateEvent>() {
@Override
public void handle(WorkerStateEvent workerStateEvent) {
Posts newPosts = (Posts) workerStateEvent.getSource().getValue();
appendPosts(newPosts);
}
});

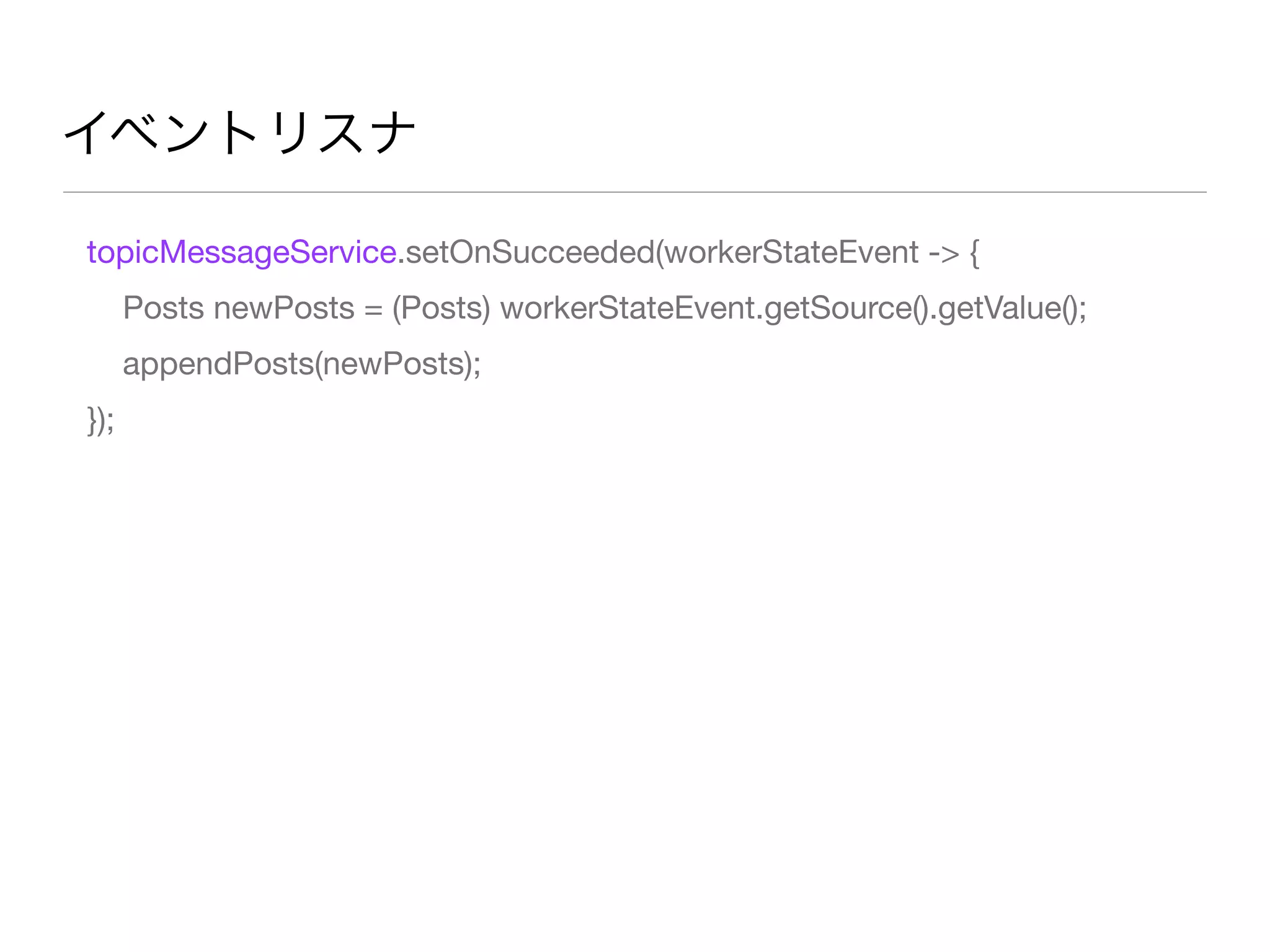

27. イベントリスナ
topicMessageService.setOnSucceeded(workerStateEvent -> {
Posts newPosts = (Posts) workerStateEvent.getSource().getValue();
appendPosts(newPosts);
});

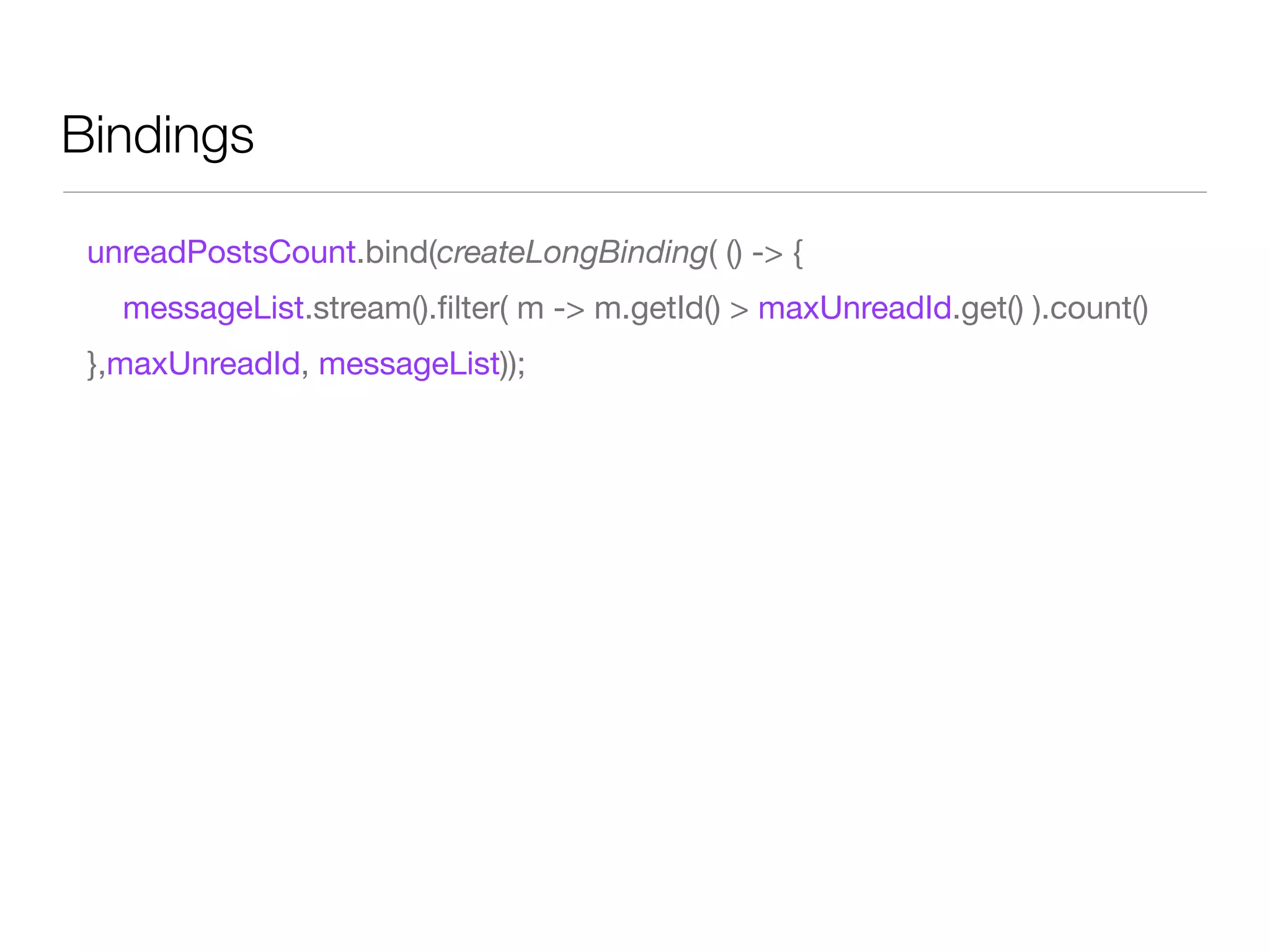

28. Bindings
unreadPostsCount.bind(createLongBinding( () -> {
messageList.stream().filter( m -> m.getId() > maxUnreadId.get() ).count()
},maxUnreadId, messageList));
