JavaEE with Vaadin - Workshop
- 1.
- 2.
- 3.
- 4.

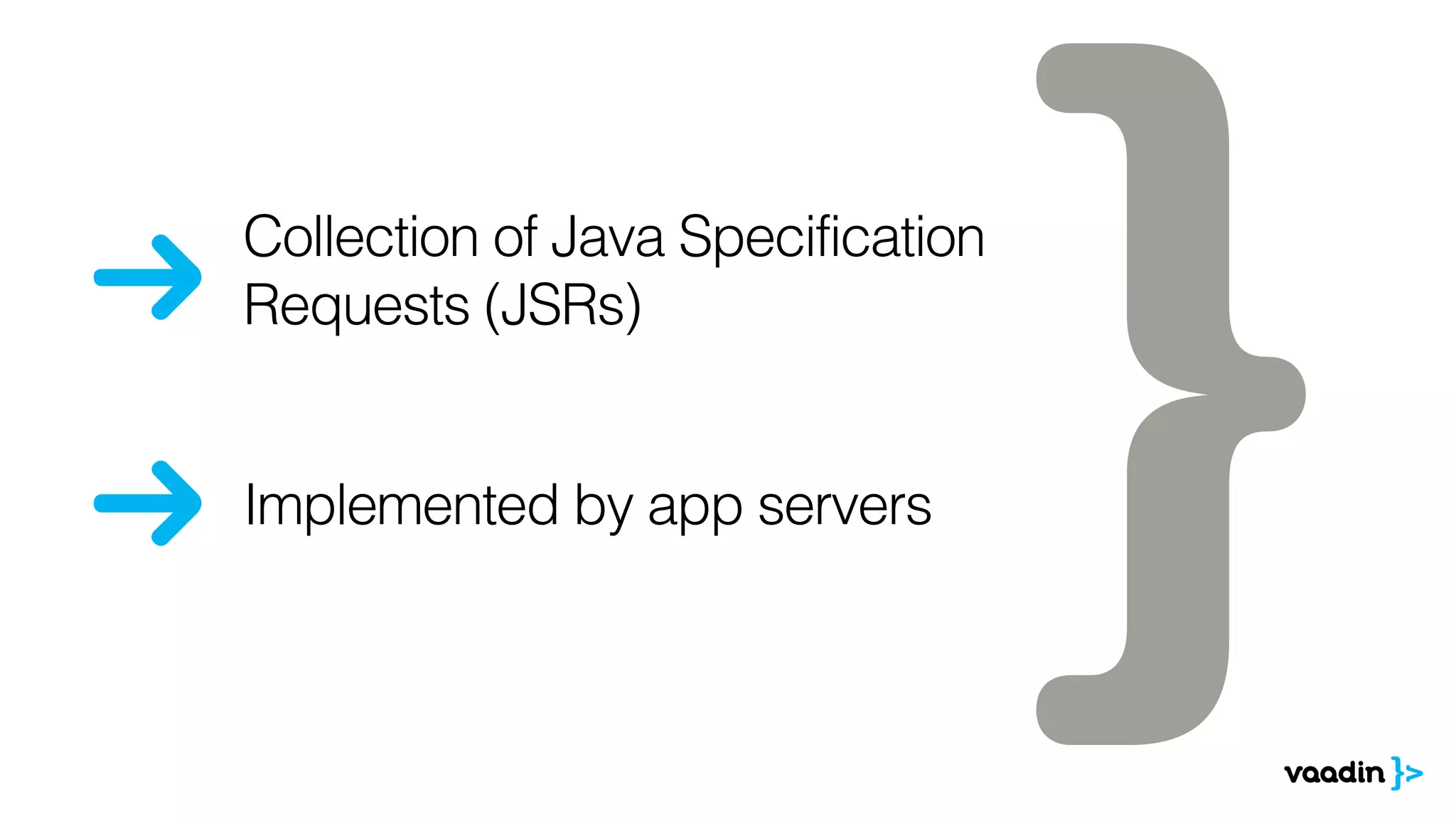

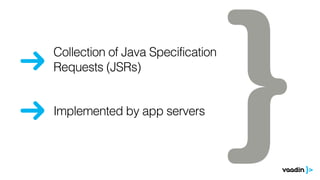

- 5. Collection of JavaSpecification Requests (JSRs)
- 6. Collection of JavaSpecification Requests (JSRs) Implemented by app servers

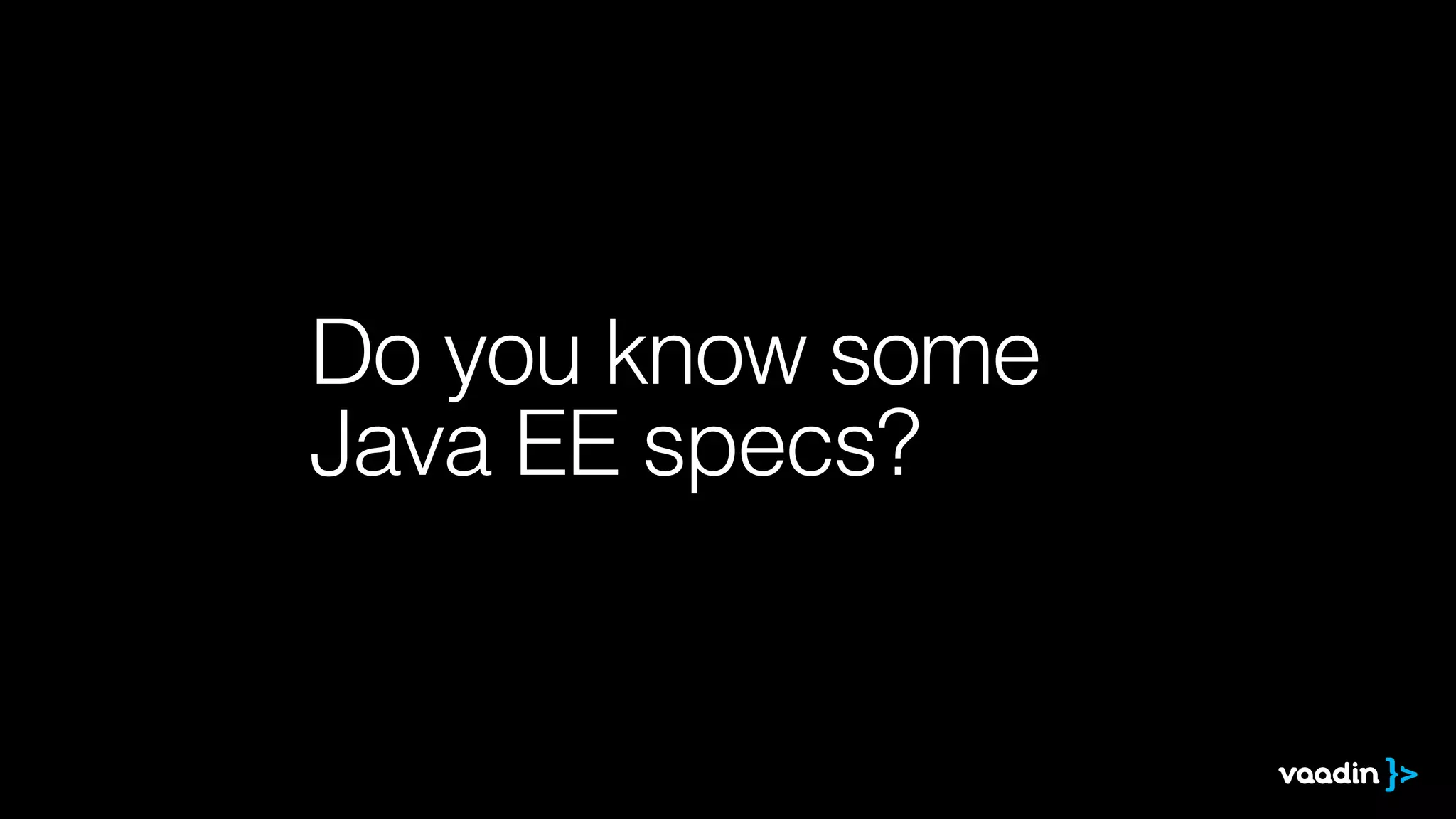

- 9. Do you knowsome Java EE specs?
- 10. Java Persistence API 2.1(JPA) (JSR-338)
- 11. Java Persistence API 2.1(JPA) (JSR-338) Enterprise Java Beans 3.2 (EJB) (JSR-345)
- 12. Java Persistence API 2.1(JPA) (JSR-338) Enterprise Java Beans 3.2 (EJB) (JSR-345) Java Servlet 3.1 (JSR-340)

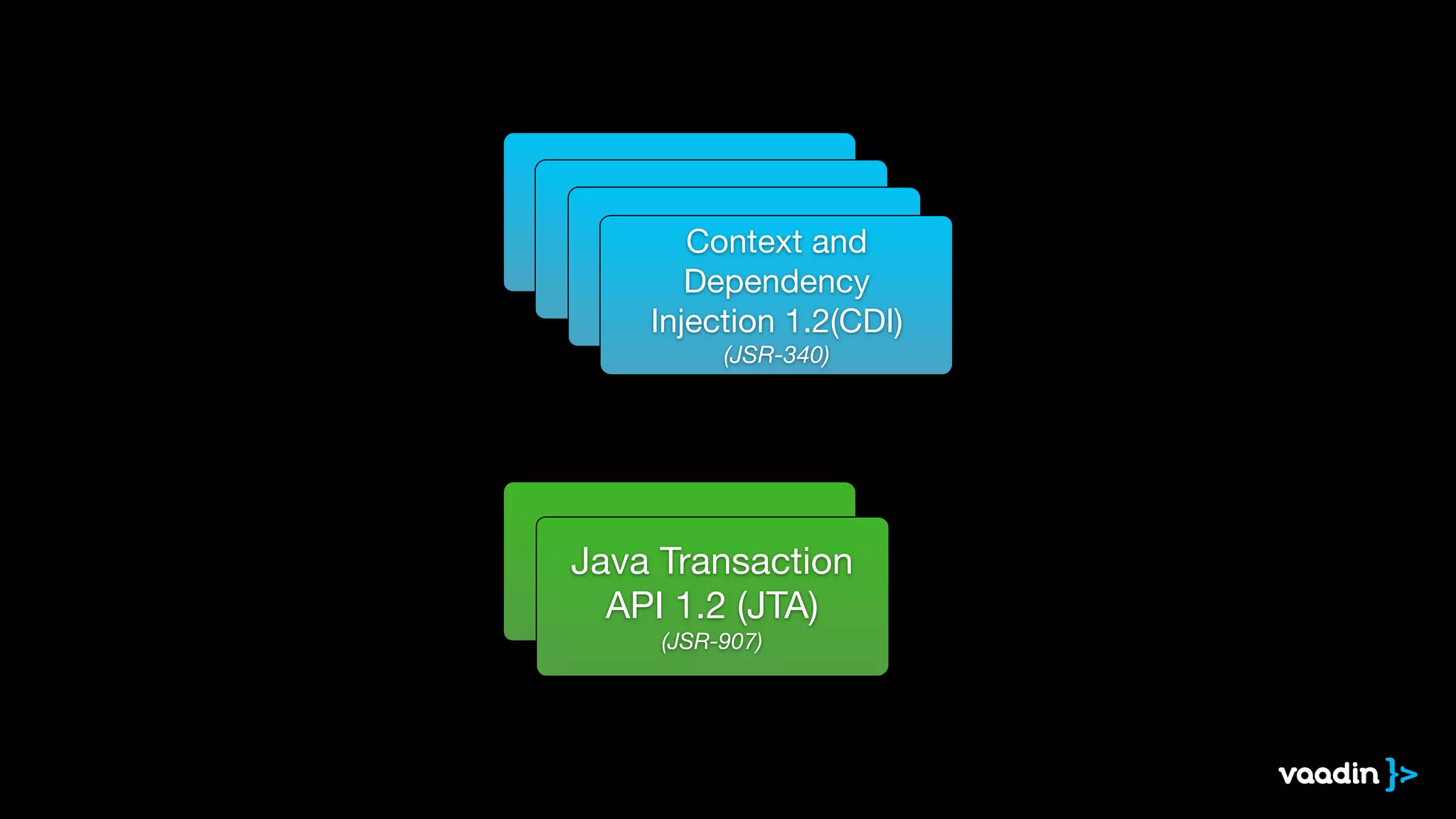

- 13. Java Persistence API 2.1(JPA) (JSR-338) Enterprise Java Beans 3.2 (EJB) (JSR-345) Java Servlet 3.1 (JSR-340) Context and Dependency Injection 1.2(CDI) (JSR-340)
- 14. Java Persistence API 2.1(JPA) (JSR-338) Enterprise Java Beans 3.2 (EJB) (JSR-345) Java Servlet 3.1 (JSR-340) Context and Dependency Injection 1.2(CDI) (JSR-340) Interceptors 1.2 (JSR-318)

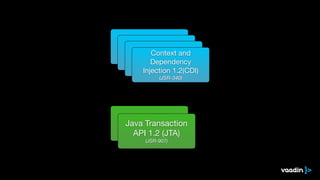

- 15. Java Persistence API 2.1(JPA) (JSR-338) Enterprise Java Beans 3.2 (EJB) (JSR-345) Java Servlet 3.1 (JSR-340) Context and Dependency Injection 1.2(CDI) (JSR-340) Interceptors 1.2 (JSR-318) Java Transaction API 1.2 (JTA) (JSR-907)
- 16. Java Persistence API2.1 (JPA)

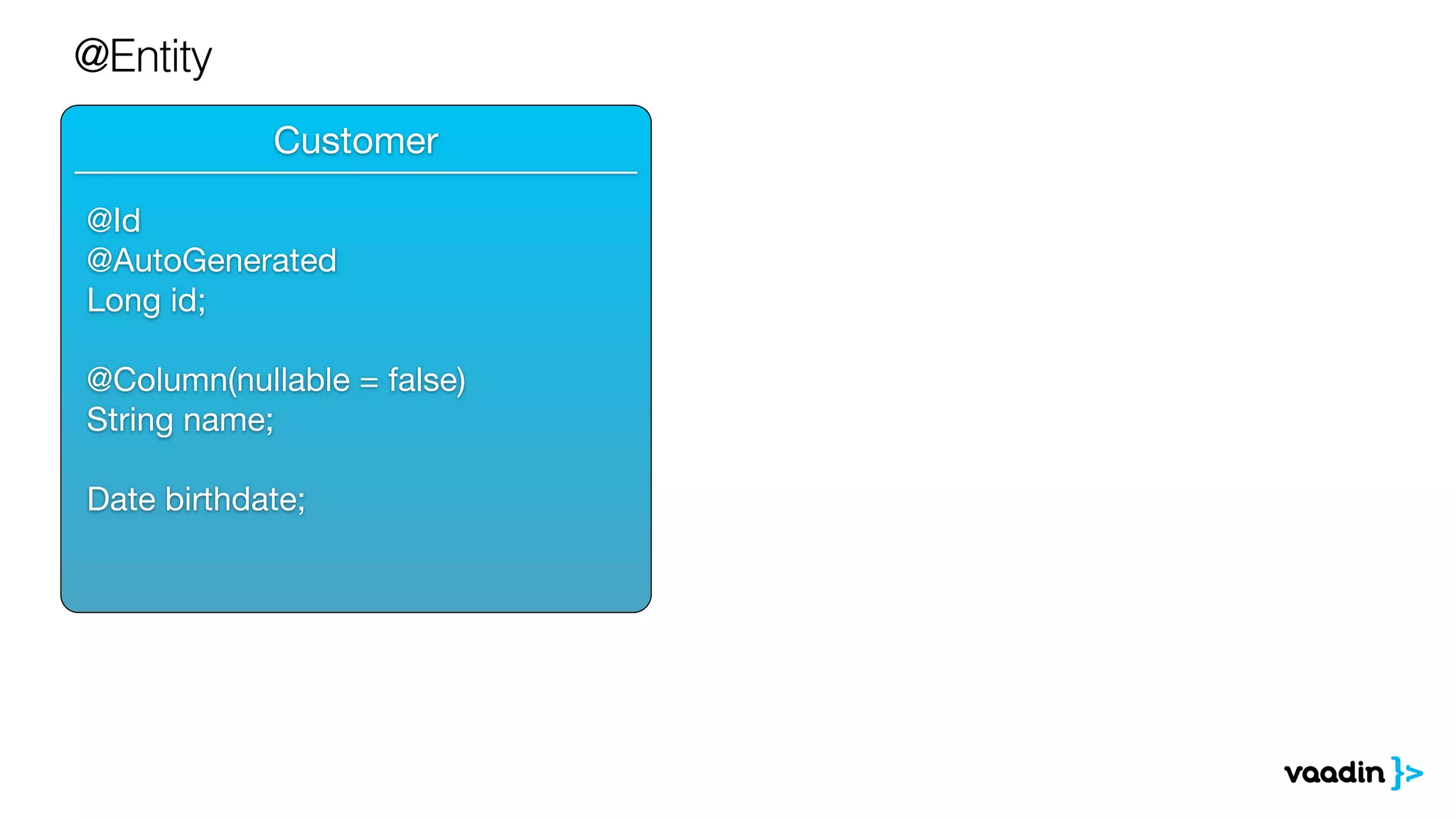

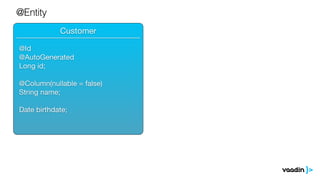

- 17. Customer @Entity ______________________________ @Id @AutoGenerated Long id; @Column(nullable =false) String name; Date birthdate;

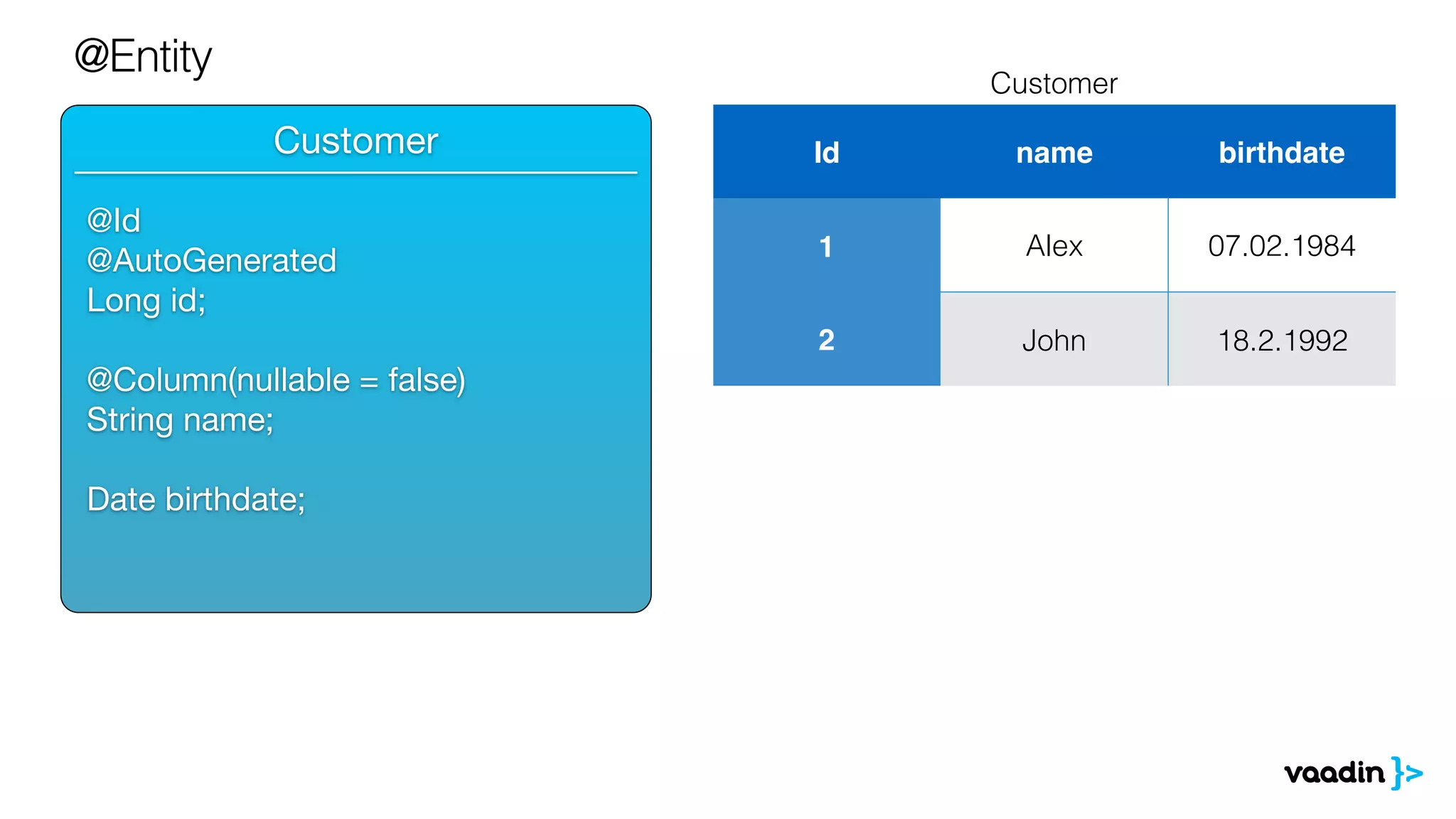

- 18. Customer @Entity ______________________________ Customer Id name birthdate 1Alex 07.02.1984 2 John 18.2.1992 @Id @AutoGenerated Long id; @Column(nullable = false) String name; Date birthdate;

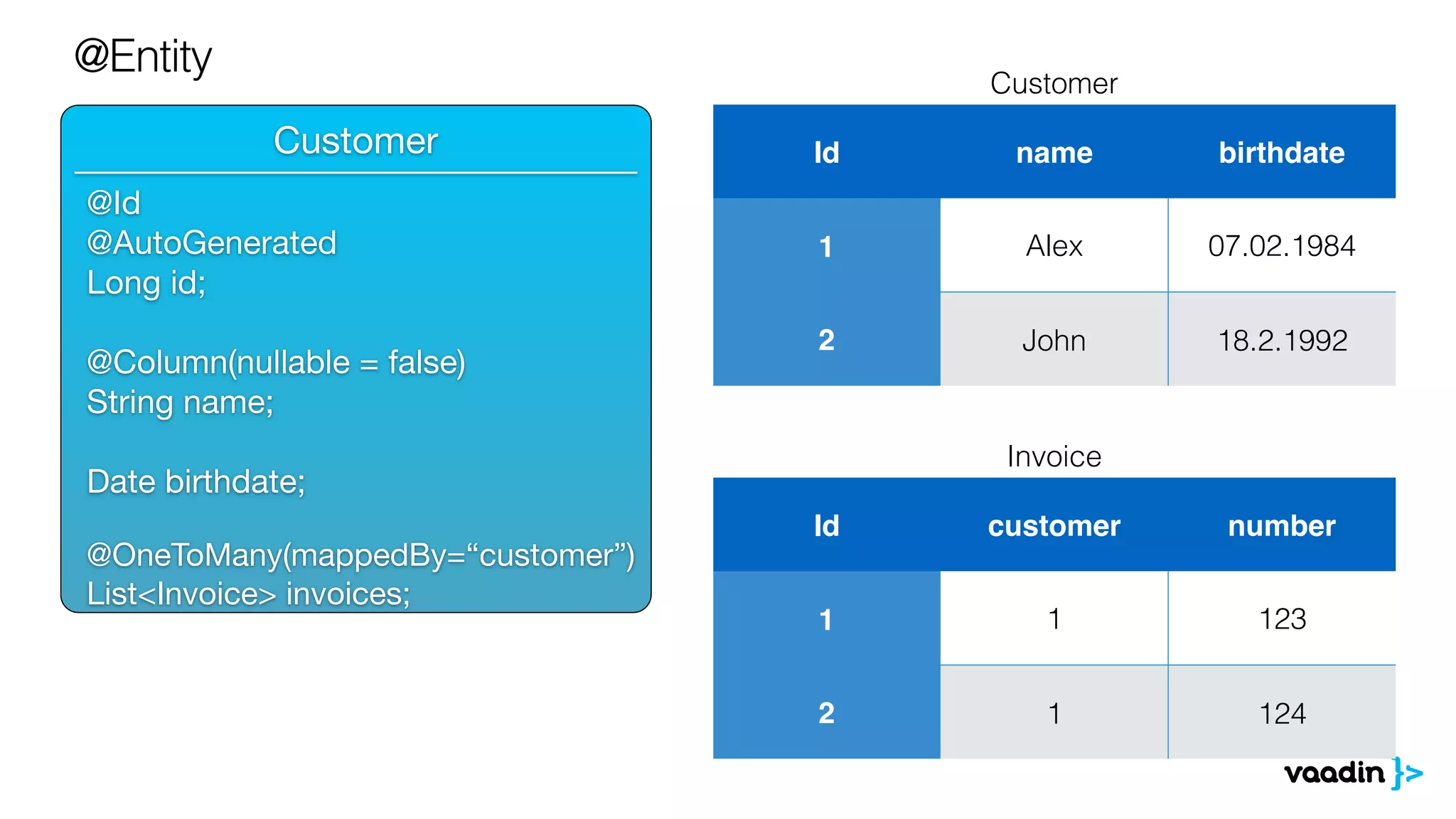

- 19. Customer @Id @AutoGenerated Long id; @Column(nullable =false) String name; Date birthdate; @OneToMany(mappedBy=“customer”) List<Invoice> invoices; @Entity ______________________________ Customer Id name birthdate 1 Alex 07.02.1984 2 John 18.2.1992 Invoice Id customer number 1 1 123 2 1 124
- 20. Enterprise Java Beans3.2 (EJB)
- 21. Business layer services EnterpriseJava Beans

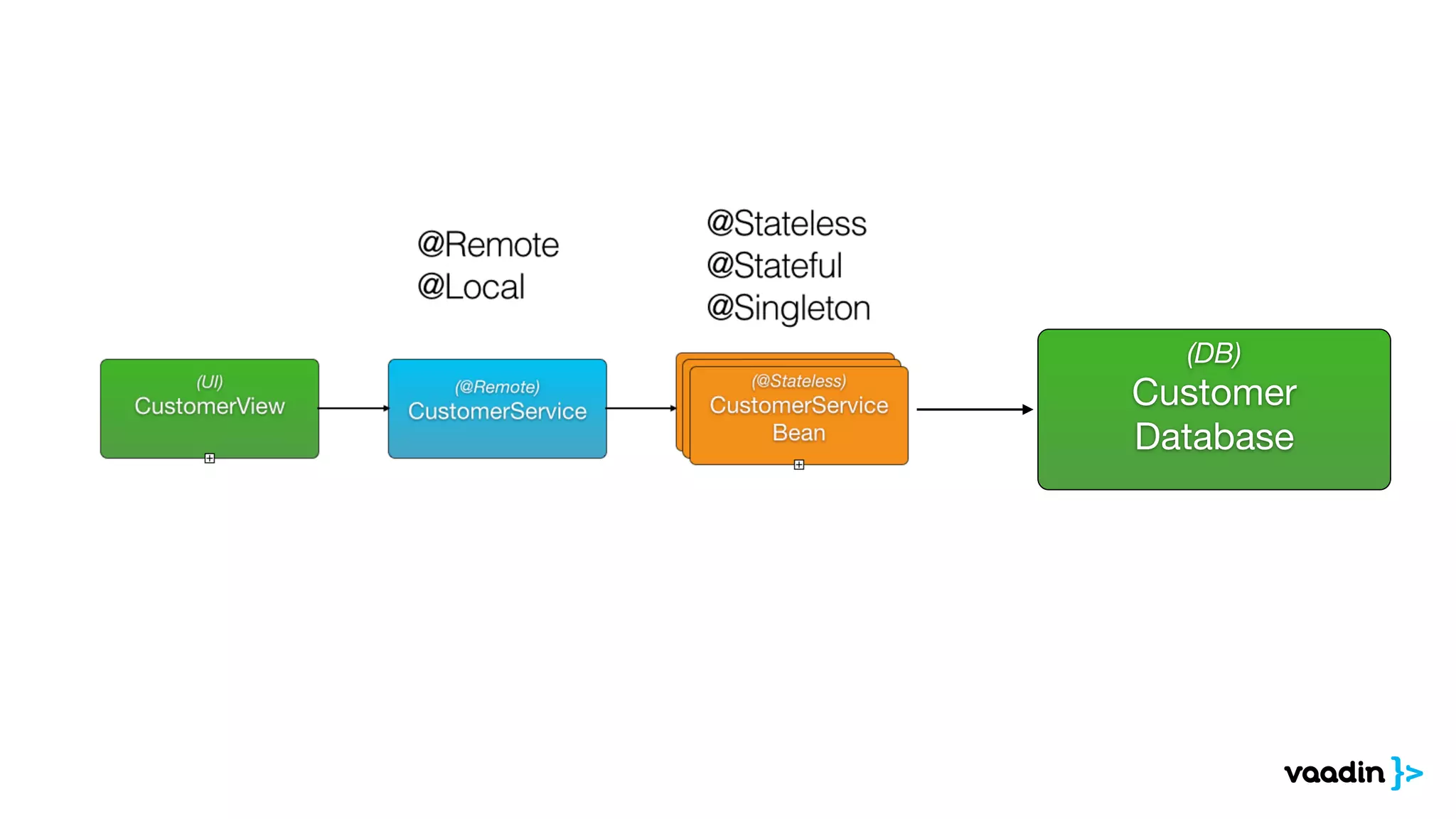

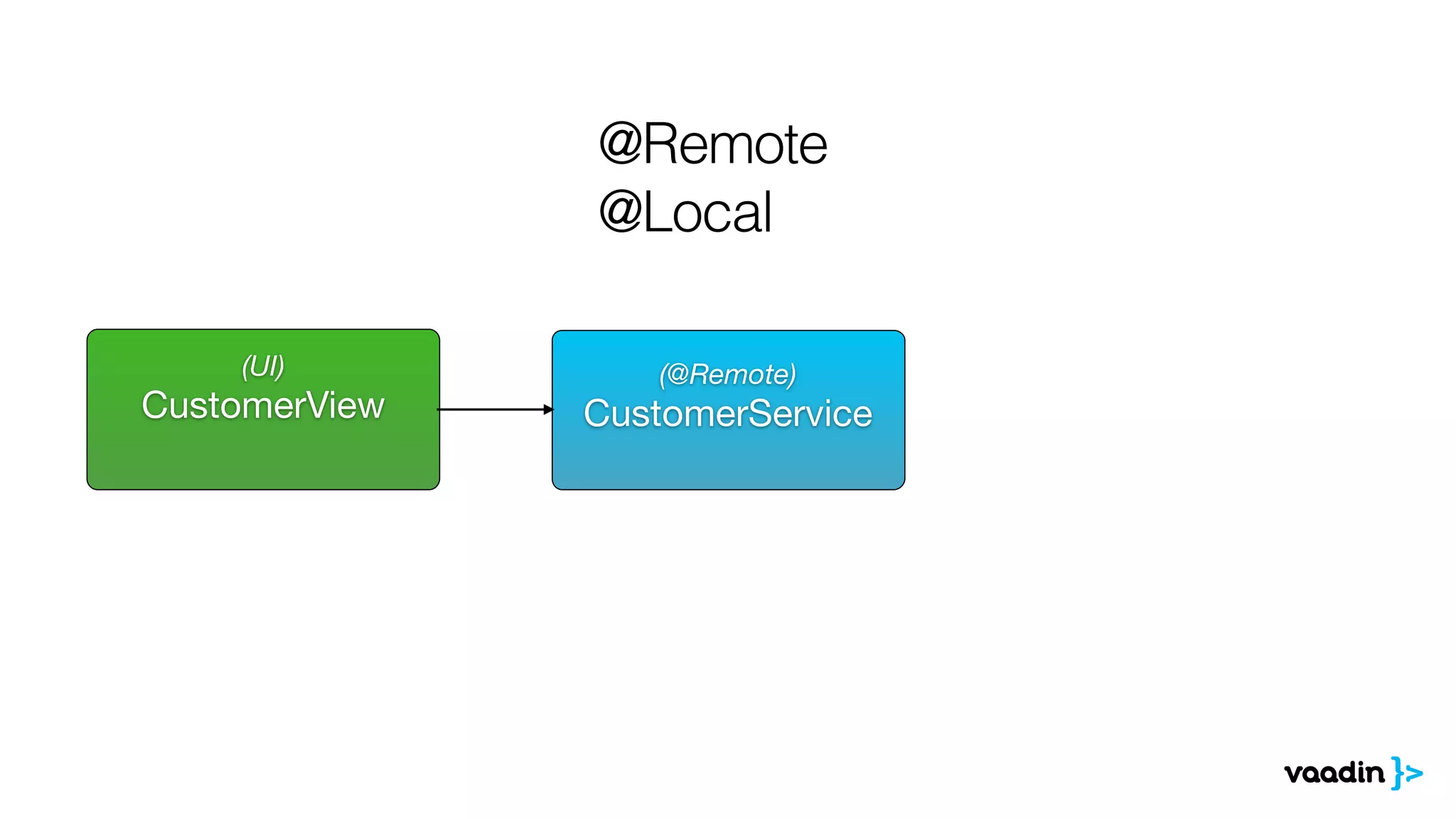

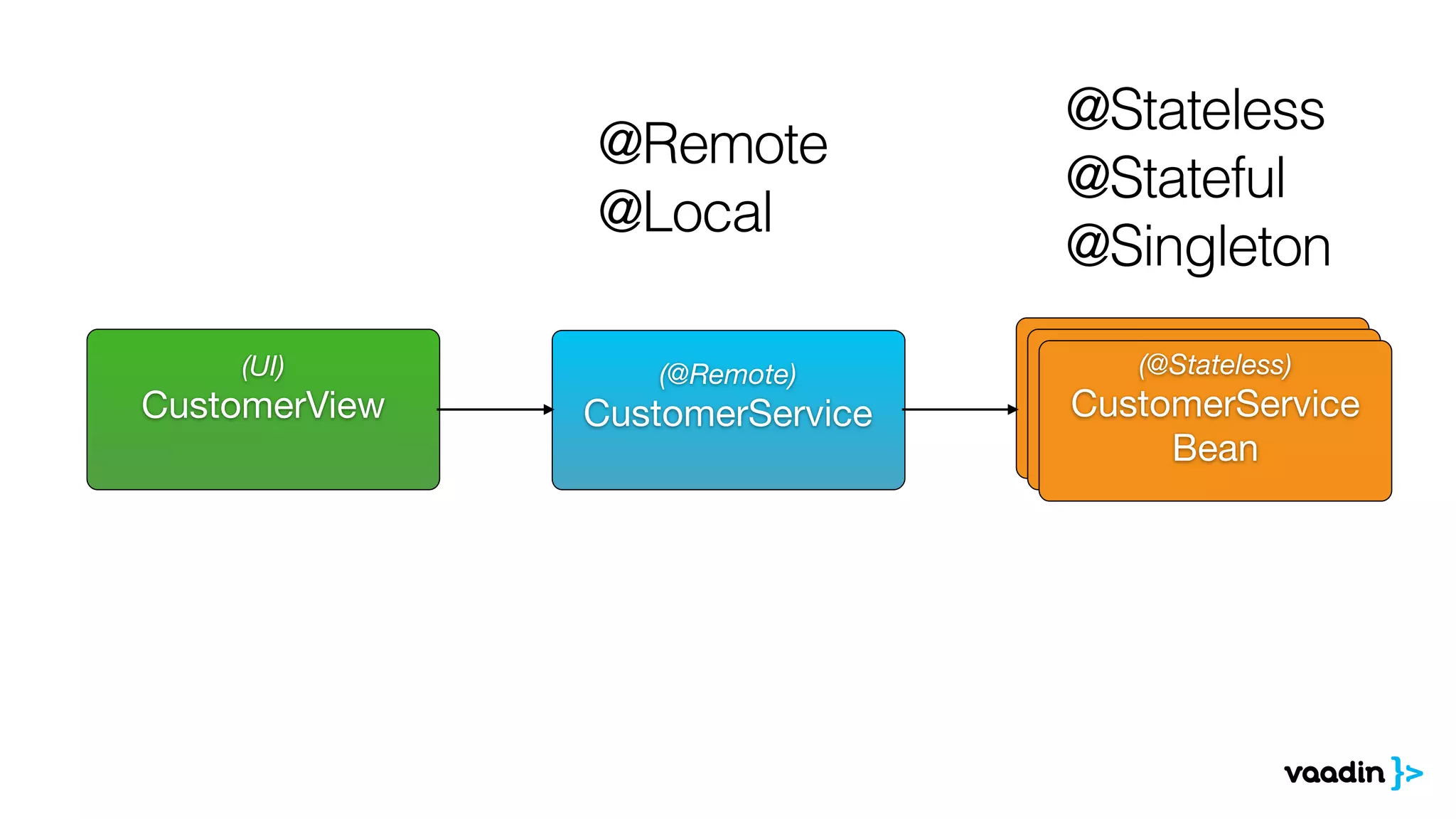

- 22. Business layer services @localand @remote Enterprise Java Beans

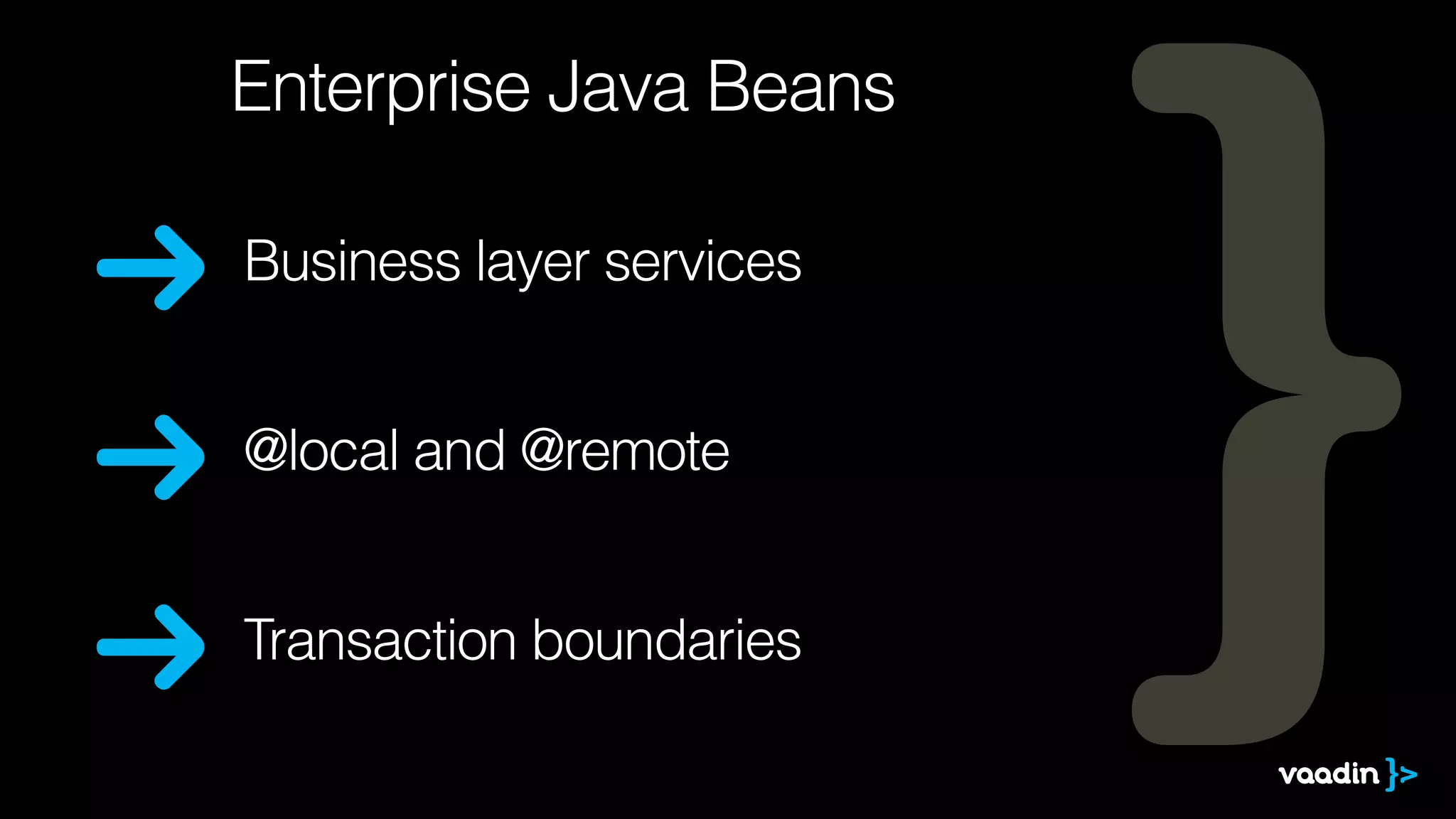

- 23. Business layer services @localand @remote Enterprise Java Beans Transaction boundaries
- 24.
- 25.
- 26.
- 27.

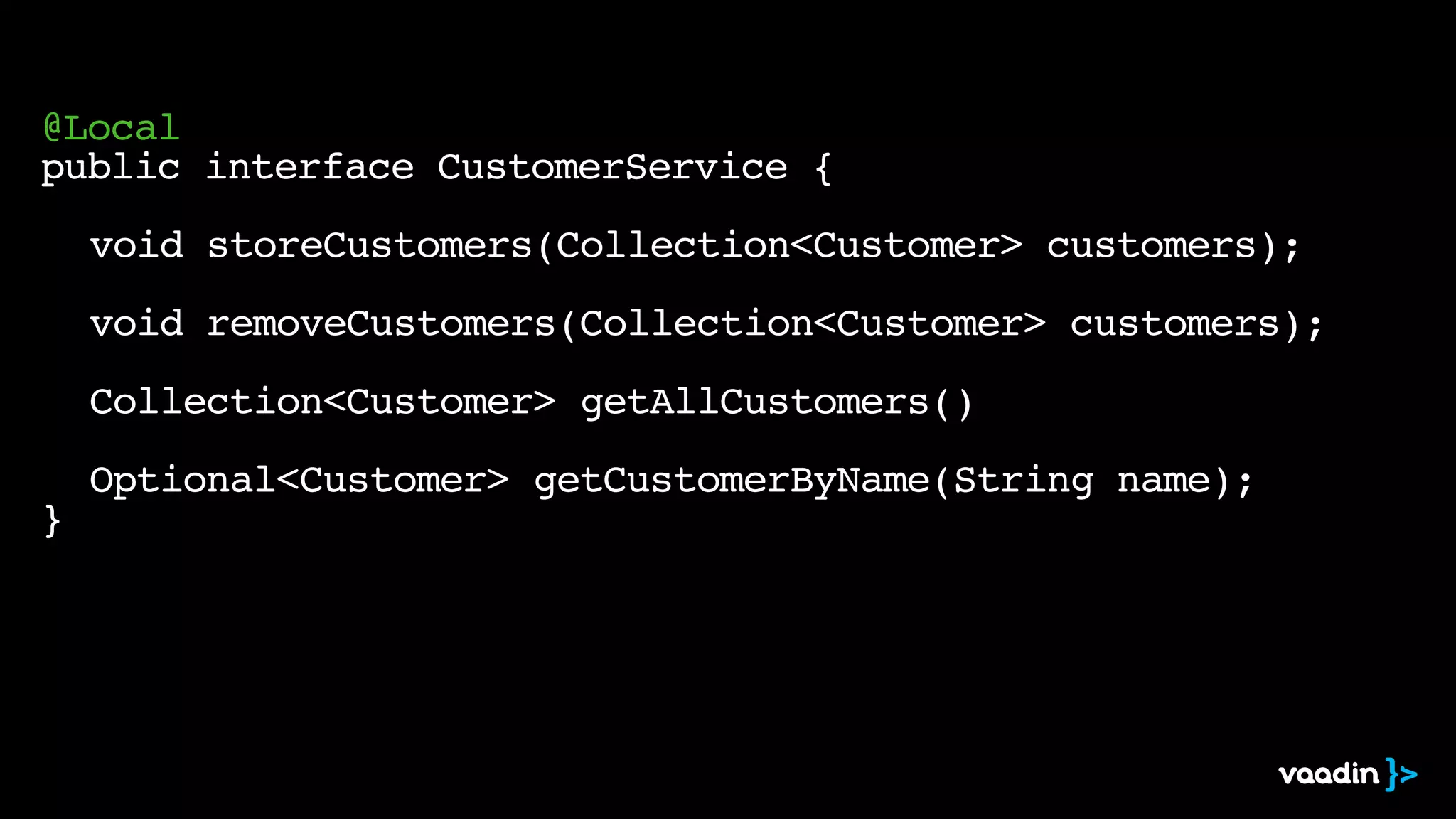

- 28. @Local public interface CustomerService{ void storeCustomers(Collection<Customer> customers); void removeCustomers(Collection<Customer> customers); Collection<Customer> getAllCustomers() Optional<Customer> getCustomerByName(String name); }

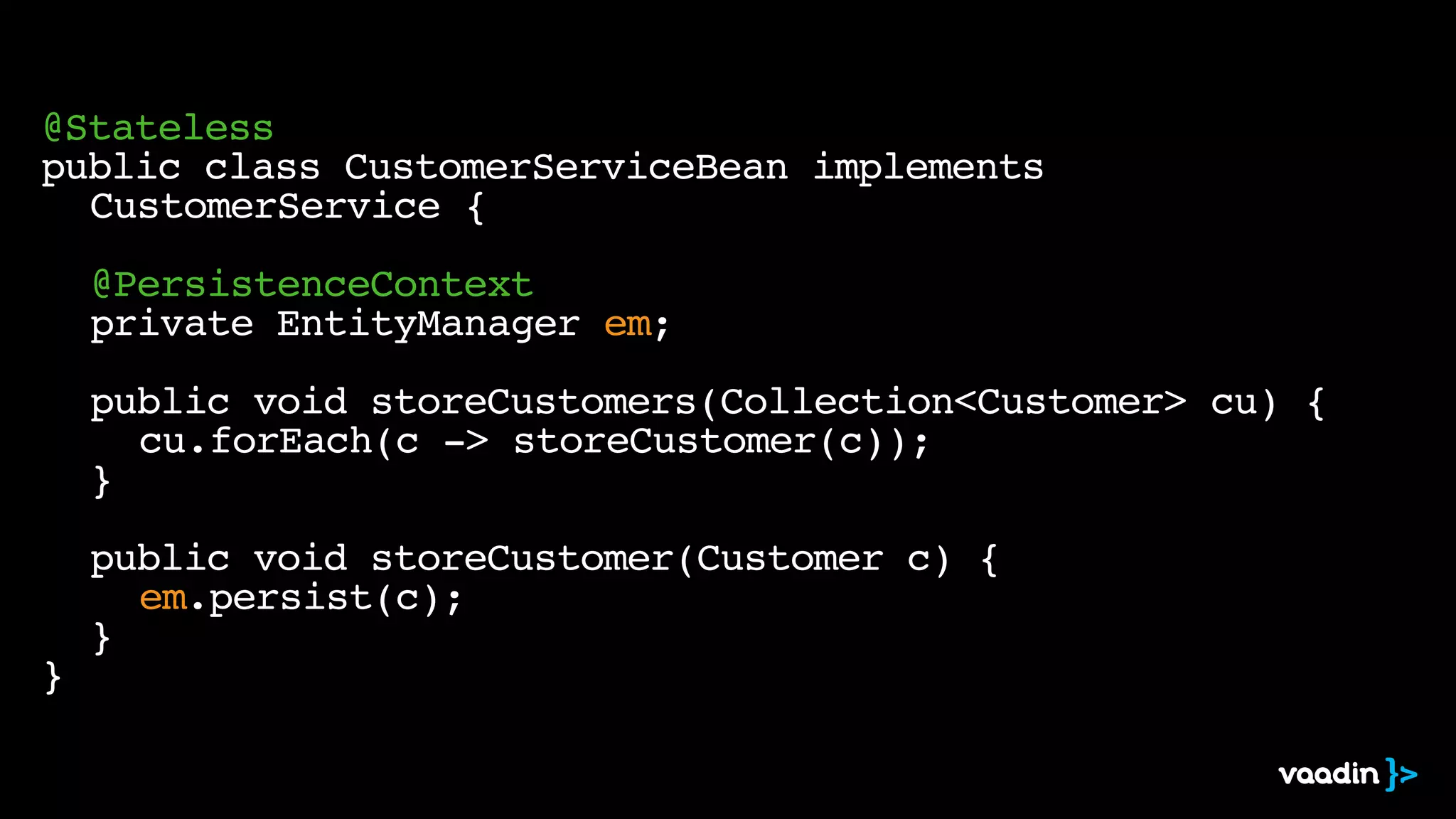

- 29. @Stateless public class CustomerServiceBeanimplements CustomerService { @PersistenceContext private EntityManager em; public void storeCustomers(Collection<Customer> cu) { cu.forEach(c -> storeCustomer(c)); } public void storeCustomer(Customer c) { em.persist(c); } }
- 30. Context and Dependency Injection1.2 (CDI)
- 31. Instead of sayingnew say @Inject Context and Dependency Injection

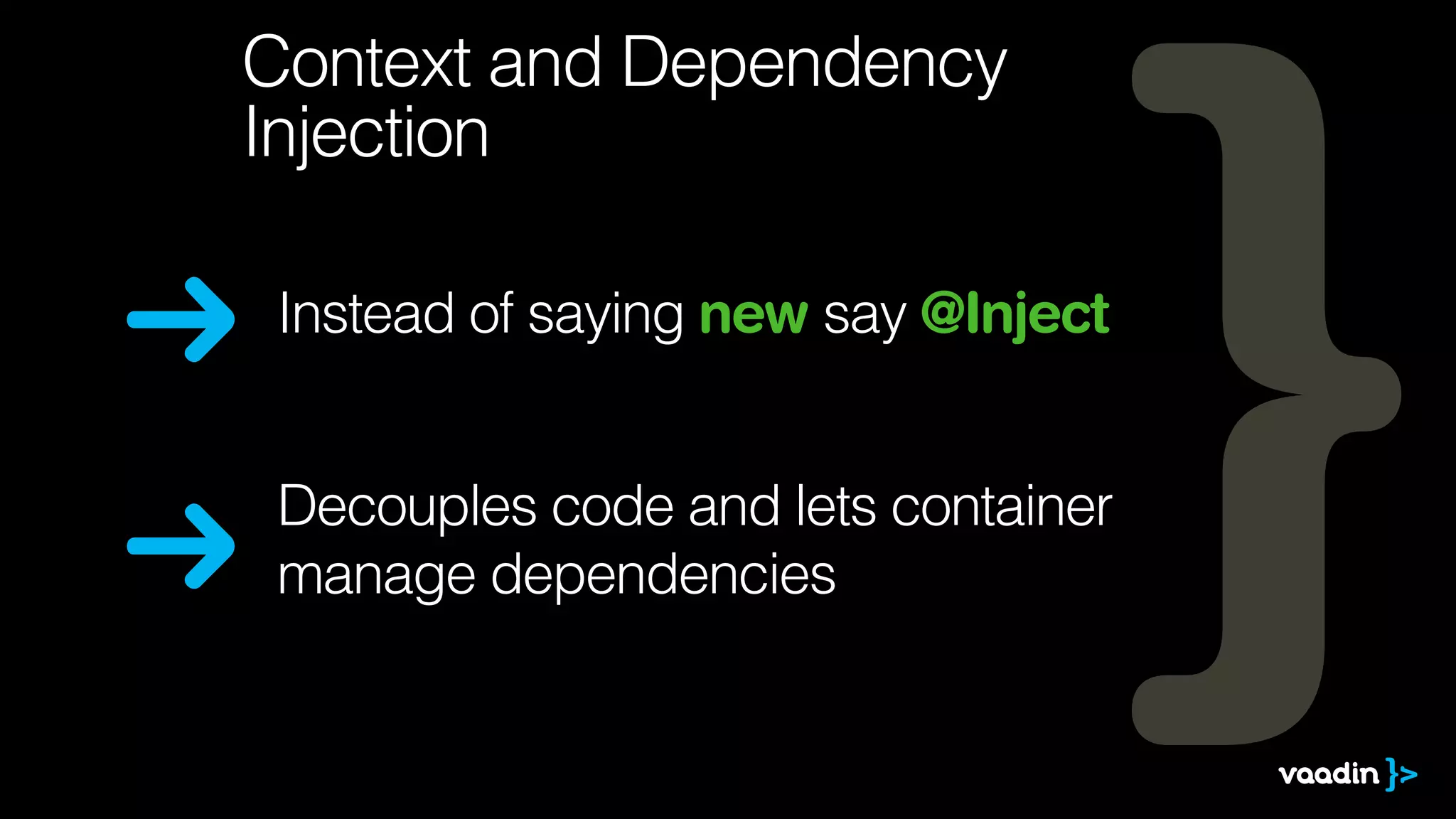

- 32. Instead of sayingnew say @Inject Decouples code and lets container manage dependencies Context and Dependency Injection

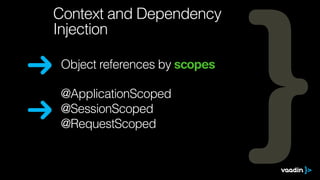

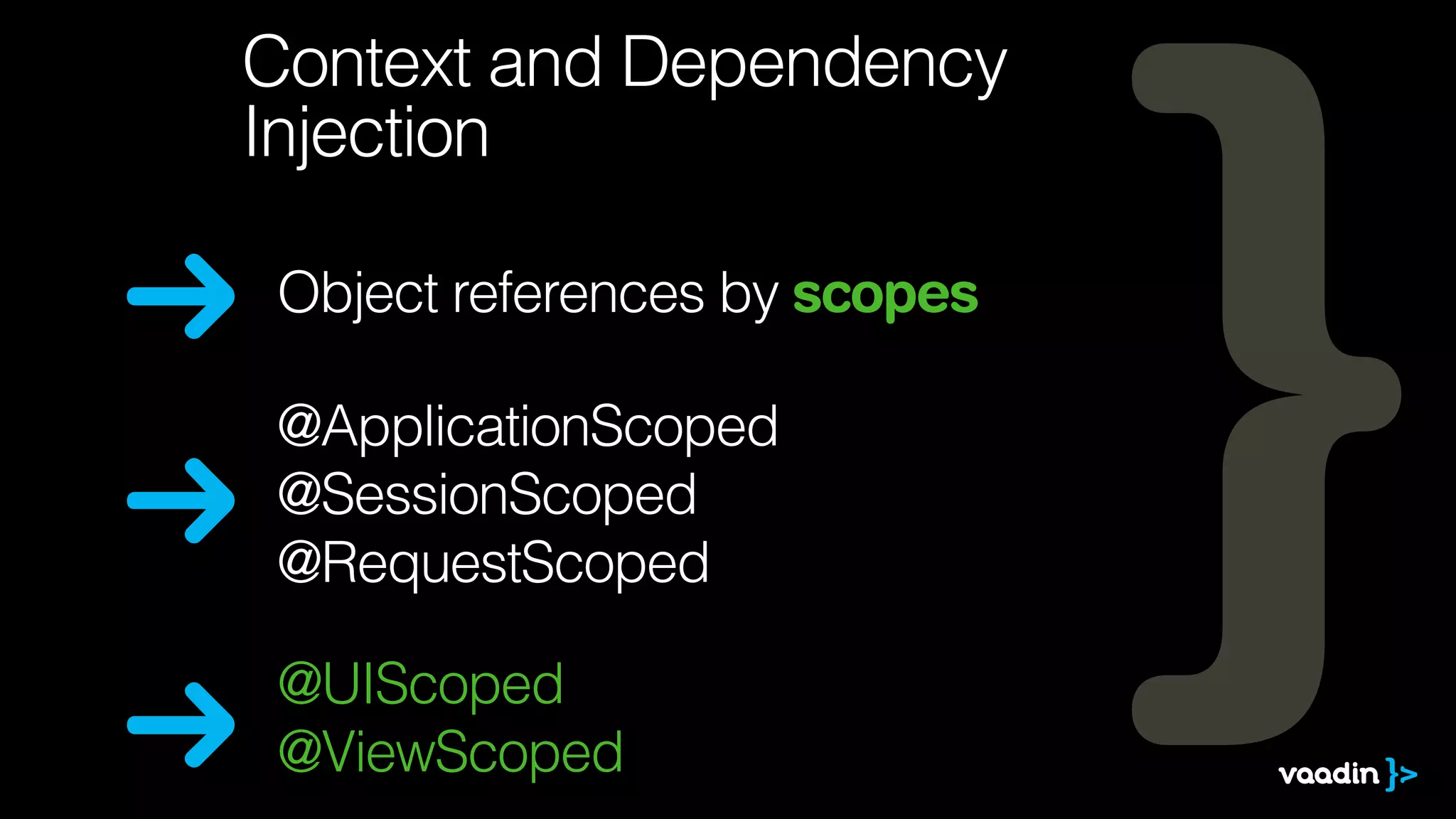

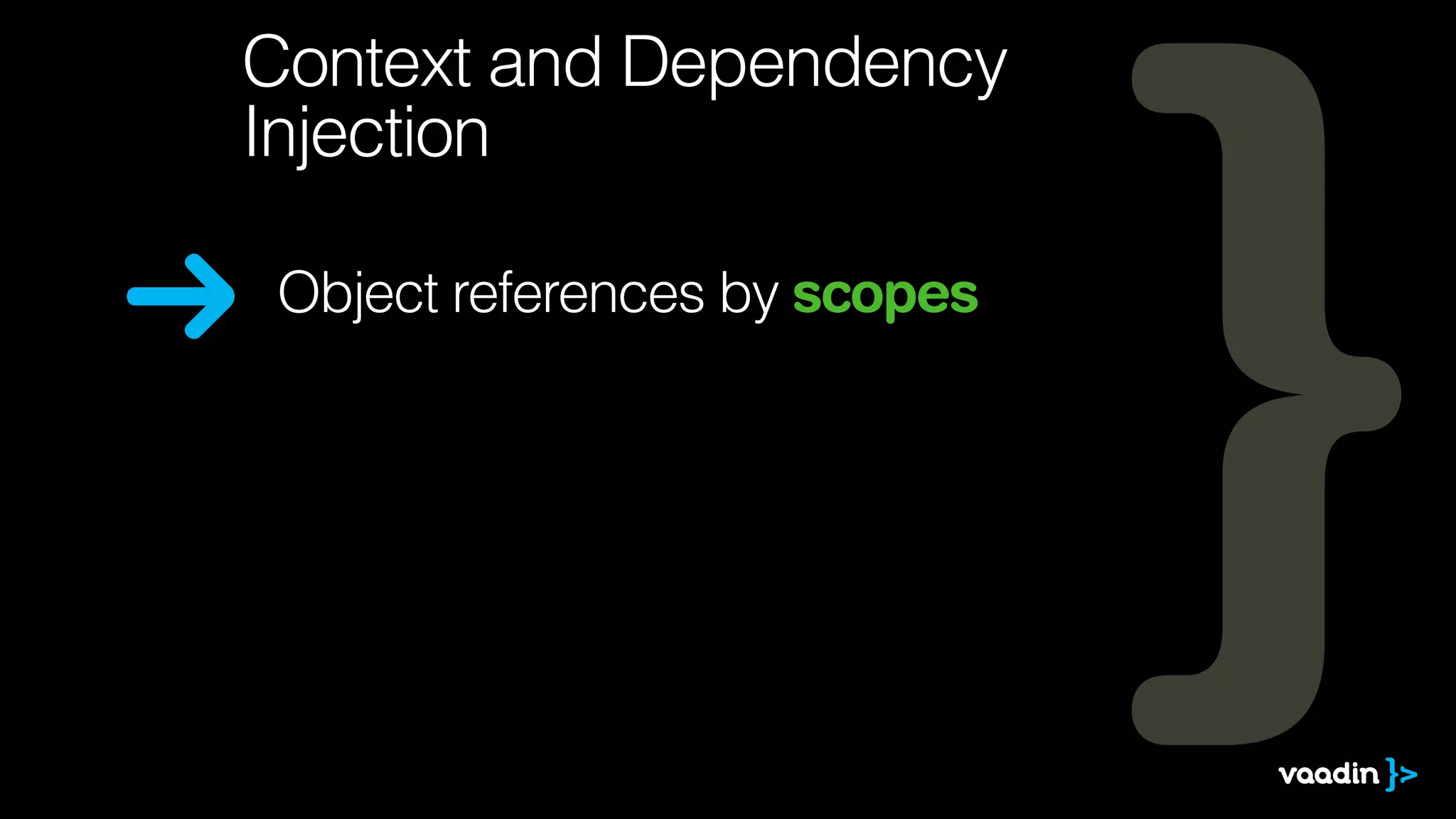

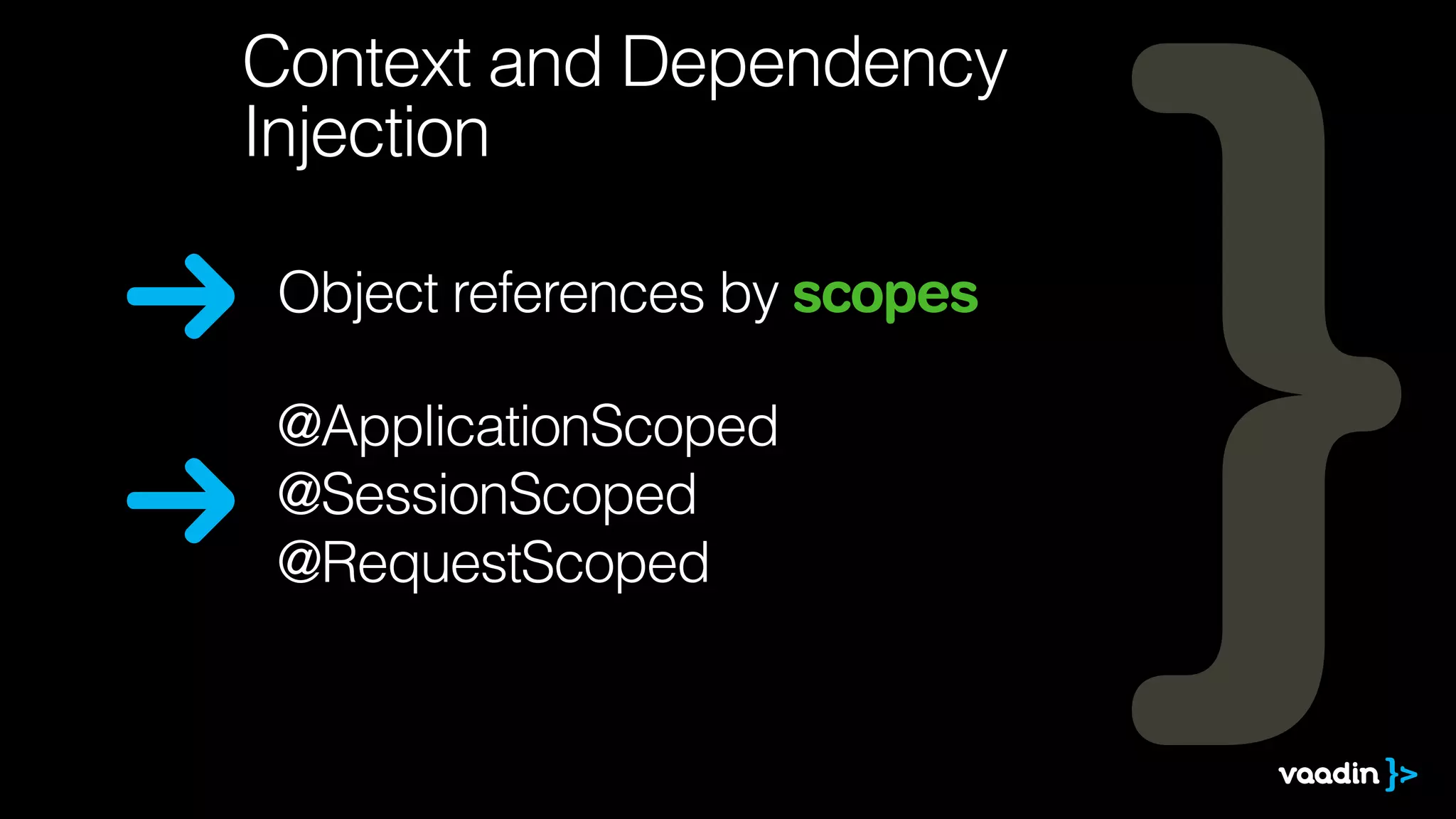

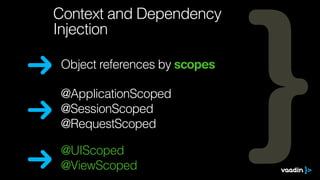

- 33. Object references byscopes Context and Dependency Injection
- 34.
- 35.
- 36.
- 37.

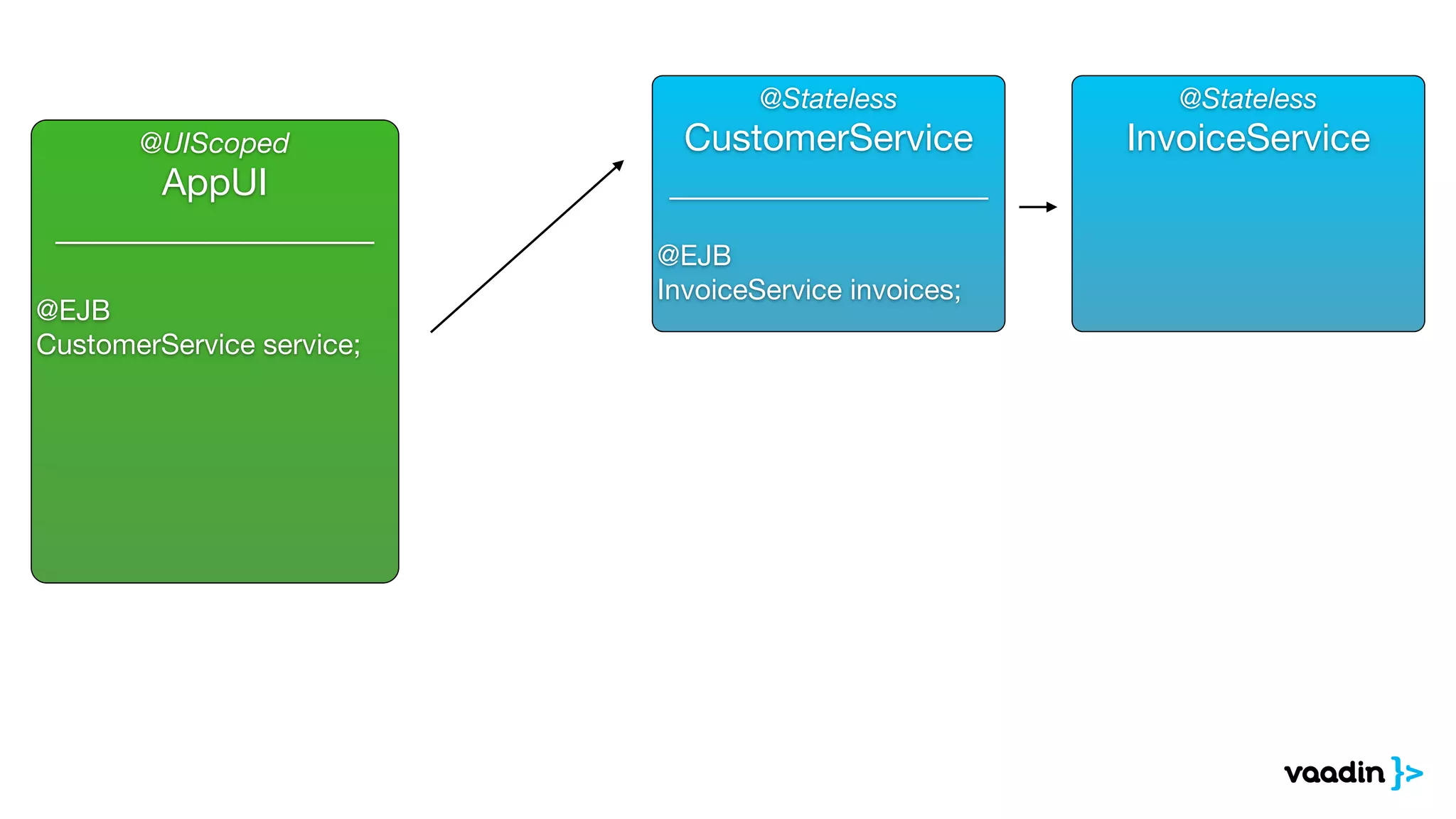

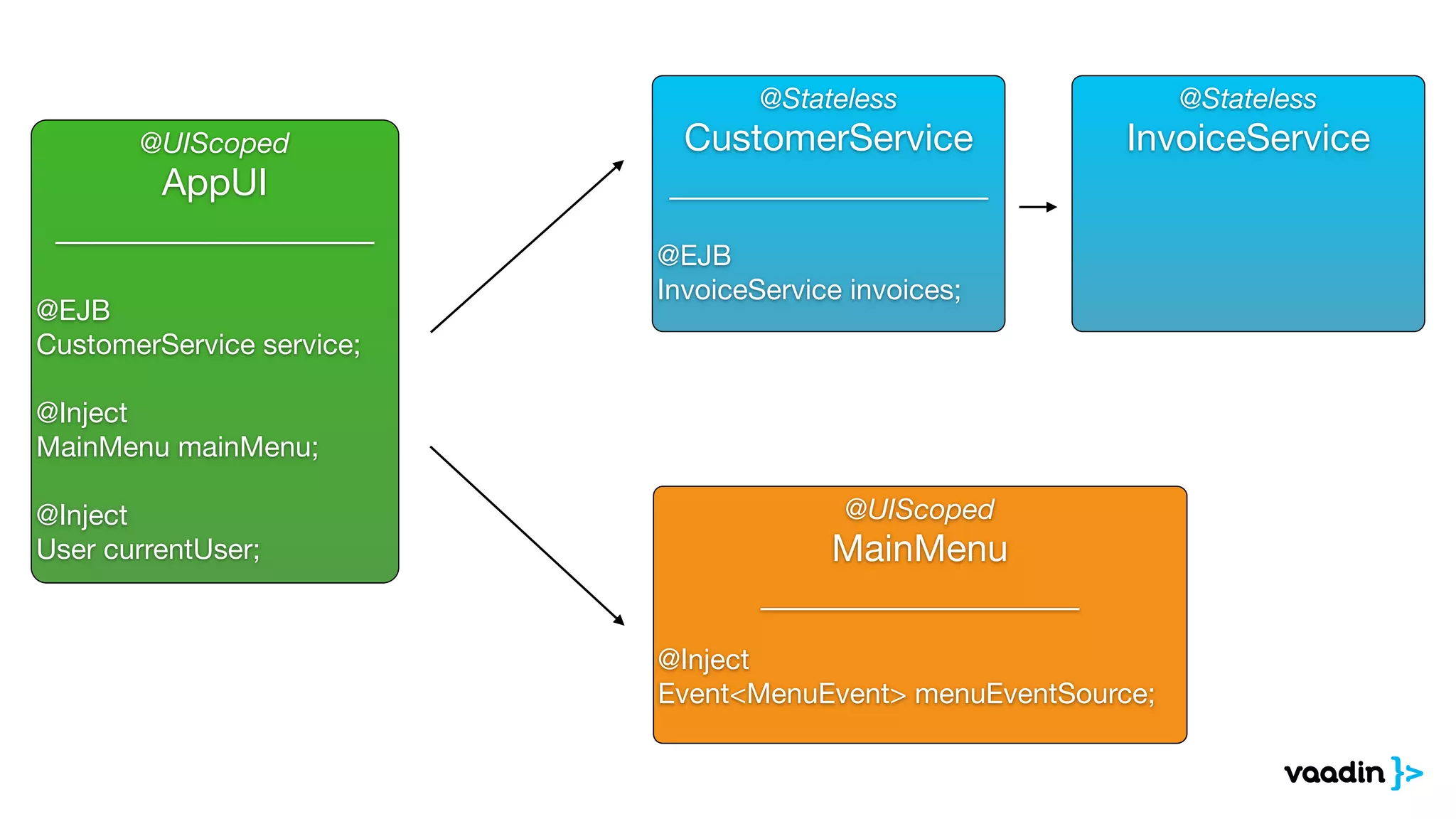

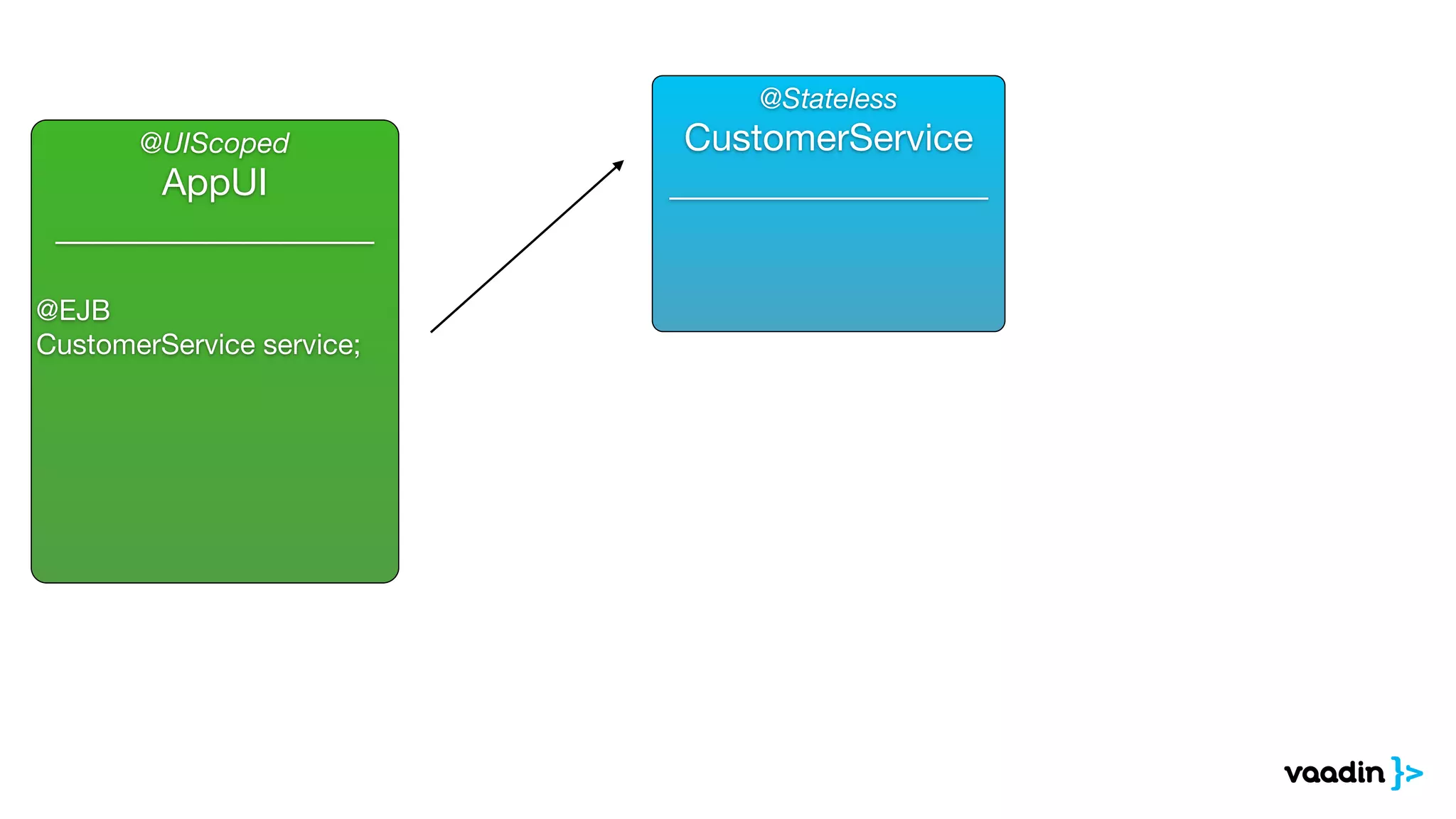

- 38. @Stateless CustomerService _________________ @EJB InvoiceService invoices; @UIScoped AppUI _________________ @EJB CustomerService service; @Inject MainMenumainMenu; @Inject User currentUser; @UIScoped MainMenu _________________ @Inject Event<MenuEvent> menuEventSource; @Stateless InvoiceService

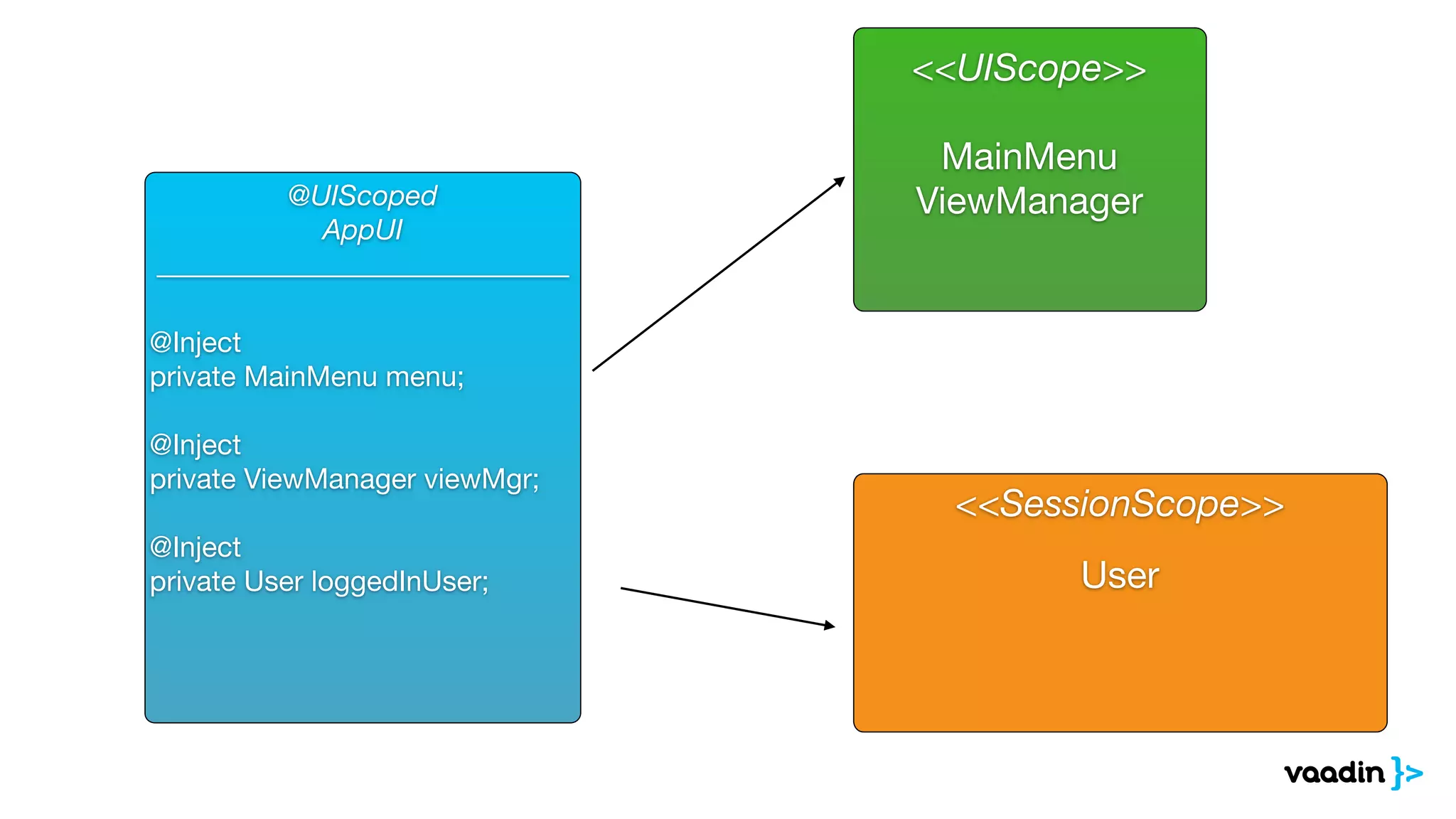

- 39. @UIScoped AppUI _____________________________ @Inject private MainMenu menu; @Inject privateViewManager viewMgr; @Inject private User loggedInUser; <<UIScope>> MainMenu ViewManager <<SessionScope>> User

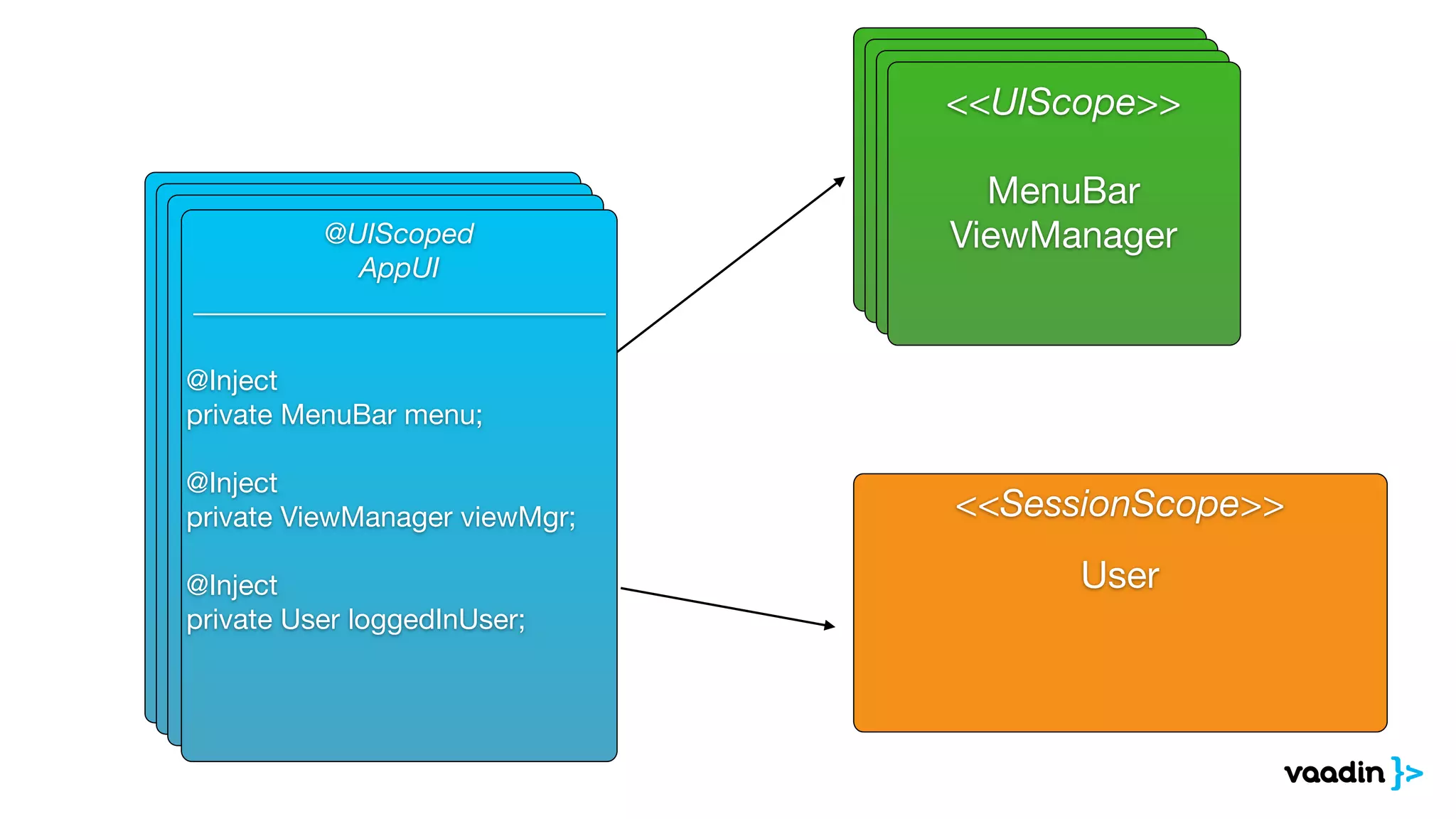

- 40. <<UIScope>> MenuBar Footer ViewManager <<SessionScope>> User @UIScoped AppUI _____________________________ @Inject private MenuBar menu; @Inject privateViewManager viewMgr; @Inject private User loggedInUser; <<UIScope>> MenuBar Footer ViewManager <<UIScope>> MenuBar Footer ViewManager <<UIScope>> MenuBar ViewManager
- 41. Integration to EEthrough Vaadin CDI

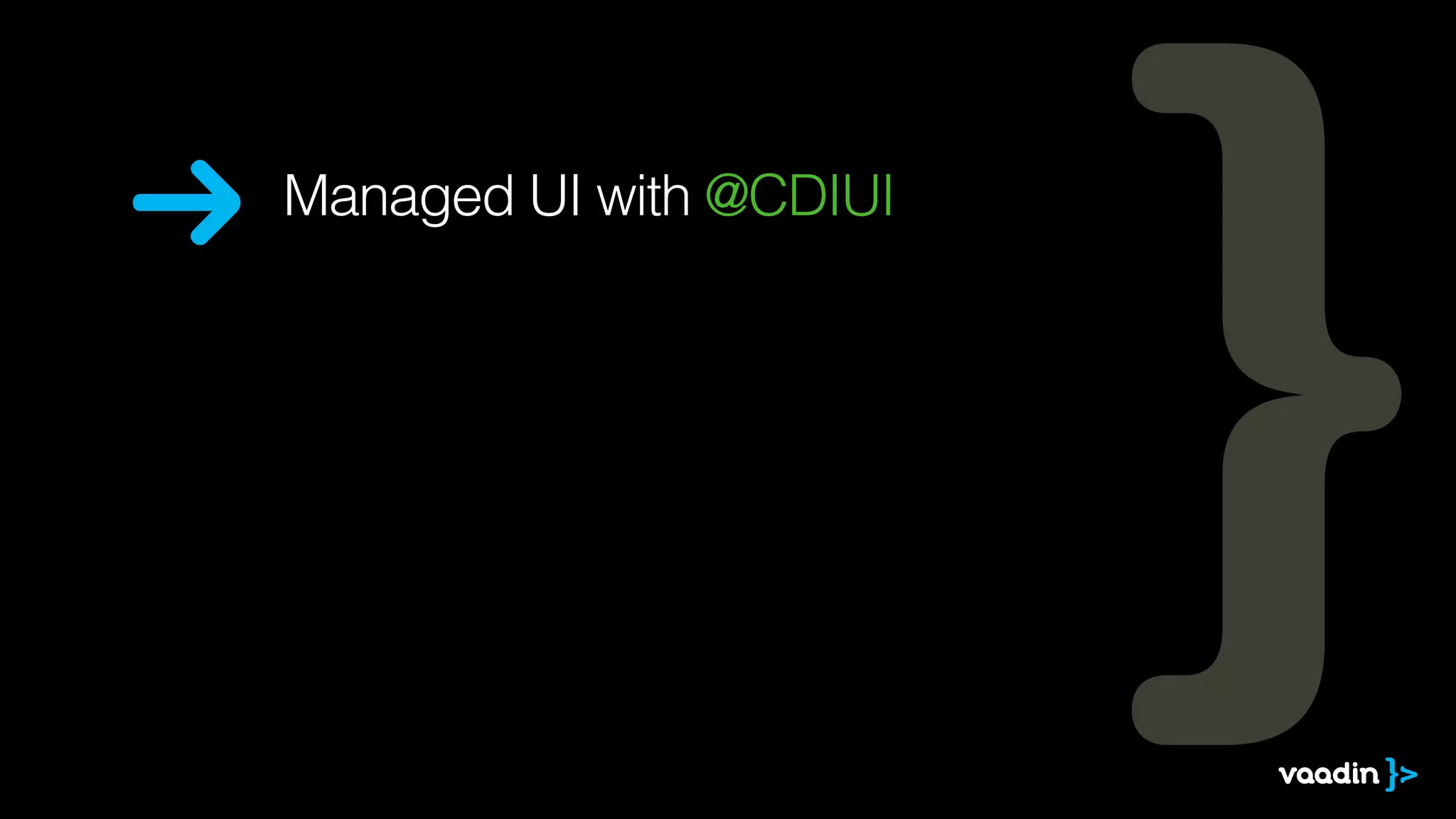

- 42. Managed UI with@CDIUI

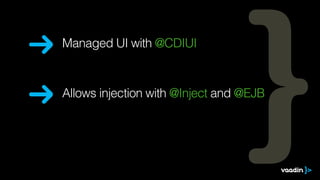

- 43. Managed UI with@CDIUI Allows injection with @Inject and @EJB
- 44. Easily reference EEobjects Allows injection with @Inject and @EJB Managed UI with @CDIUI

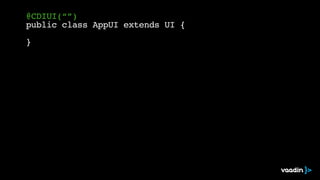

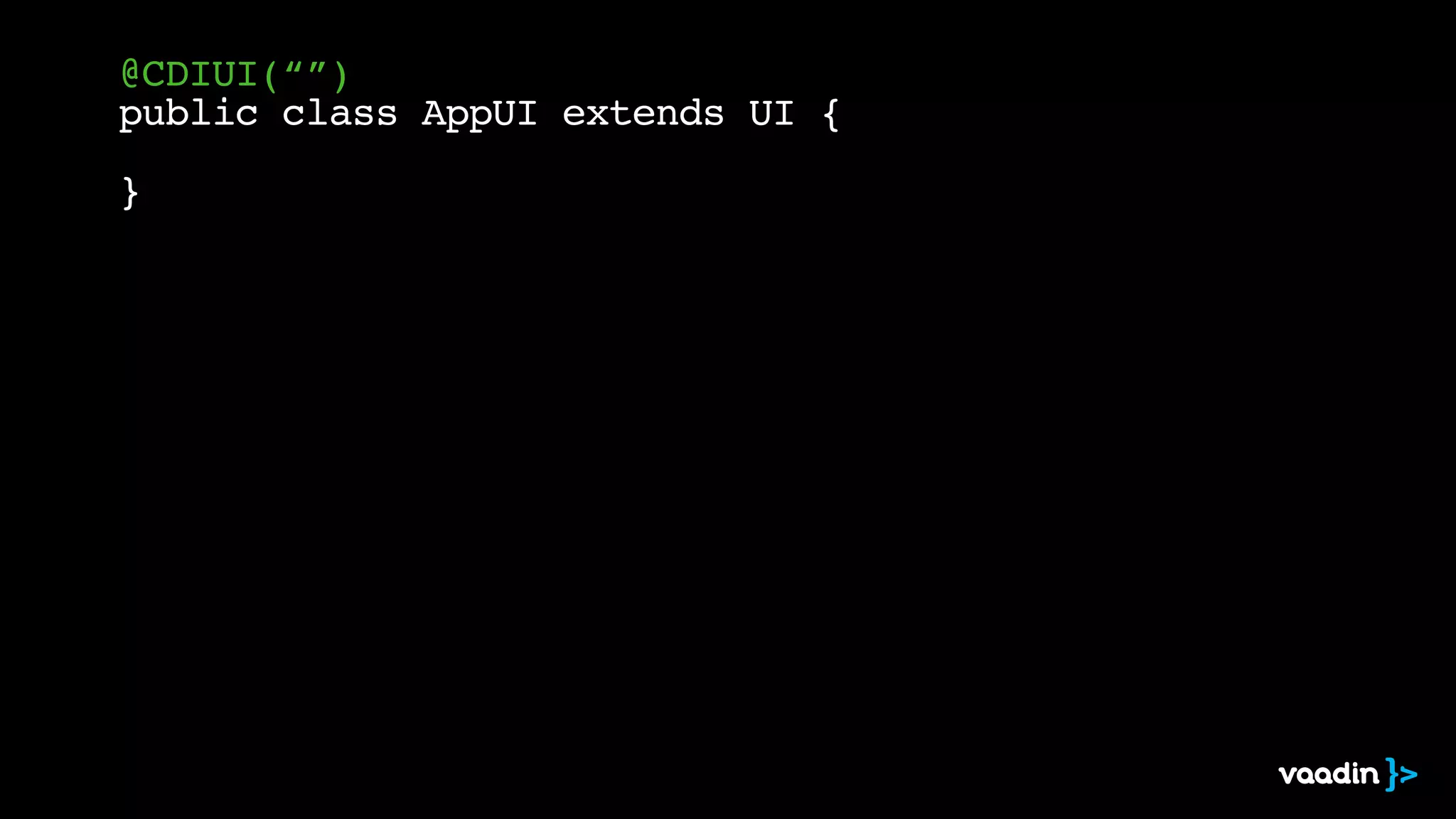

- 45. @CDIUI(“”) public class AppUIextends UI { }

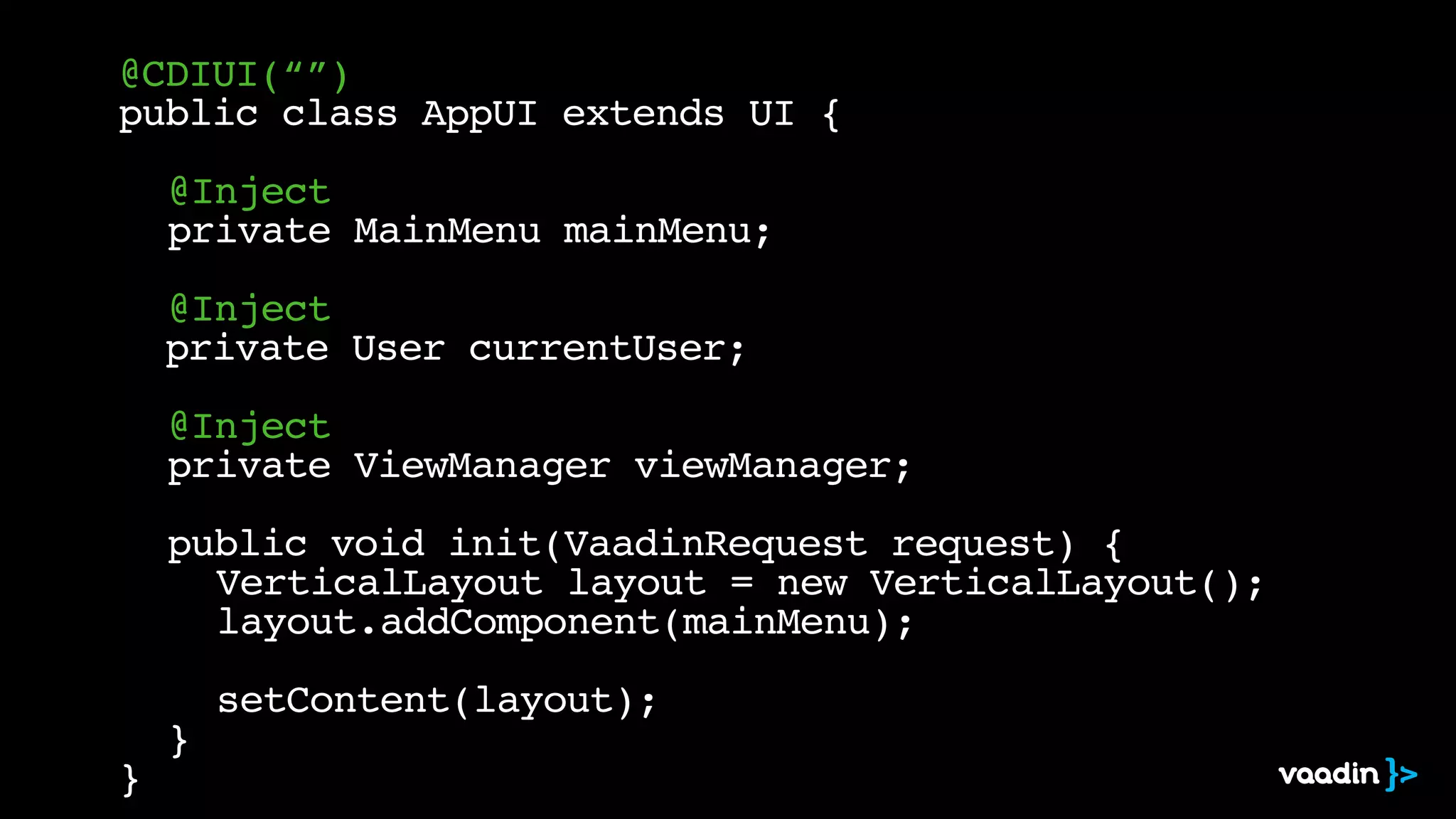

- 46. @CDIUI(“”) public class AppUIextends UI { @Inject private MainMenu mainMenu; @Inject private User currentUser; @Inject private ViewManager viewManager; public void init(VaadinRequest request) { VerticalLayout layout = new VerticalLayout(); layout.addComponent(mainMenu); setContent(layout); } }
- 47.
- 48. @UIScoped UI specific beanreferences
- 49. @UIScoped UI specific beanreferences CDI context for mapping beans per UI

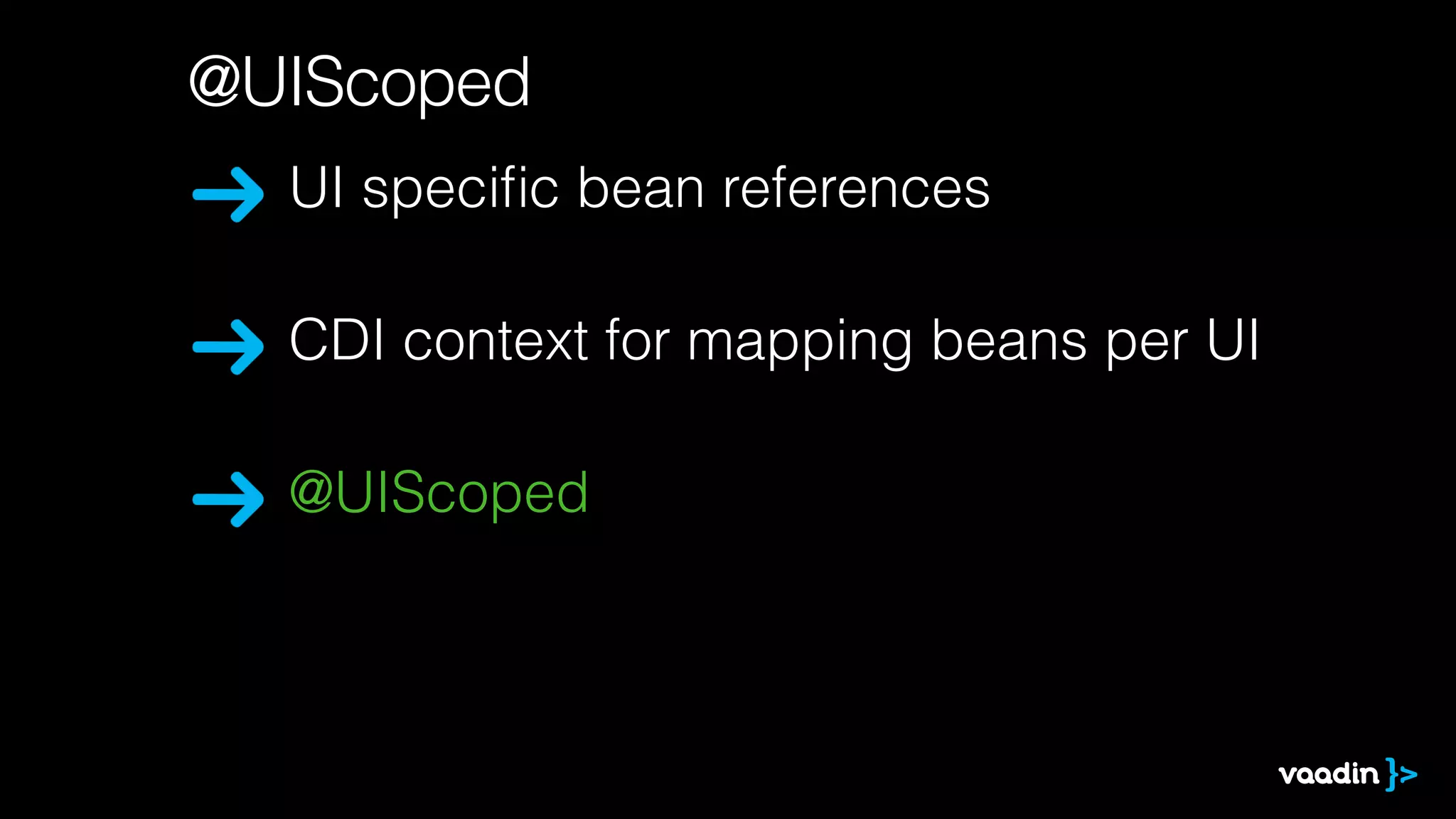

- 50. @UIScoped UI specific beanreferences CDI context for mapping beans per UI @UIScoped

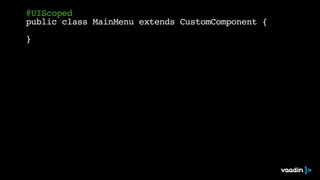

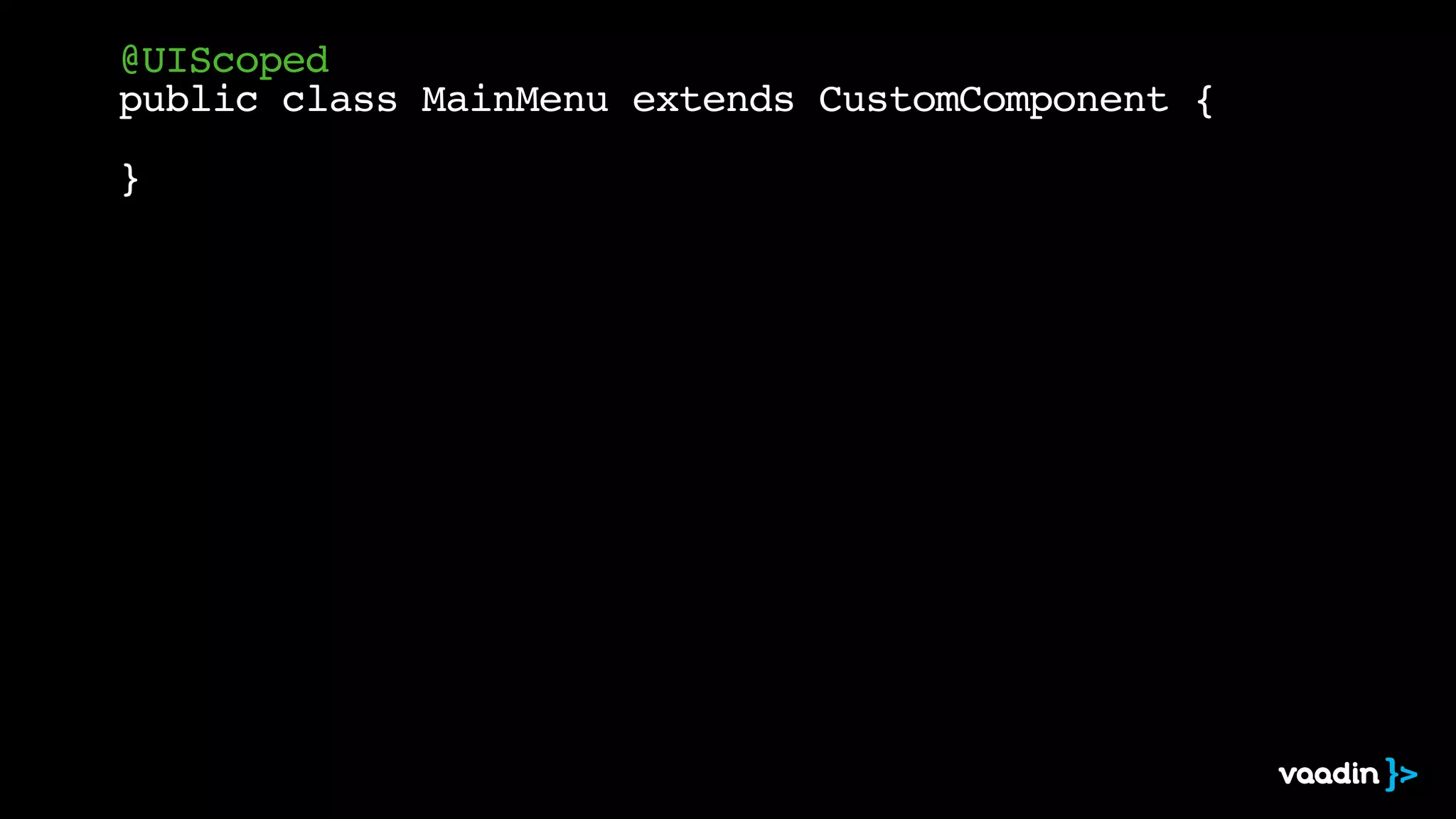

- 51. @UIScoped public class MainMenuextends CustomComponent { }

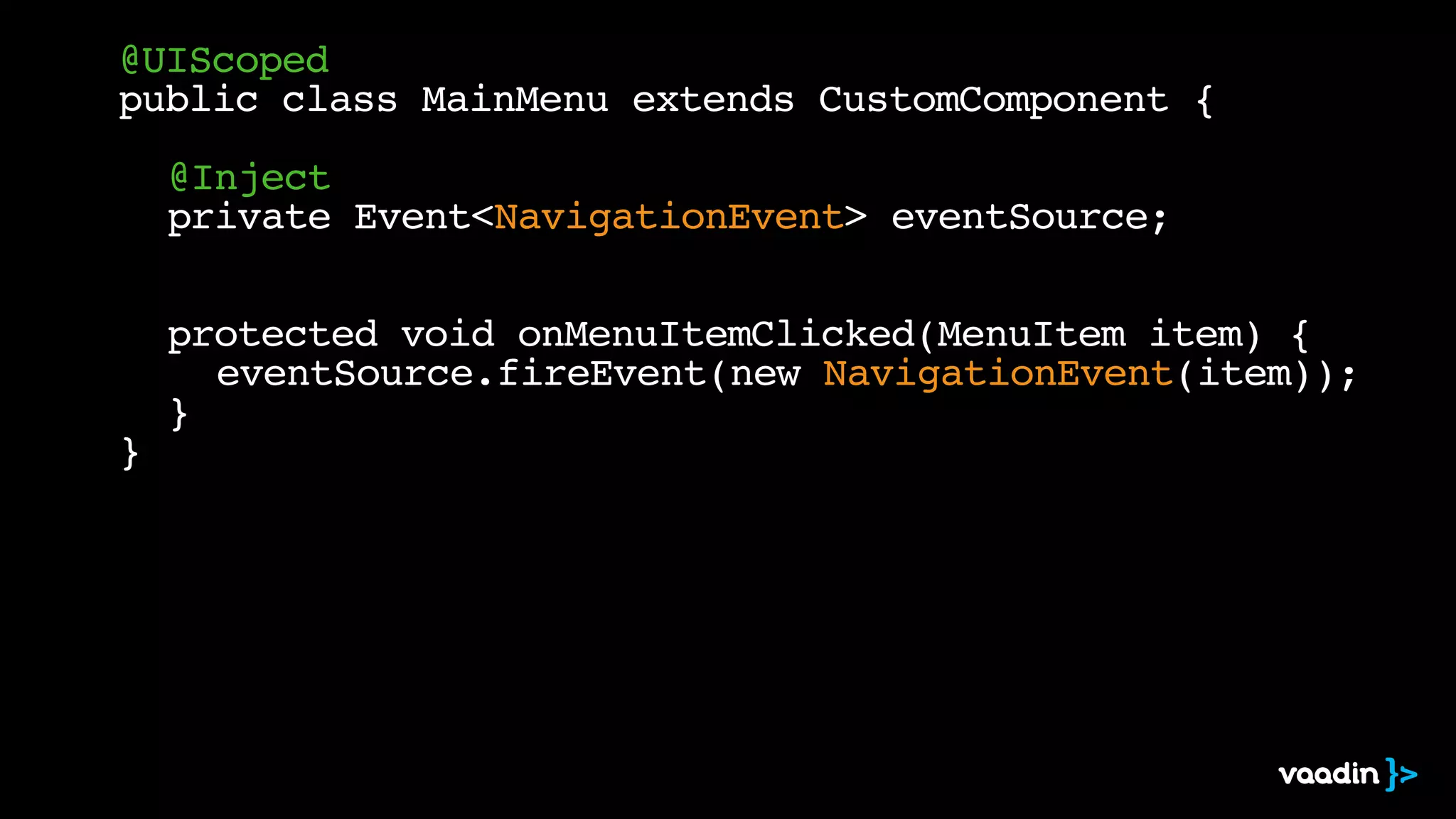

- 52. @UIScoped public class MainMenuextends CustomComponent { @Inject private Event<NavigationEvent> eventSource; protected void onMenuItemClicked(MenuItem item) { eventSource.fireEvent(new NavigationEvent(item)); } }

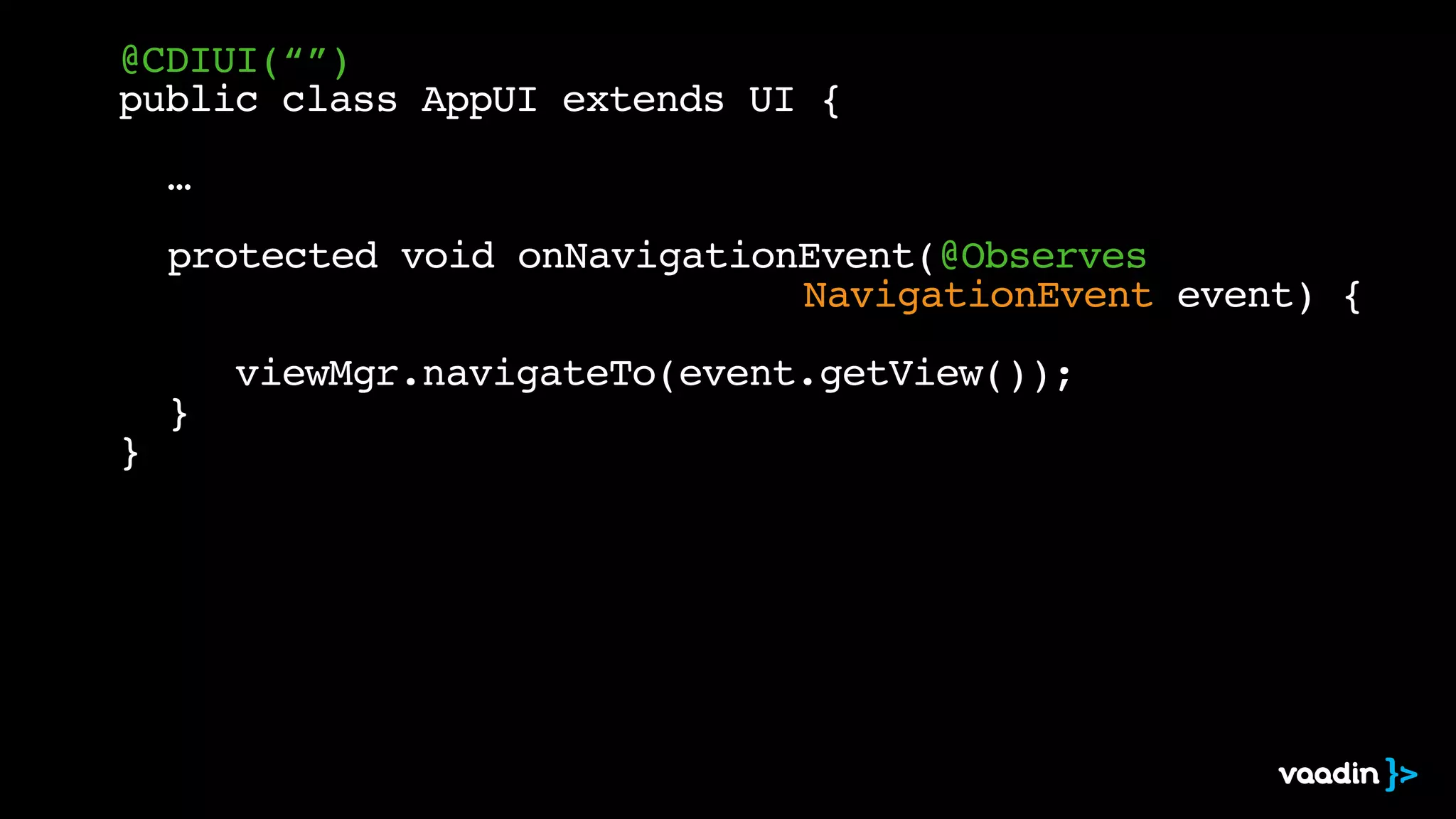

- 53. @CDIUI(“”) public class AppUIextends UI { … protected void onNavigationEvent(@Observes NavigationEvent event) { viewMgr.navigateTo(event.getView()); } }
- 54.
- 55.
- 56.

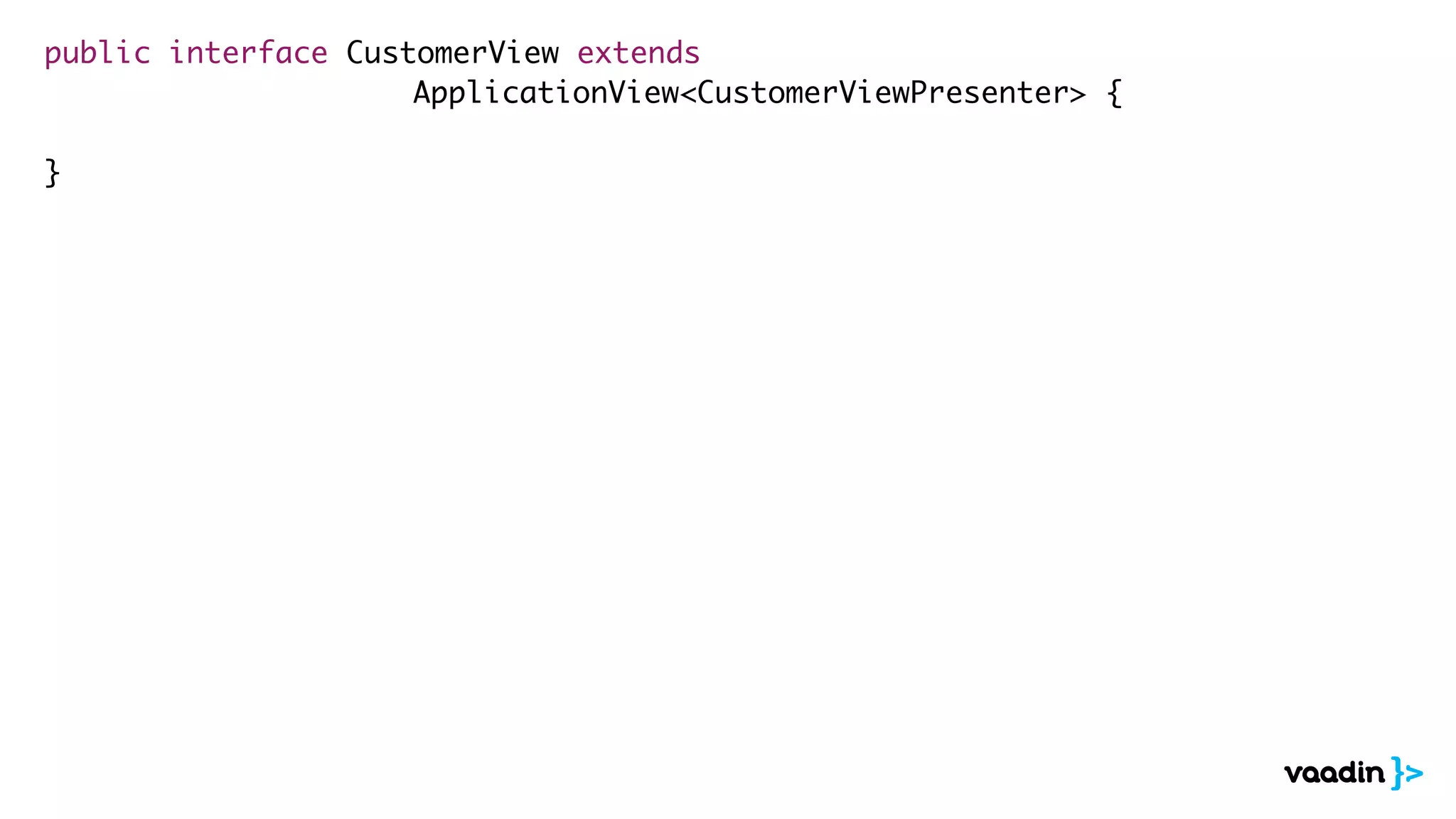

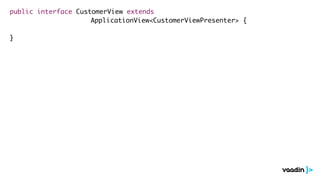

- 57. public interface CustomerViewextends ApplicationView<CustomerViewPresenter> { }

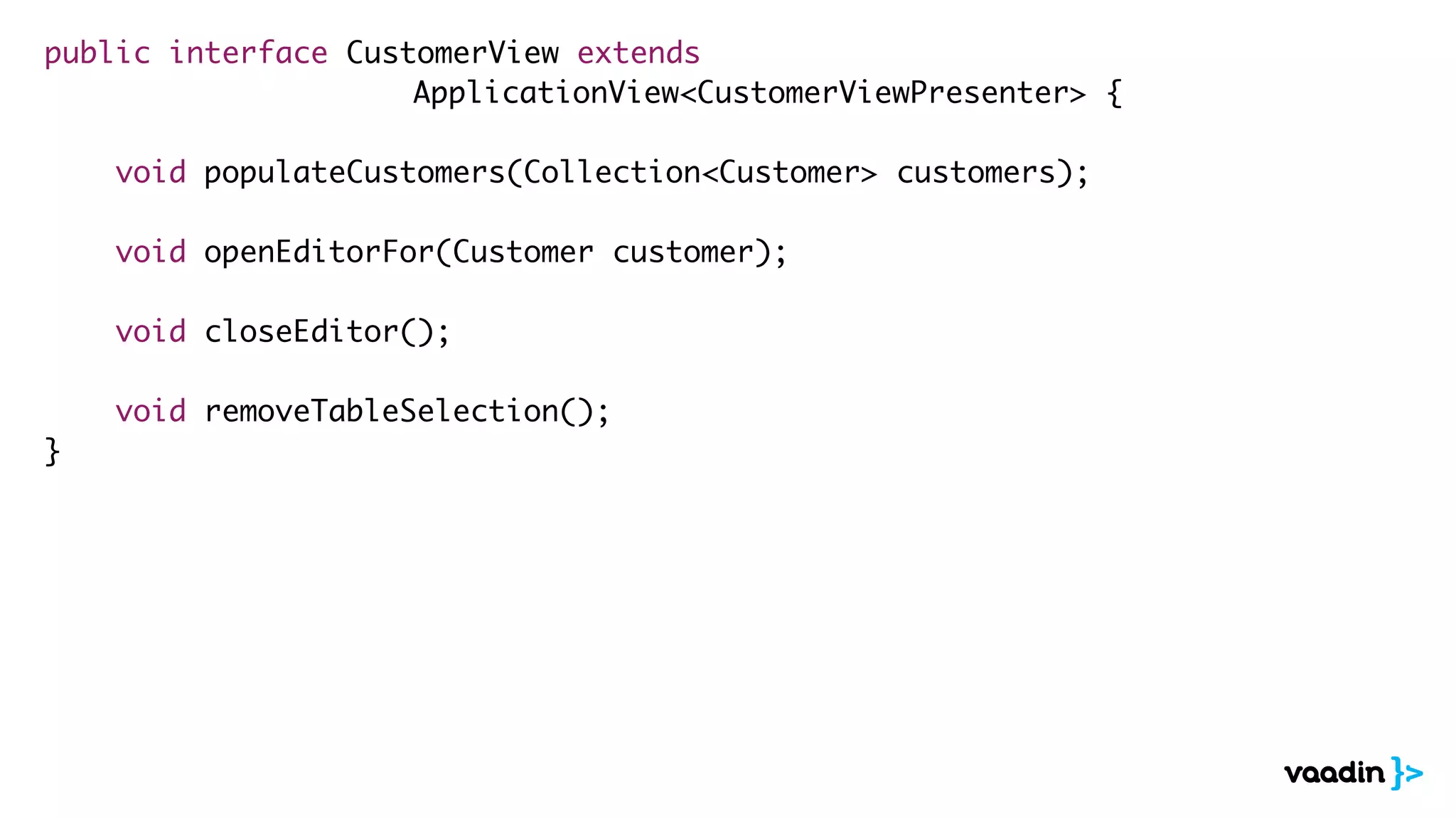

- 58. public interface CustomerViewextends ApplicationView<CustomerViewPresenter> { void populateCustomers(Collection<Customer> customers); void openEditorFor(Customer customer); void closeEditor(); void removeTableSelection(); }
- 59.

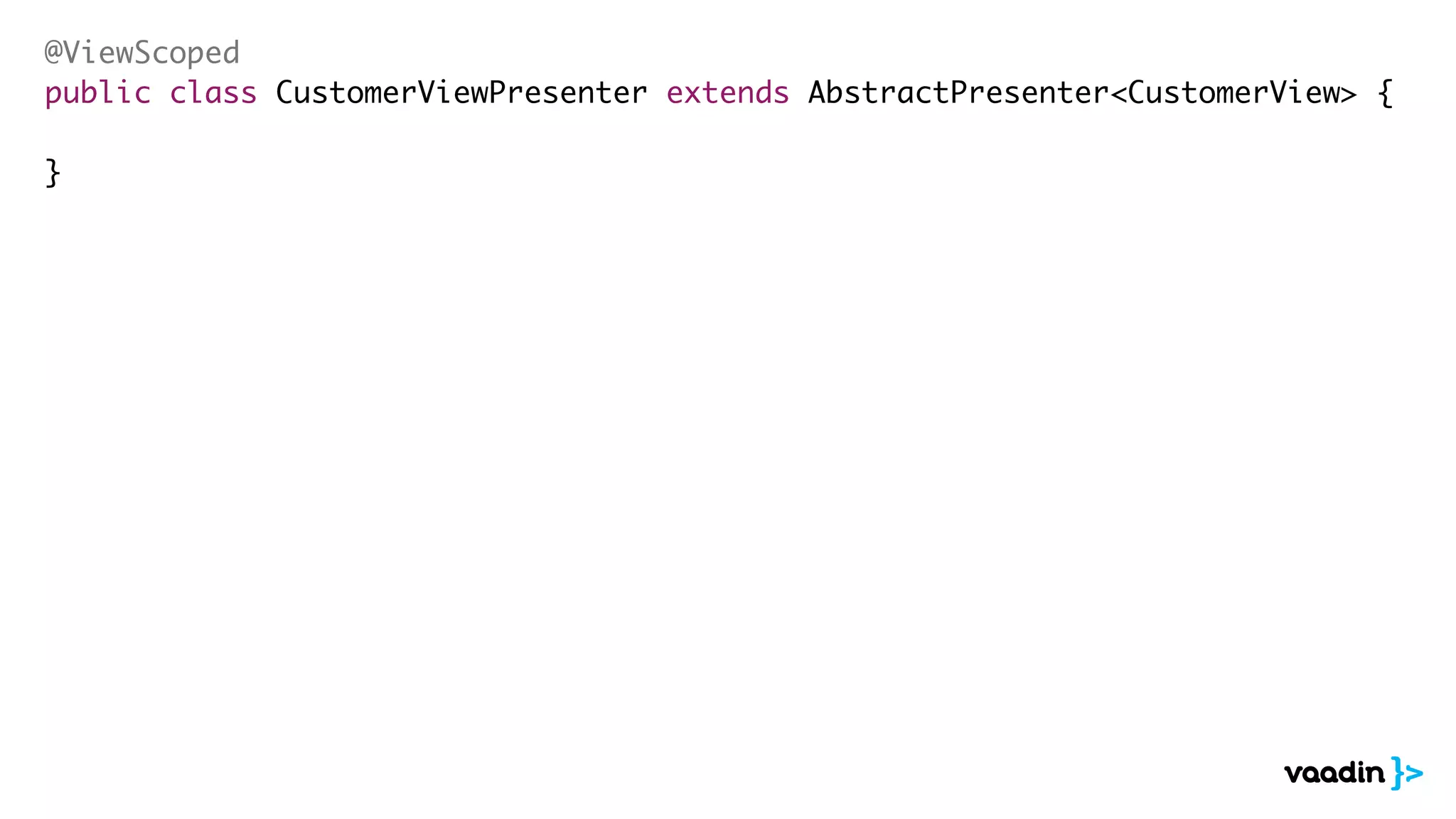

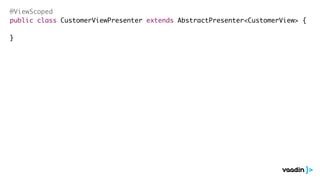

- 60. @ViewScoped public class CustomerViewPresenterextends AbstractPresenter<CustomerView> { }

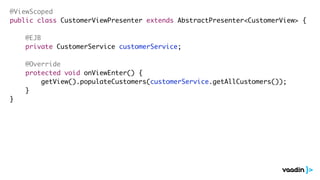

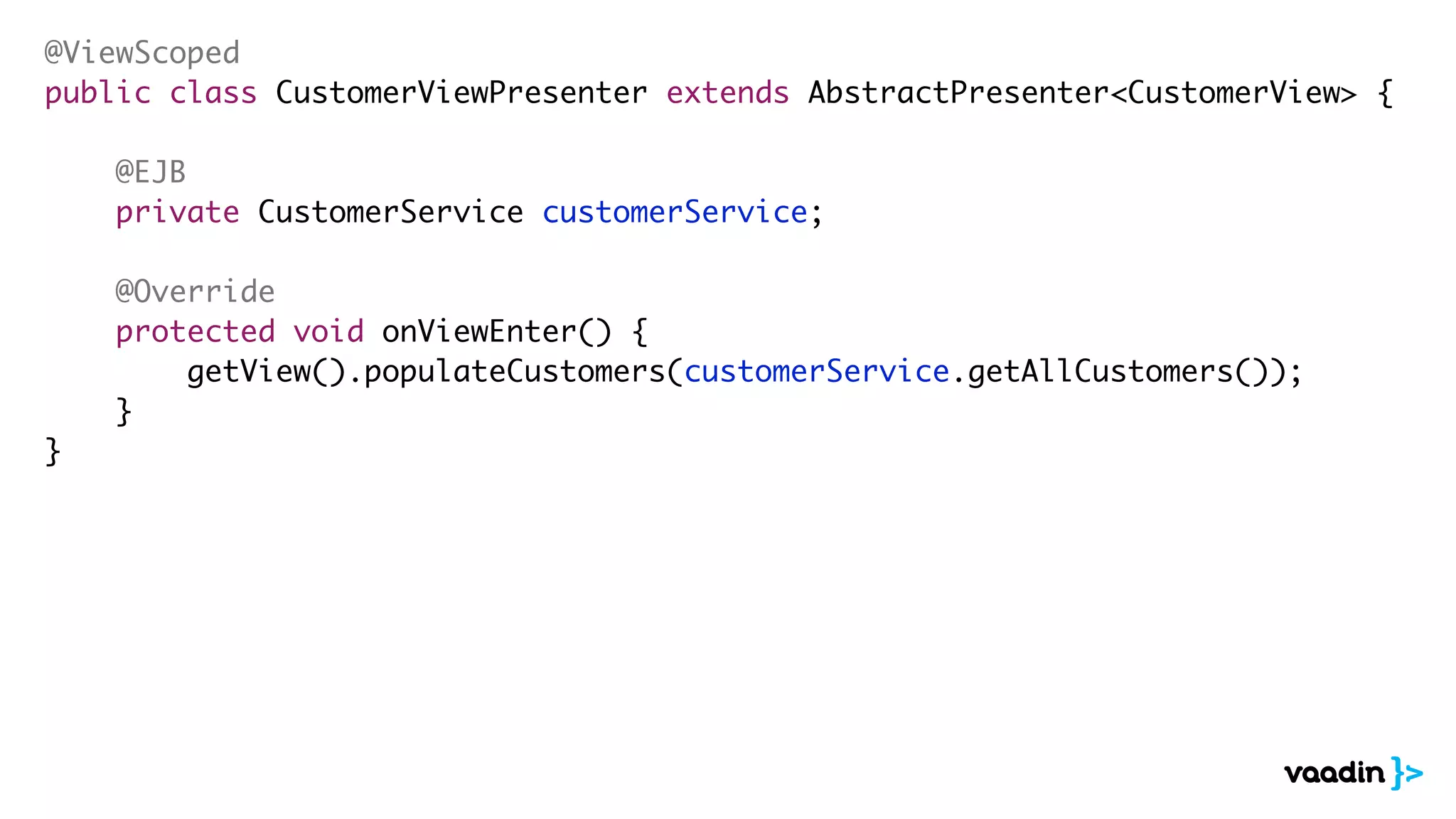

- 61. @ViewScoped public class CustomerViewPresenterextends AbstractPresenter<CustomerView> { @EJB private CustomerService customerService; @Override protected void onViewEnter() { getView().populateCustomers(customerService.getAllCustomers()); } }

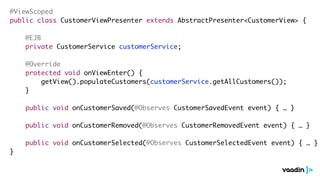

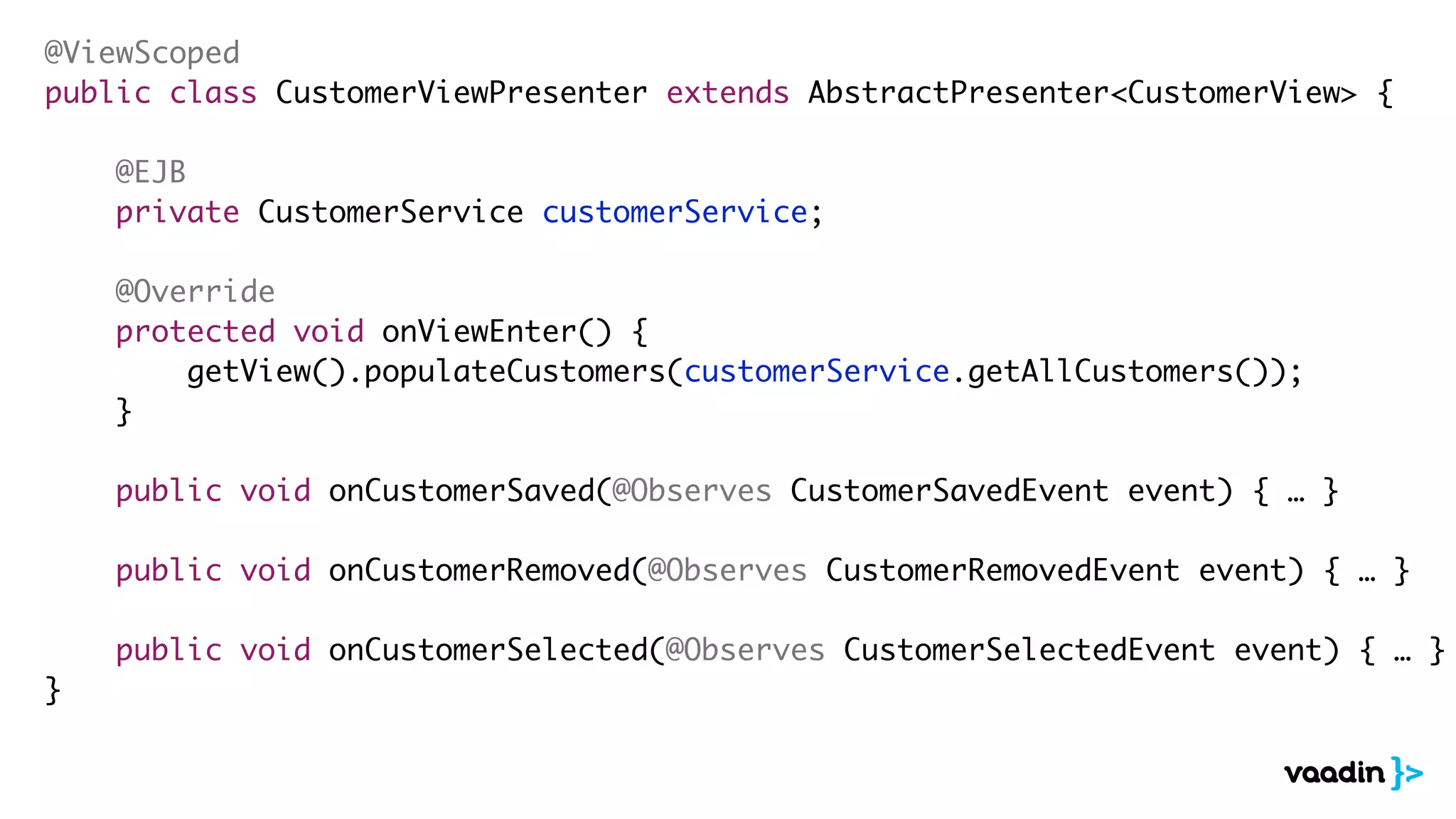

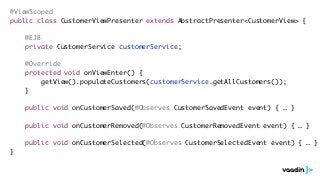

- 62. @ViewScoped public class CustomerViewPresenterextends AbstractPresenter<CustomerView> { @EJB private CustomerService customerService; @Override protected void onViewEnter() { getView().populateCustomers(customerService.getAllCustomers()); } public void onCustomerSaved(@Observes CustomerSavedEvent event) { … } public void onCustomerRemoved(@Observes CustomerRemovedEvent event) { … } public void onCustomerSelected(@Observes CustomerSelectedEvent event) { … } }
- 63.

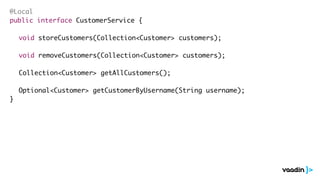

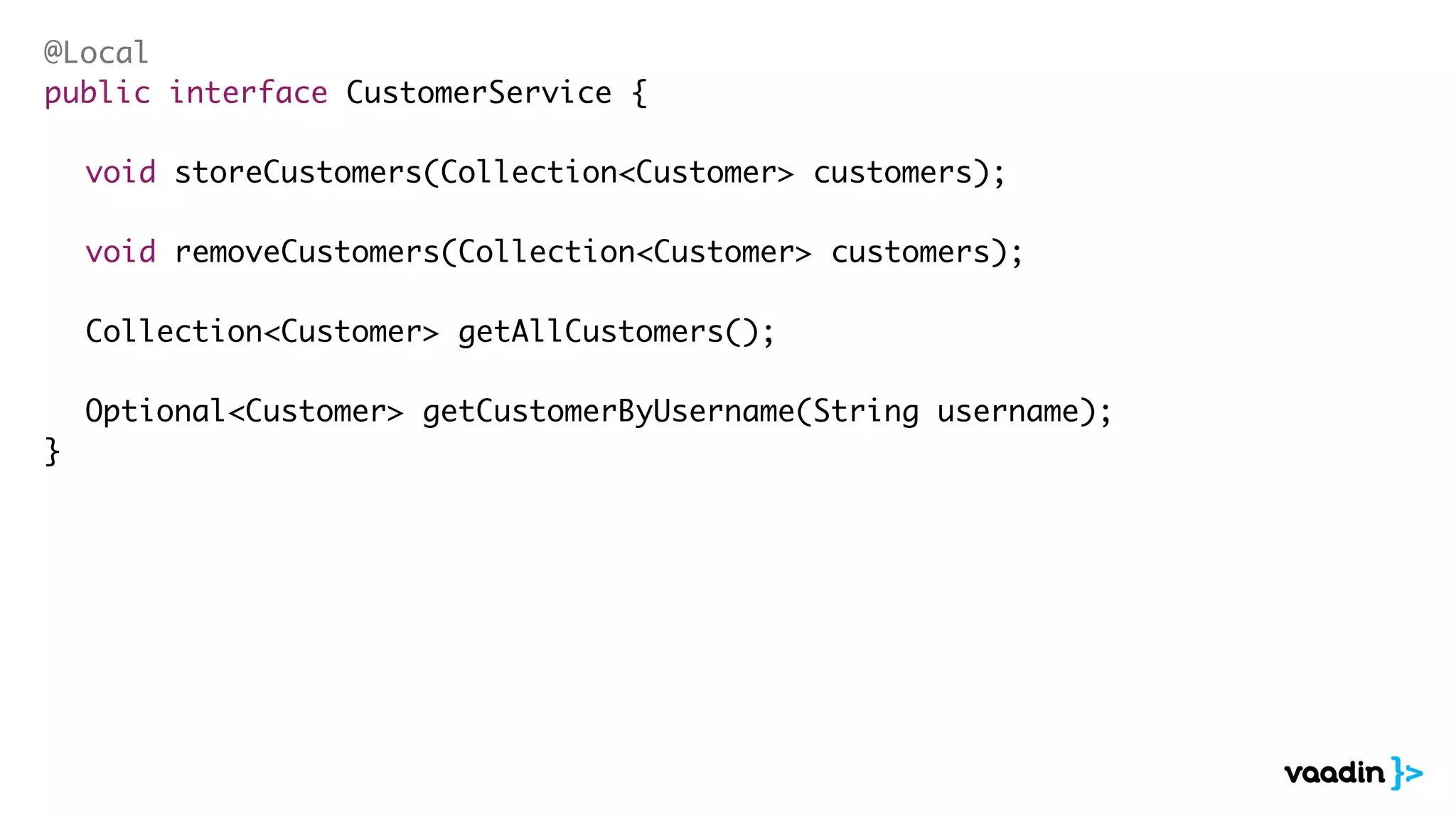

- 64. @Local public interface CustomerService{ void storeCustomers(Collection<Customer> customers); void removeCustomers(Collection<Customer> customers); Collection<Customer> getAllCustomers(); Optional<Customer> getCustomerByUsername(String username); }

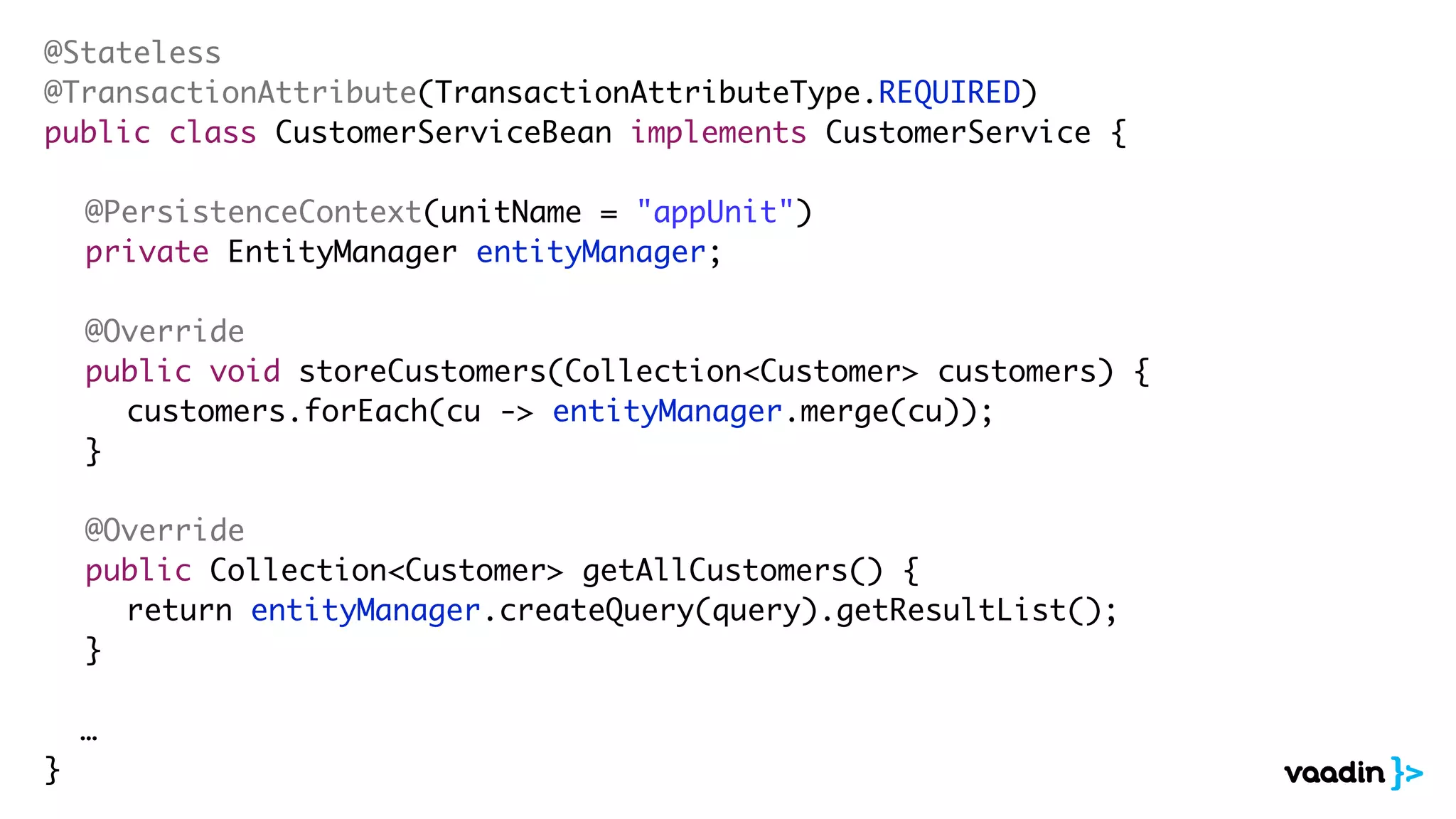

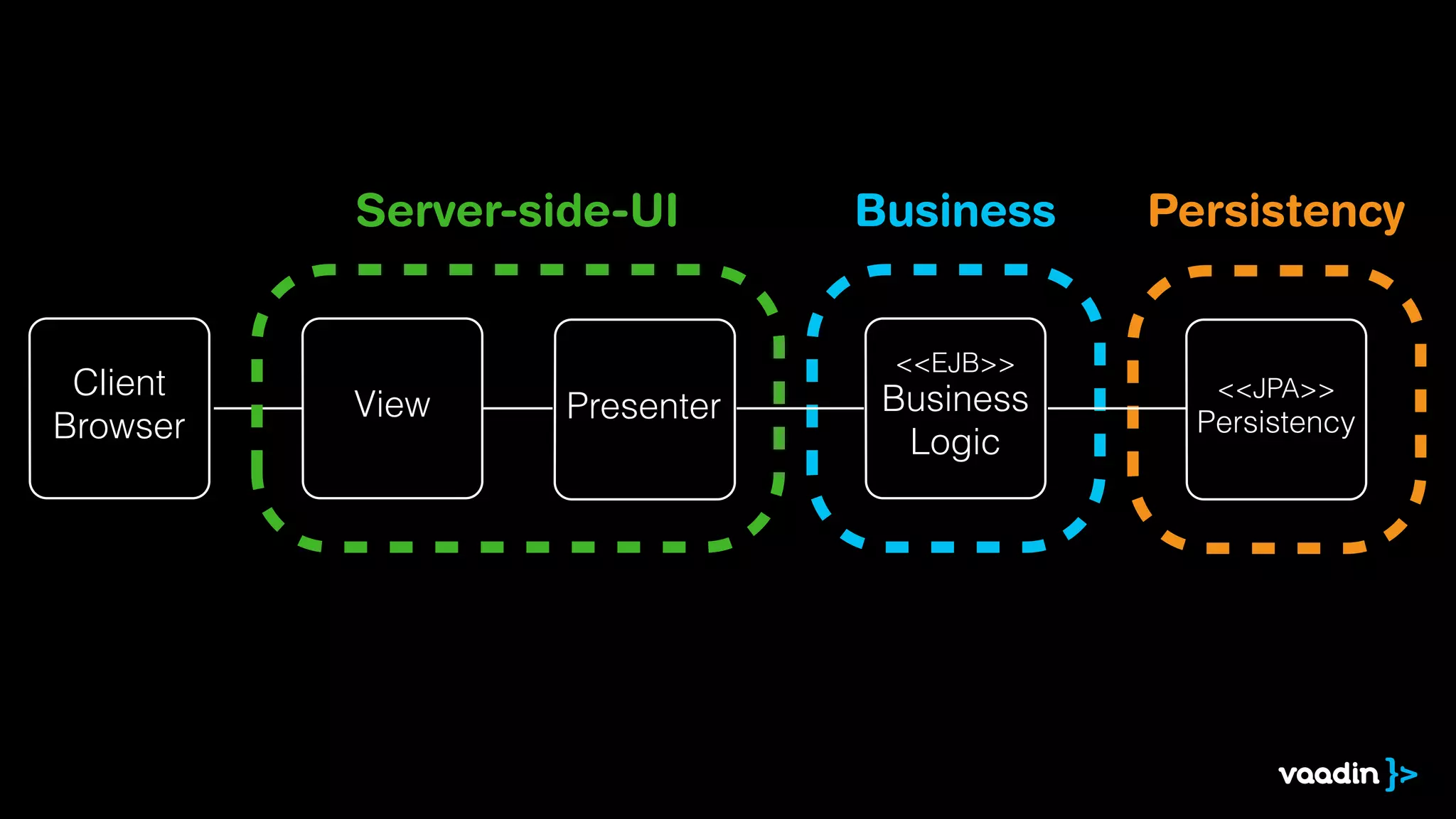

- 65. Application Architecture @Stateless @TransactionAttribute(TransactionAttributeType.REQUIRED) public class CustomerServiceBeanimplements CustomerService { @PersistenceContext(unitName = "appUnit") private EntityManager entityManager; @Override public void storeCustomers(Collection<Customer> customers) { customers.forEach(cu -> entityManager.merge(cu)); } @Override public Collection<Customer> getAllCustomers() { return entityManager.createQuery(query).getResultList(); } … }
- 66.

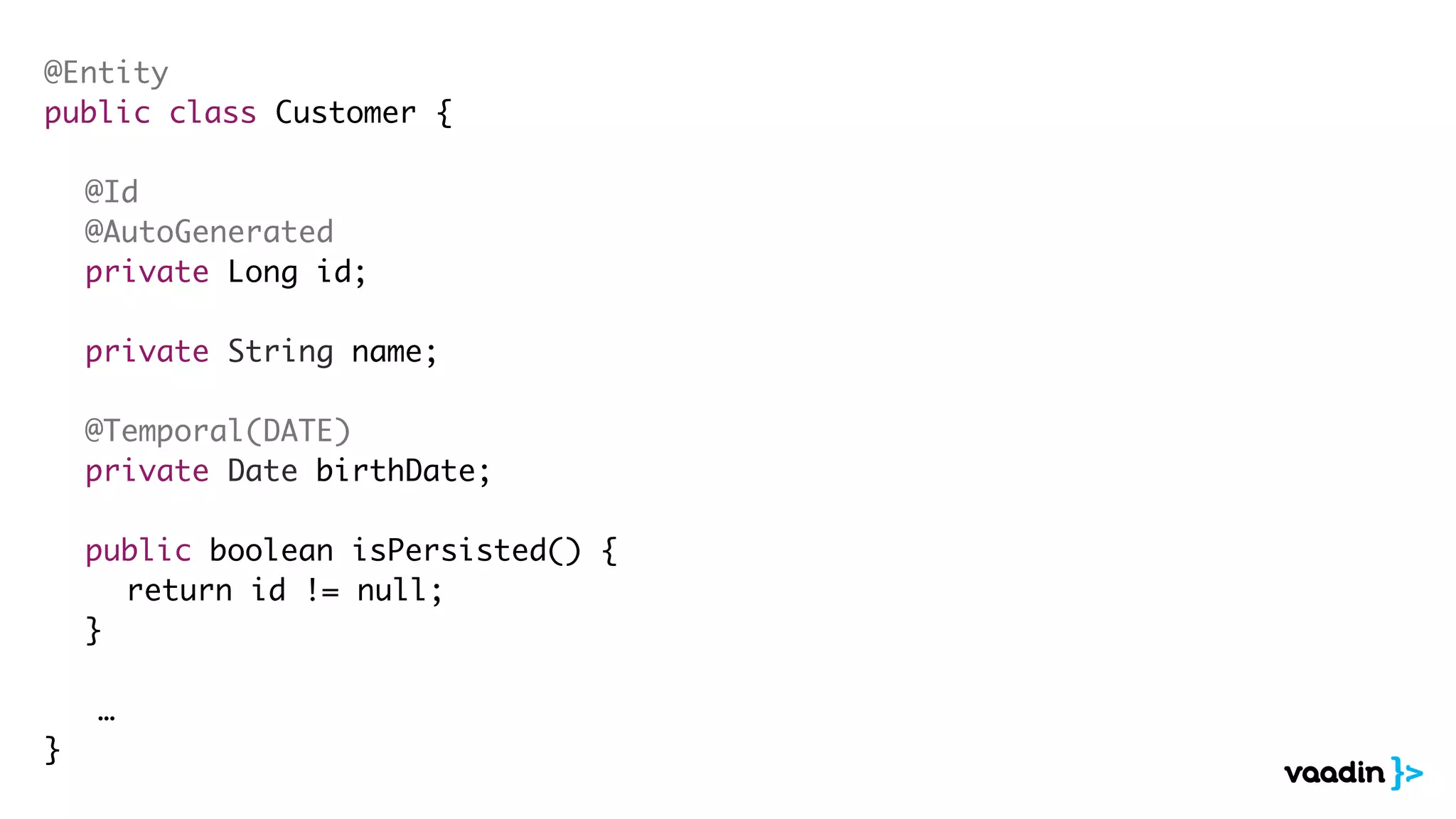

- 67. Application Architecture @Entity public class Customer{ @Id @AutoGenerated private Long id; private String name; @Temporal(DATE) private Date birthDate; public boolean isPersisted() { return id != null; } … }
- 68.
