IoT Workshop Chicago
- 1. + Cincinnati +Louisville + Nashville + Columbus + Detroit + Indianapolis David Buckingham – Practice Lead, Custom App Development Mike Branstein – Director, Application Development Internet of Things (IoT) Workshop
- 2.
- 3. 3 • You rarelyget the chance to practice for practice’s sake • IoT and cloud architecture/development patterns can be confusing and are frankly “new” to many of us • It’s not what’s going to change, it’s when – and the answer is likely yesterday • Today • The Internet of Things (IoT) • Cloud architecture • See an end-to-end solution • Hands-on practice • Get excited or inspired Practice Makes Perfect
- 4. 4 IoT: The Internetof Toasters Things
- 5. Source: Oxford Ditionary5 Internet of things noun A proposed development of the Internet in which everyday objects have network connectivity, allowing them to send and receive data. What is the Internet of Things?

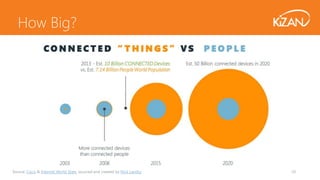

- 6. Source: Cisco &Internet World Stats, sourced and created by Nick Landry 10 How Big?

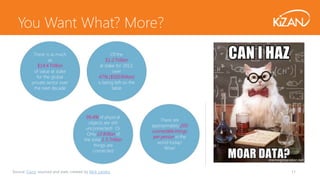

- 7. Source: Cisco, sourcedand stats created by Nick Landry 11 You Want What? More?
- 8. Source: Nick Landry12 The Enablers
- 9.

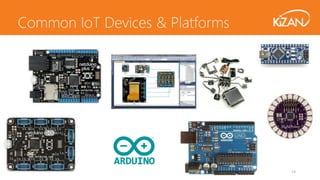

- 10. 14 Common IoT Devices& Platforms

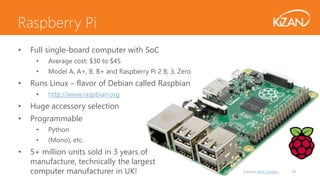

- 11. Source: Nick Landry19 • Full single-board computer with SoC • Average cost: $30 to $45 • Model A, A+, B, B+ and Raspberry Pi 2 B, 3, Zero • Runs Linux – flavor of Debian called Raspbian • http://www.raspbian.org • Huge accessory selection • Programmable • Python • (Mono), etc. • 5+ million units sold in 3 years of manufacture, technically the largest computer manufacturer in UK! Raspberry Pi
- 12. • Prototype-to-production platform •Wifi or Cellular enabled, low-voltage • Remote management capabilities • Cloud-based development environment • $19 • Scale by starting with 1, move to a PCB integrated platform, and custom hardware when you get to the 10,000’s • http://particle.io Particle Photon
- 13. Source: Nick Landry21 • Windows 10 is on Raspberry Pi 2 and 3! • http://windowsondevices.com New Windows == More Fun!
- 14. 22 Demo: Windows 10IoT Core

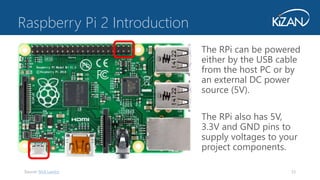

- 15. 23 The RPi canbe powered either by the USB cable from the host PC or by an external DC power source (5V). The RPi also has 5V, 3.3V and GND pins to supply voltages to your project components. Raspberry Pi 2 Introduction Source: Nick Landry

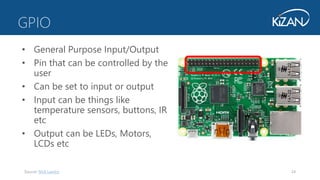

- 16. 24 • General PurposeInput/Output • Pin that can be controlled by the user • Can be set to input or output • Input can be things like temperature sensors, buttons, IR etc • Output can be LEDs, Motors, LCDs etc GPIO Source: Nick Landry

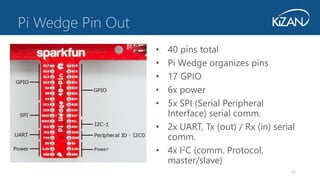

- 17. 25 • 40 pinstotal • Pi Wedge organizes pins • 17 GPIO • 6x power • 5x SPI (Serial Peripheral Interface) serial comm. • 2x UART, Tx (out) / Rx (in) serial comm. • 4x I2C (comm. Protocol, master/slave) Pi Wedge Pin Out

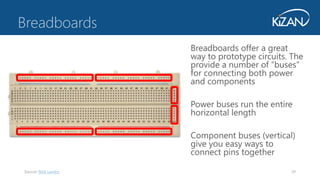

- 18. 29 Breadboards offer agreat way to prototype circuits. The provide a number of “buses” for connecting both power and components Power buses run the entire horizontal length Component buses (vertical) give you easy ways to connect pins together Breadboards Source: Nick Landry
- 19. 31 Lab 0 Introductionto your Lab Kit
- 20. 32 Lab 1 HelloWorld
- 21. 33 Lab 2 MomentaryLED with Push Button
- 22. 34 Lab 3 TemperatureSensor

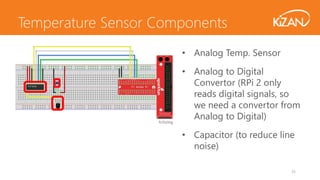

- 23. 35 • Analog Temp.Sensor • Analog to Digital Convertor (RPi 2 only reads digital signals, so we need a convertor from Analog to Digital) • Capacitor (to reduce line noise) Temperature Sensor Components

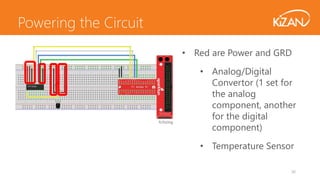

- 24. 36 • Red arePower and GRD • Analog/Digital Convertor (1 set for the analog component, another for the digital component) • Temperature Sensor Powering the Circuit

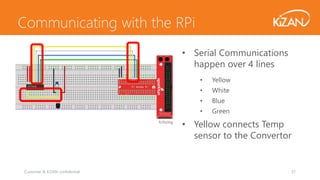

- 25. Customer & KiZANconfidential 37 • Serial Communications happen over 4 lines • Yellow • White • Blue • Green • Yellow connects Temp sensor to the Convertor Communicating with the RPi
- 26. 39 IoT Hub Placeholder andAzure IoT Hub Walkthrough

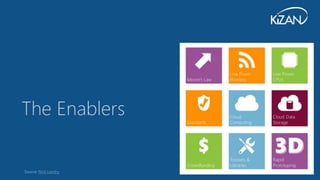

- 27. Source: Nick Landry40 The Enablers
- 28. 42 Cloud Overview: IaaS,PaaS, SaaS Source: Nick Landry, Microsoft

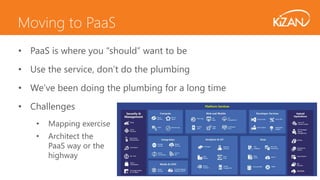

- 29. 43 • PaaS iswhere you “should” want to be • Use the service, don’t do the plumbing • We’ve been doing the plumbing for a long time • Challenges • Mapping exercise • Architect the PaaS way or the highway Moving to PaaS

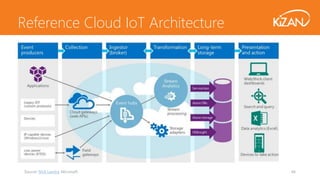

- 30. 44 Reference Cloud IoTArchitecture Source: Nick Landry, Microsoft

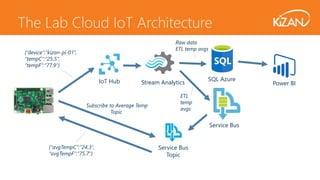

- 31. IoT Hub {“device”:”kizan-pi-01”, “tempC”:”25.5”, “tempF”:”77.9”} The LabCloud IoT Architecture Stream Analytics Service Bus Topic Subscribe to Average Temp Topic Power BI {“avgTempC”:”24.3”, “avgTempF”:”75.7”} SQL Azure Raw data ETL temp avgs Service Bus ETL temp avgs
- 32. Source: Nick Landry46 The Enablers
- 33. 47 The Maker Movement What’sfueling the fire?
- 34.
- 35. 49 “You’re a GreatBuilder and Maker”
- 36.
- 37.
- 38.

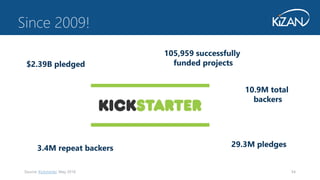

- 39. 54 Since 2009! $2.39B pledged 105,959successfully funded projects 10.9M total backers 29.3M pledges3.4M repeat backers Source: Kickstarter, May 2016
- 40. IoT Hub {“device”:”kizan-pi-01”, “tempC”:”25.5”, “tempF”:”77.9”} The LabCloud IoT Architecture Stream Analytics Service Bus Topic Subscribe to Average Temp Topic Power BI {“avgTempC”:”24.3”, “avgTempF”:”75.7”} SQL Azure Raw data ETL temp avgs Service Bus ETL temp avgs
- 41.

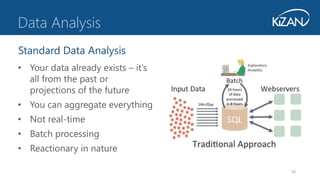

- 42. Standard Data Analysis 58 •Your data already exists – it’s all from the past or projections of the future • You can aggregate everything • Not real-time • Batch processing • Reactionary in nature Data Analysis

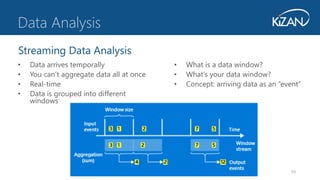

- 43. Streaming Data Analysis 59 •Data arrives temporally • You can’t aggregate data all at once • Real-time • Data is grouped into different windows Data Analysis • What is a data window? • What’s your data window? • Concept: arriving data as an “event”

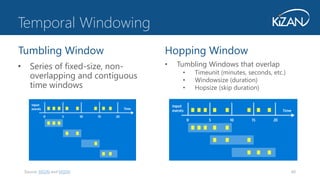

- 44. Tumbling Window HoppingWindow Source: MSDN and MSDN 60 • Tumbling Windows that overlap • Timeunit (minutes, seconds, etc.) • Windowsize (duration) • Hopsize (skip duration) • Series of fixed-size, non- overlapping and contiguous time windows Temporal Windowing

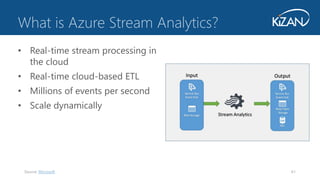

- 45. Source: Microsoft 61 •Real-time stream processing in the cloud • Real-time cloud-based ETL • Millions of events per second • Scale dynamically What is Azure Stream Analytics?

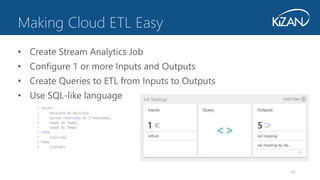

- 46. 62 • Create StreamAnalytics Job • Configure 1 or more Inputs and Outputs • Create Queries to ETL from Inputs to Outputs • Use SQL-like language Making Cloud ETL Easy
- 47. 63 Demo Looking ata Stream Analytics Job

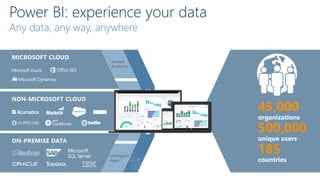

- 49. Any data, anyway, anywhere

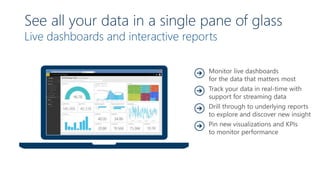

- 50.
- 54. Live Query &Scheduled Data Refresh

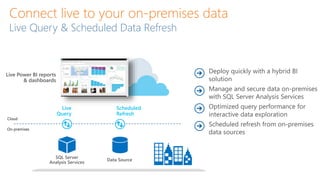

- 55.
- 56. Customer & KiZANconfidential 72 Build a Dashboard
Editor's Notes
- #3 Talking Points I want to welcome everyone to our workshop on the Internet of Things. Today is going be an exciting day. You’ll get to work hands-on with a Raspberry Pi, building several simple circuits. You’ll get to see Windows 10 running on the Raspberry Pi and see how it can be a simple development platform for IoT devices. You’ll see how to interact with Windows Azure as a scalable platform for data transmission and IoT device management. We’ll then use Azure’s Stream Analytics service to analyze our data streams in real-time, prepping them for reporting. Finally, we’ll round-out the day by looking at Power BI, a reporting tool that we will use to build and share visualizations based upon the data we analyzed with Stream Analytics.
- #4 Talking Points Aside from learning about the different technologies available to you, we’ve found that you rarely get the opportunity to practice developing or experimenting. So, what do you need to be successful today? The pre-requisites – if you haven’t looked at them yet, please do. We’ll also be sharing an Azure subscription today, but everything you see here today can be done with either an Azure trial or the Azure credits you may have with MSDN. Finally, we want you to have fun. We built this workshop because we enjoy the content, we’re passionate about building and making.
- #5 Let’s dive in. I’ve said IoT or the Internet of Things several times, but what is IoT? I could launch into a lengthy explanation, but I think Joseph Sirosh from Microsoft said it really well, when he talked about the power of data, internet connectivity, and cows.
- #6 Talking Points When you think of IoT, you’re most familiar with consumer or hobbyist hardware: Fitbit, Garmin, lightbulbs, the Nest, etc. But as Joseph Sirosh said, imagine what can happen in industry, or farming. There are immense applications of what we can do with IoT acorss multiple industries. As we’re exploring today, keep thinking how IoT could help transform your businesses, either by creating new streams of revenue, decreasing costs, or by streamlining processes. So what is the internet of things. It’s about sending and receiving data. To illustrate this – think of Fitbit – it is passive, Nest is passive monitoring and receiving. Two-way communication.
- #10Â Essentially, what Kevin was saying is that the internet emerged becaue of our social and technological need t communicate more easily, but this was driven by interpersnall communication needs. However, the IoT is driven by the need for devices to communicate with each other, on behalf of us.
- #11 Talking Points We’ve mentioned how IoT si about device communication and data. Let me give you an idea of how far we’ve come, and the size of where we’re going. The blue dots are world population. The orange are the number of connected devices. Back in 2008, we had more connected devices than people, but by 2020 – in 4 years, it’s estimated that we’ll have over 50 billion connected devices. This pattern of growth is truly gargantuan. And we’re just starting to talk about how these connected devices can help us out.
- #12 Talking Points: What I find truly interesting is not the shear amount of data these device generate, but that even though we have 10 Billion devices connected, that’s only a fraction of a percent. So, stop and think for a moment. How many connected devices do you interact with each day. How many do you own?
- #13 Talking Points Why is IoT exploding? I’d suggest there are a number of factors leading to the explosion in IoT. One of the strongest motivators driving IoT is the cloud.
- #15 There are a variety of IoT devices that may have heard of. I’m not going to look at each one, perhaps if we had the time, we could demo each; however, they are all fairly similar. They run a version of linux, you can program them in C++ like languages and/or Python. But I will touch on the Arduino – it rose out of an open source hardware platform. It’s cross-platform, affordable, and has a large community behind it.
- #20Â Talking Points The purpose of creating the Raspberry pi was to provide low-cost computers for educational purposes around the world. They designed and built a single-board computer with a system-on-a-chip. The relatively low cost and variety of models helped to sell 5+ million units, making it the largest computer manufacturer in the UK.
- #21 Talking points It looks big here, but it’s tiny. The Particle photon is a favorite of mine actually,. It’s so small, inexpensive, and powerful, that it just makes me giddy whenever I can pull it out of my bag and show someone. The core advantages of the photon are price, built-in wireless, a cloud-based dev platform, and the manufacturing capabilities behind the company. As a prototype board, it’s meant to be purchased in single-unit counts, but quickly scale up by allowing you to submit and create PCBs based upon your prototype designs. This can scale up to the 10’s of thousands.
- #22Â With a new OS, comes new platforms that support the OS. Check out windowsondevices.com for more information, but you can insall and run Windows 10 on a raspberry pi.
- #23 It’s beneficial to show this. I don’t need to go into every tab. You understand the operating system and GUIs. Demonstrate the Remote client
- #27 LEDs are all around us: In our phones, our cars and even our homes. Any time something electronic lights up, there’s a good chance that an LED is behind it. They come in a huge variety of sizes, shapes, and colors. LEDs (that’s “ell-ee-dees”) are a particular type of diode that convert electrical energy into light. In fact, LED stands for “Light Emitting Diode.” The basic template for an LED circuit is pretty simple, just connect your battery, resistor and LED in series. Like this:
- #28 Talking Points There’s no damage if you plug this in backwards, it’s just not going to work
- #29 Talking Points Each LED is rated for a specific amount of voltage. If you give it too much, it’ll pop.
- #30Â Talking Points The power buses are divided
- #31Â Another demo? Blinky flashing light of what IoT code is going to look like most of the time.
- #32 Talking Points We’re going to turn an LED on with 3.3v to Ground Insert Pi Wedge into Bread board
- #41 Talking Points Why is IoT exploding? I’d suggest there are a number of factors leading to the explosion in IoT. One of the strongest motivators driving IoT is the cloud.
- #47 Talking Points Why is IoT exploding? I’d suggest there are a number of factors leading to the explosion in IoT. One of the strongest motivators driving IoT is the cloud.
- #48 Talking Points: Coupled with IoT is a movement to return to getting our hands dirty, tearing apart devices, finding out how things work. We’ve gotten accustomed to buying pre-made devices, like phones, laptops. But now it’s cool again to tinker and build.
- #49 Talking Points: From conferences, like maker con, weekend festivals like Maker faire, start-up maker spaces, and magazines like Make: magazine, dedicated to making and building, we’re encouraging the community to get together and share their ideas and talents, and at the same time teaching the next generation of kids that technology isn’t just snapping Instagram Photos or an iPhone or playing Angry Birds or Candy Crush Saga.
- #50 Talking Points: For me, it’s a little more personal. From building lego pirate ships, iPad apps with text-to-speech sound boards, and now circuits with a breadboard. I’m raising my kids as builders and makers. We’re experimenting, building some cool contraptions, and learning that failure is ok.
- #51 Talking Points: Something else fueling the Maker Movement has been 3D printing and the concept of additive manufacturing. Historically, manufacturing has been subtractive. Give me a solid block of metal, and I’ll use a CNC machine to mill it down to the right shape and size. The rise of consumer-priced, desktop 3D printers has exploded. It may not be tomorrow or even in 10 years, but the day when you can print a replacement part for your broken appliance is coming. 3D printing is bigger than just a hobbyist activity. There are real applications for prototyping, because it allows you to quickly do a POC. Once you’ve prototyped, 3D printing can replace traditional hardware manufacturing. Right now, there are dozens of companies in the 3D printing arena. And it’s a race to the bottom. Who can make the least expensive, fastest 3D printer, with the highest resolution. Competition is thriving with different technology and materials.
- #52Â Talking Points This is back from 2014, but it shows all of the companies involved in 3D printing. By now, there are dozens more, with a race to the bottom. Who can make the least expensive, fastest 3D printer, with the highest resolution. Competition is thriving with different technology and materials.
- #53 Talking Points And one of the coolest applciations of 3D printing was with SpaceX and their SuperDraco engine. They’re building and flying additive manufacturing rocket engines into space.
- #54Â Talking Points Another significant contributor to the Maker and IoT Movement is the rise of crowdsourced funding options. Who here has supported a crowdsourced effort?
- #55 Talking Points The most popular of these services is Kickstarter, with almost $2.4 Billion pledged to date. KickStarter and other crowdsourced funding companies are helping companies innovate, and launch products that may not have seen the light of day in the past. You’ll often see startups using KickStarter to launch their business, but also well-established companies using KickStarter to try out a new product, raise awareness, and market a product that may have never made it out of the R&D phase. KickStarter is actually being used as a pre-order system for many businesses, although, it’s not a pre-order system. You can still lose your money.
- #56 Talking Points There are many other factors leading to the explosion in IoT. We won’t dive deep into them all, but may touch on a few. At the top, a combination of more powerful processors running at reduced speeds, while getting smaller allows us to build and create devices that are usable now. Remember the Cell Phone that was the size of a laptop? That was unusable. In the middle, standardization on hardware platforms has dirven prices down, and making IoT even more compelling. Coupled with a reasonably-priced mechanism to communicating with millions of devices, cloud computing seems to have come around just in time.
- #58 Talking Points - Now that we have data flowing into the cloud, what’s next?
- #64 Talking Notes Stream Analytics Job Inputs Outputs Queries Watch the Stream Processing – SQL Mgmt Studio or VS 2015 connect to SQL Server

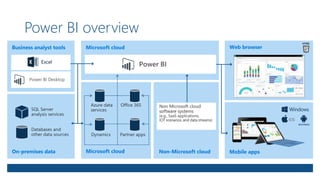

- #66Â Talking Points Power BI is a cloud-based business analytics service that enables anyone to visualize and analyze data with greater speed, efficiency, and understanding. It connects users to a broad range of live data through easy-to-use dashboards, provides interactive reports, and delivers compelling visualizations that bring data to life.
- #67Â Power BI dashboards With updates to Power BI customers can now see all their data through a single pane of glass. Live Power BI dashboards show visualizations and KPIs from data that reside both on-premises and in the cloud, providing a consolidated view across their business regardless of where their data lives. Simplifying how you interact with data, natural language query is built into the dashboard allowing users to type questions and receive answers from data in the form of interactive visualizations. You can then explore their data further by drilling through the dashboard into the underlying reports, discovering new insights that they can pin back to the dashboard to monitor performance going forward.
- #68Â Stay connected from any device Power BI mobile apps are available for iPhone, iPad, Android Phone, and Windows 8.1.

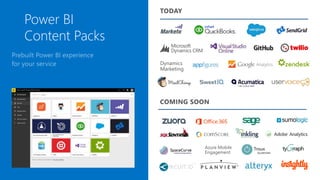

- #69 Power BI makes it easy for users to visualize and analyze their data in minutes, providing pre-built solutions for popular services as part of the Power BI experience. A subscriber to a supported service can quickly connect to their account from Power BI and see their data through live dashboards and interactive reports that have been pre-built for them. We have released content packs for 16 popular services such as Salesforce.com, Marketo, and Quickbooks Online. We have announced that over the coming months we will extend this support to include content packs and integrations for Adobe Analytics, comScore, Azure Mobile Engagement, Sage, SpaceCurve, tyGraph, CircuitID, Sumo Logic, SQL Sentry, Zuora, Planview, Insightly, Troux, Inkling, and others.

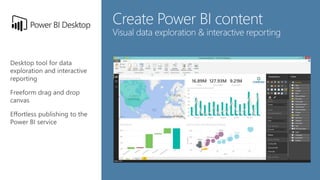

- #70 Power BI Desktop – currently known in preview as the Power BI Designer – is a powerful new visual data exploration and interactive reporting tool available for free at PowerBI.com. It provides a free-form canvas for drag-and-drop exploration of your data and an extensive library of interactive visualizations, while streamlining report creation and publishing to the Power BI service.
