Introduction To New Temperature Indicator Portfolio

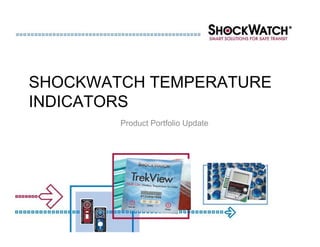

- 1. SHOCKWATCH TEMPERATURE INDICATORS Product Portfolio Update
- 2. 35 years ofcold chain experience ShockLog Impact w/add-on temp, Product performance pressure, humidity & vibration, RF, tip & roll, GPS • Rigorously tested Shocklog • Highly accurate & consistent Impact w/add-on for TrekView • Easy to read temp, pressure, humidity & vibration Multi-use • Tamperproof Functionality TrekView H Wireless & USB Interface Integrated probes Multi-Use temp DataScribe Breadth & depth Multi-use temp • Large range of activation TempMark8 temp thresholds available Time & temp alarms for • Complete condition 8 critical temps prevention offering – indicators, recorders, ColdMark ColdMark2 WarmMark accessories, & training WarmMark2 Indicators Single use Single use • Cost optimized for broad Low cost Low cost implementation Go – No/Go Go – No/Go 1st Generation Latest Portfolio
- 3. Complete cold chaintemperature portfolio

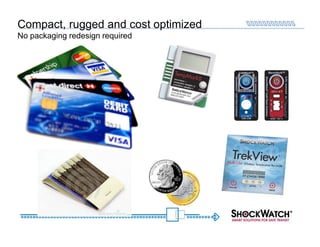

- 4. Compact, rugged andcost optimized No packaging redesign required

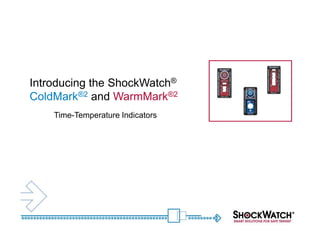

- 5. Introducing the ShockWatch® ColdMark®2and WarmMark®2 Time-Temperature Indicators

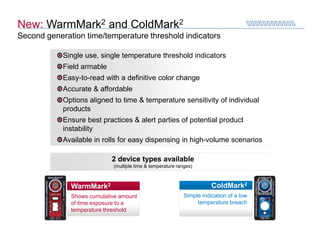

- 6. New: WarmMark2 andColdMark2 Second generation time/temperature threshold indicators Single use, single temperature threshold indicators Field armable Easy-to-read with a definitive color change Accurate & affordable Options aligned to time & temperature sensitivity of individual products Ensure best practices & alert parties of potential product instability Available in rolls for easy dispensing in high-volume scenarios 2 device types available (multiple time & temperature ranges) WarmMark2 ColdMark2 Shows cumulative amount Simple indication of a low of time exposure to a temperature breach temperature threshold

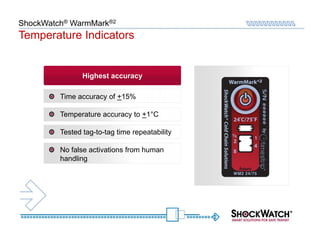

- 7. ShockWatch® WarmMark®2 Temperature Indicators Highest accuracy Time accuracy of +15% Temperature accuracy to +1°C Tested tag-to-tag time repeatability No false activations from human handling

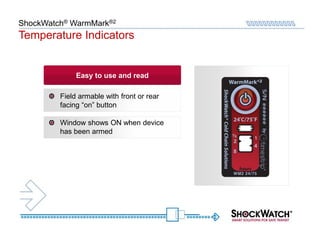

- 8. ShockWatch® WarmMark®2 Temperature Indicators Easy to use and read Field armable with front or rear facing “on” button Window shows ON when device has been armed

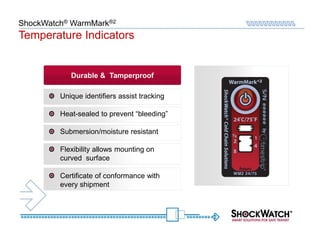

- 9. ShockWatch® WarmMark®2 Temperature Indicators Durable & Tamperproof Unique identifiers assist tracking Heat-sealed to prevent “bleeding” Submersion/moisture resistant Flexibility allows mounting on curved surface Certificate of conformance with every shipment

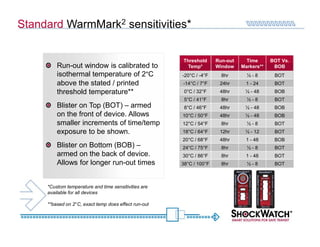

- 10. Standard WarmMark2 sensitivities* Threshold Run-out Time BOT Vs. Run-out window is calibrated to Temp* Window Markers** BOB isothermal temperature of 2°C -20°C / -4°F 8hr ½-8 BOT above the stated / printed -14°C / 7°F 24hr 1 - 24 BOT threshold temperature** 0°C / 32°F 48hr ½ - 48 BOB 5°C / 41°F 8hr ½-8 BOT Blister on Top (BOT) – armed 8°C / 46°F 48hr ½ - 48 BOB on the front of device. Allows 10°C / 50°F 48hr ½ - 48 BOB smaller increments of time/temp 12°C / 54°F 8hr ½-8 BOT exposure to be shown. 18°C / 64°F 12hr ½ - 12 BOT 20°C / 68°F 48hr 1 - 48 BOB Blister on Bottom (BOB) – 24°C / 75°F 8hr ½-8 BOT armed on the back of device. 30°C / 86°F 8hr 1 - 48 BOT Allows for longer run-out times 38°C / 100°F 8hr ½-8 BOT *Custom temperature and time sensitivities are available for all devices **based on 2°C, exact temp does effect run-out
- 11. ShockWatch® ColdMark®2 Temperature Indicators Highest accuracy + 1°C temperature accuracy 1.5°C temperature threshold ensures indication if temperature below 2°C Accurate, repeatable response time (tag-to-tag time repeatability)

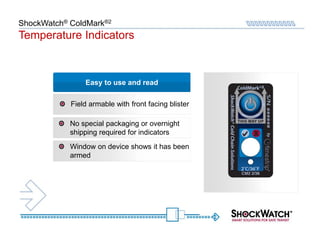

- 12. ShockWatch® ColdMark®2 Temperature Indicators Easy to use and read Field armable with front facing blister No special packaging or overnight shipping required for indicators Window on device shows it has been armed

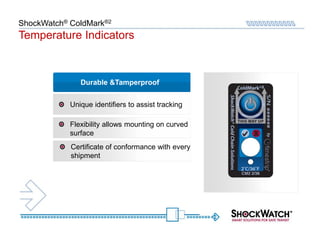

- 13. ShockWatch® ColdMark®2 Temperature Indicators Durable &Tamperproof Unique identifiers to assist tracking Flexibility allows mounting on curved surface Certificate of conformance with every shipment

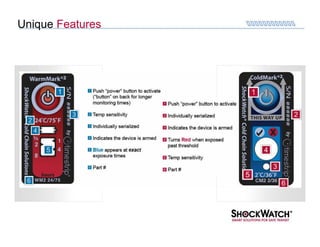

- 14.

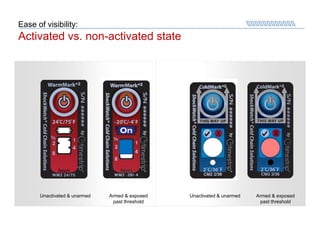

- 15. Ease of visibility: Activatedvs. non-activated state Unactivated & unarmed Armed & exposed Unactivated & unarmed Armed & exposed past threshold past threshold

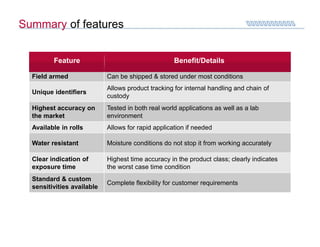

- 16. Summary of features Feature Feature Benefit/Details Benefit/Details Field armed Can be shipped & stored under most conditions Allows product tracking for internal handling and chain of Unique identifiers custody Highest accuracy on Tested in both real world applications as well as a lab the market environment Available in rolls Allows for rapid application if needed Water resistant Moisture conditions do not stop it from working accurately Clear indication of Highest time accuracy in the product class; clearly indicates exposure time the worst case time condition Standard & custom Complete flexibility for customer requirements sensitivities available

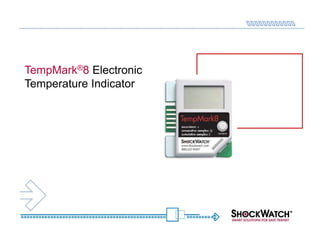

- 17.

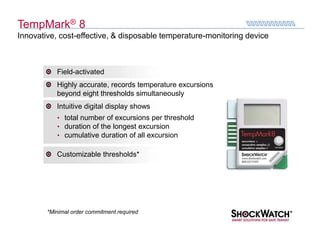

- 18. TempMark® 8 Innovative, cost-effective,& disposable temperature-monitoring device Field-activated Highly accurate, records temperature excursions beyond eight thresholds simultaneously Intuitive digital display shows • total number of excursions per threshold • duration of the longest excursion • cumulative duration of all excursion Customizable thresholds* *Minimal order commitment required
- 19. Standard TempMark 8specifications Key Specifications Standard device includes 8 different temperature thresholds monitored Operating simultaneously: -20°C to 70°C range Alarm # 1: -1°C Descending Quality NIST traceable Alarm # 2: 0°C Descending Sampling rate 1 per minute Alarm # 3: 2°C Descending 2"/50.8mm x Alarm # 4: 8°C Ascending Size 1.5"/38.1mm Alarm # 5: 10°C Ascending Maximum 90 days from Alarm # 6: 15°C Ascending recording time activation Alarm # 7: 20°C Ascending Field Snap tab Alarm # 8: 25°C Ascending activation

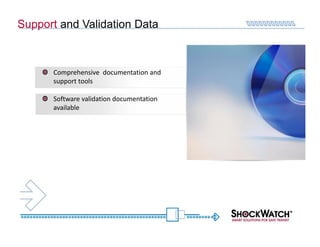

- 20. Support and ValidationData Comprehensive documentation and support tools Software validation documentation available

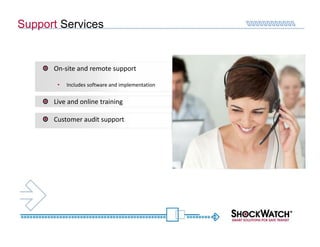

- 21. Support Services On-site and remote support • Includes software and implementation Live and online training Customer audit support
