1. Shockwatch Impact Indicator

2. SHOCKWATCH - IMPACT INDICATORS, IMPACT
RECORDERS, TILT SENSORS, TEMPERATURE DATA
LOGGER & COLD CHAIN SOLUTIONS
• 20% reclaimed polystyrene used in manufacturing TiltWatch® tilt indicating products
• Exceptional durability, allowing for repeat use of many products
• Reclaimed / post-consumer paper for packing materials
• Raw materials procured through RoHS, Green, and REACH policies
• Utilizing more post-consumer and industrial waste

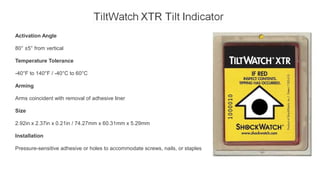

3. Activation Angle
80° ±5° from vertical
Temperature Tolerance
-40°F to 140°F / -40°C to 60°C
Arming
Arms coincident with removal of adhesive liner
Size
2.92in x 2.37in x 0.21in / 74.27mm x 60.31mm x 5.29mm
Installation
Pressure-sensitive adhesive or holes to accommodate screws, nails, or staples

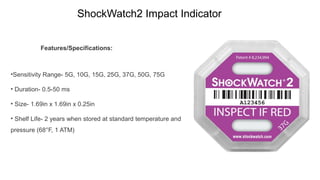

4. ShockWatch2 Impact Indicator
Features/Specifications:
•Sensitivity Range- 5G, 10G, 15G, 25G, 37G, 50G, 75G
• Duration- 0.5-50 ms
• Size- 1.69in x 1.69in x 0.25in
• Shelf Life- 2 years when stored at standard temperature and
pressure (68°F, 1 ATM)

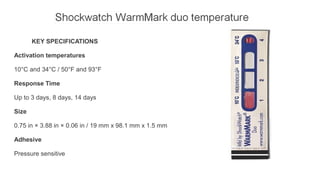

6. KEY SPECIFICATIONS
Activation temperatures
10°C and 34°C / 50°F and 93°F
Response Time
Up to 3 days, 8 days, 14 days
Size
0.75 in × 3.88 in × 0.06 in / 19 mm x 98.1 mm x 1.5 mm
Adhesive
Pressure sensitive

7. Features/Specifications:
•Sensors record events, max peaks X, Y, Z, gRMS, and
internal temperature
•USB and iButton
•User definable warning and alarm levels
•LED lights for visual notification of alarms and
warnings
•Captures and coordinates events with GPS
•Option to build temperature or humidity to unit

8. G-View Impact Recorder Data Logger
Features/Specifications:
•Sensors to record time, date, internal temperature, axis
exceeded, axis amplitude
•Self-contained unit design
•Free of cables and wires
•X, Y, Z impact thresholds that can be independently
programmed for precise monitoring
•Simple programming Interface
•LED lights for visual notification

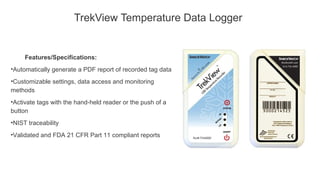

9. TrekView Temperature Data Logger
Features/Specifications:
•Automatically generate a PDF report of recorded tag data
•Customizable settings, data access and monitoring
methods
•Activate tags with the hand-held reader or the push of a
button
•NIST traceability
•Validated and FDA 21 CFR Part 11 compliant reports

10. Thank You
For More Information Click On: Shockwatch Impact indicator
