![SUPPORTING HTML 5 TAGS FOR IE VERSIONS
<!--[if lt IE 8]>
<div style=' clear: both; text-align:center; position: relative;'>
<a href="http://windows.microsoft.com/en-US/internet-
explorer/products/ie/home?ocid=ie6_countdown_bannercode">
<img
src="http://storage.ie6countdown.com/assets/100/images/banners/warning_bar_
0000_us.jpg" border="0" height="42" width="820" alt="You are using an outdated
browser. For a faster, safer browsing experience, upgrade for free today." />
</a>
</div>
<![endif]-->
<!--[if lt IE 9]>
<script type="text/javascript" src="js/html5.js"></script>
<link rel="stylesheet" type="text/css" media="screen" href="css/ie.css">
<![endif]-->
2016-10-09
7
sayed@justetc.net](https://image.slidesharecdn.com/introductiontohtml5-161009013933/75/Introduction-to-html-5-7-2048.jpg)
![SUPPORTING HTML 5 TAGS FOR IE VERSIONS
<!--[if lt IE 8]>
<!--[if lt IE 9]>
These are to handle some situations for IE
versions 8 and 9
IE8 and before do not support some new
HTML5 tags..
So one approach is, we create some
elements for the new HTML5 tags such as
section aside and similar
2016-10-09
9
sayed@justetc.net](https://image.slidesharecdn.com/introductiontohtml5-161009013933/75/Introduction-to-html-5-9-2048.jpg)
Uploaded bySayed Ahmed
Introduction to html 5
This document provides an introduction to HTML5 and discusses some of its new features. It begins with an overview of HTML5 and its updated document structure, then describes several new HTML5 elements such as <header>, <nav>, <article>, <section>, <figure>, and <footer>. It also discusses new form attributes, input types, and multimedia capabilities such as audio, video, and geolocation. Finally, it briefly mentions features like drag and drop, SVG graphics, canvas drawing, and server-sent events.
More Related Content
Similar to Introduction to html 5
![[not edited] Demo on mobile app development using ionic framework](https://cdn.slidesharecdn.com/ss_thumbnails/demoonmobileappdevelopmentusingionicframework-180409002227-thumbnail.jpg?width=640&height=640&fit=bounds)
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction to html 5
- 1. RANDOM HTML 5STUFF: INTRODUCTION TO HTML5 This document is created when I was creating a video and was typing. Just improved by little bit, not much HTML is not rocket science.. Anyway, HTML5 Any application, having web-based user interface, in general, will use HTML HTML5 is the most recent version of HTML.. Just an example of HTML5 document structure... 2016-10-09 1 sayed@justetc.net
- 2. BY THE WAYTHIS IS Sayed Ahmed http://sayed.justetc.net Software/Web/Mobile Architect/Engineer/Developer 2016-10-09 2 sayed@justetc.net

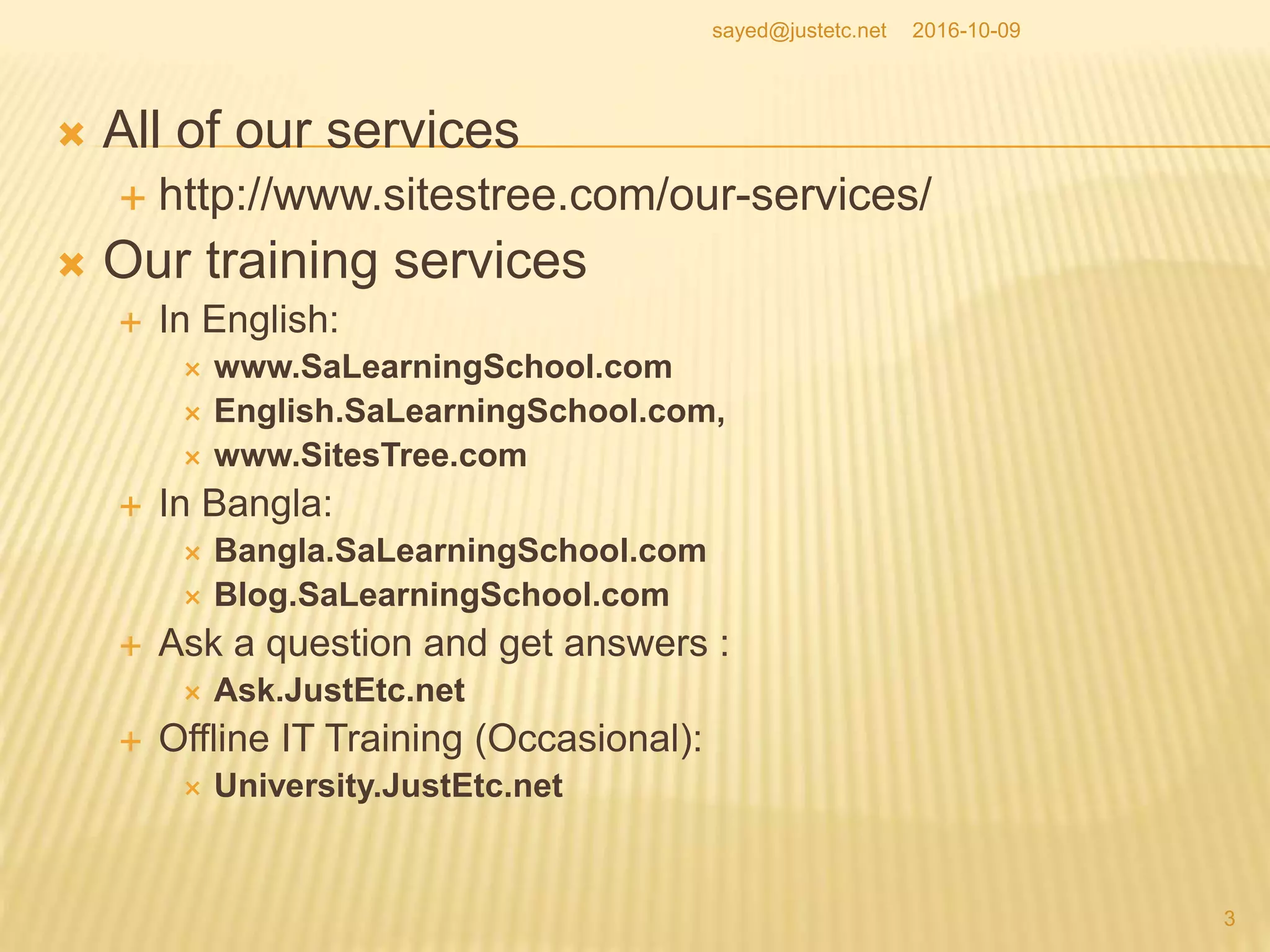

- 3. All ofour services http://www.sitestree.com/our-services/ Our training services In English: www.SaLearningSchool.com English.SaLearningSchool.com, www.SitesTree.com In Bangla: Bangla.SaLearningSchool.com Blog.SaLearningSchool.com Ask a question and get answers : Ask.JustEtc.net Offline IT Training (Occasional): University.JustEtc.net 2016-10-09 3 sayed@justetc.net

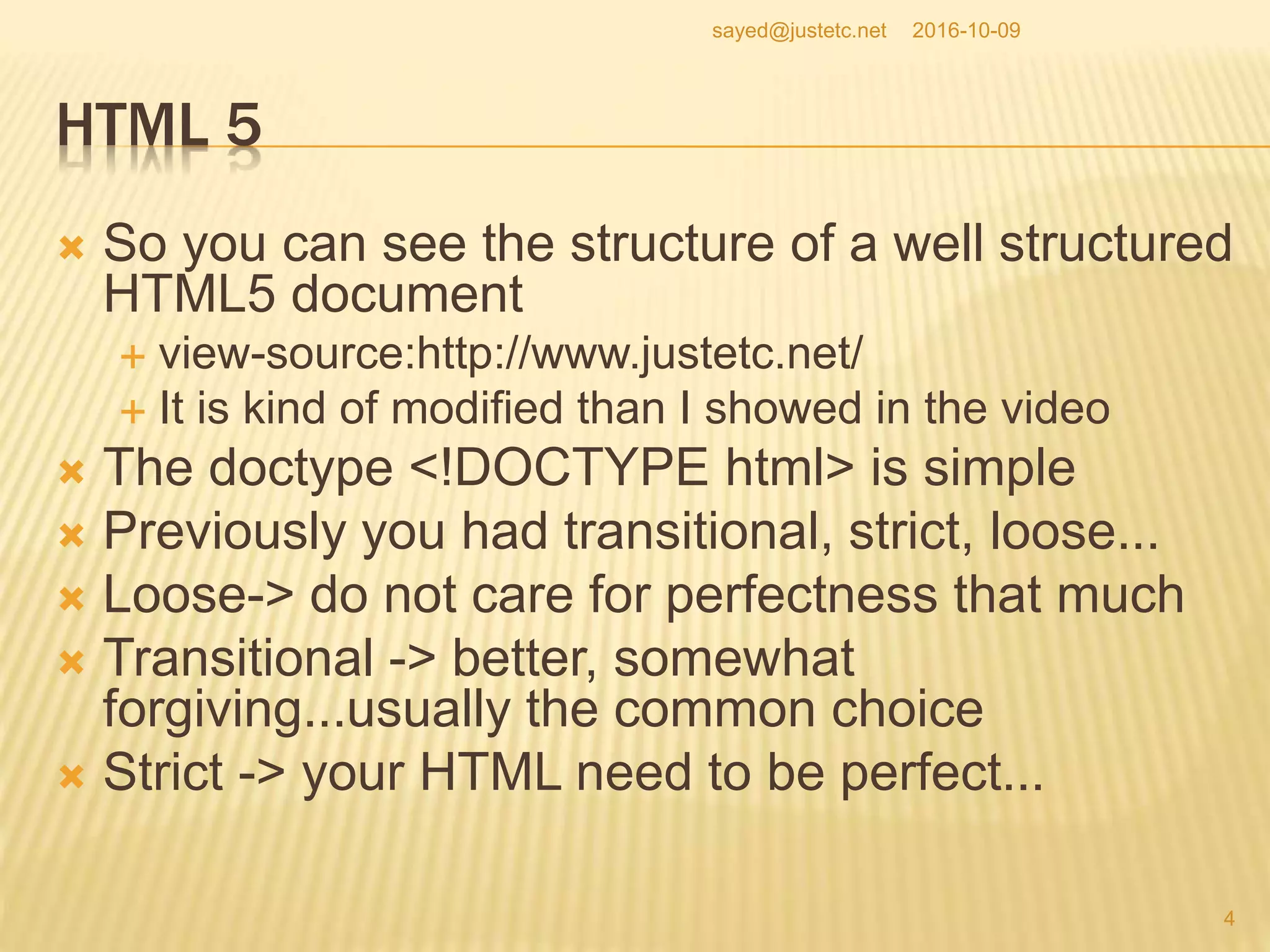

- 4. HTML 5 Soyou can see the structure of a well structured HTML5 document view-source:http://www.justetc.net/ It is kind of modified than I showed in the video The doctype <!DOCTYPE html> is simple Previously you had transitional, strict, loose... Loose-> do not care for perfectness that much Transitional -> better, somewhat forgiving...usually the common choice Strict -> your HTML need to be perfect... 2016-10-09 4 sayed@justetc.net

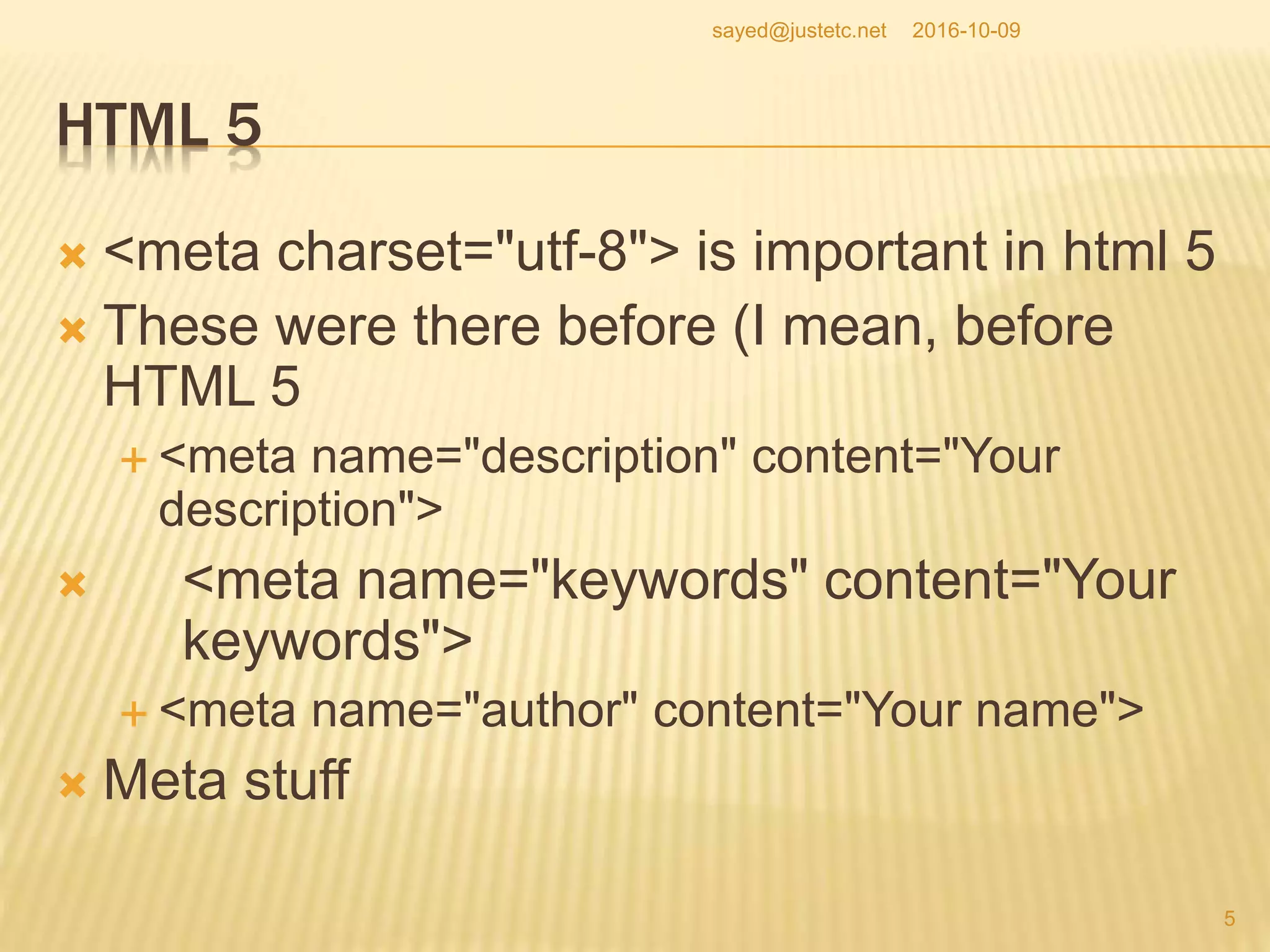

- 5. HTML 5 <metacharset="utf-8"> is important in html 5 These were there before (I mean, before HTML 5 <meta name="description" content="Your description"> <meta name="keywords" content="Your keywords"> <meta name="author" content="Your name"> Meta stuff 2016-10-09 5 sayed@justetc.net

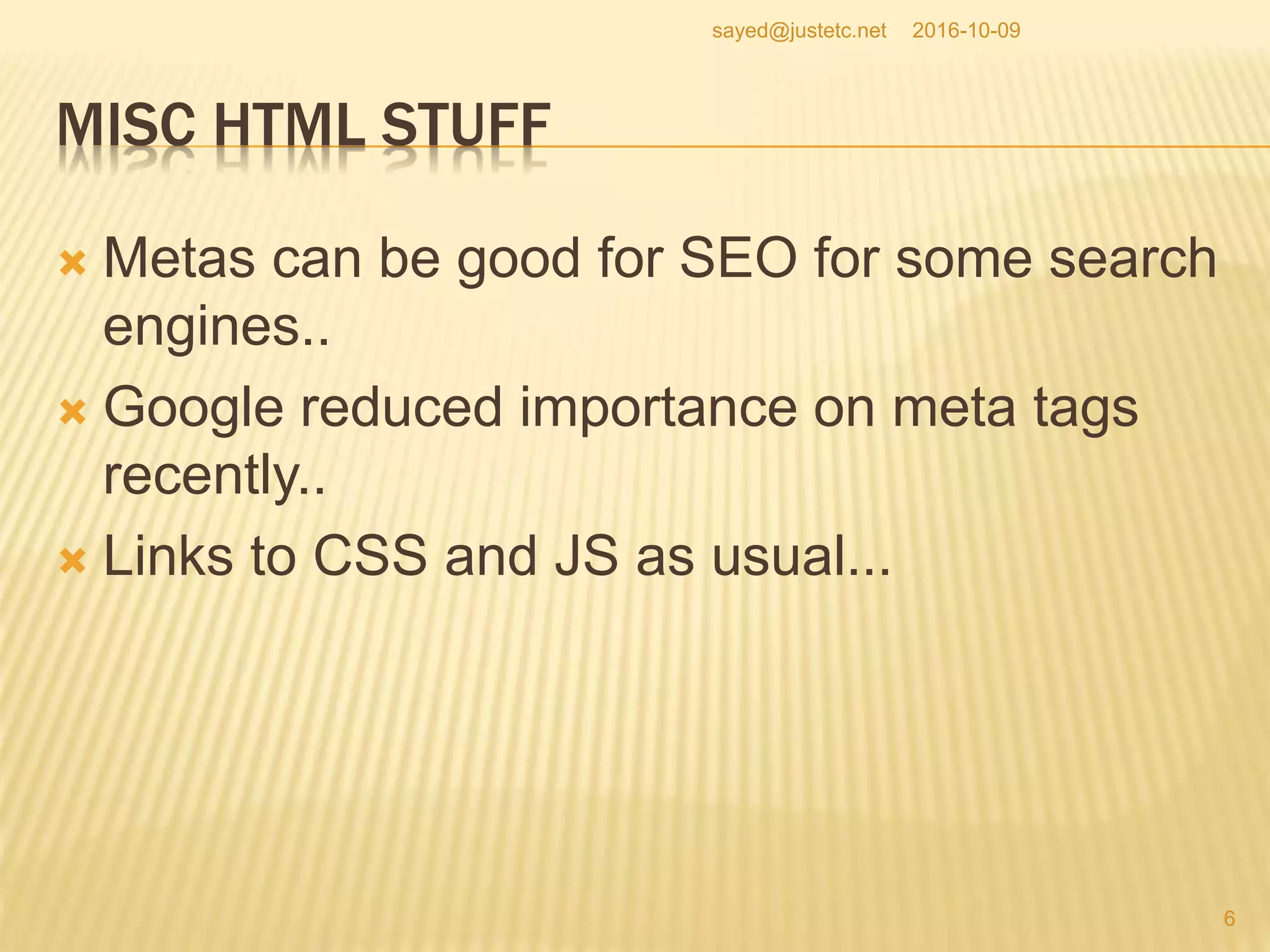

- 6. MISC HTML STUFF Metas can be good for SEO for some search engines.. Google reduced importance on meta tags recently.. Links to CSS and JS as usual... 2016-10-09 6 sayed@justetc.net

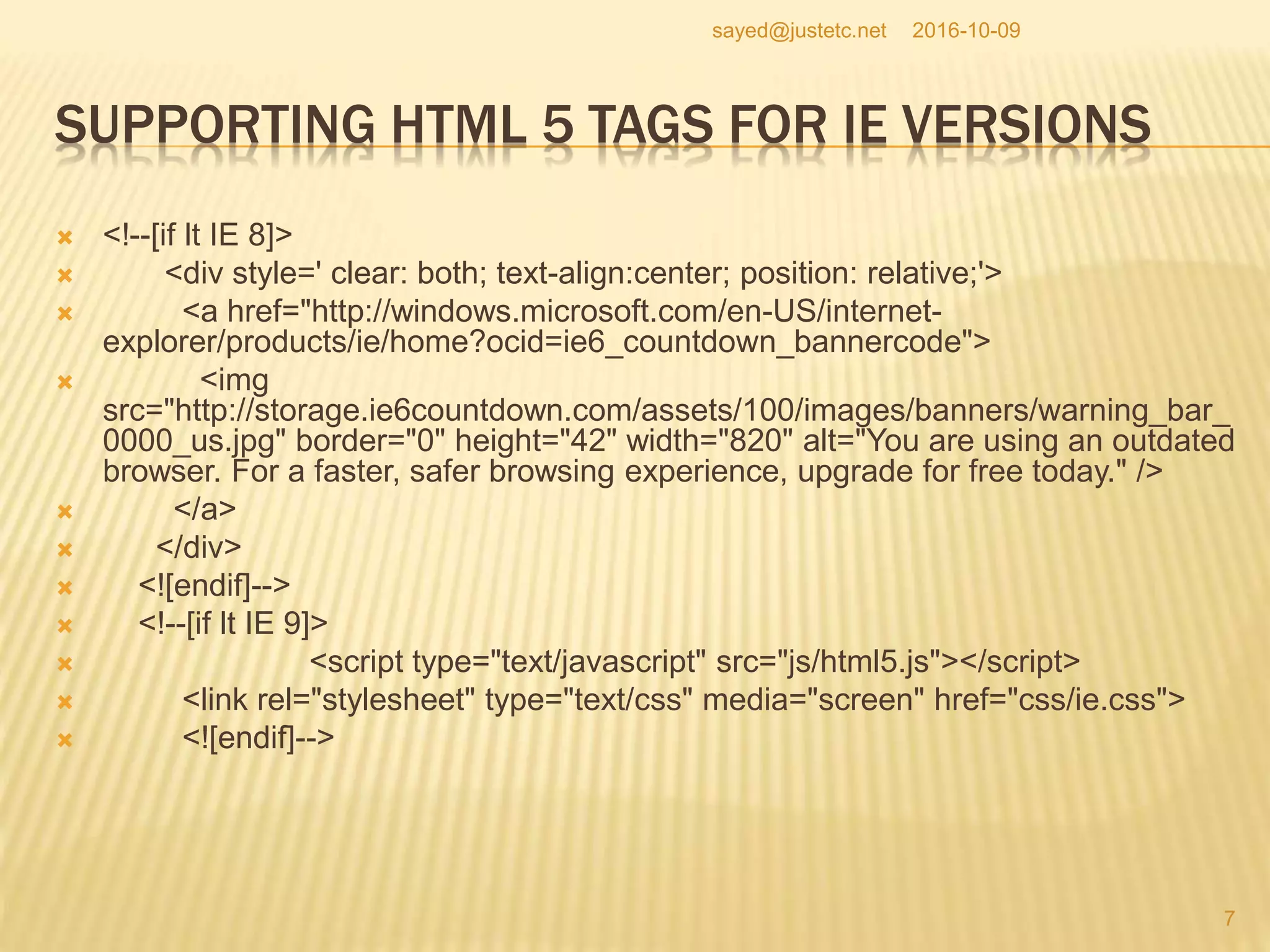

- 7. SUPPORTING HTML 5TAGS FOR IE VERSIONS <!--[if lt IE 8]> <div style=' clear: both; text-align:center; position: relative;'> <a href="http://windows.microsoft.com/en-US/internet- explorer/products/ie/home?ocid=ie6_countdown_bannercode"> <img src="http://storage.ie6countdown.com/assets/100/images/banners/warning_bar_ 0000_us.jpg" border="0" height="42" width="820" alt="You are using an outdated browser. For a faster, safer browsing experience, upgrade for free today." /> </a> </div> <![endif]--> <!--[if lt IE 9]> <script type="text/javascript" src="js/html5.js"></script> <link rel="stylesheet" type="text/css" media="screen" href="css/ie.css"> <![endif]--> 2016-10-09 7 sayed@justetc.net

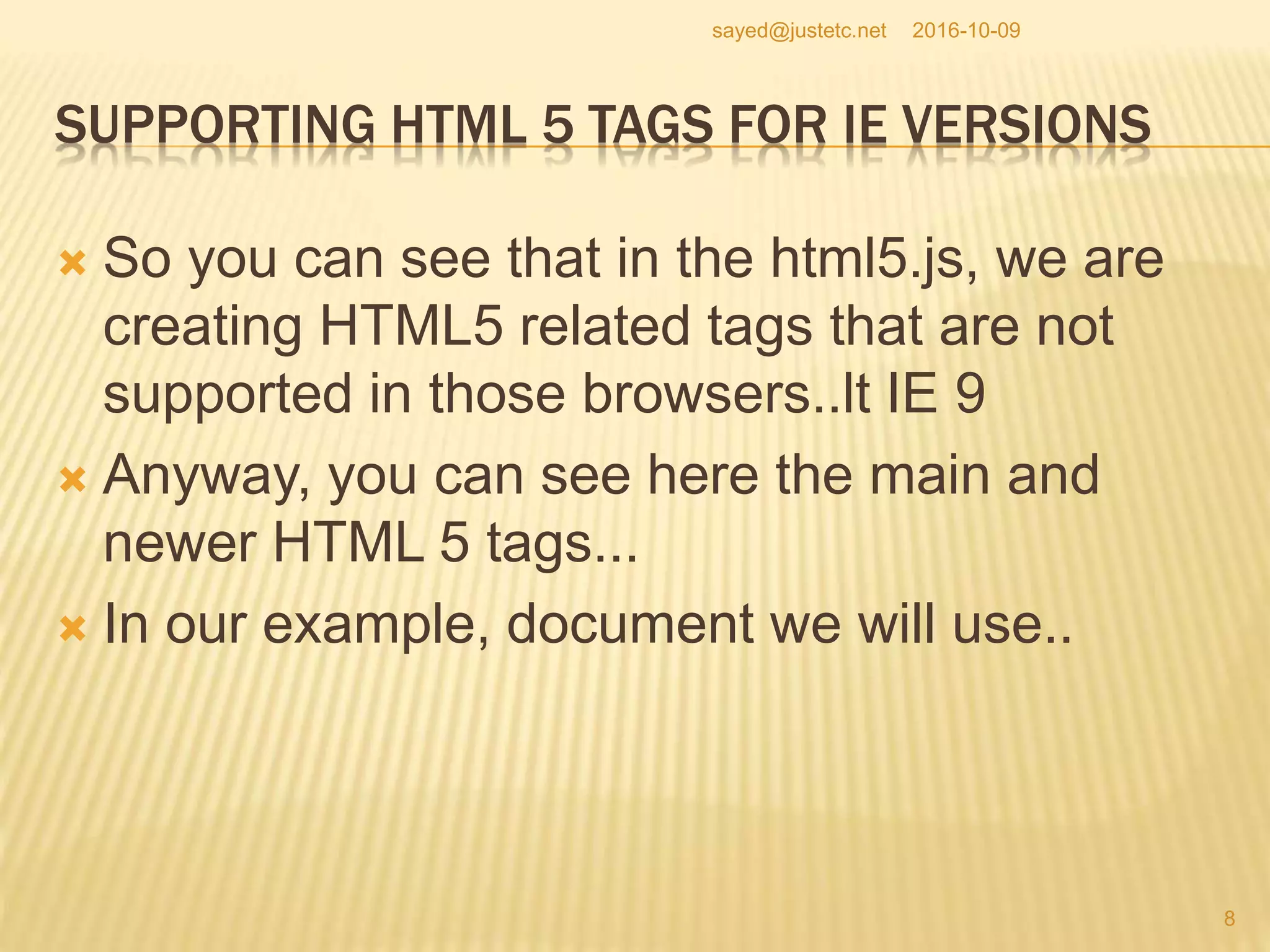

- 8. SUPPORTING HTML 5TAGS FOR IE VERSIONS So you can see that in the html5.js, we are creating HTML5 related tags that are not supported in those browsers..lt IE 9 Anyway, you can see here the main and newer HTML 5 tags... In our example, document we will use.. 2016-10-09 8 sayed@justetc.net

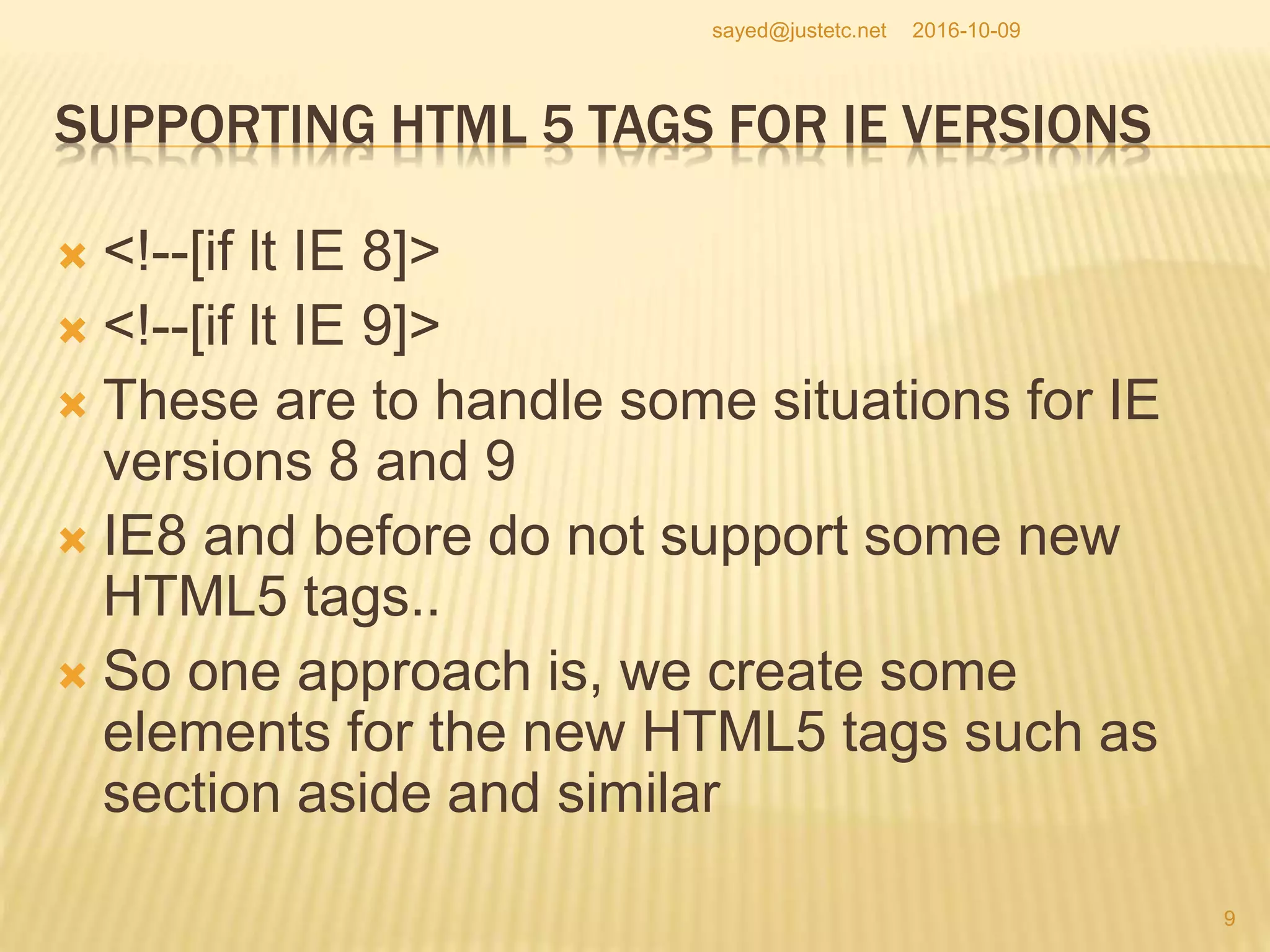

- 9. SUPPORTING HTML 5TAGS FOR IE VERSIONS <!--[if lt IE 8]> <!--[if lt IE 9]> These are to handle some situations for IE versions 8 and 9 IE8 and before do not support some new HTML5 tags.. So one approach is, we create some elements for the new HTML5 tags such as section aside and similar 2016-10-09 9 sayed@justetc.net

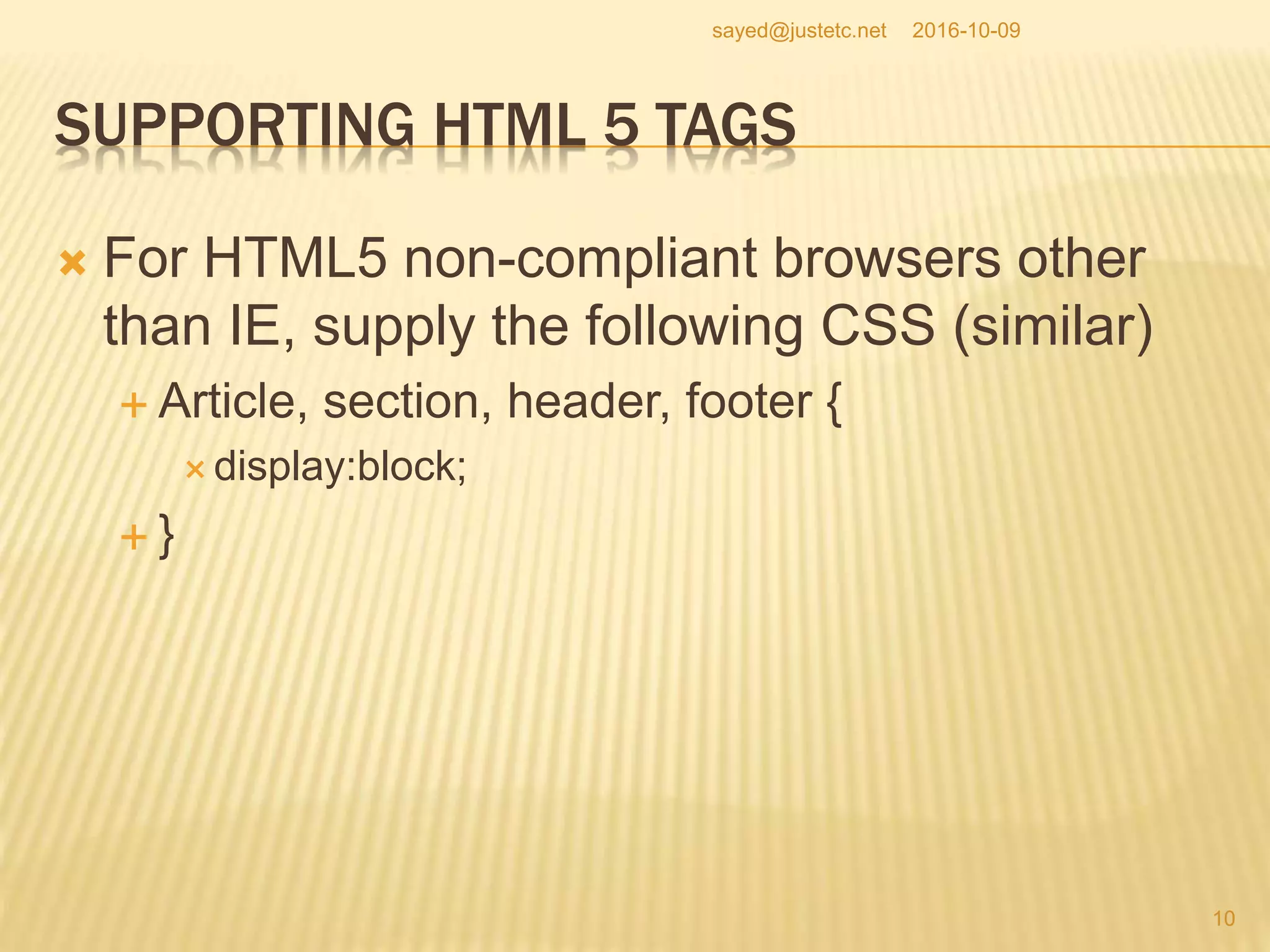

- 10. SUPPORTING HTML 5TAGS For HTML5 non-compliant browsers other than IE, supply the following CSS (similar) Article, section, header, footer { display:block; } 2016-10-09 10 sayed@justetc.net

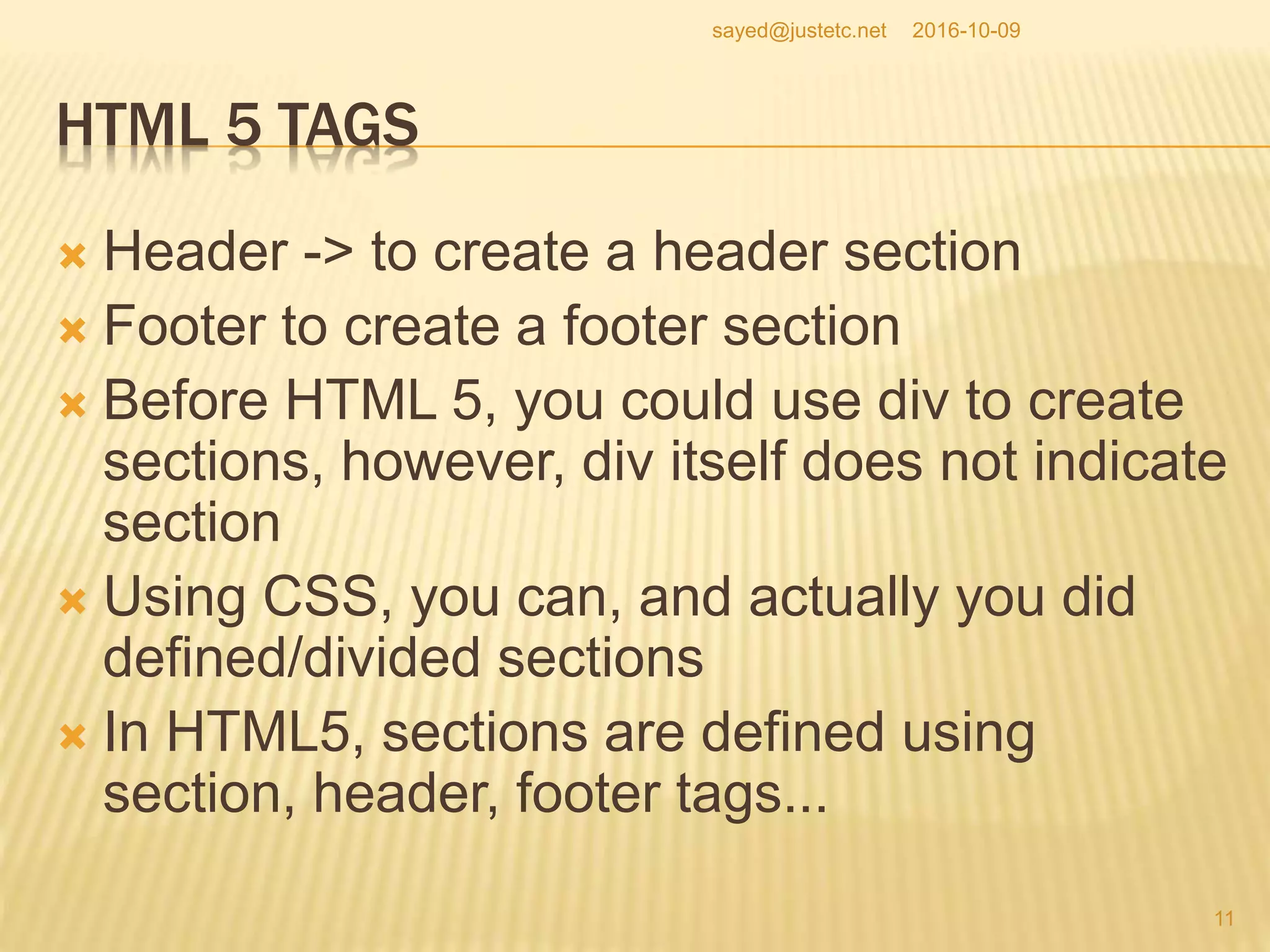

- 11. HTML 5 TAGS Header -> to create a header section Footer to create a footer section Before HTML 5, you could use div to create sections, however, div itself does not indicate section Using CSS, you can, and actually you did defined/divided sections In HTML5, sections are defined using section, header, footer tags... 2016-10-09 11 sayed@justetc.net

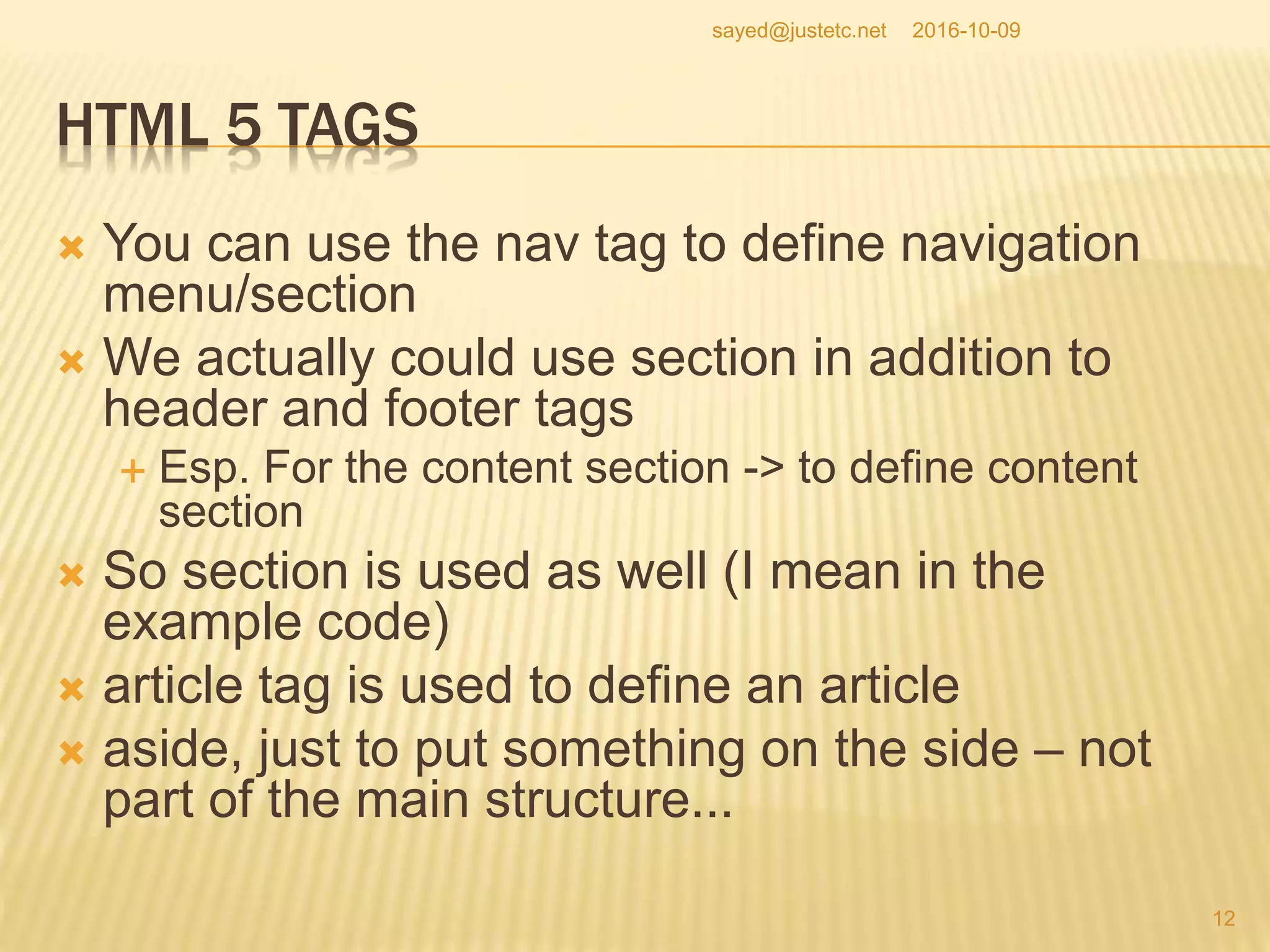

- 12. HTML 5 TAGS You can use the nav tag to define navigation menu/section We actually could use section in addition to header and footer tags Esp. For the content section -> to define content section So section is used as well (I mean in the example code) article tag is used to define an article aside, just to put something on the side – not part of the main structure... 2016-10-09 12 sayed@justetc.net

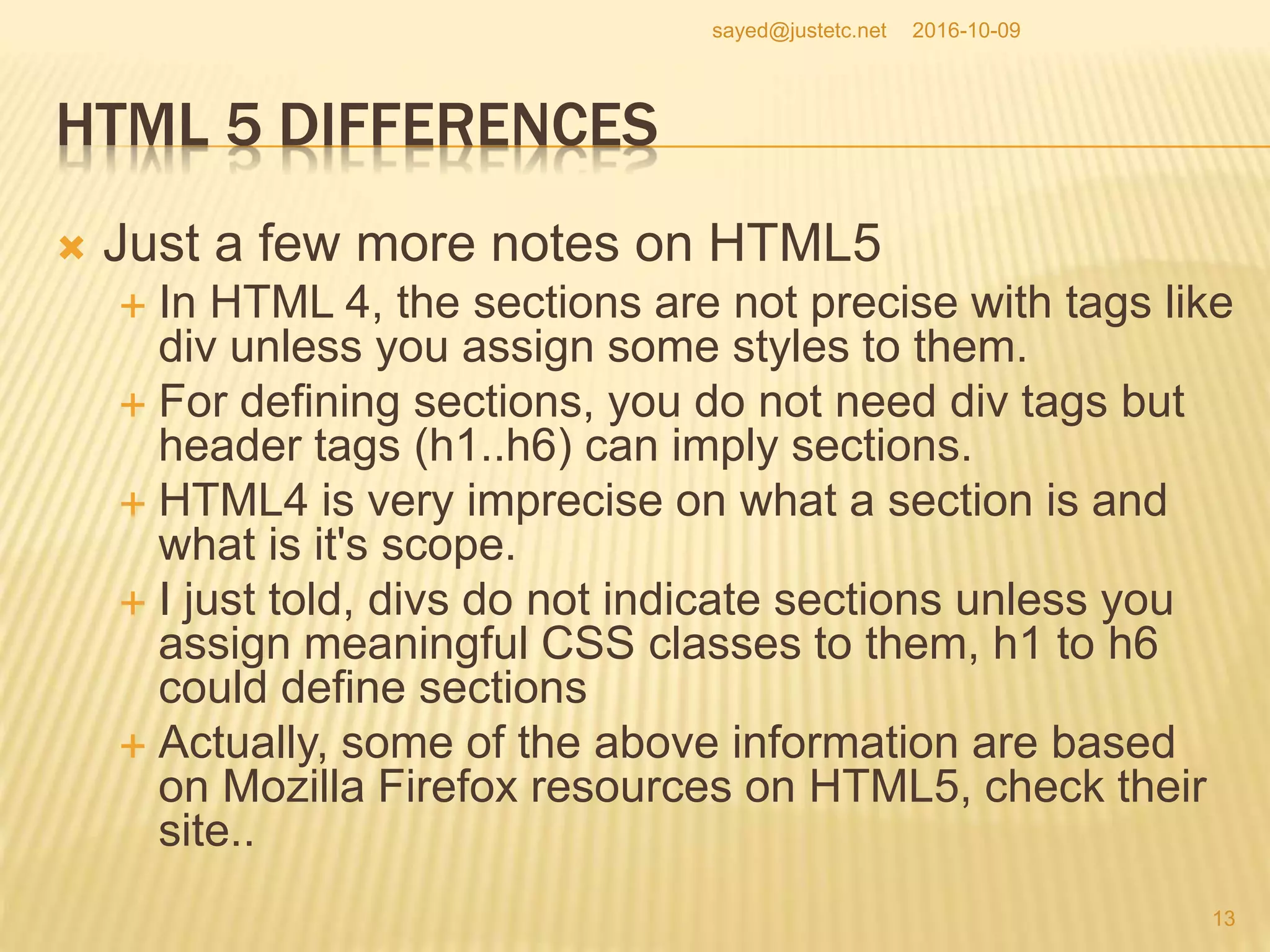

- 13. HTML 5 DIFFERENCES Just a few more notes on HTML5 In HTML 4, the sections are not precise with tags like div unless you assign some styles to them. For defining sections, you do not need div tags but header tags (h1..h6) can imply sections. HTML4 is very imprecise on what a section is and what is it's scope. I just told, divs do not indicate sections unless you assign meaningful CSS classes to them, h1 to h6 could define sections Actually, some of the above information are based on Mozilla Firefox resources on HTML5, check their site.. 2016-10-09 13 sayed@justetc.net

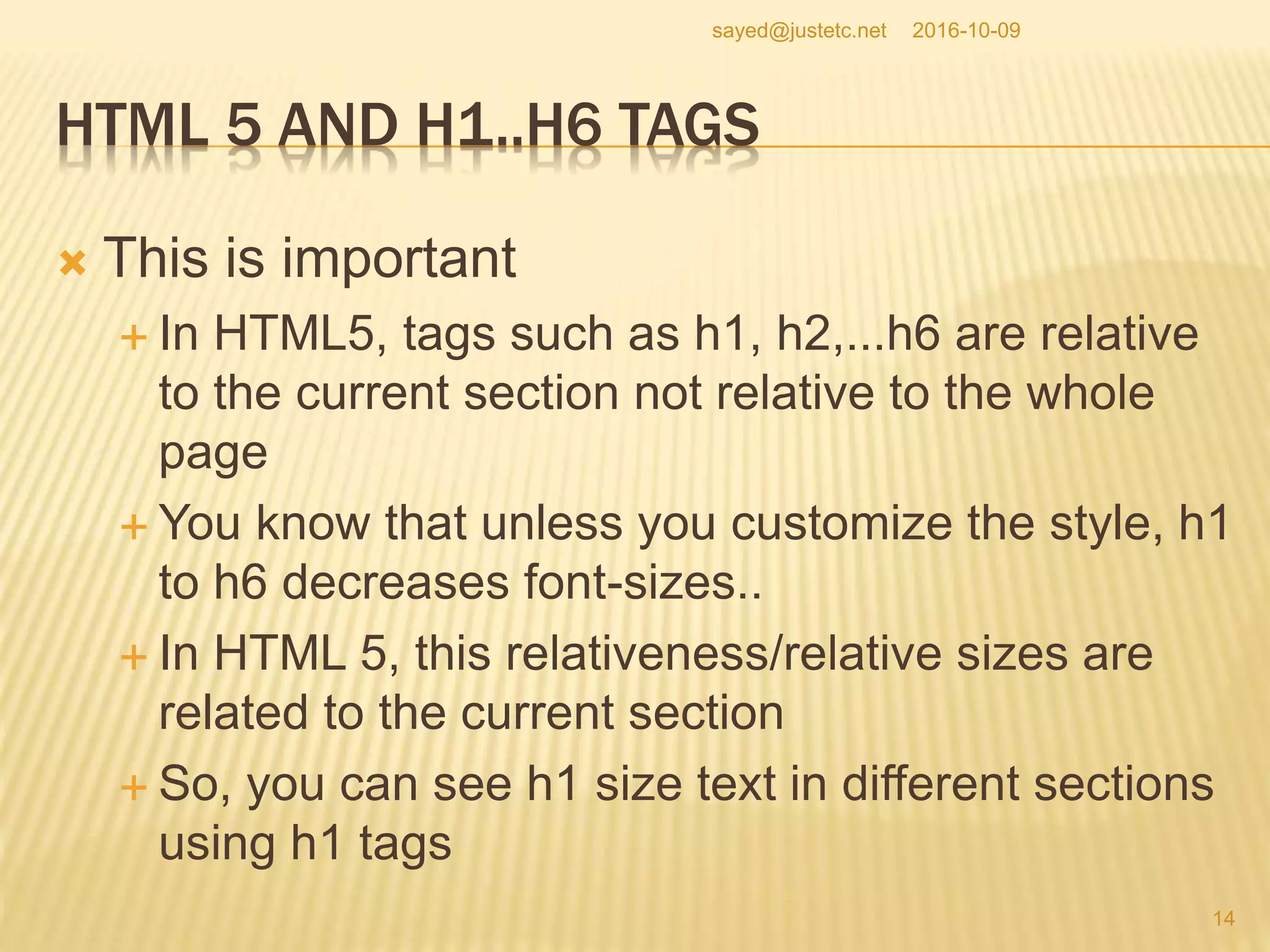

- 14. HTML 5 ANDH1..H6 TAGS This is important In HTML5, tags such as h1, h2,...h6 are relative to the current section not relative to the whole page You know that unless you customize the style, h1 to h6 decreases font-sizes.. In HTML 5, this relativeness/relative sizes are related to the current section So, you can see h1 size text in different sections using h1 tags 2016-10-09 14 sayed@justetc.net

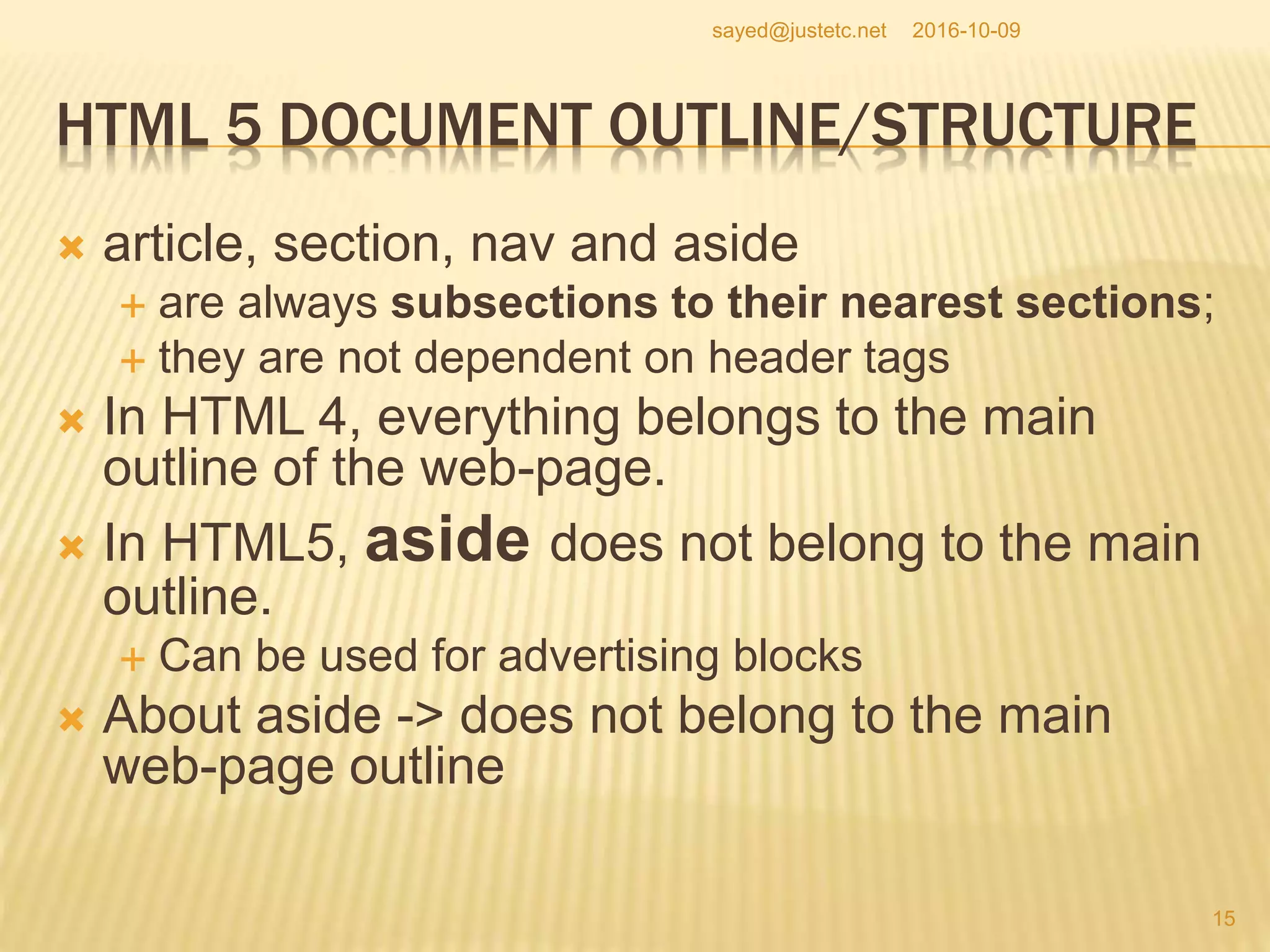

- 15. HTML 5 DOCUMENTOUTLINE/STRUCTURE article, section, nav and aside are always subsections to their nearest sections; they are not dependent on header tags In HTML 4, everything belongs to the main outline of the web-page. In HTML5, aside does not belong to the main outline. Can be used for advertising blocks About aside -> does not belong to the main web-page outline 2016-10-09 15 sayed@justetc.net

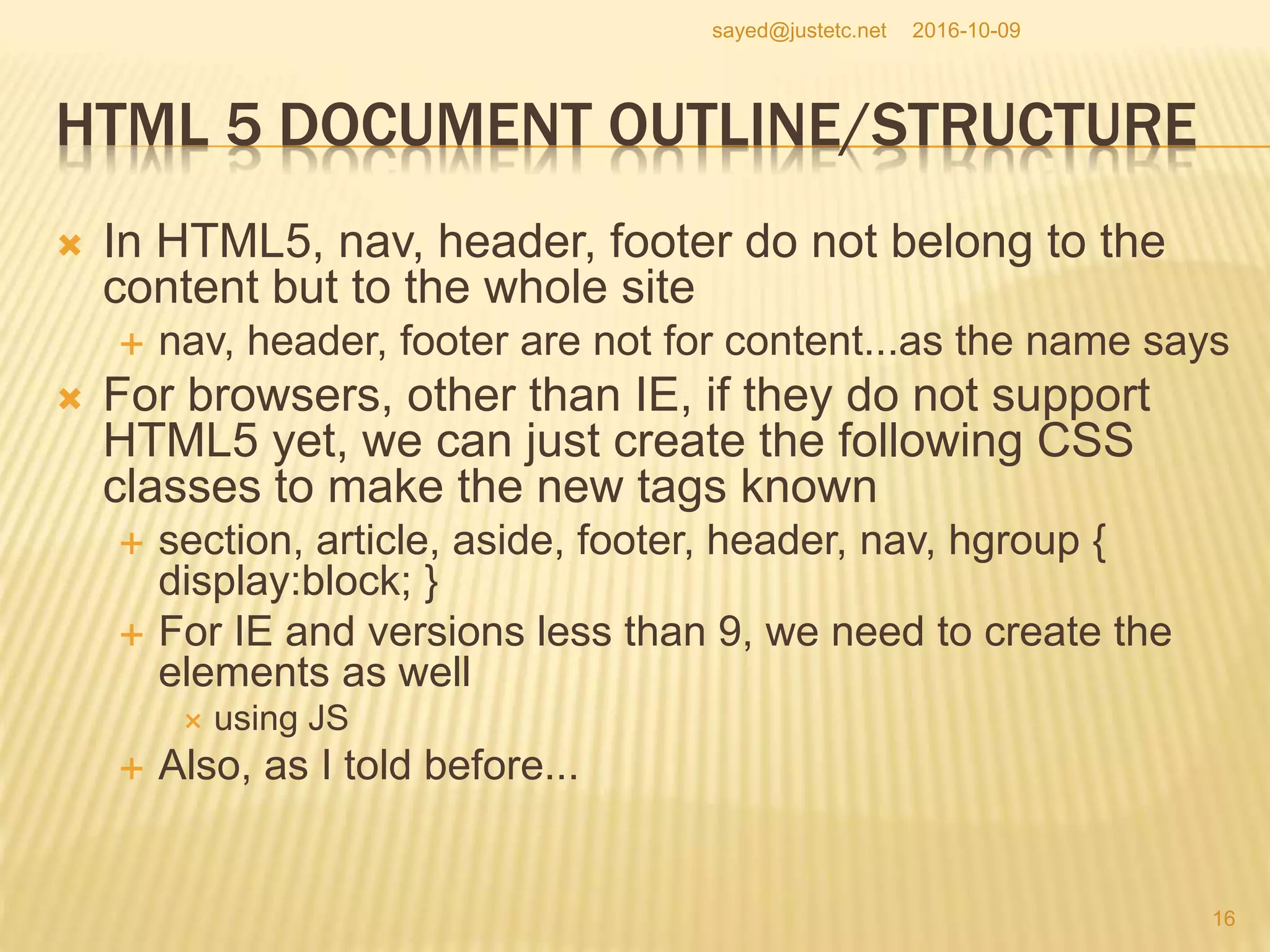

- 16. HTML 5 DOCUMENTOUTLINE/STRUCTURE In HTML5, nav, header, footer do not belong to the content but to the whole site nav, header, footer are not for content...as the name says For browsers, other than IE, if they do not support HTML5 yet, we can just create the following CSS classes to make the new tags known section, article, aside, footer, header, nav, hgroup { display:block; } For IE and versions less than 9, we need to create the elements as well using JS Also, as I told before... 2016-10-09 16 sayed@justetc.net

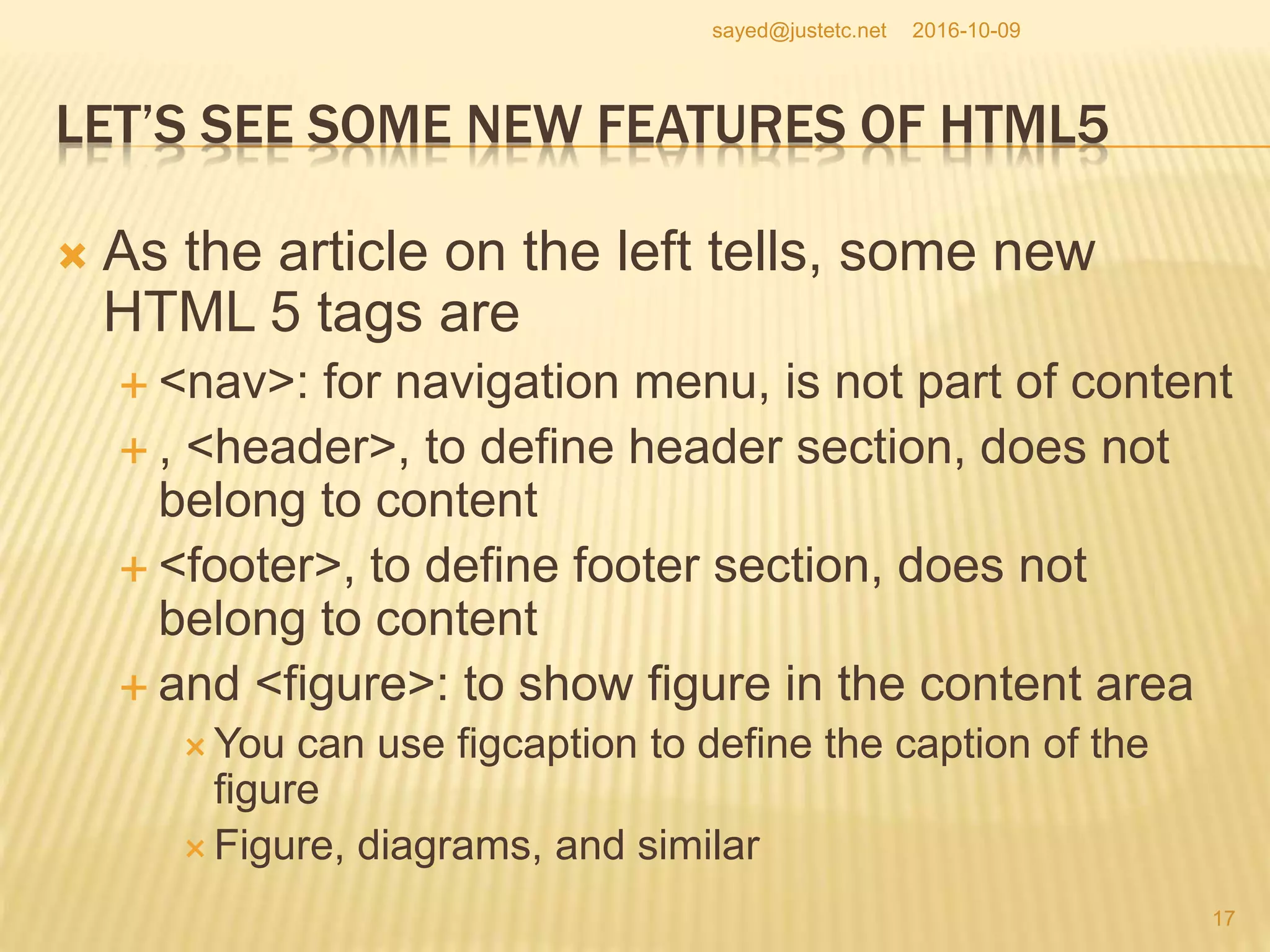

- 17. LET’S SEE SOMENEW FEATURES OF HTML5 As the article on the left tells, some new HTML 5 tags are <nav>: for navigation menu, is not part of content , <header>, to define header section, does not belong to content <footer>, to define footer section, does not belong to content and <figure>: to show figure in the content area You can use figcaption to define the caption of the figure Figure, diagrams, and similar 2016-10-09 17 sayed@justetc.net

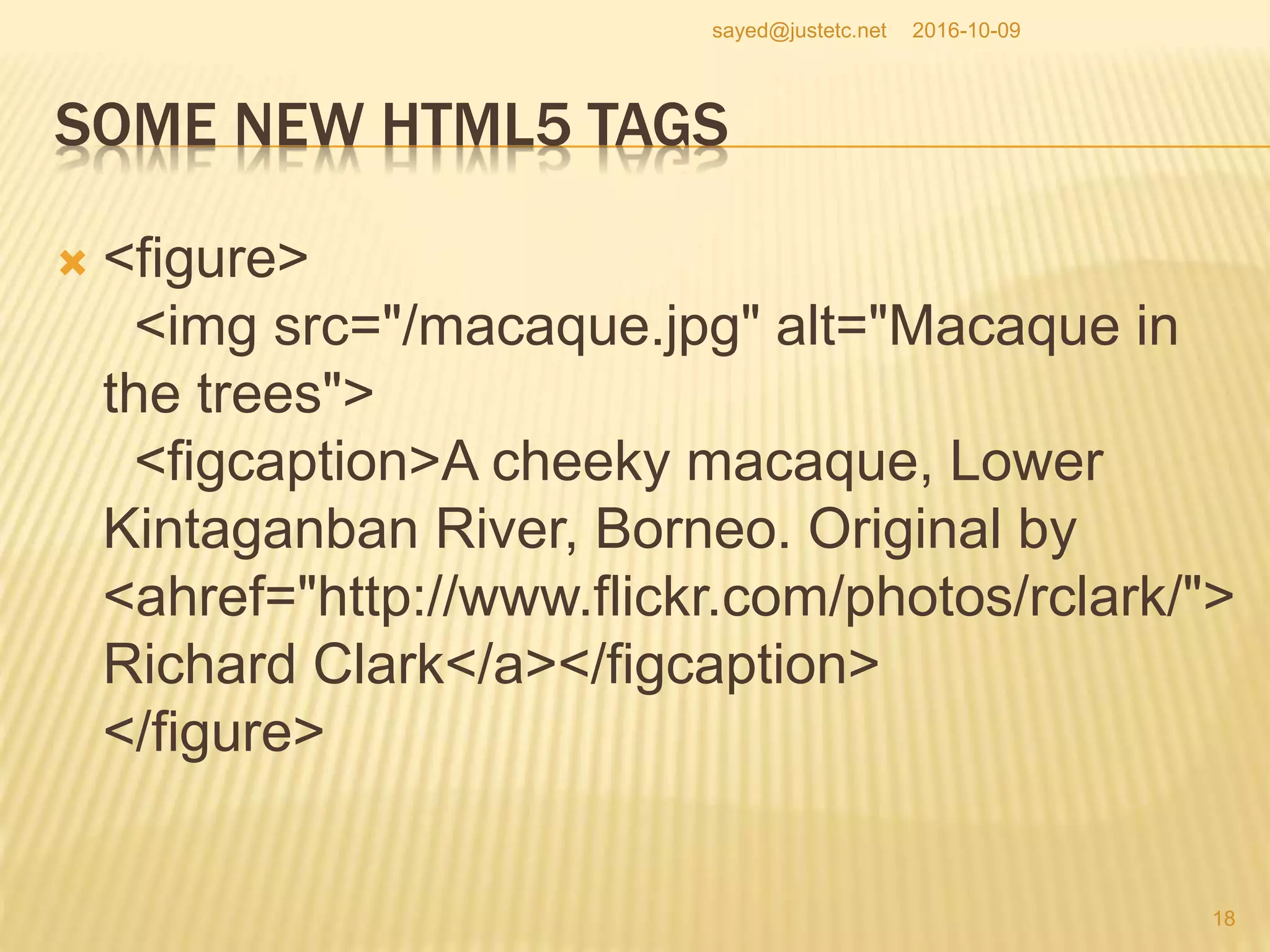

- 18. SOME NEW HTML5TAGS <figure> <img src="/macaque.jpg" alt="Macaque in the trees"> <figcaption>A cheeky macaque, Lower Kintaganban River, Borneo. Original by <ahref="http://www.flickr.com/photos/rclark/"> Richard Clark</a></figcaption> </figure> 2016-10-09 18 sayed@justetc.net

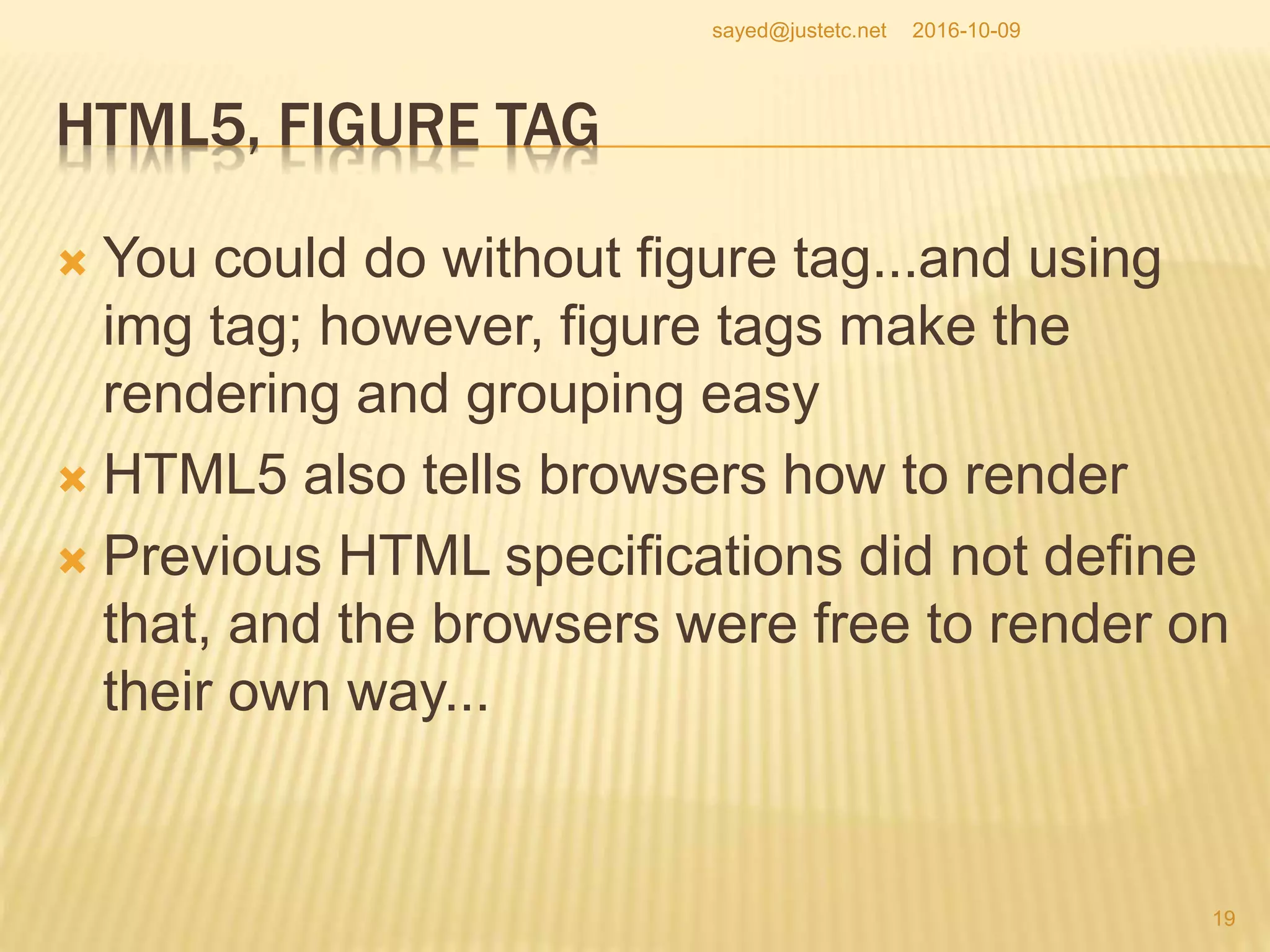

- 19. HTML5, FIGURE TAG You could do without figure tag...and using img tag; however, figure tags make the rendering and grouping easy HTML5 also tells browsers how to render Previous HTML specifications did not define that, and the browsers were free to render on their own way... 2016-10-09 19 sayed@justetc.net

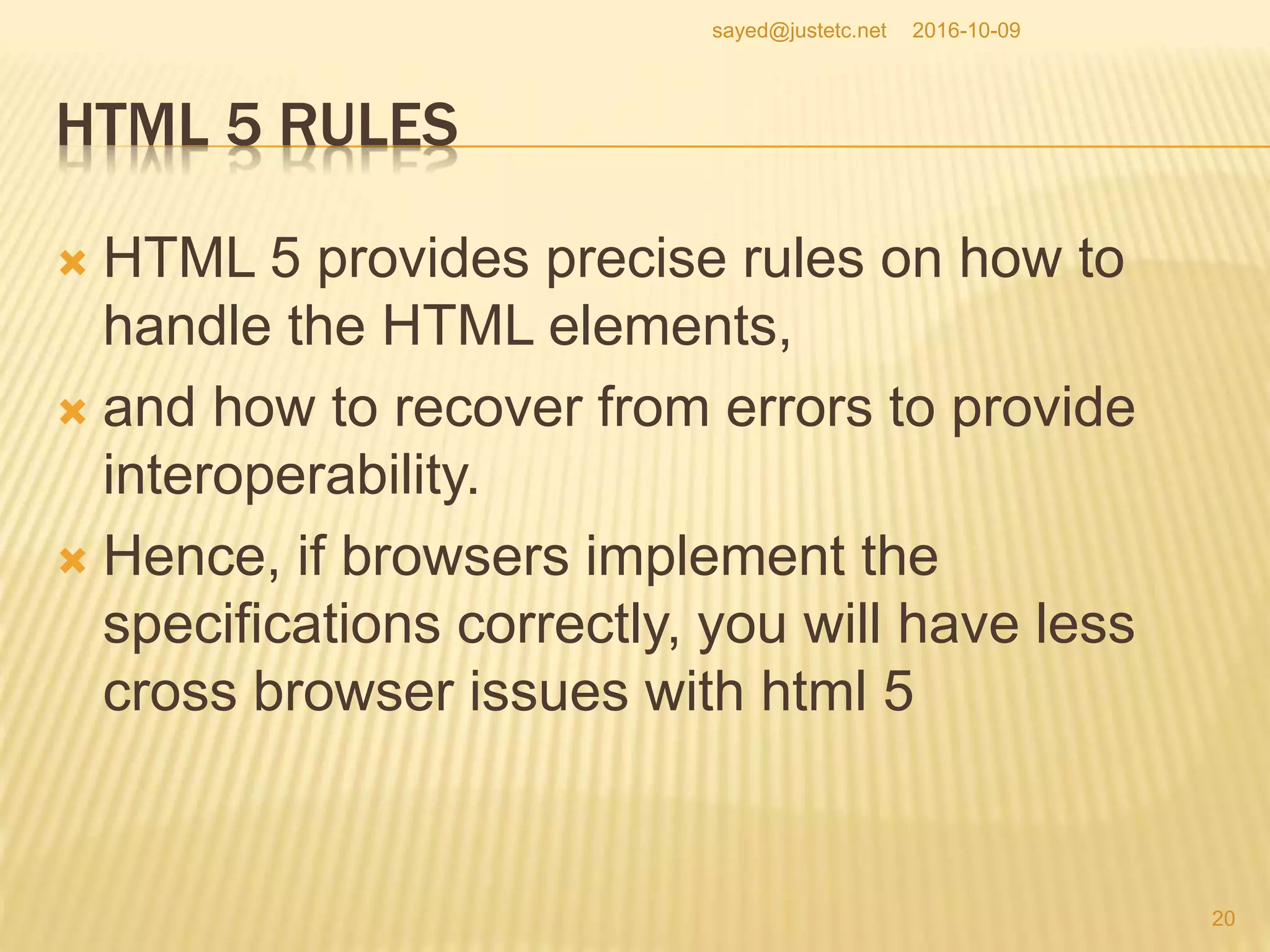

- 20. HTML 5 RULES HTML 5 provides precise rules on how to handle the HTML elements, and how to recover from errors to provide interoperability. Hence, if browsers implement the specifications correctly, you will have less cross browser issues with html 5 2016-10-09 20 sayed@justetc.net

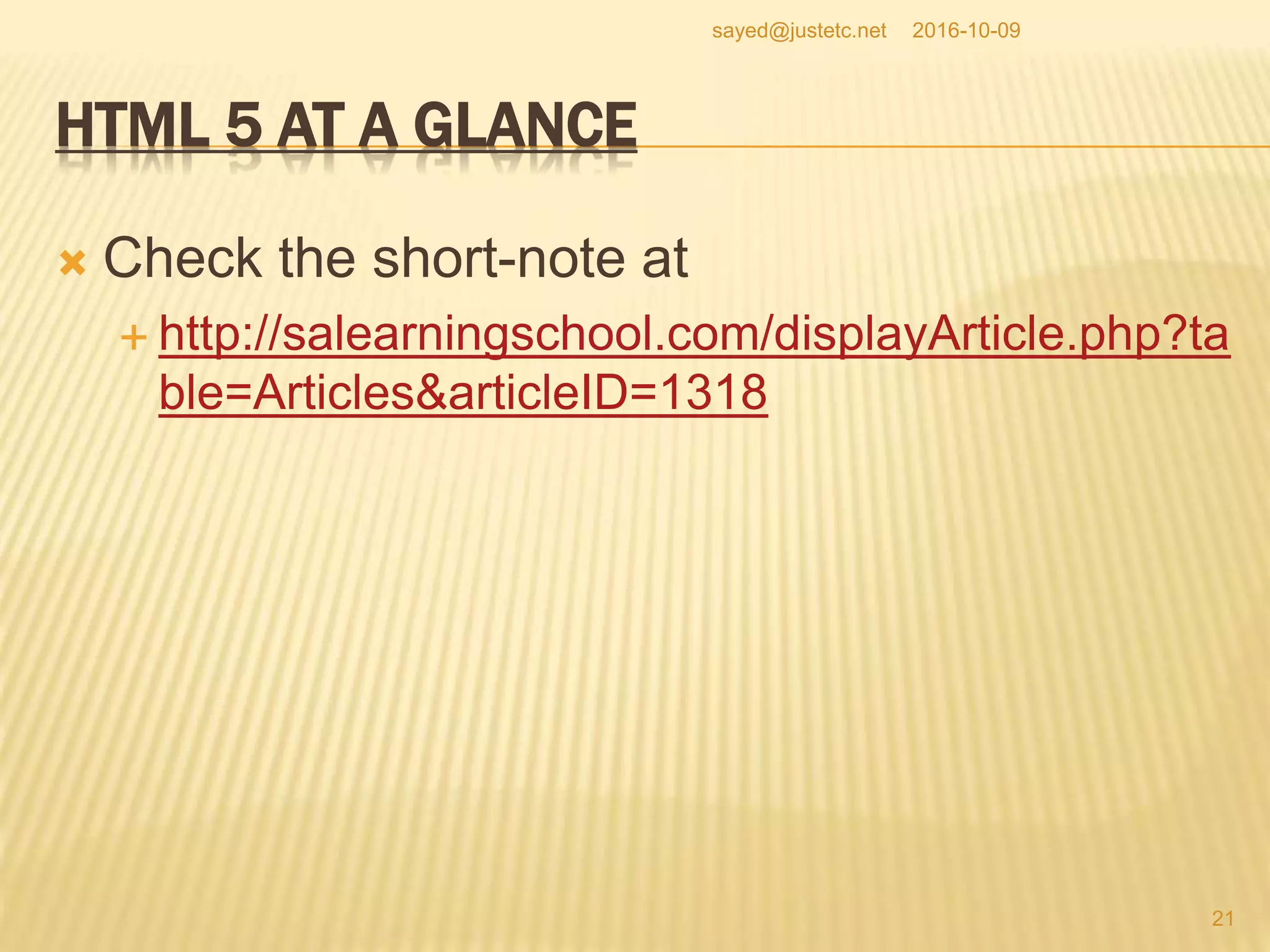

- 21. HTML 5 ATA GLANCE Check the short-note at http://salearningschool.com/displayArticle.php?ta ble=Articles&articleID=1318 2016-10-09 21 sayed@justetc.net

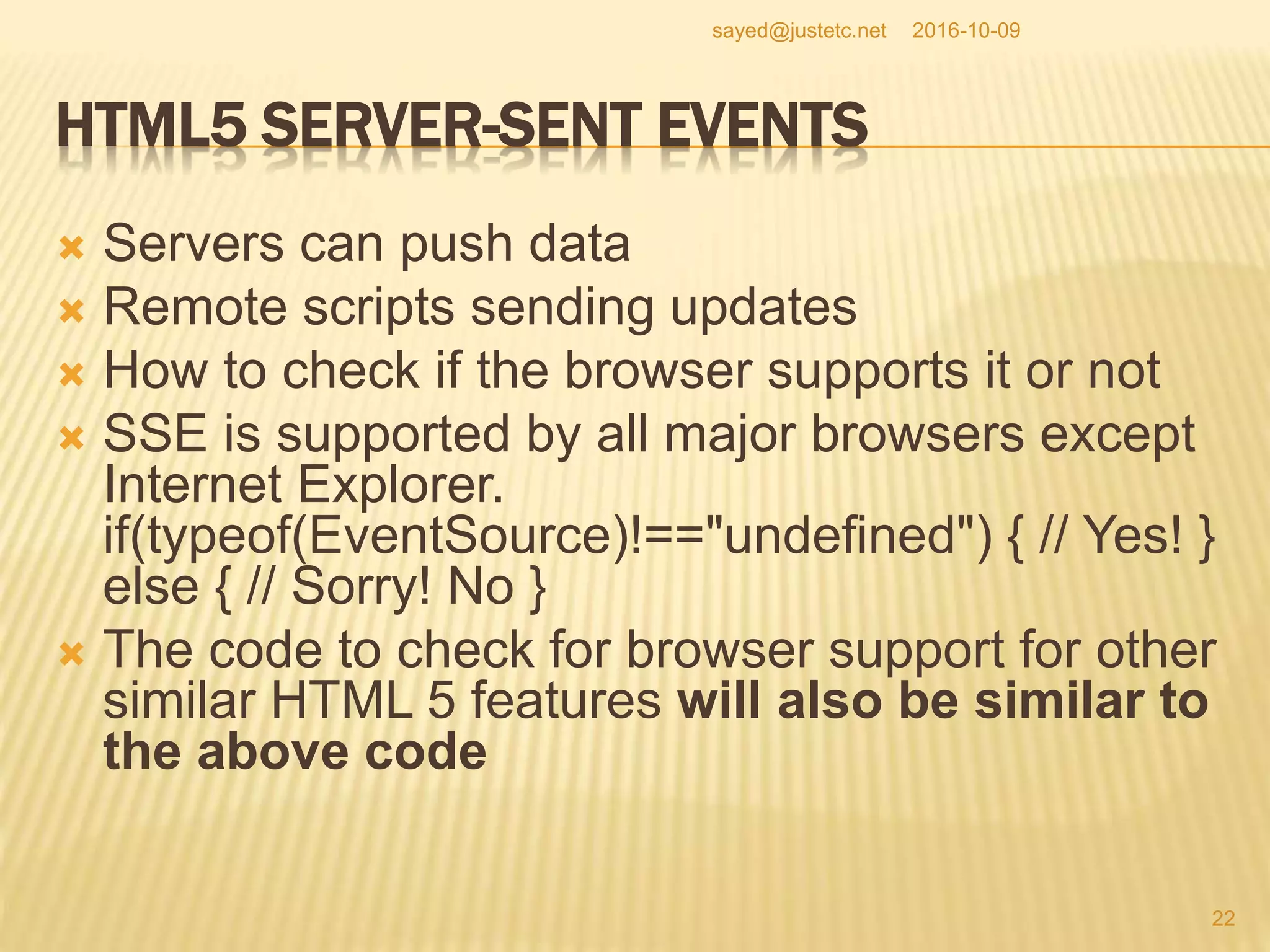

- 22. HTML5 SERVER-SENT EVENTS Servers can push data Remote scripts sending updates How to check if the browser supports it or not SSE is supported by all major browsers except Internet Explorer. if(typeof(EventSource)!=="undefined") { // Yes! } else { // Sorry! No } The code to check for browser support for other similar HTML 5 features will also be similar to the above code 2016-10-09 22 sayed@justetc.net

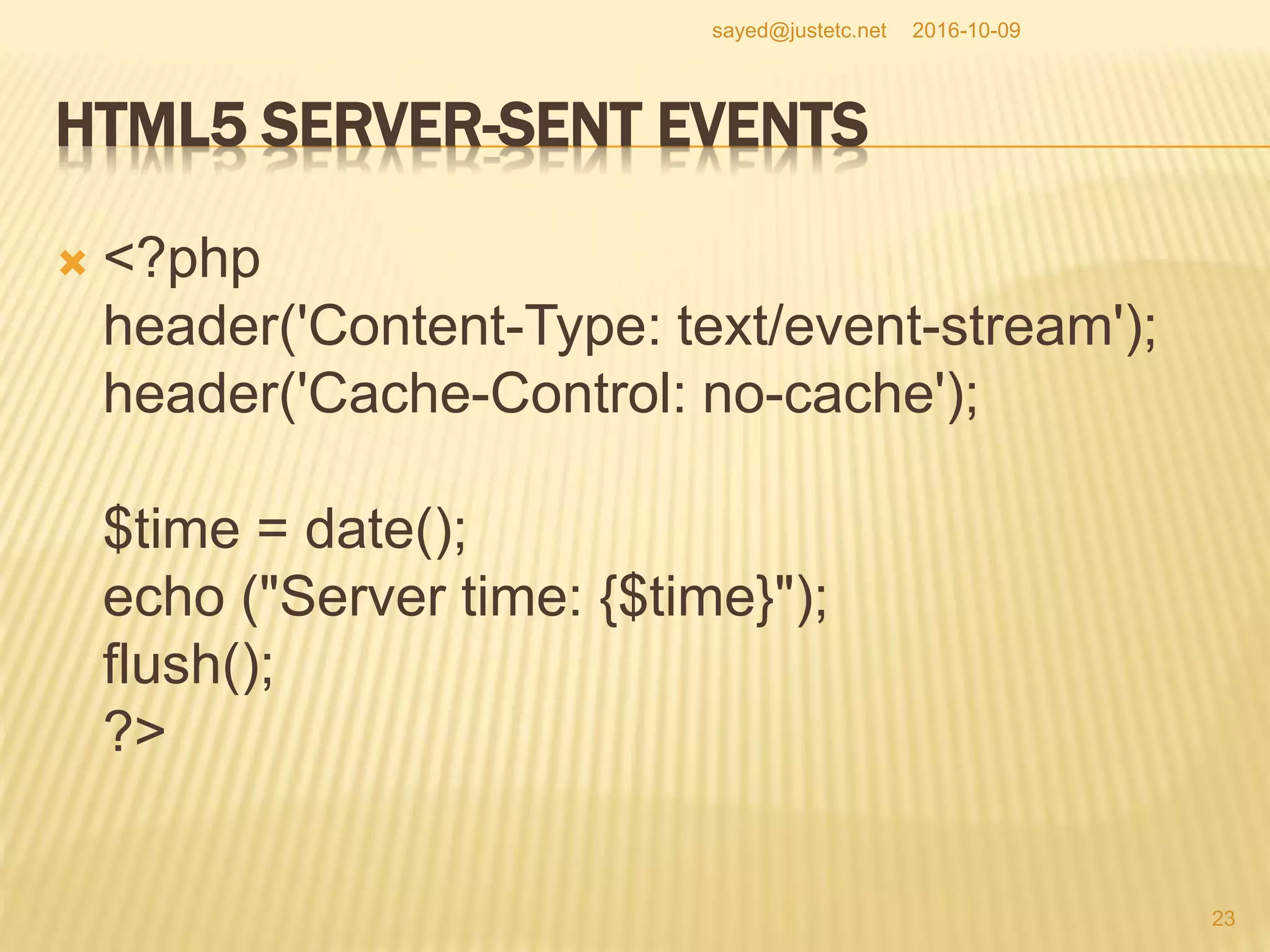

- 23. HTML5 SERVER-SENT EVENTS <?php header('Content-Type: text/event-stream'); header('Cache-Control: no-cache'); $time = date(); echo ("Server time: {$time}"); flush(); ?> 2016-10-09 23 sayed@justetc.net

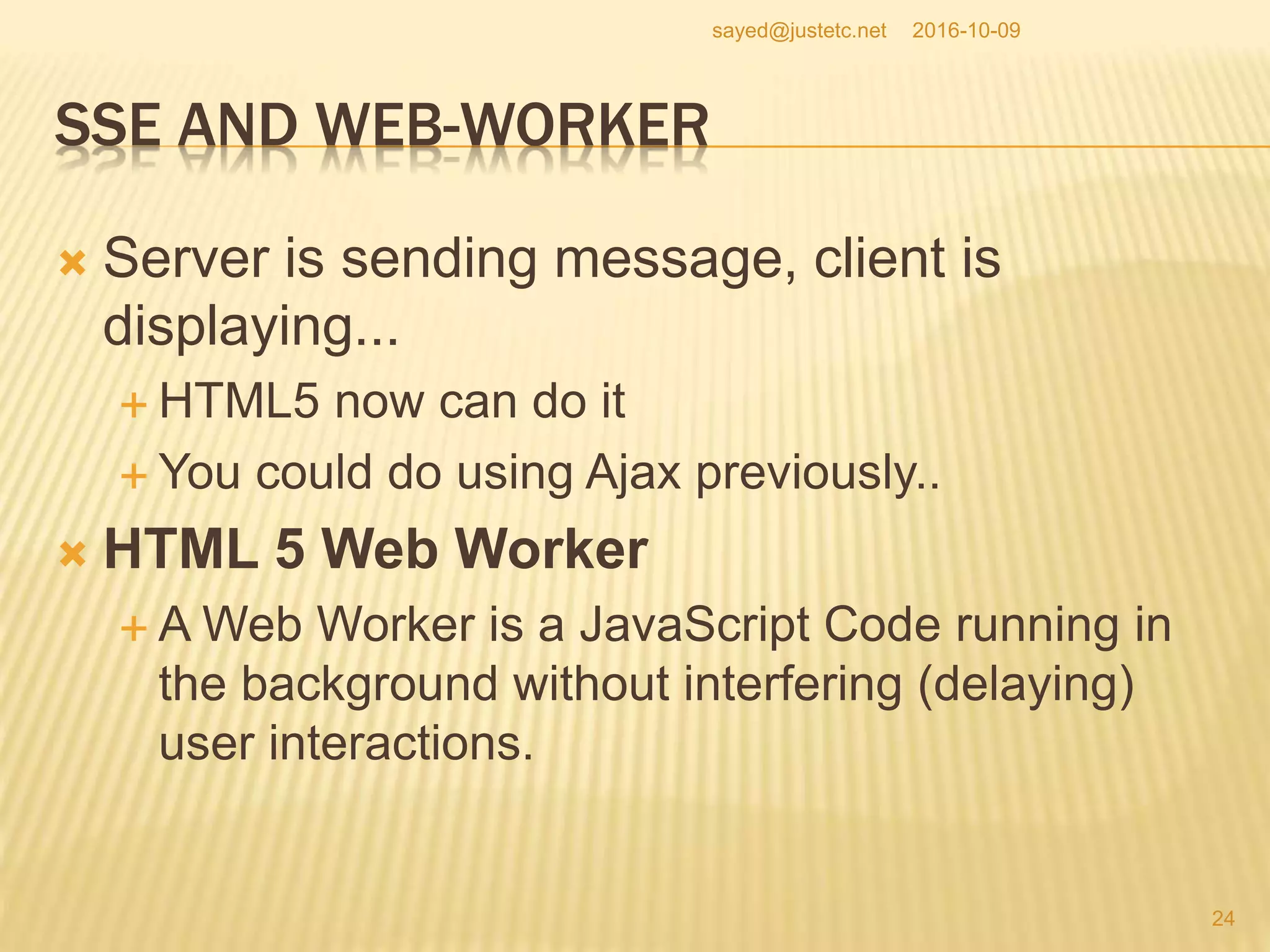

- 24. SSE AND WEB-WORKER Server is sending message, client is displaying... HTML5 now can do it You could do using Ajax previously.. HTML 5 Web Worker A Web Worker is a JavaScript Code running in the background without interfering (delaying) user interactions. 2016-10-09 24 sayed@justetc.net

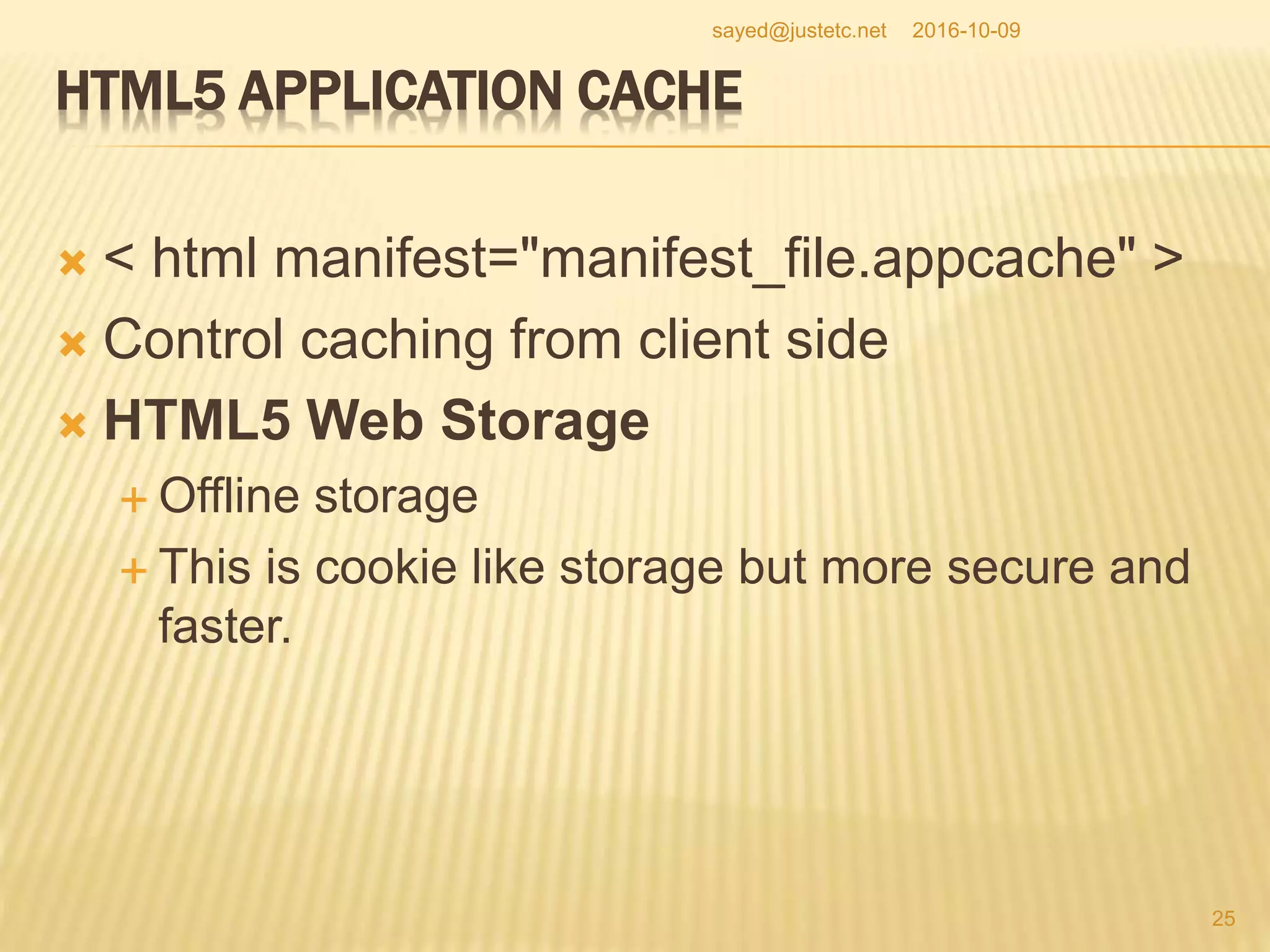

- 25. HTML5 APPLICATION CACHE < html manifest="manifest_file.appcache" > Control caching from client side HTML5 Web Storage Offline storage This is cookie like storage but more secure and faster. 2016-10-09 25 sayed@justetc.net

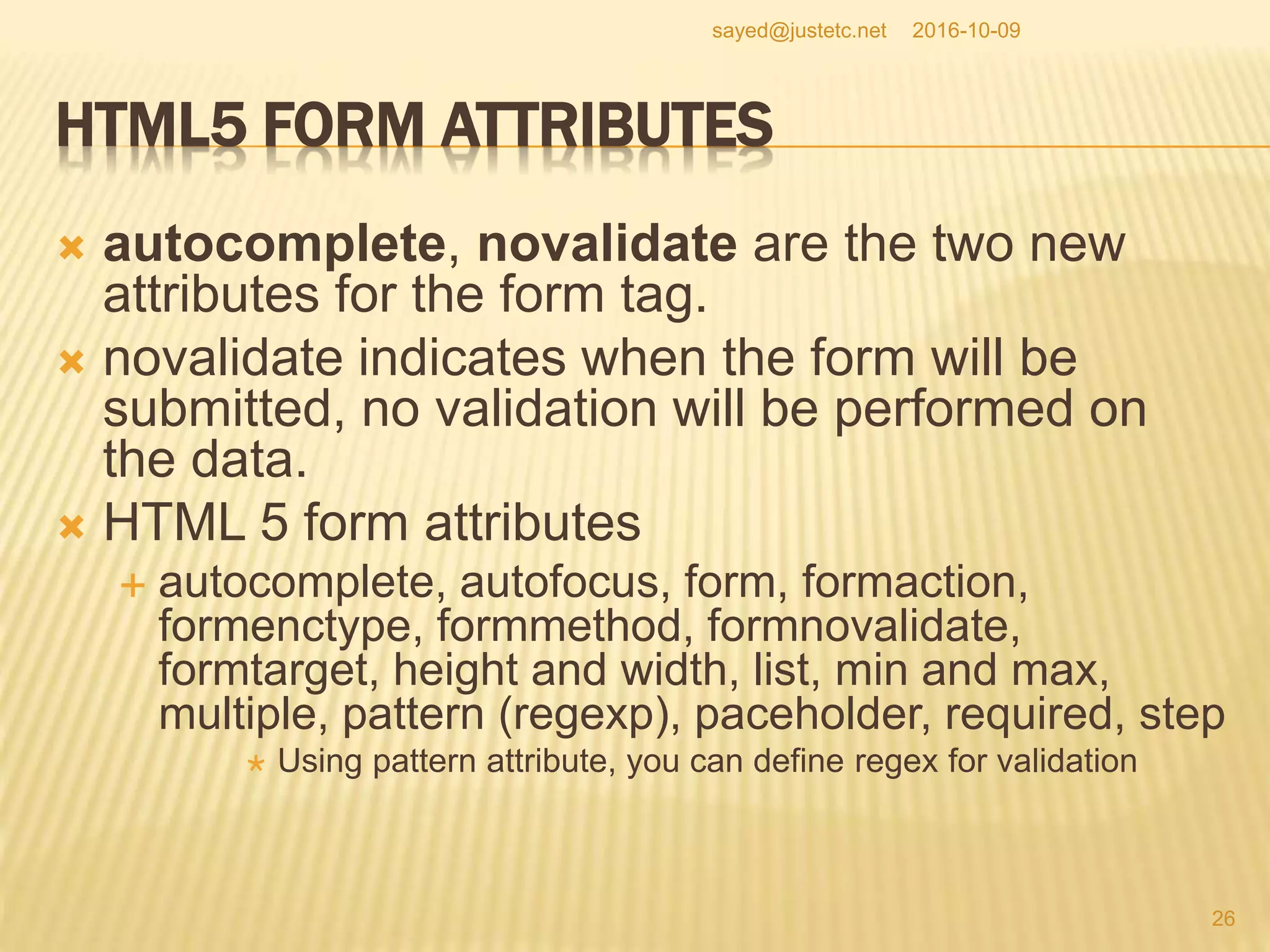

- 26. HTML5 FORM ATTRIBUTES autocomplete, novalidate are the two new attributes for the form tag. novalidate indicates when the form will be submitted, no validation will be performed on the data. HTML 5 form attributes autocomplete, autofocus, form, formaction, formenctype, formmethod, formnovalidate, formtarget, height and width, list, min and max, multiple, pattern (regexp), paceholder, required, step Using pattern attribute, you can define regex for validation 2016-10-09 26 sayed@justetc.net

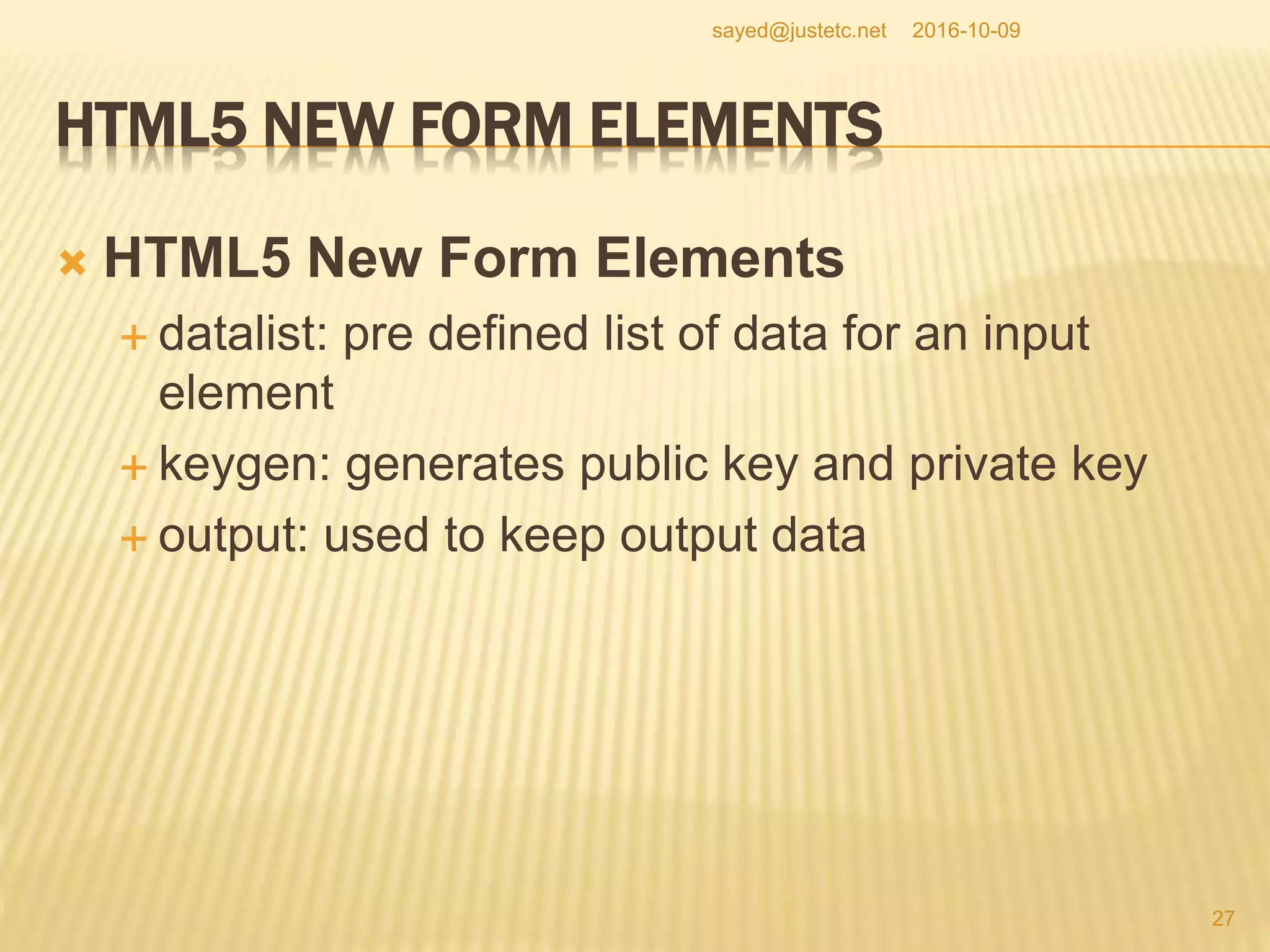

- 27. HTML5 NEW FORMELEMENTS HTML5 New Form Elements datalist: pre defined list of data for an input element keygen: generates public key and private key output: used to keep output data 2016-10-09 27 sayed@justetc.net

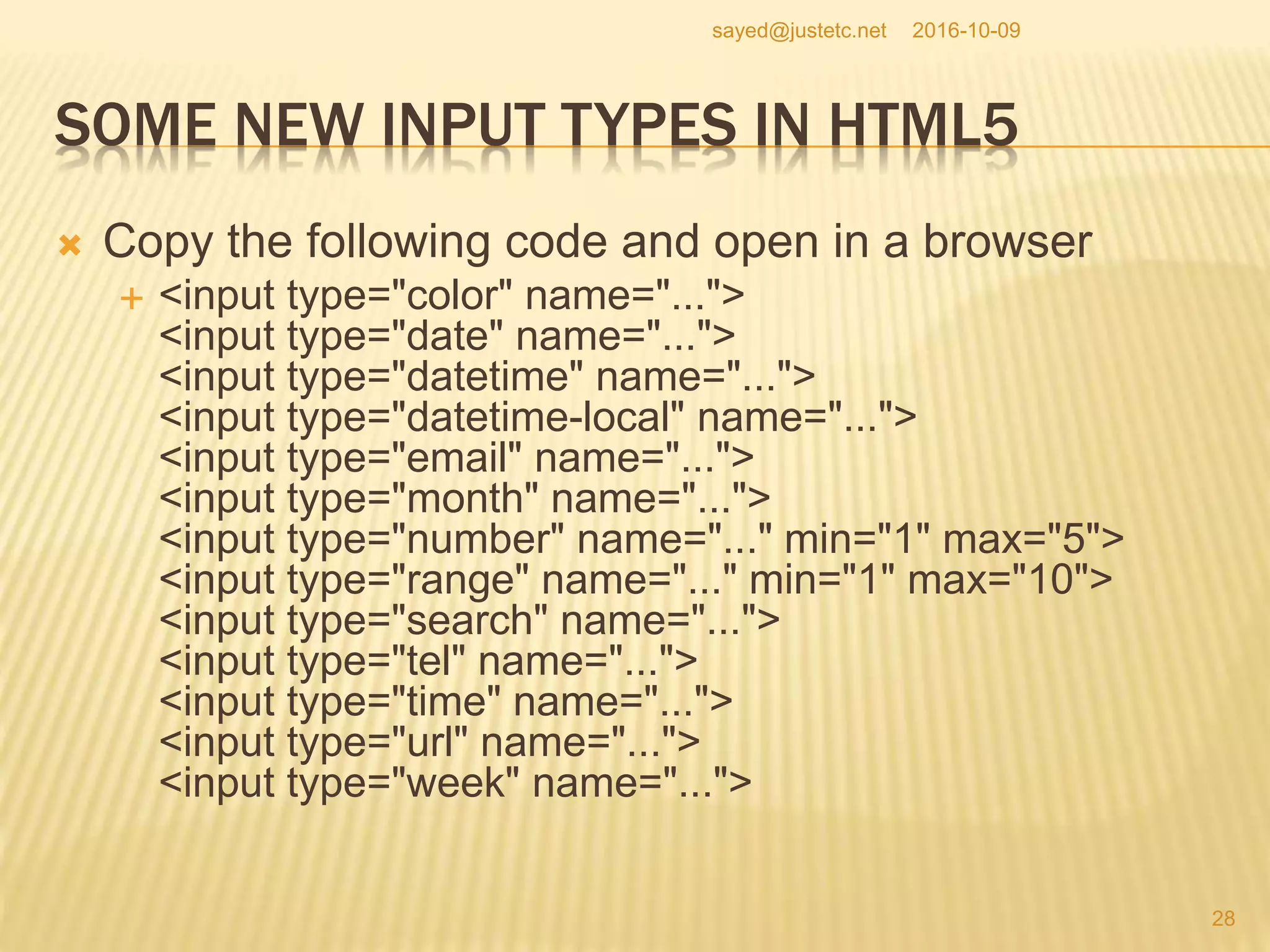

- 28. SOME NEW INPUTTYPES IN HTML5 Copy the following code and open in a browser <input type="color" name="..."> <input type="date" name="..."> <input type="datetime" name="..."> <input type="datetime-local" name="..."> <input type="email" name="..."> <input type="month" name="..."> <input type="number" name="..." min="1" max="5"> <input type="range" name="..." min="1" max="10"> <input type="search" name="..."> <input type="tel" name="..."> <input type="time" name="..."> <input type="url" name="..."> <input type="week" name="..."> 2016-10-09 28 sayed@justetc.net

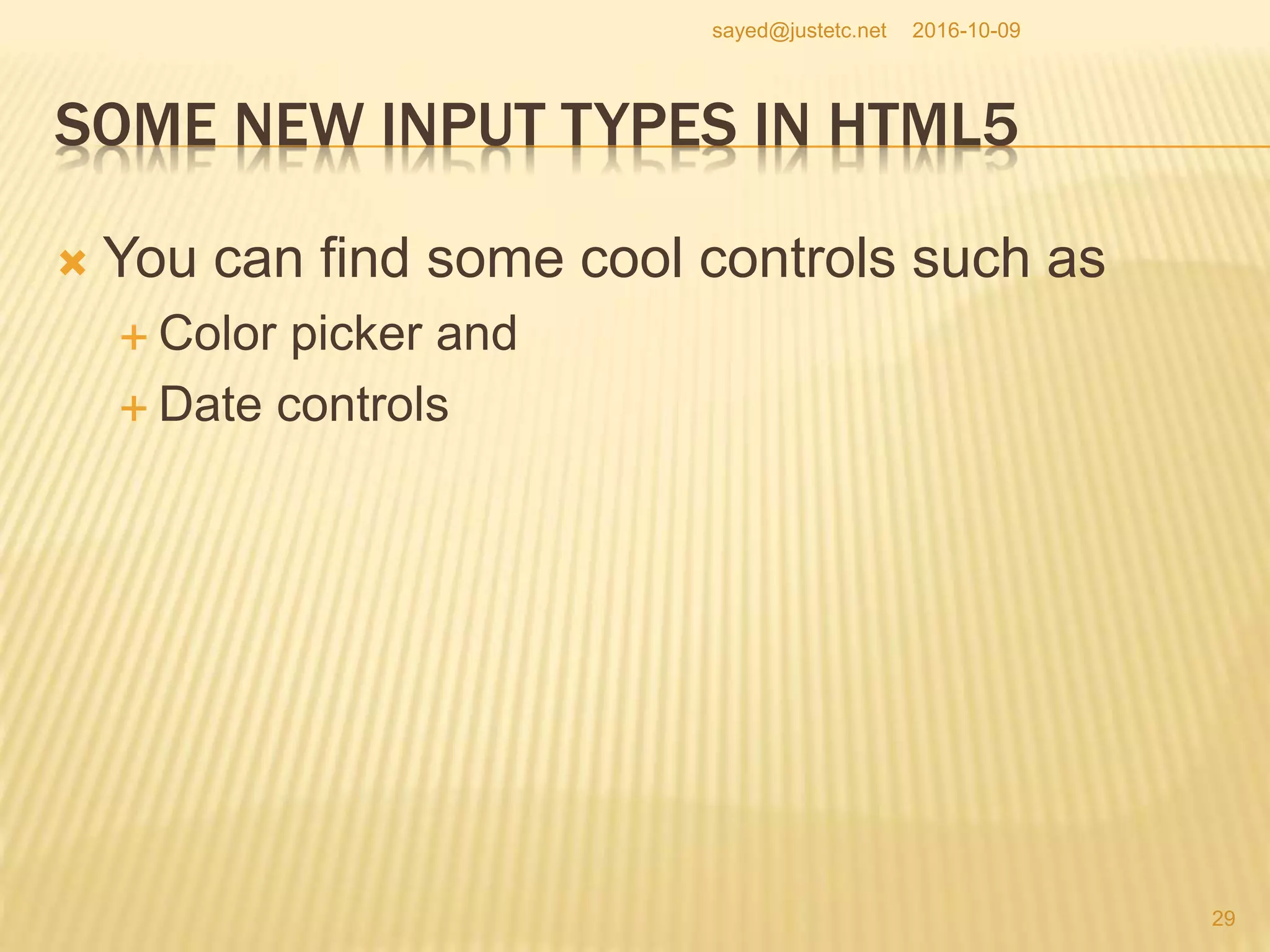

- 29. SOME NEW INPUTTYPES IN HTML5 You can find some cool controls such as Color picker and Date controls 2016-10-09 29 sayed@justetc.net

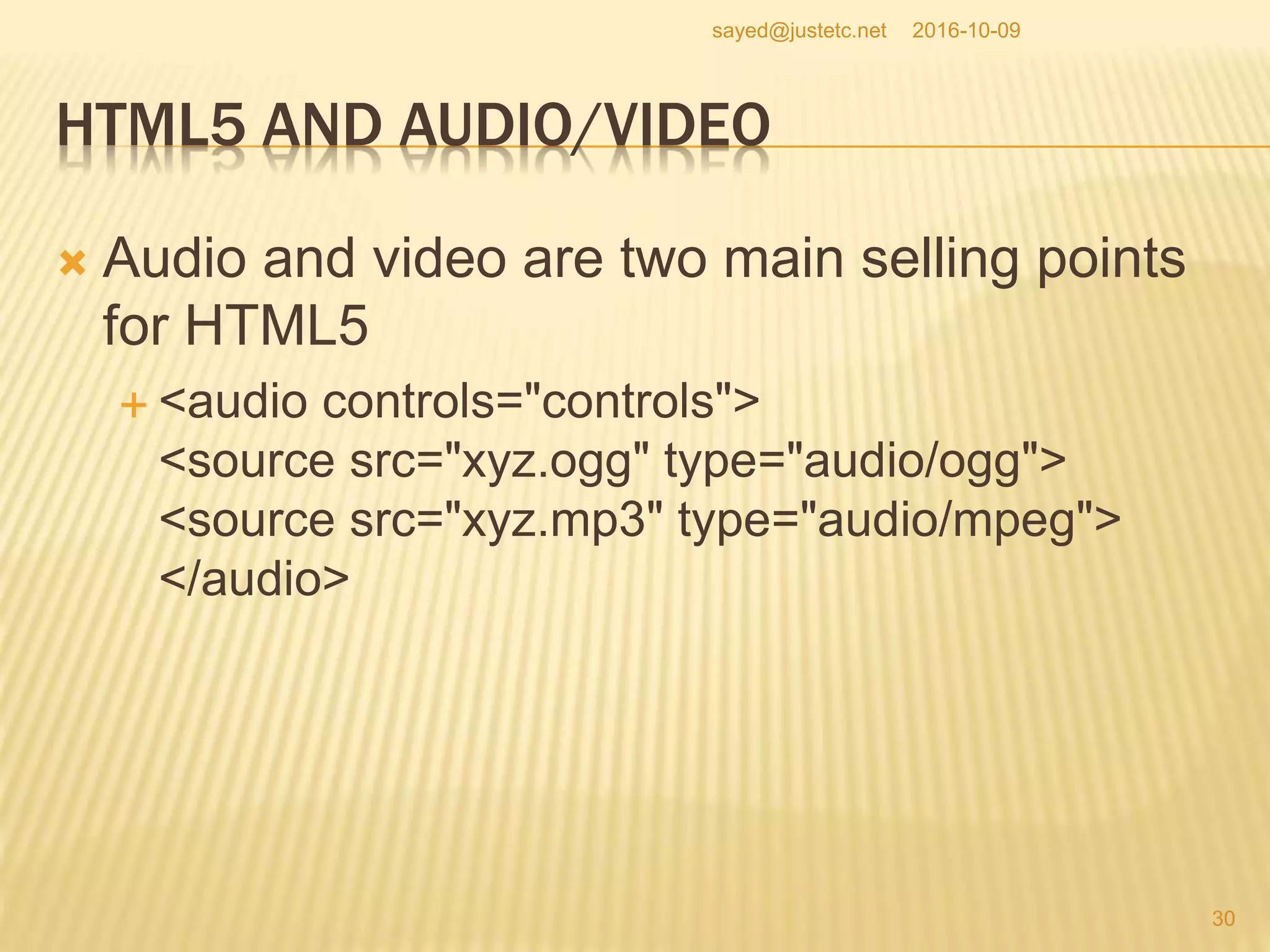

- 30. HTML5 AND AUDIO/VIDEO Audio and video are two main selling points for HTML5 <audio controls="controls"> <source src="xyz.ogg" type="audio/ogg"> <source src="xyz.mp3" type="audio/mpeg"> </audio> 2016-10-09 30 sayed@justetc.net
- 31. HTML5 VIDEO Supportedby: Internet Explorer 9, Firefox, Opera, Chrome, and Safari <video width="320" height="240" controls="controls"> <source src="xyz.mp4" type="video/mp4"> <source src="xyz.ogg" type="video/ogg"> </video> 2016-10-09 31 sayed@justetc.net

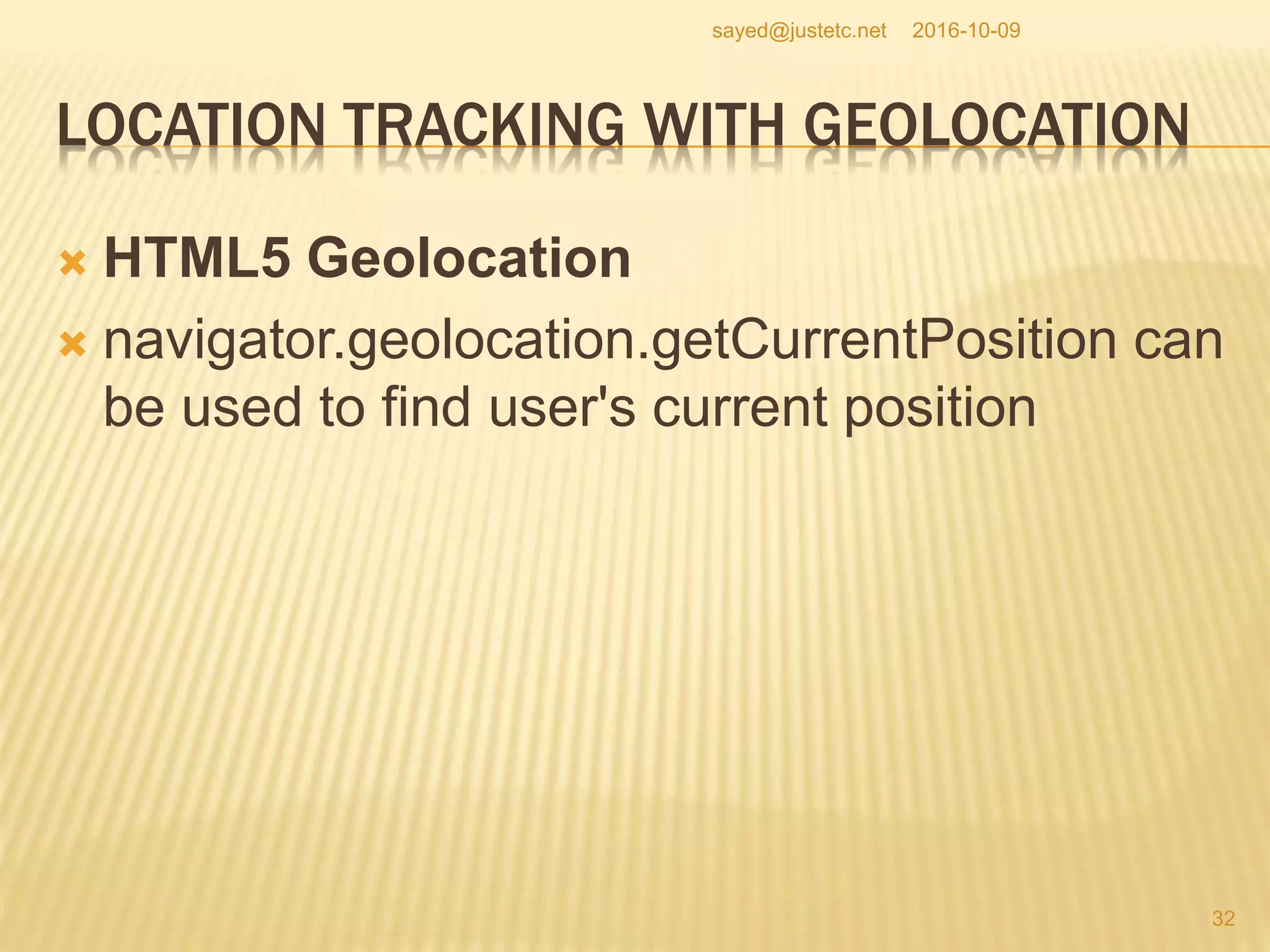

- 32. LOCATION TRACKING WITHGEOLOCATION HTML5 Geolocation navigator.geolocation.getCurrentPosition can be used to find user's current position 2016-10-09 32 sayed@justetc.net

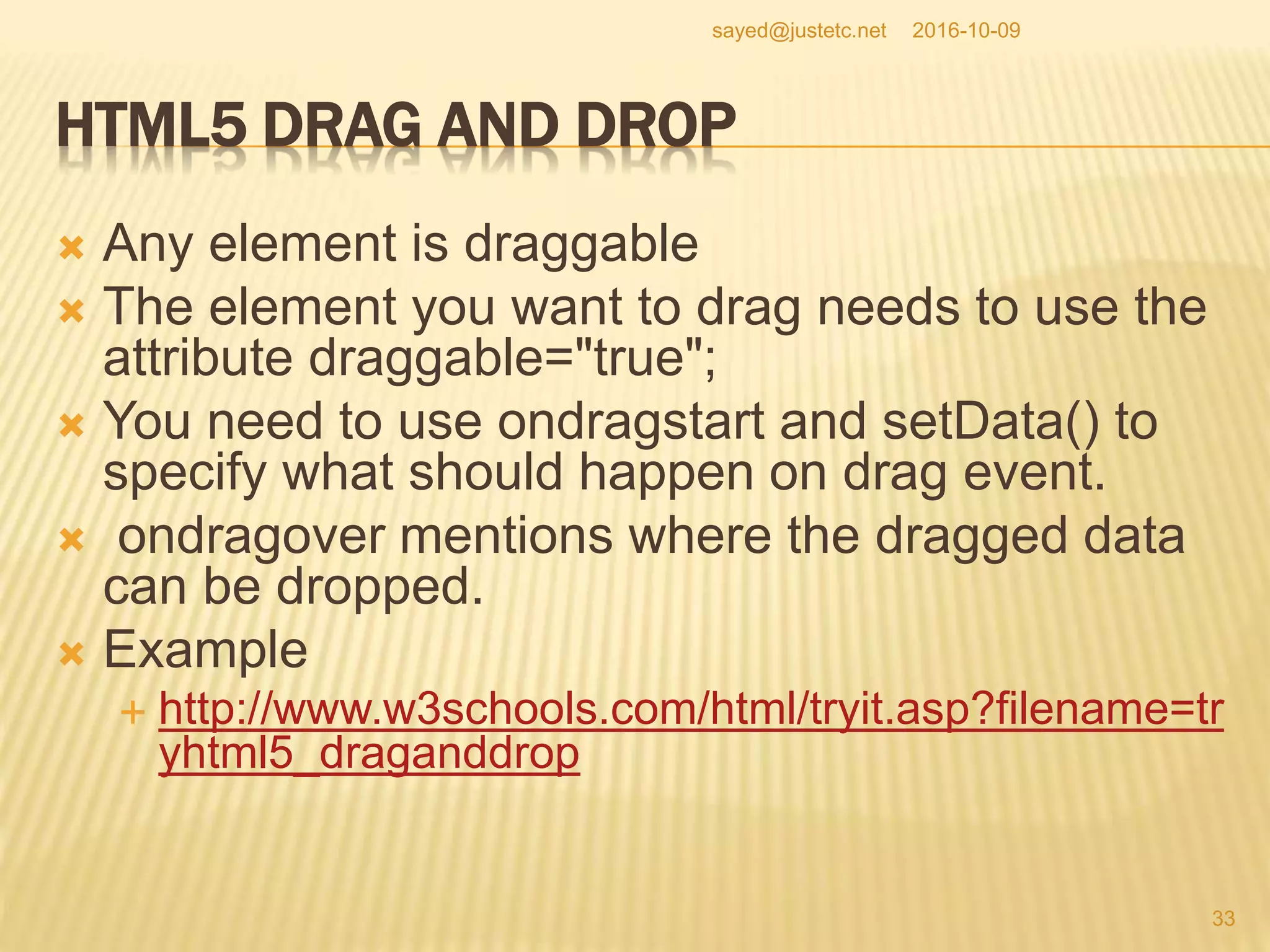

- 33. HTML5 DRAG ANDDROP Any element is draggable The element you want to drag needs to use the attribute draggable="true"; You need to use ondragstart and setData() to specify what should happen on drag event. ondragover mentions where the dragged data can be dropped. Example http://www.w3schools.com/html/tryit.asp?filename=tr yhtml5_draganddrop 2016-10-09 33 sayed@justetc.net

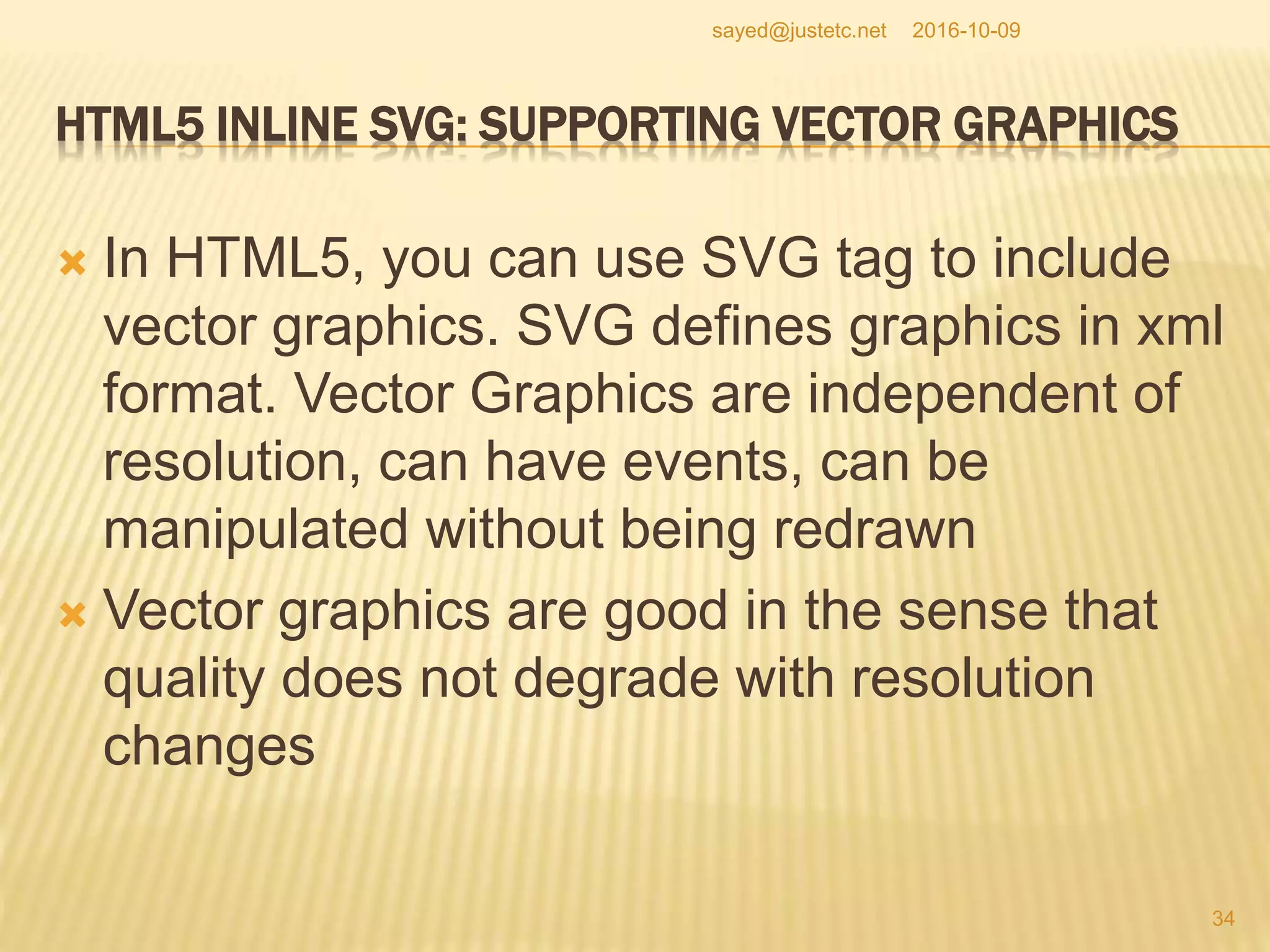

- 34. HTML5 INLINE SVG:SUPPORTING VECTOR GRAPHICS In HTML5, you can use SVG tag to include vector graphics. SVG defines graphics in xml format. Vector Graphics are independent of resolution, can have events, can be manipulated without being redrawn Vector graphics are good in the sense that quality does not degrade with resolution changes 2016-10-09 34 sayed@justetc.net

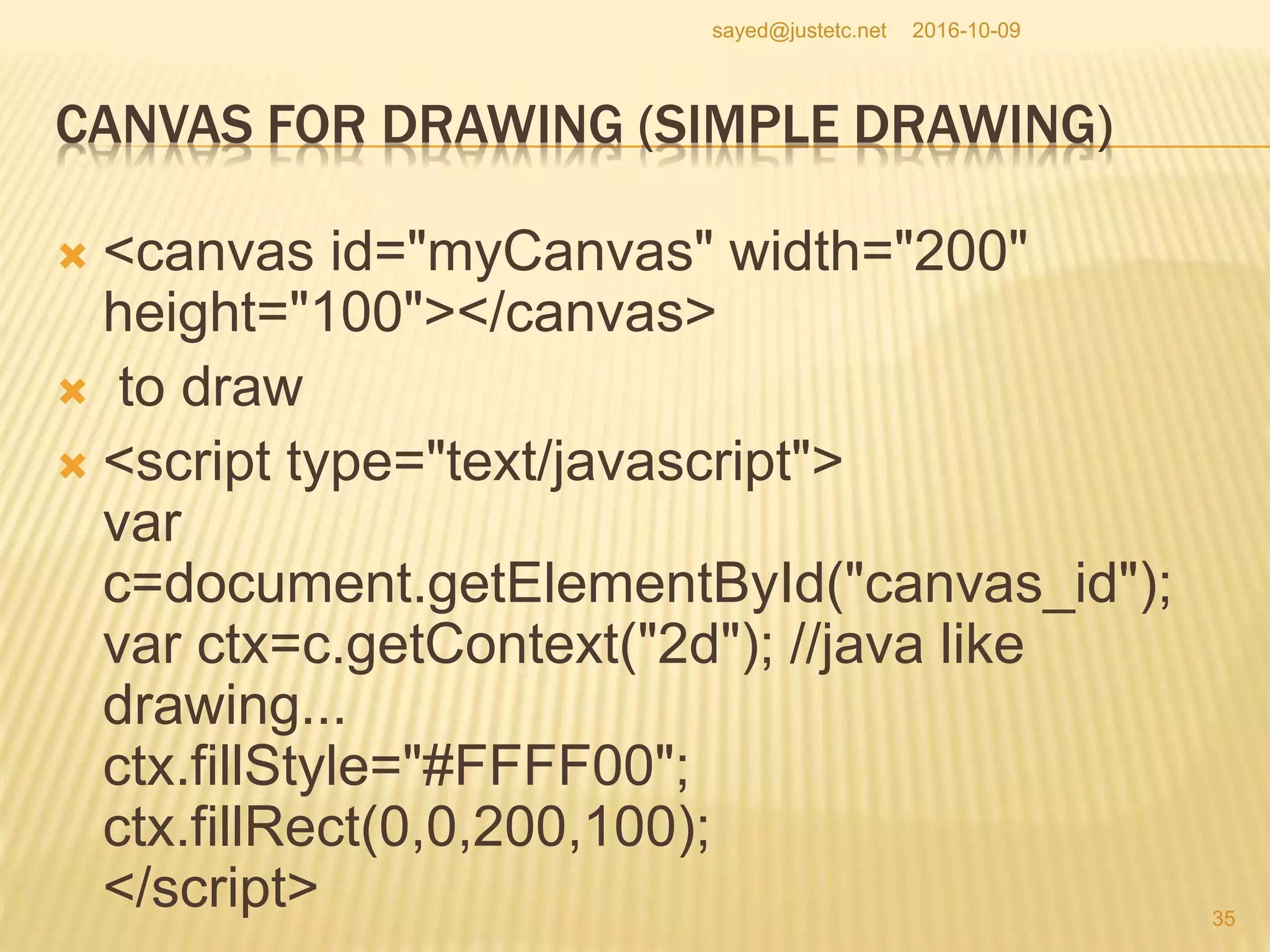

- 35. CANVAS FOR DRAWING(SIMPLE DRAWING) <canvas id="myCanvas" width="200" height="100"></canvas> to draw <script type="text/javascript"> var c=document.getElementById("canvas_id"); var ctx=c.getContext("2d"); //java like drawing... ctx.fillStyle="#FFFF00"; ctx.fillRect(0,0,200,100); </script> 2016-10-09 35 sayed@justetc.net

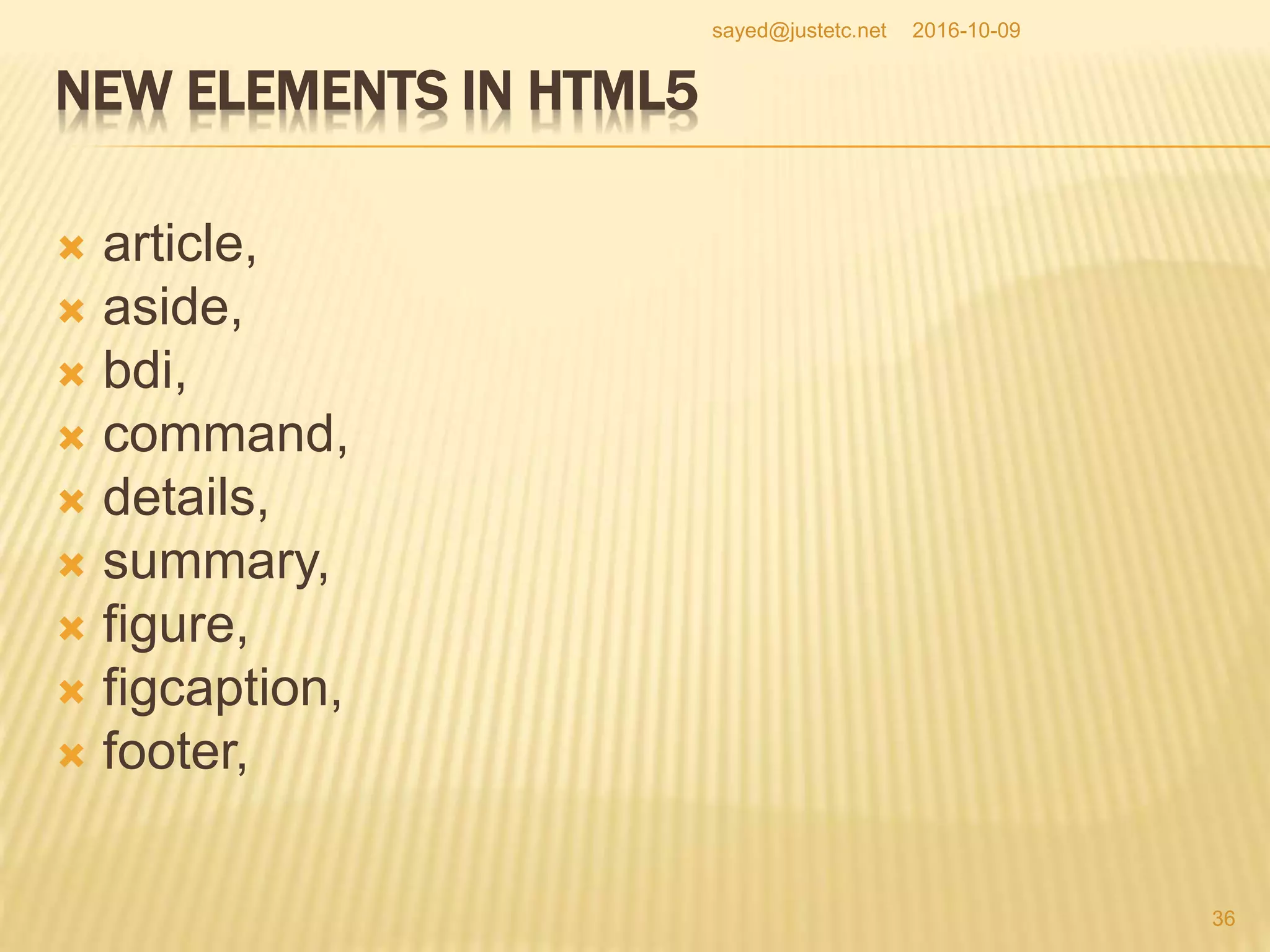

- 36. NEW ELEMENTS INHTML5 article, aside, bdi, command, details, summary, figure, figcaption, footer, 2016-10-09 36 sayed@justetc.net

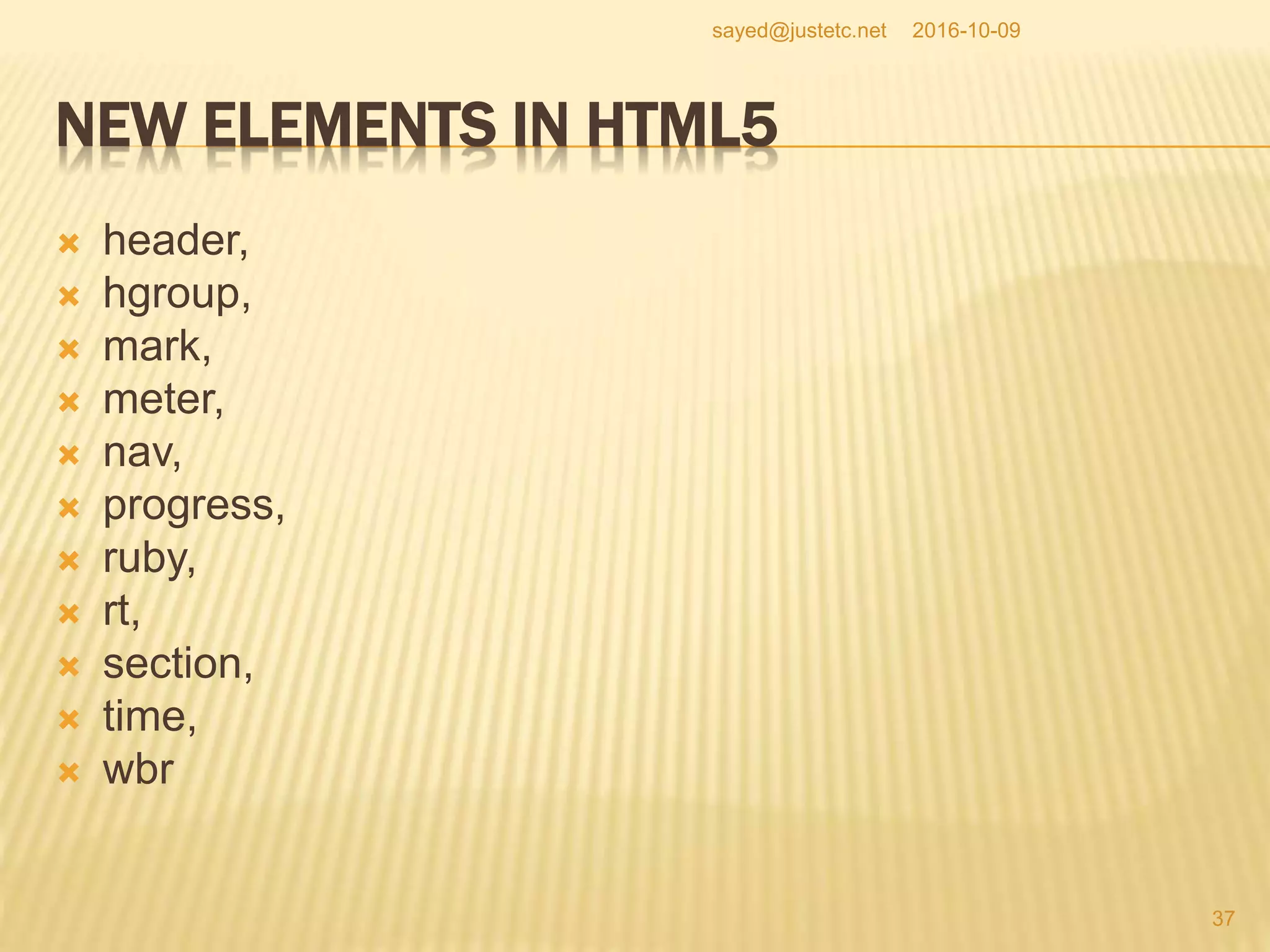

- 37. NEW ELEMENTS INHTML5 header, hgroup, mark, meter, nav, progress, ruby, rt, section, time, wbr 2016-10-09 37 sayed@justetc.net

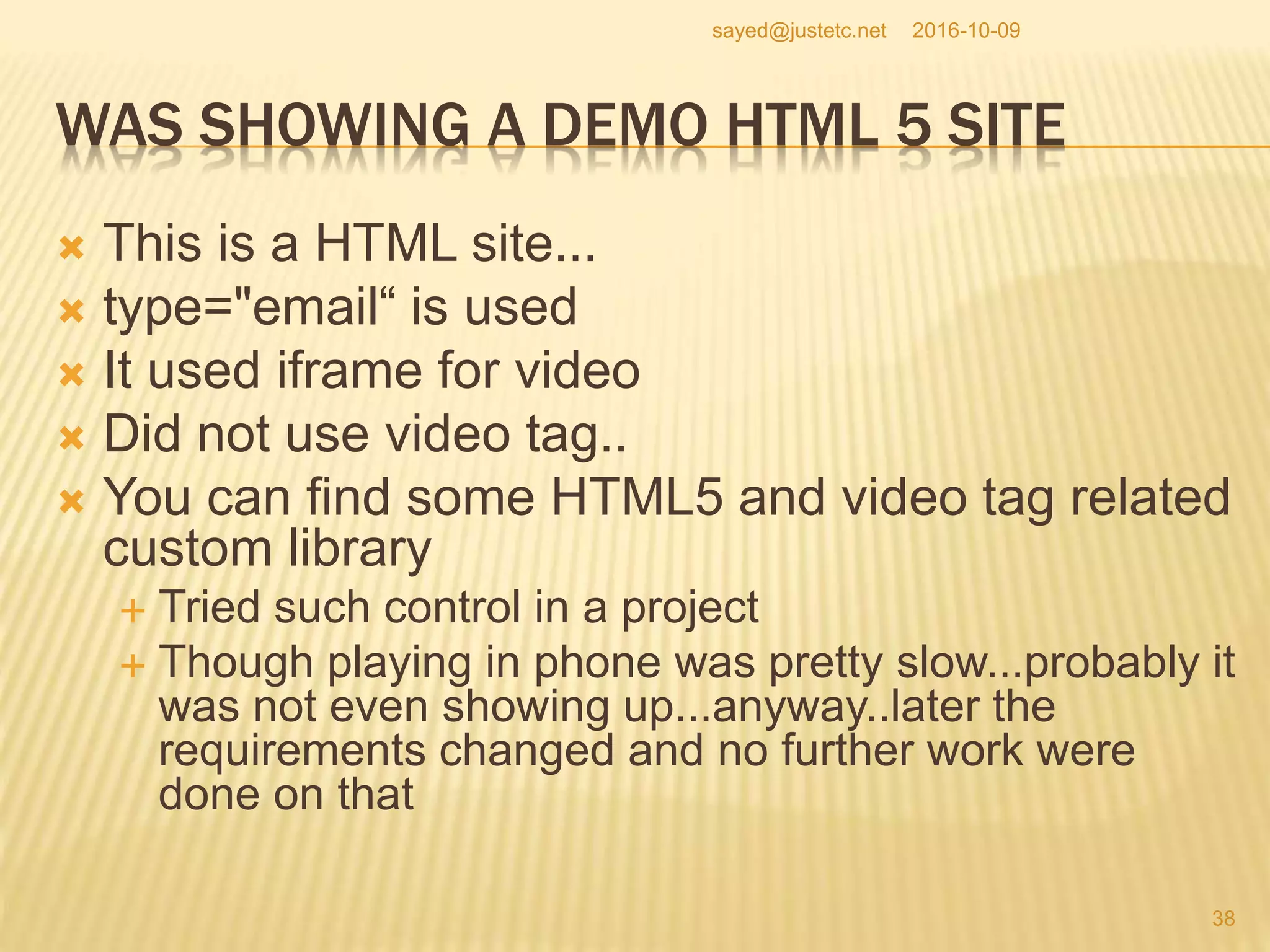

- 38. WAS SHOWING ADEMO HTML 5 SITE This is a HTML site... type="email“ is used It used iframe for video Did not use video tag.. You can find some HTML5 and video tag related custom library Tried such control in a project Though playing in phone was pretty slow...probably it was not even showing up...anyway..later the requirements changed and no further work were done on that 2016-10-09 38 sayed@justetc.net

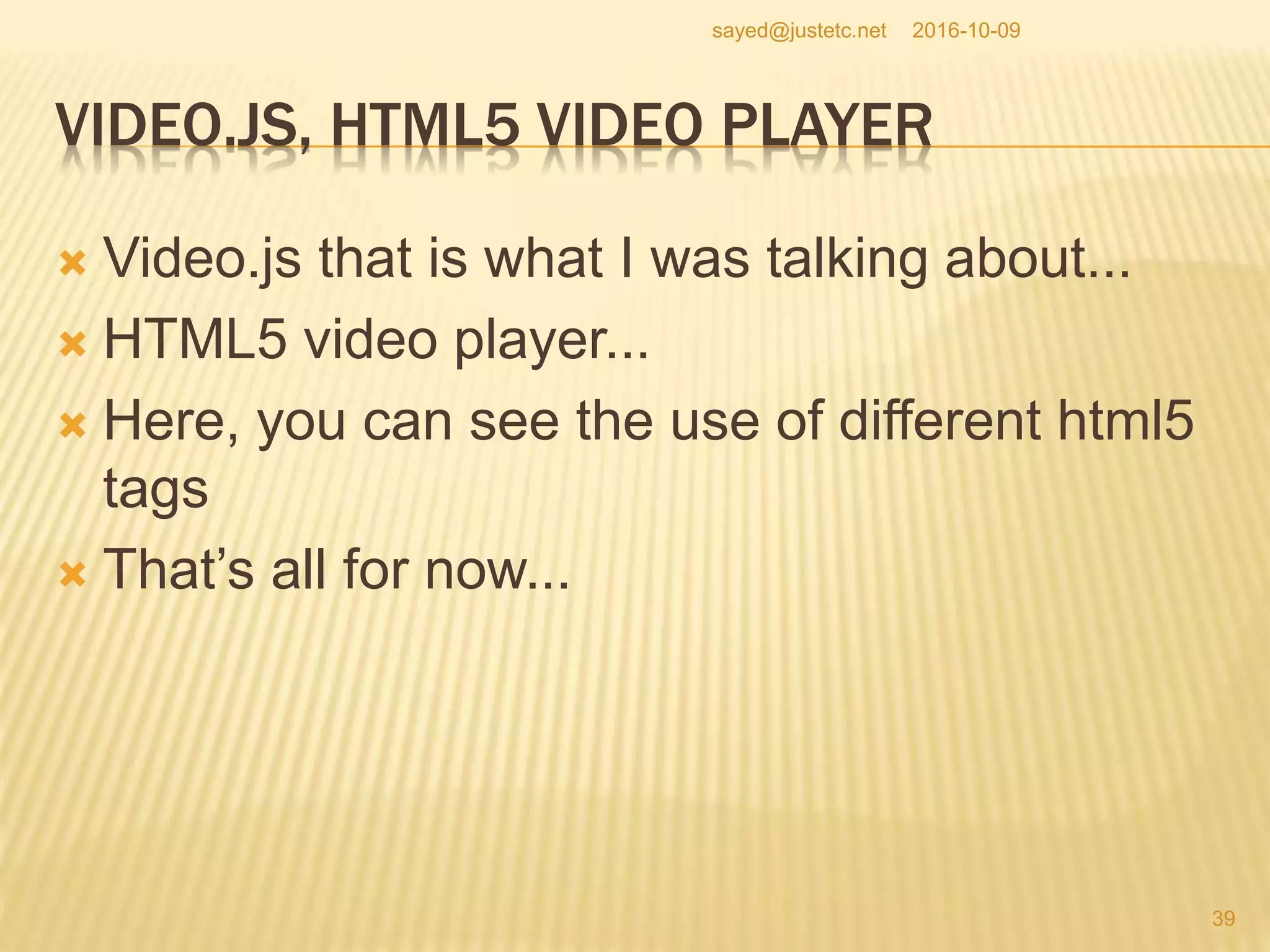

- 39. VIDEO.JS, HTML5 VIDEOPLAYER Video.js that is what I was talking about... HTML5 video player... Here, you can see the use of different html5 tags That’s all for now... 2016-10-09 39 sayed@justetc.net

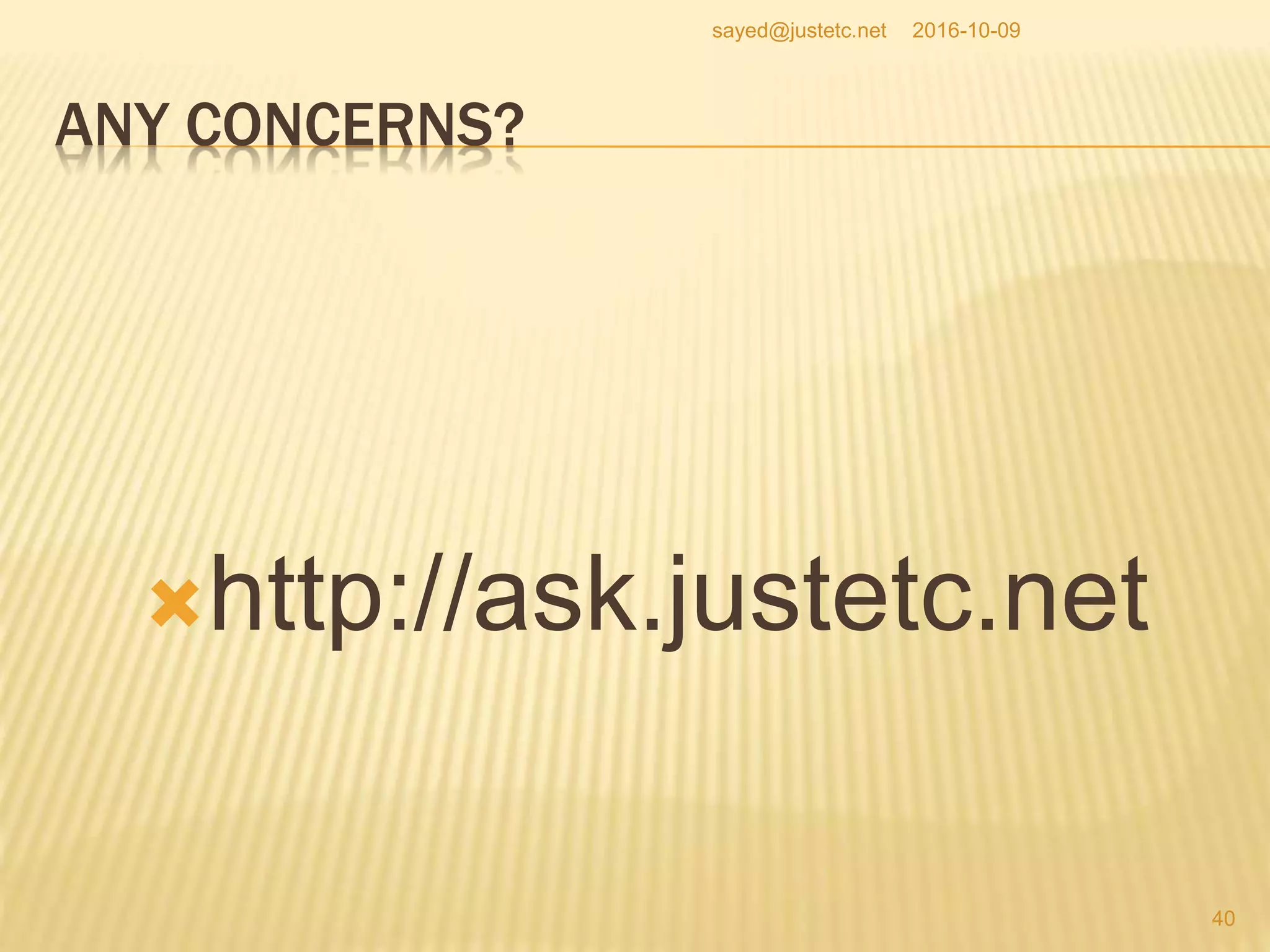

- 40.
