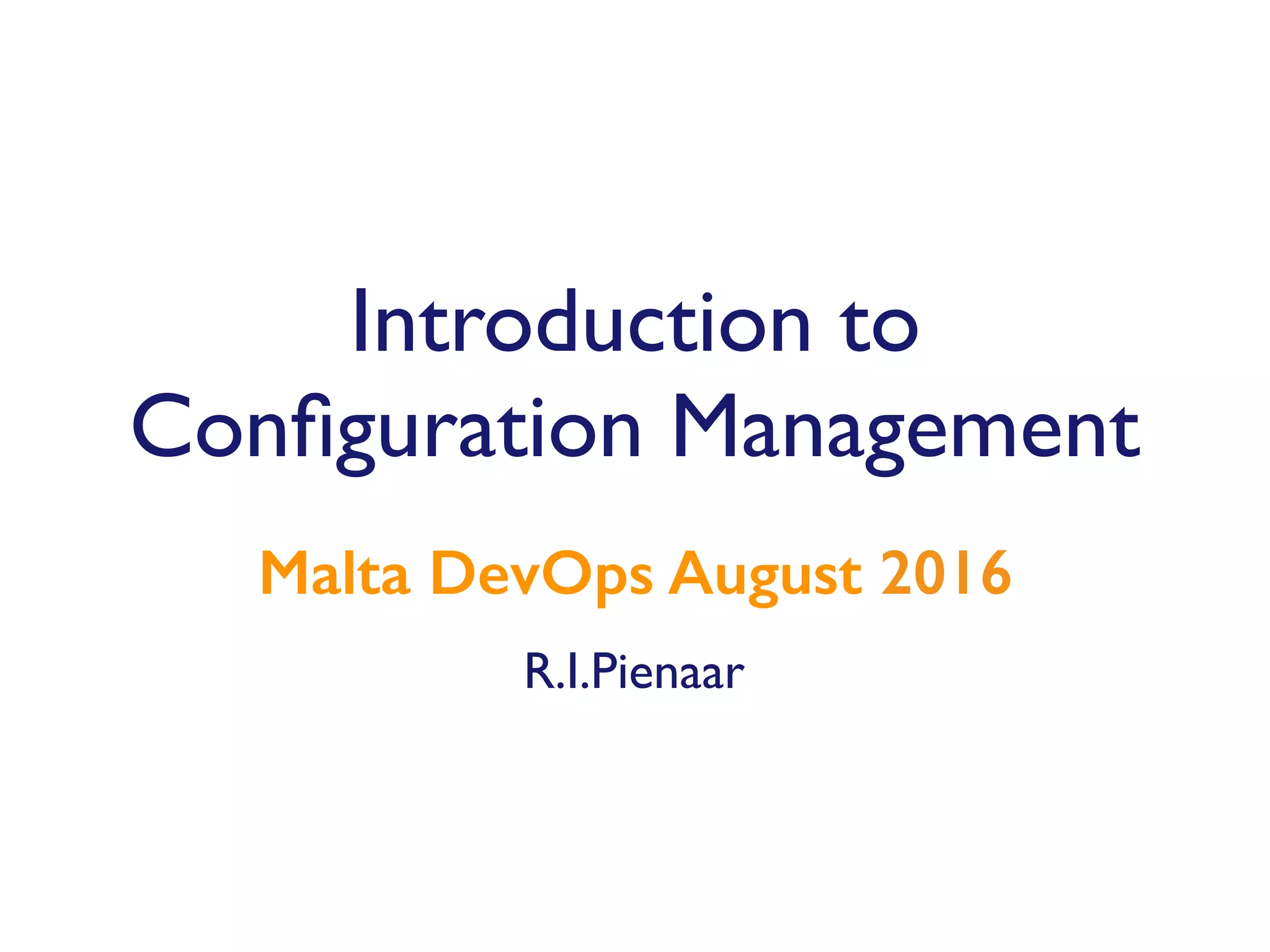

Introduction to Configuration Management

R.I.Pienaar
Malta DevOps August 2016
Introduction to
Conﬁguration Management

R.I.Pienaar | rip@devco.net | http://devco.net | @ripienaar

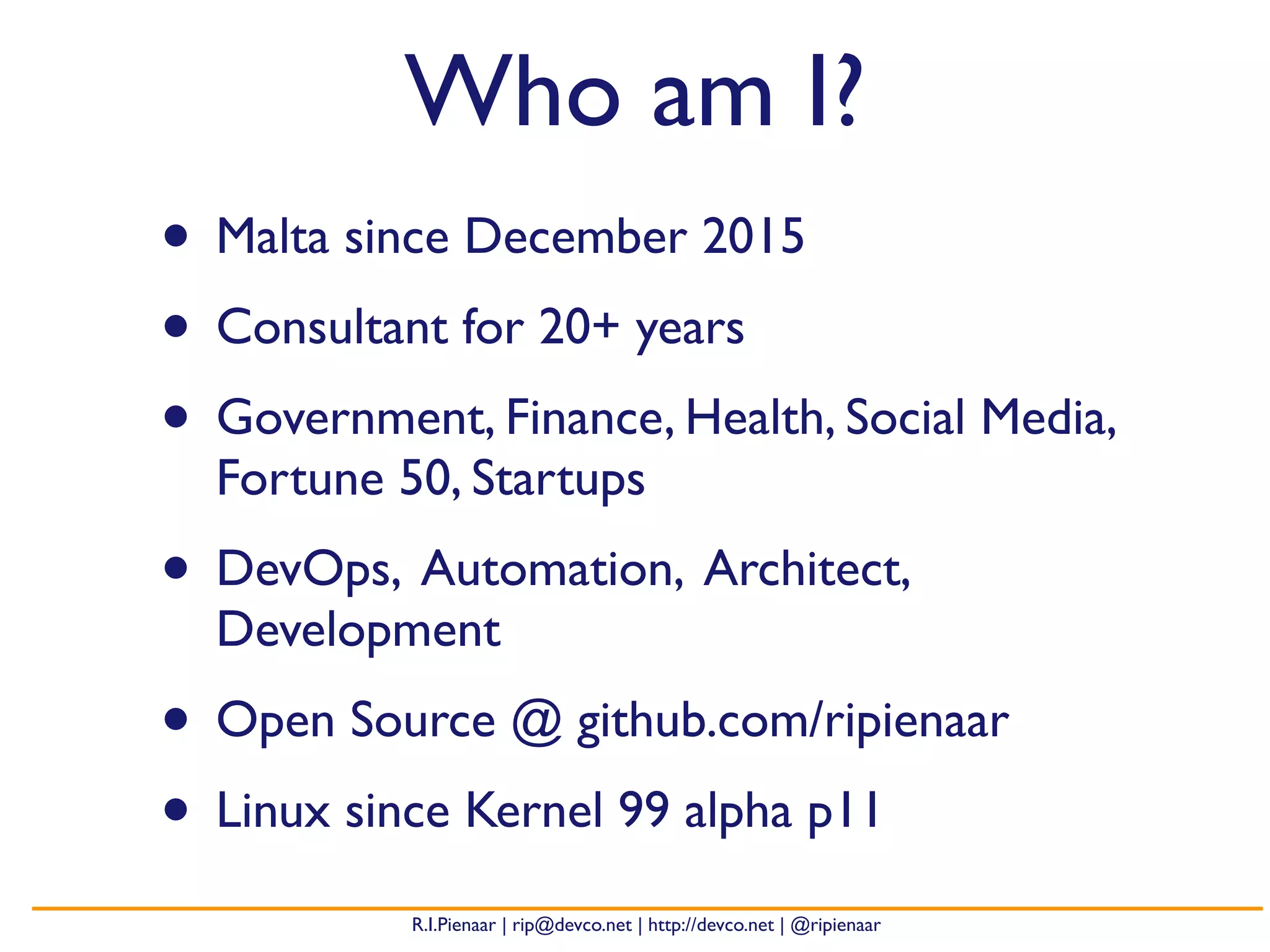

Who am I?
• Malta since December 2015
• Consultant for 20+ years
• Government, Finance, Health, Social Media,
Fortune 50, Startups
• DevOps, Automation, Architect,
Development
• Open Source @ github.com/ripienaar
• Linux since Kernel 99 alpha p11

Conﬁguration
Management
for Devs and Ops

CM - What’s the problem?
Not CONSISTENT

Not REPRODUCABLE

Not INTERESTING

Not SCALABLE

Not COMPLETE

Not PREDICTABLE

Hypothetical Toolset

CM - Wishes?
Programmable
Infrastructure
Domain Speciﬁc Language

CM - Wishes?
Programmable
Infrastructure
Platform and OS Independent

CM - Wishes?
Programmable
Infrastructure
Complete Server Lifecycle

CM - Wishes?
Programmable
Infrastructure
Extendible via Plugins and APIs

CM - Wishes?
Programmable
Infrastructure
Learns from Development

CM - Wishes?
Open
Source,APIs and Docs
Community, IRC, Slack, GitHub, Users

CM - Wishes?
Commercial
Owned
Support,Training, Conferences, Certs

Puppet
• 10 years old
• Commercially owned Open Source
• Client Server or Standalone Architecture
• Used by 10s of 1000s of companies
• Useful to small and large companies, even
single servers
• 4 400 reusable modules, write your own

Puppet Resources
package{“httpd”:
ensure => “present”
}
file{“/etc/httpd/conf/httpd.conf”:
owner => “root”,
group => “root”,
mode => “0644”,
source => “puppet:///modules/apache/httpd.conf”
}
service{“httpd”:
ensure => “running”,
enable => true
}

Puppet Types
}
mode => “0644”,
}
enable => true
}

Puppet Titles
}
mode => “0644”,
}
enable => true
}

Puppet Parameters
}
mode => “0644”,
}
enable => true
}

Puppet Relationships
…
}
…,
require => Package[“httpd”],
notify => Service[“httpd”]
}
…,
require => File[“/etc/httpd/conf/httpd.conf”]
}

Puppet Collections
class apache {
include apache::install
include apache::config
include apache::service
}
class apache::install {
package{ … }; package{ … }
}
class apache::config {
file{ … }; file{ … }
}
class apache::service {
service{ … }; service{ … }
}

Puppet Relations
…
}
…,
require => Class[“apache::install”],
notify => Class[“apache::service”]
}
…,
require => Class[“apache::config”]
}

Puppet Nodes
node “dev1.example.net” {
include roles::lamp_dev
}
class roles::lamp_dev {
include profile::lamp_webserver
include profile::lamp_mysqlserver
}
class profile::lamp_webserver {
include php
include apache
}
class profile::lamp_mysqlserver {
include mysql
}

Puppet Facts
$ facter
…
os => {
architecture => "x86_64",
distro => {
codename => "Core",
description => "CentOS Linux release 7.2.1511 (Core)",
id => "CentOS",
release => {
full => "7.2.1511",
major => "7",
minor => "2"
},
specification => ":core-4.1-amd64:core-4.1-noarch"
},
family => "RedHat",
hardware => "x86_64",
name => "CentOS",
release => {
full => "7.2.1511",
major => "7",
minor => "2"
},
selinux => {
enabled => false
}
}
…

Puppet Facts
class site::common {
if $facts[“os”][“family”] == “RedHat” {
include site::redhat_common
} elsif $facts[“os”][“family”] == “Debian” {
include site::debian_common
} else {
fail(“Unknown operating system family”)
}
}

Puppet Site Policies
• /srv/www - root:root
• /etc/httpd/conf.d/<site>.conf
• /srv/www/<site> - root:root
• /srv/www/<site>/html - owner:owner
• /srv/www/<site>/logs/access_log - root:root
• /srv/www/<site>/logs/error_log - root:root
• <site> log rotation
• <site> backups

site::vhost{“example.com”: }
Day to Day Usage
$client_sites = [“example1.com”, “example2.com”]
site::vhost{$client_sites: }
site::vhost{“example.com”:
aliases => [“www.example.com”, “www.other.com”],
owner => “acme”,
allow_override => “All”,
options => “Indexes”
}

Policy Set by Web Team - Creates Utility
define site::vhost ( $port, $owner, $group, … ) {
apache::vhost{$name:
port => $port,
docroot => “/srv/www/${name}/html”,
docroot_owner => $owner,
docroot_group => $group,
}
bacula::backup_policy{$name: …}
sensu::monitor{$name: …}
}

Puppet Testing
Learning from Development - Unit Testing
describe “site::vhost” do
let(:title) { “example.com” }
it {
is_expected to contain_apache__vhost(“example.com”)
.with (
“port” => “80”,
“docroot” => “/srv/www/example.com/html”
…
)
}
end

Puppet Testing
Learning from Development - Integration Testing
describe package(“httpd”) do
it { should be_installed }
end
describe service(“httpd”) do
it { should be_enabled }
it { should be_running }
end
describe file(“/srv/www/example.com/html”) do
it { should exist }
it { should be_directory }
it { be_owned_by “root” }
end

Puppet Reporting
http://theforeman.org

Questions?
twitter: @ripienaar
email: rip@devco.net
blog: www.devco.net
github: ripienaar
freenode: Volcane
slack.puppet.com: ripienaar
http://learn.puppet.com/
https://www.devco.net/
