Introduction to
ABAP Core Data Services
ABAP Platform Product Management, SAP SE
May 2024

2. 2
PUBLIC
MODERN ABAP DEVELOPMENT
ABAP CORE DATA SERVICES (CDS) OVERVIEW
CDS IN ABAP APPLICATION PROGRAMMING
SUMMARY

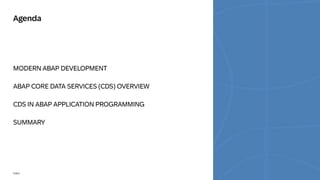

Agenda

3. 3
PUBLIC
MODERN ABAP DEVELOPMENT

4. 4
PUBLIC
SAP
BUSINESS
SUITE
& SAP NetWeaver products
like SAP BW, SAP PI, …

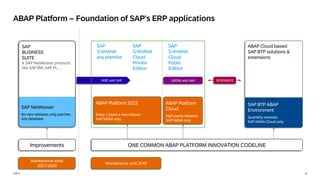

ABAP Platform – Foundation of SAP’s ERP applications
ABAP Cloud based
SAP BTP solutions &
extensions
INTEGRATE
Improvements
Maintenance ends
2027/2030
RISE with SAP
ONE COMMON ABAP PLATFORM INNOVATION CODELINE
ABAP Platform 2023
Every 2 years a new release
SAP HANA only
SAP
S/4HANA
any premise
Maintenance until 2040
GROW with SAP
ABAP Platform
Cloud
Half-yearly releases
SAP HANA only
SAP
S/4HANA
Cloud
Private
Edition
SAP NetWeaver
No new releases, only patches
Any database
SAP BTP ABAP
Environment
Quarterly releases
SAP HANA Cloud only
SAP
S/4HANA
Cloud
Public
Edition

5. 5
PUBLIC

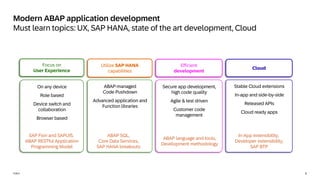

Modern ABAP application development
Must learn topics: UX, SAP HANA, state of the art development, Cloud
Stable Cloud extensions
In-app and side-by-side
Released APIs
Cloud ready apps
Cloud
Secure app development,
high code quality
Agile & test driven
Customer code
management
Efficient
development
Utilize SAP HANA
capabilities
ABAP-managed
Code Pushdown
Advanced application and
Function libraries
Focus on
User Experience
On any device
Role based
Device switch and
collaboration
Browser based
SAP Fiori and SAPUI5,
ABAP RESTful Application
Programming Model
ABAP SQL,
Core Data Services,
SAP HANA breakouts
ABAP language and tools,
Development methodology
In-App extensibility,
Developer extensibility,
SAP BTP

6. 6
PUBLIC

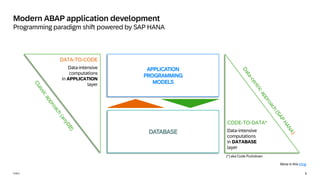

Modern ABAP application development
Programming paradigm shift powered by SAP HANA
DATA-TO-CODE
Data-intensive
computations
in APPLICATION
layer
CODE-TO-DATA*
Data-intensive
computations
in DATABASE
layer
(*) aka Code Pushdown
More in this blog

7. 7
PUBLIC
Modern ABAP application development

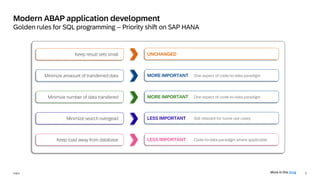

Golden rules for SQL programming – Priority shift on SAP HANA
More in this blog
Keep result sets small
Minimize amaount of transferred data
Minimize number of data transfered
Minimize search overgead
Keep load away from database
UNCHANGED
MORE IMPORTANT One aspect of code-to-data paradigm
MORE IMPORTANT One aspect of code-to-data paradigm
LESS IMPORTANT Still relevant for some use cases
LESS IMPORTANT Code-to-data paradigm where applicable

8. 8
PUBLIC

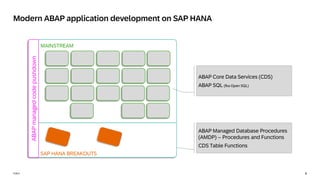

Modern ABAP application development on SAP HANA
ABAP Core Data Services (CDS)
ABAP SQL (fka Open SQL)
ABAP Managed Database Procedures
(AMDP) – Procedures and Functions
CDS Table Functions
SAP HANA BREAKOUTS
MAINSTREAM
ABAP
managed
code
pushdown

9. 9
PUBLIC

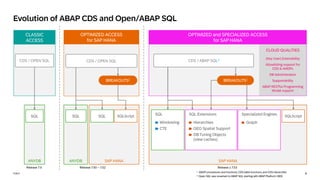

Evolution of ABAP CDS and Open/ABAP SQL
SAP HANA
CLOUD QUALITIES
(Key User) Extensibility
Allowlisting-support for
CDS & AMDPs
DB Administration
Supportability
ABAP RESTful Programming
Model support
ANYDB
BREAKOUTS1
SQL
ANYDB
SQL SQL SQLScript
SAP HANA
SQL
Windowing
CTE
SQLScript
SQL Extensions
Hierarchies
GEO Spatial Support
DB Tuning Objects
(view caches)
Specialized Engines
Graph
OPTIMIZED and SPECIALIZED ACCESS
for SAP HANA
CLASSIC
ACCESS
BREAKOUTS1
OPTIMIZED ACCESS
for SAP HANA
CDS / OPEN SQL CDS / OPEN SQL CDS / ABAP SQL2
Release 7.4 Release 7.50 – 7.52 Release ≥ 7.53
1*AMDP procedures and functions, CDS table functions, and CDS hierarchies
2*Open SQL was renamed to ABAP SQL starting with ABAP Platform 1809

10. 10
PUBLIC
Debugging, profiling, tracing
Static and dynamic logging
Runtime monitoring and analysis
Static code checks (ATC, CVA) with
remote and local scenarios
Unit testing incl. isolation frameworks
Test seams and injections
Fully eclipse-based
Syntax check, code completion
Navigation, search, quick fixes
Full support for the ABAP RESTful
Application Programming Model and CDS

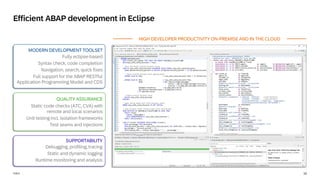

Efficient ABAP development in Eclipse
MODERN DEVELOPMENT TOOLSET
QUALITY ASSURANCE
SUPPORTABILITY
HIGH DEVELOPER PRODUCTIVITY ON-PREMISE AND IN THE CLOUD

11. 11
PUBLIC
ABAP CDS OVERVIEW

12. 12
PUBLIC

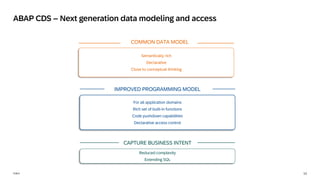

ABAP CDS – Next generation data modeling and access
For all application domains
Rich set of built-in functions
Code pushdown capabilities
Declarative access control
Reduced complexity
Extending SQL
Semantically rich
Declarative
Close to conceptual thinking
COMMON DATA MODEL
IMPROVED PROGRAMMING MODEL
CAPTURE BUSINESS INTENT

13. 13
PUBLIC
NATIVE CONSUMPTION

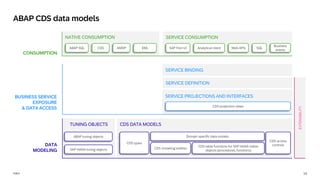

ABAP CDS data models
DATA
MODELING
TUNING OBJECTS CDS DATA MODELS
SAP HANA tuning objects
ABAP tuning objects Domain specific data models
CDS modeling entities
CDS table functions for SAP HANA native
objects (procedures, functions)
CDS types
SERVICE PROJECTIONS AND INTERFACES
SERVICE DEFINITION
SERVICE BINDING
BUSINESS SERVICE
EXPOSURE
& DATA ACCESS
SERVICE CONSUMPTION
CONSUMPTION
ABAP SQL AMDP
CDS SAP Fiori UI Analytical client Web APIs SQL
CDS projection views
EML
EXTENSIBILITY
Business
events
CDS access
controls

14. 14
PUBLIC
Category ABAP CDS Entity Type ABAP CDS Statement
Standard view building CDS View Entity
CDS Projection View
CDS Projection View – Analytical Query
CDS DDIC-based View (deprecated)
DEFINE VIEW ENTITY
DEFINE VIEW ENTITY AS PROJECTION ON
DEFINE TRANSIENT VIEW ENTITY AS PROJECTION ON
DEFINE VIEW (deprecated)
Advanced view building – External implementation CDS Custom Entity
CDS Abstract Entity
DEFINE CUSTOM ENTITY
DEFINE ABSTRACT ENTITY
Advanced view building – SAP HANA breakout CDS Table Function
CDS Hierarchy
CDS Scalar Function
2
DEFINE TABLE FUNCTION
DEFINE HIERARCHY
DEFINE SCALAR FUNCTION
Type definition CDS Simple Type
2
CDS Enumerated Type
2
DEFINE SIMPLE TYPE
DEFINE TYPE ENUM
Transactional behavior definition of business objects built
with the ABAP RESTful Application Programming Model
CDS Behavior Definition (and Projection) DEFINE BEHAVIOR
Modification-free extension CDS View Entity Extension
CDS Custom Entity Extension
CDS Abstract Entity Extension
CDS DDIC-based View Extension (deprecated)
CDS Metadata Extension
CDS Behavior Extension
EXTEND VIEW ENTITY
EXTEND CUSTOM ENTITY
EXTEND ABSTRACT ENTITY
EXTEND VIEW (deprecated)
ANNOTATE VIEW
EXTEND BEHAVIOR
Access control definition CDS Access Control DEFINE ROLE

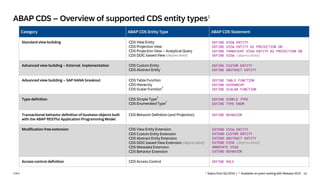

ABAP CDS – Overview of supported CDS entity types1
1 Status from Q2/2024 | 2 Available on-prem starting with Release 2023

15. 15
PUBLIC
ABAP CDS view entity – Example
Selection
Data source
Element annotations
Associations
ABAP Flight Reference Scenario -
Example available in package /DMO/FLIGHT_DRAFT
View annotations
View definition

16. 16
PUBLIC

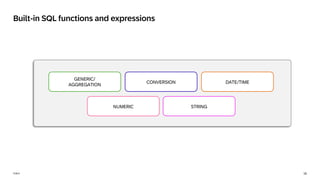

Built-in SQL functions and expressions
GENERIC/
AGGREGATION
CONVERSION DATE/TIME
STRING
NUMERIC

17. 17
PUBLIC

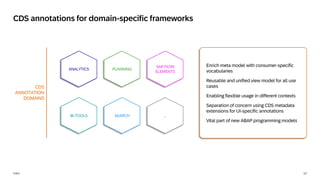

CDS annotations for domain-specific frameworks
Enrich meta model with consumer-specific
vocabularies
Reusable and unified view model for all use
cases
Enabling flexible usage in different contexts
Separation of concern using CDS metadata
extensions for UI-specific annotations
Vital part of new ABAP programming models
CDS
ANNOTATION
DOMAINS
ANALYTICS
BI-TOOLS
PLANNING
SEARCH
SAP FIORI
ELEMENTS
…

18. 18
PUBLIC

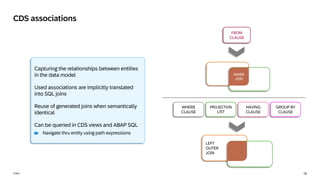

CDS associations
WHERE
CLAUSE
PROJECTION
LIST
HAVING
CLAUSE
GROUP BY
CLAUSE
LEFT
OUTER
JOIN
FROM
CLAUSE
INNER
JOIN
Capturing the relationships between entities
in the data model
Used associations are implicitly translated
into SQL joins
Reuse of generated joins when semantically
identical
Can be queried in CDS views and ABAP SQL
Navigate thru entity using path expressions

19. 19
PUBLIC

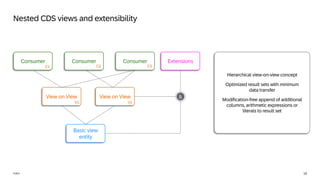

Nested CDS views and extensibility
Hierarchical view-on-view concept
Optimized result sets with minimum
data transfer
Modification-free append of additional
columns, arithmetic expressions or
literals to result set
Basic view
entity
View on View
Consumer Extensions
C1
V1
&
Consumer Consumer
C2 C3
View on View
V2

20. 20
PUBLIC
CDS Hierarchy defines a CDS entity as a
hierarchy in the CDS DDL
A CDS hierarchy has a tabular results set
whose rows construct parent-child
relationships from hierarchical data sets
A CDS hierarchy can be accessed as the data
source of an ABAP SQL query, and it is
handled like a hierarchy in which additional
hierarchy columns can be selected

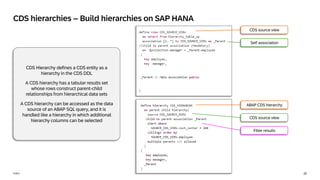

CDS hierarchies – Build hierarchies on SAP HANA
CDS source view
Self association
ABAP CDS hierarchy
CDS source view
Filter results

21. 21
PUBLIC

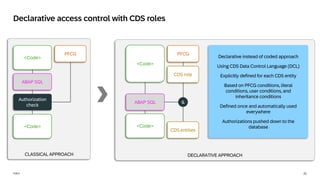

DECLARATIVE APPROACH
CLASSICAL APPROACH
Declarative access control with CDS roles
<Code>
<Code>
ABAP SQL
Authorization
check
PFCG
<Code>
<Code>
ABAP SQL
PFCG
CDS role
CDS entities
&
Declarative instead of coded approach
Using CDS Data Control Language (DCL)
Explicitly defined for each CDS entity
Based on PFCG conditions, literal
conditions, user conditions, and
inheritance conditions
Defined once and automatically used
everywhere
Authorizations pushed down to the
database

22. 22
PUBLIC
CDS development in Eclipse
Eclipse-based CDS Tooling
Source-based editor
Part of ABAP Development tools
01
Development support
Syntax check
Code completion
Syntax highlighting, pretty printing
Element info and navigation
Quick fixes
02
Supportability
Enhanced data preview
Dependency analyser
Activation graph / Dictionary log
Active annotations view
Unit testing
03

23. 23
PUBLIC
SAP HANA Breakouts

24. 24
PUBLIC

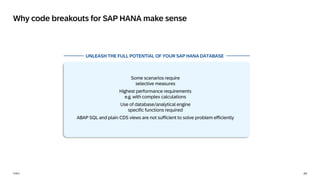

Why code breakouts for SAP HANA make sense
UNLEASH THE FULL POTENTIAL OF YOUR SAP HANA DATABASE
Some scenarios require
selective measures
Highest performance requirements
e.g. with complex calculations
Use of database/analytical engine
specific functions required
ABAP SQL and plain CDS views are not sufficient to solve problem efficiently

25. 25
PUBLIC

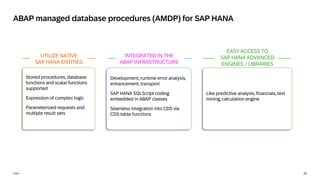

ABAP managed database procedures (AMDP) for SAP HANA
EASY ACCESS TO
SAP HANA ADVANCED
ENGINES / LIBRARIES
Like predictive analysis, financials, text
mining, calculation engine
INTEGRATED IN THE
ABAP INFRASTRUCTURE
Development, runtime error analysis,
enhancement, transport
SAP HANA SQLScript coding
embedded in ABAP classes
Seamless integration into CDS via
CDS table functions
UTILIZE NATIVE
SAP HANA ENTITIES
Stored procedures, database
functions and scalar functions
supported
Expression of complex logic
Parameterized requests and
multiple result sets

26. 26
PUBLIC

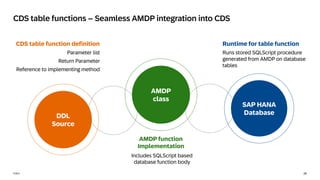

CDS table functions – Seamless AMDP integration into CDS
CDS table function definition
Parameter list
Return Parameter
Reference to implementing method
AMDP function
Implementation
Runtime for table function
Runs stored SQLScript procedure
generated from AMDP on database
tables
SAP HANA
Database
DDL
Source
AMDP
class
Includes SQLScript based
database function body

27. 27
PUBLIC

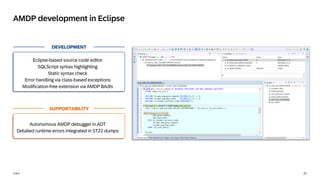

AMDP development in Eclipse
DEVELOPMENT
Eclipse-based source code editor
SQLScript syntax highlighting
Static syntax check
Error handling via class-based exceptions
Modification-free extension via AMDP BAdIs
SUPPORTABILITY
Autonomous AMDP debugger in ADT
Detailed runtime errors integrated in ST22 dumps

28. 28
PUBLIC
CORE DATA SERVICES IN
ABAP APPLICATION PROGRAMMING

29. 29
PUBLIC

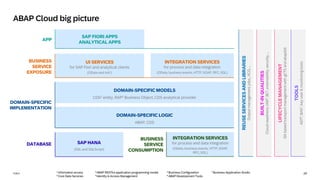

ABAP Cloud big picture
DOMAIN-SPECIFIC MODELS
CDS2 entity, RAP3 Business Object, CDS analytical provider
DOMAIN-SPECIFIC LOGIC
ABAP, CDS
INTEGRATION SERVICES
for process and data integration
(OData, business events, HTTP, SOAP, RFC, SQL)
BUSINESS
SERVICE
EXPOSURE
UI SERVICES
for SAP Fiori and analytical clients
(OData and InA1)
DOMAIN-SPECIFIC
IMPLEMENTATION
INTEGRATION SERVICES
for process and data integration
(OData, business events, HTTP, SOAP,
RFC, SQL)
BUSINESS
SERVICE
CONSUMPTION
SAP HANA
(SQL and SQLScript)
DATABASE
REUSE
SERVICES
AND
LIBRARIES
Output
management,
jobs.,
XCO,
...
BUILT-IN
QUALITIES
Cloud-readiness,
IAM
4
,
BC
5
,
extensibility,
security,
...
LIFECYCLE
MANAGEMENT
Git
based
transport
management
with
gCTS
and
abapGit
TOOLS
ADT
6
,
BAS
7
,
key
user
&
monitoring
tools
3 ABAP RESTful application programming model
4 Identity & Access Management
5 Business Configuration
6 ABAP Development Tools
1 Information access
2 Core Data Services
7 Business Application Studio
APP
SAP FIORI APPS
ANALYTICAL APPS

30. 30
PUBLIC
ABAP RESTful
APPLICATION
PROGRAMMING
MODEL (RAP)

31. 31
PUBLIC
Evolution of the ABAP programming model
CDS as vital part of SAP S/4HANA and SAP BTP ABAP Environment
ABAP PLATFORM ≤ 7.5
CLASSIC ABAP
PROGRAMMING
Best practice freestyle ABAP
programming, (Web) Dynpro,
CDS1
ABAP PLATFORM ≥ 7.5
ABAP PROGRAMMING
MODEL FOR
SAP FIORI
CDS, CDS-based BOPF,
SEGW/@OData annotation
with Referenced Data Source
SAP BTP
ABAP ENVIRONMENT
SAP S/4HANA ≥ 1909
ABAP RESTful
APPLICATION
PROGRAMMING
MODEL (RAP)
CDS, Behavior Definition &
Implementation, Business
Services
1 starting with release 7.4 SPS05
Safe investments!

32. 32
PUBLIC
SERVICE BINDING
Service Definition, Service Projection, Event Binding

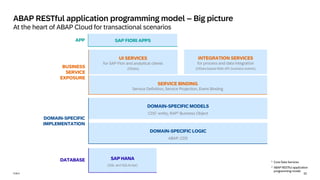

ABAP RESTful application programming model – Big picture
At the heart of ABAP Cloud for transactional scenarios
DOMAIN-SPECIFIC MODELS
CDS1 entity, RAP2 Business Object
DOMAIN-SPECIFIC LOGIC
ABAP, CDS
INTEGRATION SERVICES
for process and data integration
(OData based Web API, business events)
BUSINESS
SERVICE
EXPOSURE
UI SERVICES
for SAP Fiori and analytical clients
(OData)
DOMAIN-SPECIFIC
IMPLEMENTATION
SAP HANA
(SQL and SQLScript)
DATABASE 1 Core Data Services
2 ABAP RESTful application
programming model
APP SAP FIORI APPS

33. 33
PUBLIC
SAP S/4HANA & SAP S/4HANA Cloud
SAP S/4HANA Core Tables (ECC)
> 40 000 Tables
(technical, cryptic, unrelated)

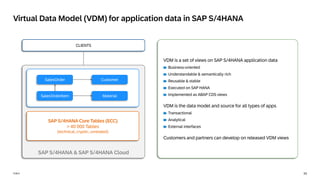

Virtual Data Model (VDM) for application data in SAP S/4HANA
VDM is a set of views on SAP S/4HANA application data
Business-oriented
Understandable & semantically rich
Reusable & stable
Executed on SAP HANA
Implemented as ABAP CDS views
VDM is the data model and source for all types of apps
Transactional
Analytical
External interfaces
Customers and partners can develop on released VDM views
Customer
Material
SalesOrder
SalesOrderItem
CLIENTS

34. 34
PUBLIC
CDS in SAP S/4HANA – Recommendations
When implementing your own CDS views, follow the
SAP S/4HANA’s Virtual Data Model (VDM) implementation pattern
for best reuse and interoperability
Clarify your data model before starting your implementation
Start with the implementation of basic interface views
Adapt names and add semantical information already on this level

35. 35
PUBLIC
ANALYTICS

36. 36
PUBLIC

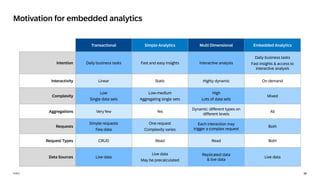

Motivation for embedded analytics
Transactional Simple Analytics Multi Dimensional Embedded Analytics
Intention Daily business tasks Fast and easy insights Interactive analysis
Daily business tasks
Fast insights & access to
interactive analysis
Interactivity Linear Static Highly dynamic On demand
Complexity
Low
Single data sets
Low-medium
Aggregating single sets
High
Lots of data sets
Mixed
Aggregations Very few Yes
Dynamic: different types on
different levels
All
Requests
Simple requests
Few data
One request
Complexity varies
Each interaction may
trigger a complex request
Both
Request Types CRUD Read Read Both
Data Sources Live data
Live data
May be precalculated
Replicated data
& live data
Live data

37. 37
PUBLIC

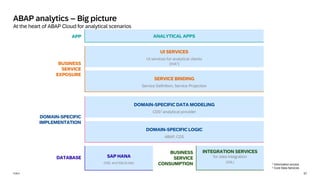

ABAP analytics – Big picture
At the heart of ABAP Cloud for analytical scenarios
DOMAIN-SPECIFIC DATA MODELING
CDS2 analytical provider
SERVICE BINDING
Service Definition, Service Projection
UI SERVICES
UI services for analytical clients
(InA1)
DOMAIN-SPECIFIC LOGIC
ABAP, CDS
BUSINESS
SERVICE
EXPOSURE
DOMAIN-SPECIFIC
IMPLEMENTATION
1 Information access
2 Core Data Services
INTEGRATION SERVICES
for data integration
(SQL)
BUSINESS
SERVICE
CONSUMPTION
SAP HANA
(SQL and SQLScript)
DATABASE
APP ANALYTICAL APPS

38. 38
PUBLIC
ABAP
CDS
InA
Service
Clients

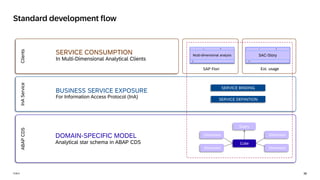

Standard development flow
DOMAIN-SPECIFIC MODEL
Analytical star schema in ABAP CDS
SERVICE DEFINITION
SERVICE BINDING
BUSINESS SERVICE EXPOSURE
For Information Access Protocol (InA)
SERVICE CONSUMPTION
In Multi-Dimensional Analytical Clients
SAC-Story
= X
O
SAP Fiori
Multi-dimensional analysis
= X
O
Ext. usage
Cube
Query
Dimension
Dimension
Dimension
Dimension

39. 41
PUBLIC
SUMMARY

40. 42
PUBLIC
Key takeaways
ABAP Core Data Services (CDS)
Code pushdown is the ABAP programming paradigm on SAP HANA
Further enhancements and optimizations will be delivered with future ABAP platform releases
CDS is the cornerstone of the ABAP RESTful Application Programming Model (RAP)
CDS plays a vital role in SAP BTP ABAP environment and SAP S/4HANA on-premise as well as in the cloud
CDS is the next generation data modelling infrastructure on the ABAP platform
CDS offers advanced capabilities to fully leverage SAP HANA’s power in ABAP applications

41. 43
PUBLIC

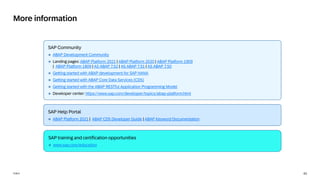

SAP Community
❖ ABAP Development Community
❖ Landing pages: ABAP Platform 2021 | ABAP Platform 2020 | ABAP Platform 1909
| ABAP Platform 1809 | AS ABAP 7.52 | AS ABAP 7.51 | AS ABAP 7.50
❖ Getting started with ABAP development for SAP HANA
❖ Getting started with ABAP Core Data Services (CDS)
❖ Getting started with the ABAP RESTful Application Programming Model
❖ Developer center: https://www.sap.com/developer/topics/abap-platform.html
More information
SAP training and certification opportunities
❖ www.sap.com/education
SAP Help Portal
❖ ABAP Platform 2021 | ABAP CDS Developer Guide | ABAP Keyword Documentation

42. 44
PUBLIC
Contact information:
© 2024 SAP SE or an SAP affiliate company. All rights reserved. See Legal Notice on www.sap.com/legal-notice for use terms, disclaimers, disclosures, or restrictions related to this material.
Thank you.
Name
Email
