1. Emerging Web App Architectures
Using Java and Node.js

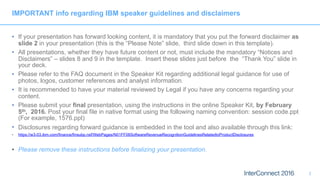

2. IMPORTANT info regarding IBM speaker guidelines and disclaimers
• If your presentation has forward looking content, it is mandatory that you put the forward disclaimer as
slide 2 in your presentation (this is the “Please Note” slide, third slide down in this template).
• All presentations, whether they have future content or not, must include the mandatory “Notices and
Disclaimers” – slides 8 and 9 in the template. Insert these slides just before the “Thank You” slide in
your deck.
• Please refer to the FAQ document in the Speaker Kit regarding additional legal guidance for use of
photos, logos, customer references and analyst information.
• It is recommended to have your material reviewed by Legal if you have any concerns regarding your
content.
• Please submit your final presentation, using the instructions in the online Speaker Kit, by February
5th, 2016. Post your final file in native format using the following naming convention: session code.ppt
(For example, 1576.ppt)
• Disclosures regarding forward guidance is embedded in the tool and also available through this link:
• https://w3-03.ibm.com/finance/finsubp.nsf/WebPages/N01FF08SoftwareRevenueRecognitionGuidelinesRelatedtoProductDisclosures
• Please remove these instructions before finalizing your presentation.
2

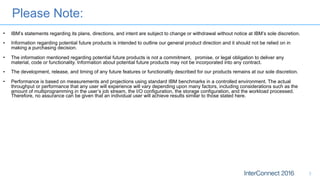

3. Please Note:
3
• IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion.
• Information regarding potential future products is intended to outline our general product direction and it should not be relied on in
making a purchasing decision.
• The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any
material, code or functionality. Information about potential future products may not be incorporated into any contract.
• The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.
• Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual
throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the
amount of multiprogramming in the user’s job stream, the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.

4. © 2015 IBM Corporation4
1
STSM, IBM Runtime Development
@Chris__Bailey
@seabaylea

5. 5
+
Node.js and Java

6. 6
Developer
Productivity

7. 7
API Package Support
● Node.js growth:
● 371 packages/day
● Java growth:
● 92 packages/day

8. 8

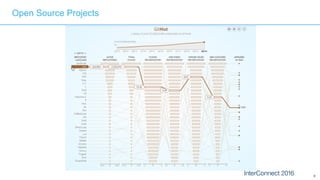

Open Source Projects

9. 9

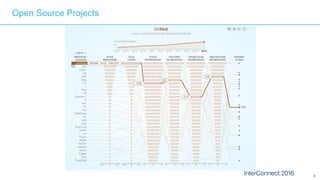

Open Source Projects

10. 10
var cluster = require('cluster');
var cpus = require('os').cpus().length;
var http = require('http');
if (cluster.isMaster) {
for (var i = 0; i < cpus; i++) {
cluster.fork();
}
cluster.on('death', function(worker) {
console.log("Worker" + worker.pid + "died");
});
} else {
http.createServer(function(request, response) {
response.writeHead(200, {"Content-Type": "text/plain"});
response.write("Hello World!n");
response.end();
}).listen(8080);
}
Writing a HTTP Server

11. 11
var cluster = require('cluster');
var cpus = require('os').cpus().length;
var http = require('http');
if (cluster.isMaster) {
for (var i = 0; i < cpus; i++) {
cluster.fork();
}
cluster.on('death', function(worker) {
console.log("Worker" + worker.pid + "died");
});
} else {
http.createServer(function(request, response) {
response.writeHead(200, {"Content-Type": "text/plain"});
response.write("Hello World!n");
response.end();
}).listen(8080);
}
And Clustering It….

12. 12

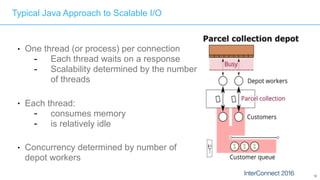

● One thread (or process) per connection
- Each thread waits on a response
- Scalability determined by the number
of threads
● Each thread:
- consumes memory
- is relatively idle
● Concurrency determined by number of
depot workers
Typical Java Approach to Scalable I/O

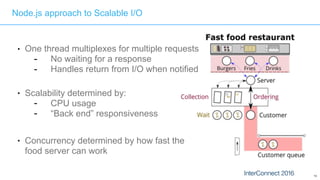

13. 13
● One thread multiplexes for multiple requests
- No waiting for a response
- Handles return from I/O when notified
● Scalability determined by:
- CPU usage
- “Back end” responsiveness
● Concurrency determined by how fast the
food server can work
Node.js approach to Scalable I/O

14. 14

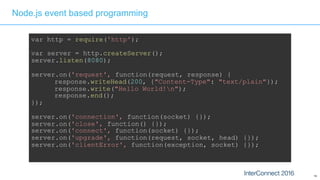

Node.js event based programming
var http = require('http');
var server = http.createServer();
server.listen(8080);
server.on('request', function(request, response) {
response.writeHead(200, {"Content-Type": "text/plain"});
response.write("Hello World!n");
response.end();
});
server.on('connection', function(socket) {});
server.on('close', function() {});
server.on('connect', function(socket) {});
server.on('upgrade', function(request, socket, head) {});
server.on('clientError', function(exception, socket) {});

15. 15
0
500
1000
1500
2000
2500
3000
regex-dna
n-body
binary-trees spectral-norm
fannkuch-redux
reverse-com
plim
ent
k-nucleo>de
fasta

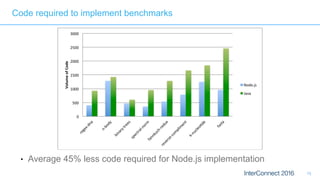

Volume of Code
Node.js
Java
● Average 45% less code required for Node.js implementation
Code required to implement benchmarks

16. 16
“Fullstack”
Development

17. 17

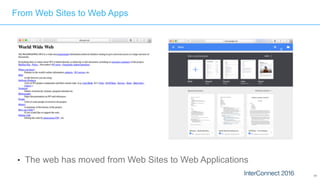

● The web has moved from Web Sites to Web Applications
From Web Sites to Web Apps

18. ● JavaScript is ubiquitous in the browser
- Supported in every browser
- Integration with HTML and CSS
● JavaScript is not affected by negative publicity....
18
Unless it is absolutely necessary to run Java in web browsers, disable it as
described below, even after updating to 7u11. This will help mitigate other Java
vulnerabilities that may be discovered in the future.
This and previous Java vulnerabilities have been widely targeted by attackers, and
new Java vulnerabilities are likely to be discovered. To defend against this and future
Java vulnerabilities, consider disabling Java in web browsers…
Programming in the Browser

19. 19
FullStack JavaScript Development
● Reuse of programming skills and teams
● Reuse of skills for both client and server side code
● Reuse of “isomorphic” code components
● Reuse of code for both client and server
● Write One Run Anywhere
● Faster user experience performance
● Use of server side rendering

20. 20
Server Side Rendering
● Pre-Initialisation of the client UI on
the server:
● Improves time for the first
elements appearing in the UI
● Has additional benefits:
● Search Engine Indexing
● Easier code maintenance

21. 21
Variable
Types

22. 22
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

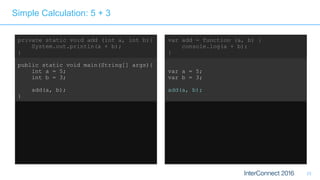

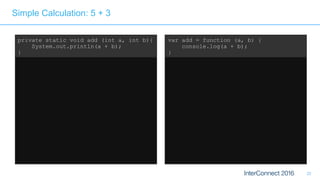

23. 23
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

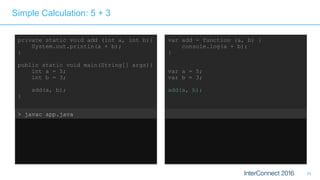

24. 24
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

25. 25
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

26. 26
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

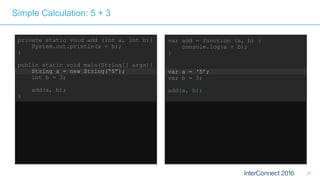

27. 27
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

28. 28
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

29. 29
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
Error: incompatible types: String
cannot be converted to int
add(a, b);
^
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

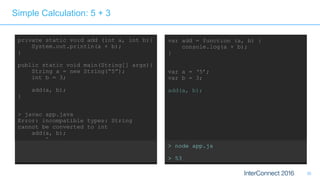

30. 30
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
Error: incompatible types: String
cannot be converted to int
add(a, b);
^
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 53

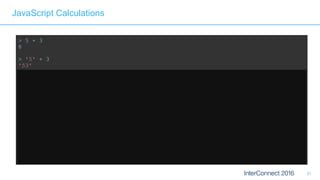

31. 31
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // Weak typing, implicit conversion
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

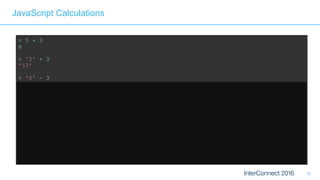

32. 32
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // Weak typing, implicit conversion
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

33. 33

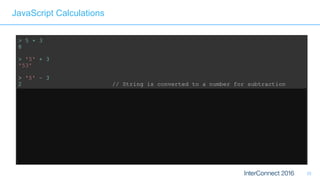

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

34. 34
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

35. 35

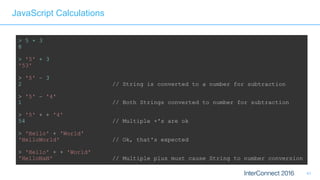

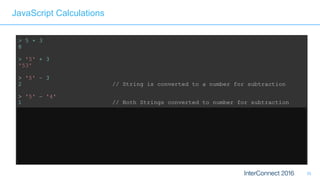

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

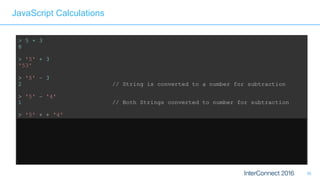

36. 36
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

37. 37
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

38. 38
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

39. 39
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

40. 40
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

41. 41
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // Multiple plus must cause String to number conversion

42. 42
JavaScript Calculations
> '5' + - '5'
'5-2' // I can just about see that works
> var x = 3
undefined
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
undefined
> '5' + x - x
50 // What???

43. 43
JavaScript Calculations
> '5' + - '5'
'5-2' // I can just about see that works
> var x = 3
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
undefined
> '5' + x - x
50 // What???

44. 44

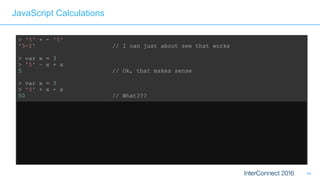

JavaScript Calculations
> '5' + - '5'
'5-2' // I can just about see that works
> var x = 3
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
> '5' + x - x
50 // What???

45. 45
Performance

46. ● JSON serialization of a newly
instantiated object
● Maps
- Key of message
- Value of Hello, World!
● Example response:
46
Results from TechEmpower.com Round 9 tests (2014-05-01)
JSON Serialisation

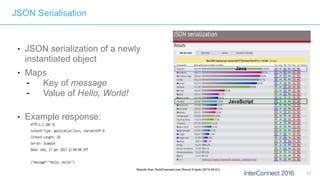

47. ● JSON serialization of a newly
instantiated object
● Maps
- Key of message
- Value of Hello, World!
● Example response:
47
Results from TechEmpower.com Round 9 tests (2014-05-01)
JSON Serialisation
Java
JavaScript

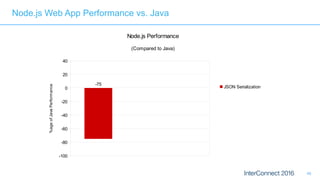

48. 48
-100
-80
-60
-40
-20
0
20
40
-75
Node.js Performance
(Compared to Java)
JSON Serialization
%ageofJavaPerformance
Node.js Web App Performance vs. Java

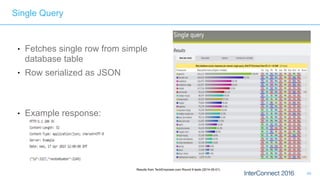

49. ● Fetches single row from simple
database table
● Row serialized as JSON
● Example response:
49
Results from TechEmpower.com Round 9 tests (2014-05-01)
Single Query

50. ● Fetches single row from simple
database table
● Row serialized as JSON
● Example response:
50
Results from TechEmpower.com Round 9 tests (2014-05-01)
Single Query
Java
JavaScript

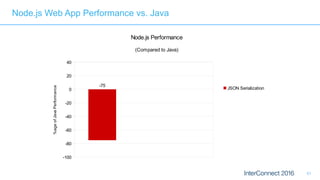

51. 51
-100
-80
-60
-40
-20
0
20
40
-75
Node.js Performance
(Compared to Java)
JSON Serialization
%ageofJavaPerformance
Node.js Web App Performance vs. Java

52. -100
-80
-60
-40
-20
0
20
40
-60.5
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
%ageofJavaPerformance
52
Node.js Web App Performance vs. Java

53. ● Fetches multiple rows from a simple
database table
● Rows serialized as JSON
● Example response:
53
Results from TechEmpower.com Round 9 tests (2014-05-01)
Multiple Queries

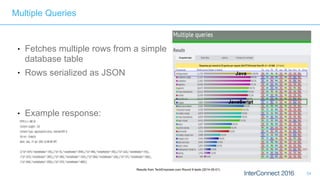

54. ● Fetches multiple rows from a simple
database table
● Rows serialized as JSON
● Example response:
54
Results from TechEmpower.com Round 9 tests (2014-05-01)
Multiple Queries
Java
JavaScript

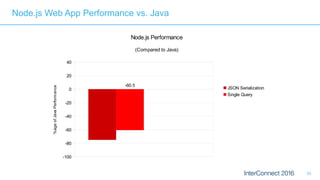

55. -100
-80
-60
-40
-20
0
20
40
-60.5
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
%ageofJavaPerformance
55
Node.js Web App Performance vs. Java

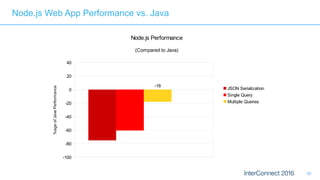

56. 56
Node.js Web App Performance vs. Java
-100
-80
-60
-40
-20
0
20
40
-18
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
Multiple Queries
%ageofJavaPerformance

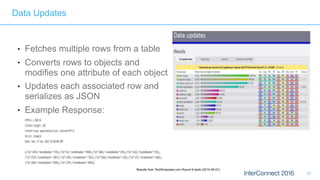

57. ● Fetches multiple rows from a table
● Converts rows to objects and
modifies one attribute of each object
● Updates each associated row and
serializes as JSON
● Example Response:
57
Results from TechEmpower.com Round 9 tests (2014-05-01)
Data Updates

58. ● Fetches multiple rows from a table
● Converts rows to objects and
modifies one attribute of each object
● Updates each associated row and
serializes as JSON
● Example Response:
58
Results from TechEmpower.com Round 9 tests (2014-05-01)
Data Updates
Java
JavaScript

59. 59
Node.js Web App Performance vs. Java
-100
-80
-60
-40
-20
0
20
40
-18
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
Multiple Queries
%ageofJavaPerformance

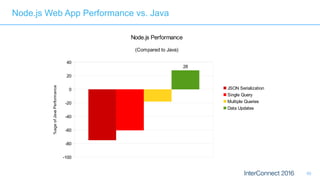

60. 60
Node.js Web App Performance vs. Java
-100
-80
-60
-40
-20
0
20
40
28
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
Multiple Queries
Data Updates
%ageofJavaPerformance

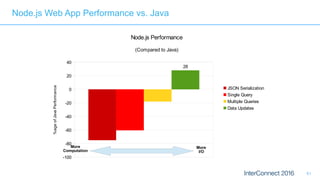

61. 61
Node.js Web App Performance vs. Java
-100
-80
-60
-40
-20
0
20
40
28
Node.js Performance
(Compared to Java)
JSON Serialization
Single Query
Multiple Queries
Data Updates
%ageofJavaPerformance
More
Computation
More
I/O

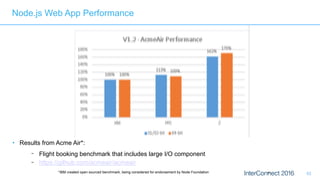

62. 6217*IBM created open sourced benchmark, being considered for endorsement by Node Foundation
Node.js Web App Performance
• Results from Acme Air*:
− Flight booking benchmark that includes large I/O component
− https://github.com/acmeair/acmeair

63. 63
● JIT Compilers thrive on certainty
● Allows functions to be implemented as efficiently as possible
● Dynamic typing forces the JIT to do more work:
● Variables could be function, or data
● Variables must be tested to determine how to handle them
● Variable types can change over time
Variable Typing and Just-In-Time (JIT) Compilation

64. 64
Just-In-Time (JIT) Compilation: The ‘+’ operator
int add(int a, int b) {
return (a + b);
}

65. 65

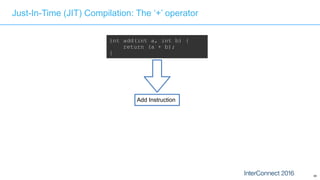

Just-In-Time (JIT) Compilation: The ‘+’ operator
int add(int a, int b) {
return (a + b);
}
Add Instruction

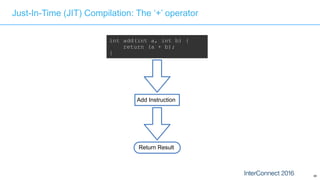

66. 66
Just-In-Time (JIT) Compilation: The ‘+’ operator
int add(int a, int b) {
return (a + b);
}
Add Instruction
Return Result

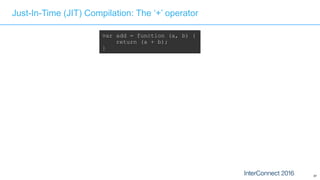

67. 67
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}

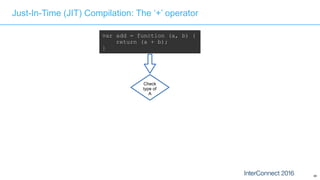

68. 68
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A

69. 69

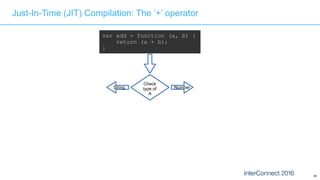

Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String Number

70. 70
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number

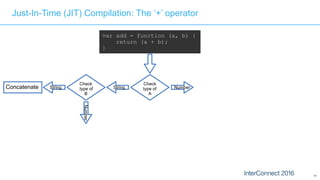

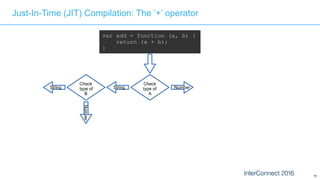

71. 71
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate

72. 72

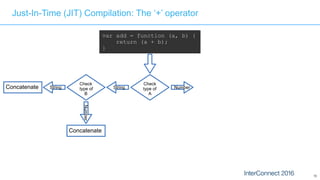

Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate

73. 73

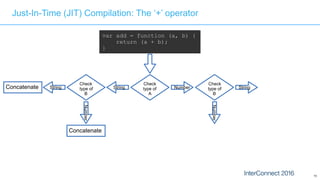

Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate
String
Check
type of
B
Number

74. 74

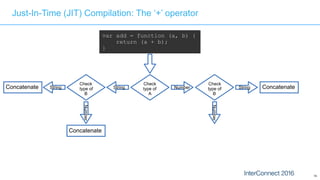

Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate
String
Check
type of
B
Number
Concatenate

75. 75

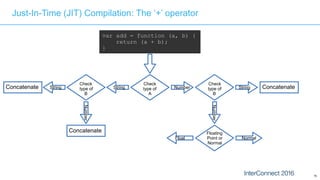

Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate
String
Check
type of
B
Number
Concatenate
Floating
Point or
Normal
NormalFloat

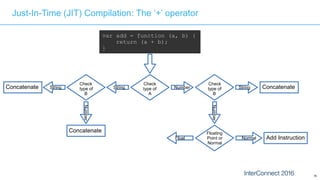

76. 76
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate
String
Check
type of
B
Number
Concatenate
Floating
Point or
Normal
NormalFloat Add Instruction

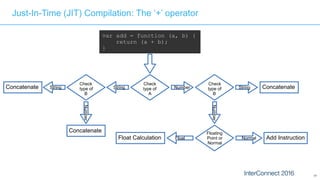

77. 77
Just-In-Time (JIT) Compilation: The ‘+’ operator
var add = function (a, b) {
return (a + b);
}
Check
type of
A
String NumberString
Check
type of
B
Number
Concatenate
Concatenate
String
Check
type of
B
Number
Concatenate
Floating
Point or
Normal
NormalFloat Add InstructionFloat Calculation

78. 78

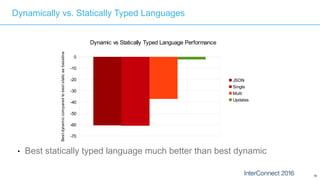

Dynamically vs. Statically Typed Languages
-70
-60
-50
-40
-30
-20
-10
0
Dynamic vs Statically Typed Language Performance
JSON
Single
Multi
Updates
Bestdynamiccomparedtobeststaticasbaseline
● Best statically typed language much better than best dynamic

79. 79
Language

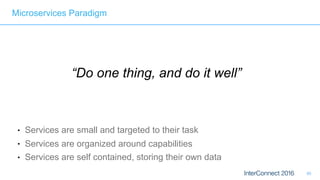

Selection

80. 80
“Do one thing, and do it well”
● Services are small and targeted to their task
● Services are organized around capabilities
● Services are self contained, storing their own data
Microservices Paradigm

81. 81
Choosing the Right Language for the Service

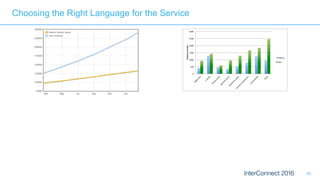

82. 82
Choosing the Right Language for the Service
0
500
1000
1500
2000
2500
3000
regex-dna
n-body
binary-trees spectral-norm
fannkuch-redux
reverse-com
plim
ent
k-nucleo>de
fasta
Volume of Code
Node.js
Java

83. 83

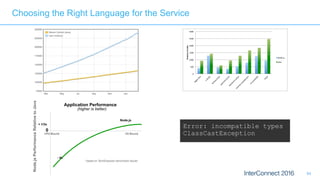

Node.js
0
- 4x
+ 1/3x
Node.jsPerformanceRelativetoJava
CPU Bound I/O Bound
* based on TechEmpower benchmark results
Application Performance
(higher is better)
Choosing the Right Language for the Service
0
500
1000
1500
2000
2500
3000
regex-dna
n-body
binary-trees spectral-norm
fannkuch-redux
reverse-com
plim
ent
k-nucleo>de
fasta
Volume of Code
Node.js
Java

84. 84
Node.js
0
- 4x
+ 1/3x
Node.jsPerformanceRelativetoJava
CPU Bound I/O Bound
* based on TechEmpower benchmark results
Application Performance
(higher is better)
Choosing the Right Language for the Service
0
500
1000
1500
2000
2500
3000
regex-dna
n-body
binary-trees spectral-norm
fannkuch-redux
reverse-com
plim
ent
k-nucleo>de
fasta
Volume of Code
Node.js
Java
Error: incompatible types
ClassCastException

85. 85
● Higher performance for I/O
● Easier async programming
● Fullstack/isomorphic development
Choosing the Right Language for the Service

86. 86
Choosing the Right Language for the Service
● Higher processing performance
● Type safety for calculations
● Rich processing frameworks

87. 87
● Highly performant, scalable rich web applications
● Highly performant, reliable transaction processing
● Self-contained micro-service components
Choosing the Right Language for the Service
+

88. 88
Emerging
Architectures

89. 89

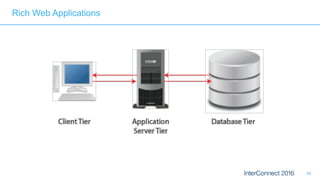

Rich Web Applications

90. 90

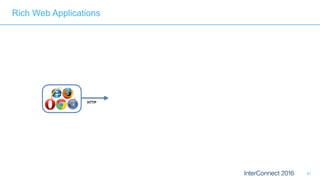

Rich Web Applications

91. 91
Rich Web Applications
HTTP

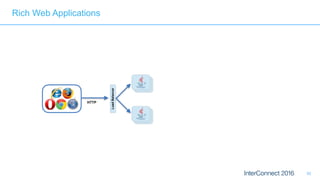

92. 92
Rich Web Applications
HTTP
LoadBalancer

93. 93
Rich Web Applications
HTTP
LoadBalancer

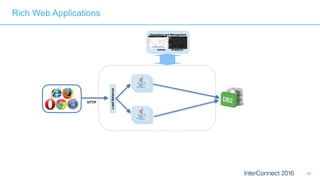

94. 94
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications

95. 95
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications

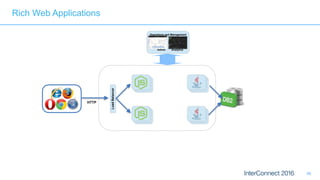

96. 96
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications

97. 97
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications
LoadBalancer

98. 98
MicroServices and API Economy

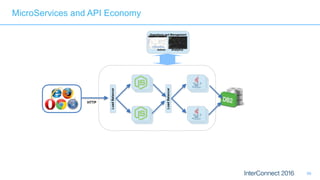

99. 99
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

100. 100
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

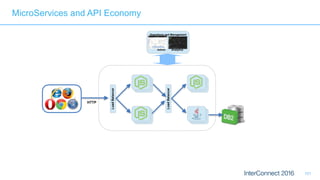

101. 101
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

102. 102
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

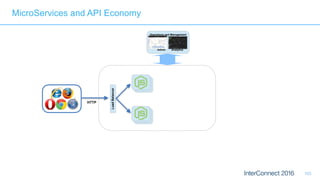

103. 103
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy

104. 104
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy

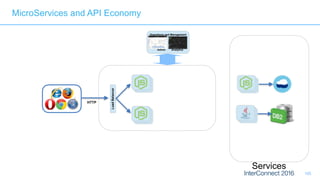

105. 105
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

106. 106
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

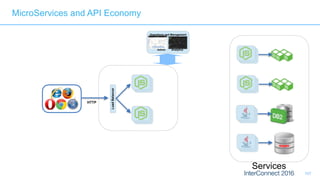

107. 107
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

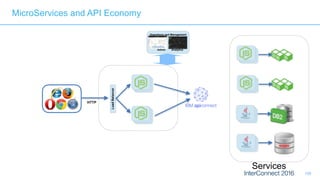

108. 108
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

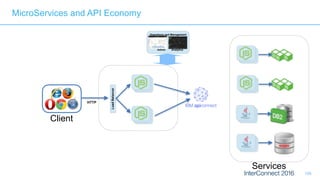

109. 109
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services
Client

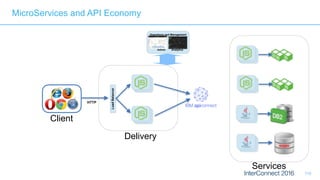

110. 110
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services
Client
Delivery

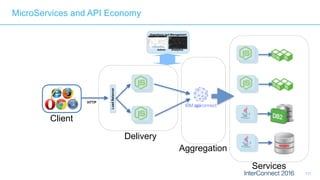

111. 111
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Client
Delivery
Aggregation
Services

112. 112
Questions?

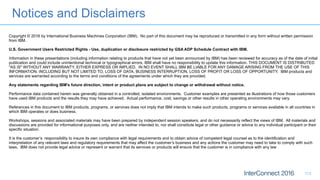

113. Notices and Disclaimers
113
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission
from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial
publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED
"AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF THIS
INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY. IBM products and
services are warranted according to the terms and conditions of the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers
have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in
which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and
discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their
specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and
interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such
laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law

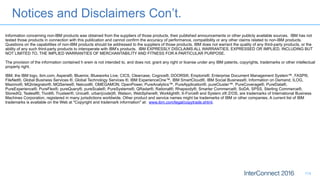

114. Notices and Disclaimers Con’t.
114
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not
tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the
ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained h erein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual
property right.
IBM, the IBM logo, ibm.com, Aspera®, Bluemix, Blueworks Live, CICS, Clearcase, Cognos®, DOORS®, Emptoris®, Enterprise Document Management System™, FASP®,
FileNet®, Global Business Services ®, Global Technology Services ®, IBM ExperienceOne™, IBM SmartCloud®, IBM Social Business®, Information on Demand, ILOG,
Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®,
PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, Smarter Commerce®, SoDA, SPSS, Sterling Commerce®,
StoredIQ, Tealeaf®, Tivoli®, Trusteer®, Unica®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International Business
Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM
trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.

115. Thank You
Your Feedback is Important!
Access the InterConnect 2016 Conference Attendee
Portal to complete your session surveys from your
smartphone,
laptop or conference kiosk.
