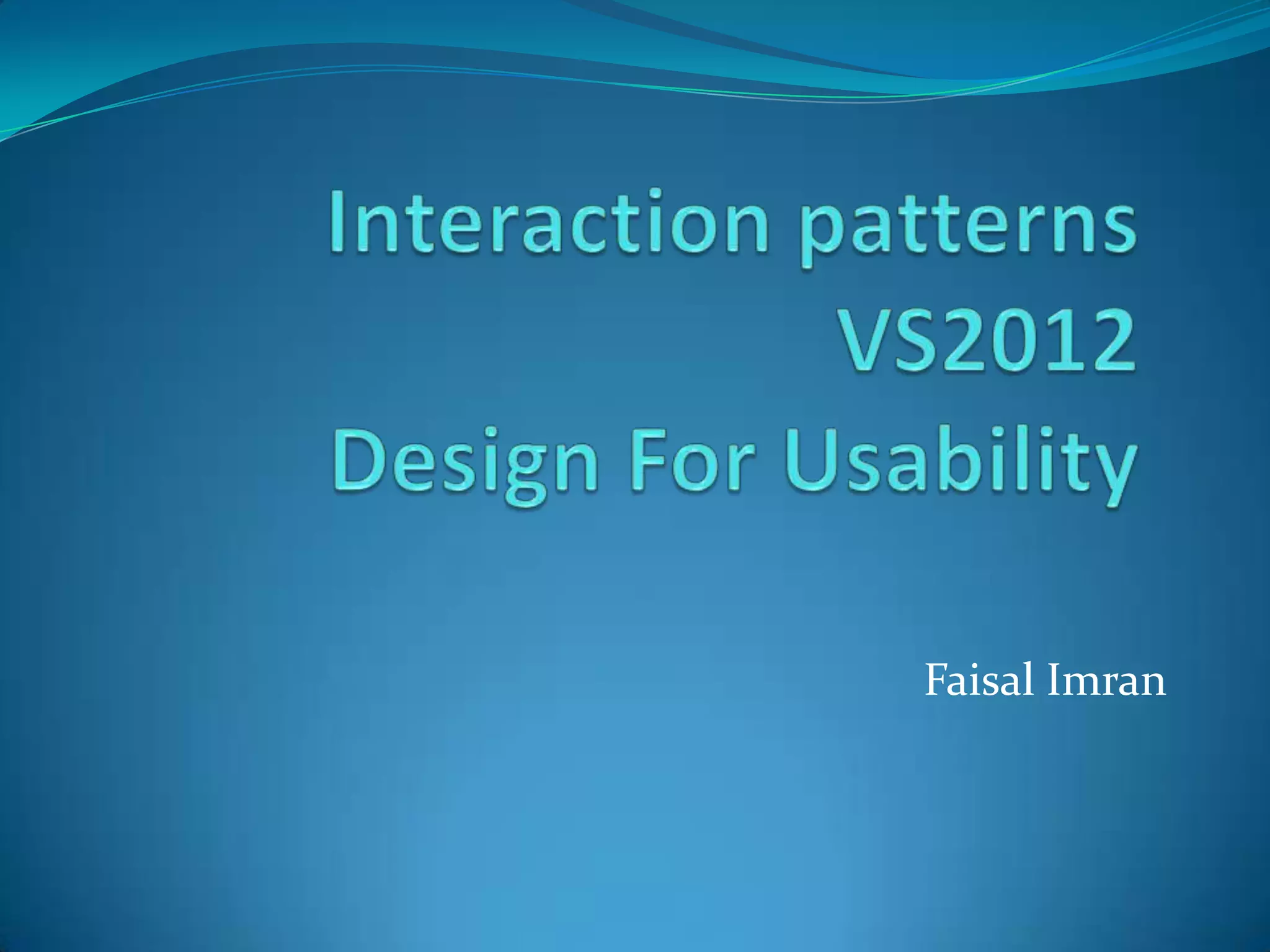

Interaction patterns, VS2012 Design For Usability

1. Faisal Imran

2. About VS 2012
 Visual Studio is a comprehensive collection of tools and
services to help you create a wide variety of apps, both for
the Microsoft platform and beyond.
 Visual Studio also connects all of your projects, teams, and
stakeholders. Now your team can work with greater agility
from virtually anywhere—irrespective of development tool,
including Eclipse and Xcode.
 Whether you’re designing mission-critical .NET apps,
writing blazing fast code with C++ AMP, or testing and
debugging a cloud-connected HTML/JavaScript app that
runs on many devices, join millions of developers
worldwide in choosing Visual Studio as your essential
development environment.

3. 1. Wizard
 Usability Principle User Guidance (Visibility)

4. 2. Grid Layout
 Usability Principle Consistency, Predictability
(Conceptual Models)
 Context Any circumstance where several information
objects are presented and arranged spatially on a
limited area. Typically in the design of dialog screens,
forms and web pages.

5. 3. Progress
 Usability Principle Guidance (Feedback)
 Context Systems tasks that take a long time (typically
more than a few seconds) and must be completed
before the next tasks can be started.

6. 4. Shield
 Usability Principle Error Management (Safety)
 Context Functions that have irreversible (side) effects
or require a lot of resources to undo/reverse. The
(side) effects may lead to unsafe or highly undesired
situations. Often it is the combination of action
arguments that makes it severe, and the user may not
be aware of this, since it is normally safe.

7. 5. Preferences
 Usability Principle Adaptability (Flexibility)
 Context The application is very complex and many of
its functions can be tuned to the user’s preference. Not
enough is known about the user's preferences in order
to assume defaults that will suit all users. The potential
users can range from novice to expert.

8. 6. Contextual Menu
 Usability Principle User Guidance (Visibility)
 Context An application typically contains a lot of
functionality and the user needs to know her
possibilities at any point during use.

9. 7. Focus
 Usability Principle Guidance (Constraints)
 Context An application where several visual objects
are manipulated, typically drawing packages or
browsing tools.

10. 8. Unambiguous Format
 Usability Principle User Guidance (Constraints)
 Context Any system where structured data must be
entered. Data such as dates, room numbers, social
security numbers or serial numbers are usually
structured. The exact syntax used for such data may
vary per country or product.
 Date Time Selection is example in VS2012

11. 9. Navigating between Spaces
 Usability Principle User Guidance (Natural
Mapping)
 Context Systems with a lot of states, functionality and
objects, that are relevant only in groups.

12. 10. Preview
 Usability Principle Compatibility (Natural Mapping)
 Context In many applications the user needs to find
an item e.g. a file, a presentation, video clip, or an
image, for which a visual or auditory search criterion is
more effective but the index of the set is not
audiovisual (e.g. a text label).

13. 11. Favourites
 Usability Principle Minimizing Actions (Flexibility)
 Context The user is looking for an item that is
contained in a large set of items. The item is of
importance and the user requires it regularly. Items are
typically files, colors, web pages or database records
and are part of large collections, respectively a file
system, the web or a Database.

14. 12. Container Navigation
 Usability Principle Grouping of Elements (Natural
Mapping)
 Context Many applications contain aggregated data,
which the user must browse through. Quite often, the
user wants to invoke a function taking one of the parts
as input parameter.

15. 13. Setting Attributes
 Usability Principle User Guidance (Visibility)
 Context In many applications, a document can hold
many different objects with many different attributes

16. 14. Warning
 Usability Principle Error prevention (Safety)
 Context Situations where the user performs an action
that may unintentionally lead to a problem
