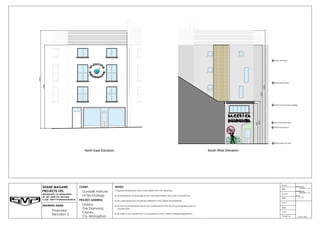

This drawing shows proposed elevations for a project at Dundalk Institute of Technology in Clones, Co. Monaghan, Ireland. It was drawn by Shane Maguire Projects Ltd. of Monaghan and notes that all dimensions must be verified, structural elements confirmed, and work carried out according to building regulations. The drawing depicts the northeast and southwest elevations.
A revit model I designed as part of an optional module during my second year at university. Several constraints were given including: using a 5x5 grid with 5m spacing, have a 3x3 core, has to be 3 levels tall with varying levels, and contain up to 20 columns. This project helped me solidify the Revit skills I had learnt throughout the module and retain knowledge for taking the Revit certification test. Through pushing myself to experiment with the software and editing profiles/families, I managed to obtain a mark of 92% for this coursework.
A revit model I designed as part of an optional module during my second year at university. Several constraints were given including: using a 5x5 grid with 5m spacing, have a 3x3 core, has to be 3 levels tall with varying levels, and contain up to 20 columns. This project helped me solidify the Revit skills I had learnt throughout the module and retain knowledge for taking the Revit certification test. Through pushing myself to experiment with the software and editing profiles/families, I managed to obtain a mark of 92% for this coursework.
1. OS REF: 84043
SHANE MAGUIRE
PROJECTS LTD.
MONAGHAN, CO. MONAGHAN
TEL. 047 12345 FAX. 04712345
e-mail : D00171976@webmail.dkit.ie
DRAWING NAME
Proposed
Elevation 2
CLIENT:
Dundalk Institute
of Technology
PROJECT ADDRESS:
Dinkins,
The Diamond,
Clones,
Co. Monaghan
NOTES:
DRAWN
XXX
DESIGN
XXX
19.04.16
XXX
CHECK
DATE
12345678 - 910
PROJECT No.
00000000 - 001
DRAWING No.
SCALE.
1: 100
1) Figured dimensions only to be taken from this drawing
2) All dimensions & drawings to be checked before any work commences
3) Any discrepencies should be referred to this office immediately
4) All structural elements are to be confirmed by the structural engineer prior to
construction
5) All work to be carried out in accordance with current building regulations
North-East Elevation South-West Elevation
