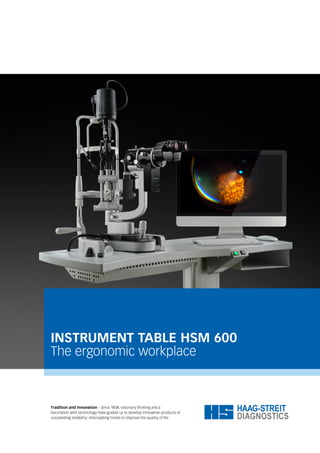

Tradition and Innovation – Since 1858, visionary thinking and a
fascination with technology have guided us to develop innovative products of
outstanding reliability: Anticipating trends to improve the quality of life.
INSTRUMENT TABLE HSM 600
The ergonomic workplace

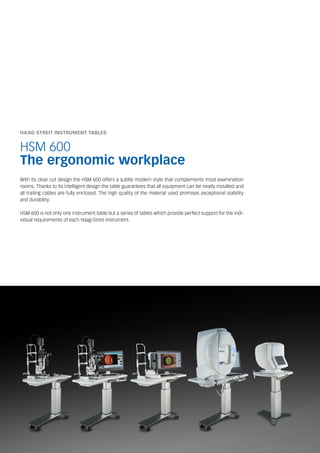

With its clear cut design the HSM 600 offers a subtle modern style that complements most examination
rooms. Thanks to its intelligent design the table guarantees that all equipment can be neatly installed and
all trailing cables are fully enclosed. The high quality of the material used promises exceptional stability
and durability.
HSM 600 is not only one instrument table but a series of tables which provide perfect support for the indi-
vidual requirements of each Haag-Streit instrument.
HAAG-STREIT INSTRUMENT TABLES
HSM 600
The ergonomic workplace
Customized for each Haag-Streit instrument, the HSM 600 ideally
supports the examination workflow. The purpose-made table tops
allow ergonomic posture for operator and patient. For instruments
requiring a PC the tables provide sufficient space for comfortable
working with both, the instrument and the PC.
The patient friendly design of the HSM 600 ensures comfortable ac-
cess for all patients - also for those sitting in a wheelchair. The asym-
metrical design provides a handicapped accessible approach to the
instrument.
Ergonomic workstation
Wheelchair accessibility
Technical specifications
HSM 600
HSM 600 for Slit Lamp small HSM 600 for Slit Lamp large HSM 600 for BX 900
Dimensions of tabletop 860 x 440 mm 1150 x 440 mm 1150 x 440 mm
Height (min/max) 674 / 928 674 / 928 674 / 928
Weight (kg) 48 51 53
Voltage (V) 120 or 230 120 or 230 120 or 230
Lifting capacity (kg) 50 50 50
Wheelchair accessibility Yes Yes Yes
LAN cable through column Optional Optional Optional
Storage Shelf Optional Optional Optional
Bracket for PC Optional Optional Optional
Castors Yes Yes Yes
HSM 600 for Lenstar HSM 600 for Octopus 900 HSM 600 for Octopus 600
Dimensions of tabletop 1150 x 440 mm 1080 x 480 mm 560 x 640 mm
Height (min/max) 674 / 928 674 / 928 616 / 870
Weight (kg) 51 57 29
Voltage 120 or 230 120 or 230 120 or 230
Lifting capacity (kg) 50 50 50
Wheelchair accessibility Yes Yes Yes
LAN cable through column Optional Optional Optional
Storage Shelf Optional Optional Not available
Bracket for PC Optional Optional Not available
Castors Yes Yes No
ERGONOMIC WORKSTATION
WHEELCHAIR ACCESSIBILITY

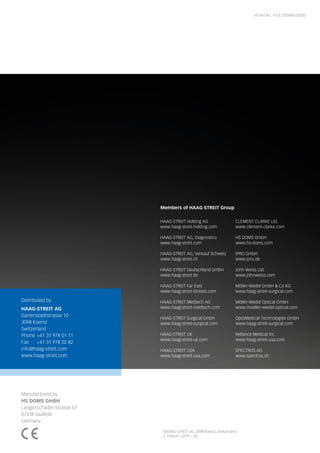

©HAAG-STREIT AG, 3098 Koeniz, Switzerland
