1. Inheritance: Vertical
or Horizontal?
Mark Niebergall
https://joind.in/talk/77415

2. About Mark Niebergall
• PHP since 2005
• Masters degree in MIS
• Senior Software Engineer
• Drug screening project
• UPHPU President
• CSSLP, SSCP Certified and SME
• Drones, fishing, skiing, father, husband

3. About Mark Niebergall
• Twitter @mbniebergall
• phpug.slack.com
• phpchat.slack.com
• phpcommunity.slack.com
• utos.slack.com

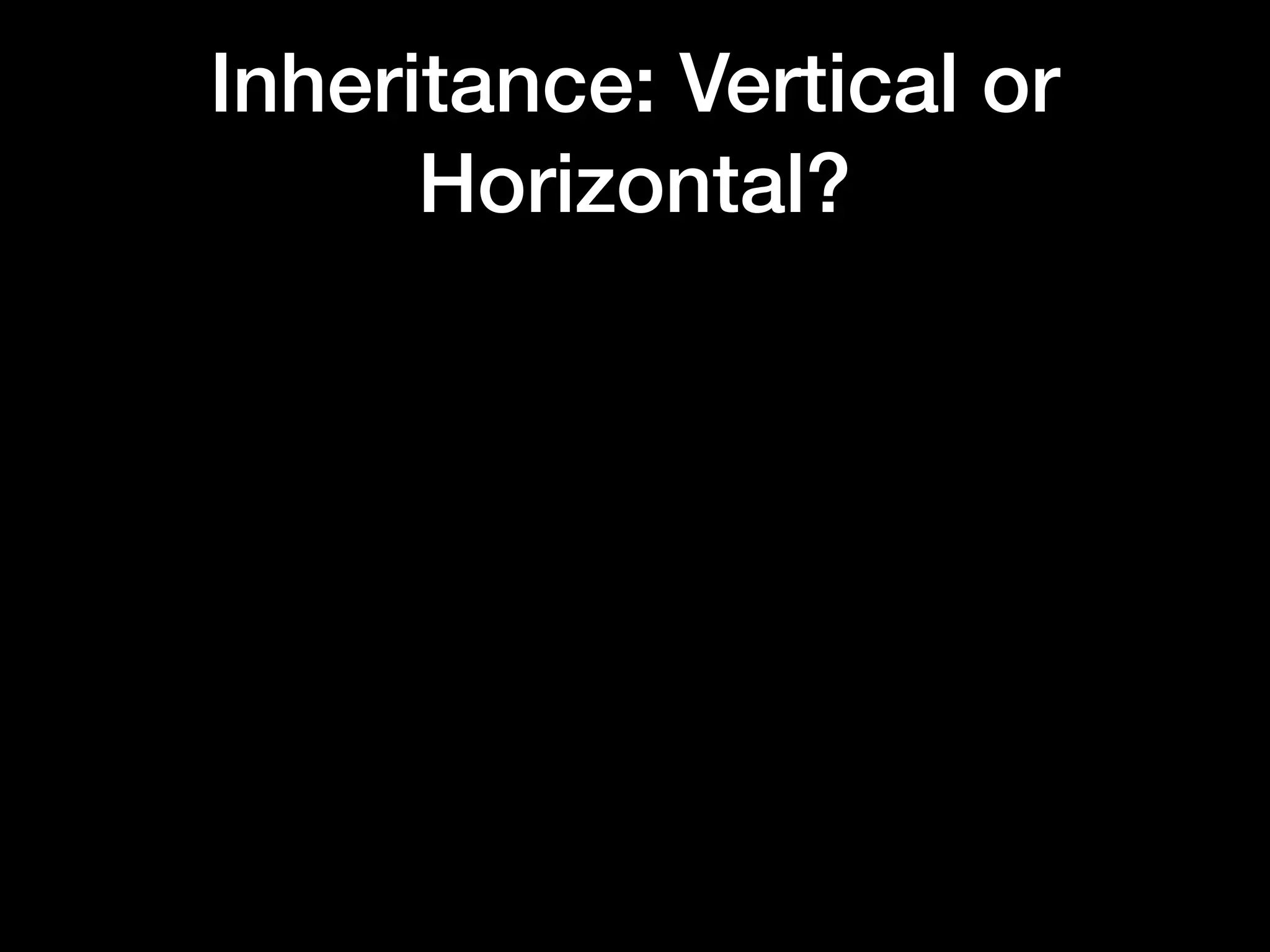

5. Inheritance: Vertical or
Horizontal?

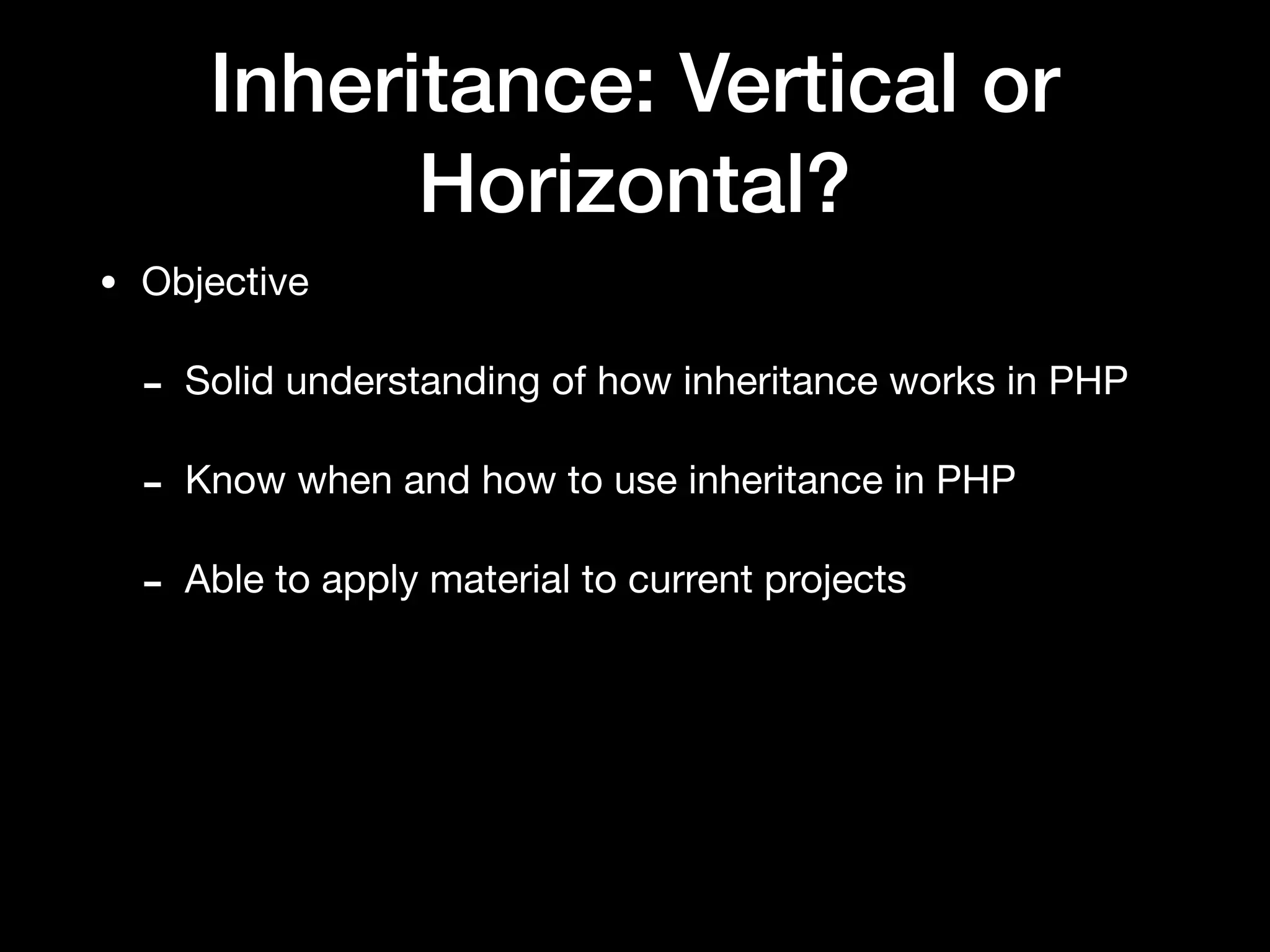

8. Inheritance: Vertical or
Horizontal?
• Objective
- Solid understanding of how inheritance works in PHP
- Know when and how to use inheritance in PHP
- Able to apply material to current projects

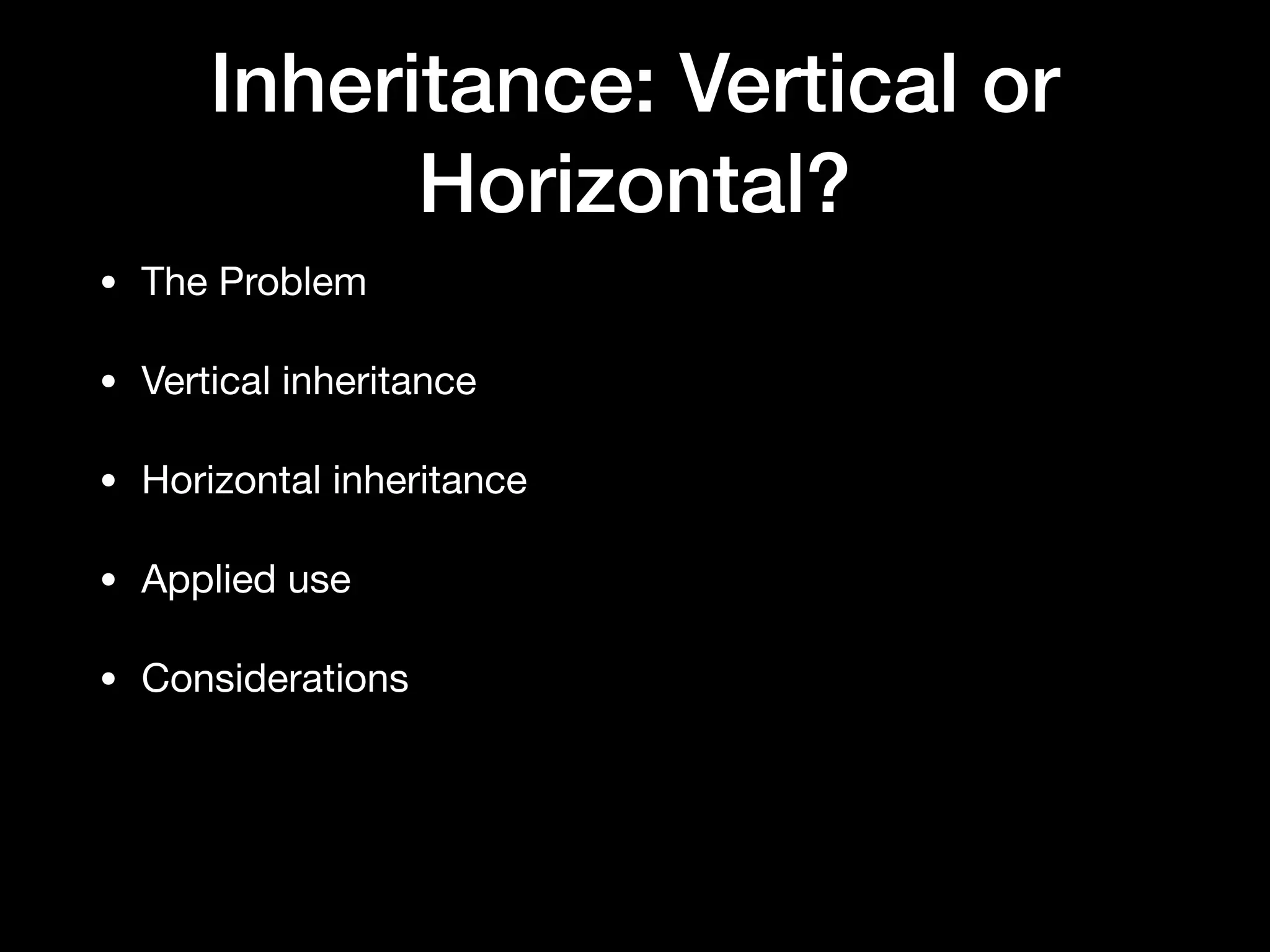

9. Inheritance: Vertical or
Horizontal?
• The Problem
• Vertical inheritance
• Horizontal inheritance
• Applied use
• Considerations

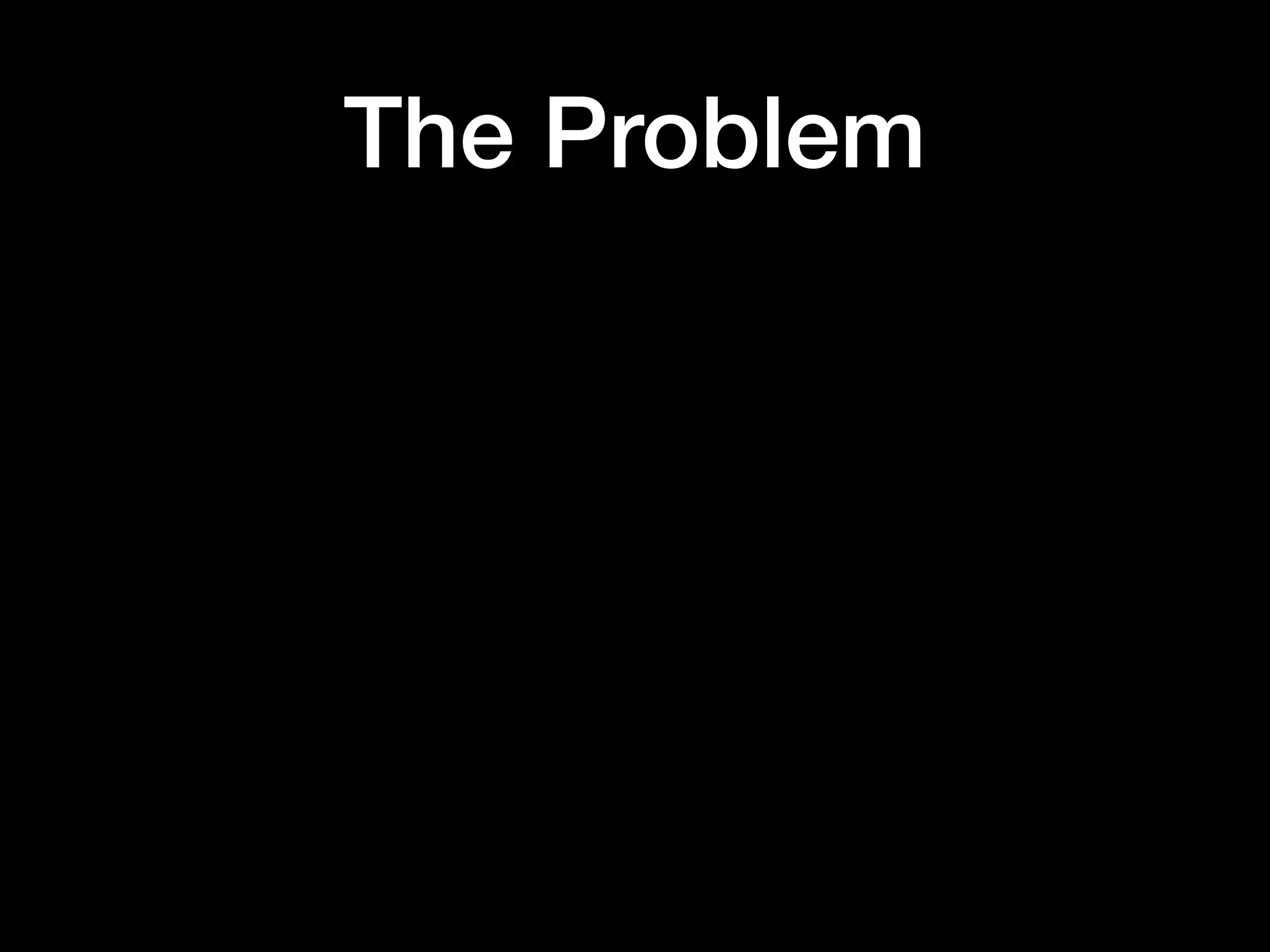

10. The Problem

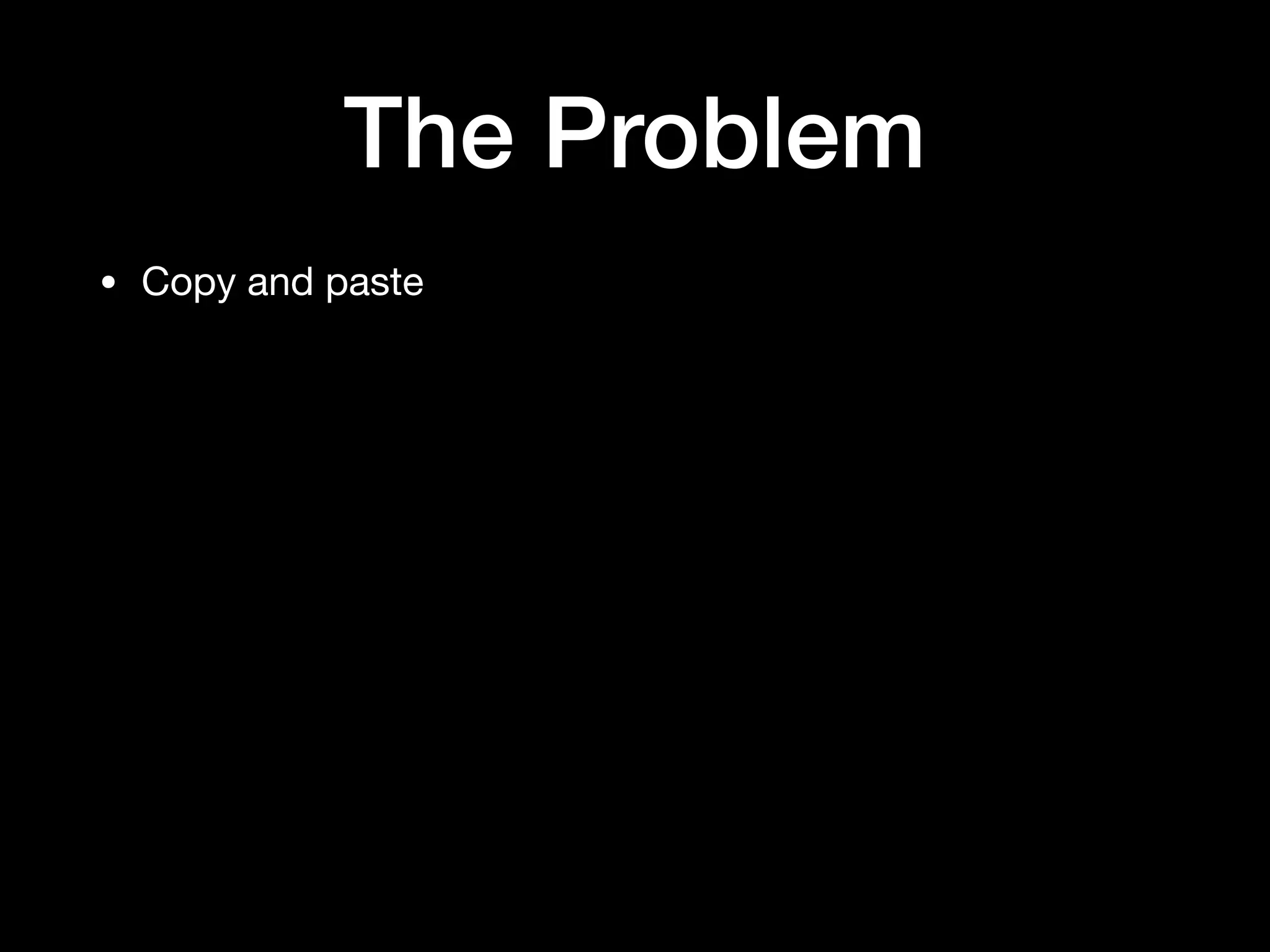

11. The Problem
• Copy and paste

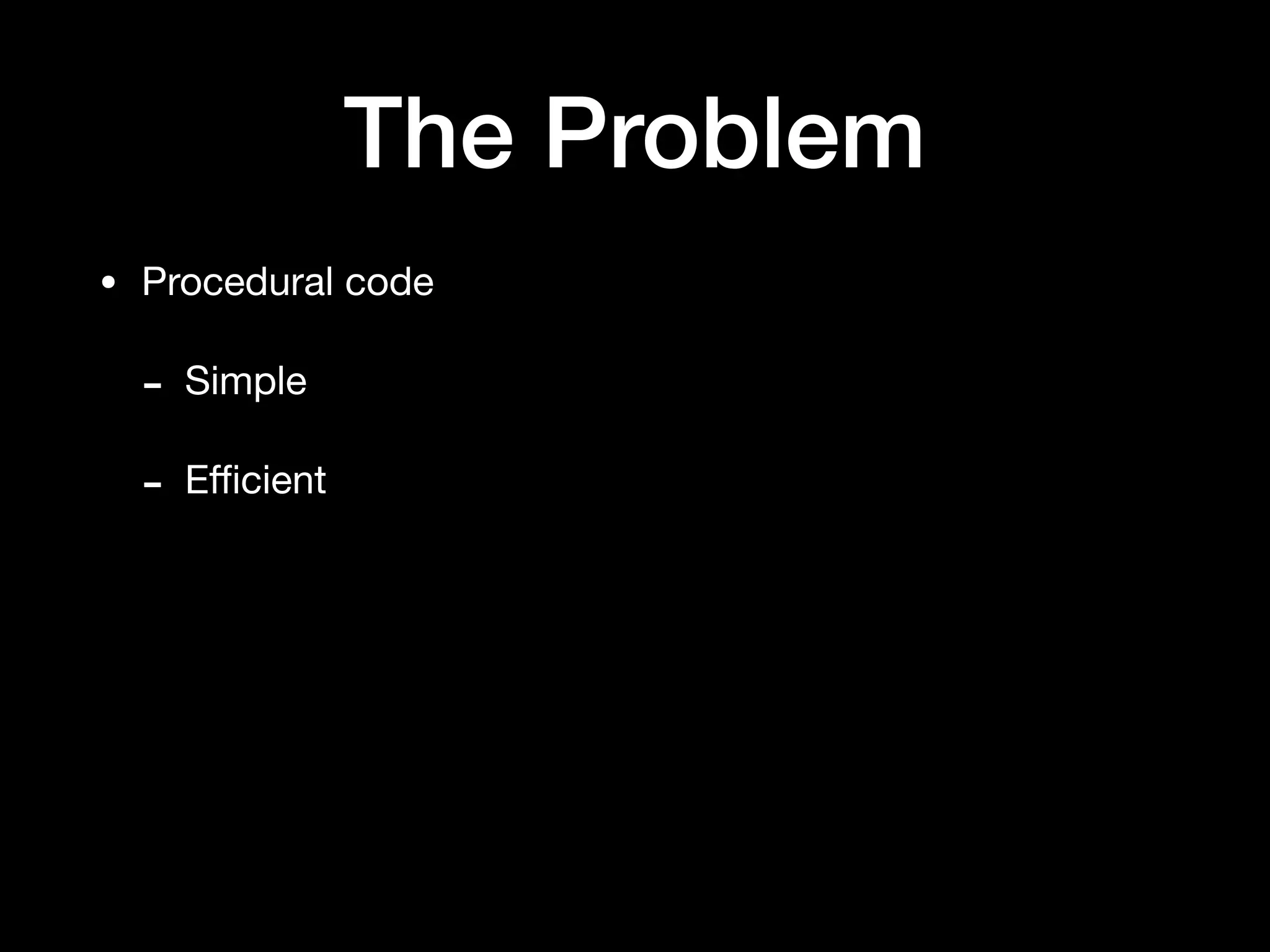

12. The Problem
• Procedural code
- Simple
- Efficient

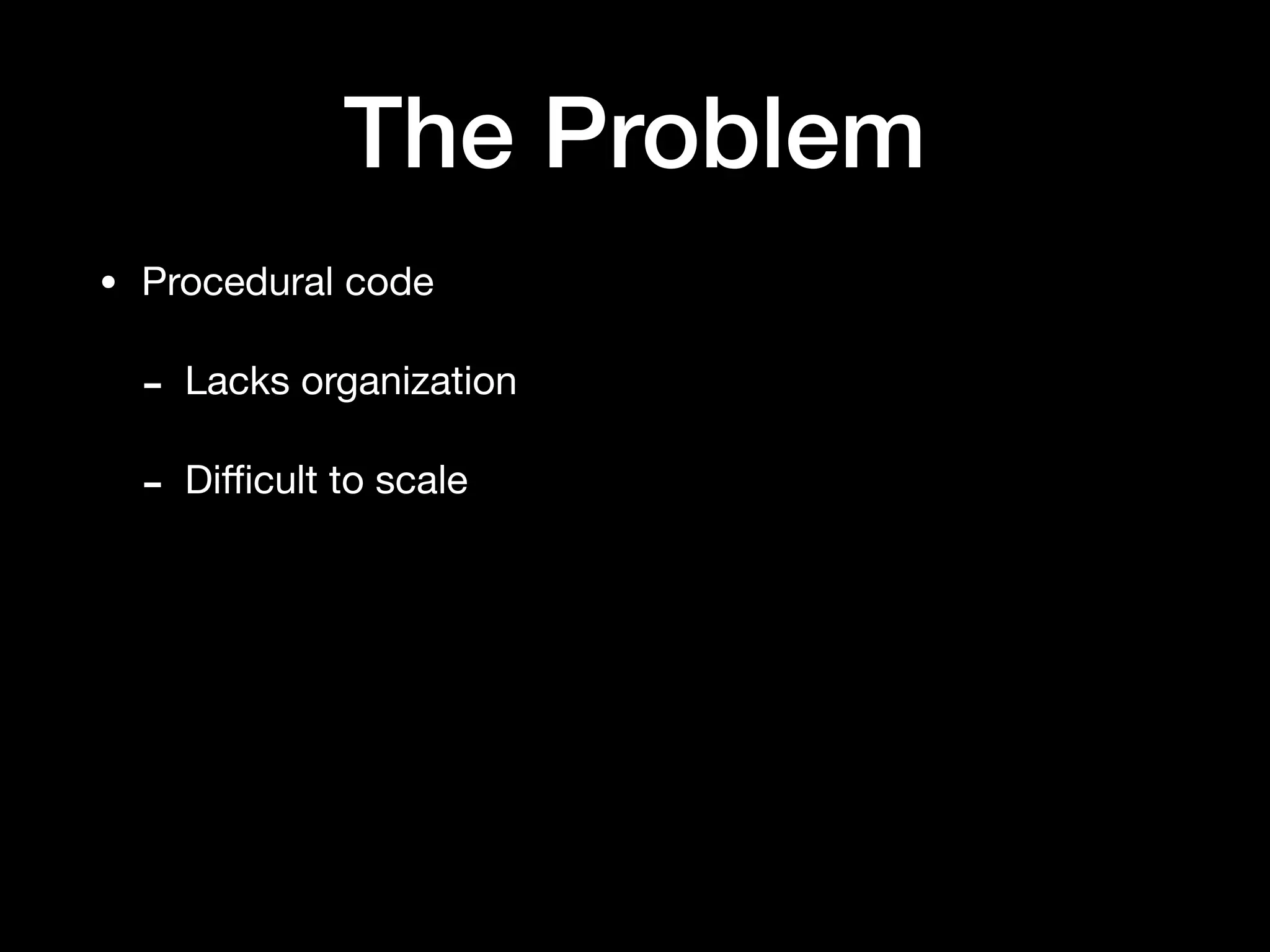

13. The Problem
• Procedural code
- Lacks organization
- Difficult to scale

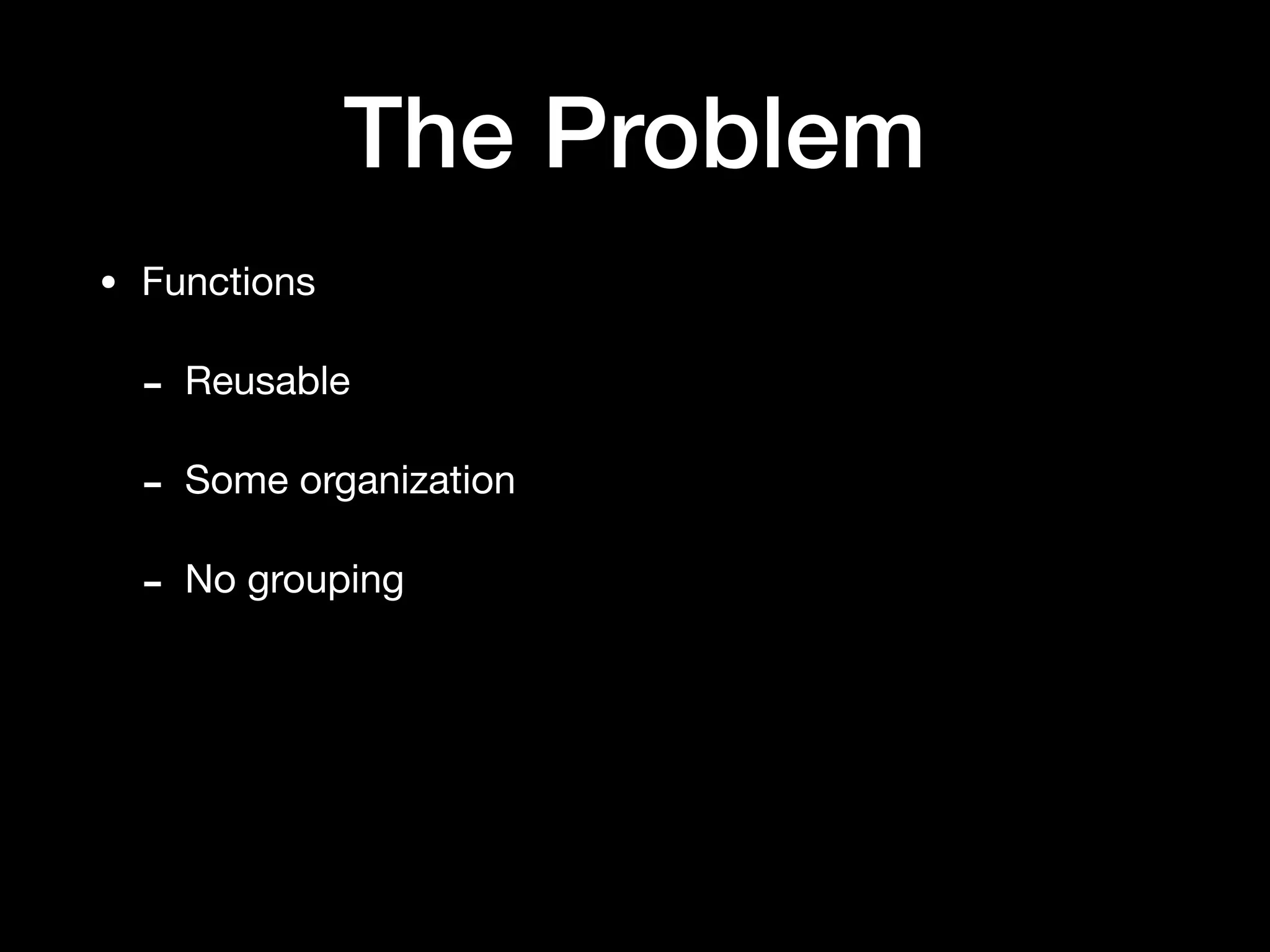

14. The Problem
• Functions
- Reusable
- Some organization
- No grouping

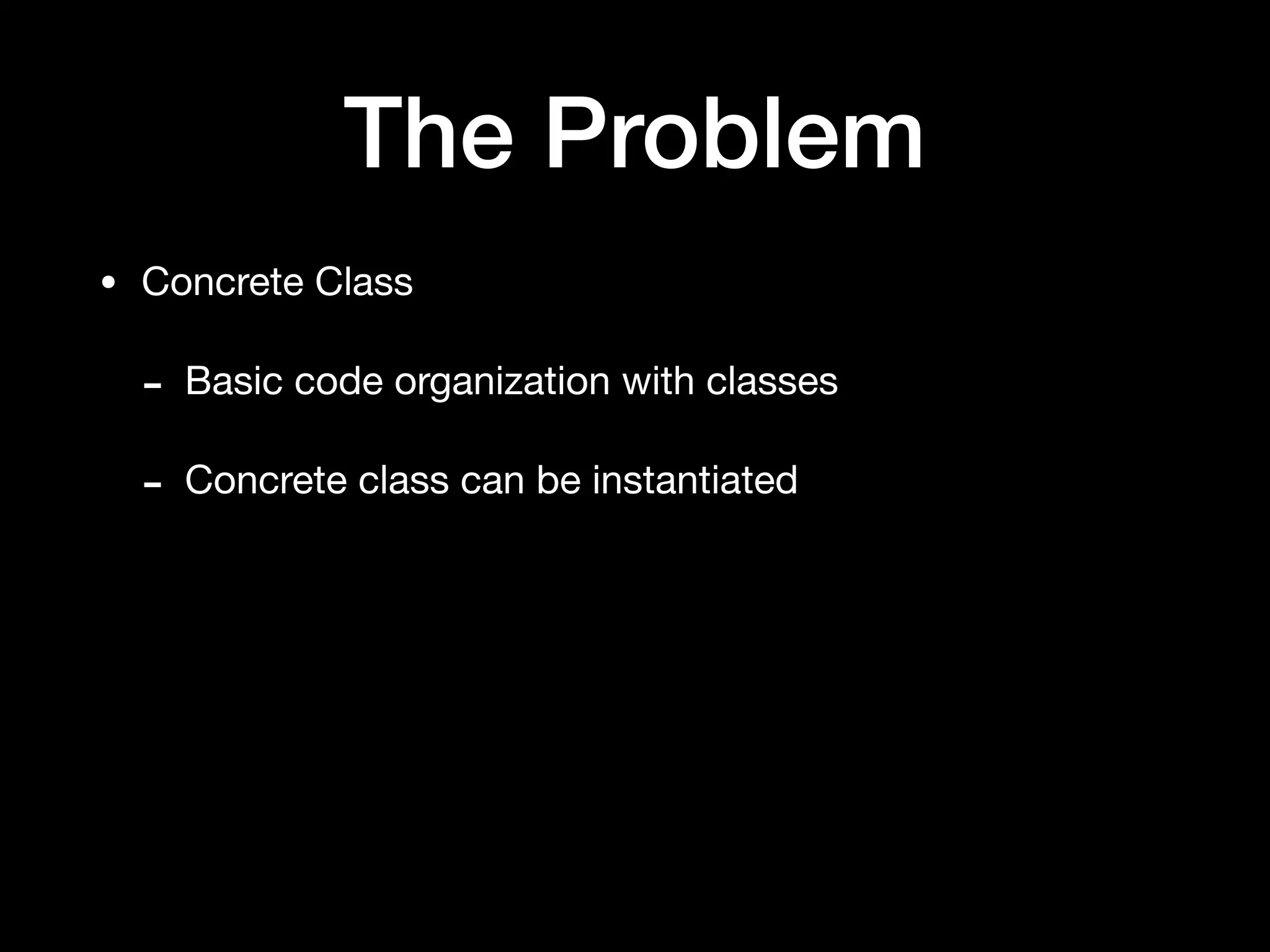

15. The Problem
• Concrete Class
- Basic code organization with classes
- Concrete class can be instantiated

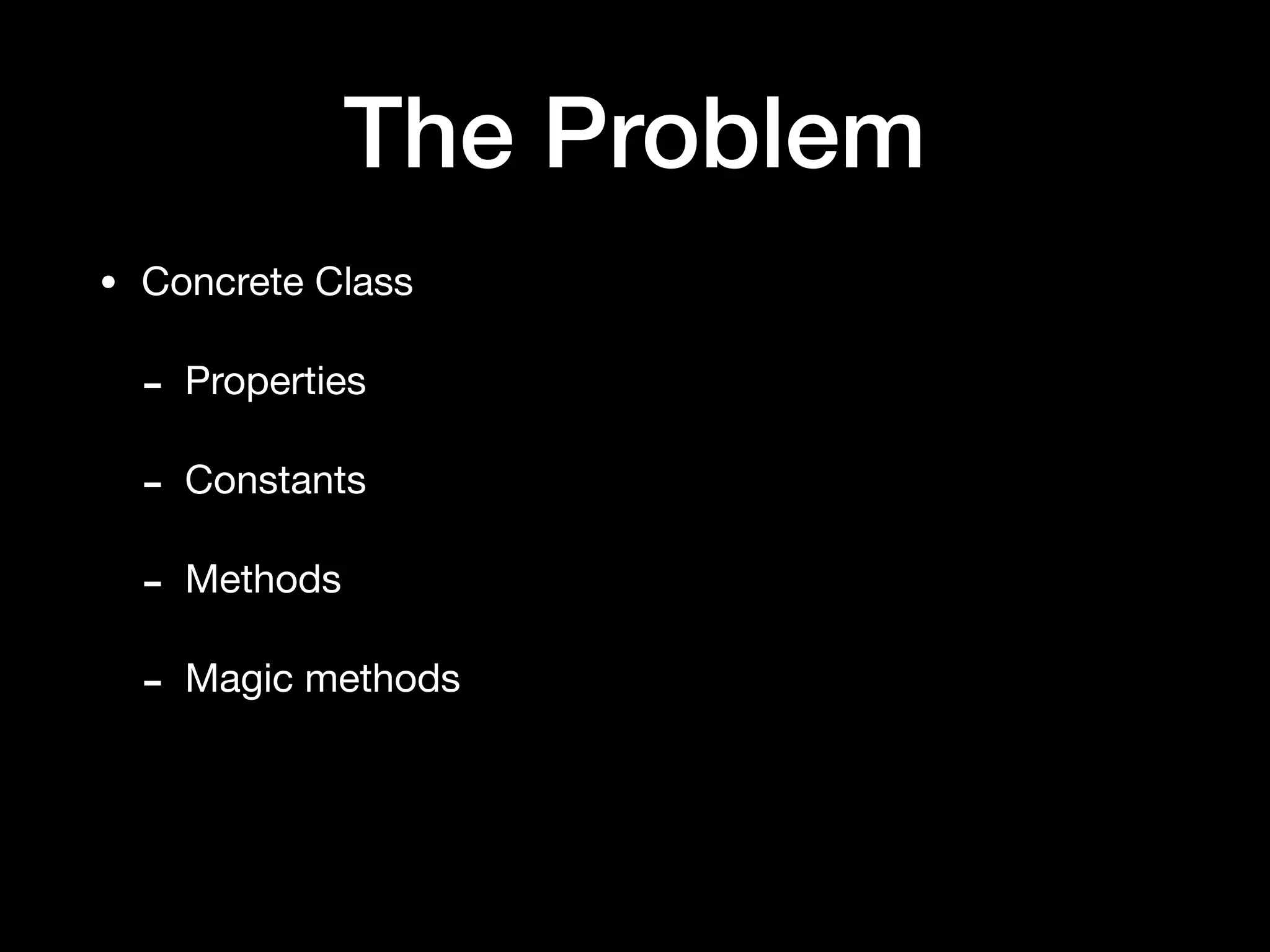

16. The Problem
• Concrete Class
- Properties
- Constants
- Methods
- Magic methods

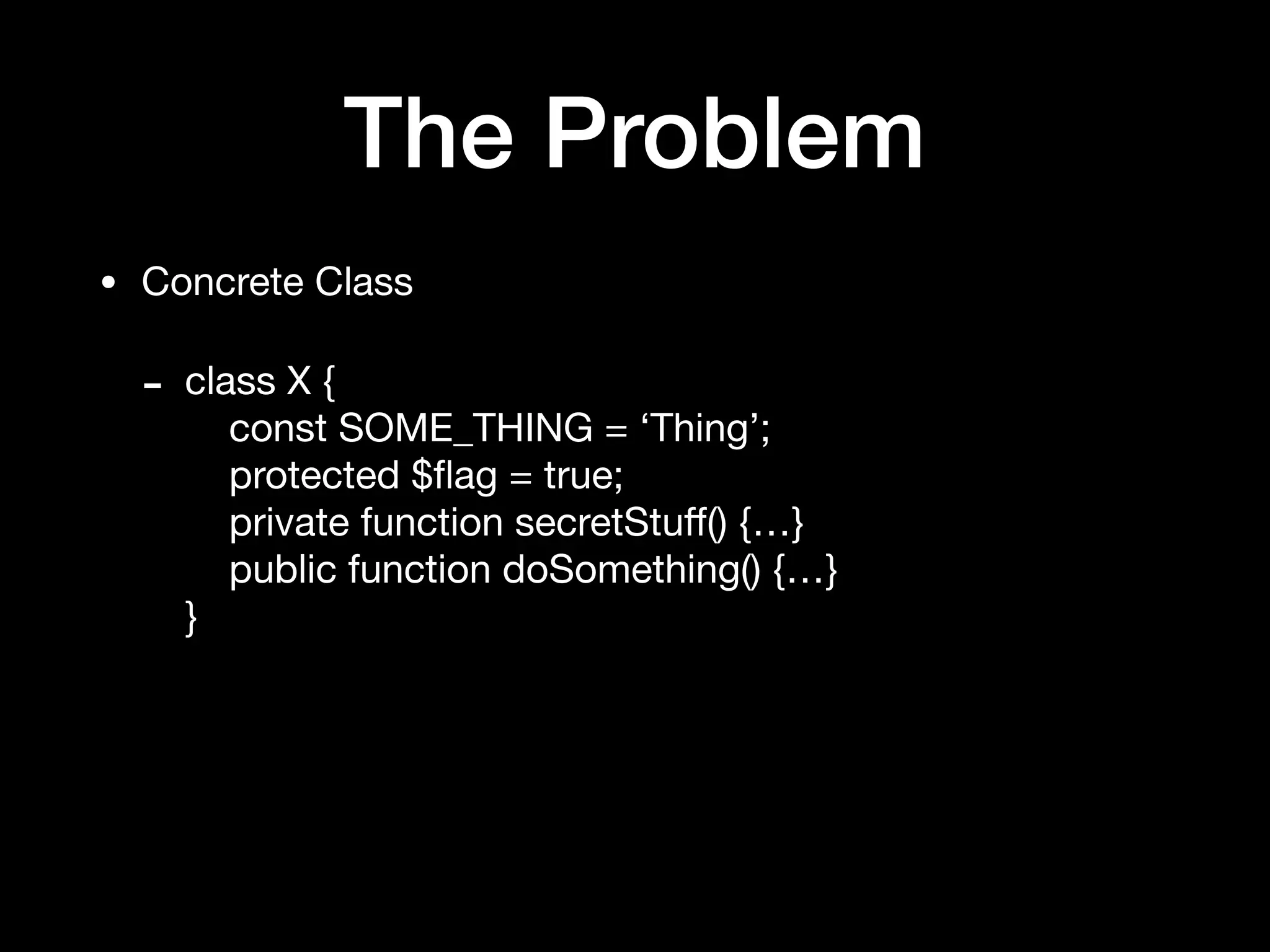

17. The Problem
• Concrete Class
- class X {
const SOME_THING = ‘Thing’;
protected $flag = true;
private function secretStuff() {…}
public function doSomething() {…}
}

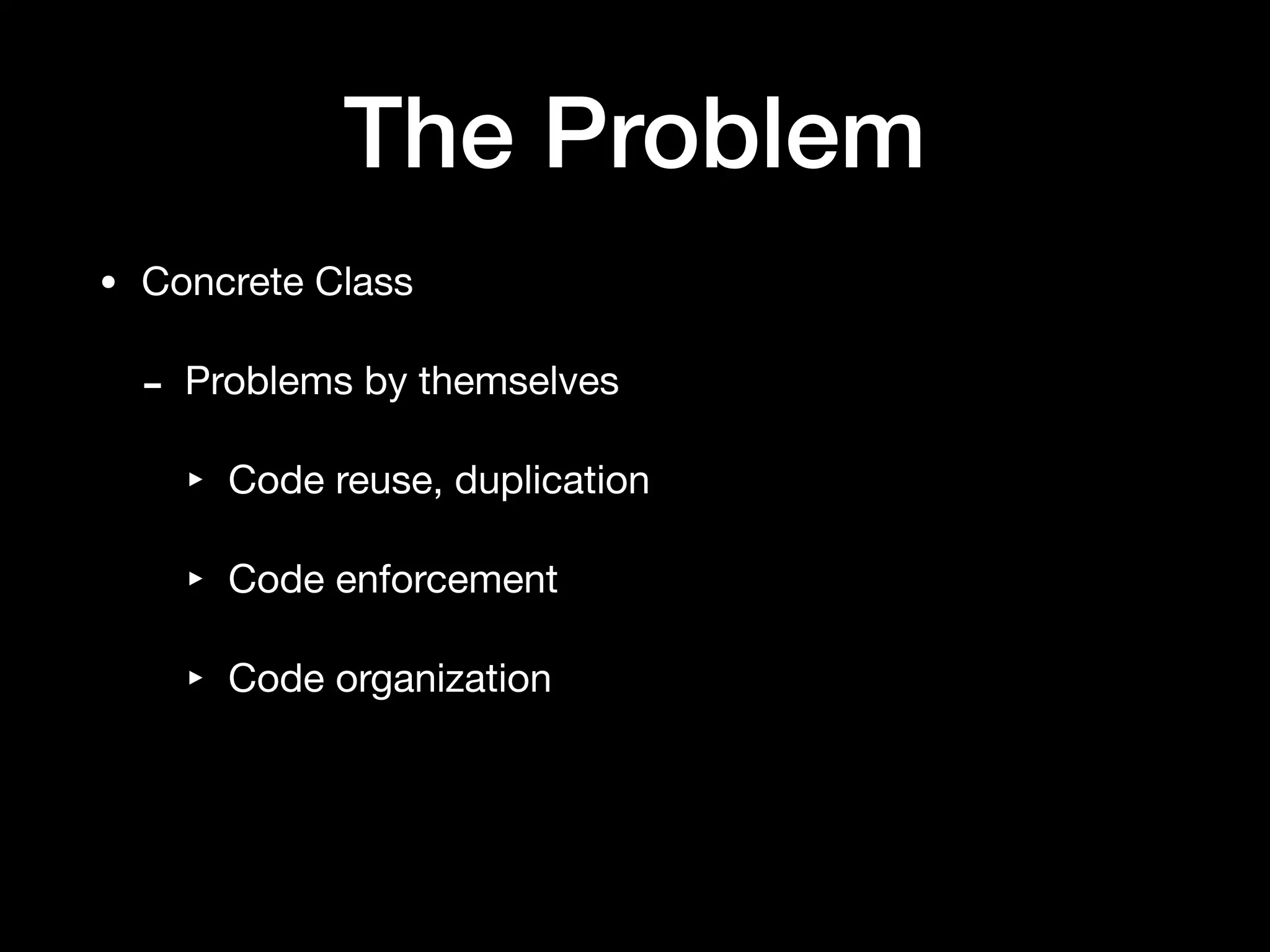

18. The Problem
• Concrete Class
- Problems by themselves
‣ Code reuse, duplication
‣ Code enforcement
‣ Code organization

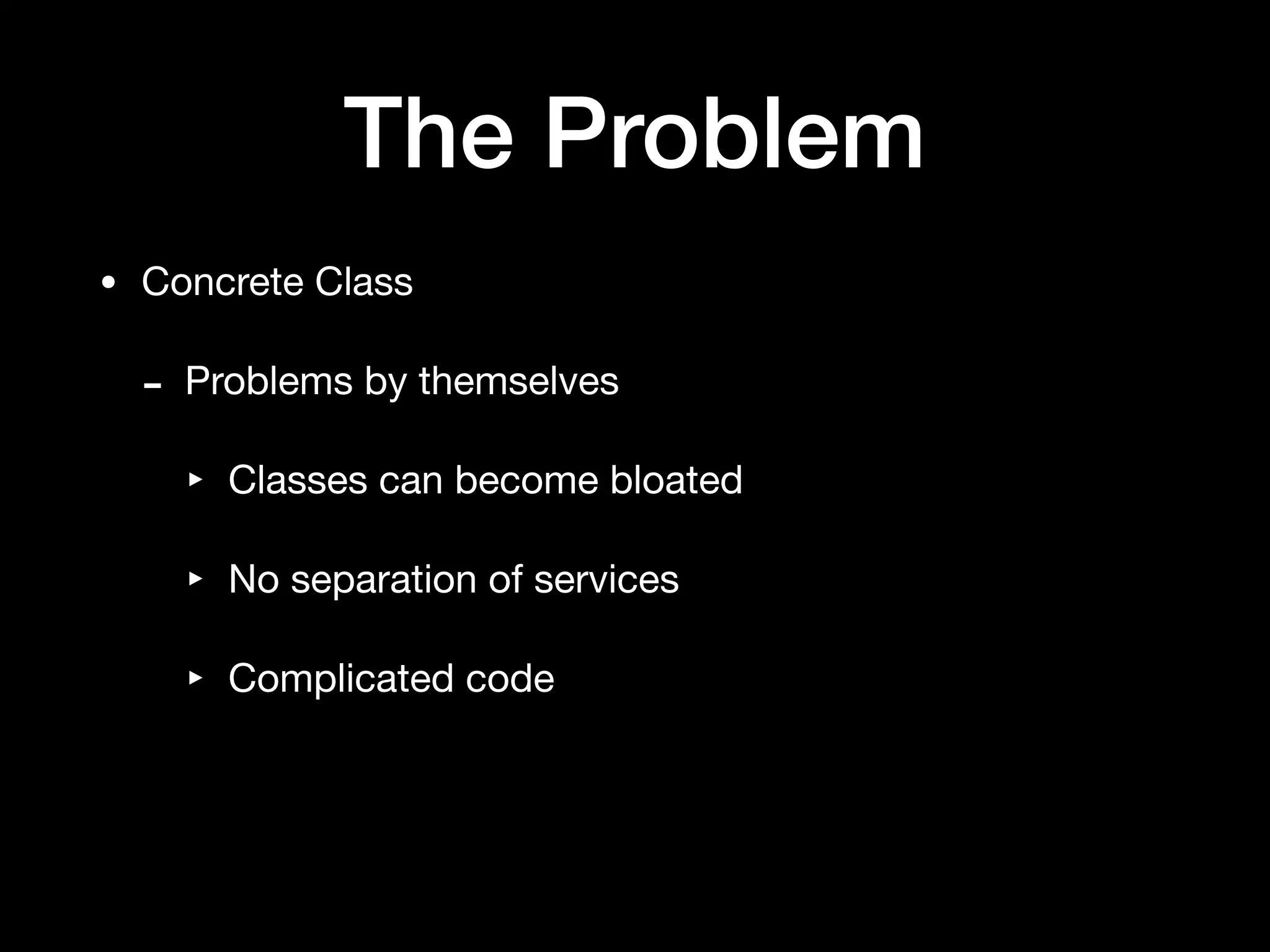

19. The Problem
• Concrete Class
- Problems by themselves
‣ Classes can become bloated
‣ No separation of services
‣ Complicated code

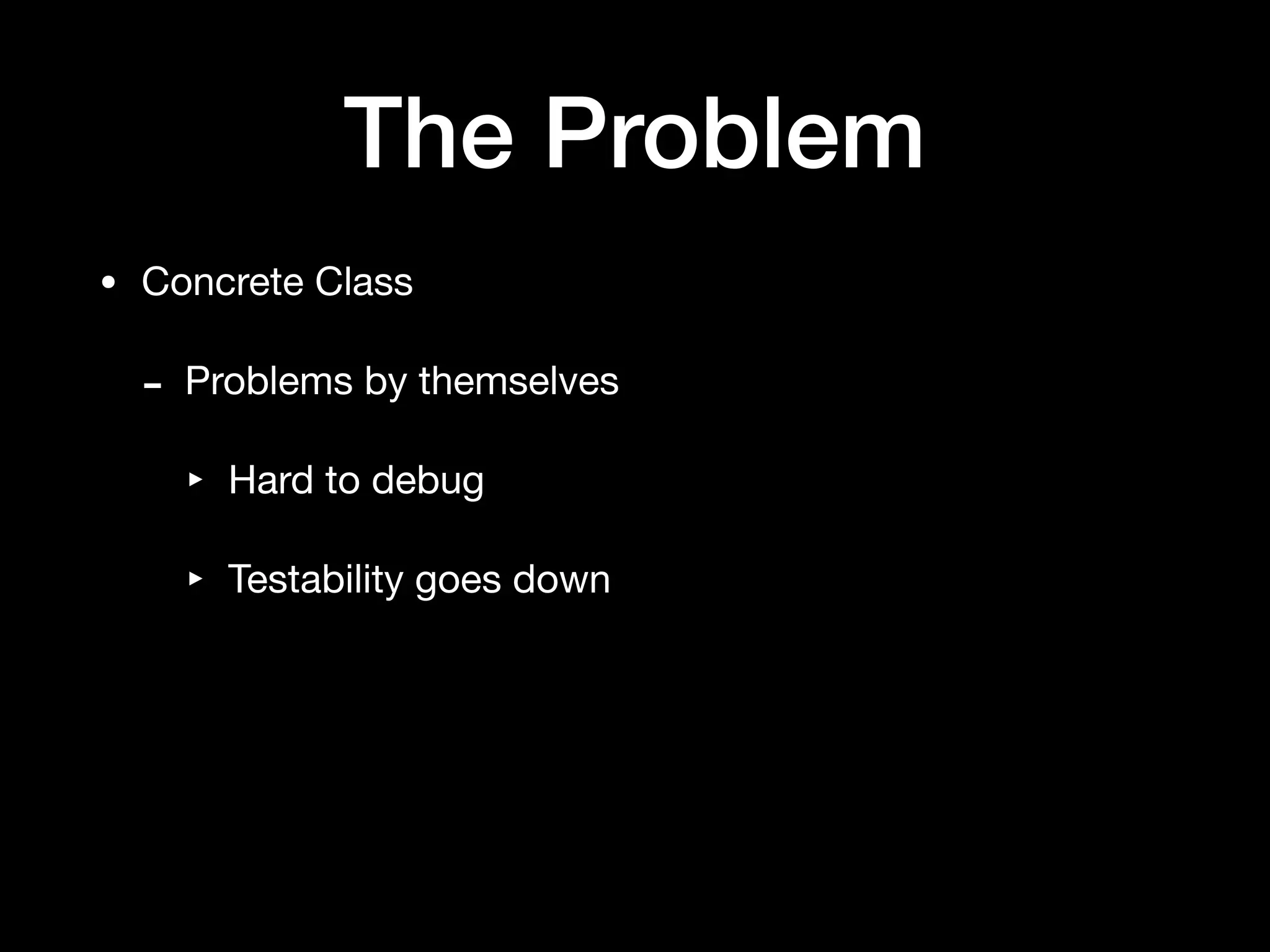

20. The Problem
• Concrete Class
- Problems by themselves
‣ Hard to debug
‣ Testability goes down

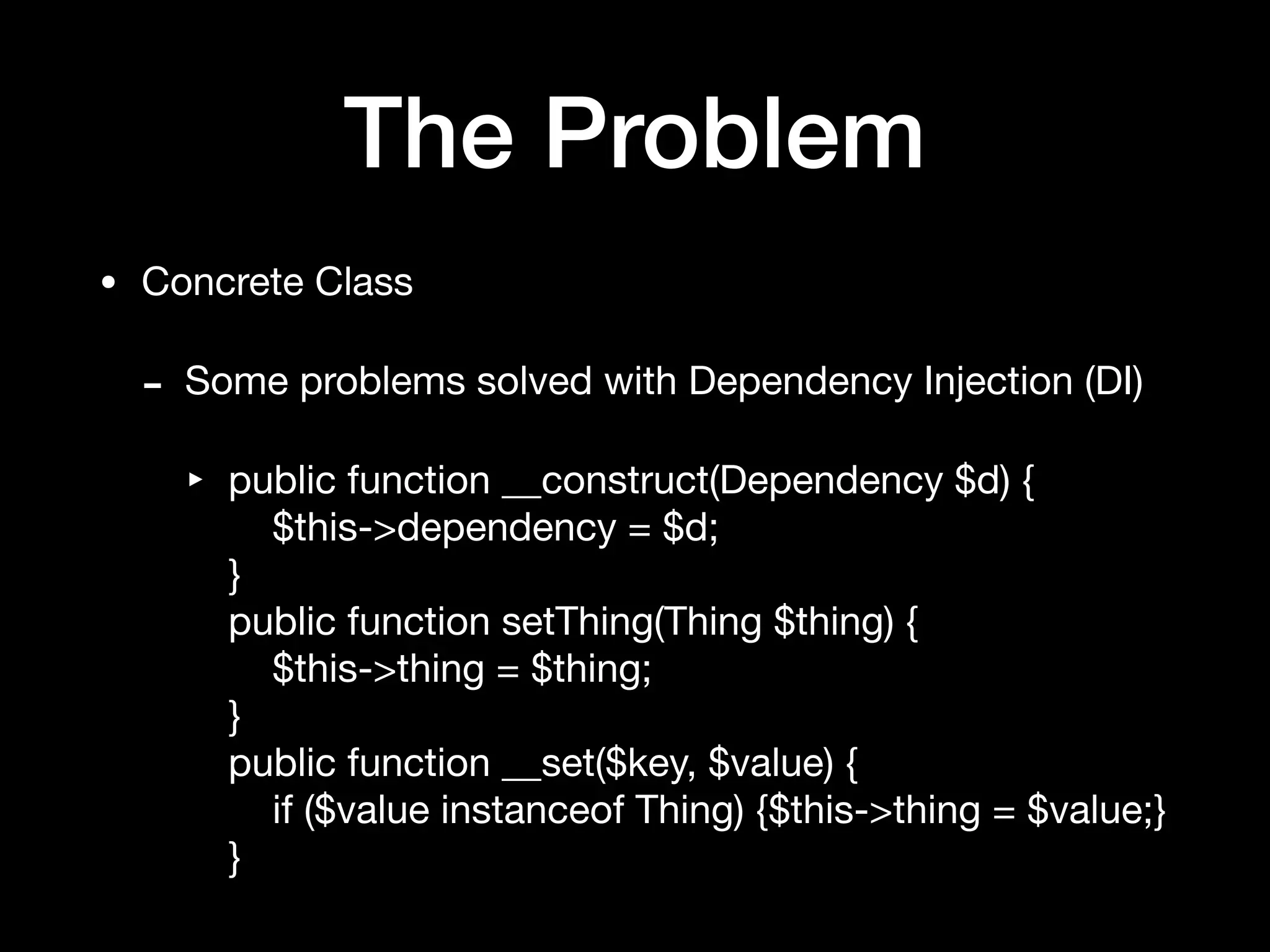

21. The Problem
• Concrete Class
- Some problems solved with Dependency Injection (DI)
‣ public function __construct(Dependency $d) {
$this->dependency = $d;
}
public function setThing(Thing $thing) {
$this->thing = $thing;
}
public function __set($key, $value) {
if ($value instanceof Thing) {$this->thing = $value;}
}

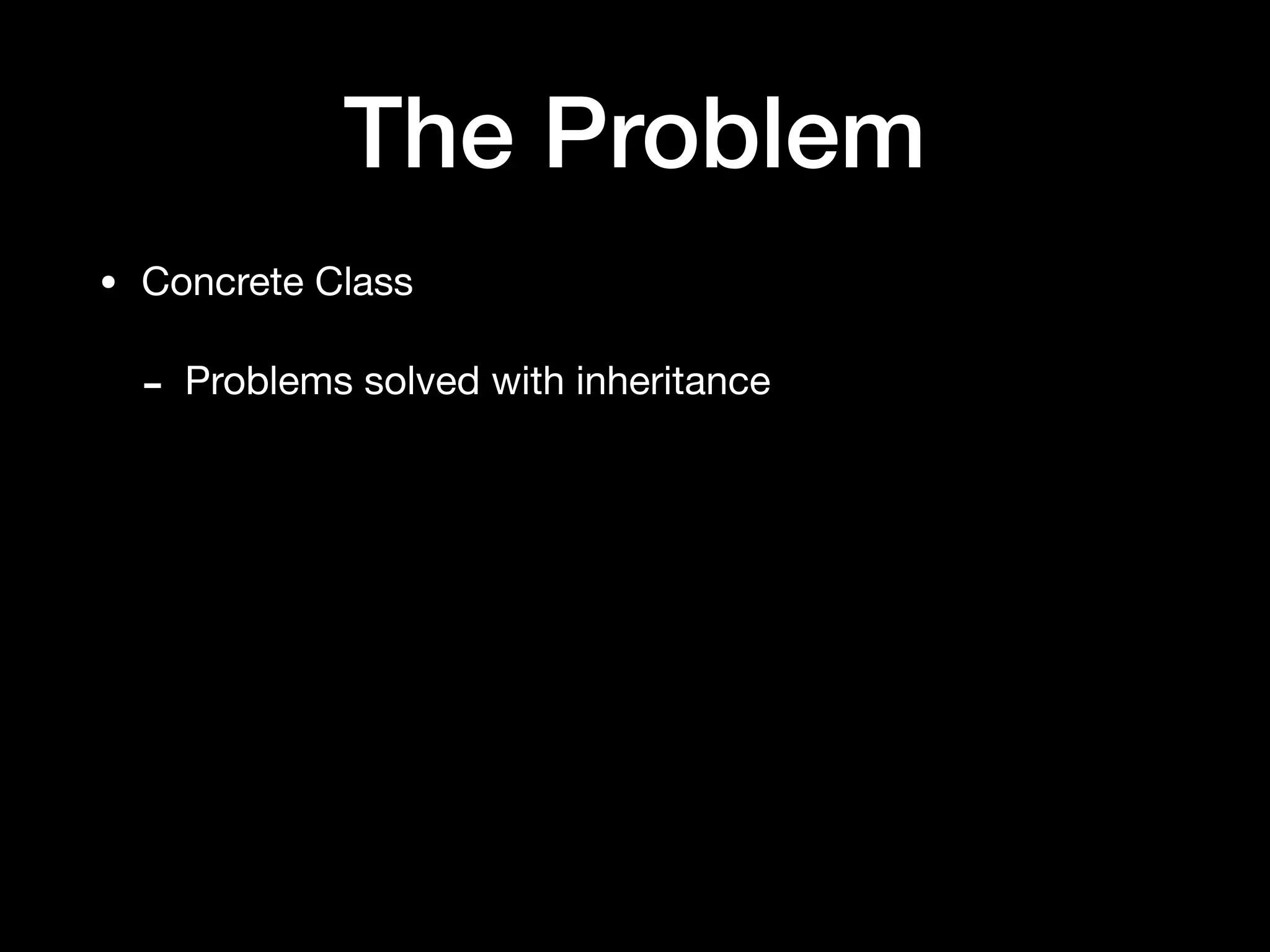

22. The Problem
• Concrete Class
- Problems solved with inheritance

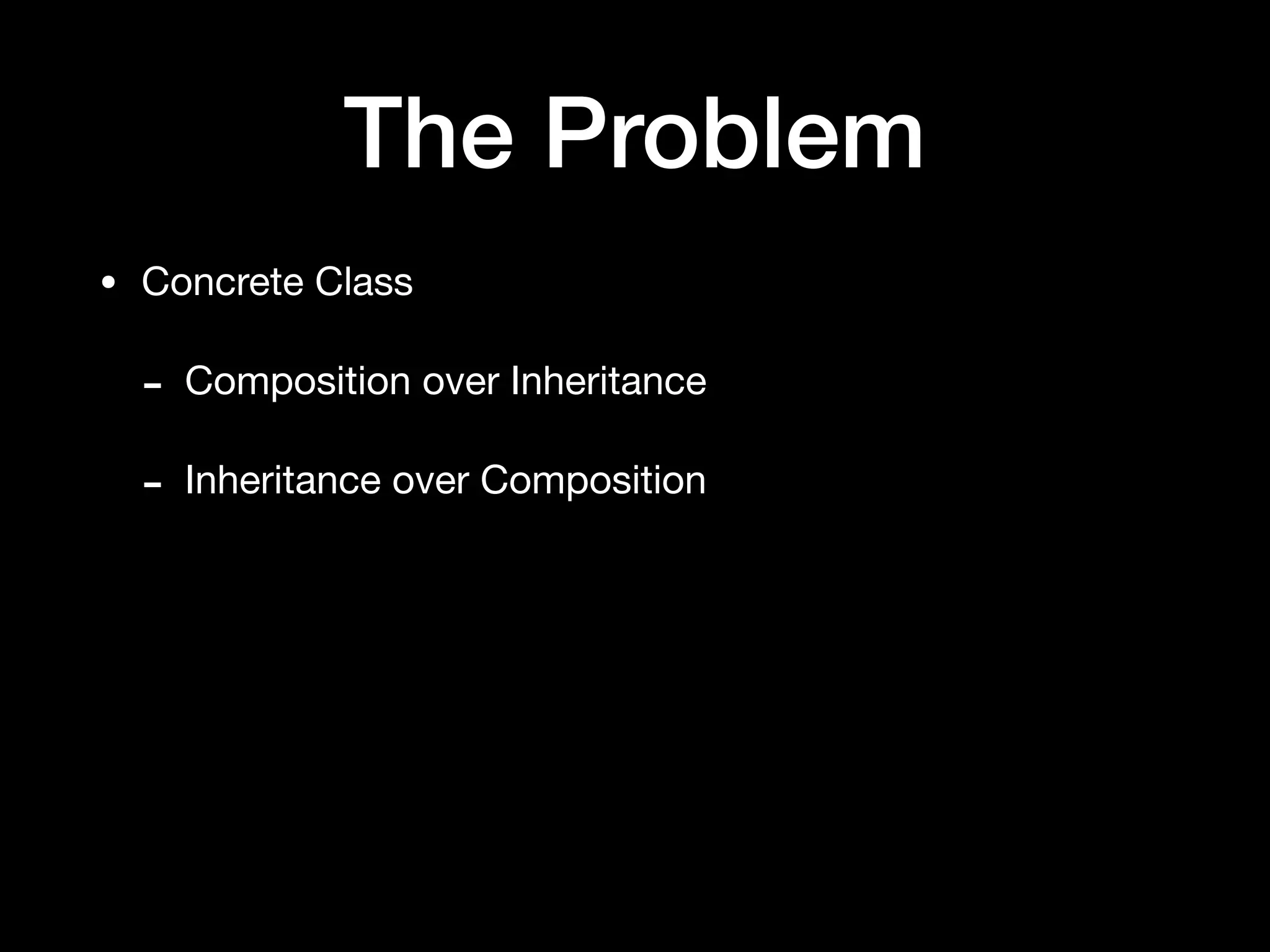

23. The Problem
• Concrete Class
- Composition over Inheritance
- Inheritance over Composition

24. Vertical Inheritance

25. Vertical Inheritance
• Family
- Olsen line
‣ Stature
‣ Stubbornness
- Niebergall
‣ Engineering

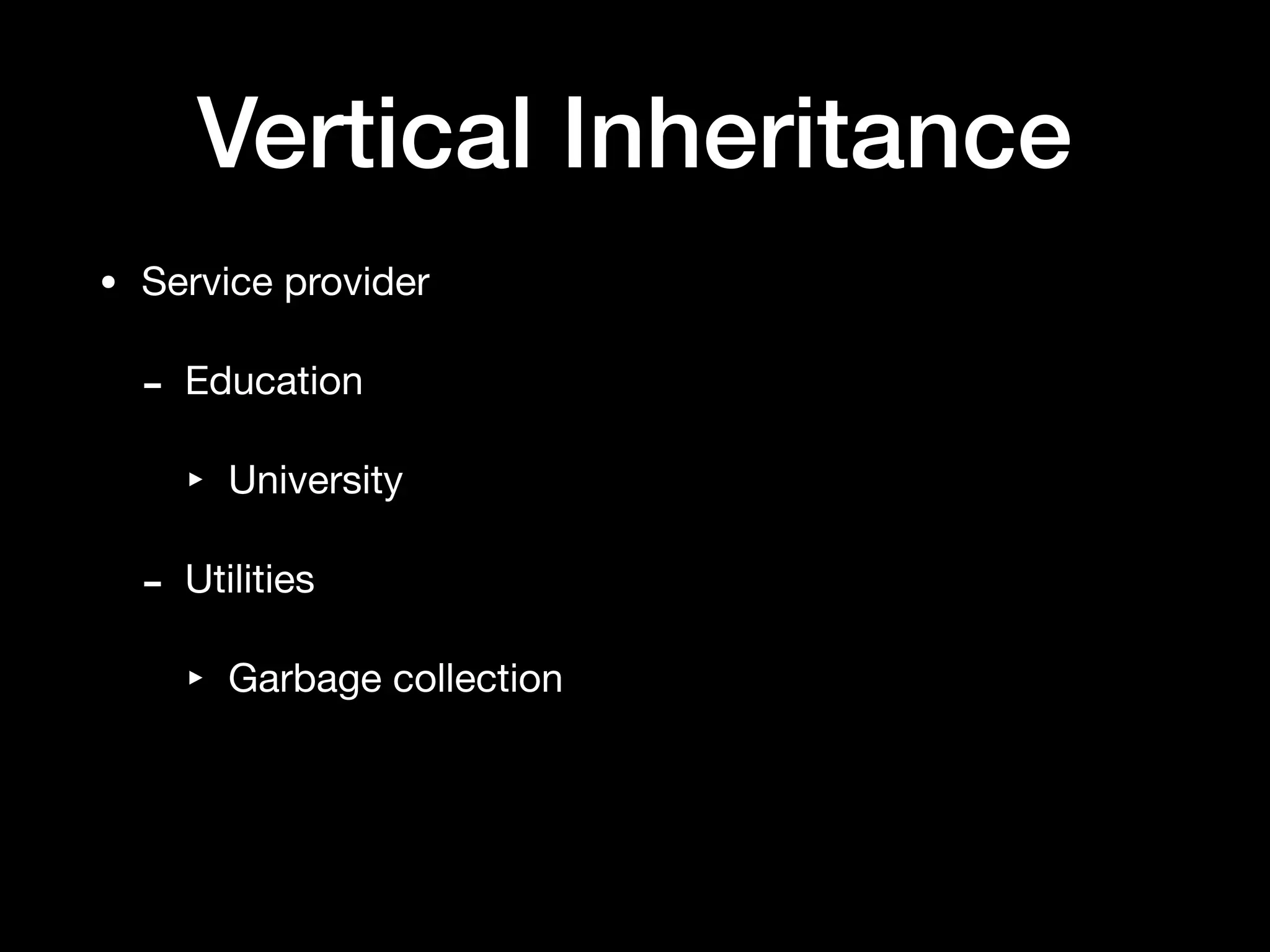

26. Vertical Inheritance
• Service provider
- Education
‣ University
- Utilities
‣ Garbage collection

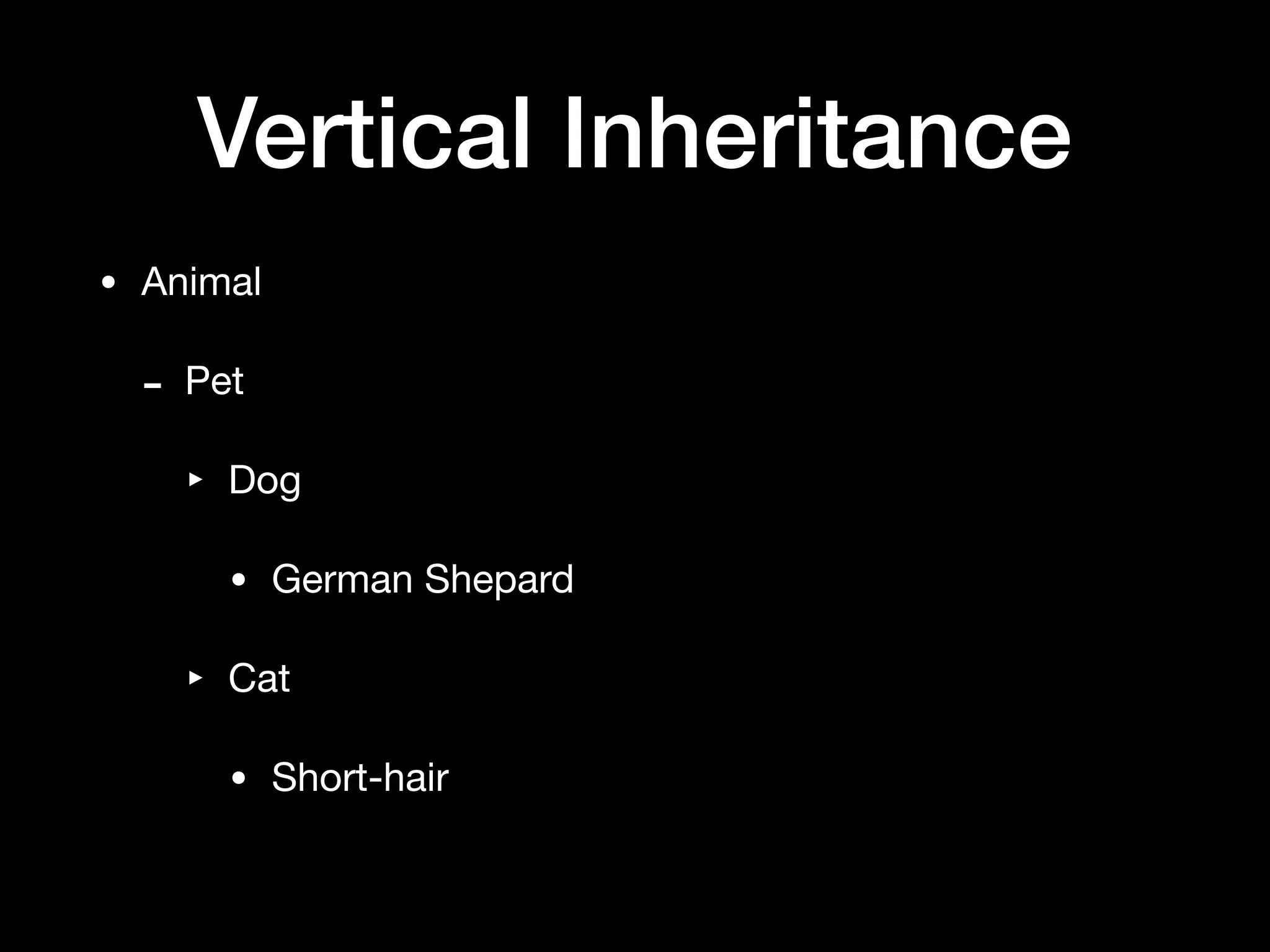

27. Vertical Inheritance
• Animal
- Pet
‣ Dog
• German Shepard
‣ Cat
• Short-hair

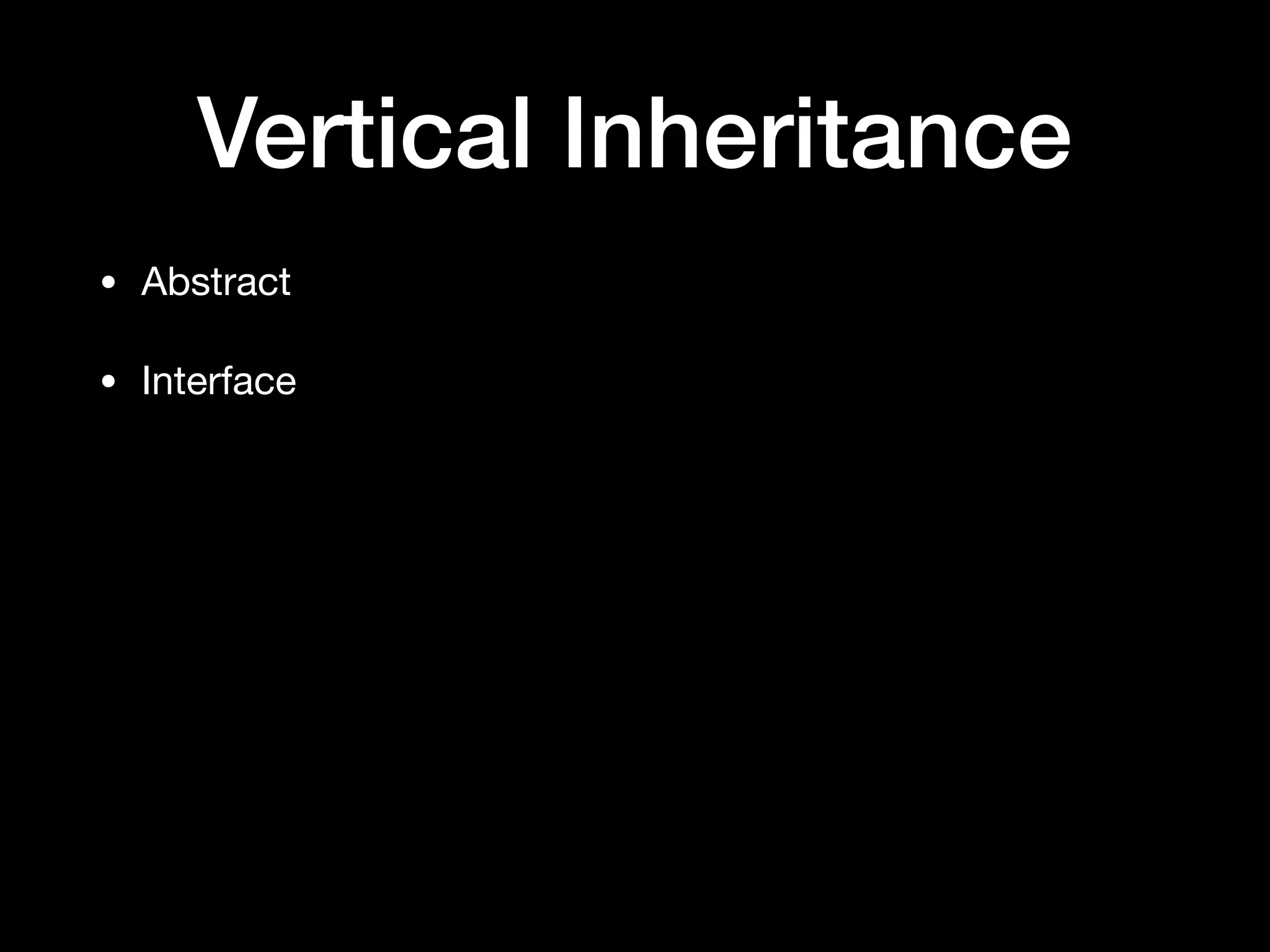

28. Vertical Inheritance
• Abstract
• Interface

29. Vertical Inheritance
• Abstract
- X is a Y

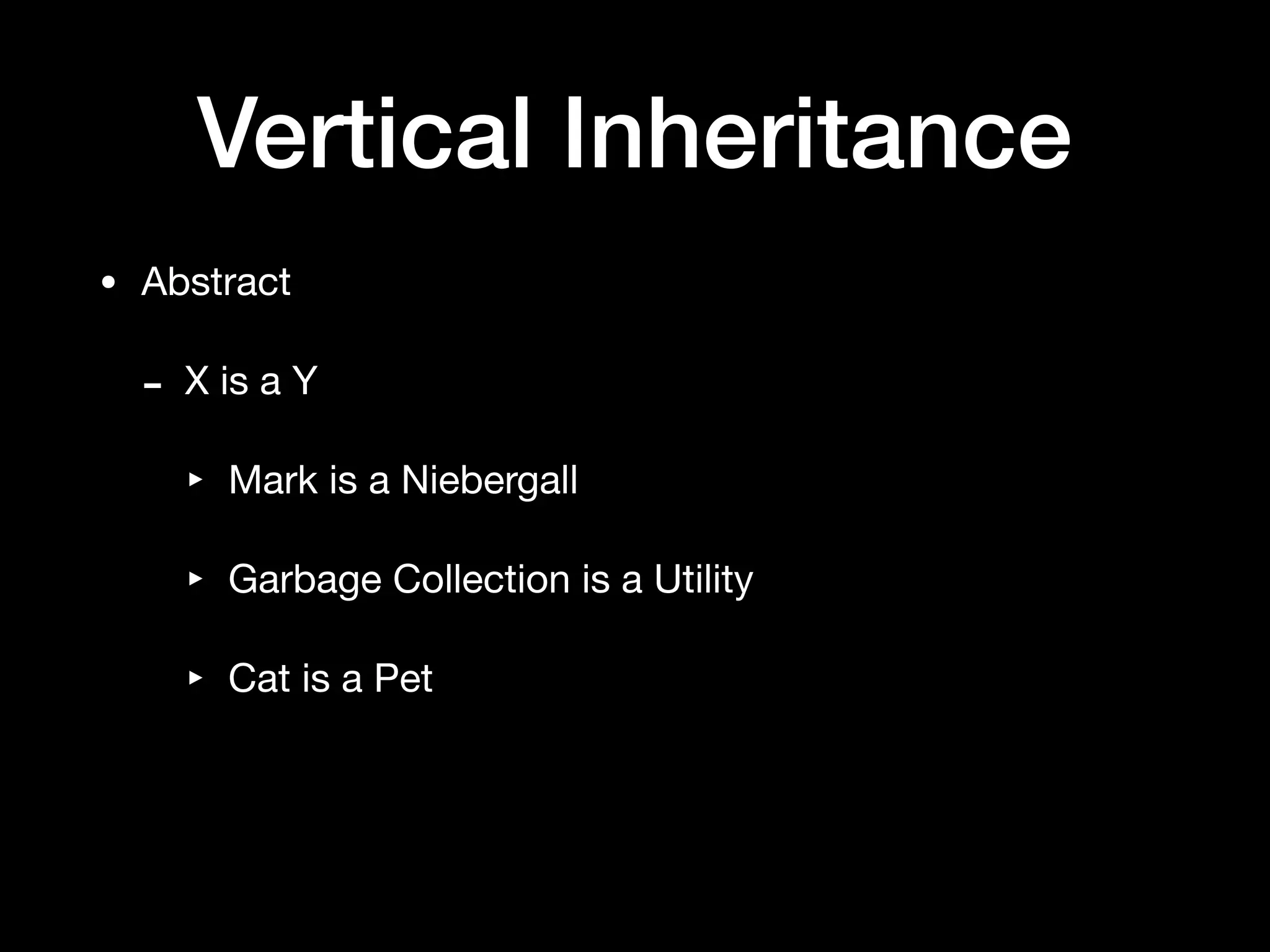

30. Vertical Inheritance
• Abstract
- X is a Y
‣ Mark is a Niebergall
‣ Garbage Collection is a Utility
‣ Cat is a Pet

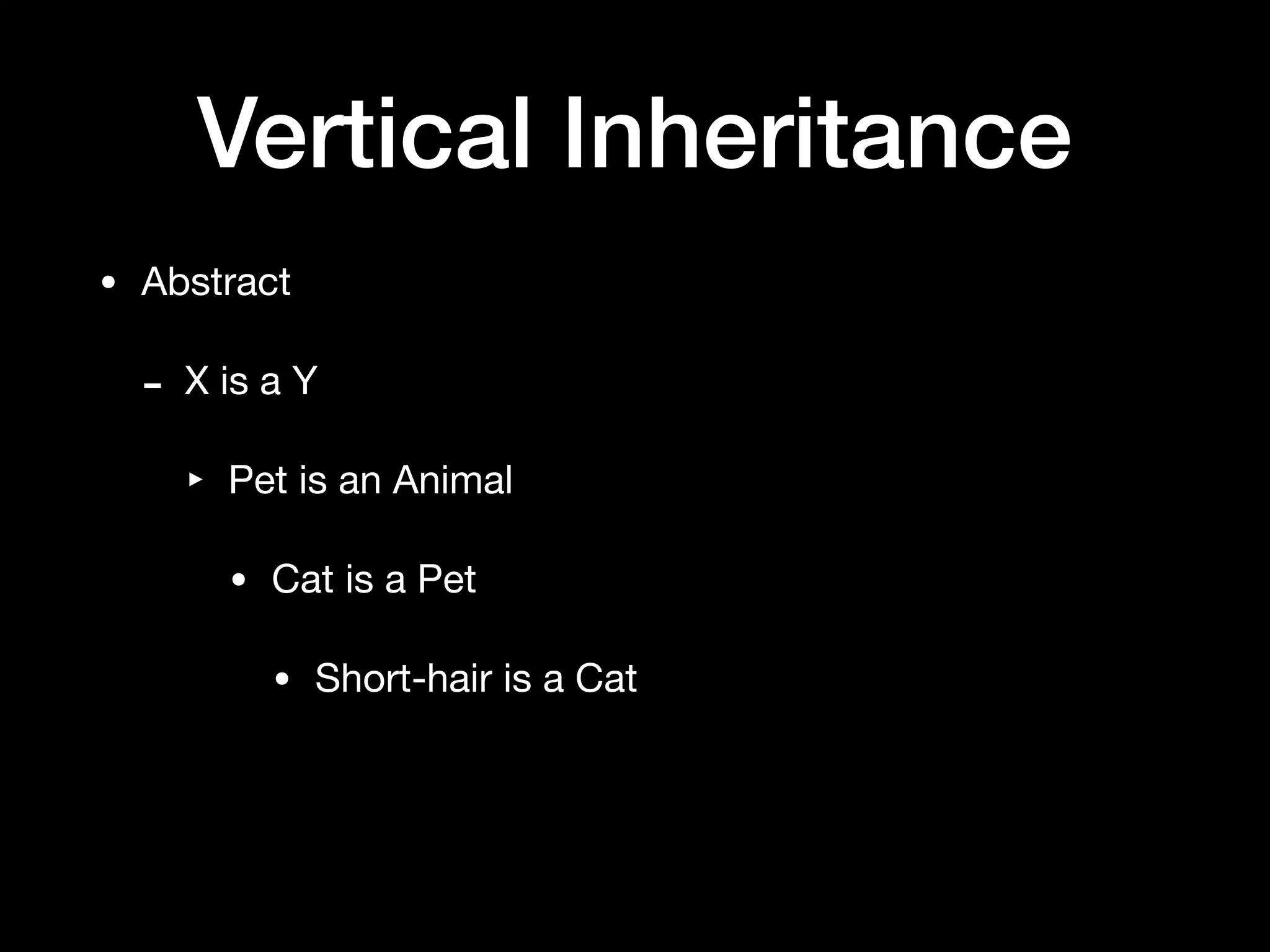

31. Vertical Inheritance
• Abstract
- X is a Y
‣ Pet is an Animal
• Cat is a Pet
• Short-hair is a Cat

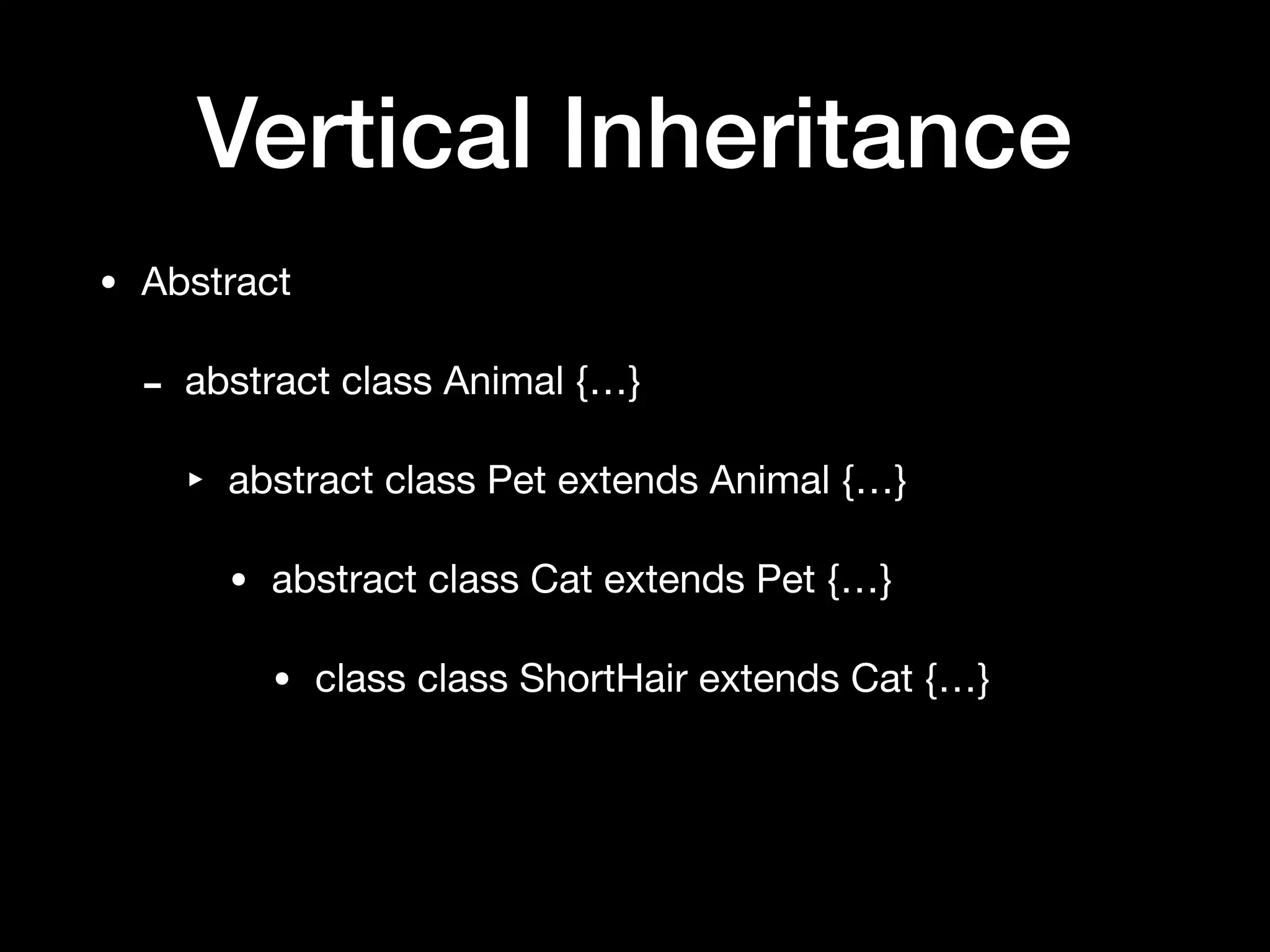

32. Vertical Inheritance
• Abstract
- abstract class Animal {…}
‣ abstract class Pet extends Animal {…}
• abstract class Cat extends Pet {…}
• class class ShortHair extends Cat {…}

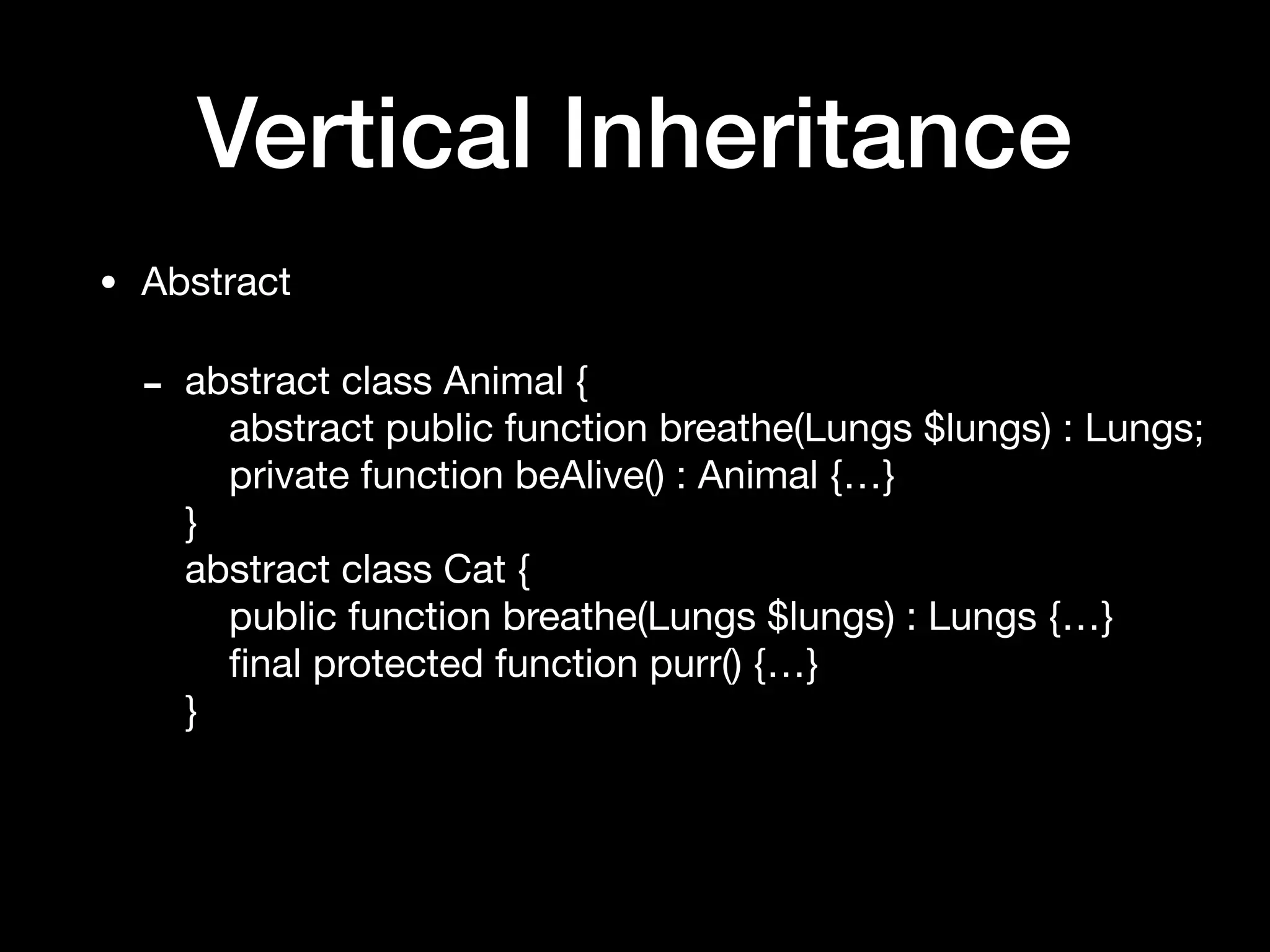

33. Vertical Inheritance
• Abstract
- abstract class Animal {
abstract public function breathe(Lungs $lungs) : Lungs;
private function beAlive() : Animal {…}
}
abstract class Cat {
public function breathe(Lungs $lungs) : Lungs {…}
final protected function purr() {…}
}

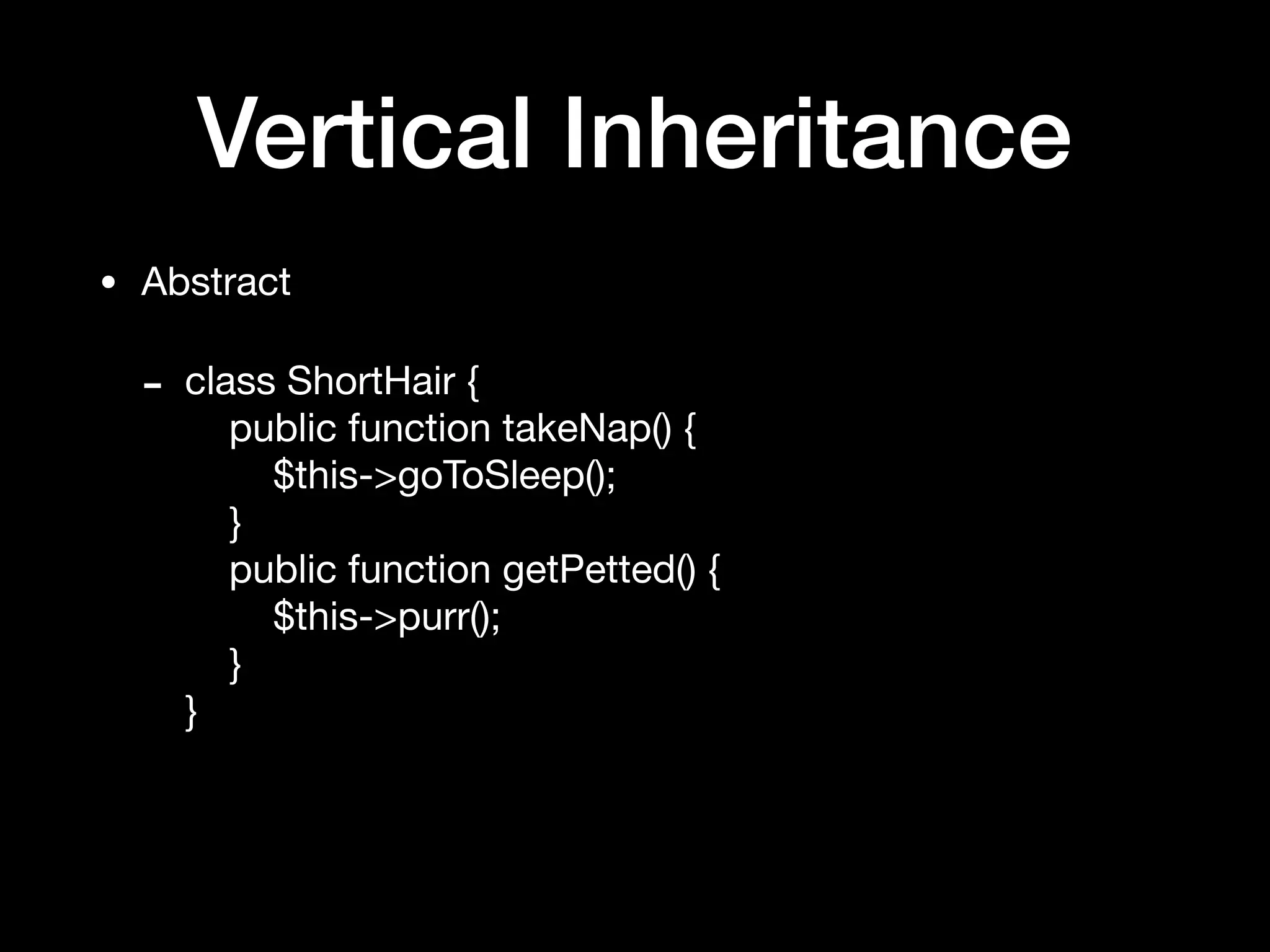

34. Vertical Inheritance
• Abstract
- class ShortHair {
public function takeNap() {
$this->goToSleep();
}
public function getPetted() {
$this->purr();
}
}

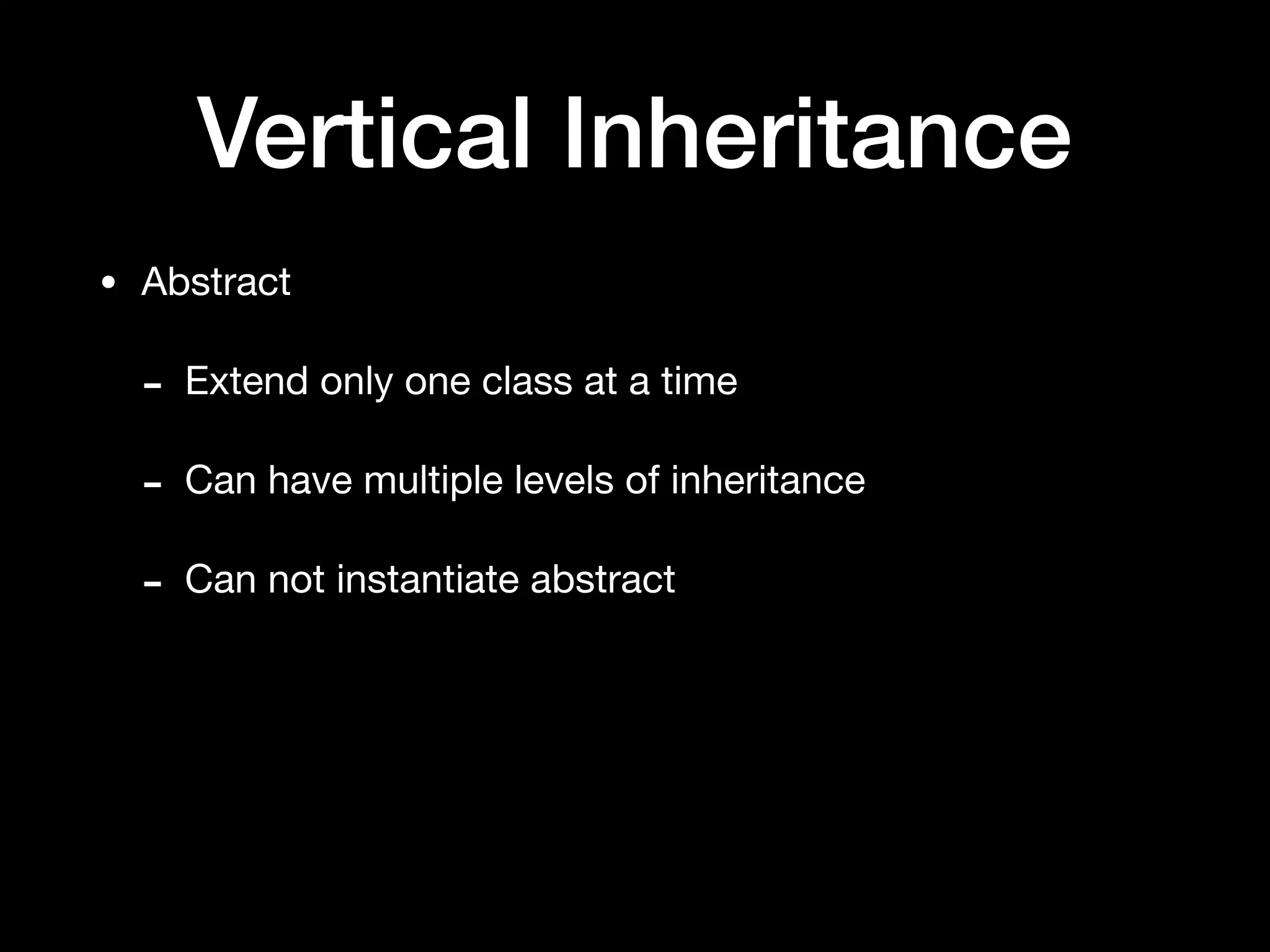

35. Vertical Inheritance
• Abstract
- Extend only one class at a time
- Can have multiple levels of inheritance
- Can not instantiate abstract

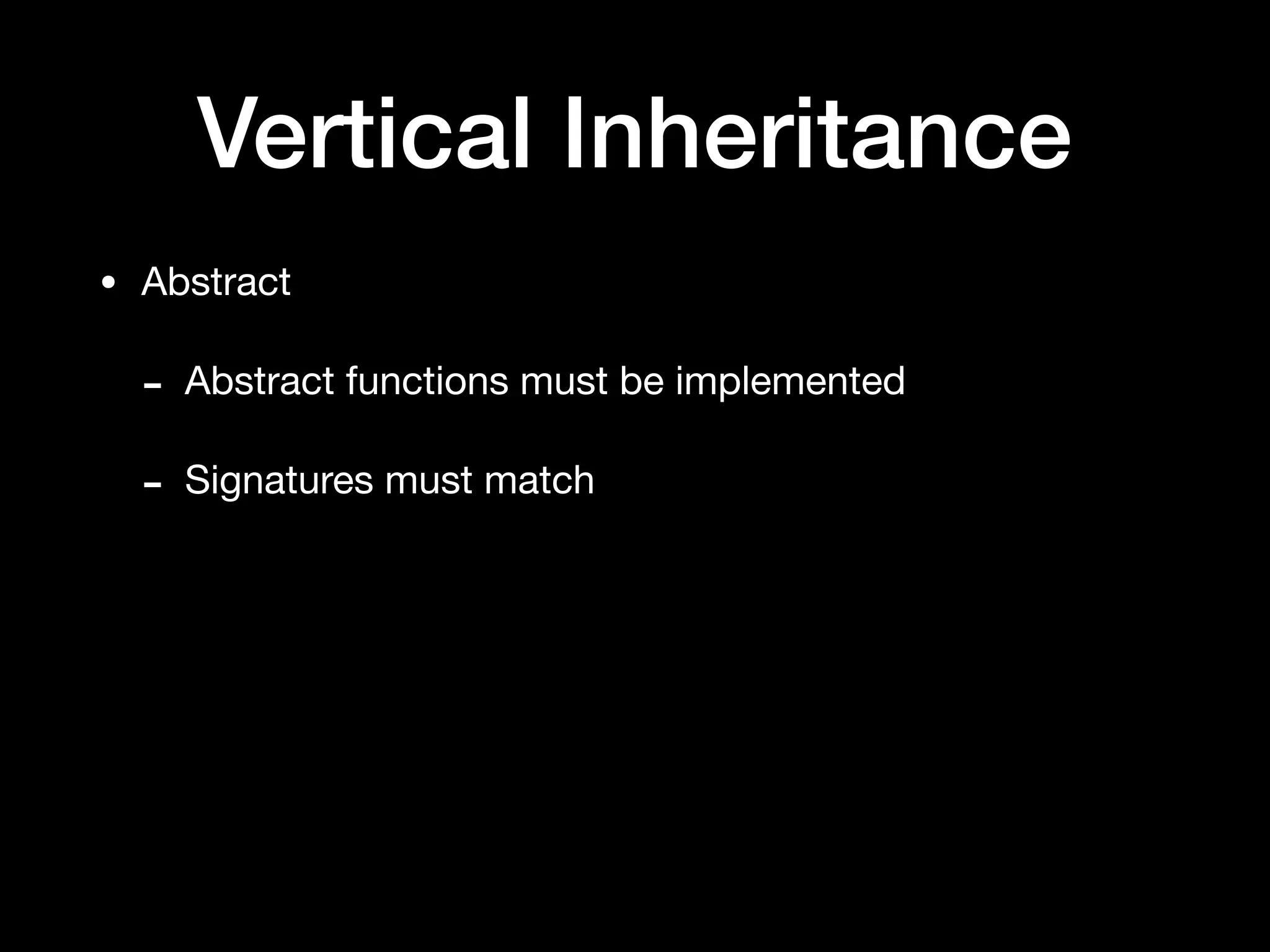

36. Vertical Inheritance
• Abstract
- Abstract functions must be implemented
- Signatures must match

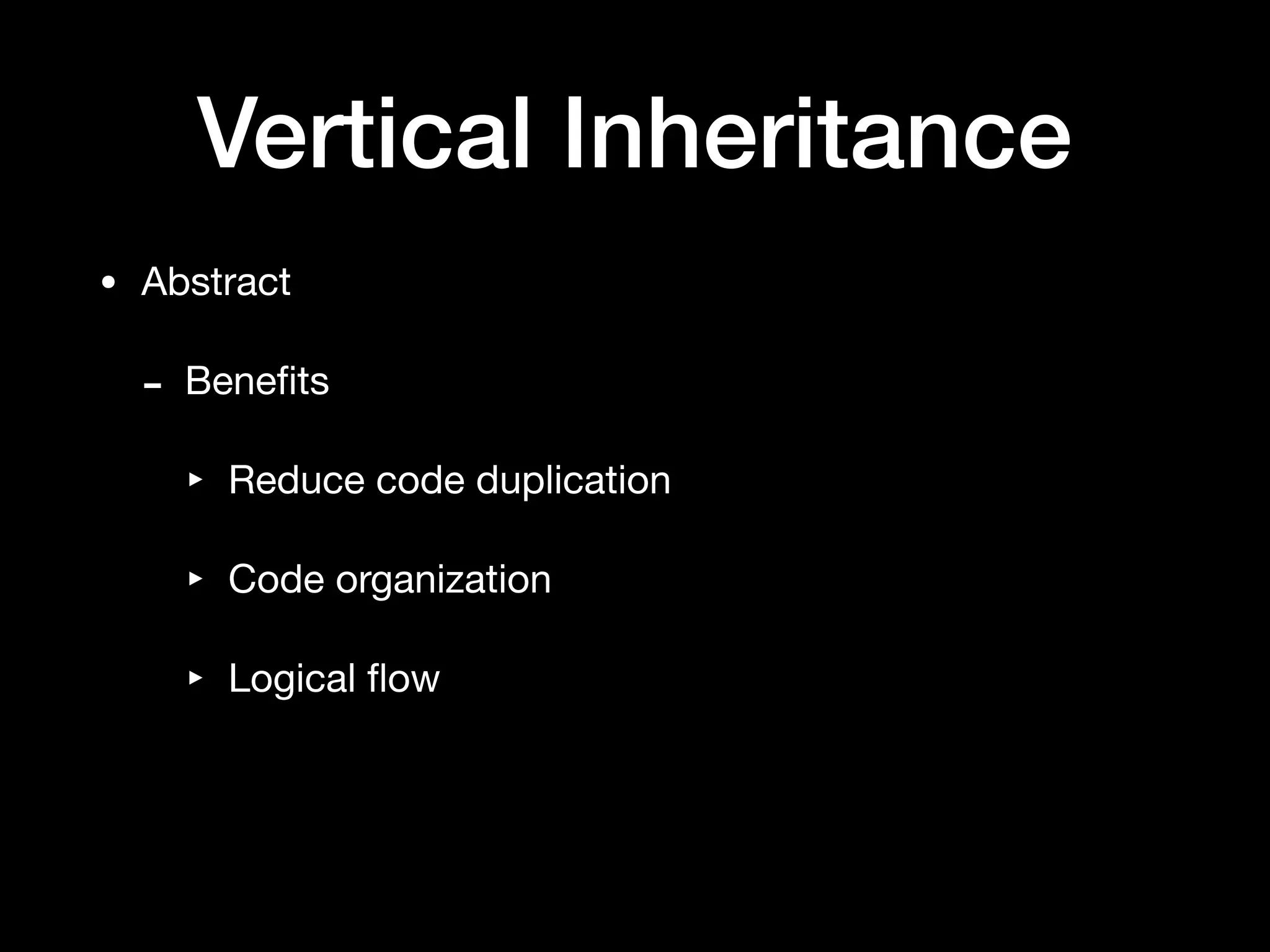

37. Vertical Inheritance
• Abstract
- Benefits
‣ Reduce code duplication
‣ Code organization
‣ Logical flow

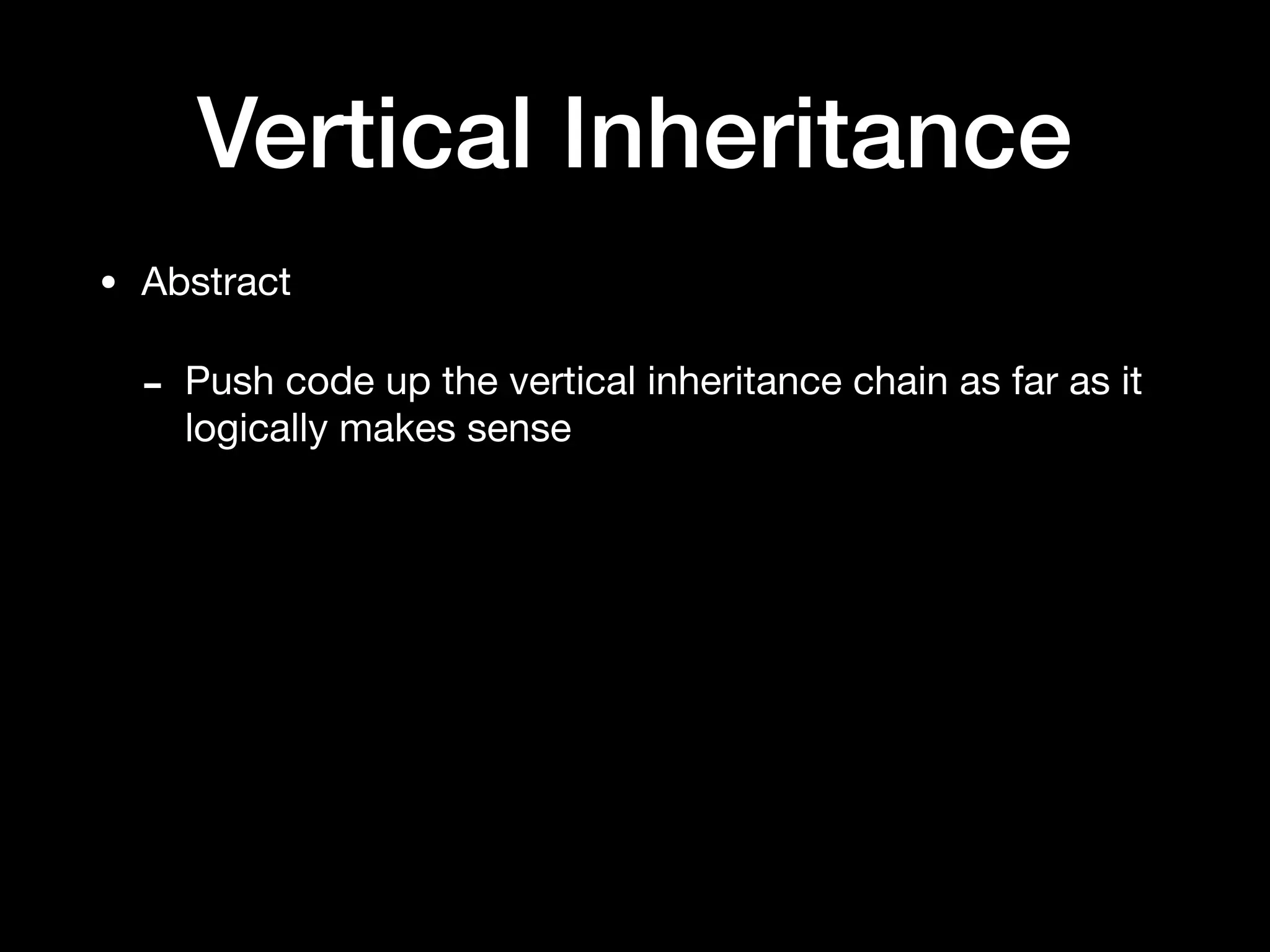

38. Vertical Inheritance
• Abstract
- Push code up the vertical inheritance chain as far as it
logically makes sense

39. Vertical Inheritance
• Abstract
- Questions?

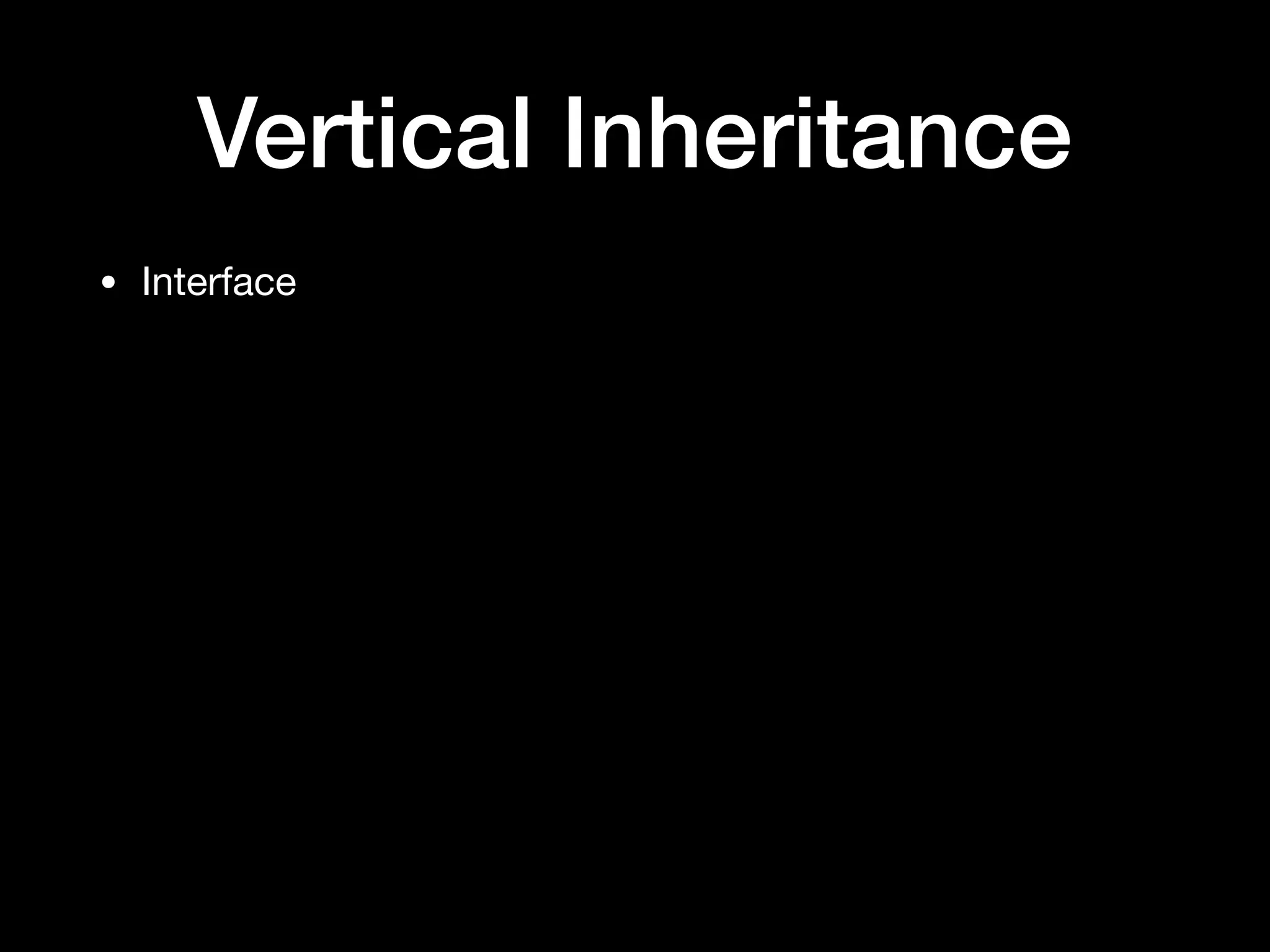

40. Vertical Inheritance
• Interface

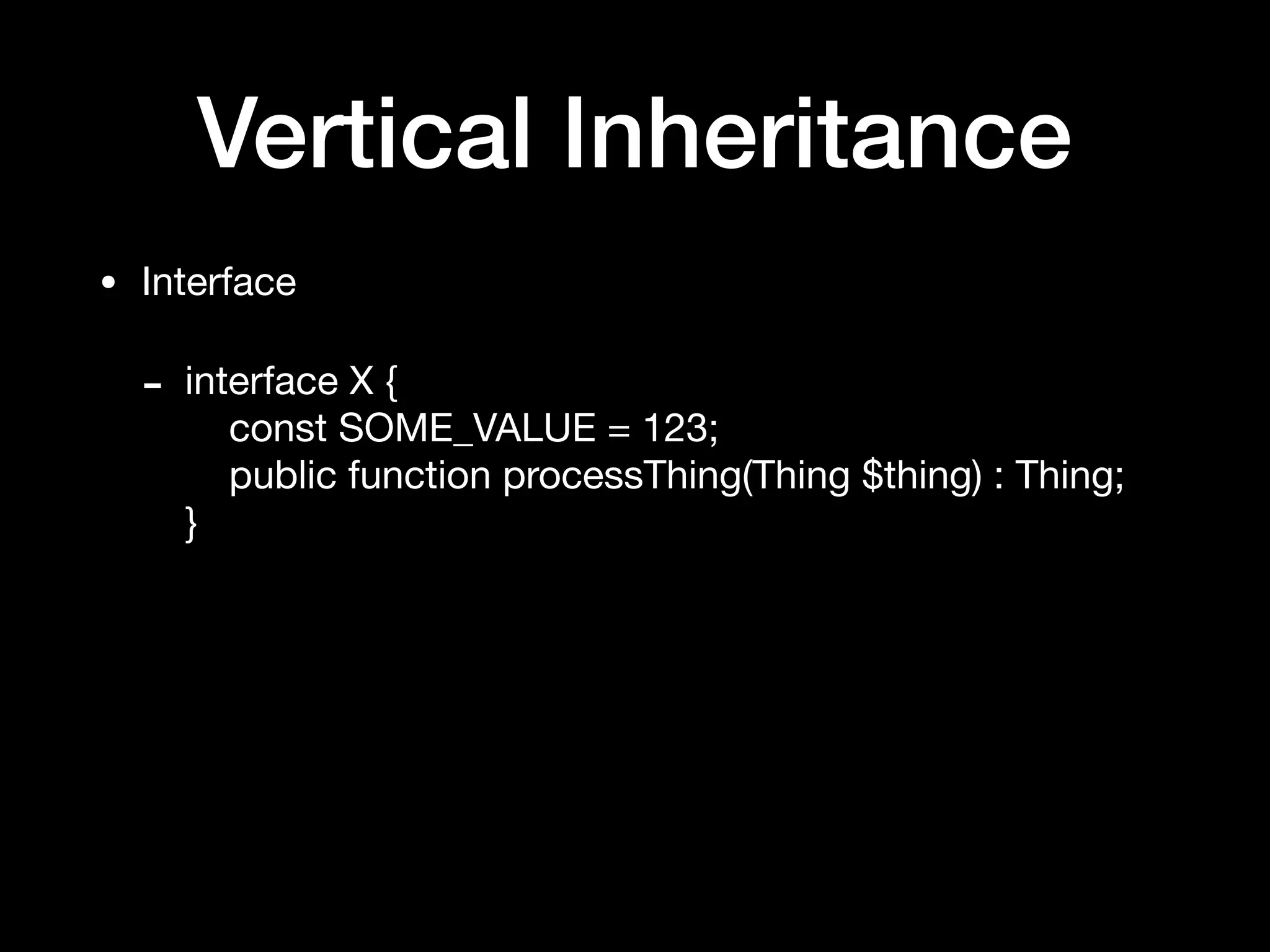

41. Vertical Inheritance
• Interface
- interface X {
const SOME_VALUE = 123;
public function processThing(Thing $thing) : Thing;
}

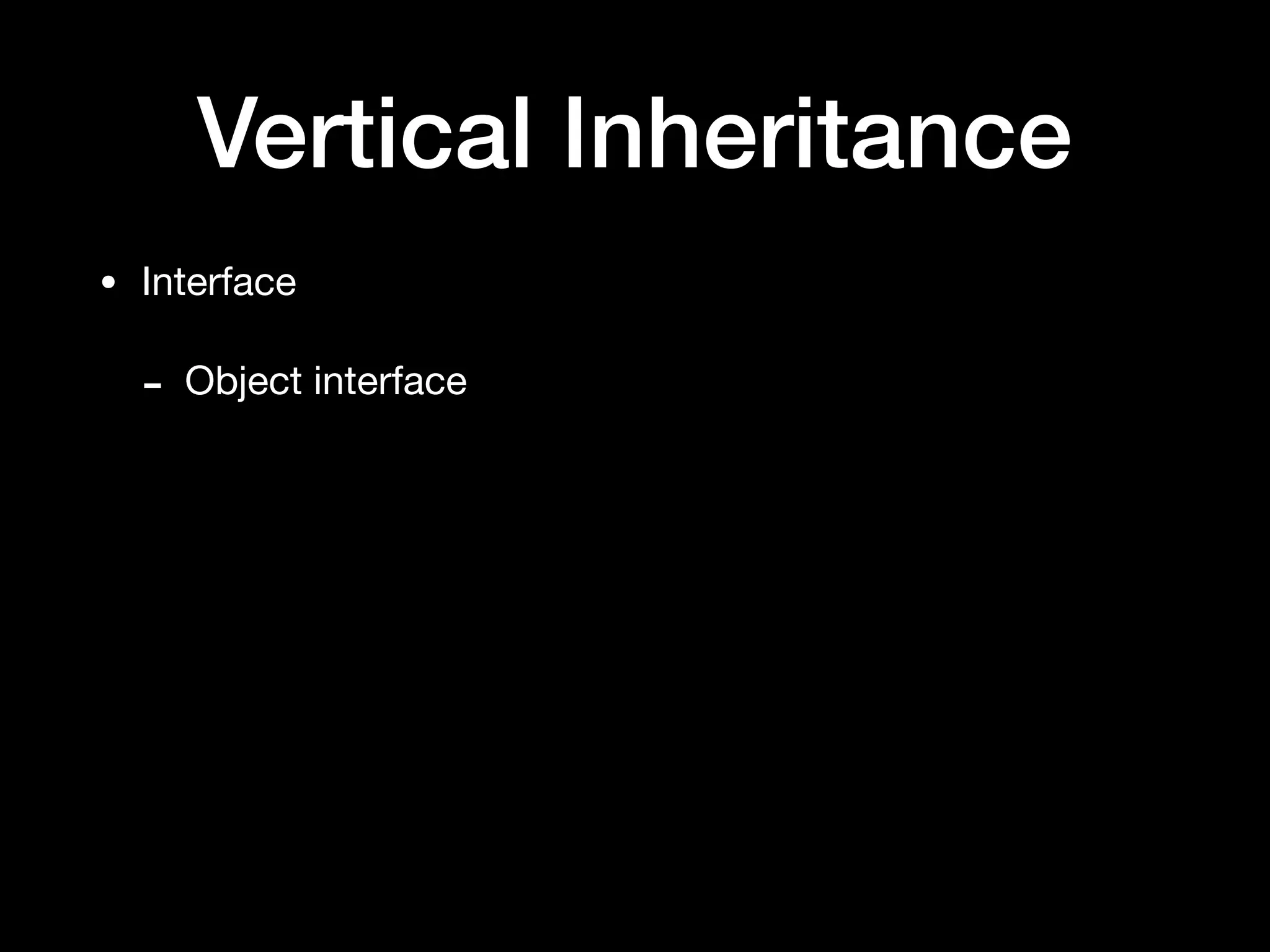

42. Vertical Inheritance
• Interface
- Object interface

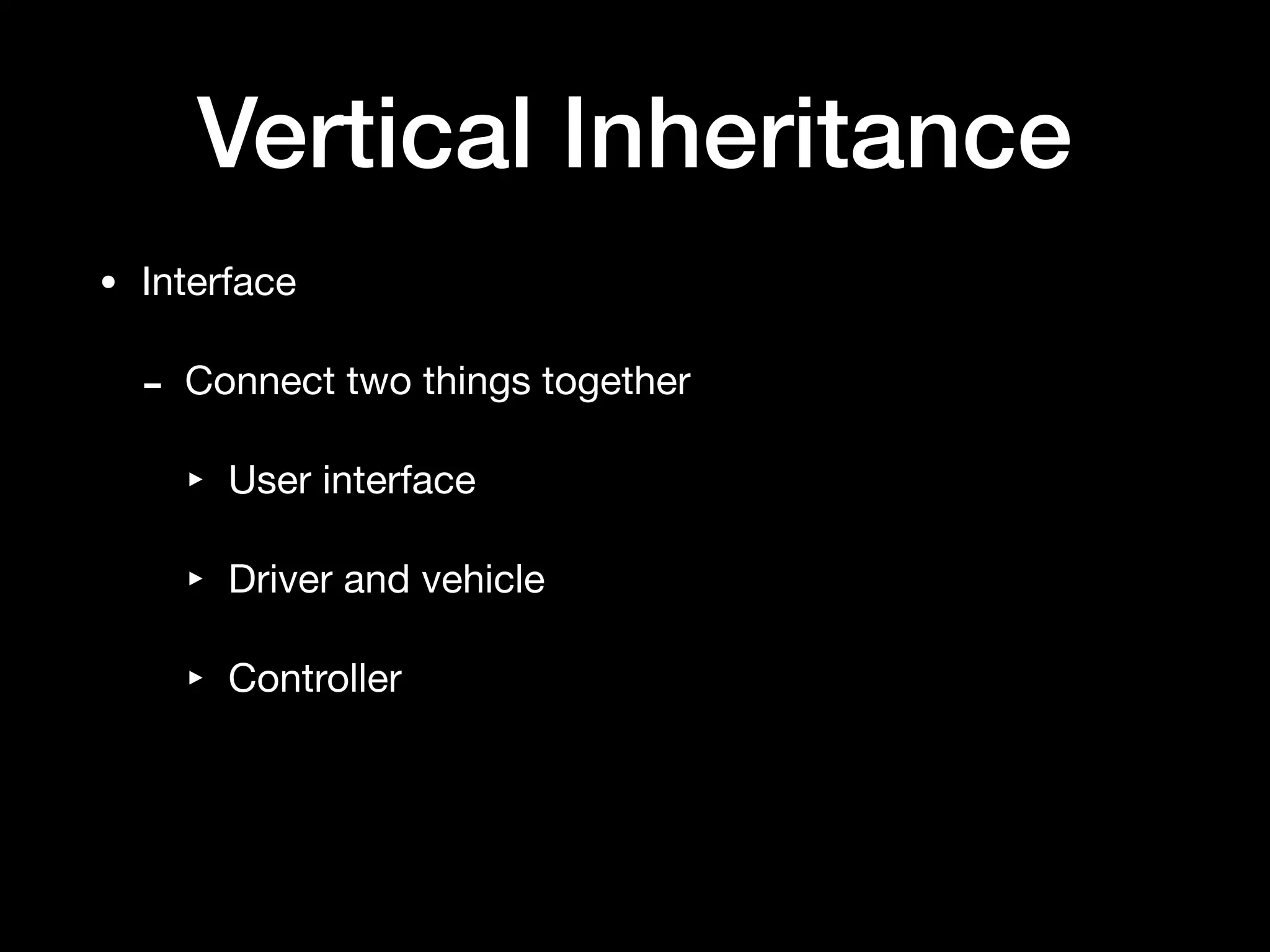

43. Vertical Inheritance
• Interface
- Connect two things together
‣ User interface
‣ Driver and vehicle
‣ Controller

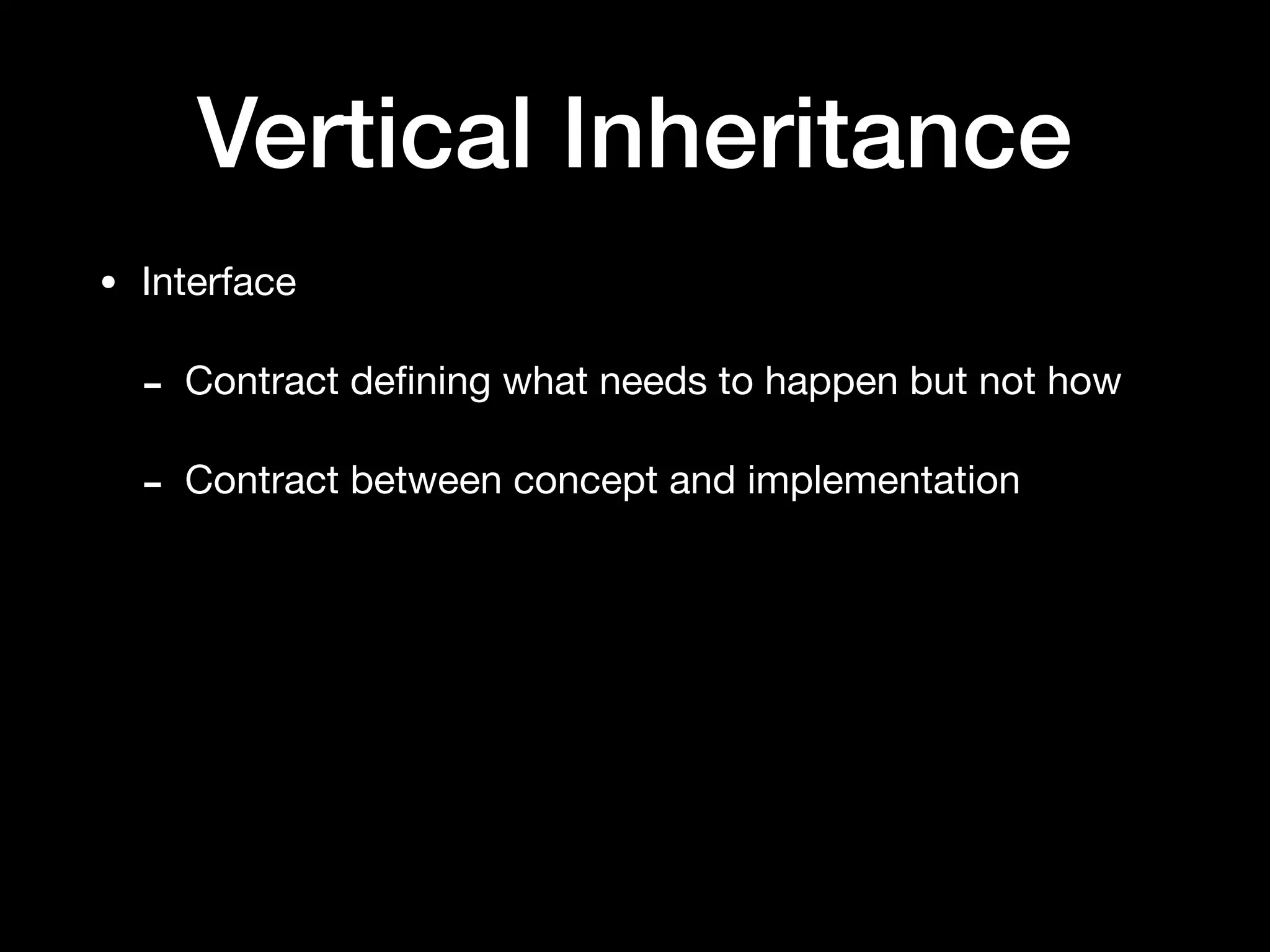

44. Vertical Inheritance
• Interface
- Contract defining what needs to happen but not how
- Contract between concept and implementation

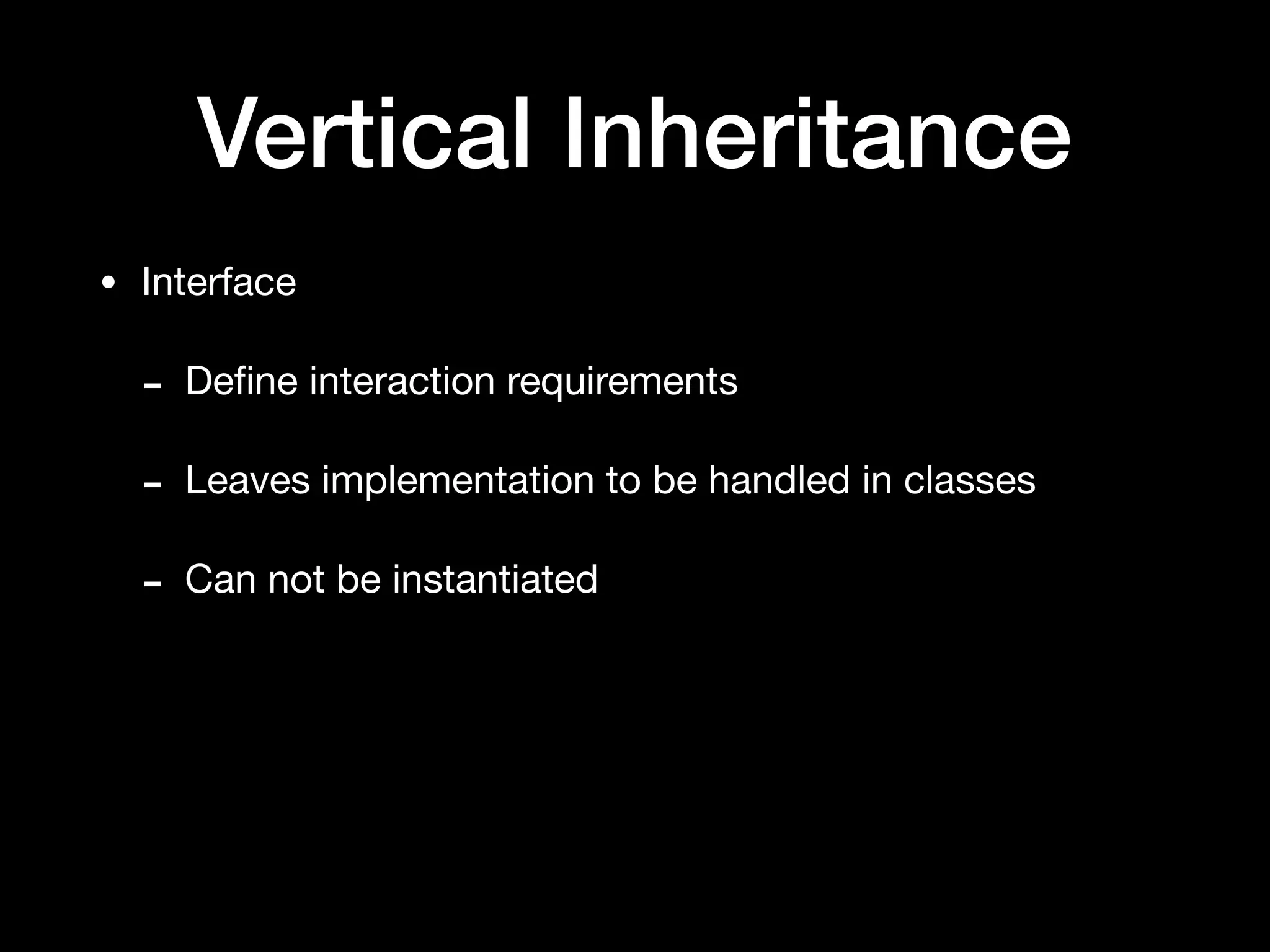

45. Vertical Inheritance
• Interface
- Define interaction requirements
- Leaves implementation to be handled in classes
- Can not be instantiated

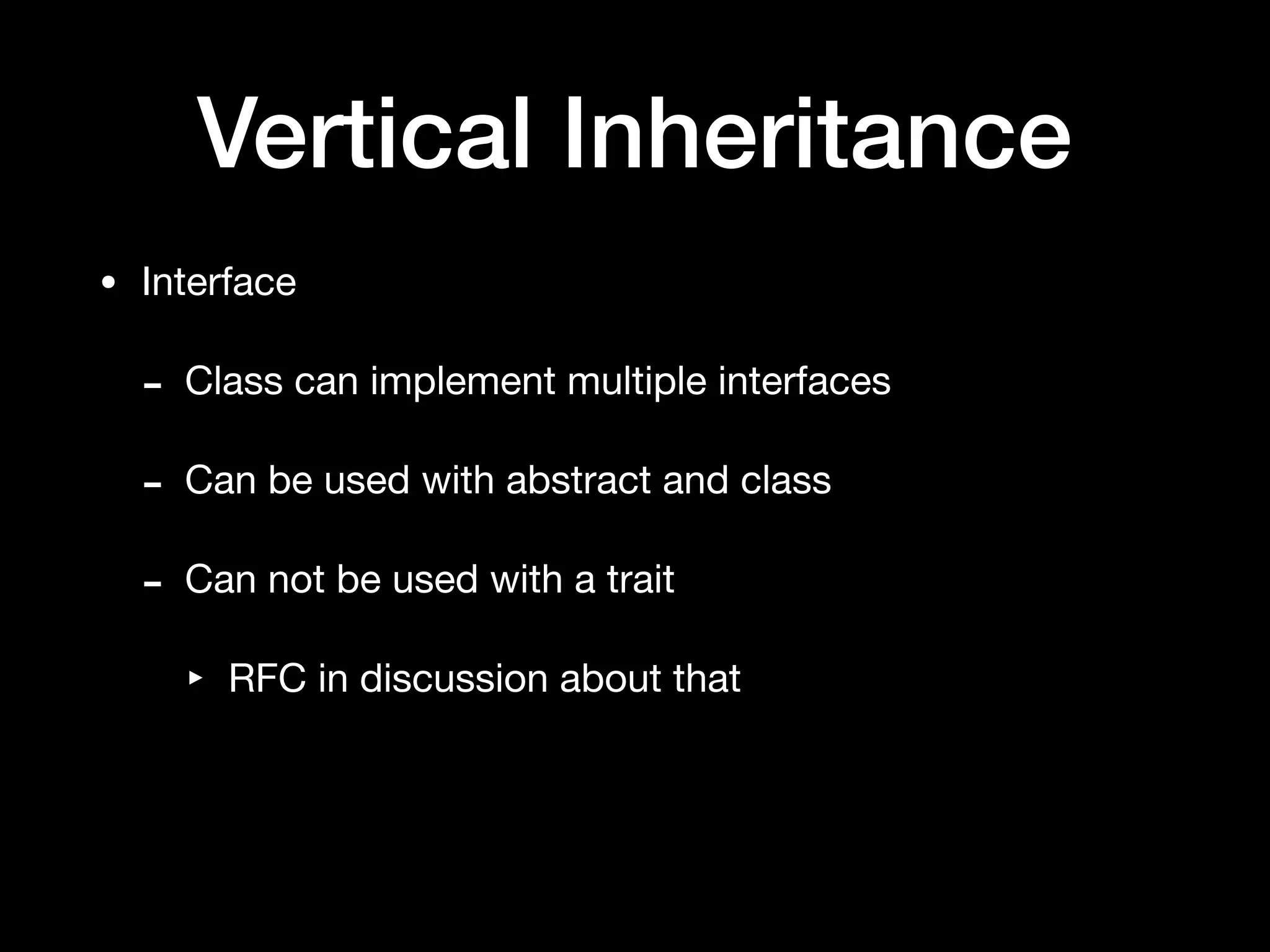

46. Vertical Inheritance
• Interface
- Class can implement multiple interfaces
- Can be used with abstract and class
- Can not be used with a trait
‣ RFC in discussion about that

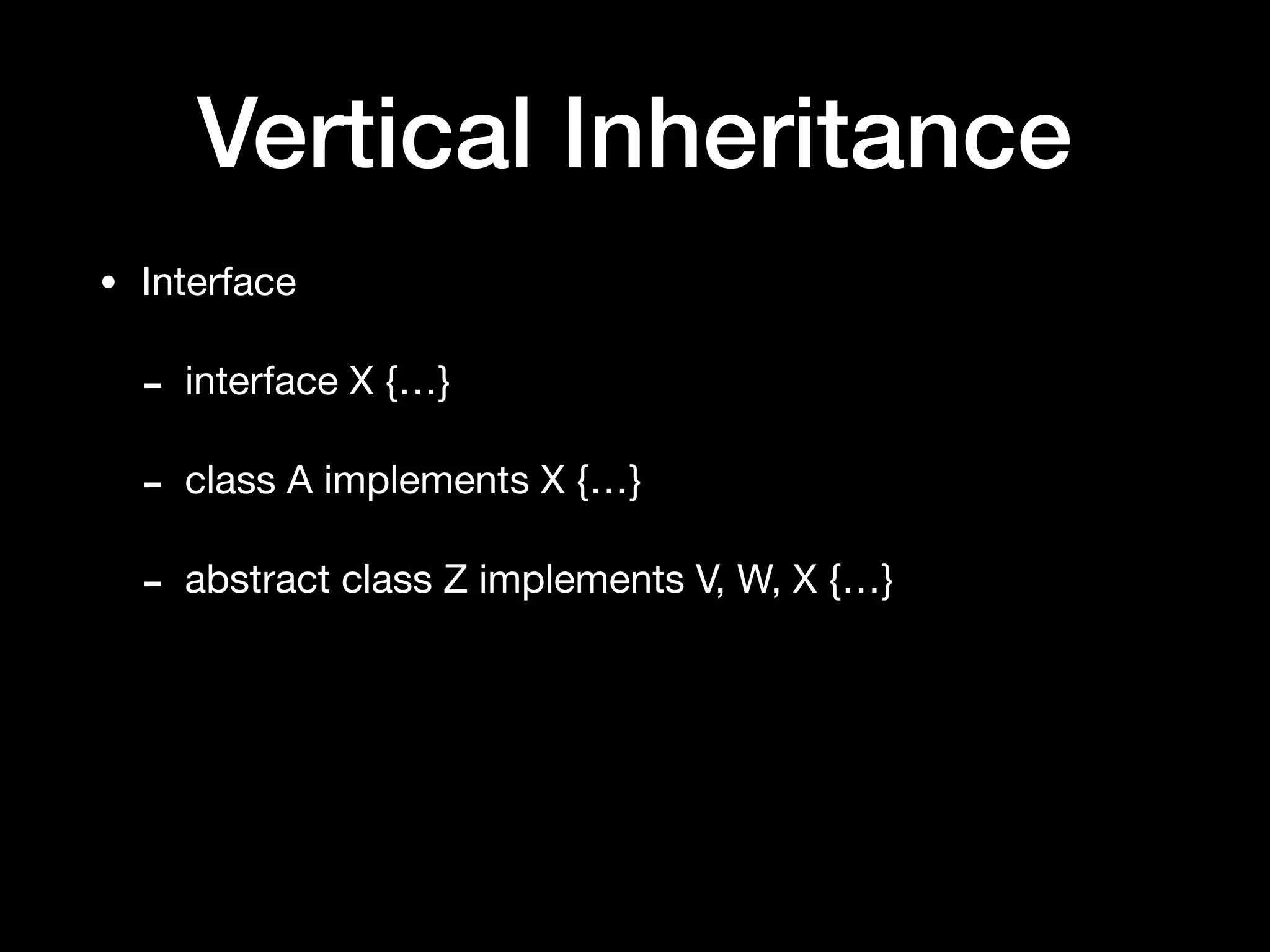

47. Vertical Inheritance
• Interface
- interface X {…}
- class A implements X {…}
- abstract class Z implements V, W, X {…}

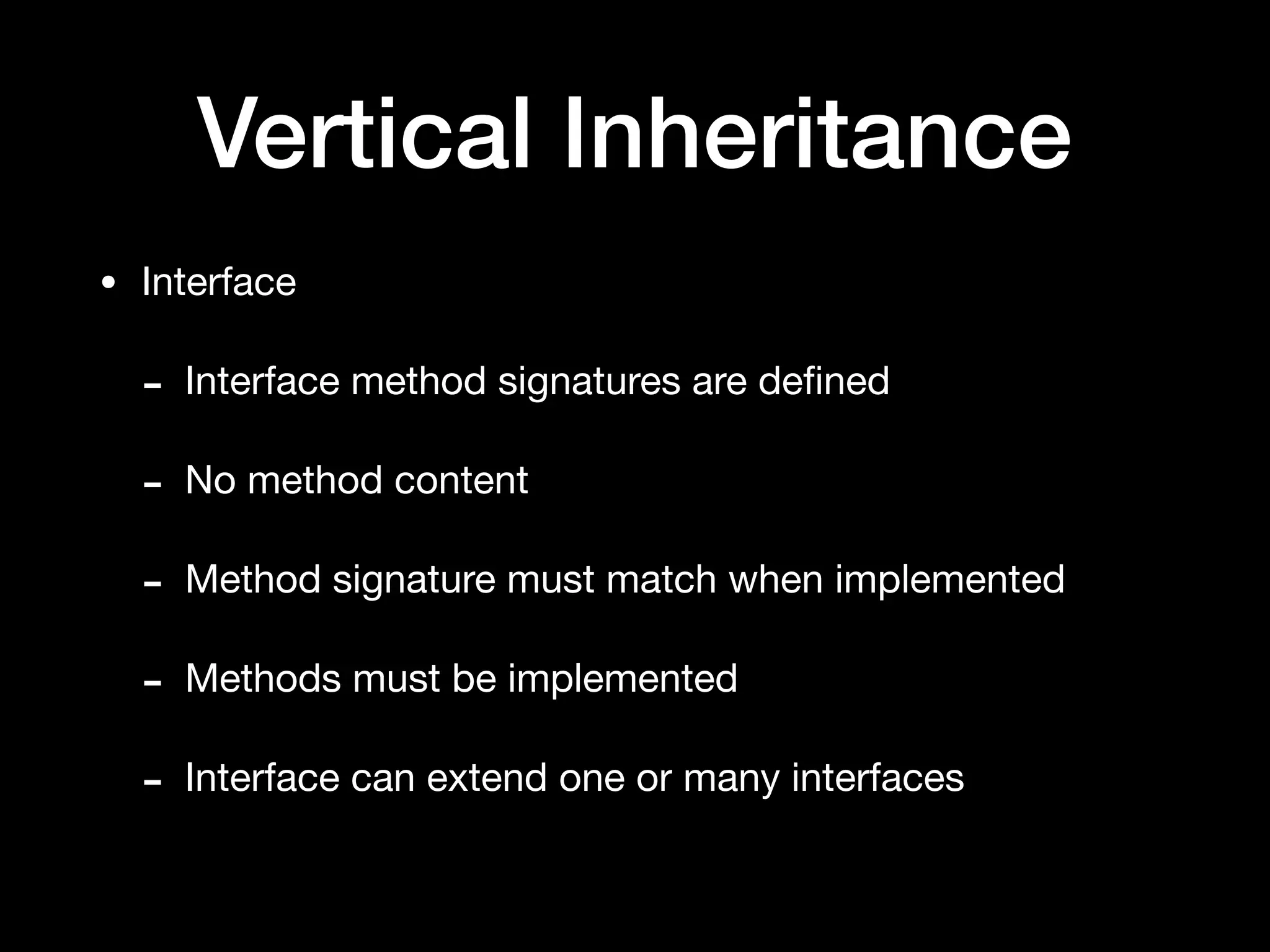

48. Vertical Inheritance
• Interface
- Interface method signatures are defined
- No method content
- Method signature must match when implemented
- Methods must be implemented
- Interface can extend one or many interfaces

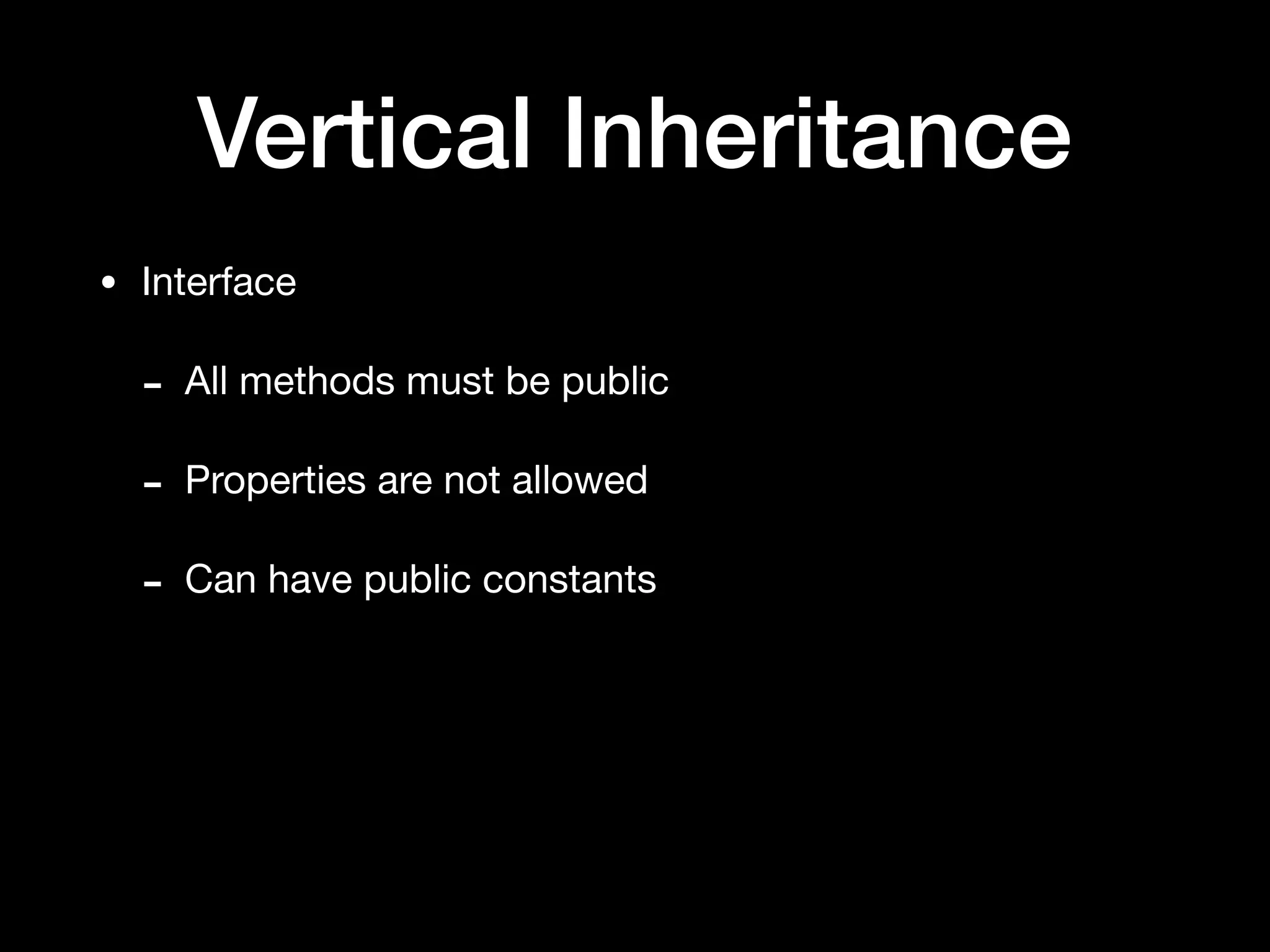

49. Vertical Inheritance
• Interface
- All methods must be public
- Properties are not allowed
- Can have public constants

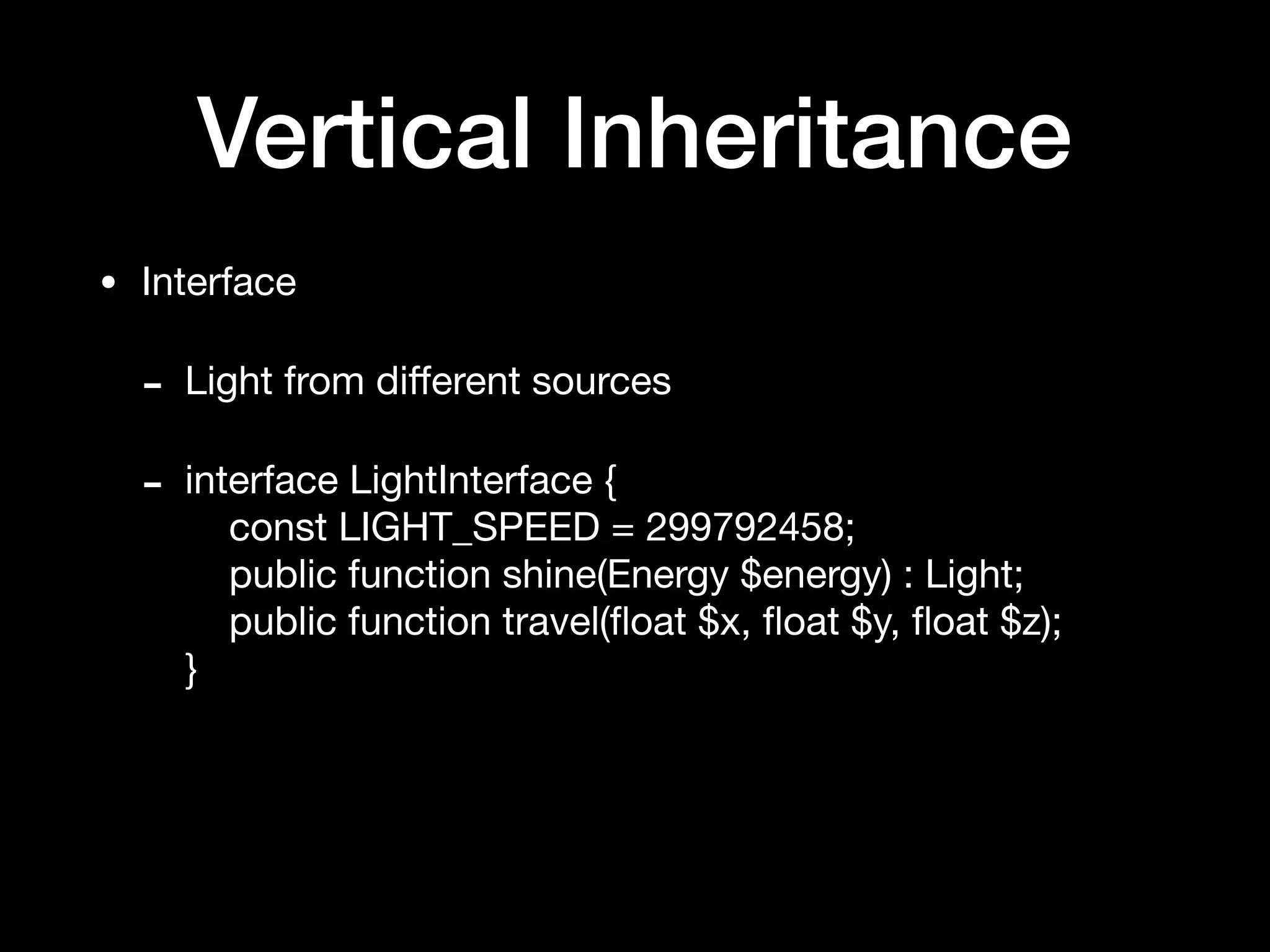

50. Vertical Inheritance
• Interface
- Light from different sources
- interface LightInterface {
const LIGHT_SPEED = 299792458;
public function shine(Energy $energy) : Light;
public function travel(float $x, float $y, float $z);
}

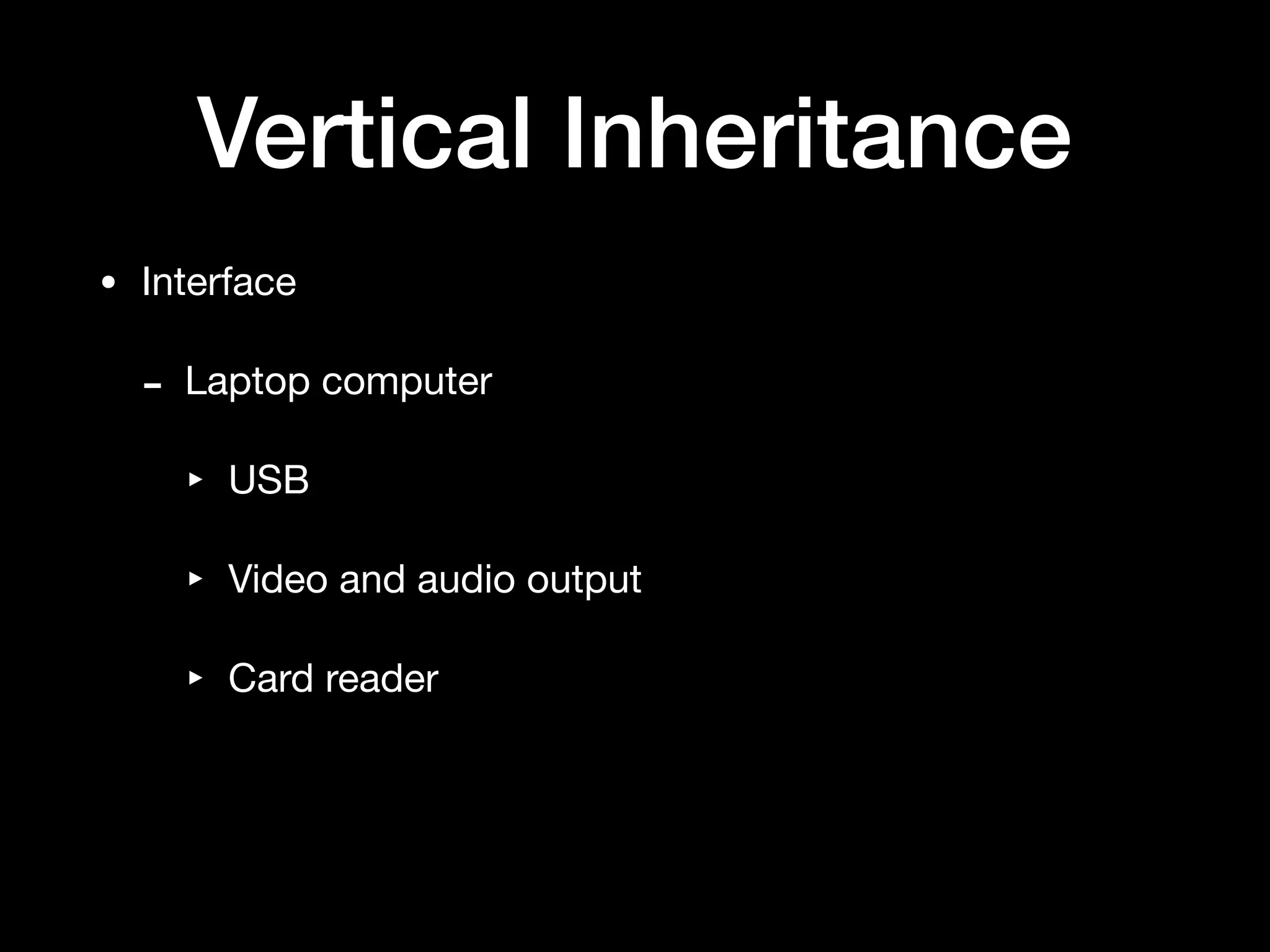

51. Vertical Inheritance
• Interface
- Laptop computer
‣ USB
‣ Video and audio output
‣ Card reader

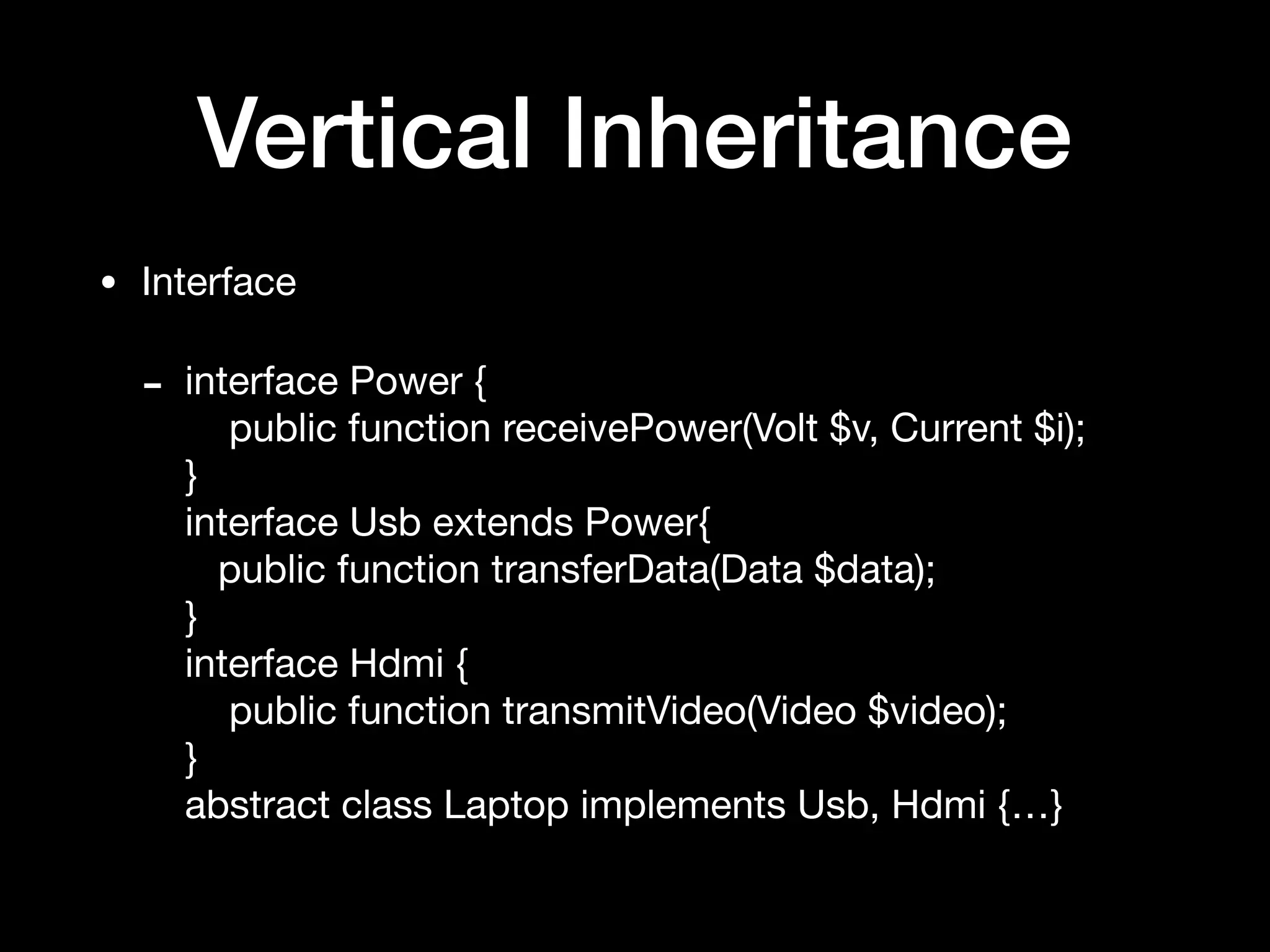

52. Vertical Inheritance
• Interface
- interface Power {
public function receivePower(Volt $v, Current $i);
}
interface Usb extends Power{
public function transferData(Data $data);
}
interface Hdmi {
public function transmitVideo(Video $video);
}
abstract class Laptop implements Usb, Hdmi {…}

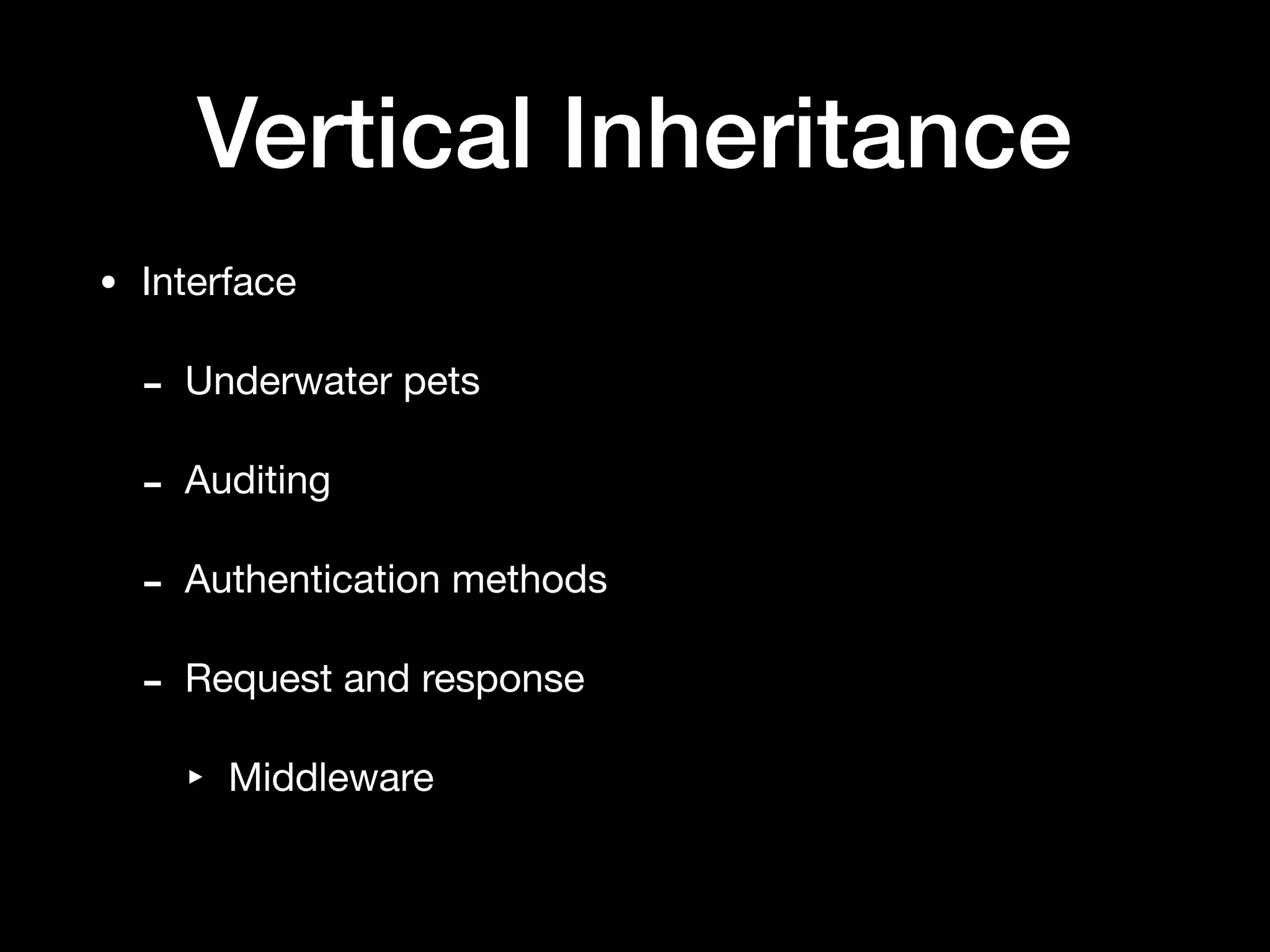

53. Vertical Inheritance
• Interface
- Underwater pets
- Auditing
- Authentication methods
- Request and response
‣ Middleware

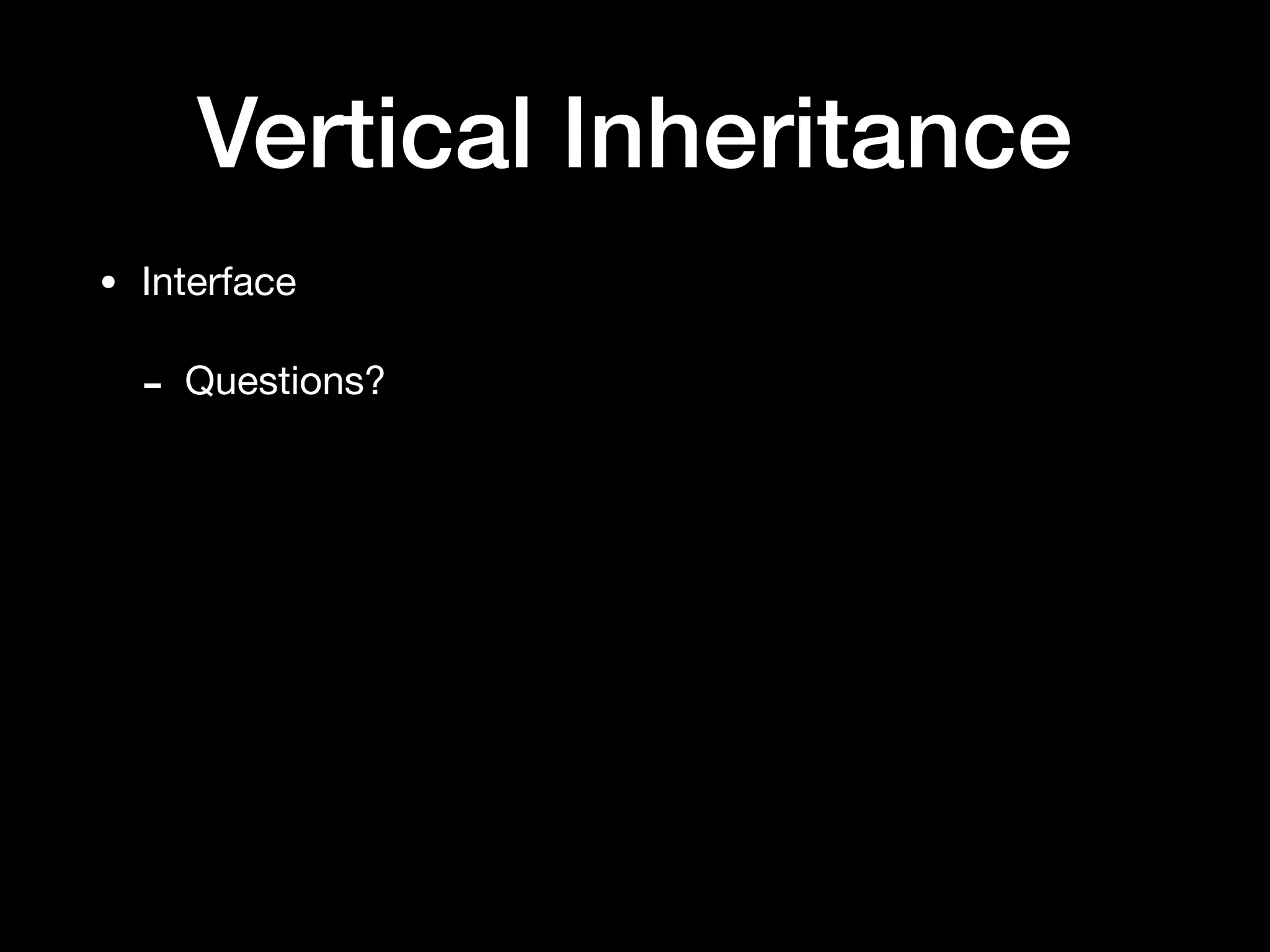

54. Vertical Inheritance
• Interface
- Questions?

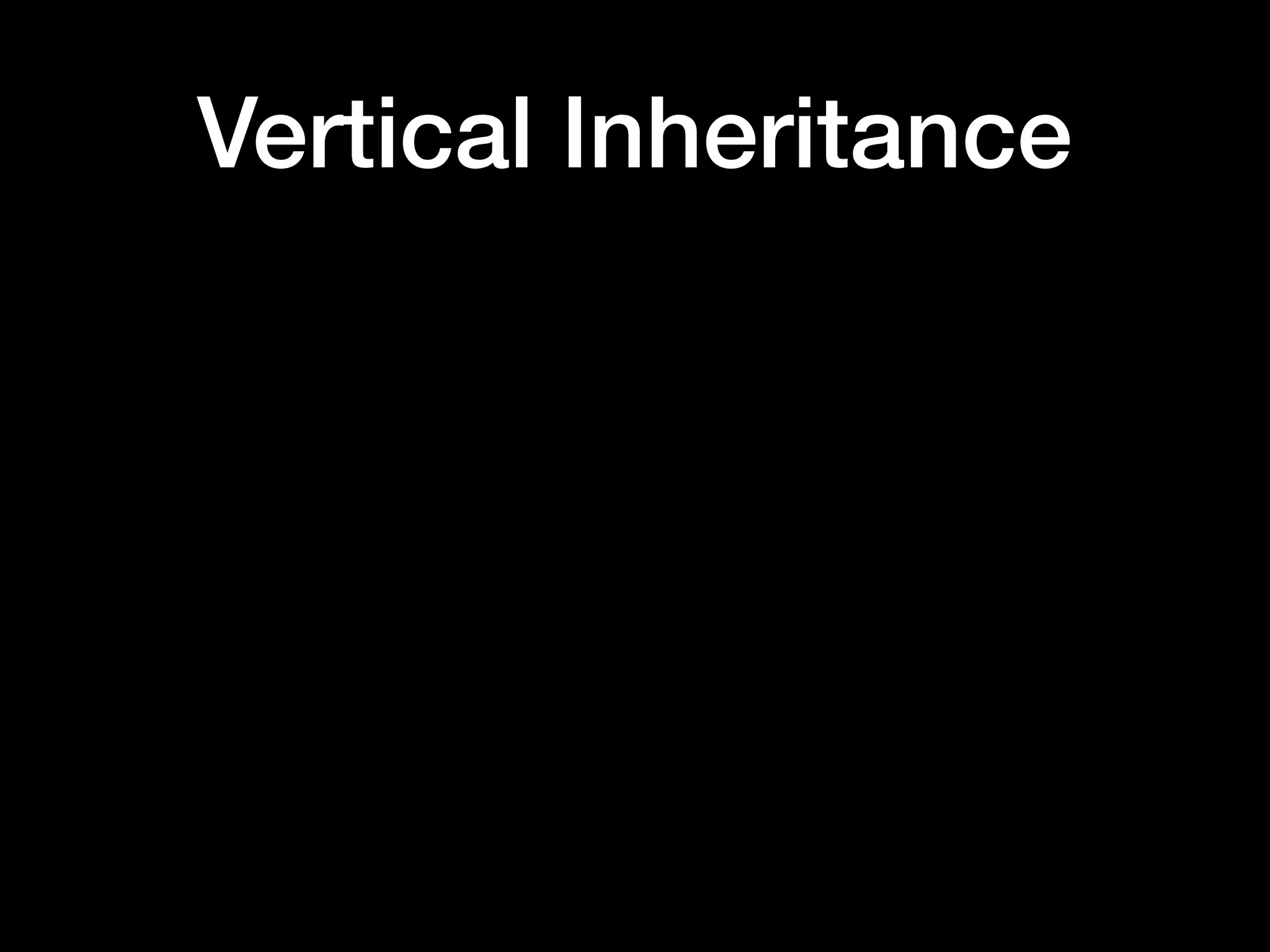

55. Vertical Inheritance

56. Horizontal Inheritance

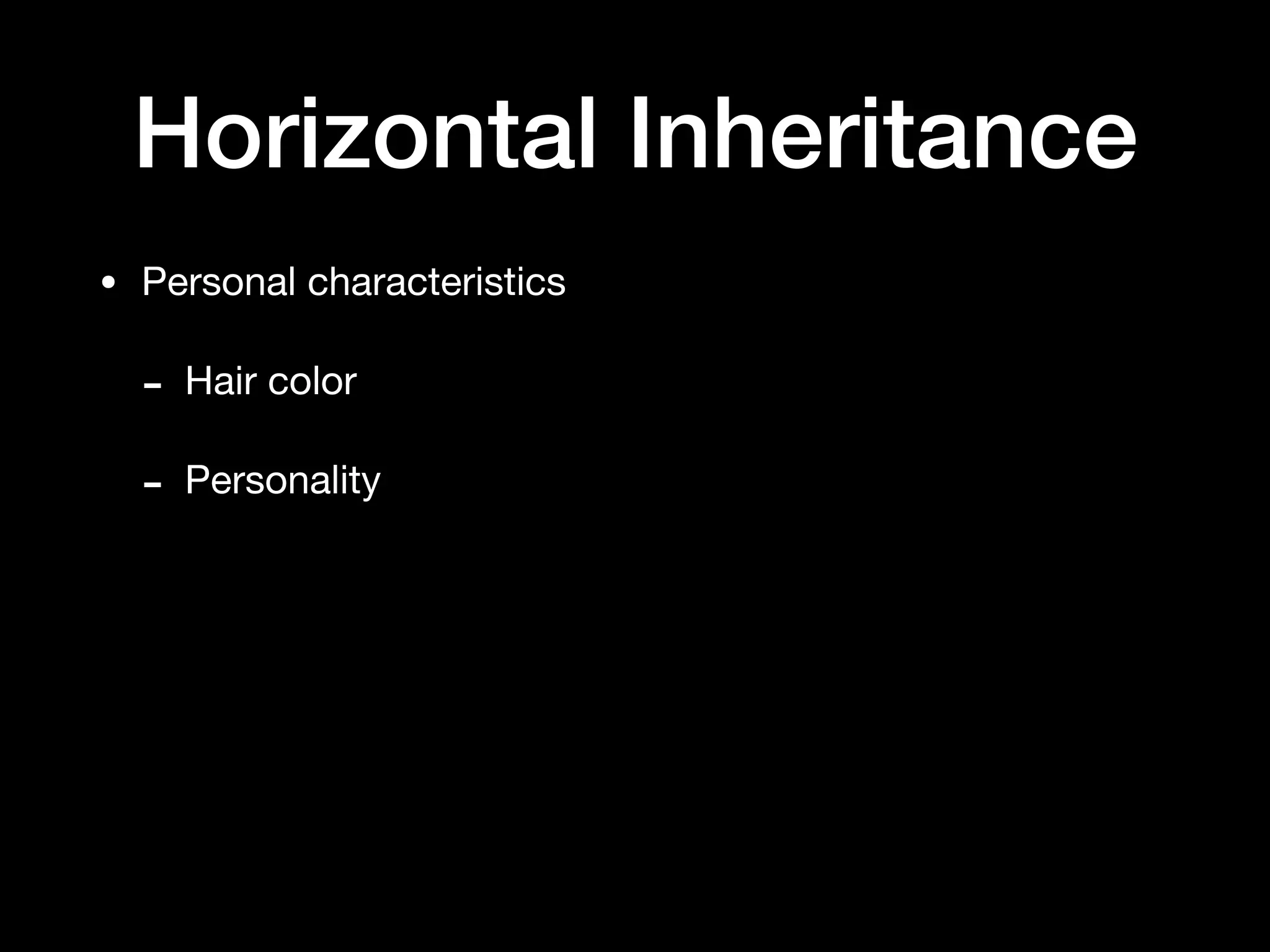

57. Horizontal Inheritance
• Personal characteristics
- Hair color
- Personality

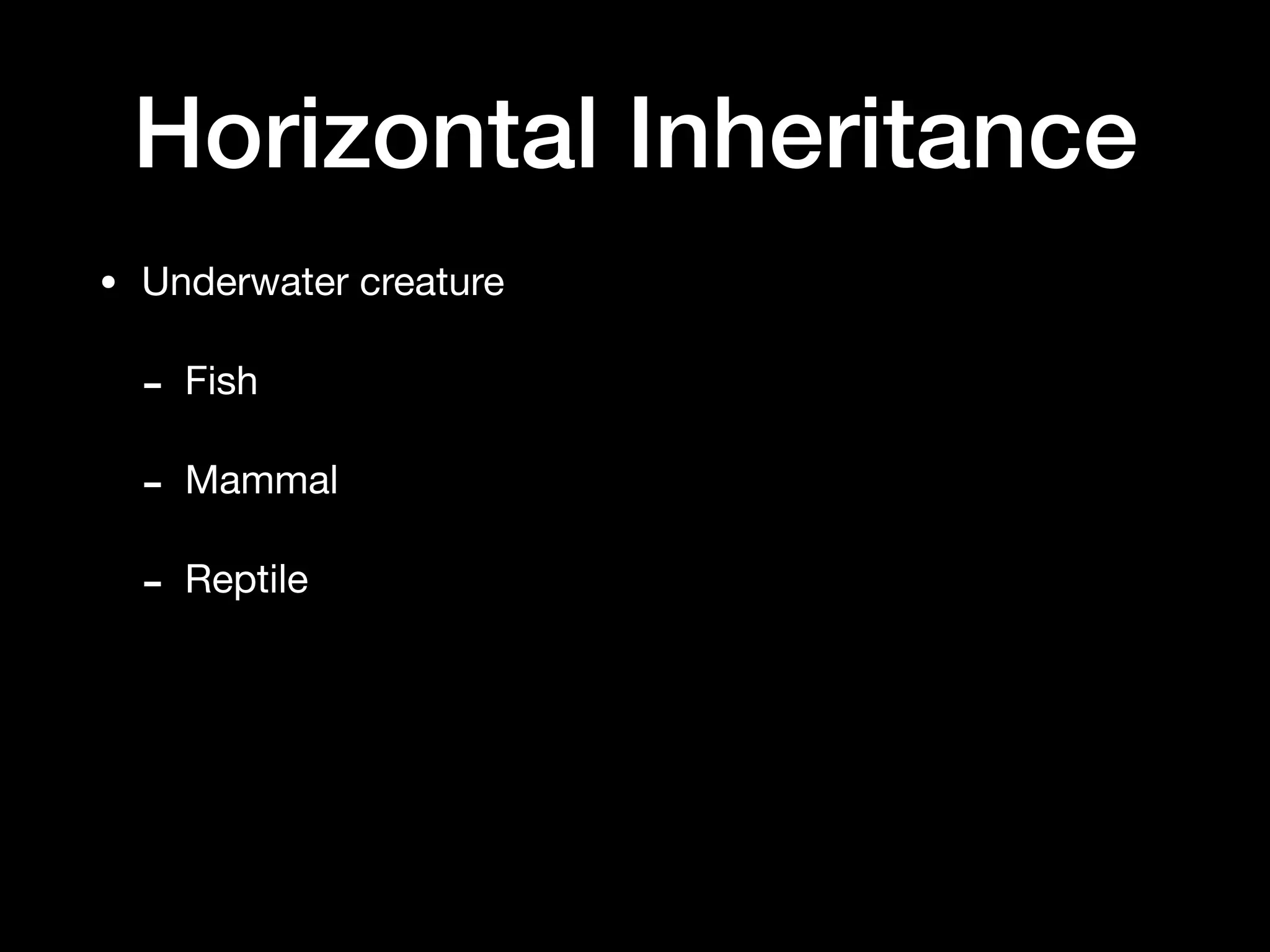

58. Horizontal Inheritance
• Underwater creature
- Fish
- Mammal
- Reptile

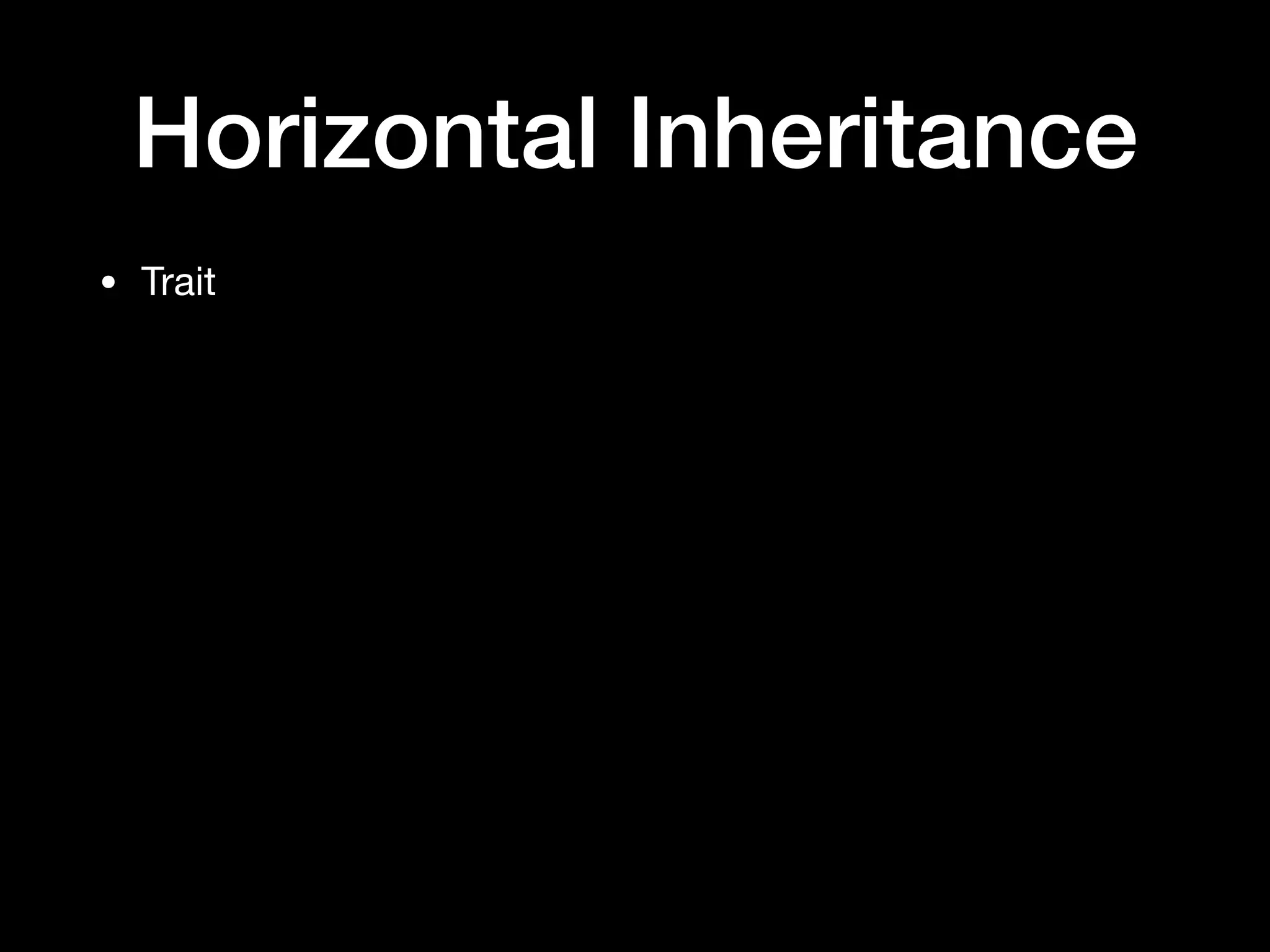

59. Horizontal Inheritance
• Trait

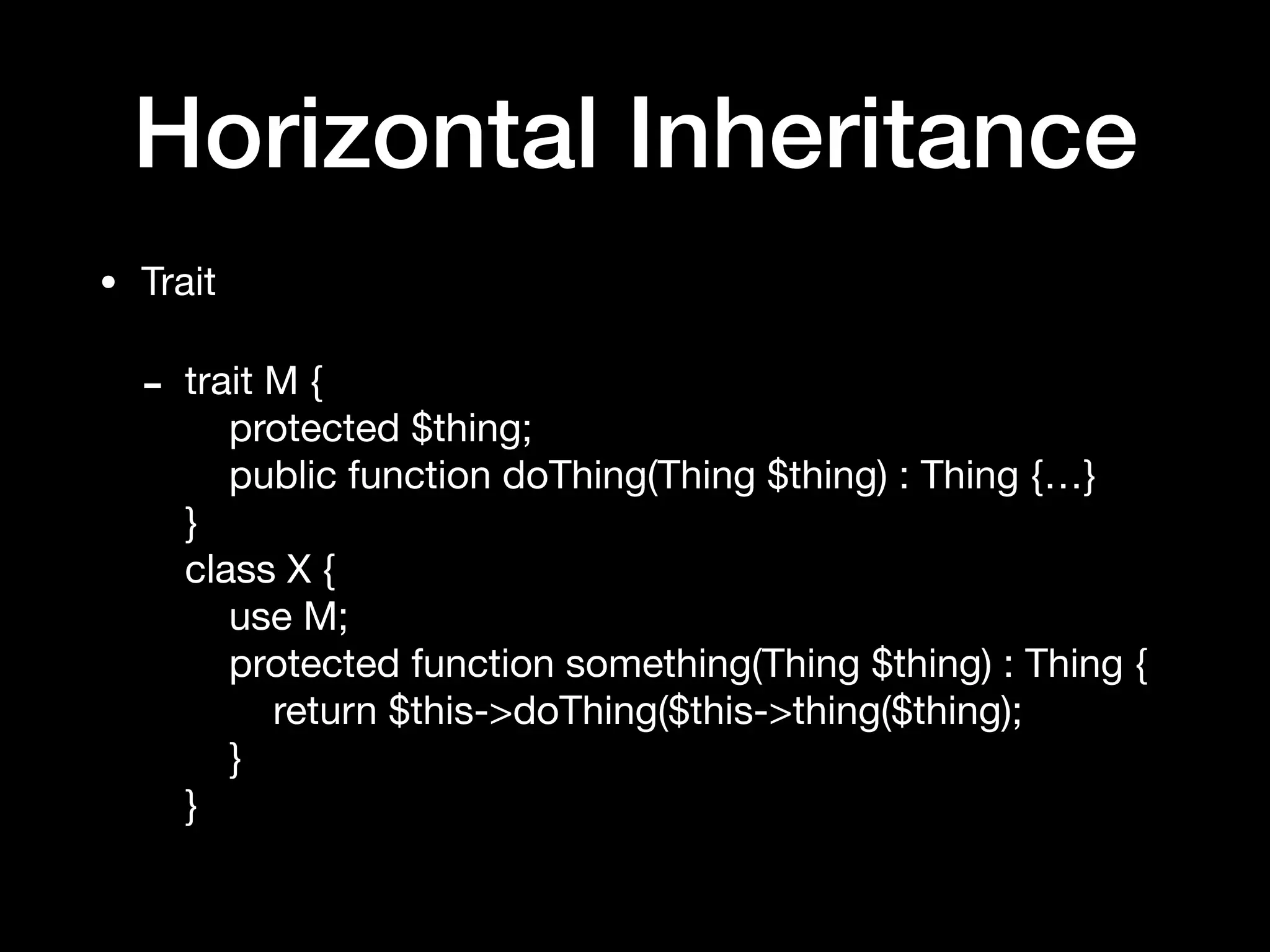

60. Horizontal Inheritance
• Trait
- trait M {
protected $thing;
public function doThing(Thing $thing) : Thing {…}
}
class X {
use M;
protected function something(Thing $thing) : Thing {
return $this->doThing($this->thing($thing);
}
}

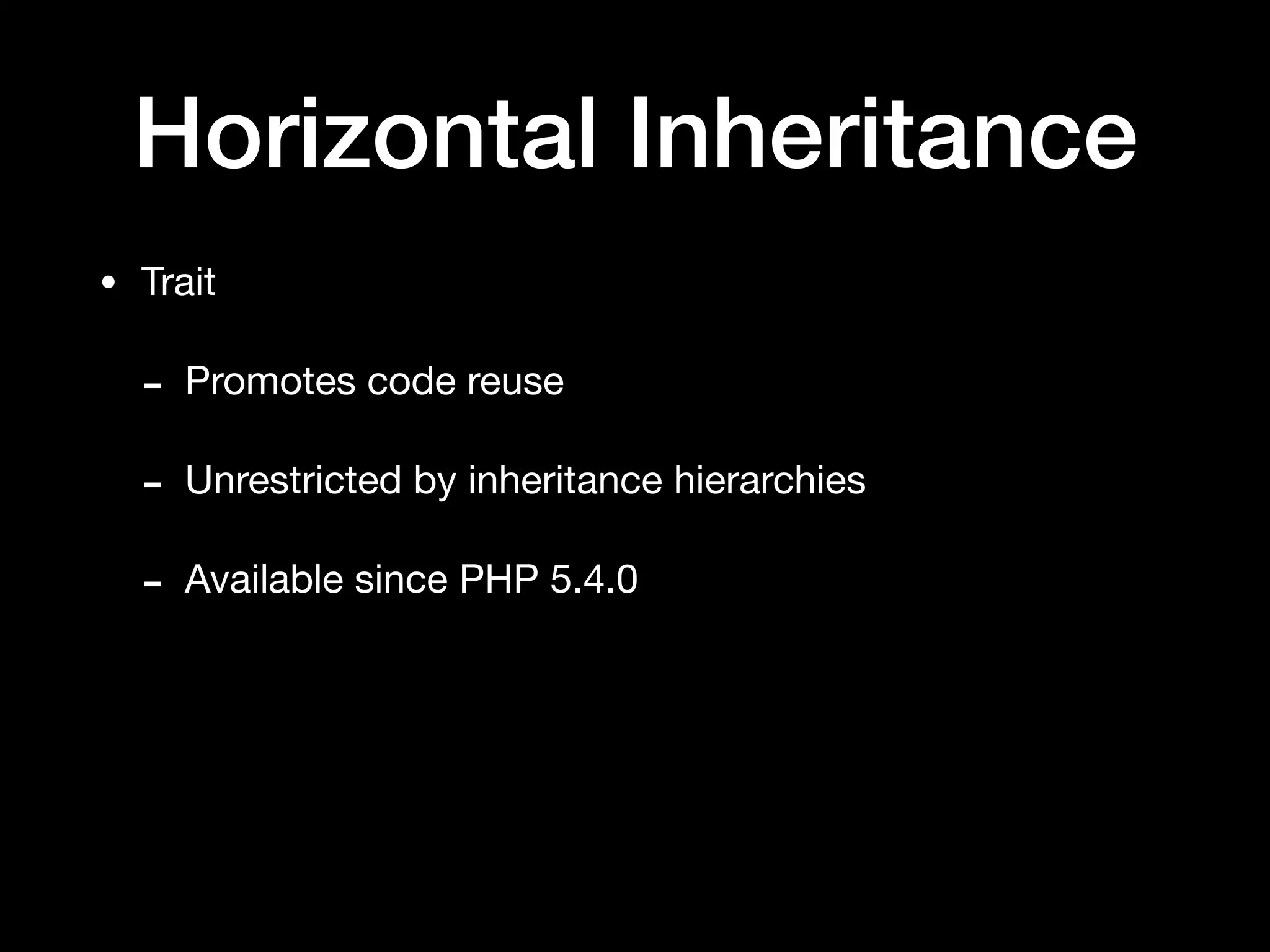

61. Horizontal Inheritance
• Trait
- Promotes code reuse
- Unrestricted by inheritance hierarchies
- Available since PHP 5.4.0

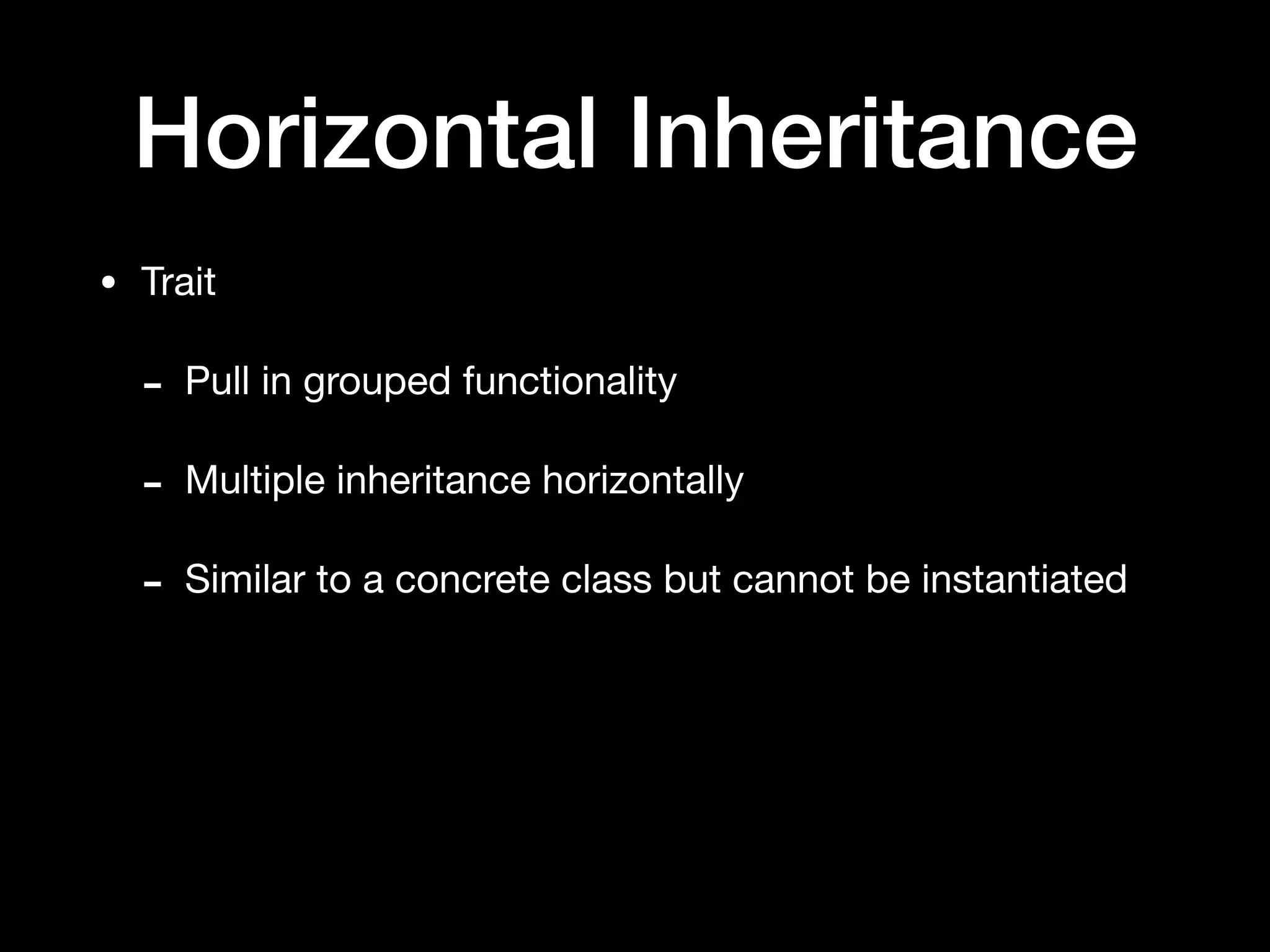

62. Horizontal Inheritance
• Trait
- Pull in grouped functionality
- Multiple inheritance horizontally
- Similar to a concrete class but cannot be instantiated

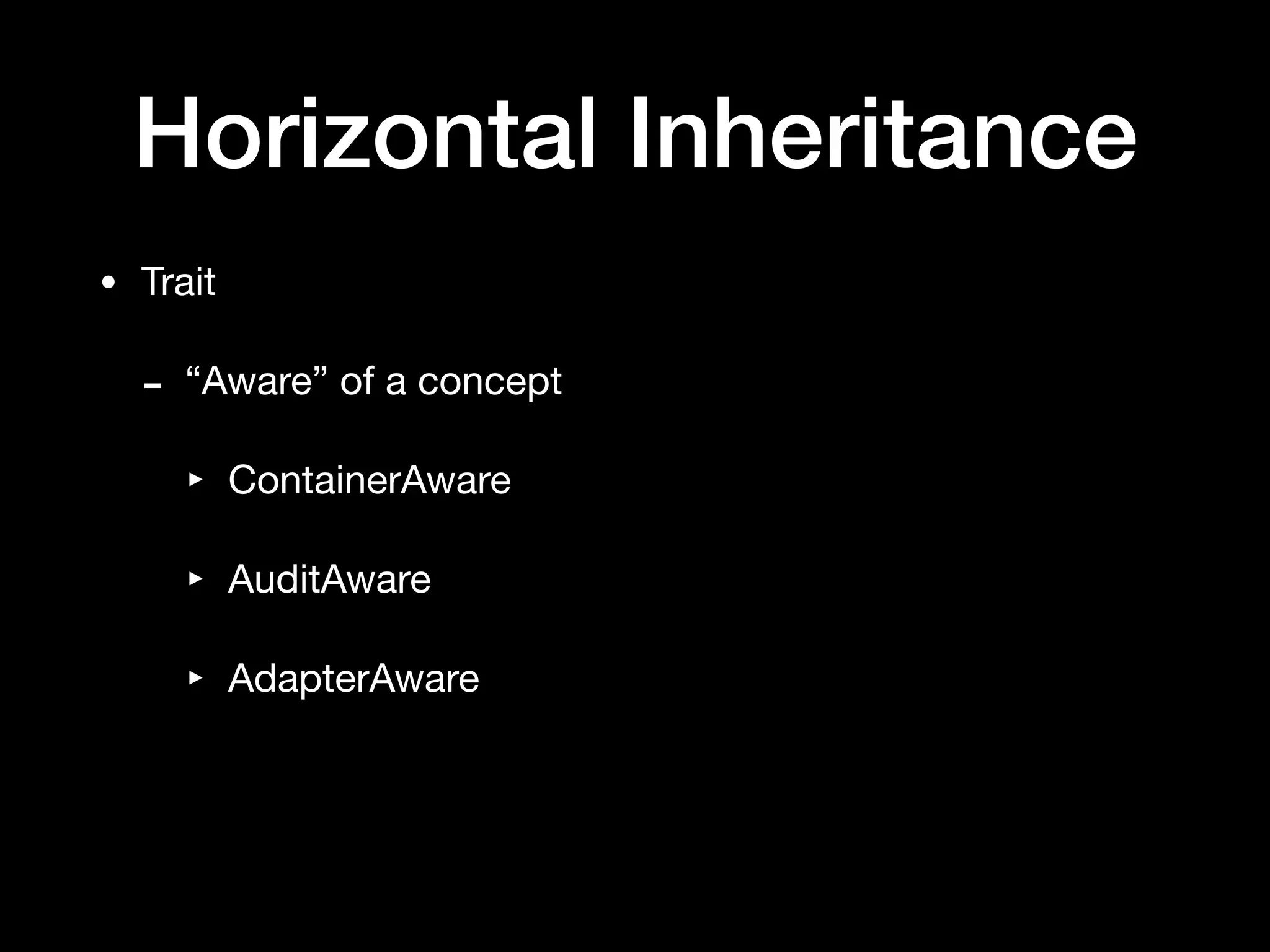

63. Horizontal Inheritance
• Trait
- “Aware” of a concept
‣ ContainerAware
‣ AuditAware
‣ AdapterAware

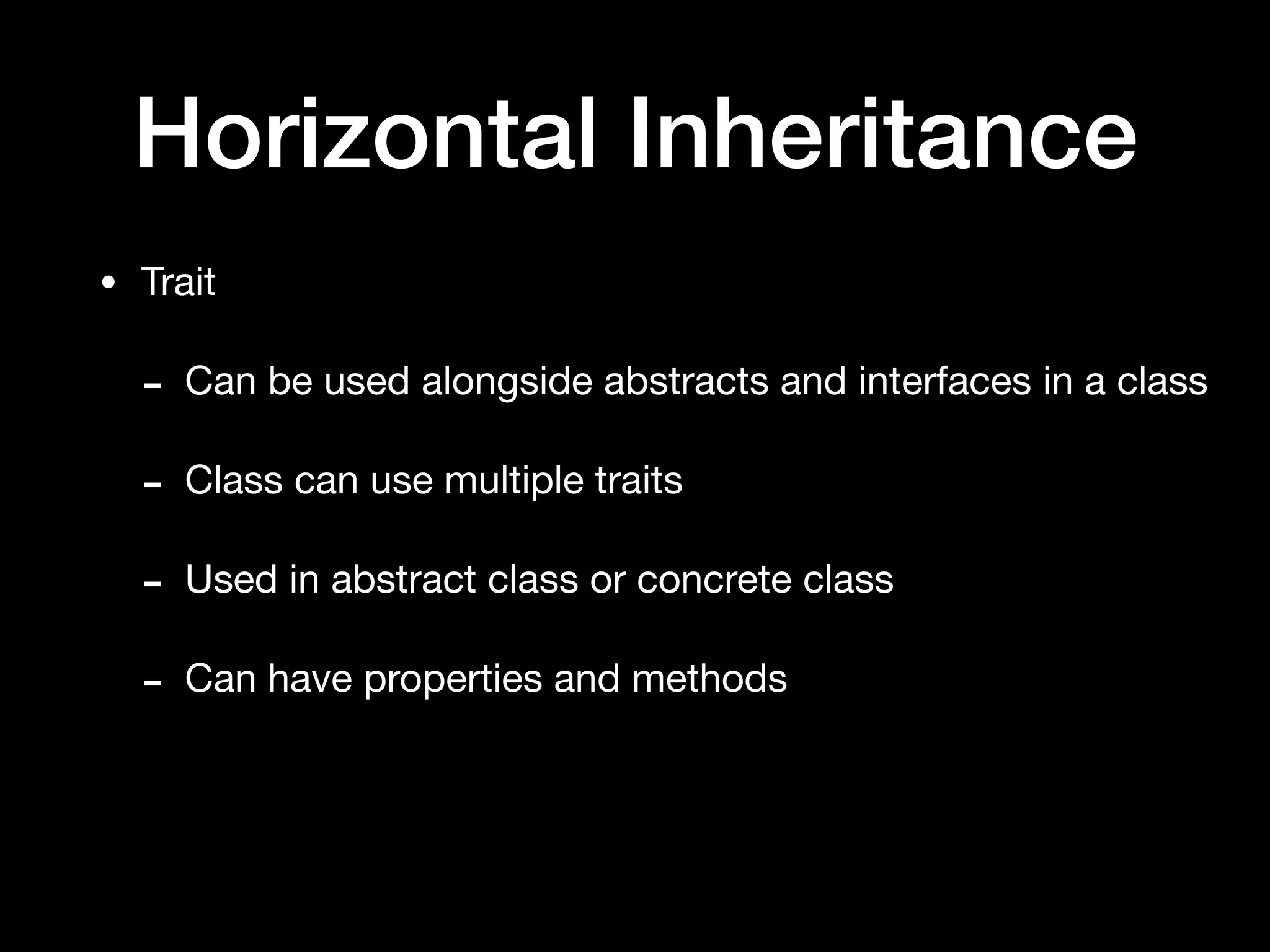

64. Horizontal Inheritance
• Trait
- Can be used alongside abstracts and interfaces in a class
- Class can use multiple traits
- Used in abstract class or concrete class
- Can have properties and methods

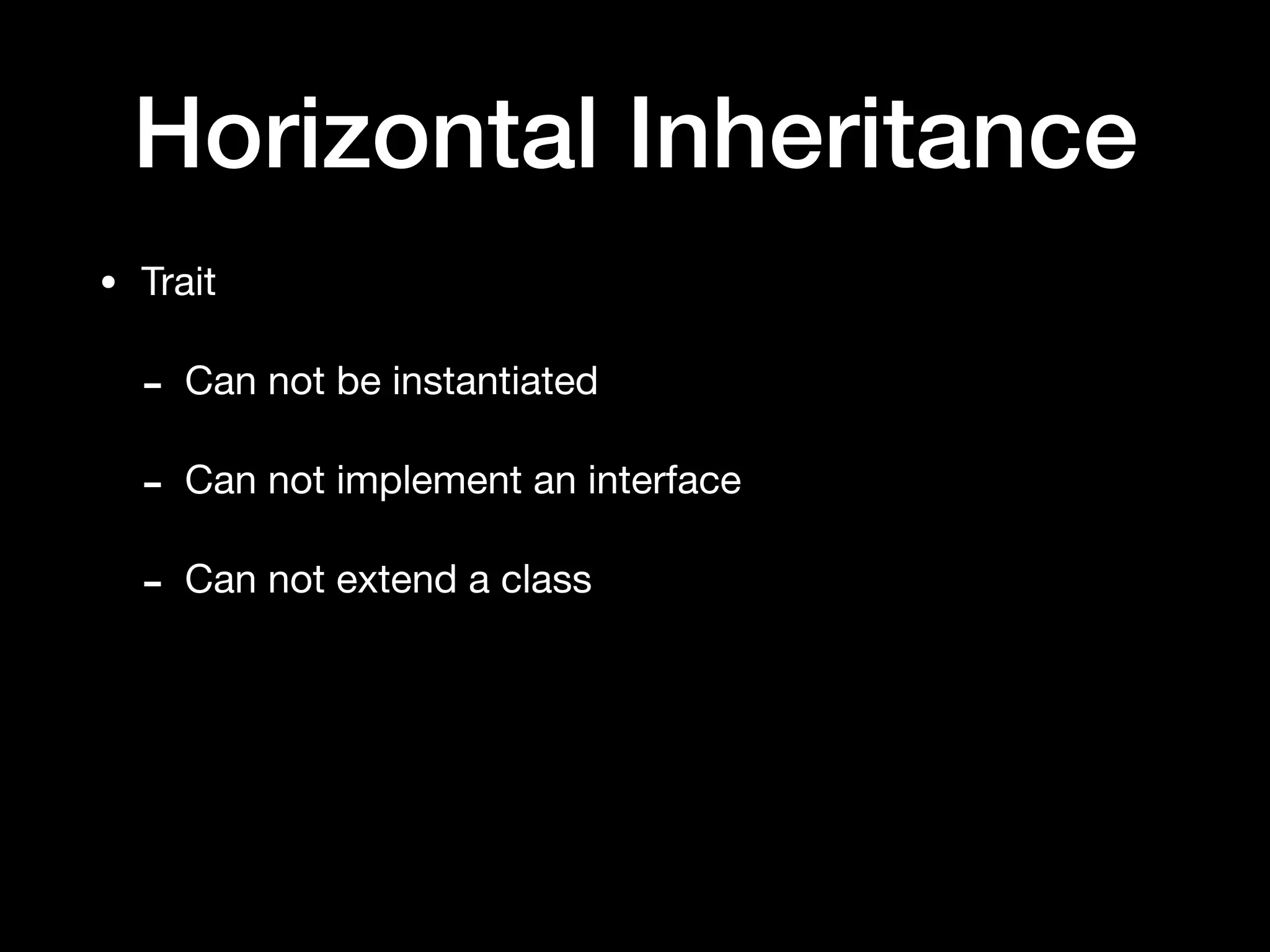

65. Horizontal Inheritance
• Trait
- Can not be instantiated
- Can not implement an interface
- Can not extend a class

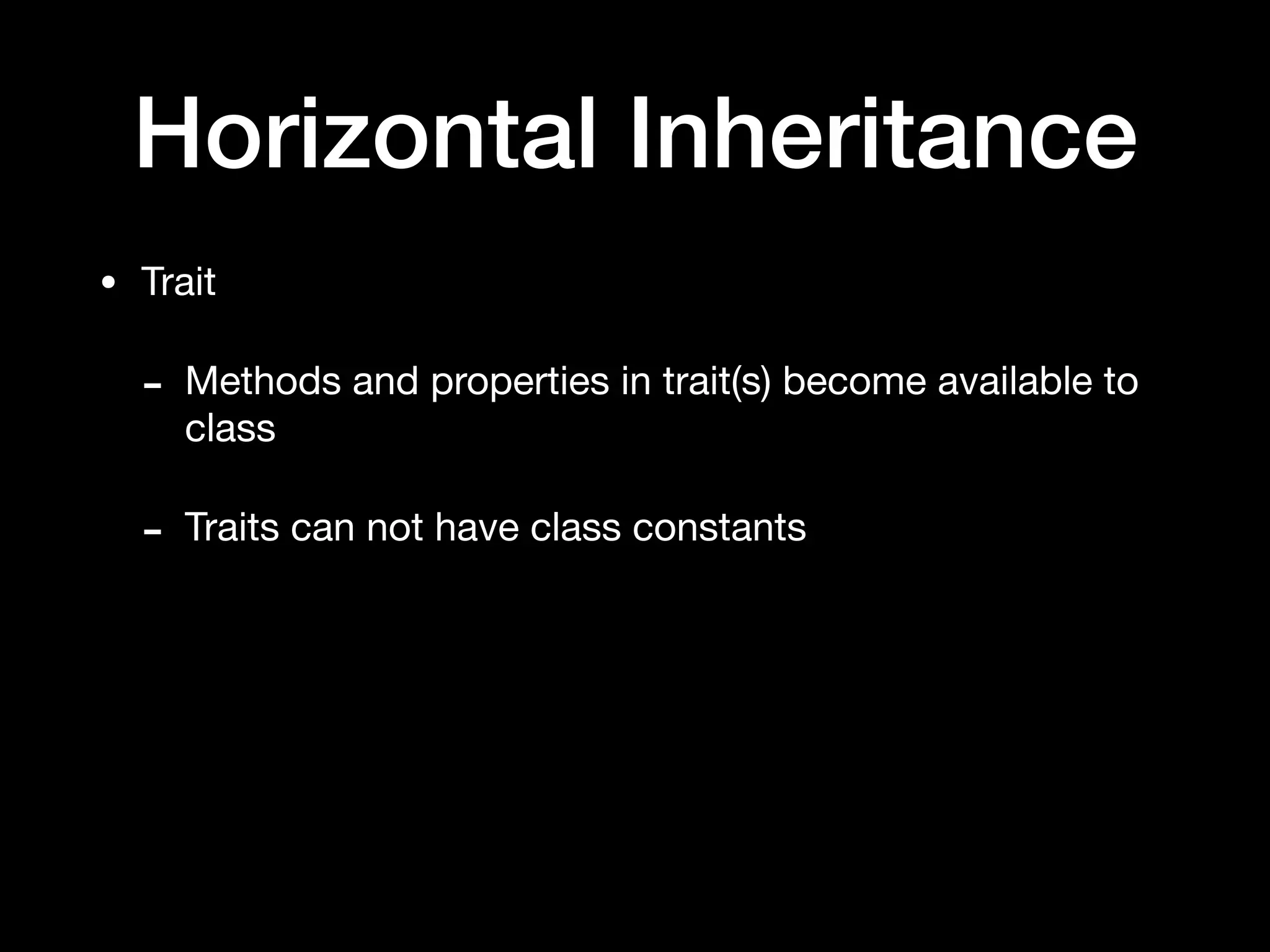

66. Horizontal Inheritance
• Trait
- Methods and properties in trait(s) become available to
class
- Traits can not have class constants

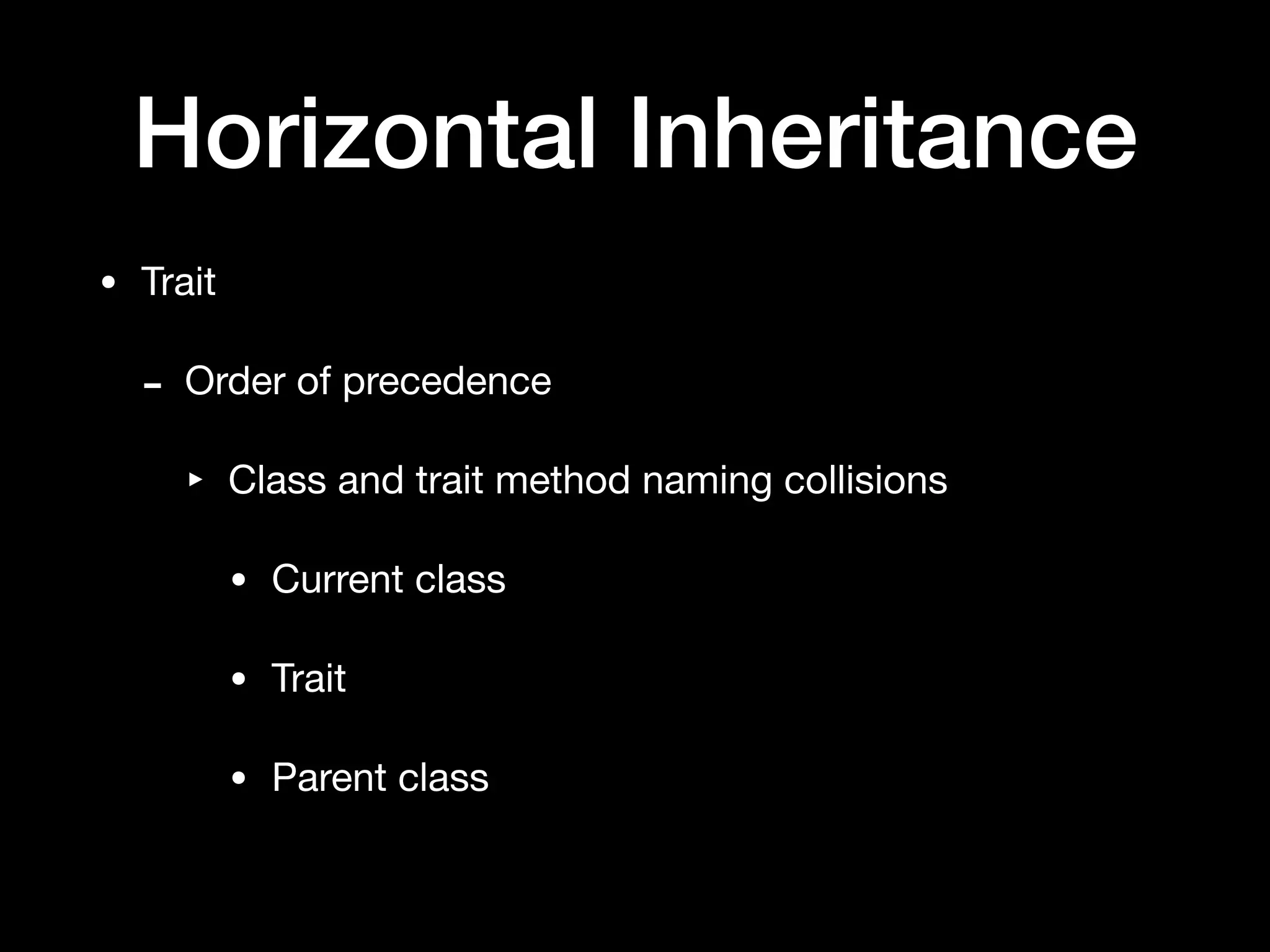

67. Horizontal Inheritance
• Trait
- Order of precedence
‣ Class and trait method naming collisions
• Current class
• Trait
• Parent class

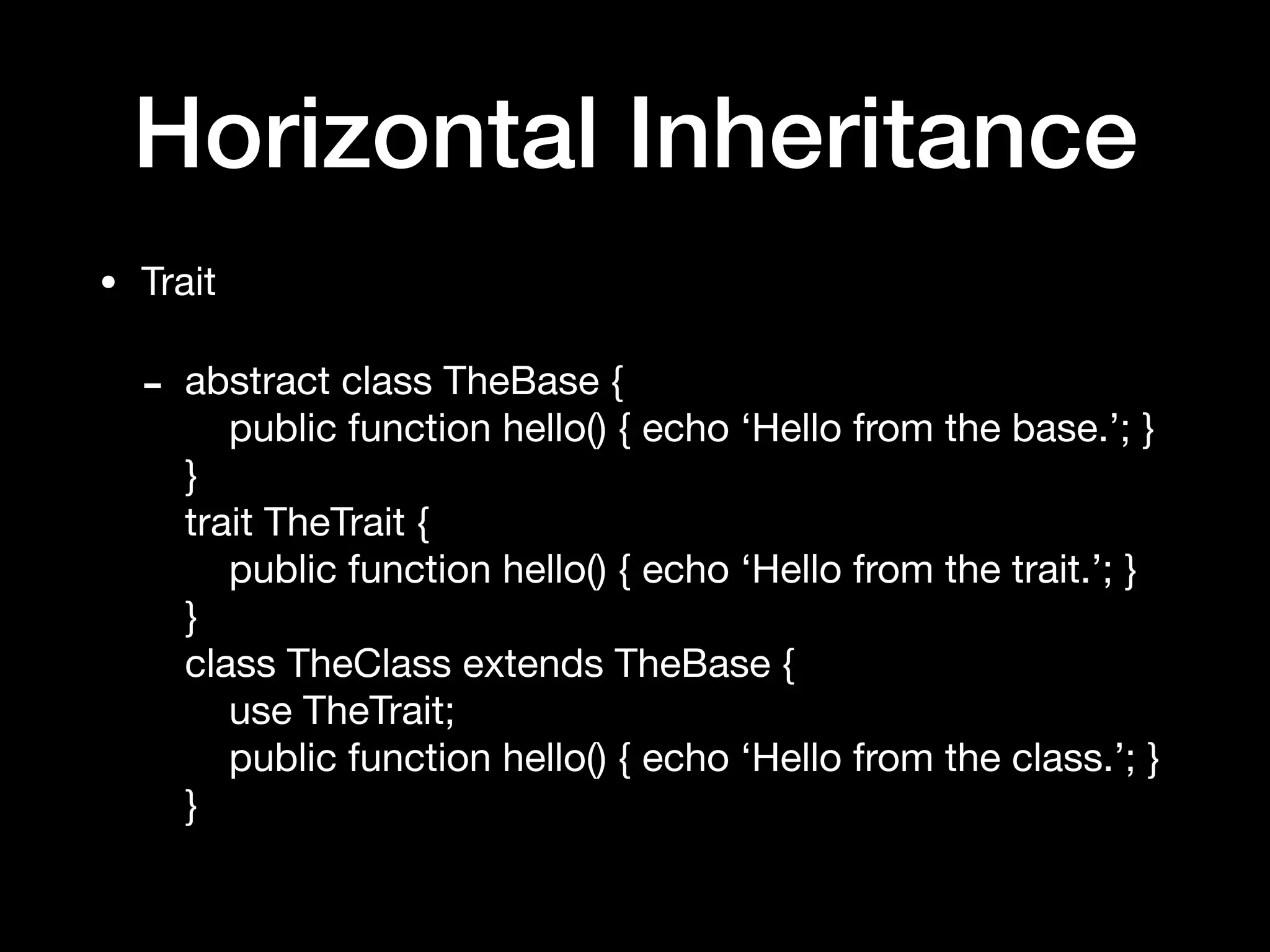

68. Horizontal Inheritance
• Trait
- abstract class TheBase {
public function hello() { echo ‘Hello from the base.’; }
}
trait TheTrait {
public function hello() { echo ‘Hello from the trait.’; }
}
class TheClass extends TheBase {
use TheTrait;
public function hello() { echo ‘Hello from the class.’; }
}

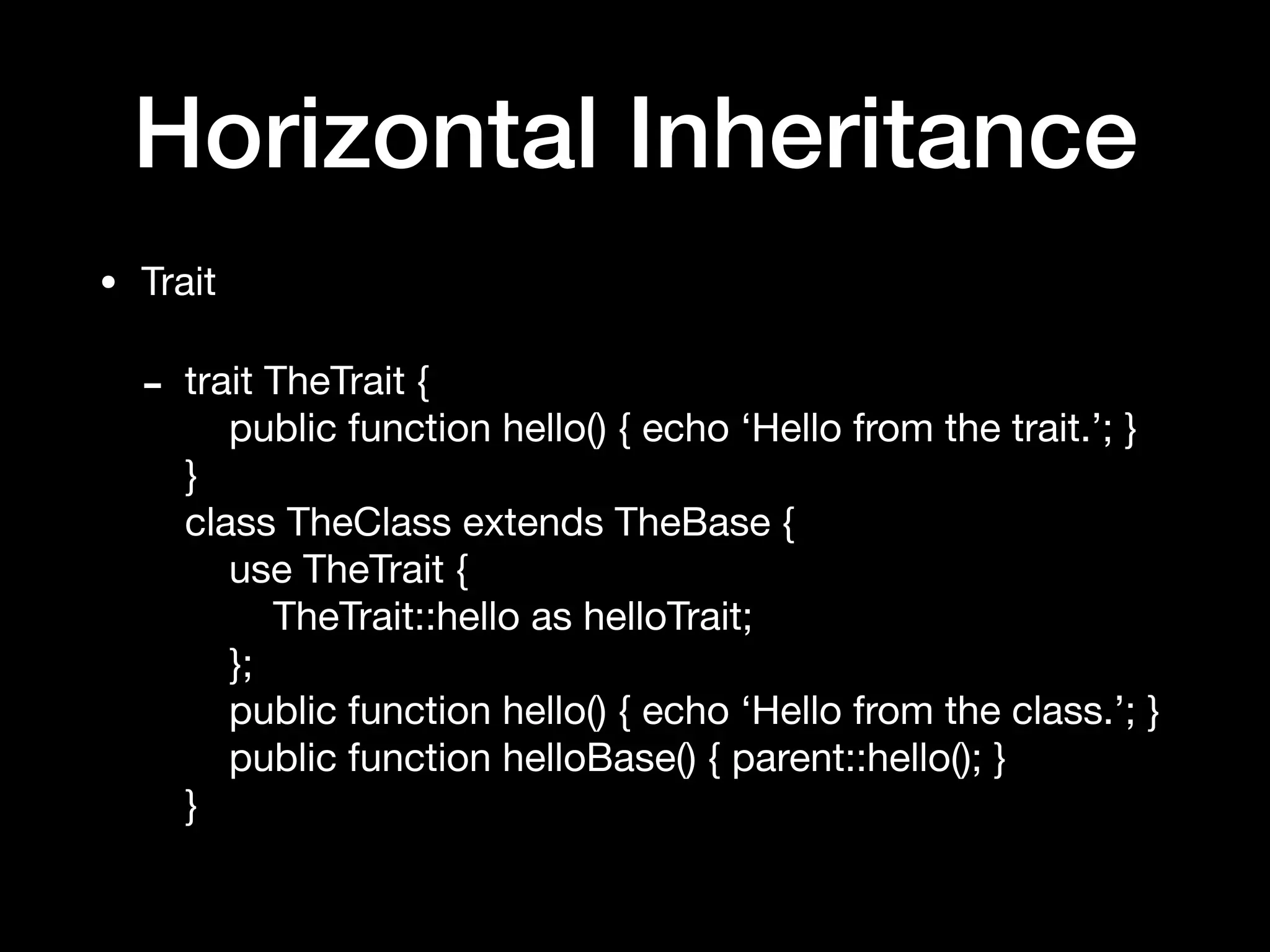

69. Horizontal Inheritance
• Trait
- trait TheTrait {
public function hello() { echo ‘Hello from the trait.’; }
}
class TheClass extends TheBase {
use TheTrait {
TheTrait::hello as helloTrait;
};
public function hello() { echo ‘Hello from the class.’; }
public function helloBase() { parent::hello(); }
}

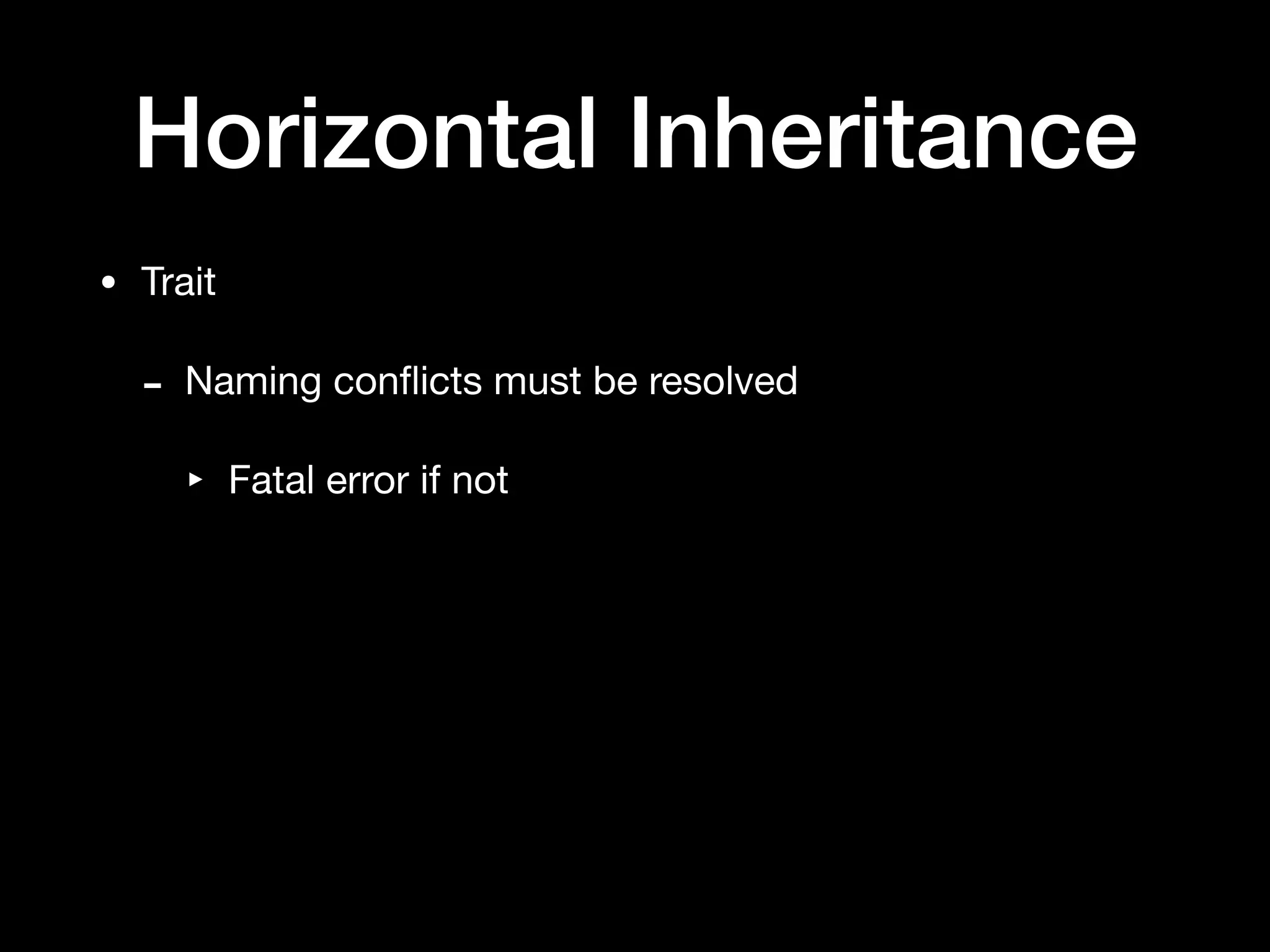

70. Horizontal Inheritance
• Trait
- Naming conflicts must be resolved
‣ Fatal error if not

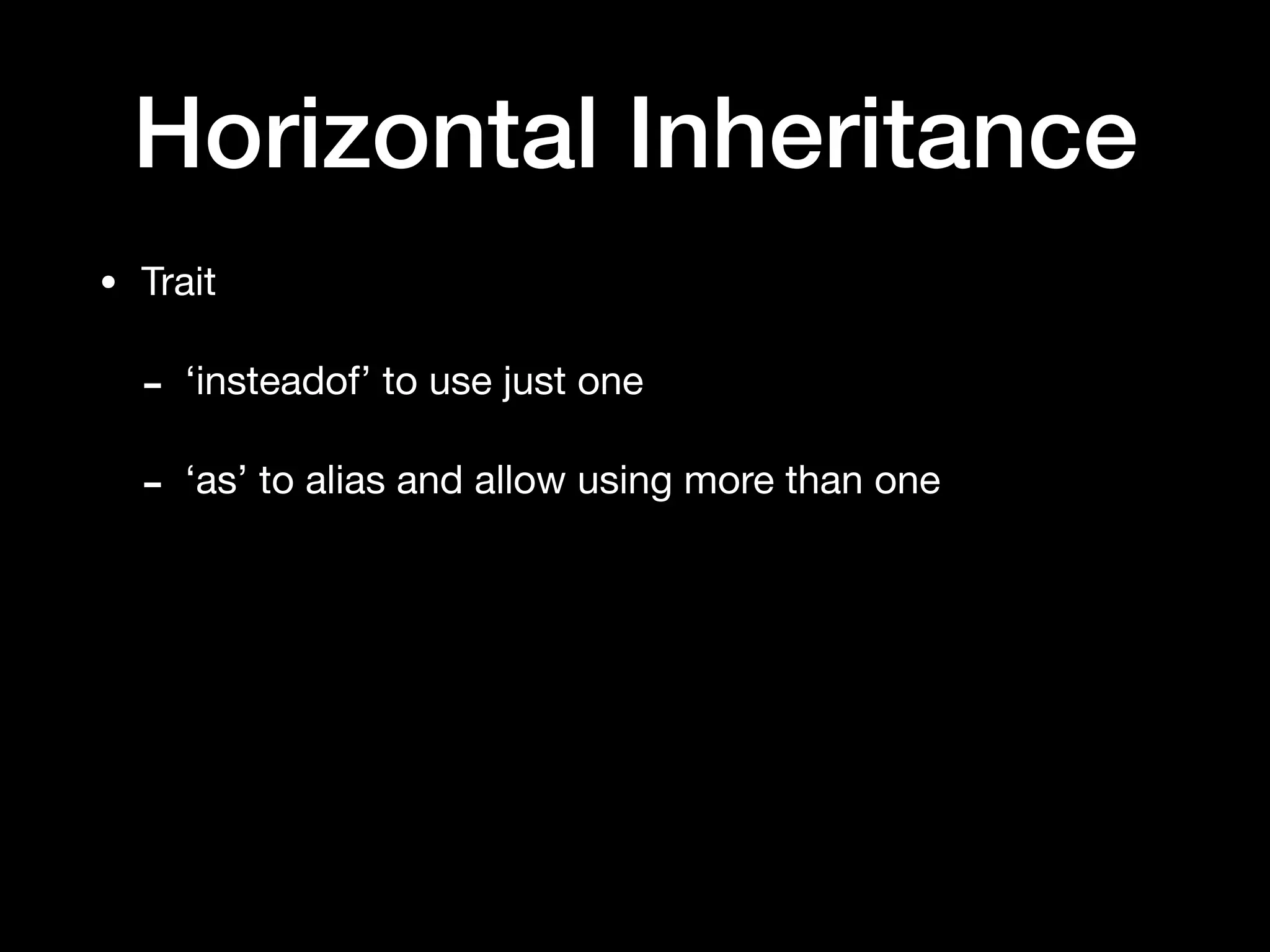

71. Horizontal Inheritance
• Trait
- ‘insteadof’ to use just one
- ‘as’ to alias and allow using more than one

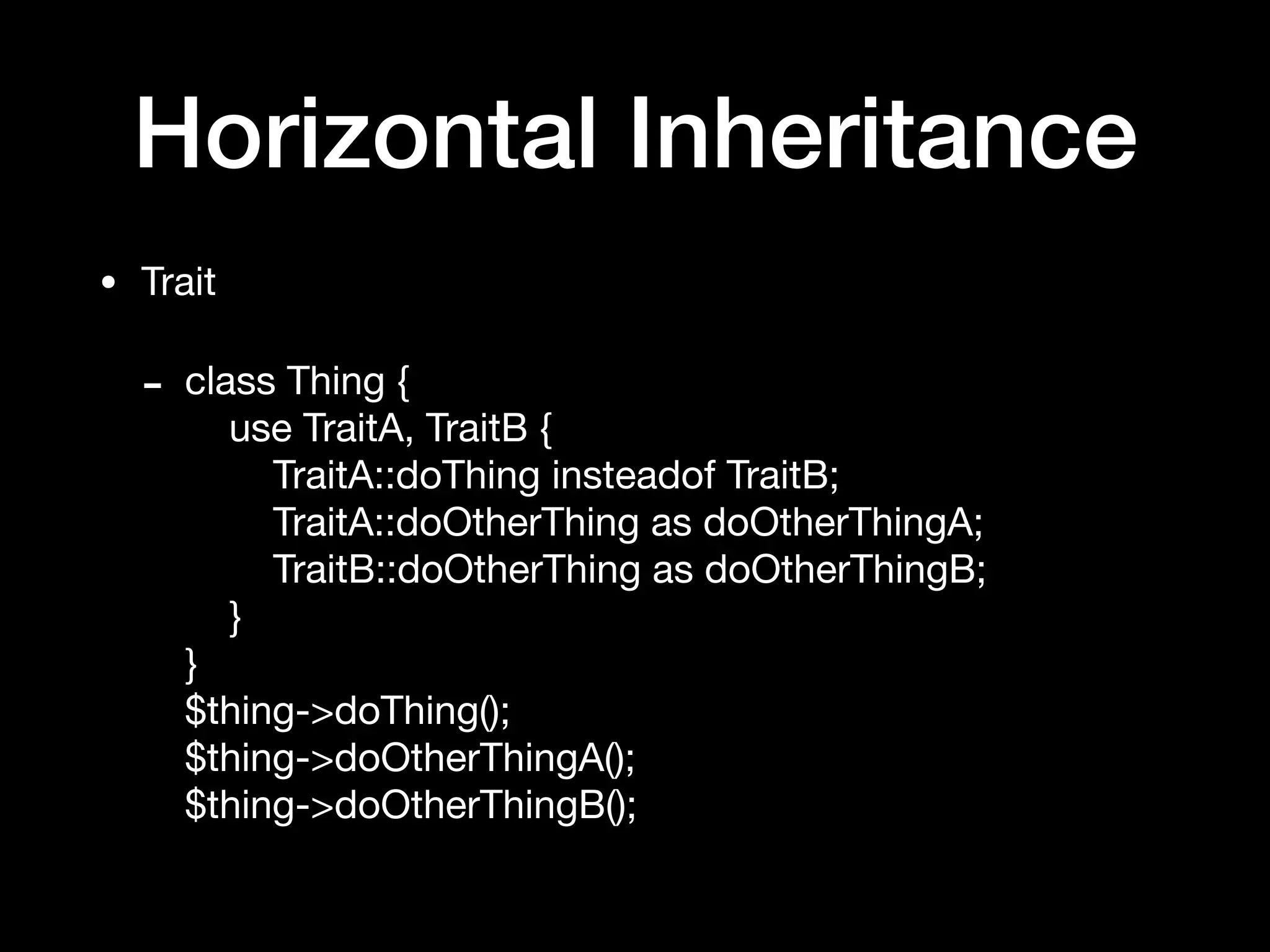

72. Horizontal Inheritance
• Trait
- class Thing {
use TraitA, TraitB {
TraitA::doThing insteadof TraitB;
TraitA::doOtherThing as doOtherThingA;
TraitB::doOtherThing as doOtherThingB;
}
}
$thing->doThing();
$thing->doOtherThingA();
$thing->doOtherThingB();

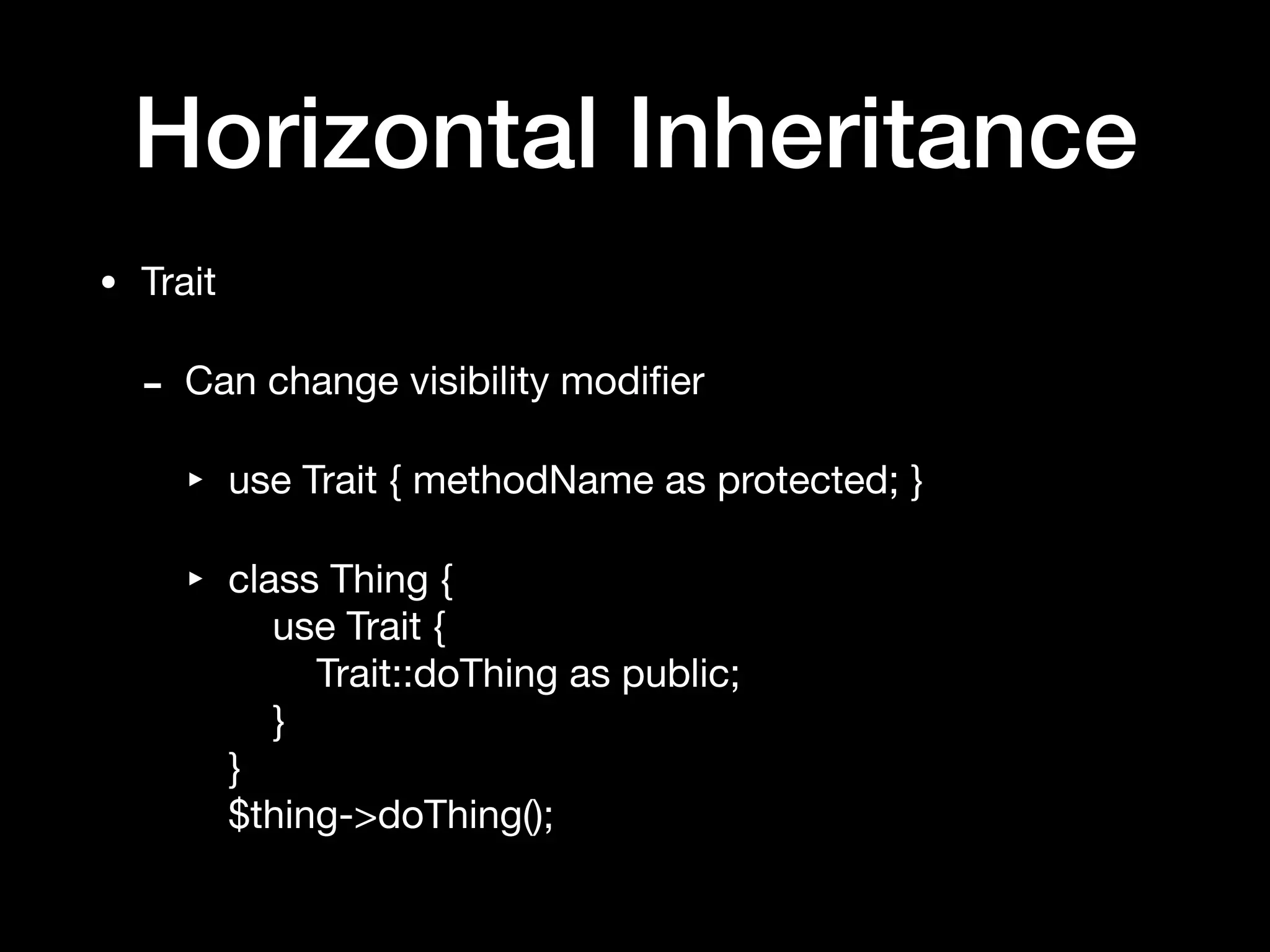

73. Horizontal Inheritance
• Trait
- Can change visibility modifier
‣ use Trait { methodName as protected; }
‣ class Thing {
use Trait {
Trait::doThing as public;
}
}
$thing->doThing();

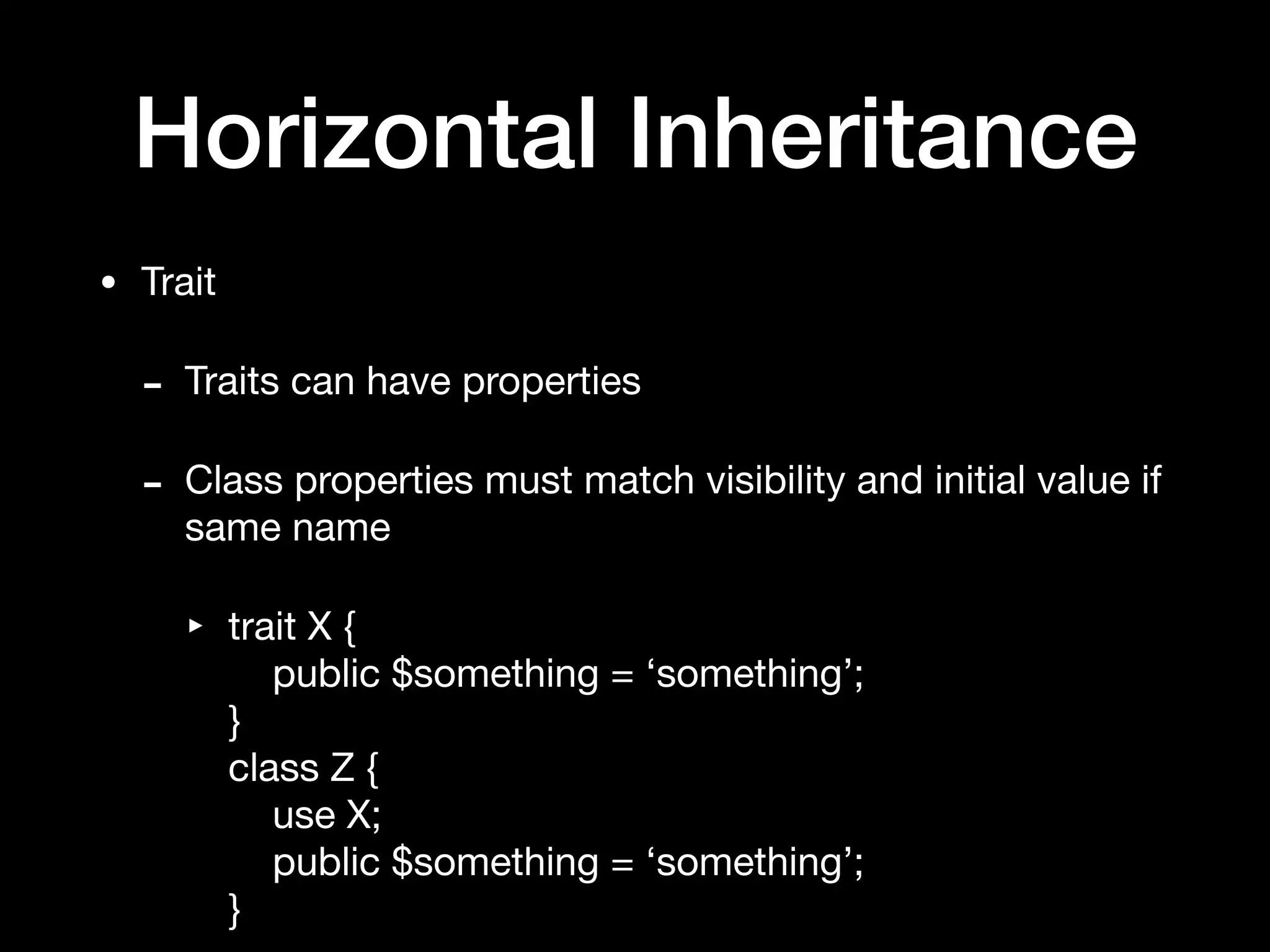

74. Horizontal Inheritance
• Trait
- Traits can have properties
- Class properties must match visibility and initial value if
same name
‣ trait X {
public $something = ‘something’;
}
class Z {
use X;
public $something = ‘something’;
}

75. Horizontal Inheritance
• Trait
- Traits can use other traits
‣ trait Thing {
use ThingA, ThingB;
}

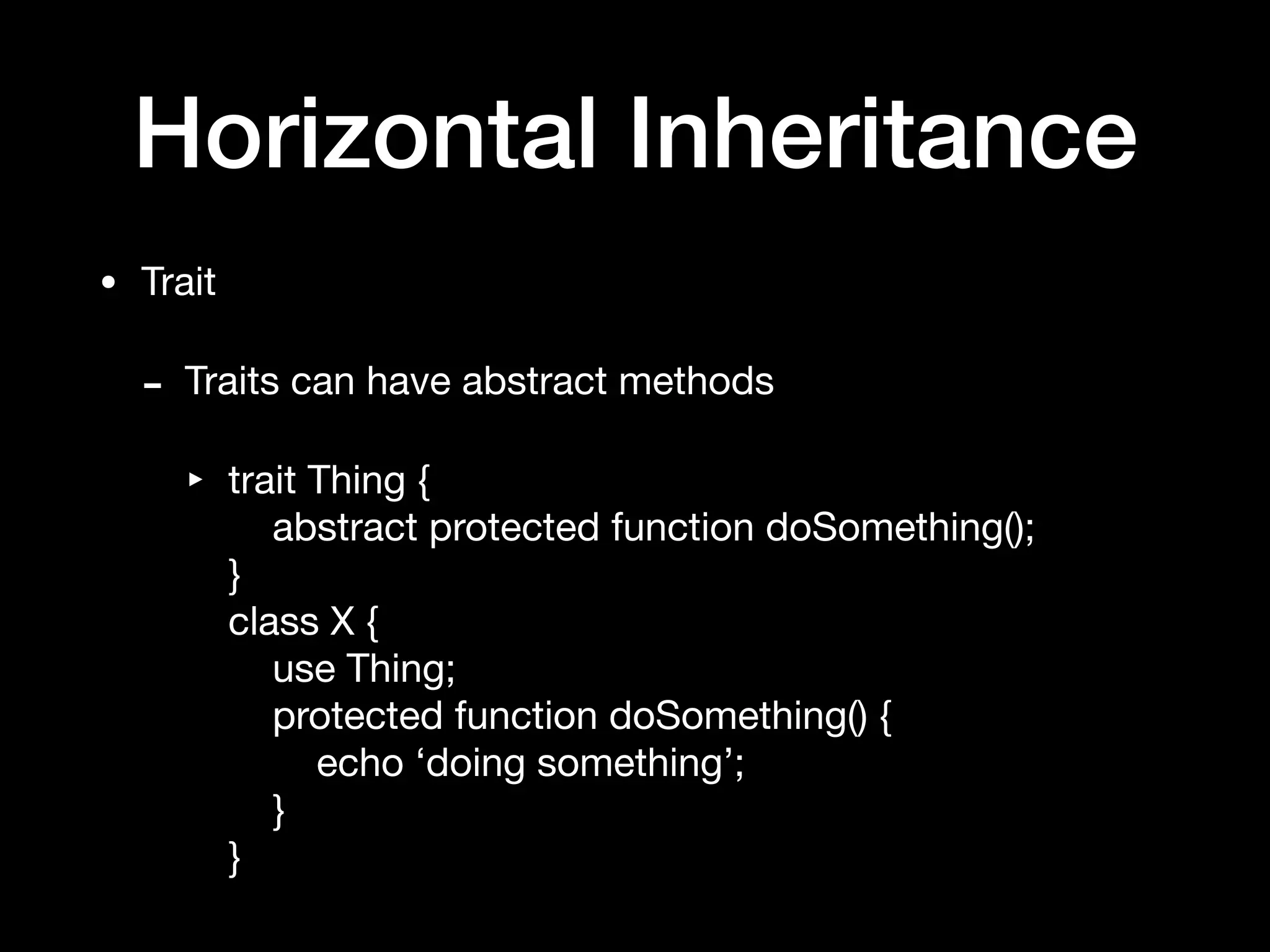

76. Horizontal Inheritance
• Trait
- Traits can have abstract methods
‣ trait Thing {
abstract protected function doSomething();
}
class X {
use Thing;
protected function doSomething() {
echo ‘doing something’;
}
}

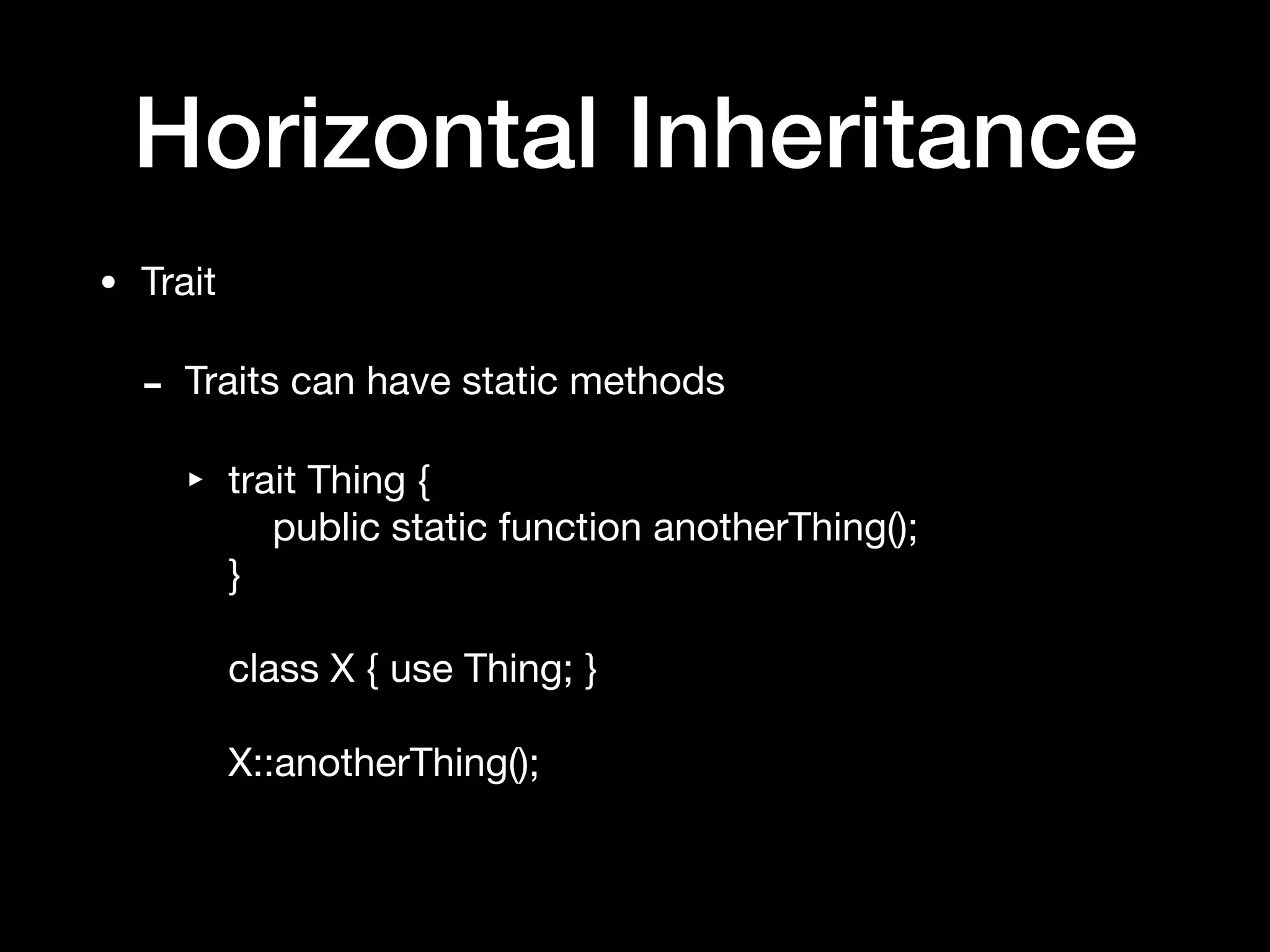

77. Horizontal Inheritance
• Trait
- Traits can have static methods
‣ trait Thing {
public static function anotherThing();
}
class X { use Thing; }
X::anotherThing();

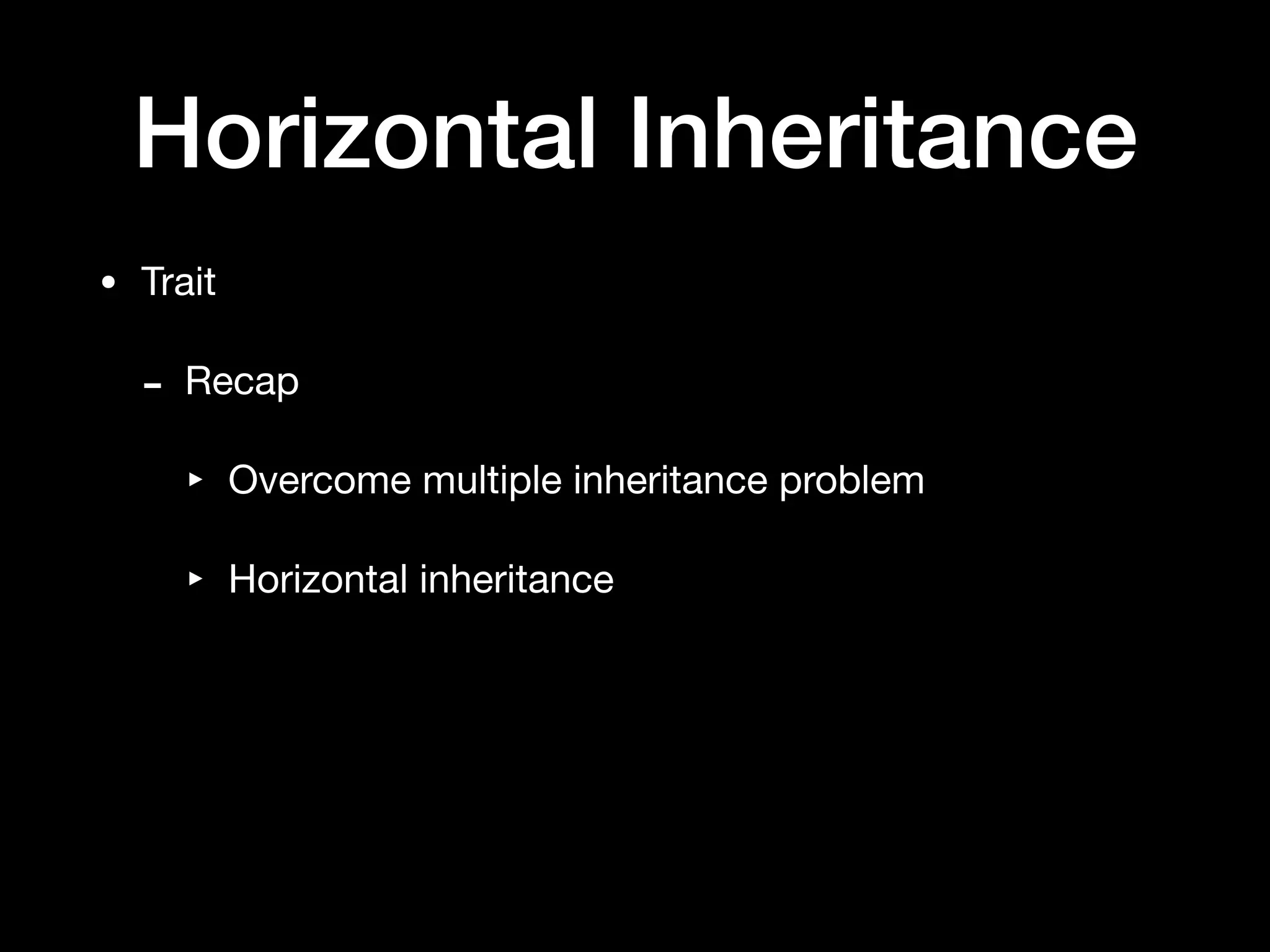

78. Horizontal Inheritance
• Trait
- Recap
‣ Overcome multiple inheritance problem
‣ Horizontal inheritance

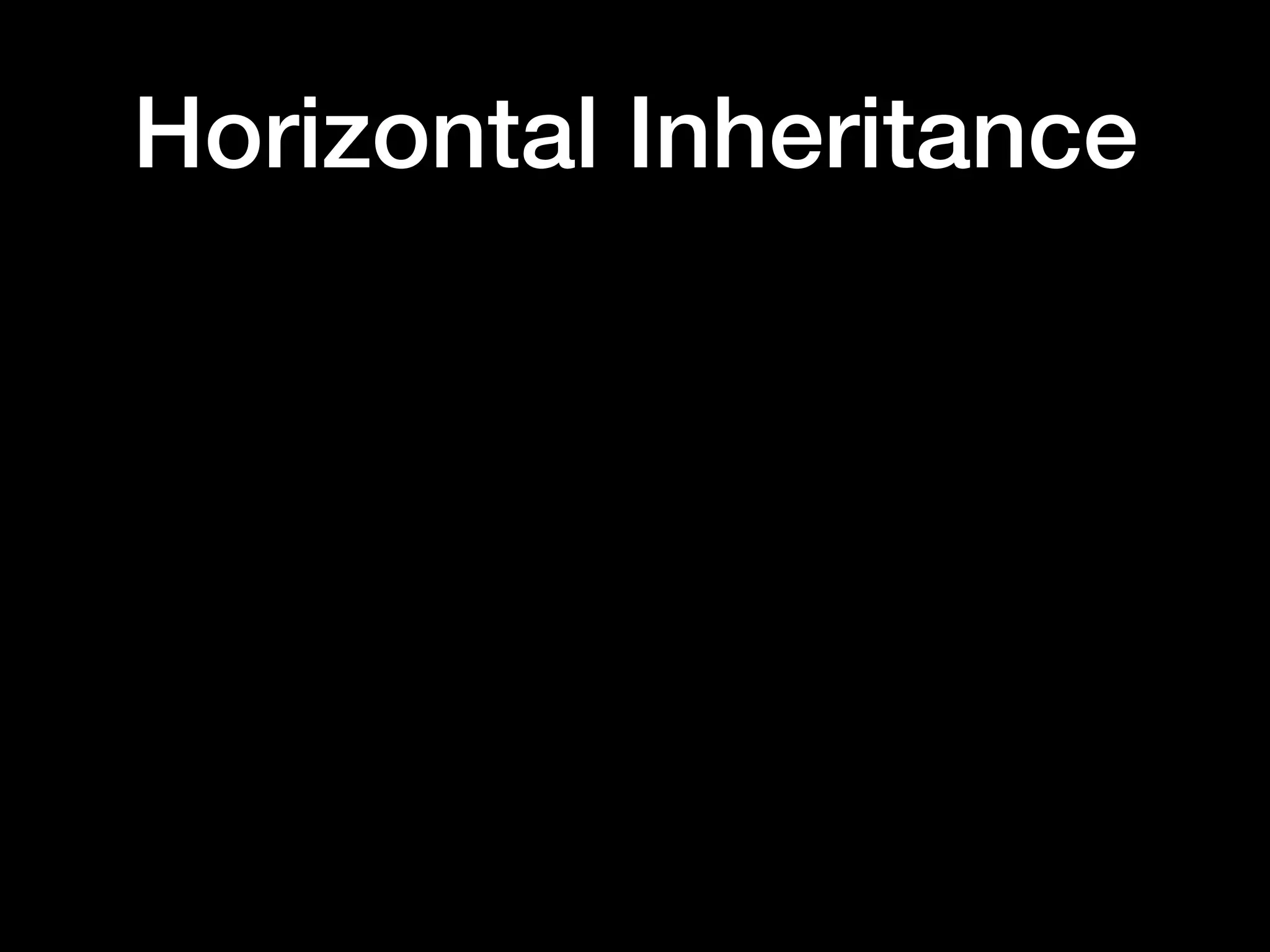

79. Horizontal Inheritance

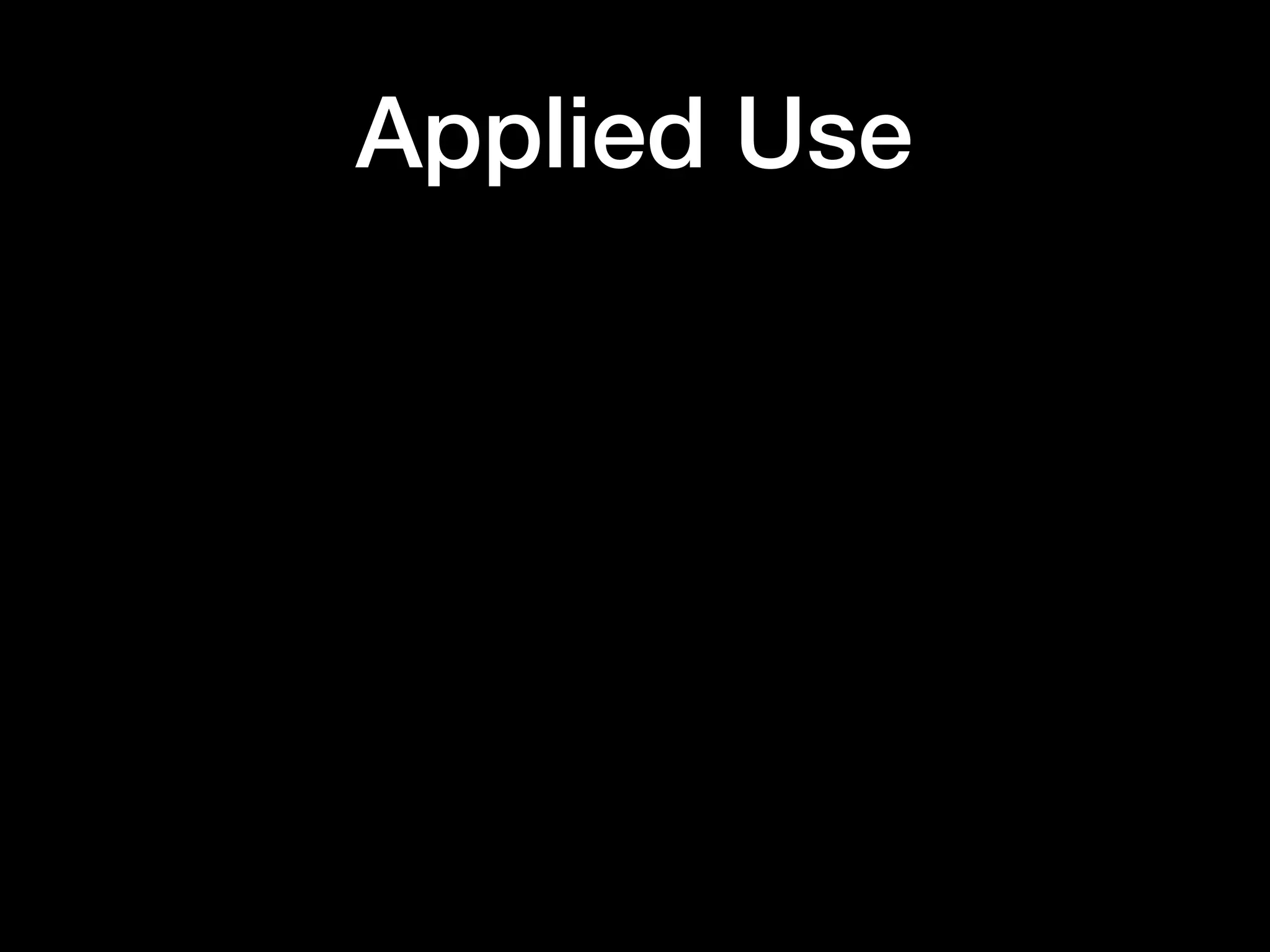

80. Applied Use

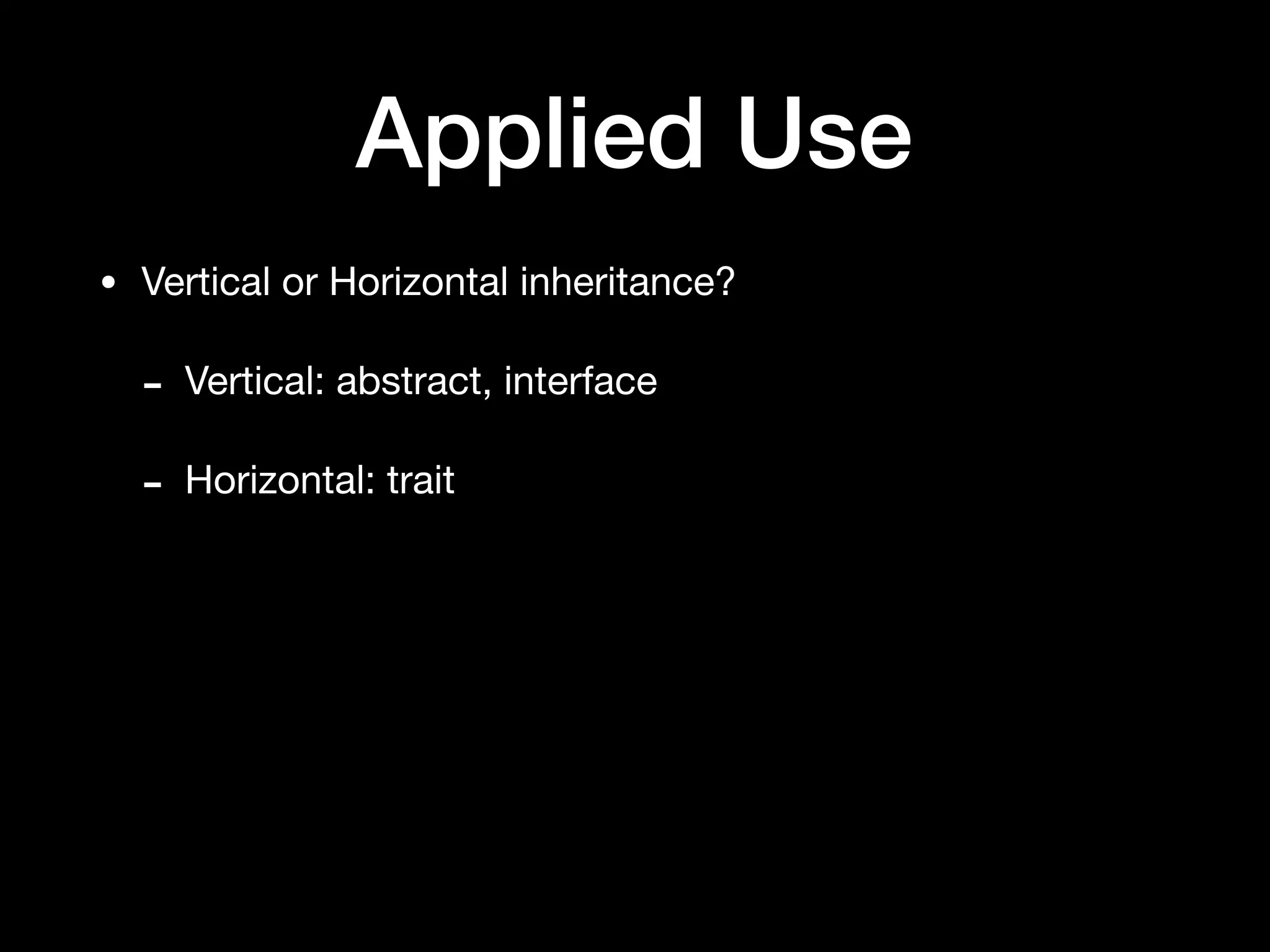

81. Applied Use
• Vertical or Horizontal inheritance?
- Vertical: abstract, interface
- Horizontal: trait

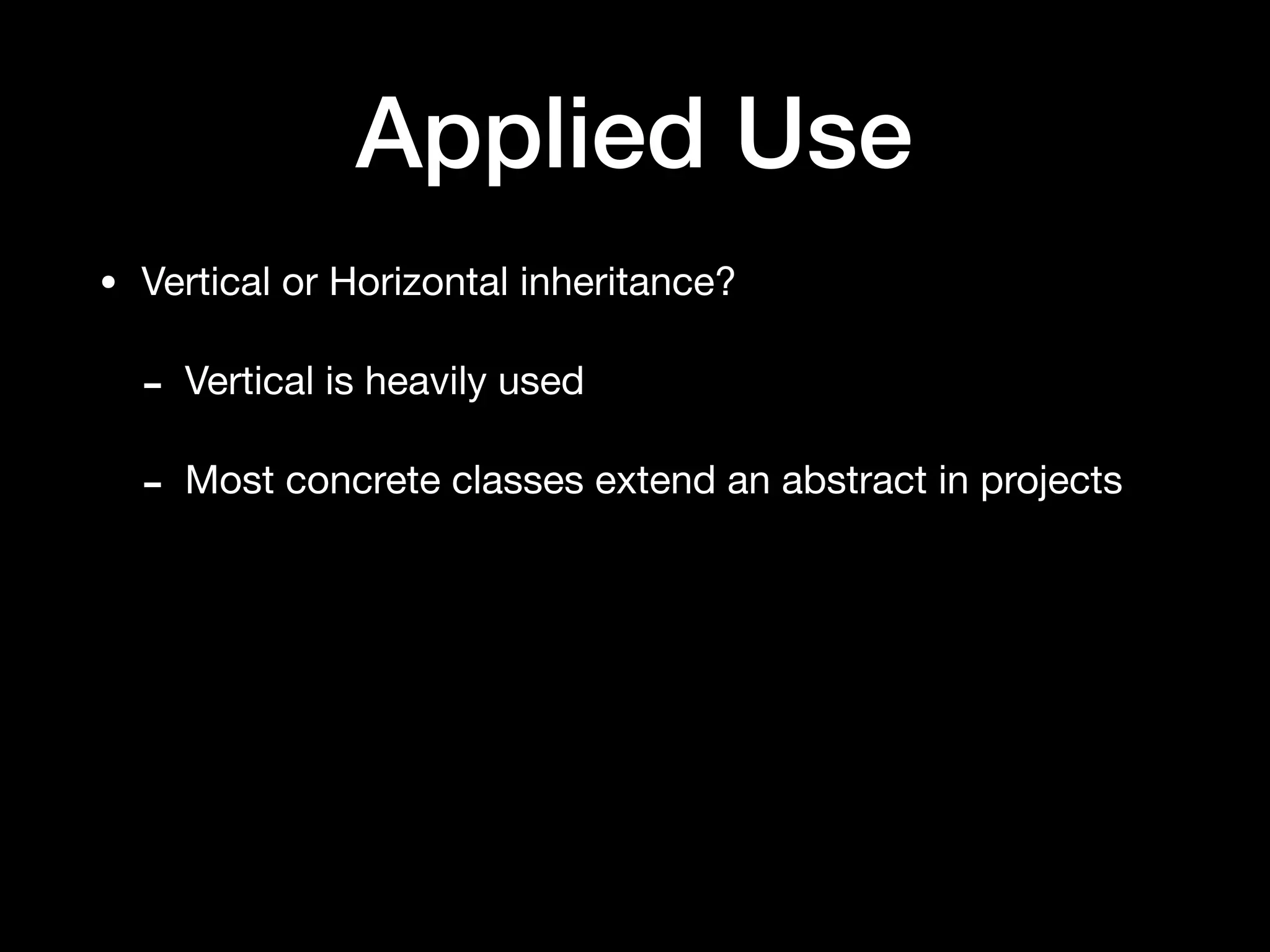

82. Applied Use
• Vertical or Horizontal inheritance?
- Vertical is heavily used
- Most concrete classes extend an abstract in projects

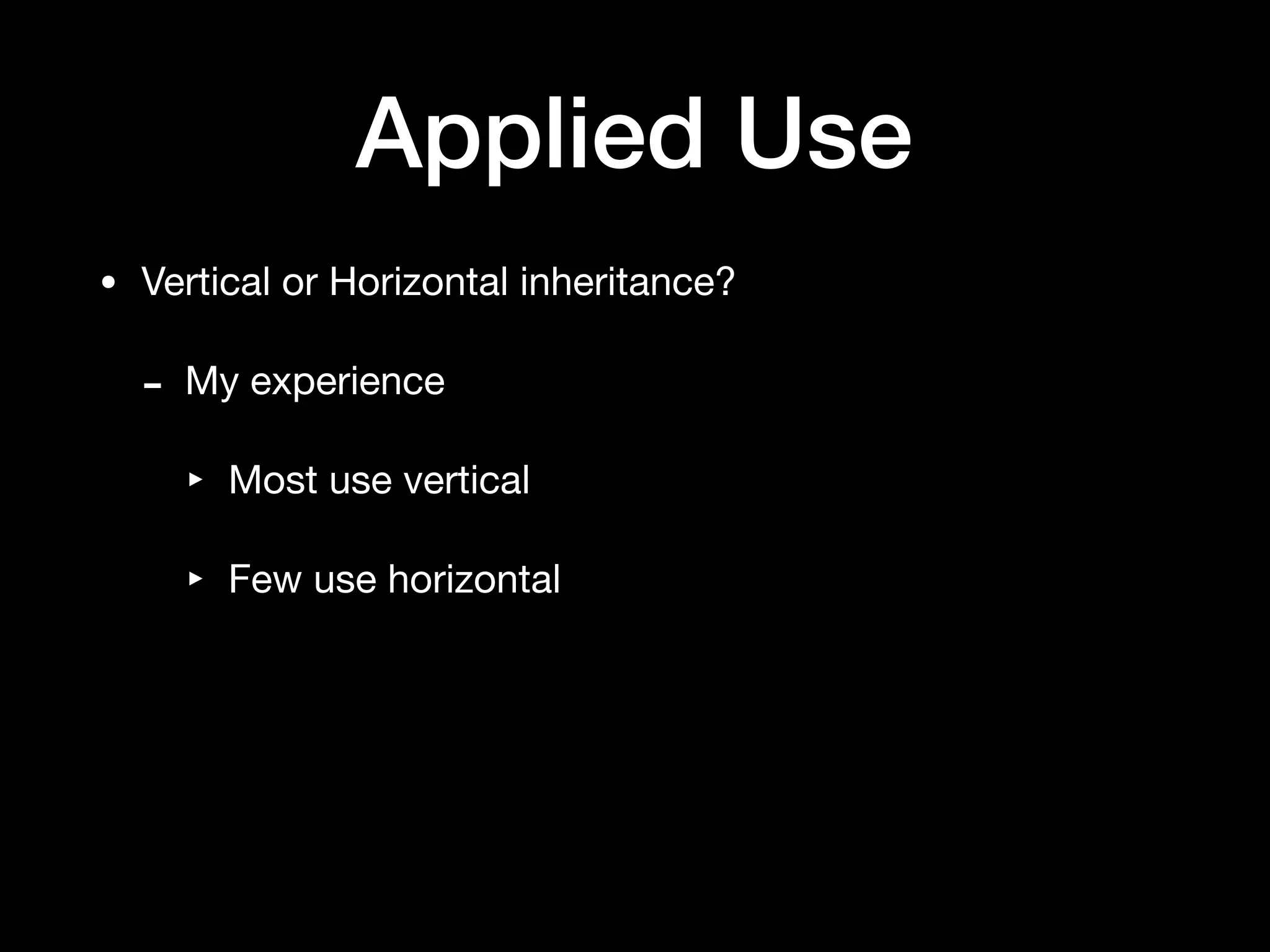

83. Applied Use
• Vertical or Horizontal inheritance?
- My experience
‣ Most use vertical
‣ Few use horizontal

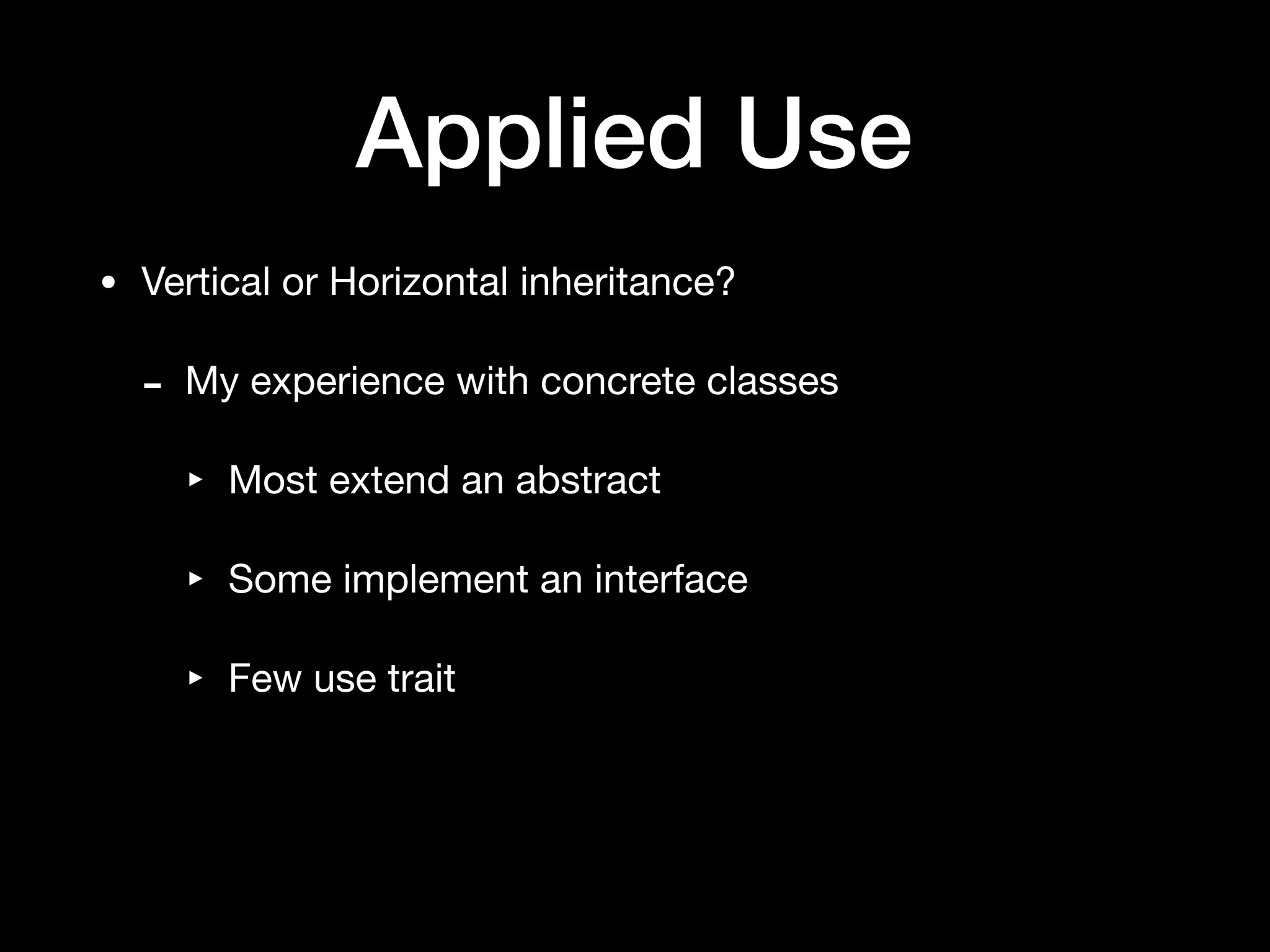

84. Applied Use
• Vertical or Horizontal inheritance?
- My experience with concrete classes
‣ Most extend an abstract
‣ Some implement an interface
‣ Few use trait

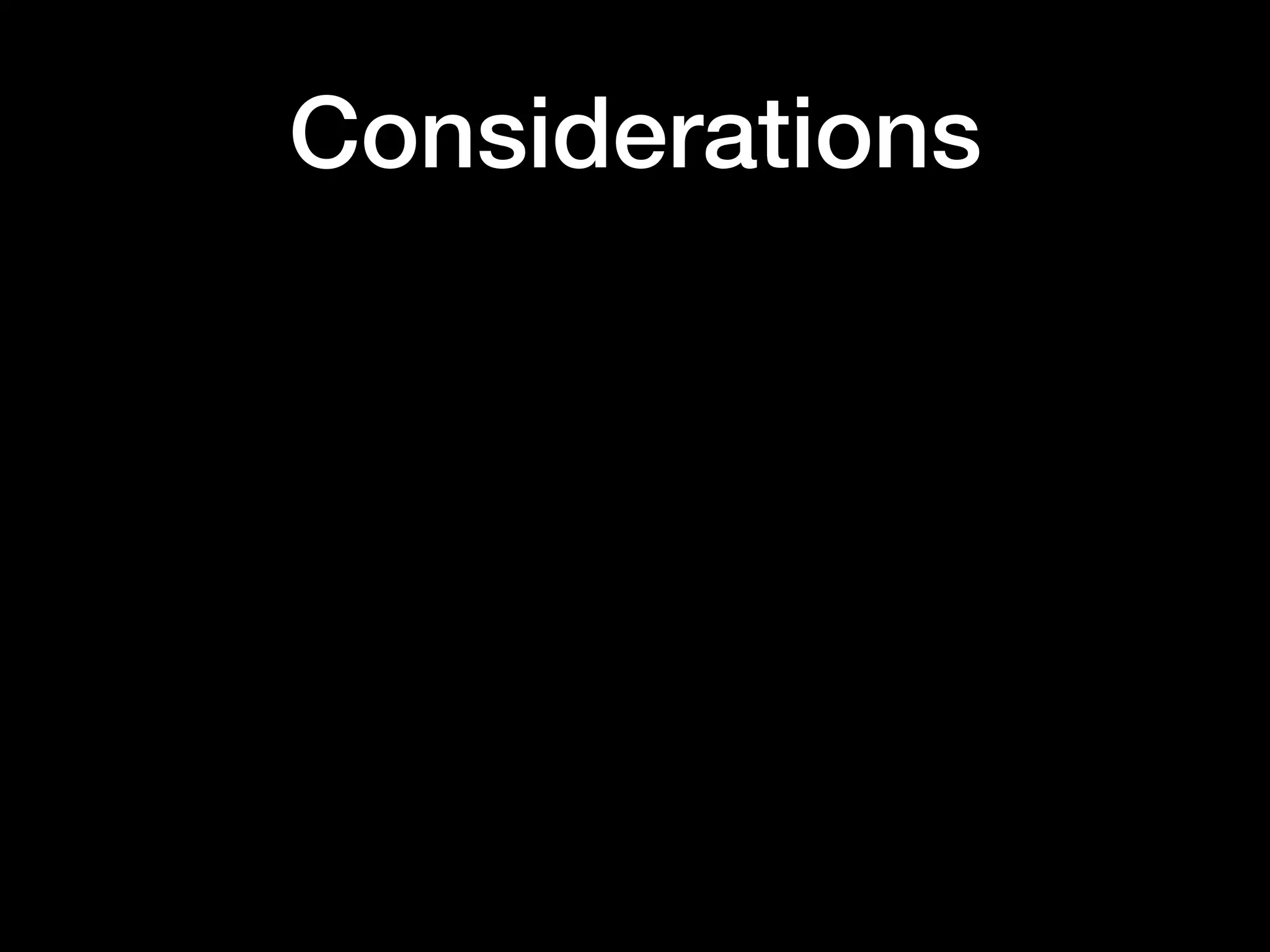

85. Considerations

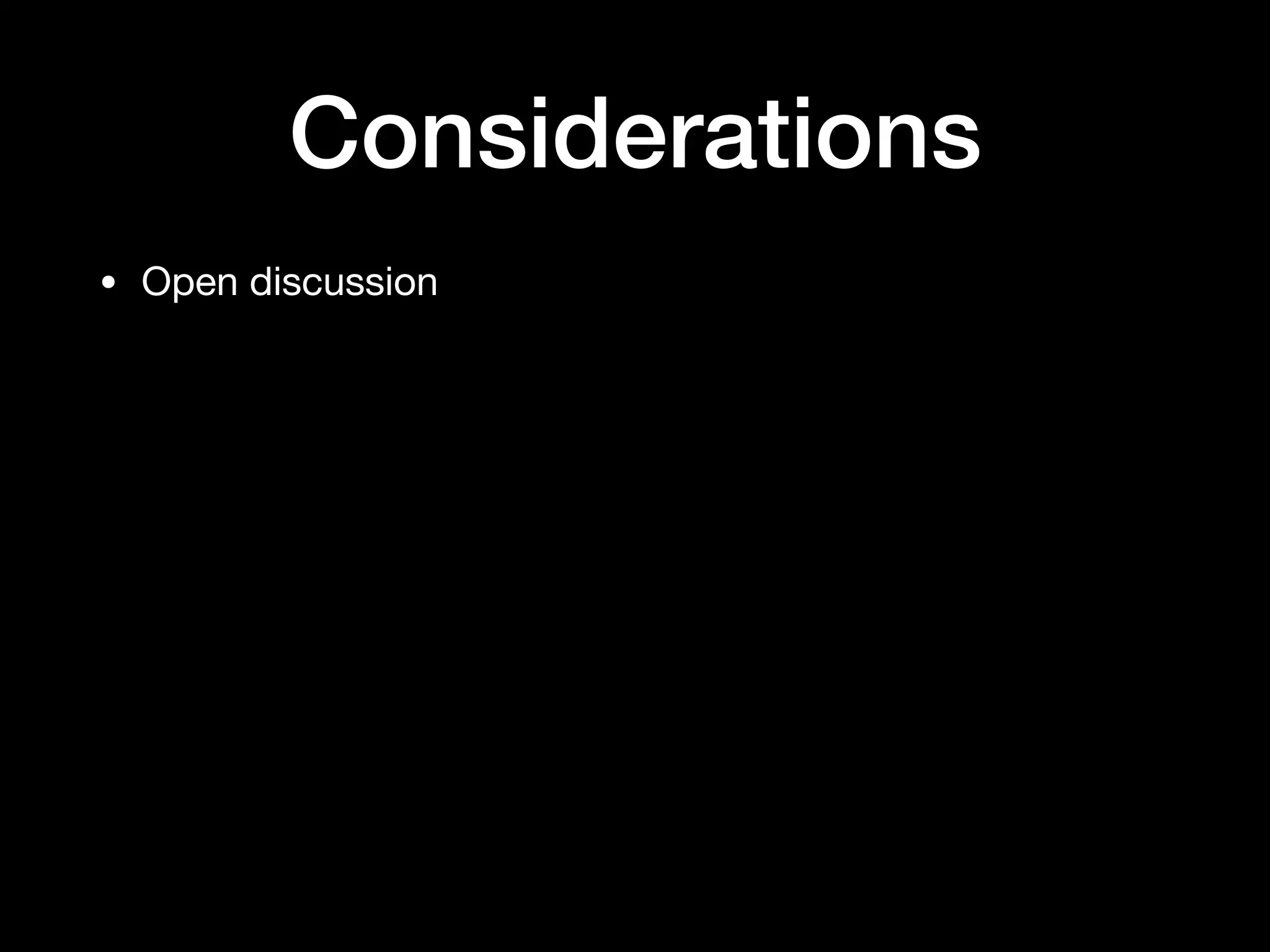

86. Considerations
• Open discussion

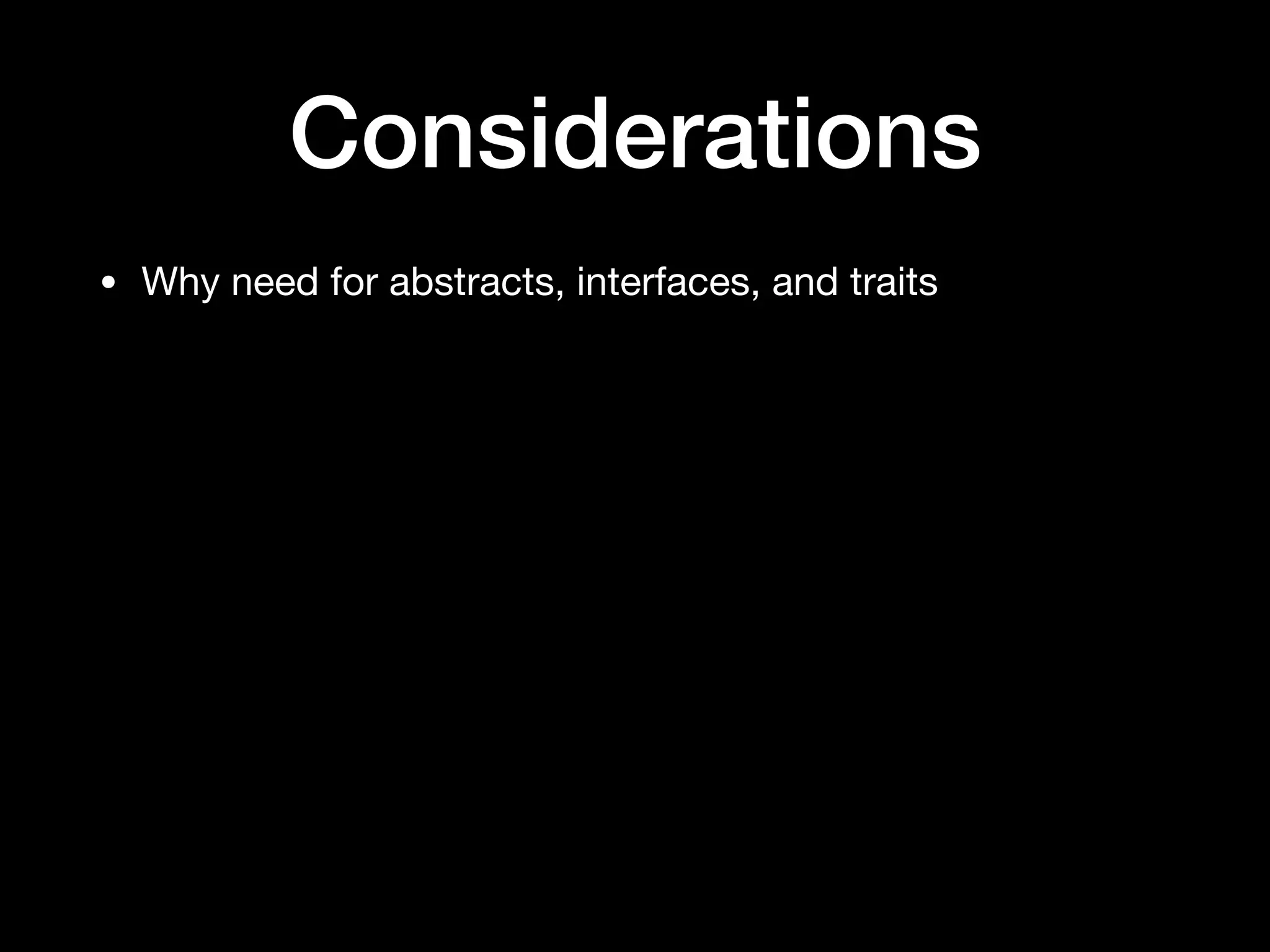

87. Considerations
• Why need for abstracts, interfaces, and traits

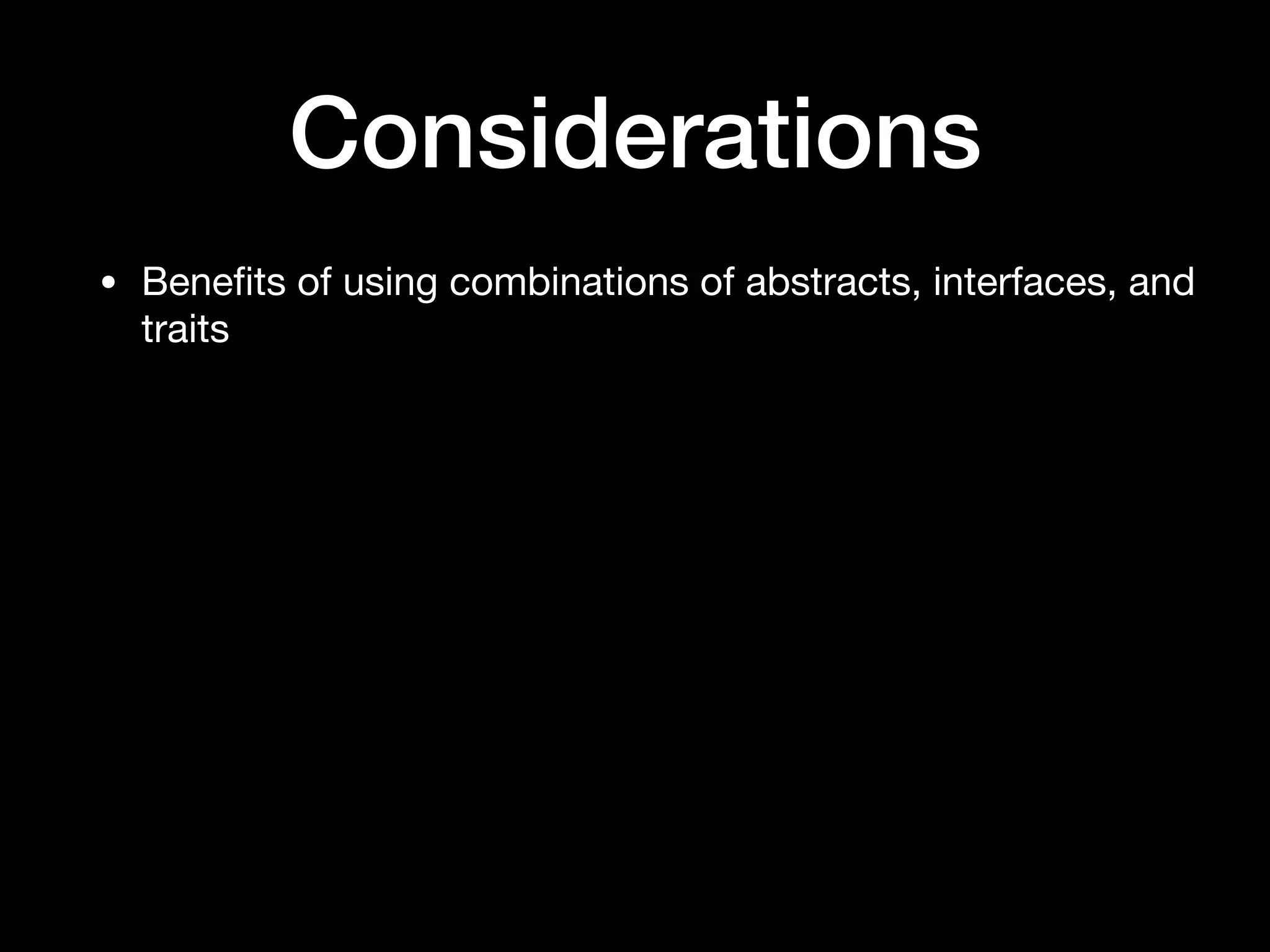

88. Considerations
• Benefits of using combinations of abstracts, interfaces, and
traits

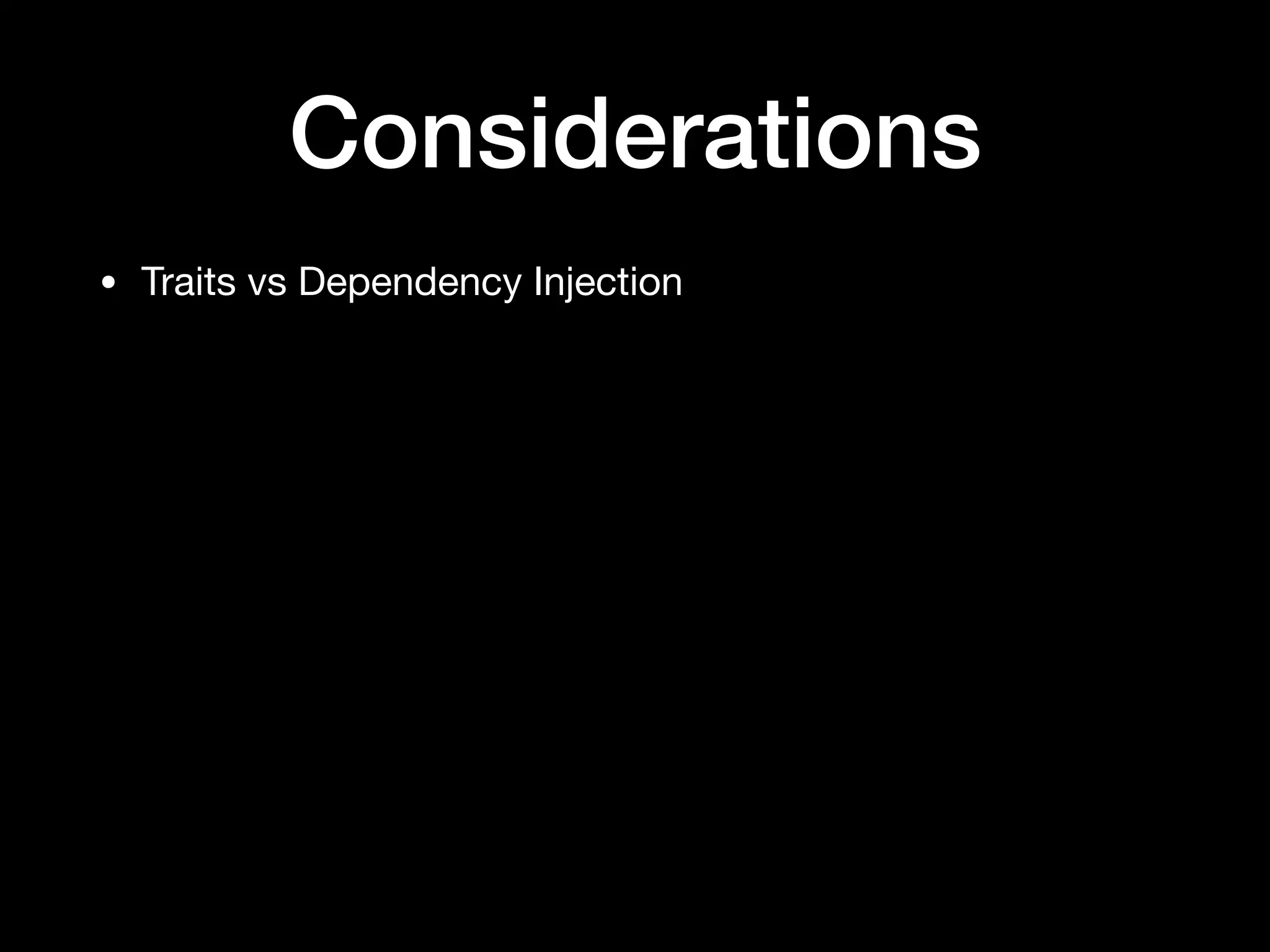

89. Considerations
• Traits vs Dependency Injection

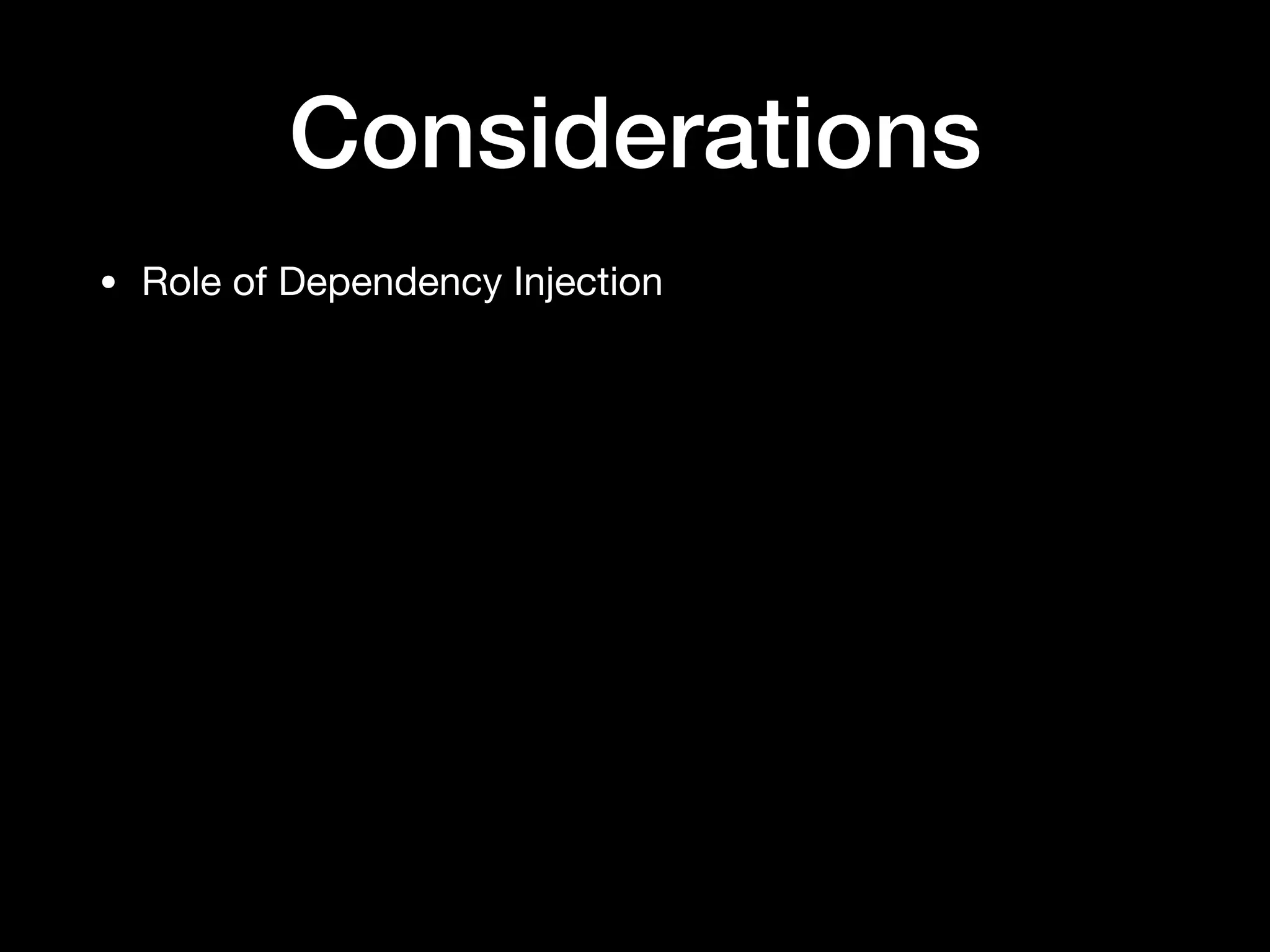

90. Considerations
• Role of Dependency Injection

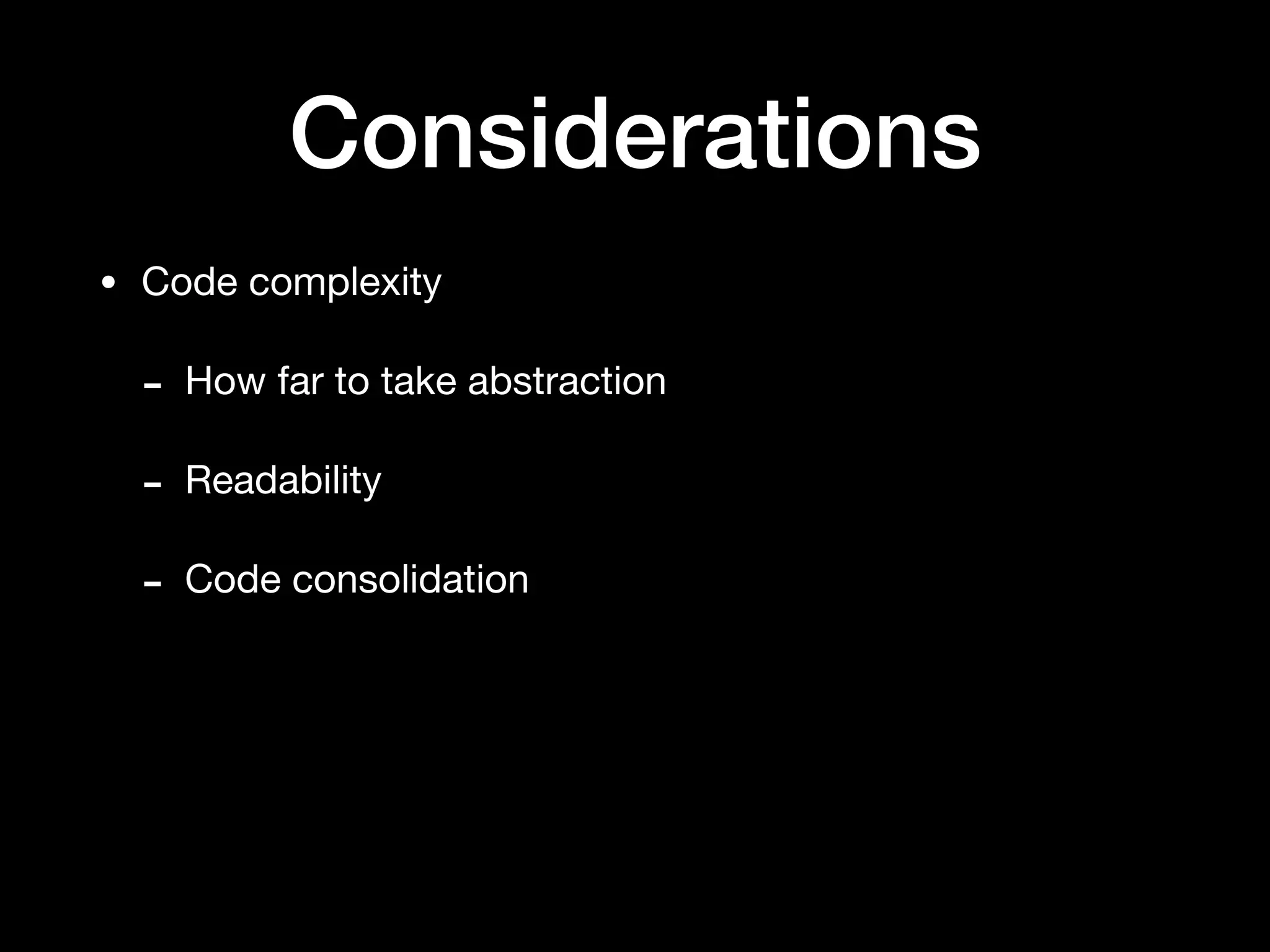

91. Considerations
• Code complexity
- How far to take abstraction
- Readability
- Code consolidation

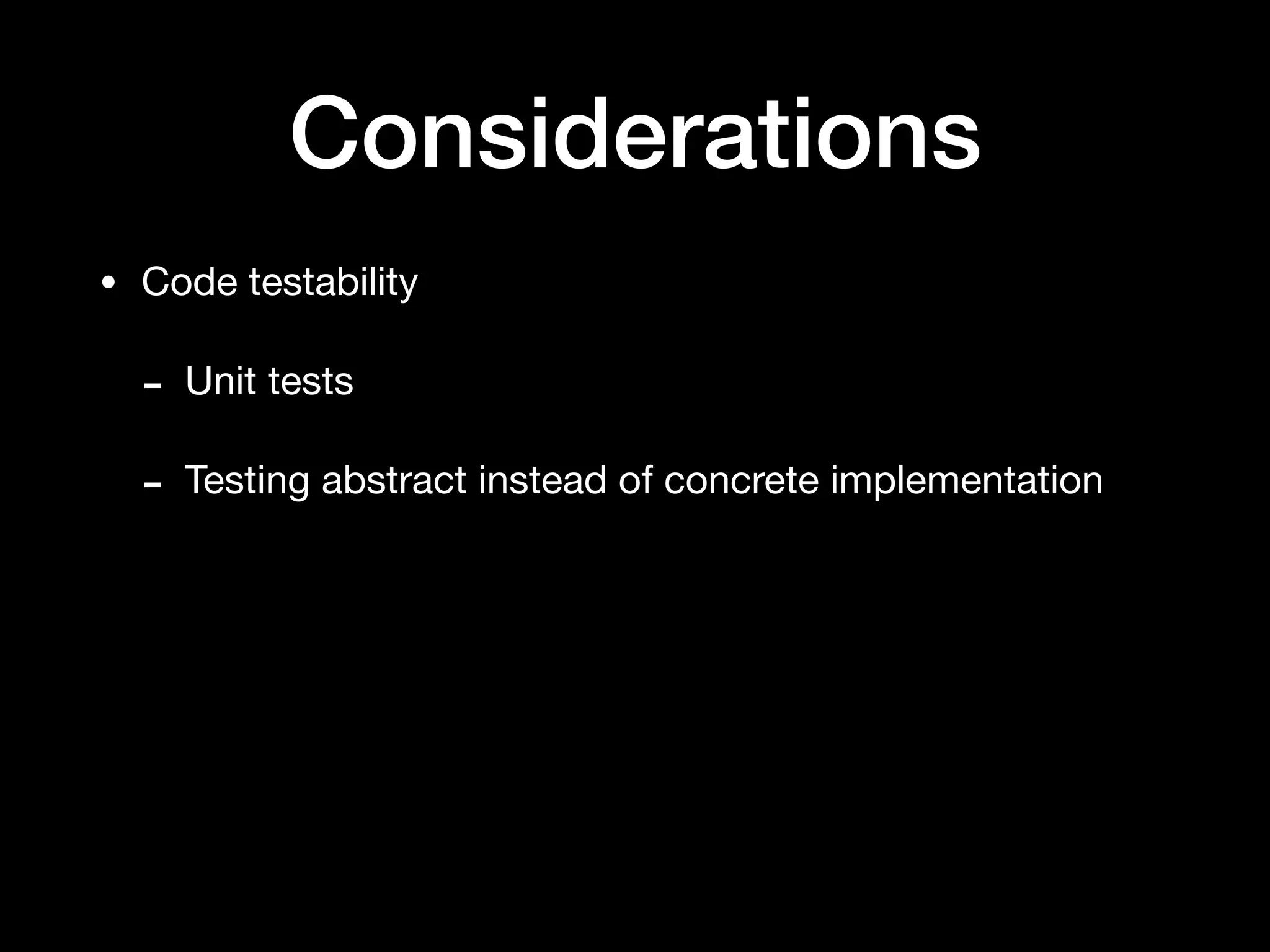

92. Considerations
• Code testability
- Unit tests
- Testing abstract instead of concrete implementation

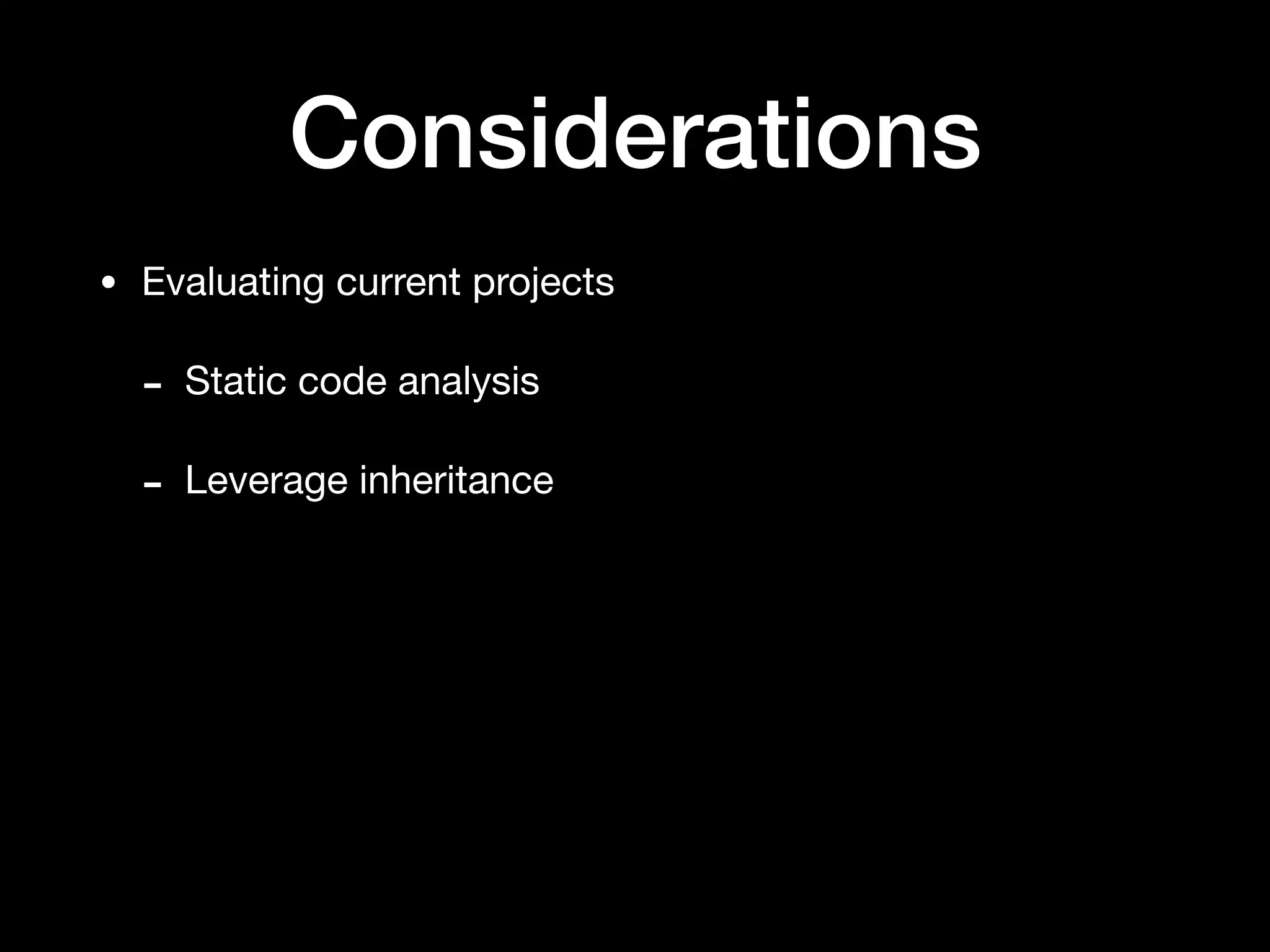

93. Considerations
• Evaluating current projects
- Static code analysis
- Leverage inheritance

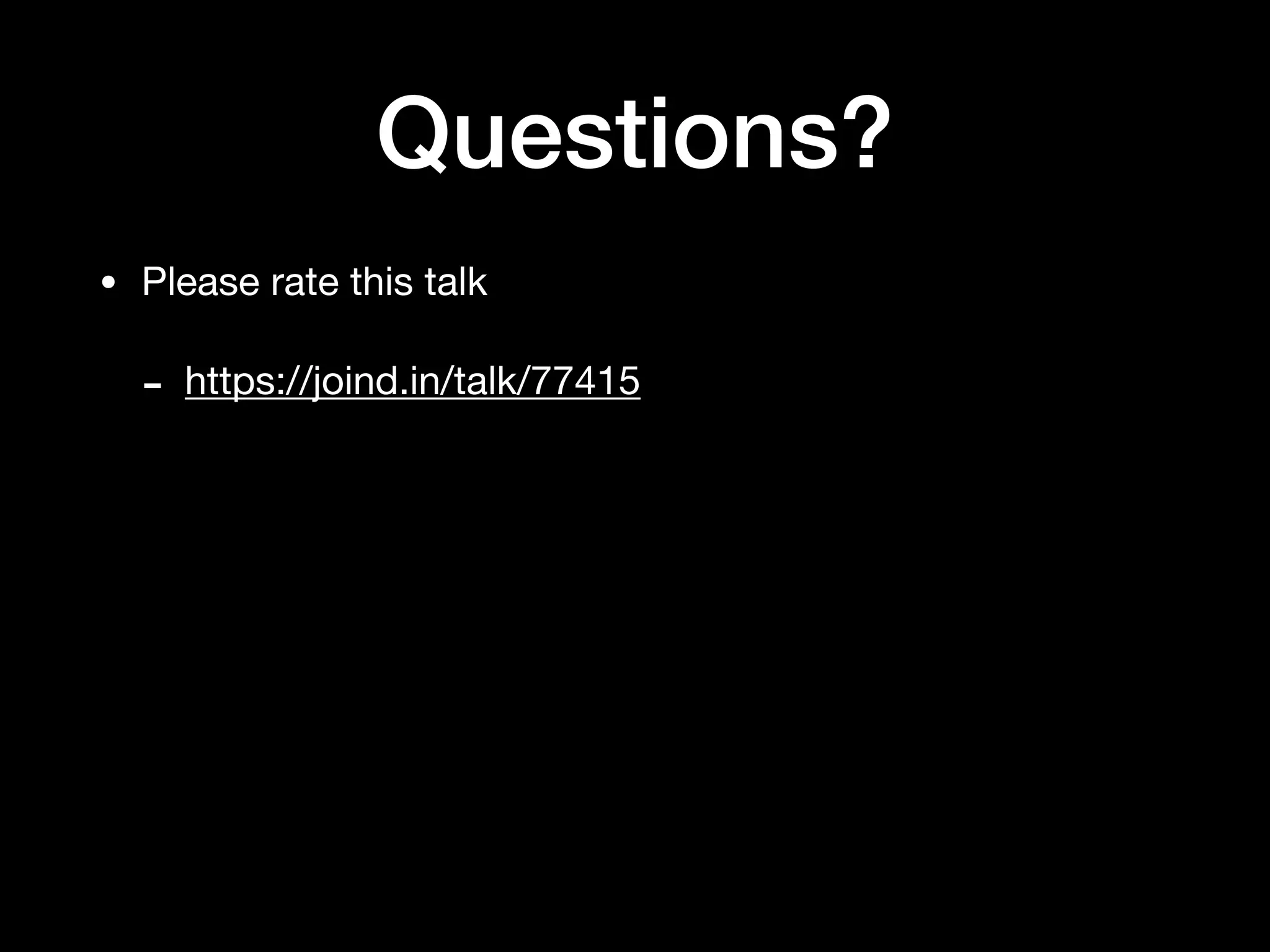

94. Questions?
• Please rate this talk
- https://joind.in/talk/77415

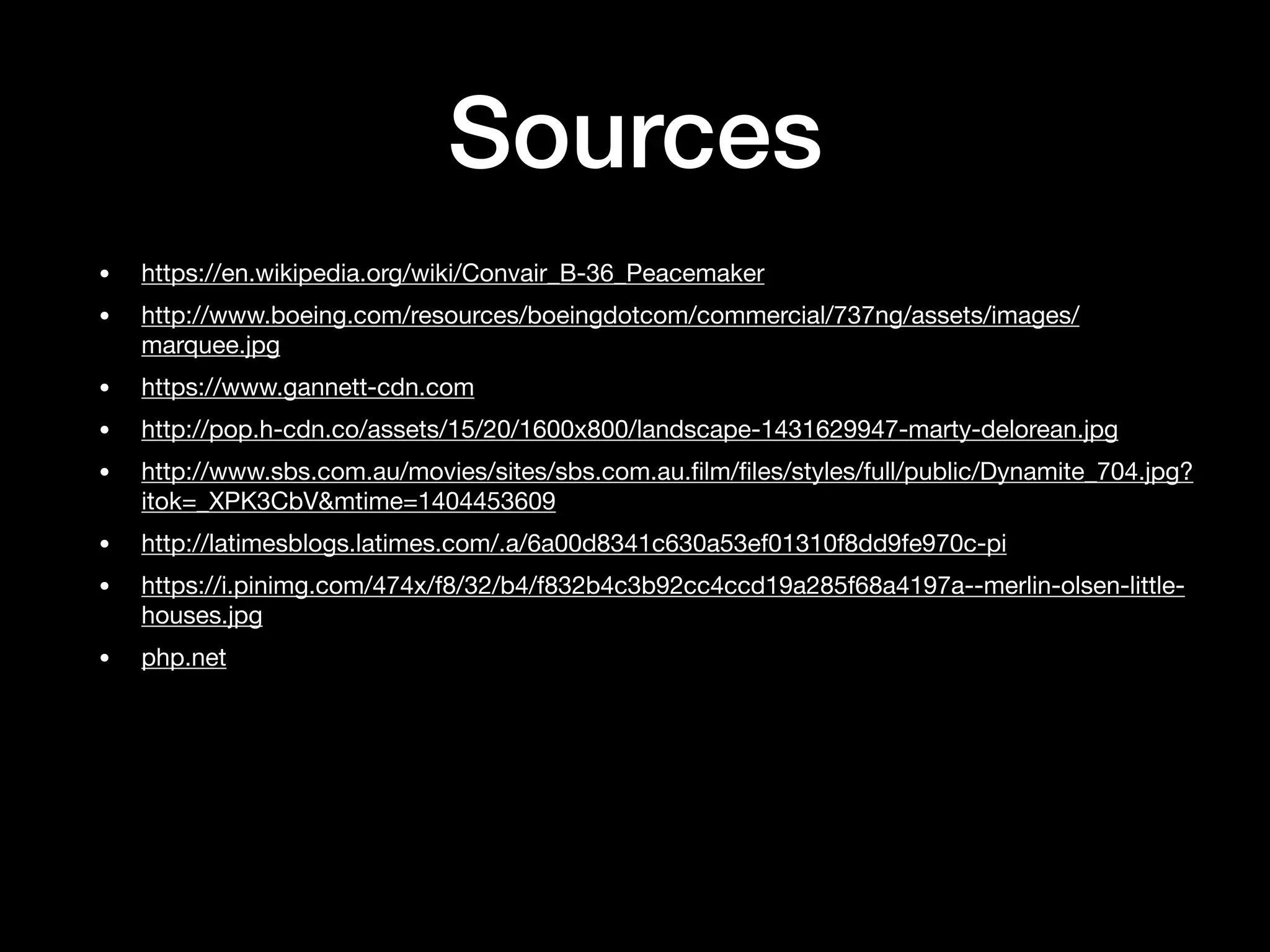

95. Sources
• https://en.wikipedia.org/wiki/Convair_B-36_Peacemaker
• http://www.boeing.com/resources/boeingdotcom/commercial/737ng/assets/images/
• https://www.gannett-cdn.com
• http://pop.h-cdn.co/assets/15/20/1600x800/landscape-1431629947-marty-delorean.jpg
• http://www.sbs.com.au/movies/sites/sbs.com.au.film/files/styles/full/public/Dynamite_704.jpg?
itok=_XPK3CbV&mtime=1404453609
• http://latimesblogs.latimes.com/.a/6a00d8341c630a53ef01310f8dd9fe970c-pi
• https://i.pinimg.com/474x/f8/32/b4/f832b4c3b92cc4ccd19a285f68a4197a--merlin-olsen-little-
• php.net
