Object-oriented design: Inheritance subtyping (vs. Composition)
The document discusses object-oriented design focusing on inheritance and composition as methods for class reuse. It highlights the structural differences between containment, composition, and inheritance, emphasizing the implications for design flexibility, ownership, and lifetime of objects. Furthermore, it outlines principles guiding design choices, such as the principle of least knowledge and the open-closed principle, stressing the importance of choosing between inheritance and composition based on specific needs.
More Related Content
Similar to Object-oriented design: Inheritance subtyping (vs. Composition)
Object-oriented design: Inheritance subtyping (vs. Composition)
- 1. Copyright@2014 Taylor &Francis Adair Dingle All Rights Reserved Object-‐Oriented Design Inheritance vs. Composi2on: Part I Inheritance for Subtyping: Structural Reuse
- 2. Design Ques2ons • How to streamline class design for reuse? • What is the importance of type? • How to dis2nguish between reuse mo2ves? – Composi2on? – Inheritance? Copyright@2015 Adair Dingle
- 3. Key Observa2ons • Inheritance and composi2on BOTH provide reuse • Type dependencies are established by design • Differing needs for flexibility may drive design Copyright@2015 Adair Dingle
- 4. Chapter 6: Structural Design Class Rela2onships = = Design alterna,ves for class use and reuse • Composi2on • Containment • Inheritance • Code Reuse • Design Principles Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 5. Rela2onships • Containment aka Holds-‐A – subObjects held, as in a container – LiSle or no type dependency • Composi2on aka Has-‐A – subObjects part of class/type composi2on – Essen2al component => some (internal) type dependency • Inheritance aka Is-‐a – Class hierachy: Base (parent) and Derived (child) classes • subtype alters or augments inherited behavior – significant (external) type dependency – Built-‐in (sub)type checking Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 6. Structural Design Details • Cardinality: How many subObjects? – 1:1 for inheritance; 1-‐many for composi2on by design – Variable for containment • Ownership – Child owns parent component: may NOT be released – Composing object may stub out/replace subObject – None, usually, for containment • Life2me – 1:1 for inheritance; variable by design for composi2on • Associa2on – Permanent for inheritance – Possibly transient for composi2on – Temporary for containment Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 7. Table 6.1 Rela2onship details: class to subordinate Relationship Association Cardinality Ownership Dependency Replacement Composition Stable Variable Transferable Yes Yes Containment Temporary Variable No No Not relevant Inheritance Permanent Fixed: 1-1 Implied Yes No Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

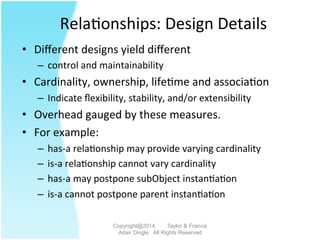

- 8. Rela2onships: Design Details • Different designs yield different – control and maintainability • Cardinality, ownership, life2me and associa2on – Indicate flexibility, stability, and/or extensibility • Overhead gauged by these measures. • For example: – has-‐a rela2onship may provide varying cardinality – is-‐a rela2onship cannot vary cardinality – has-‐a may postpone subObject instan2a2on – is-‐a cannot postpone parent instan2a2on Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 9. Example 6.1 Postponed Instan2a2on of SubObject class justInTime { // need appropriate memory management details // Suppress or define: copy constructor and operator= bigData* generator; … public: justInTime() { generator = 0; } … void process() { if ( !generator ) generator = new bigData; generator.process(); } … }; Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 10. Table 6.2 Design Effects of OO Rela2onships Relationship Internal Access External Access Overhead (SubObject) Interface Control Has-A Public None Variable Avoidable Suppressed May echo Replacement Defer instantiation Holds-A Public None Minimal Not relevant None Is-a Public Protected Public Unavoidable Support Extend Suppress None Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 11. Rela2onships: Type Dependency • Implicit in inheritance hierarchies – Expecta2on: subtypes (descendants) may override inherited behavior to customize, augment, or vary base behavior. – Polymorphism and use of heterogeneous collec2ons is common in designs employing type dependencies • Significant in has-‐a rela2onship – Client remains isolated from internal dependencies. Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 12. Table 6.3 Object to SubObject Details Accessibility Association Cardinality Ownership Private Temporary or Permanent Fixed by class design same for all objects Object External Echoed functionality Delayed instantiation Fixed at instantiation Stable for object lifetime Shared Full or Partial access Stable but Replaceable Variable within object lifetime Transferable Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

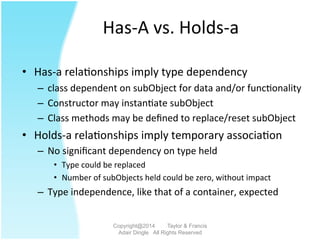

- 13. Has-‐A vs. Holds-‐a • Has-‐a rela2onships imply type dependency – class dependent on subObject for data and/or func2onality – Constructor may instan2ate subObject – Class methods may be defined to replace/reset subObject • Holds-‐a rela2onships imply temporary associa2on – No significant dependency on type held • Type could be replaced • Number of subObjects held could be zero, without impact – Type independence, like that of a container, expected Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

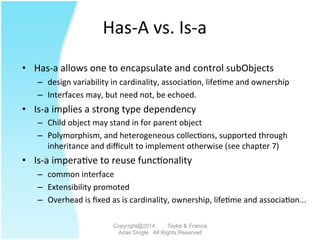

- 14. Has-‐A vs. Is-‐a • Has-‐a allows one to encapsulate and control subObjects – design variability in cardinality, associa2on, life2me and ownership – Interfaces may, but need not, be echoed. • Is-‐a implies a strong type dependency – Child object may stand in for parent object – Polymorphism, and heterogeneous collec2ons, supported through inheritance and difficult to implement otherwise (see chapter 7) • Is-‐a impera2ve to reuse func2onality – common interface – Extensibility promoted – Overhead is fixed as is cardinality, ownership, life2me and associa2on... Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 15. Example 6.4 Inheritance in C#=> Child stands in for Parent Parent pObj; // Substitutability: // parent object (reference) can hold address of child object // Not symmetric: child reference cannot hold parent address // pObj: handle of type Parent => // Parent interface accessible; child interface not pObj = new Parent(); pObj.parentFn(); pObj = new Child1(); pObj.parentFn(); pObj = new Child2(); pObj.parentFn(); Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 16. Inheritance : Language Differences • Java and C# support only public inheritance – do not allow direct suppression of inherited interface • C++ offers public, protected and private inheritance – only public inheritance typically used – with protected inheritance, all inherited public func2onality is demoted to protected accessibility – with private inheritance, all inherited public and protected func2onality is demoted to private accessibility => applica2on programmer has less accessibility via a derived object • C++ allows class designers – to directly suppress inherited func2onality – to change accessibility of individual inherited class methods Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 17. Example 6.5 C++ Direct suppression of Inherited Func2onality class Child: public Parent { … // fields private by default void parentFn() { // now private => suppressed } public: … }; … Parent pObj; Child cObj; pObj.parentFn(); cObj.parentFn(); // compilation error: not accessible Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 18. Example 6.6 C# Designated suppression of Inherited Func2onality public class Child: Parent { … public void parentFn() { //NOP } … } // application code Parent pObj = new Parent(); Child cObj = new Child(); pObj.parentFn(); // parent functionality cObj.parentFn(); // compiles & runs & does nothing Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

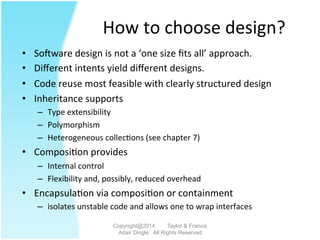

- 19. How to choose design? • Soiware design is not a ‘one size fits all’ approach. • Different intents yield different designs. • Code reuse most feasible with clearly structured design • Inheritance supports – Type extensibility – Polymorphism – Heterogeneous collec2ons (see chapter 7) • Composi2on provides – Internal control – Flexibility and, possibly, reduced overhead • Encapsula2on via composi2on or containment – isolates unstable code and allows one to wrap interfaces Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

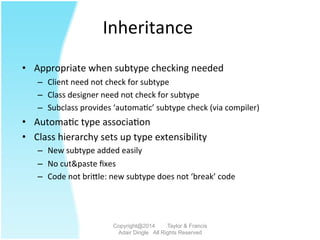

- 20. Inheritance • Appropriate when subtype checking needed – Client need not check for subtype – Class designer need not check for subtype – Subclass provides ‘automa2c’ subtype check (via compiler) • Automa2c type associa2on • Class hierarchy sets up type extensibility – New subtype added easily – No cut&paste fixes – Code not briSle: new subtype does not ‘break’ code Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 21. Example 6.7 C++ Monolithic class for Icon Movement class Icon { float speed, glow, energy; int x, y; int subtype; //spinner, slider or hopper bool clockwise; // need for spinner bool expand; // need for spinner bool vertical; // need for slider int distance; // need for slider bool visible; // need for hopper int xcoord, ycoord; // need for hopper void spin(); // functionality for spinner void slide(); // functionality for slider void hop(); // functionality for hopper public: … Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 22. Example 6.7 C++ Monolithic class … con2nued public: // constructor must set subtype: client must pass value Icon(unsigned value) { … subtype = value; // use enum for readability // and then use conditional to set associated fields } // tedious subtype checking: subtype drives movement void move() { if (subtype == 1) spin(); else if (subtype == 2) slide(); else hop(); } // again,tedious subtype checking:subtype drives flair details void flair() { if (subtype == 1) … } Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 23. Example 6.8 Tedious Type expansion without Inheritance // ALL methods in Icon that check subtype must be altered // in order to add new subtype ‘zigzag’ // ERROR PRONE software maintenance void Icon::move() { if (subtype == 1) spin(); else if (subtype == 2) slide(); else if (subtype == 3) hop(); else zigzag(); } // ALL methods in Icon that check subtype must be altered // in order to add new subtype ‘zigzag’ => // flair() must also be altered since subtype drives details Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 24. Example 6.9 C++ Icon class hierarchy class Icon { protected: float speed, glow, energy; int x, y; public: Icon(…) { … } void move() { … } void flair() { … } … }; class Spinner: public Icon { protected: bool clockwise, expand; void spin(); public: Spinner(…):Icon(…) { … } void move() { spin();… } void flair() { … } … }; Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 25. Example 6.9 Icon class hierarchy con2nued class Slider: public Icon { protected: bool vertical; int distance; void slide(); public: Slider(…):Icon(…) { … } void move() { slide();… } … }; class Hopper: public Icon { protected: bool visible; int xcoord, ycoord; void hop(); public: Hopper(…):Icon(…) { … } void move() { hop();… } … }; Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 26. Example 6.9 Icon class hierarchy con2nued // easy to add new subtype ‘zigzag’ class zigzag: public Icon { protected: … void zig(); void zag(); public: zigzag(…):Icon(…) { … } void move() { zig(); zag(); … } … }; Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved

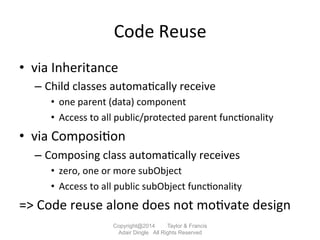

- 27. Code Reuse • via Inheritance – Child classes automa2cally receive • one parent (data) component • Access to all public/protected parent func2onality • via Composi2on – Composing class automa2cally receives • zero, one or more subObject • Access to all public subObject func2onality => Code reuse alone does not mo2vate design Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 28. Rela2onship Design & Code Reuse • Composi2on – Type extension NOT essen2al – Type extension unlikely to be used alongside original – Interface may be suppressed – Cardinality of subObject may vary • Inheritance – Type extension essen2al – Type extension LIKELY to be used alongside original – Interface may NOT be suppressed – Cardinality fixed at one (parent) is acceptable/preferred Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 29. Composite Principle Use composi,on in preference to inheritance • Formalizes prac22oners’ preference for composi2on But Why? • Composi2on – more flexible – offers more control over internal design than inheritance • But remember, composi2on does NOT provide – Built-‐in subtype checking – Polymorphism – Support for heterogeneous collec2ons (see chapter 7) – Type extensibility Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 30. Principle of Least Knowledge Every object assumes only the minimum possible about the structure and proper,es of other objects • Promotes low coupling • Applicable to both inheritance and composi2on rela2ons • Class design NOT dependent on – private implementa2on details of any other class • Design iden2fies – rela2onships – consequen2al effects of rela2onships => Class 2ed only to interface of parent/composed subobject Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
- 31. Open Closed Principle (OCP) A class should be open for extension and closed for modifica,on • Inheritance is an aSrac2ve design op2on for – class hierarchies with implicit subtype selec2on to vary func2onality – Subs2tutability (see chapter 7) – Heterogeneous collec2ons (see chapter 7) – Type extensibility • A good inheritance design adheres to OCP – individual classes preserved – type extensions are seamless • OCP promotes soiware maintainability. Copyright@2014 Taylor & Francis Adair Dingle All Rights Reserved
