1. Commercial
Indoor Video Wall
Date: Aug. 30, 2014
REV. 02

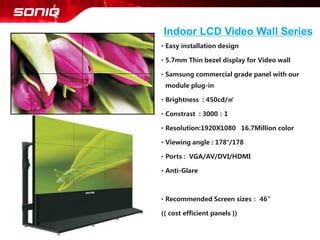

2. •Easy installation design
•5.7mm Thin bezel display for Video wall
•Samsung commercial grade panel with our module plug-in
•Brightness : 450cd/㎡
•Constrast: 3000：1
•Resolution:1920X1080 16.7Million color
•Viewing angle :178°/178
•Ports : VGA/AV/DVI/HDMI
•Anti-Glare
•Recommended Screen sizes：46”
(( cost efficient panels ))
Indoor LCD Video Wall Series

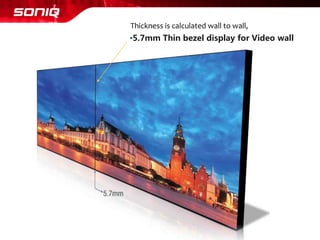

3. •5.7mm Thin bezel display for Video wall
Thickness is calculated wall to wall,

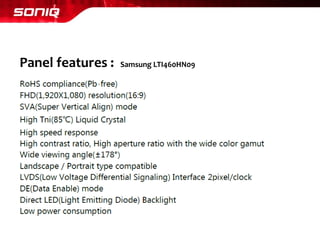

4. Panel features : Samsung LTI460HN09

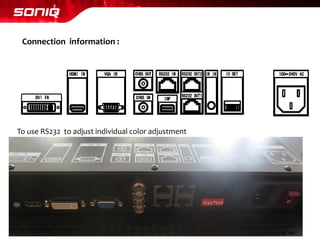

5. Connection information :
To use RS232 to adjust individual color adjustment

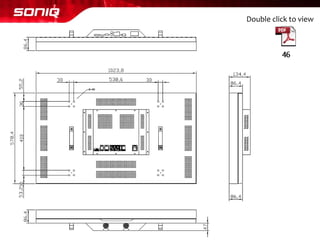

6. Double click to view

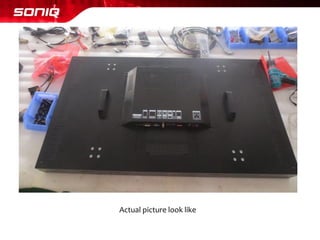

7. Actual picture look like

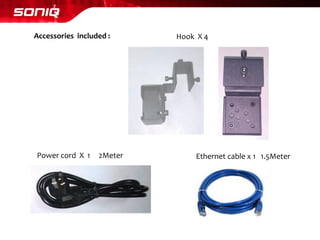

8. Accessories included :
Power cord X 1 2Meter
Ethernet cable x 1 1.5Meter
Hook X 4

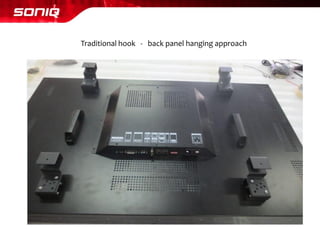

9. Traditional hook -back panel hanging approach

10. Traditional hook -back panel hanging approach

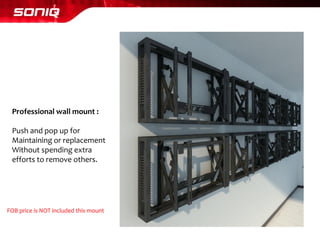

11. Professional wall mount :
Push and pop up for
Maintaining or replacement
Without spending extra
efforts to remove others.
FOB price is NOT included this mount

12. Let’s know a basic information
e.g.
1 ) Video wall size
2)Display conditions
Then we will help you to figure
out the rest.

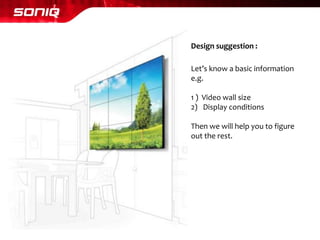

Design suggestion :

13. Best Ever Simple Installation tip
No software installation

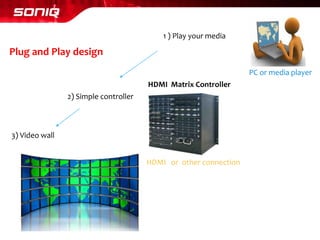

14. HDMI Matrix Controller
HDMI or other connection
PC or media player
Plug and Play design
3) Video wall
2) Simple controller
1 ) Play your media

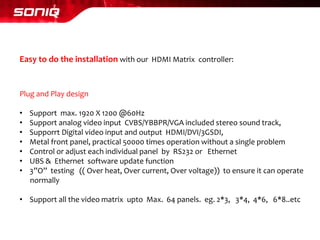

15. Easy to do the installation with our HDMI Matrix controller:
Plug and Play design
•Support max. 1920 X 1200 @60Hz
•Support analog video input CVBS/YBBPR/VGA included stereo sound track,
•SupporrtDigital video input and output HDMI/DVI/3GSDI,
•Metal front panel, practical 50000 times operation without a single problem
•Control or adjust each individual panel by RS232 or Ethernet
•UBS & Ethernet software update function
•3”O” testing (( Over heat, Over current, Over voltage)) to ensure it can operate
normally
•Support all the video matrix uptoMax. 64 panels. eg. 2*3, 3*4, 4*6, 6*8..etc

16. Delivery :
General leadtimeabout 30 days
once received the official PO
Quotation :
Please contact our Sales Director Mr. DOMINIC Neo
for more information

17. Thanks
Contact : Dominic Neo
Tel : (852) 6359 4638
Email : dominic.neo@quatius.com
