Impulse is an Indian company that designs and manufactures industrial-grade video surveillance and networking systems worldwide. It offers NVR systems, IP cameras, PoE switches, an intelligent fever detection system, a public address system, a two-way visual interaction device, an IP joystick, and VMS software. The document provides details on the features and specifications of Impulse's various security and networking products. It also lists some major customers that have implemented Impulse solutions.

1. SECURING CRITICAL INFRASTRUCATURE
MAKE IN INDIA PRODUCT

2. Impulse is a Global Company, its headquarter is in Singapore
and regional office is in Canada.
Impulse Industrial Grade Video Surveillance and Networking
system are designed and manufacture worldwide.
Commenting to excellence in terms of our products Software,
Hardware and Support.
Large network of value added system integrators resellers of
security solutions across the world.
ABOUT IMPULSE

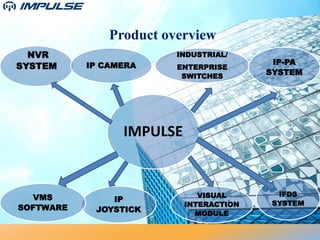

3. Product overview
IMPULSE
NVR
SYSTEM IP CAMERA
INDUSTRIAL/
ENTERPRISE
SWITCHES
IFDS
SYSTEM
IP-PA
SYSTEM
VISUAL
INTERACTION
MODULE
IP
JOYSTICK
VMS
SOFTWARE

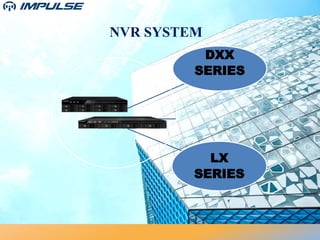

4. NVR SYSTEM
DXX
SERIES
LX
SERIES

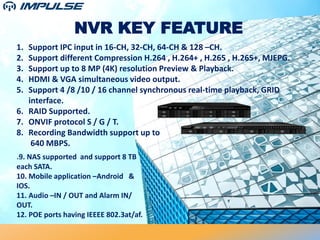

5. NVR KEY FEATURE
1. Support IPC input in 16-CH, 32-CH, 64-CH & 128 –CH.
2. Support different Compression H.264 , H.264+ , H.265 , H.265+, MJEPG.
3. Support up to 8 MP (4K) resolution Preview & Playback.
4. HDMI & VGA simultaneous video output.
5. Support 4 /8 /10 / 16 channel synchronous real-time playback, GRID
interface.
6. RAID Supported.
7. ONVIF protocol S / G / T.
8. Recording Bandwidth support up to
640 MBPS.
.9. NAS supported and support 8 TB
each SATA.
10. Mobile application –Android &
IOS.
11. Audio –IN / OUT and Alarm IN/
OUT.
12. POE ports having IEEEE 802.3at/af.

6. TYPES OF IP CAMERAS
FISHEYE
& BOX
CAMERA
PTZ TYPE
DOME
TYPE
BULLET
TYPE

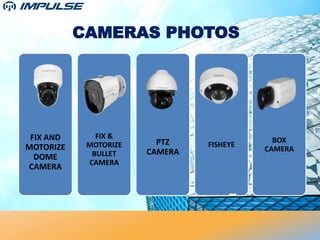

7. CAMERAS PHOTOS
FIX AND
MOTORIZE
DOME
CAMERA
FIX &
MOTORIZE
BULLET
CAMERA
PTZ
CAMERA
FISHEYE
BOX
CAMERA

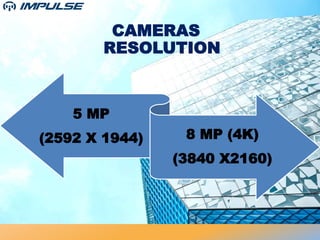

8. CAMERAS
RESOLUTION
5 MP
(2592 X 1944) 8 MP (4K)
(3840 X2160)

9. 1. Progressive Scan CMOS Sensor Support up to 4K Resolution.
2. Multi-exposure HDR
3. Low Power Consumption on Encoding
4. Quad codec support and Quad Streams (Main Stream, Sub-stream, Mobile-
Stream and Fourth-Stream) Support.
5. Tampering Alarm and Video Loss Detection.
6. Smart Analytic:- (FD) Face Detection, (FA) Face Attendance, (FR)Face
Recognition, (HDVD) Human & Vehicle Detection,(CC) Cross Counting, (LC)
Line Crossing, (SOD) Stationary Object Detection,(QLD) Queue length
detection,(CFS) Customer Flow Statics, Rare Sound Detection, (LPR) License
Plate Detection, (CD) Crowd Detection, Heat Map, (PID) Perimeter Intrusion
Detection.
7. 3D Motion Compensated Noise Reduction (MCTF).
8. Network Failure Detection.
9. IR LED Module support up to 40m.
10. Vandal Proof (IK10 Rating) & Ingress Protection.
11. Support Up to (256 GB SD & SDXC Card, Cloud & Net HDD.
12. P2P Cloud Support.
13. VMS , ANDROID & IOS Support.
CAMERAS FEATURES

10. POE SWITCHES
POE
SWITCH
Enterprise
Grade
Switch
Industrial
Grade
switch
POE switch is a device used to connect and
power the IP cameras via Ethernet cables

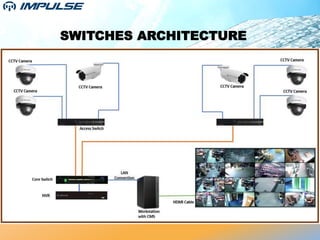

11. SWITCHES ARCHITECTURE

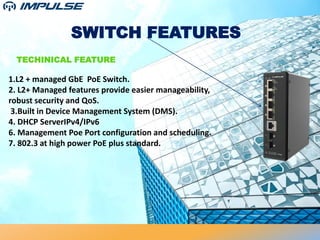

12. SWITCH FEATURES
TECHINICAL FEATURE
1.L2 + managed GbE PoE Switch.
2. L2+ Managed features provide easier manageability,
robust security and QoS.
3.Built in Device Management System (DMS).
4. DHCP ServerIPv4/IPv6
6. Management Poe Port configuration and scheduling.
7. 802.3 at high power PoE plus standard.

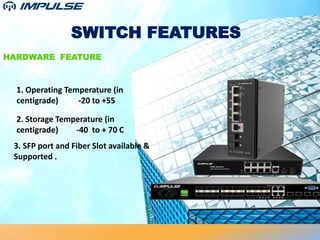

13. SWITCH FEATURES
HARDWARE FEATURE
1. Operating Temperature (in
centigrade) -20 to +55
2. Storage Temperature (in
centigrade) -40 to + 70 C
3. SFP port and Fiber Slot available &
Supported .

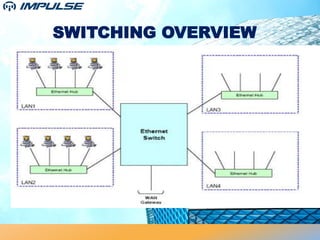

14. SWITCHING OVERVIEW

15. IP PUBLIC ADDRESS SYSTEM
Public Address System (PA system) is an electronic sound
amplification and distribution system with a microphone,
amplifier and loudspeakers, used to allow a person to
address a large public, for example for announcements of
movements at large and noisy air and rail terminals.
REQUIREMTS
1. BROADCAST SERVER
2. IP SPEAKER
3. IP PA MICROPHONE
4. IP TERMINAL INTERCOM

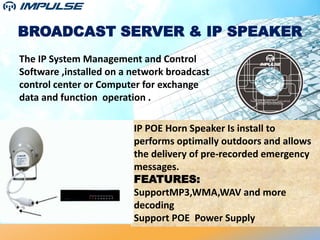

16. BROADCAST SERVER & IP SPEAKER
The IP System Management and Control
Software ,installed on a network broadcast
control center or Computer for exchange
data and function operation .
IP POE Horn Speaker Is install to
performs optimally outdoors and allows
the delivery of pre-recorded emergency
messages.
FEATURES:
SupportMP3,WMA,WAV and more
decoding
Support POE Power Supply

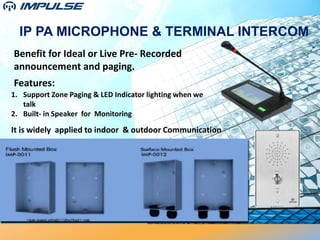

17. IP PA MICROPHONE & TERMINAL INTERCOM
Features:
Benefit for Ideal or Live Pre- Recorded
announcement and paging.
It is widely applied to indoor & outdoor Communication
1. Support Zone Paging & LED Indicator lighting when we
talk
2. Built- in Speaker for Monitoring

18. ARCHITECTUREAL DIAGRAM
ZONE 1 ZONE 2 ZONE 3
PAGING
CAT -6 CABLE
CONTROL STATION
INTERCOM
SWITCH FOR
LAN / WAN
CONNECTION

19. INTELLIGENT FEVER DETECTION
SYSTEM (IFDS)
Intelligent Fever Detection System (IFDS) is one of
the most reliable source of measuring highly
accurate body temperatures. - Built-in Infrared
Thermometer .
KEY FEATURE
1. Face detection & recognition with enhanced security
and anti-spoofing functions
2. Capture rate ≥ 98%; Recognition
rate ≥ 95%
3. Support storage of more than 100,000
detection, captures and recognition
records
4. Capture TF card storage of 128 GB.

20. IFDS FEATURES
TEMPERATURE DETECTION
Detection Area : Fore head
Scope : 34 C~42 C
Detection Range : 25-45 cm
Door
Management,
Central
Remote
Management
Tampering
Alert

21. IFDS ATTANDENCE & IDENTITY MARK
Identity Check,
Mark
Attendance,
DATE:
TIME:
FACE
TEMP

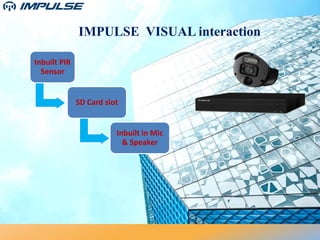

22. IMPULSE VISUAL interaction
Inbuilt PIR
Sensor
SD Card slot
Inbuilt in Mic
& Speaker

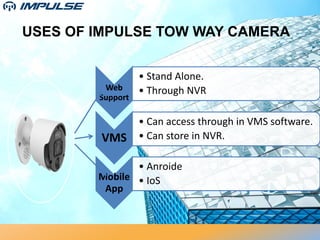

23. USES OF IMPULSE TOW WAY CAMERA
Web
Support
• Stand Alone.
• Through NVR
VMS
• Can access through in VMS software.
• Can store in NVR.
Mobile
App
• Anroide
• IoS

24. VISUAL INTERCATION WORKING PROCESS
VMS
SOFTWARE
MOBILE APP
2-way
camera

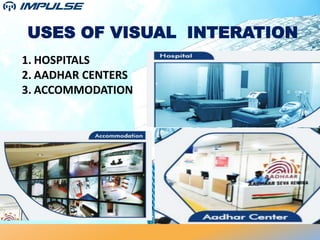

25. USES OF VISUAL INTERATION
1. HOSPITALS
2. AADHAR CENTERS
3. ACCOMMODATION

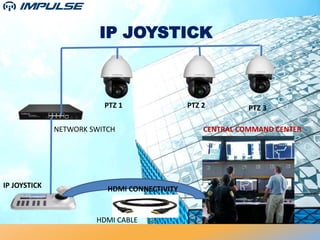

26. IP JOYSTICK
HDMI CONNECTIVITY
HDMI CABLE
NETWORK SWITCH
PTZ 1 PTZ 2
CENTRAL COMMAND CENTER
IP JOYSTICK
PTZ 3

27. IMPULSE JOYSTICK FEATURES
The Joystick Camera Controller offered by us
is designed to provide a powerful and simple
user interface for the remote operation of
networked cameras and lenses.
IMPULSE IP JOYSTICK
PTZ joystick has been
designed to simplify
the most important
elements of PTZ
camera control

28. IMPULSE JOYSTICK FEATURES
1. Wide Compatibility
2. 360 Scan and A-B Scan
3. Up to 100 PTZ camera can control through it
IMPULSE IP JOYSTICK
HOW JOYSTICK WORKS
When a joystick is moved, a
message is relayed to the device
or object being controlled and
that triggers a corresponding
movement.

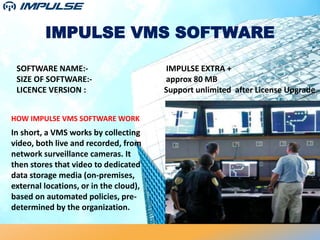

29. IMPULSE VMS SOFTWARE
SOFTWARE NAME:- IMPULSE EXTRA +
SIZE OF SOFTWARE:- approx 80 MB
LICENCE VERSION : Support unlimited after License Upgrade
HOW IMPULSE VMS SOFTWARE WORK
In short, a VMS works by collecting
video, both live and recorded, from
network surveillance cameras. It
then stores that video to dedicated
data storage media (on-premises,
external locations, or in the cloud),
based on automated policies, pre-
determined by the organization.

30. IMPULSE VMS SOFTWARE
Technical Feature :
Compatibility
It Support IP Camera :
• ONVIF compatible cameras
• RTSP compatible cameras
ONVIF Video recorder support
Supported compression formats :-
• H.265, H.264, H.264+, Axis
Zipstream, MPEG4, MJPEG
Operating systems :-
Microsoft Windows 7 (32 & 64 bit), 10
(32 & 64 bit),Server 2012, Server 2012
R2, Server 2016, Server 2019
• Linux CentOS 6, 7 (64 bit)
• macOS High Sierra, Mojave, Catalina
(64 bit
Hardware decoding
• NVIDIA graphics processing units
• Intel graphics processing units
Mobile use
• Android and iOS

31. IMPULSE VMS LIVE VIEW

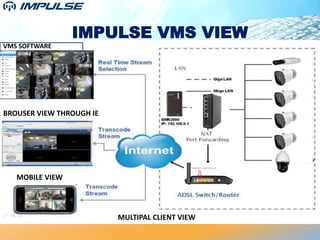

32. IMPULSE VMS VIEW
VMS SOFTWARE
BROUSER VIEW THROUGH IE
MOBILE VIEW
MULTIPAL CLIENT VIEW

33. CAMERAS FEATURES
Venkateshwara
School
Deen dayal Upadhyaya
College Sukhdev College
DRDO
UP District Courts
GCNEP TNPL ESIC
NID Bhopal)

34. CUSTOMER REFERANCE
NTPC (LDA)
CPWD
NOIDA
DEVELOPMENT
AUTHORITY
TNPL
NSSTA
GROZ
DDA
DTU
RAILTEL
EXPORT
INSPECTION
COUNCIL

35. M/S IMPULSE CCTV NETWORK INDIA PVT LTD
HEADQUARTER –
BRANCH OFFICE-Noida (Greater Noida)
FOR QUEARY – INFO@IMPULSECCTV.COM
