The document provides technical specifications for the HAKA 150/51h wood burning stove. It lists details such as: - Nominal heat output of 16 kW and efficiency over 80% - Consumption of 4.5 kg/hr of wood and flue gas temperature of 251°C - Intended for insertion into a fireplace or connection to a chimney - Requires a minimum combustion air supply of 45 m3/hr and chimney draft of 12 Pa - Total weight of approximately 536 kg including a 175 kg lining

1. 1

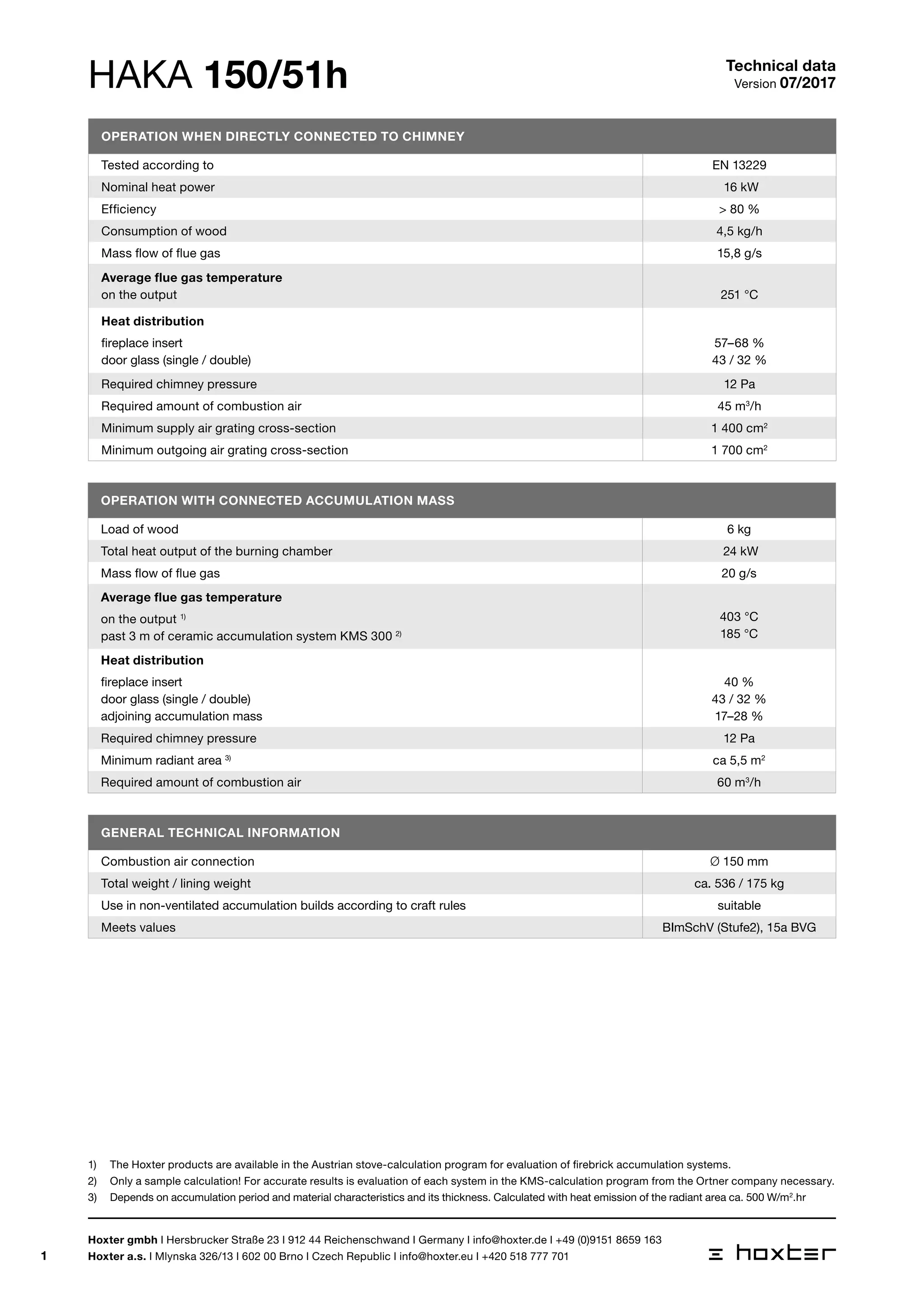

HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Operation when directly connected to chimney
Tested according to EN 13229
Nominal heat power 16 kW
Efficiency > 80 %
Consumption of wood 4,5 kg/h
Mass flow of flue gas 15,8 g/s
Average flue gas temperature
on the output 251 °C
Heat distribution
fireplace insert
door glass (single / double)
57–68 %
43 / 32 %
Required chimney pressure 12 Pa
Required amount of combustion air 45 m3
/h
Minimum supply air grating cross-section 1 400 cm2
Minimum outgoing air grating cross-section 1 700 cm2
General technical information
Combustion air connection Ø 150 mm
Total weight / lining weight ca. 536 / 175 kg
Use in non-ventilated accumulation builds according to craft rules suitable
Meets values BImSchV (Stufe2), 15a BVG
Operation with connected accumulation mass
Load of wood 6 kg
Total heat output of the burning chamber 24 kW
Mass flow of flue gas 20 g/s
Average flue gas temperature
on the output 1)
past 3 m of ceramic accumulation system KMS 300 2)
403 °C
185 °C
Heat distribution
fireplace insert
door glass (single / double)
adjoining accumulation mass
40 %
43 / 32 %
17–28 %
Required chimney pressure 12 Pa
Minimum radiant area 3)
ca 5,5 m2
Required amount of combustion air 60 m3
/h
1) The Hoxter products are available in the Austrian stove-calculation program for evaluation of firebrick accumulation systems.
2) Only a sample calculation! For accurate results is evaluation of each system in the KMS-calculation program from the Ortner company necessary.
3) Depends on accumulation period and material characteristics and its thickness. Calculated with heat emission of the radiant area ca. 500 W/m2
.hr

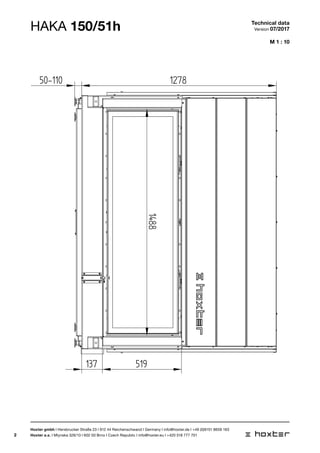

2. 2
1488
ø250
1708
127850-110
137 519
M 1 : 10
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701

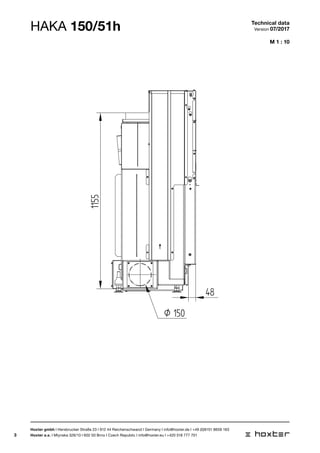

3. 3
Ø 150
1155
48
M 1 : 10
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701

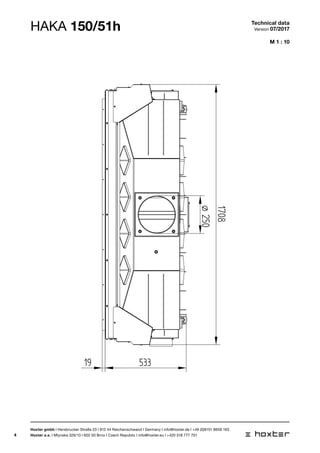

4. 4
ø250
1708
19
50-110
137
533
M 1 : 10
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701

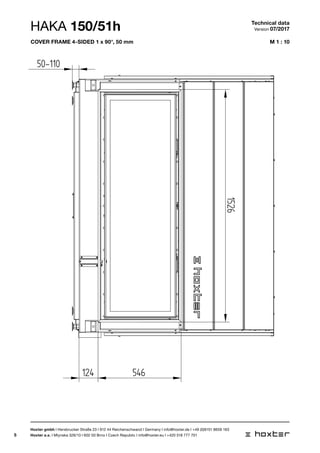

5. 5
M 1 : 10
BLENDRA
1526
50-110
124 546
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 50 mm

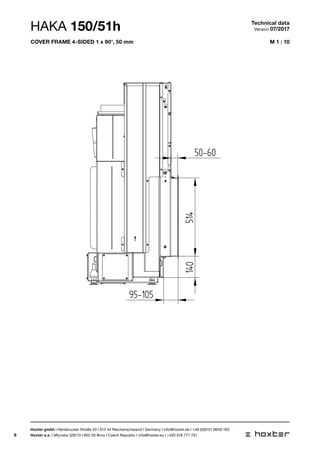

6. 6
M 1 : 10
BLENDRAHMEN 150/51 4SEITIG 1 x 90 50MM
95-105
50-60
140514
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 50 mm

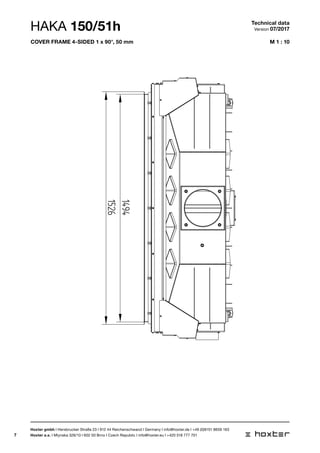

7. 7
M 1 : 10
50-110
124
1526
1494
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 50 mm

8. 8
M 1 : 10
BLENDRAH
1526
50-110
124 546
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 80 mm

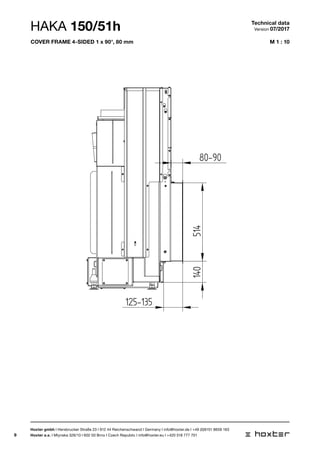

9. 9
M 1 : 10
BLENDRAHMEN 150/51 4SEITIG 1 x 90 80MM
125-135
80-90
514140
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 80 mm

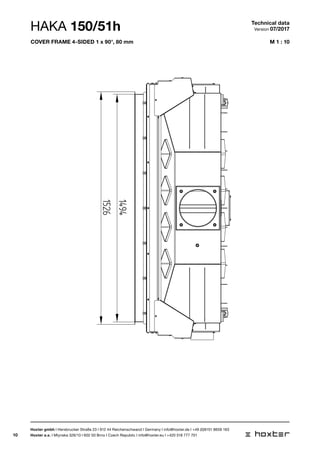

10. 10
M 1 : 10
50-110
124
1526
1494
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
cover frame 4-sided 1 x 90°, 80 mm

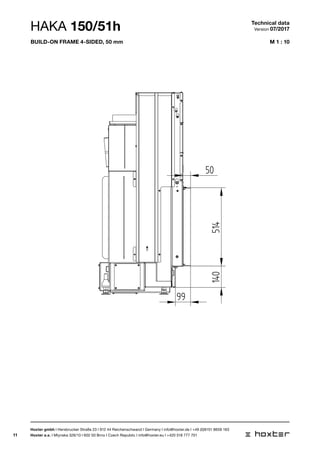

11. 11
M 1 : 10
ANBAURAHMEN 150/51 4SEITIG 50MM
50
514
99
140
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Build-on frame 4-sided, 50 mm

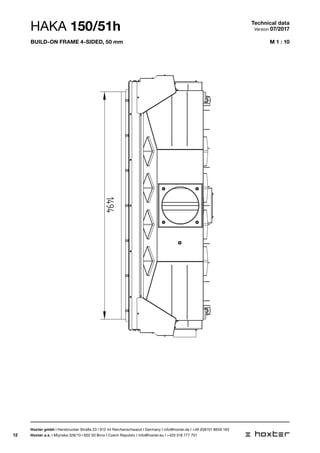

12. 12
M 1 : 10
1494
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Build-on frame 4-sided, 50 mm

13. 13
M 1 : 10
ANBAURAHMEN 150/51 4SEITIG 80MM
80
514
129
140
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Build-on frame 4-sided, 80 mm

14. 14
M 1 : 10
1494
HAKA 150/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Build-on frame 4-sided, 80 mm
