Hoxter Ecka 51/51/51h

1
ECKA 51/51/51h Technical data
Version 07/2017
Hoxter gmbh I Hersbrucker Straße 23 I 912 44 Reichenschwand I Germany I info@hoxter.de I +49 (0)9151 8659 163
Hoxter a.s. I Mlynska 326/13 I 602 00 Brno I Czech Republic I info@hoxter.eu I +420 518 777 701
Operation when directly connected to chimney Cupola Hot air exchanger
Tested according to EN 13229 EN 13229
Nominal heat power 7 kW 10 kW
Efficiency > 80 % > 80 %
Consumption of wood 2,2 kg/h 3 kg/h
Mass flow of flue gas 6,4 g/s 9,6 g/s
Average flue gas temperature
on the output 254 °C 269 °C
Heat distribution
fireplace insert
door glass (single / double)
64–75 %
36 / 25 %
64–75 %
36 / 25 %
Required chimney pressure 12 Pa 12 Pa
Required amount of combustion air 30 m3
/h 35 m3
/h
Minimum supply air grating cross-section 650 cm2
950 cm2
Minimum outgoing air grating cross-section 800 cm2
1 150 cm2
General technical information
Combustion air connection Ø 125 mm
Total weight / lining weight ca. 261 / 67 kg
Use in non-ventilated accumulation builds according to craft rules suitable
Meets values BImSchV (Stufe2), 15a BVG
Operation with connected accumulation mass Cupola Adaptor
Load of wood 5 kg 5 kg
Total heat output of the burning chamber 19 kW 19 kW
Mass flow of flue gas 15 g/s 15 g/s
Average flue gas temperature
on the output 1)
past 3,2 m of ceramic accumulation system KMS 300 2)
past set of HOXTER accumulation rings
394 °C
178 °C
–
404 °C
–
235 °C
Heat distribution
fireplace insert
door glass (single / double)
adjoining accumulation mass
36 %
36 / 25 %
29–39 %
33 %
36 / 25 %
32–42 %
Required chimney pressure 12 Pa 12 Pa
Minimum radiant area 3)
ca. 4,5 m2
ca. 4,5 m2
Required amount of combustion air 50 m3
/h 50 m3
/h
1) The Hoxter products are available in the Austrian stove-calculation program for evaluation of firebrick accumulation systems.
2) Only a sample calculation! For accurate results is evaluation of each system in the KMS-calculation program from the Ortner company necessary.
3) Depends on accumulation period and material characteristics and its thickness. Calculated with heat emission of the radiant area ca. 500 W/m2
.hr

2
1:10
1082
1197
45-55
253516
509
1337
19509
19
640
O
M 1 : 10
Version 07/2017
With cupola

3
O 125
1082
1197
35
598
45-55
M 1 : 10
Version 07/2017
With cupola

4
M 1 : 10
ECKA 51/51/51h253516
1337
19509
19 509
640
640
272
180O
Technical data
Version 07/2017
With cupola

5
1:10
992
45-55
253516
509
1337
19509
19
640
M 1 : 10
Version 07/2017
With adaptor

6
M 1 : 10
ECKA 51/51/51h
O 125
992
35
45-55
Technical data
Version 07/2017
With adaptor

7
M 1 : 10
ECKA 51/51/51h253516
1337
19509
19 509
640
640
272
272
O
300
Technical data
Version 07/2017
With adaptor

8
ECKA 51/51/51 Lh M
1:10
45-55
253516
509
1337
19509
19
640
348
1384
M 1 : 10
Version 07/2017

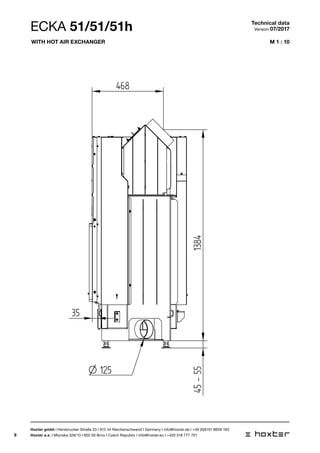

With hot air exchanger

9
M 1 : 10
ECKA 51/51/51h
O 125
35
45-55
5
348
468
1384
Technical data
Version 07/2017

10
253516
1337
19509
19 509
640
640
200O
M 1 : 10
Version 07/2017

11
ECKA 51/51/51 Lh MIT STA
1:10
253516
509
1337
19509
19
640
1340
348,5
M 1 : 10
Version 07/2017
With hot air exchanger vertical

12
M 1 : 10
ECKA 51/51/51h
O 125
35
45-55
5
348,5
1340
348,5
Technical data
Version 07/2017

13
M 1 : 10
ECKA 51/51/51h
253516
1337
19509
19 509
640
640
200O
Technical data
Version 07/2017

14
1:10
50
111
M 1 : 10
Version 07/2017
Build-on frame 6-sided, 50 mm

15
M 1 : 10
ECKA 51/51/51h
558
669
50
85
257510
45-55
Technical data
Version 07/2017

16
M 1 : 10
558
558
669
670
50
85
257510
45-55ECKA 51/51/51h Technical data
Version 07/2017

17
M 1 : 10
1:10
80
141
Version 07/2017

18
M 1 : 10
588
699
80
115
257510
45-55
Version 07/2017

19
M 1 : 10
588
588
699
700
80
115
257510
45-55ECKA 51/51/51h Technical data
Version 07/2017

20
M 1 : 10M 1 : 10
ECKA 51/51/51h
1:10
58 - 62
124
568
Technical data
Version 07/2017
cover frame 6-sided, 60 mm

21
M 1 : 10M 1 : 10
ECKA 51/51/51h
568
680
58 - 62
98
258506
45-55
568
Technical data
Version 07/2017

22
M 1 : 10M 1 : 10
ECKA 51/51/51h
568
568
680
680
58 - 62
98
258506
45-55
Technical data
Version 07/2017
