1. Tutorial showing how to publish your
own IoT services/data using the
O-MI/O-DF reference implementation
1

2. © bIoTope Consortium 2

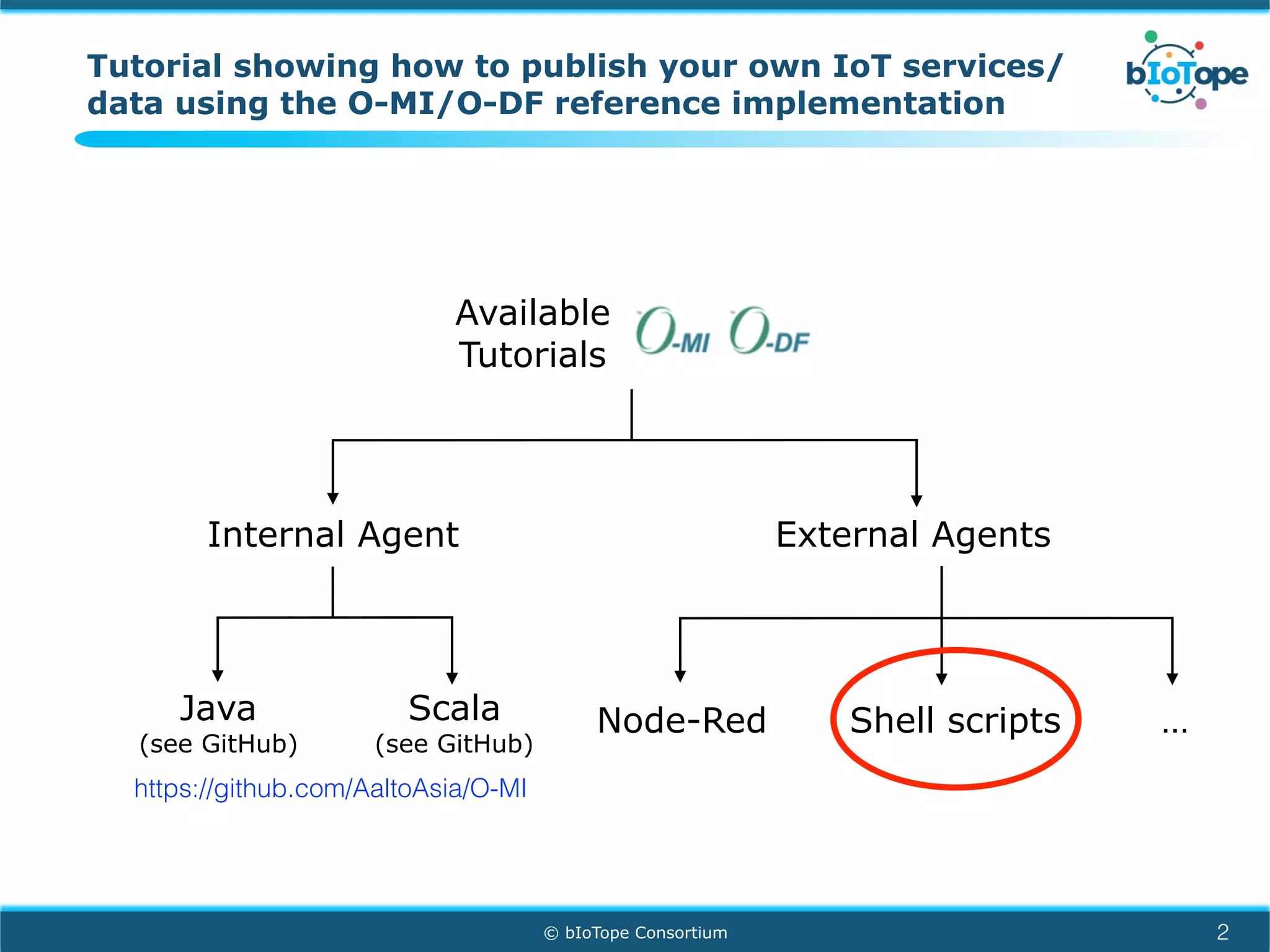

Tutorial showing how to publish your own IoT services/
data using the O-MI/O-DF reference implementation
Internal Agent External Agents
Node-Red Shell scripts …
Available
Tutorials
Scala
(see GitHub)
Java
(see GitHub)
https://github.com/AaltoAsia/O-MI

3. Tutorial: How to build an external agent with Node-red
for publishing (Create) &
Updating (Update) the state of a Philips Hue Light using
the O-MI reference implementation (via SHELL scripts)
3

4. bIoTope 4
Prerequisites
1 computer Windows ou Linux/MAC with the following tools installed or
directory downloaded:
• the O-MI reference implementation: https://github.com/AaltoAsia/O-MI
✦ direct URL: https://github.com/AaltoAsia/O-MI/releases/tag/0.6.4 (choose “o-mi-node-0.6.4.zip”)
=> Note: Java 1.8 is required.
• Shell scripts: https://github.com/jrobert-github/O-MI_Shell_Agent
• JSON parser library JQ: https://stedolan.github.io/jq/download/

5. Build the O-DF Service Tree related to the Philips
Hue light using the
O-MI reference implementation (via SHELL scripts)
5

6. Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)
6
1. Start your O-MI node
To start the O-MI ref. implem., run the corresponding startup script from the bin directory for your OS:
• Windows: double-click on the file o-mi-node.bat in the bin/ directory
• Unix and Mac: open a terminal, and run the file o-mi-node in the bin/ directory (Might be needed to add
the Write access to the directory: chmod +x)
Exemple for Mac

7. 7
2. Launch the reference implementation in your favorite browser at the following
URL: http://localhost:8080/html/webclient/index.html
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)

8. 8
the postal address of the Object named “JeremysHouse”
the Object related to the Smart Light (Philips Hue Light in our case)
the state of the light’s brightness (Philips Hue Light’s property)
value: "Specify the brightness of the light” (for human understanding)
Two Metadata: range of accepted Values & additional Documentation
the state of the light (on or off)
value: "Switch on/off the light"
3. Add the O-DF structure related to the Philips Hue light
The following O-DF structure will be created — using — by following the guidelines given in the
next slides:
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)

9. 9
Postal address value
Light’s brightness state
"Specify the brightness…
Range of Values &
Documentation
Light state (on or off)
"Switch on/off the light"
=
3. Add the O-DF structure related to the Philips Hue light
A. Inside the “agent” directory, edit the file: define_odf.sh as follows; Understanding the matching between the O-DF tree
(right picture) and the Shell script (left picture) should be straightforward
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)
Every time you’ll see a red dashed
frame, it means that you need to adapt
the code depending on your application
and the underlying infrastructure
(technologies, network configuration…)

10. 10
Postal address value
Light’s brightness state
"Specify the brightness…
Range of Values &
Documentation
Light state (on or off)
"Switch on/off the light"
=
3. Add the O-DF structure related to the Philips Hue light
A. Inside the “agent” directory, edit the file: define_odf.sh as follows; Understanding the matching between the O-DF tree
(right picture) and the Shell script (left picture) should be straightforward
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)

11. 11
3. Add the O-DF structure related to the Philips Hue light
A. Inside the “agent” directory, edit the file: define_odf.sh as follows; Understanding the matching between the O-DF tree
(right picture) and the Shell script (left picture) should be straightforward
B. Edit the file: define_omi.sh to configure the O-MI node that you’re going to update with your “service list/tree”
NOTE:
In this demo, everything is done locally. If you
want to use the O-MI write request on remote
O-MI reference implementations, you will need
to specify/add the write access rights to a
configuration file in the O-MI reference
implementation (See Appendix A).
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)

12. 12
3. Add the O-DF structure related to the Philips Hue light
A. Inside the “agent” directory, edit the file: define_odf.sh as follows; Understanding the matching between the O-DF tree
(right picture) and the Shell script (left picture) should be straightforward
B. Edit the file: define_omi.sh to configure the O-MI node that you’re going to update with your “service list/tree”
C. Inside the “bin” directory, execute the following script: ./create_odf.sh
• If you go to your O-MI ref. implem. webpage and click on “Read All” again, you should now see the“service list/
tree” (cf. below screenshot)
Build the O-DF Service Tree related to the Philips Hue light using the
O-MI reference implementation (via SHELL scripts)

13. Creation of the “External agent”
for updating and listening the
state of the smart light
13

14. Creation of the “External agent” for updating
and listening the state of the smart light
14
1. Write/Update the OMI node (i.e., InfoItem) with the current state of the light
Hue API
O-MI/O-DF

15. 15
1. Write/Update the OMI node (i.e., InfoItem) with the current state of the light
A. Inside the “agent” directory, edit the file: define_values.sh as below (technology-/platform-dependent);
Creation of the “External agent” for updating
and listening the state of the smart light
Note:
This file defines how to access the Philips Hug Light’s API to retrieve the
real-time light values (brightness, on…) => the two data items being
retrieved — API’s output being a JSON — are “state.on” and “state.bri”.
Then, we update with the retrieved values the “SmartLight_values” variable
(i.e. InfoItems named “On” and “Brightness” in our Service tree).
Hue API

16. 16
Hue API
O-MI/O-DF
Creation of the “External agent” for updating
and listening the state of the smart light
1. Write/Update the OMI node (i.e., InfoItem) with the current state of the light
A. Inside the “agent” directory, edit the file: define_values.sh as below (technology-/platform-dependent);
B. Inside the “bin” directory, the following script: ./update_ref_implem.sh can
• Without argument/parameter:
✦ Every time you execute the command, the O-MI ref. implem., or the corresponding InfoItems to be more precise
(“Brightness” & “ON”), will be updated with the real-time light values;
✦ (UNIX only): you can add the following line to the “crontab” file, which in this specific case will update the values
every 10min.
- */10 * * * * /<File_Path>/update_ref_implem.sh> /dev/null
• With argument/parameter:
✦ If you execute the following command, the O-MI ref. implem., or the corresponding InfoItems to be more precise
(“Brightness” & “ON”), will be updated based on the requested period, which is specified as input parameter/
argument (in second; 50s in the below example);
- ./update_ref_implem.sh 50
Every time the state of the Philips Hue Light is “crawled/checked”, the O-MI
ref. implem., or the corresponding InfoItems to be more precise (named
“Brightness” & “ON” in our O-DF Service Tree), will be updated accordingly!

17. 2. "Listen" if any change occurs on the OMI ref. implem. so as to propagate it up
to the Smart Hue light
17
O-MI/O-DF
Hue API
Sylvain sends an O-MI Write request to
turn Smart bulb OFF!
NOTE: Sylvain is not aware of and
doesn’t have to care about what Smart
Bulb technology Jérémy is using as
backend platform (the Write message
will remain the same!!)
External actor
(Sylvain)
Our Node-Red agent will update the
state as requested (if Sylvain has the
sufficient access rights)
Creation of the “External agent” for updating
and listening the state of the smart light
Jérémy’sIoTenvironment

18. 18
Creation of the “External agent” for updating
and listening the state of the smart light
1. "Listen" the modification of the OMI node to modify the state of the light
A. Inside the “bin” directory, the following script: ./update_device can
• Without argument/parameter:
✦ Every time you execute the command, the device (smart light), or the corresponding properties to be more precise
(“bri” & “on”), will be updated with the value specified inside the O-MI Read response;
• With argument/parameter:
✦ If you execute the following command, the device (smart light), or the corresponding InfoItems to be more precise
(“bri” & “on”), will be updated based on the requested period, which is specified as input parameter/argument;
- ./update_device.sh 50
Creation of the “External agent” for updating
and listening the state of the smart light
O-MI/O-DF
Jérémy’sIoTenvironment
To note: Ideally, the “event-based” subscription mechanism supported by O-MI should be used so as to listen and update the device’s values when
a change occurs (i.e., we would only need to perform the command: ./update_device).

19. 19
Creation of the “External agent” for updating
and listening the state of the smart light
Creation of the “External agent” for updating
and listening the state of the smart light
Hue API
O-MI/O-DF
Jérémy’sIoTenvironment
To note: Ideally, the “event-based” subscription mechanism supported by O-MI should be used so as to listen and update the device’s values when
a change occurs (i.e., we would only need to perform the command: ./update_device).
1. "Listen" the modification of the OMI node to modify the state of the light
A. Inside the “bin” directory, the following script: ./update_device can
• Without argument/parameter:
✦ Every time you execute the command, the device (smart light), or the corresponding properties to be more precise
(“bri” & “on”), will be updated with the value specified inside the O-MI Read response;
• With argument/parameter:
✦ If you execute the following command, the device (smart light), or the corresponding InfoItems to be more precise
(“bri” & “on”), will be updated based on the requested period, which is specified as input parameter/argument;
- ./update_device.sh 50

20. 20
Standardised Service Description & Messaging Interfaces (O-MI/O-DF)
Smart City
●
●✇
●
●●
●✇
●
●
●●●
A Bottle
Bank
●● ●●
Shopping Center
✈ ❍
●
School
●
SchoolBus
●
●
Manufacturer
●✇
●
●
●✇
●
●
●✇
●
●
✙
✚
●●
●●
H
●●●
A
Landfill site
Information-as-a-
Service
O
-M
Inode
URL
1
bIoTope Service Marketplace: IoTBnB
$
http://85.171.192.185
Join the bIoTope ecosystem
and Share amazing services &
IoT data with our members

21. © bIoTope Consortium 21
BIOTOPE H2020 R&I
GRANT: N° 688203
Tutorial created by:
• Dr. Jérémy ROBERT
• Dr. Sylvain KUBLER

22. © bIoTope Consortium 22

23. APPENDIX A
23

24. 1. To be written
A. To be written
24
Specify/add the write access rights to a configuration
file in the O-MI reference implementation
