1. Hiking through the
Functional Forest with
FizzBuzz
Mike Harris | @MikeMKH | comp-phil.blogspot.com

3. The Functional Forest and Object Oriented City

4. The Functional Forest and Object Oriented City

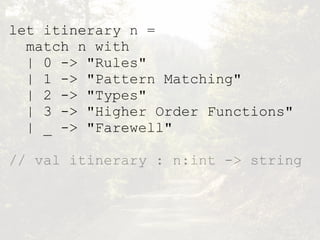

6. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
// val itinerary : n:int -> string

7. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
itinerary 0
// val it : string =
“Rules"

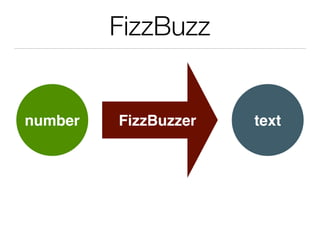

8. FizzBuzz
number FizzBuzzer text

9. int int -> string string

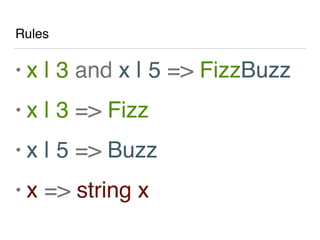

10. Rules
• x | 3 and x | 5 => FizzBuzz
• x | 3 => Fizz
• x | 5 => Buzz
• x => string x

11. Rules
• x | 3 and x | 5 => FizzBuzz
• x | 3 => Fizz
• x | 5 => Buzz
• x => string x
Specific
General

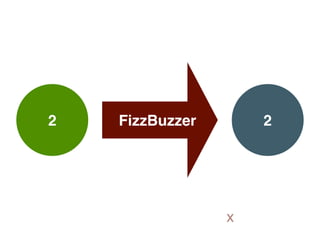

12. 2 FizzBuzzer 2
x

13. 33 FizzBuzzer Fizz
x | 3

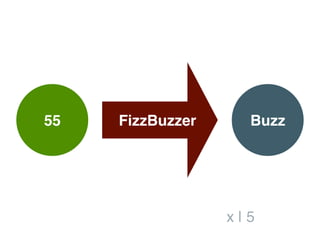

14. 55 FizzBuzzer Buzz
x | 5

15. 45 FizzBuzzer FizzBuzz
x | 3

16. Conditional

17. x
Fizz
Buzz
Fizz
Buzz
x | 15
x | 3
x | 5
xelse
Specific
General

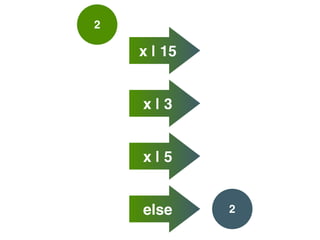

18. 2
x | 15
x | 3
x | 5
2else

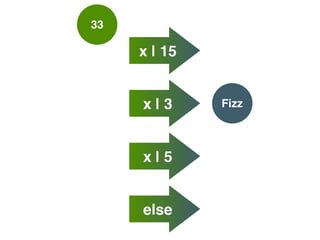

19. 33
Fizz
x | 15
x | 3
x | 5
else

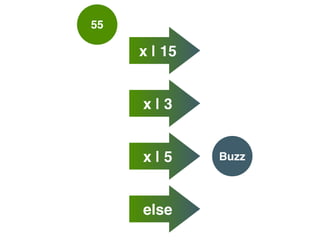

20. 55
Buzz
x | 15
x | 3
x | 5
else

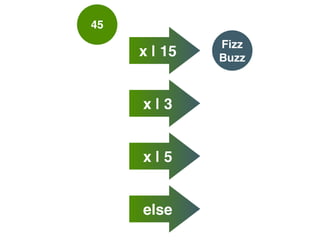

21. 45
x | 15
x | 3
x | 5
else
Fizz
Buzz

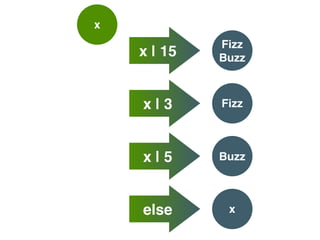

22. x
Fizz
Buzz
Fizz
Buzz
x | 15
x | 3
x | 5
xelse

23. let fizzbuzzer x =
if x % 15 = 0 then "FizzBuzz"
elif x % 3 = 0 then "Fizz"
elif x % 5 = 0 then "Buzz"
else string x
Conditional
F#

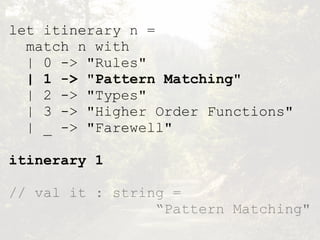

24. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
itinerary 1
// val it : string =
“Pattern Matching"

26. — ⽼老⼦子 trans. James Legge,
道德經, 64
“The journey of a thousand li commences with
a single step.”

27. Pattern Match

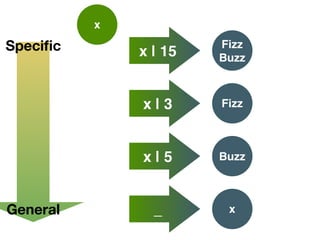

28. x
Fizz
Buzz
Fizz
Buzz
x | 15
x | 3
x | 5
x_
Specific
General

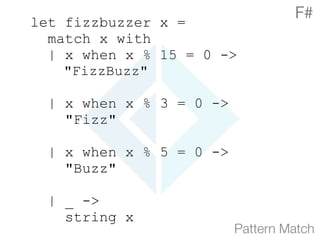

29. let fizzbuzzer x =
match x with
| x when x % 15 = 0 ->
"FizzBuzz"
| x when x % 3 = 0 ->
"Fizz"
| x when x % 5 = 0 ->
"Buzz"
| _ ->
string x
Pattern Match
F#

30. Pattern Match with Tuples

31. x | 3,
x | 5
Fizz
Buzz
Fizz
Buzz
0, 0
0, _
_, 0
x_
Specific
General

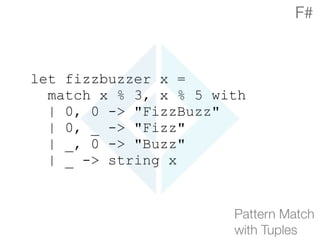

32. let fizzbuzzer x =
match x % 3, x % 5 with
| 0, 0 -> "FizzBuzz"
| 0, _ -> "Fizz"
| _, 0 -> "Buzz"
| _ -> string x
Pattern Match
with Tuples
F#

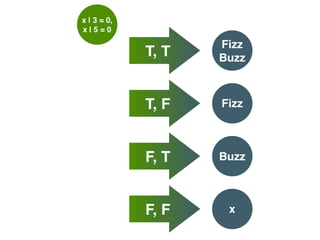

33. x | 3 = 0,
x | 5 = 0
Fizz
Buzz
Fizz
Buzz
T, T
T, F
F, T
xF, F

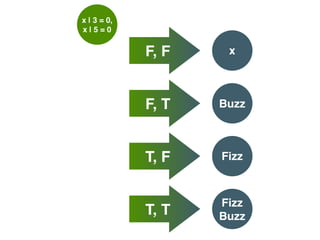

34. x | 3 = 0,
x | 5 = 0
x
Buzz
Fizz
F, F
F, T
T, F
Fizz
BuzzT, T

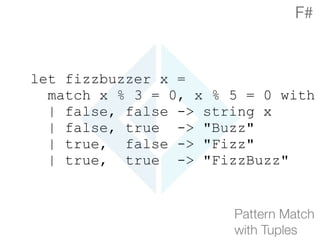

35. let fizzbuzzer x =
match x % 3 = 0, x % 5 = 0 with
| false, false -> string x
| false, true -> "Buzz"
| true, false -> "Fizz"
| true, true -> "FizzBuzz"
Pattern Match
with Tuples
F#

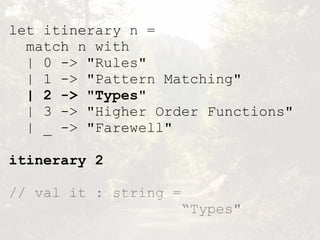

36. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
itinerary 2
// val it : string =
“Types"

37. Discriminated Unions
aka Sum Type

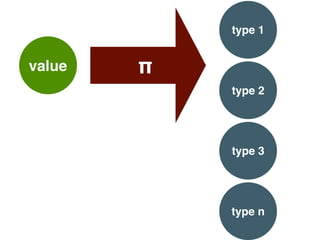

38. value π
type 1
type 2
type 3
type n

39. int
Fizz
Buzz
Fizz
Buzz
Other
int
fizzbuzzer

40. 45 fizzbuzzer
Fizz
Buzz

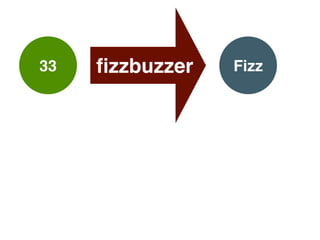

41. 33 fizzbuzzer Fizz

42. 55 fizzbuzzer Buzz

43. 2 fizzbuzzer Other
2

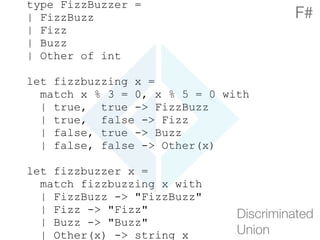

44. type FizzBuzzer =
| FizzBuzz
| Fizz
| Buzz
| Other of int
let fizzbuzzing x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
let fizzbuzzer x =
match fizzbuzzing x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x
Discriminated
Union
F#

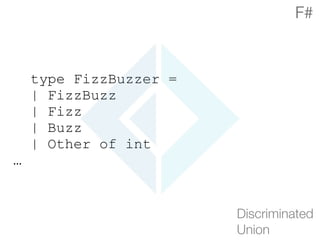

45. type FizzBuzzer =
| FizzBuzz
| Fizz
| Buzz
| Other of int
…
Discriminated
Union
F#

46. type FizzBuzzer =
| FizzBuzz
| Fizz
| Buzz
| Other of int
let fizzbuzzing x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
… Discriminated
Union
F#

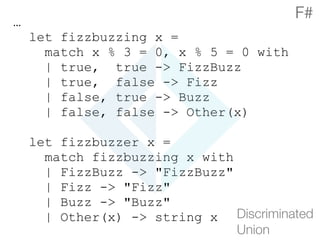

47. …
let fizzbuzzing x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
let fizzbuzzer x =
match fizzbuzzing x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x Discriminated
Union
F#

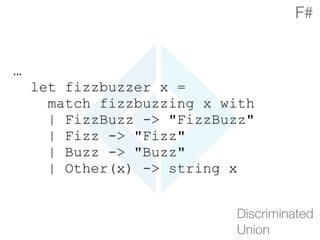

48. …
let fizzbuzzer x =
match fizzbuzzing x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x
Discriminated
Union
F#

49. type FizzBuzzer =
| FizzBuzz
| Fizz
| Buzz
| Other of int
let fizzbuzzing x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
let fizzbuzzer x =
match fizzbuzzing x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x
Discriminated
Union
F#

50. Complete Active Pattern

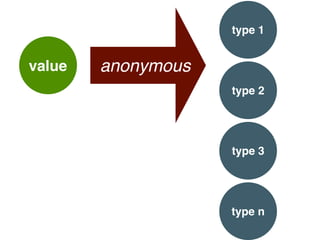

51. value anonymous
type 1
type 2
type 3
type n

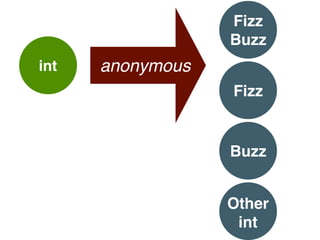

52. int anonymous
Fizz
Buzz
Fizz
Buzz
Other
int

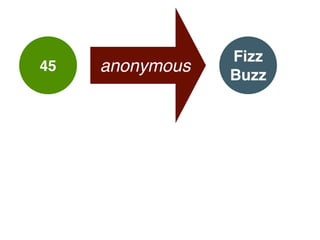

53. 45 anonymous
Fizz
Buzz

54. 33 anonymous Fizz

55. 55 anonymous Buzz

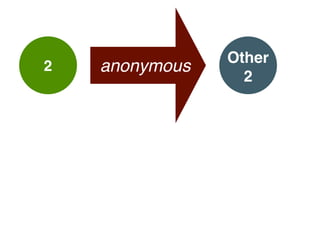

56. 2 anonymous
Other
2

57. let (|FizzBuzz|Fizz|Buzz|Other|) x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
let fizzbuzzer x =
match x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x Complete
Active Pattern
F#

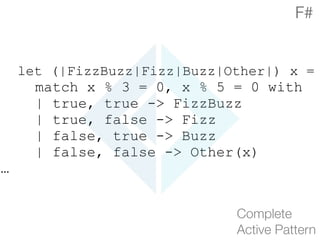

58. let (|FizzBuzz|Fizz|Buzz|Other|) x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
…
Complete
Active Pattern
F#

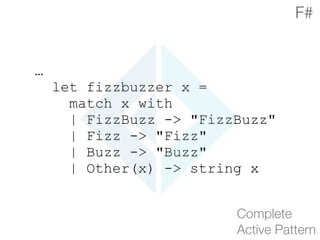

59. …
let fizzbuzzer x =
match x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x
Complete
Active Pattern
F#

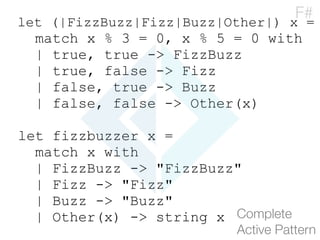

60. let (|FizzBuzz|Fizz|Buzz|Other|) x =
match x % 3 = 0, x % 5 = 0 with
| true, true -> FizzBuzz
| true, false -> Fizz
| false, true -> Buzz
| false, false -> Other(x)
let fizzbuzzer x =
match x with
| FizzBuzz -> "FizzBuzz"
| Fizz -> "Fizz"
| Buzz -> "Buzz"
| Other(x) -> string x Complete
Active Pattern
F#

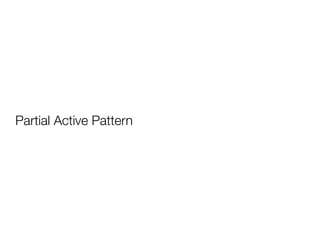

61. Partial Active Pattern

62. value anonymous
Some
None

63. 33 divisible by Some
3

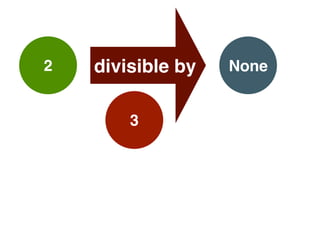

64. 2 divisible by None
3

65. let (|DivisibleBy|_|) divisor x =
if x % divisor = 0
then Some ()
else None
let fizzbuzzer x =
match x with
| DivisibleBy 3 &
DivisibleBy 5 -> "FizzBuzz"
| DivisibleBy 3 -> "Fizz"
| DivisibleBy 5 -> "Buzz"
| _ -> string x Partial
Active Pattern
F#

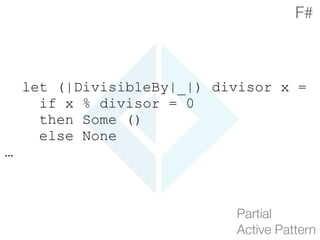

66. let (|DivisibleBy|_|) divisor x =
if x % divisor = 0
then Some ()
else None
…
Partial
Active Pattern
F#

67. …
let fizzbuzzer x =
match x with
| DivisibleBy 3 &
DivisibleBy 5 -> “FizzBuzz"
| DivisibleBy 3 -> “Fizz"
| DivisibleBy 5 -> “Buzz"
| _ -> string x
Partial
Active Pattern
F#

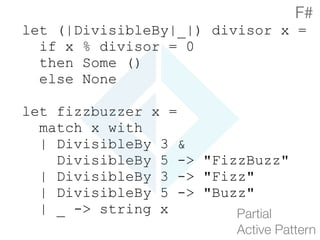

68. let (|DivisibleBy|_|) divisor x =
if x % divisor = 0
then Some ()
else None
let fizzbuzzer x =
match x with
| DivisibleBy 3 &
DivisibleBy 5 -> "FizzBuzz"
| DivisibleBy 3 -> "Fizz"
| DivisibleBy 5 -> "Buzz"
| _ -> string x Partial
Active Pattern
F#

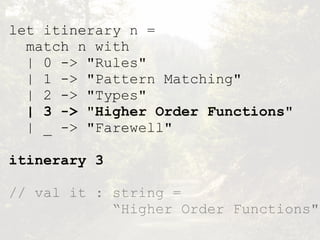

69. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
itinerary 3
// val it : string =
“Higher Order Functions"

70. Fold

71. statefunction value 1
value 2
value n

72. statefunction value 2
value 3
value n

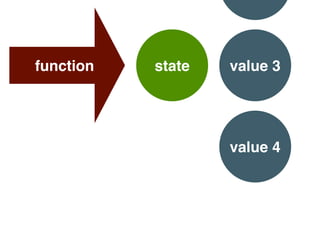

73. statefunction value 3
value 4

74. statefunction value 4

75. resultfunction

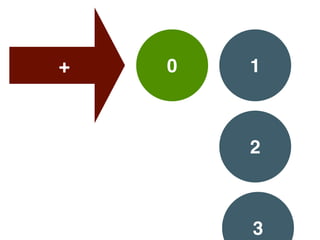

76. 0+ 1
2
3

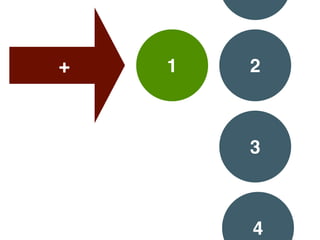

77. 1+ 2
3
4

78. 3+ 3
4

79. 6+ 4

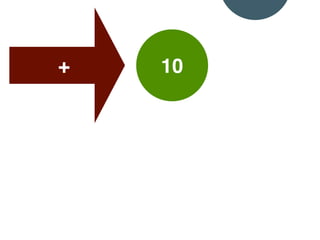

80. 10+

81. “”m f -> m ++ f x
x | 3 ?
Fizz : “”
x | 5 ?
Buzz : “”

82. “”m f -> m ++ f 3
3 | 3 ?
Fizz : “”
x | 5 ?
Buzz : “”

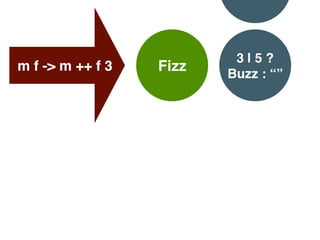

83. Fizzm f -> m ++ f 3
3 | 5 ?
Buzz : “”
“Fizz”:“”

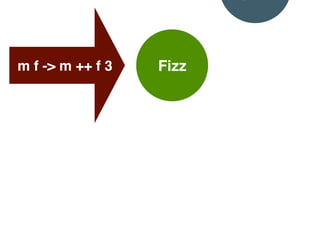

84. Fizzm f -> m ++ f 3
“Buzz”:“”

85. “”m f -> m ++ f 15
15 | 3 ?
Fizz : “”
x | 5 ?
Buzz : “”

86. Fizzm f -> m ++ f 15
15 | 5 ?
Buzz : “”
“Fizz”:“”

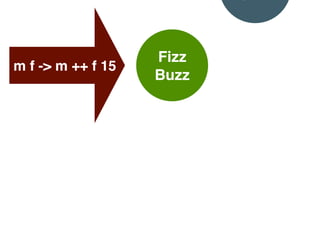

87. Fizz
Buzz
m f -> m ++ f 15
“Buzz”:“”

88. let fizzbuzzer x =
let rule d s =
(fun x -> if x % d = 0
then s
else "")
[rule 3 "Fizz";
rule 5 "Buzz"]
|> List.fold
(fun m f -> m + f x)
""
|> (fun s -> if s = ""
then string x
else s)Fold
F#

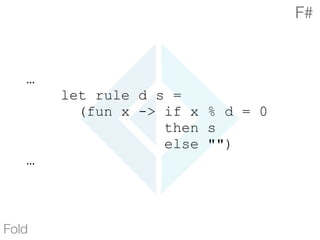

89. …
let rule d s =
(fun x -> if x % d = 0
then s
else "")
…
Fold
F#

90. …
let rule d s =
(fun x -> if x % d = 0
then s
else "")
[rule 3 "Fizz";
rule 5 "Buzz"]
…
Fold
F#

91. …
[rule 3 "Fizz";
rule 5 "Buzz"]
…
Fold
F#

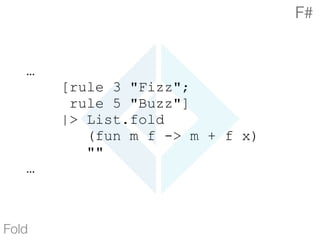

92. …
[rule 3 "Fizz";
rule 5 "Buzz"]
|> List.fold
(fun m f -> m + f x)
""
…
Fold
F#

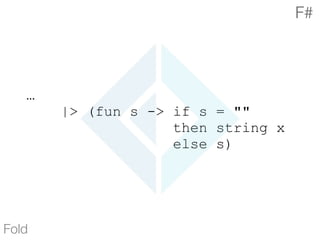

93. …
|> (fun s -> if s = ""
then string x
else s)
Fold
F#

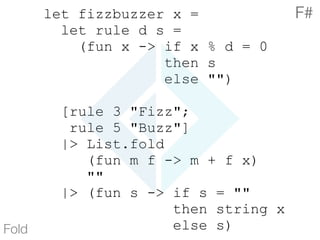

94. let fizzbuzzer x =
let rule d s =
(fun x -> if x % d = 0
then s
else "")
[rule 3 "Fizz";
rule 5 "Buzz"]
|> List.fold
(fun m f -> m + f x)
""
|> (fun s -> if s = ""
then string x
else s)Fold
F#

95. Zip

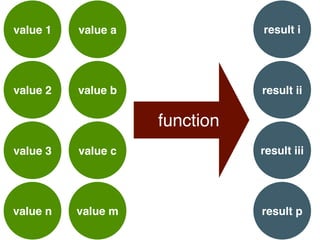

96. function
result i
result ii
result iii
result p
value 1
value 2
value 3
value n
value a
value b
value c
value m

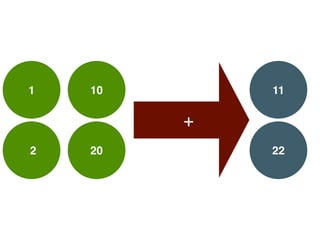

97. +
11
22
1
2
10
20

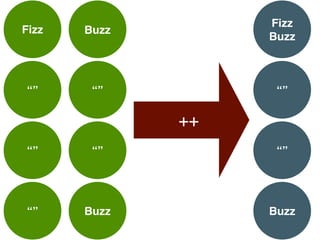

98. ++
Fizz
Buzz
“”
“”
Fizz
Fizz
“”
“”
Fizz
Buzz
“”
“”
“”

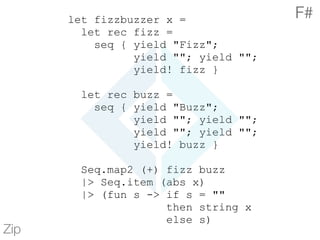

99. let fizzbuzzer x =
let rec fizz =
seq { yield "Fizz";
yield ""; yield "";
yield! fizz }
let rec buzz =
seq { yield "Buzz";
yield ""; yield "";
yield ""; yield "";
yield! buzz }
Seq.map2 (+) fizz buzz
|> Seq.item (abs x)
|> (fun s -> if s = ""
then string x
else s)
Zip
F#

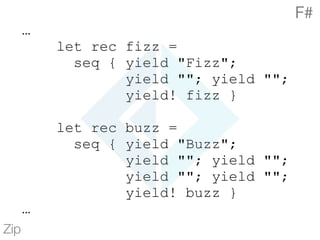

100. …
let rec fizz =
seq { yield "Fizz";
yield ""; yield "";
yield! fizz }
let rec buzz =
seq { yield "Buzz";
yield ""; yield "";
yield ""; yield "";
yield! buzz }
…
Zip
F#

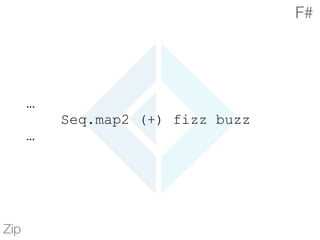

101. …
Seq.map2 (+) fizz buzz
…
Zip
F#

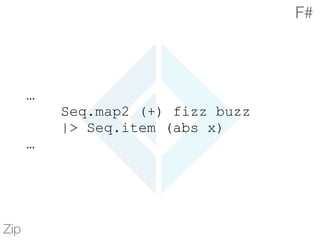

102. …
Seq.map2 (+) fizz buzz
|> Seq.item (abs x)
…
Zip
F#

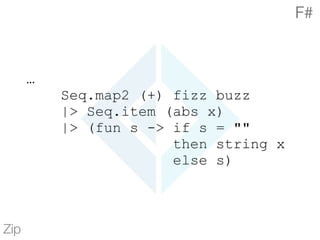

103. …
Seq.map2 (+) fizz buzz
|> Seq.item (abs x)
|> (fun s -> if s = ""
then string x
else s)
Zip
F#

104. let fizzbuzzer x =
let rec fizz =
seq { yield "Fizz";
yield ""; yield "";
yield! fizz }
let rec buzz =
seq { yield "Buzz";
yield ""; yield "";
yield ""; yield "";
yield! buzz }
Seq.map2 (+) fizz buzz
|> Seq.item (abs x)
|> (fun s -> if s = ""
then string x
else s)
Zip
F#

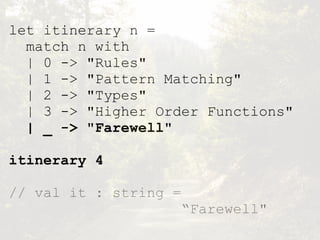

105. let itinerary n =
match n with
| 0 -> "Rules"
| 1 -> "Pattern Matching"
| 2 -> "Types"
| 3 -> "Higher Order Functions"
| _ -> "Farewell"
itinerary 4
// val it : string =
“Farewell"

107. — Friedrich Nietzsche trans. R.J. Hollingdale,
Human, All Too Human, “The Wanderer and His Shadow”, 324
“How can anyone become a thinker if he does
not spend at least a third of the day without
passions, people, and books?”

108. Thank you!
Mike Harris
@MikeMKH
http://comp-phil.blogspot.com/

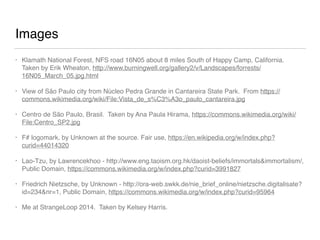

109. Images
• Klamath National Forest, NFS road 16N05 about 8 miles South of Happy Camp, California.
Taken by Erik Wheaton, http://www.burningwell.org/gallery2/v/Landscapes/forrests/
16N05_March_05.jpg.html
• View of São Paulo city from Núcleo Pedra Grande in Cantareira State Park. From https://
commons.wikimedia.org/wiki/File:Vista_de_s%C3%A3o_paulo_cantareira.jpg
• Centro de São Paulo, Brasil. Taken by Ana Paula Hirama, https://commons.wikimedia.org/wiki/
• F# logomark, by Unknown at the source. Fair use, https://en.wikipedia.org/w/index.php?
curid=44014320
• Lao-Tzu, by Lawrencekhoo - http://www.eng.taoism.org.hk/daoist-beliefs/immortals&immortalism/,
Public Domain, https://commons.wikimedia.org/w/index.php?curid=3991827
• Friedrich Nietzsche, by Unknown - http://ora-web.swkk.de/nie_brief_online/nietzsche.digitalisate?
id=234&nr=1, Public Domain, https://commons.wikimedia.org/w/index.php?curid=95964
• Me at StrangeLoop 2014. Taken by Kelsey Harris.

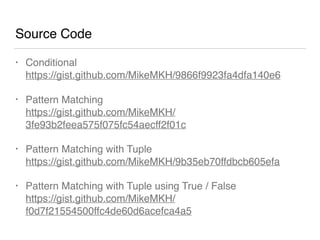

110. Source Code
• Conditional
https://gist.github.com/MikeMKH/9866f9923fa4dfa140e6
• Pattern Matching
https://gist.github.com/MikeMKH/
3fe93b2feea575f075fc54aecff2f01c
• Pattern Matching with Tuple
https://gist.github.com/MikeMKH/9b35eb70ffdbcb605efa
• Pattern Matching with Tuple using True / False
https://gist.github.com/MikeMKH/
f0d7f21554500ffc4de60d6acefca4a5

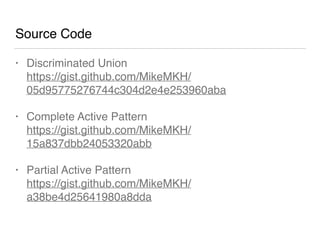

111. Source Code
• Discriminated Union
https://gist.github.com/MikeMKH/
05d95775276744c304d2e4e253960aba
• Complete Active Pattern
https://gist.github.com/MikeMKH/
15a837dbb24053320abb
• Partial Active Pattern
https://gist.github.com/MikeMKH/
a38be4d25641980a8dda

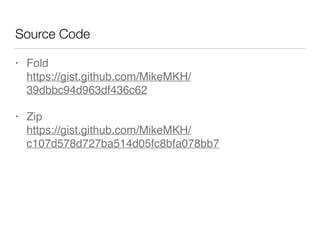

112. Source Code
• Fold
https://gist.github.com/MikeMKH/
39dbbc94d963df436c62
• Zip
https://gist.github.com/MikeMKH/
c107d578d727ba514d05fc8bfa078bb7

113. Books
• Brandewinder, Mathias. Machine learning projects for .NET
Developers. Berkeley, CA New York, NY: Apress, 2015. Print.
• Fancher, Dave. The book of F♯ : breaking free with managed
functional programming. San Francisco: No Starch Press, 2014.
Print.
• Lipovača, Miran. Learn you a Haskell for great good! a beginner's
guide. San Francisco, Calif: No Starch Press, 2011. Print.
• Michaelson, Greg. An introduction to functional programming
through Lambda calculus. Mineola, N.Y: Dover Publications,
2011. Print.

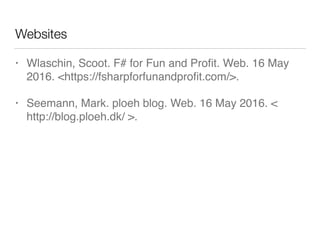

114. Websites
• Wlaschin, Scoot. F# for Fun and Profit. Web. 16 May
2016. <https://fsharpforfunandprofit.com/>.
• Seemann, Mark. ploeh blog. Web. 16 May 2016. <
http://blog.ploeh.dk/ >.

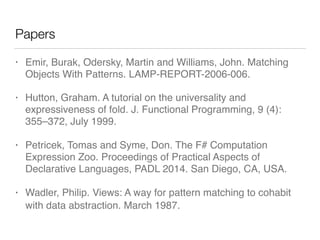

115. Papers
• Emir, Burak, Odersky, Martin and Williams, John. Matching
Objects With Patterns. LAMP-REPORT-2006-006.
• Hutton, Graham. A tutorial on the universality and
expressiveness of fold. J. Functional Programming, 9 (4):
355–372, July 1999.
• Petricek, Tomas and Syme, Don. The F# Computation
Expression Zoo. Proceedings of Practical Aspects of
Declarative Languages, PADL 2014. San Diego, CA, USA.
• Wadler, Philip. Views︎: A way for pattern matching to cohabit
with data abstraction. March ︎︎︎︎1987.
