1. High-Availability: cache and queue
2014-07-24
Truc Le - afterlastangel@gmail.com

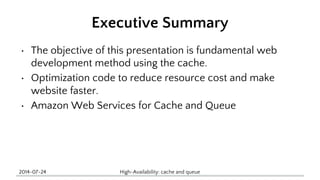

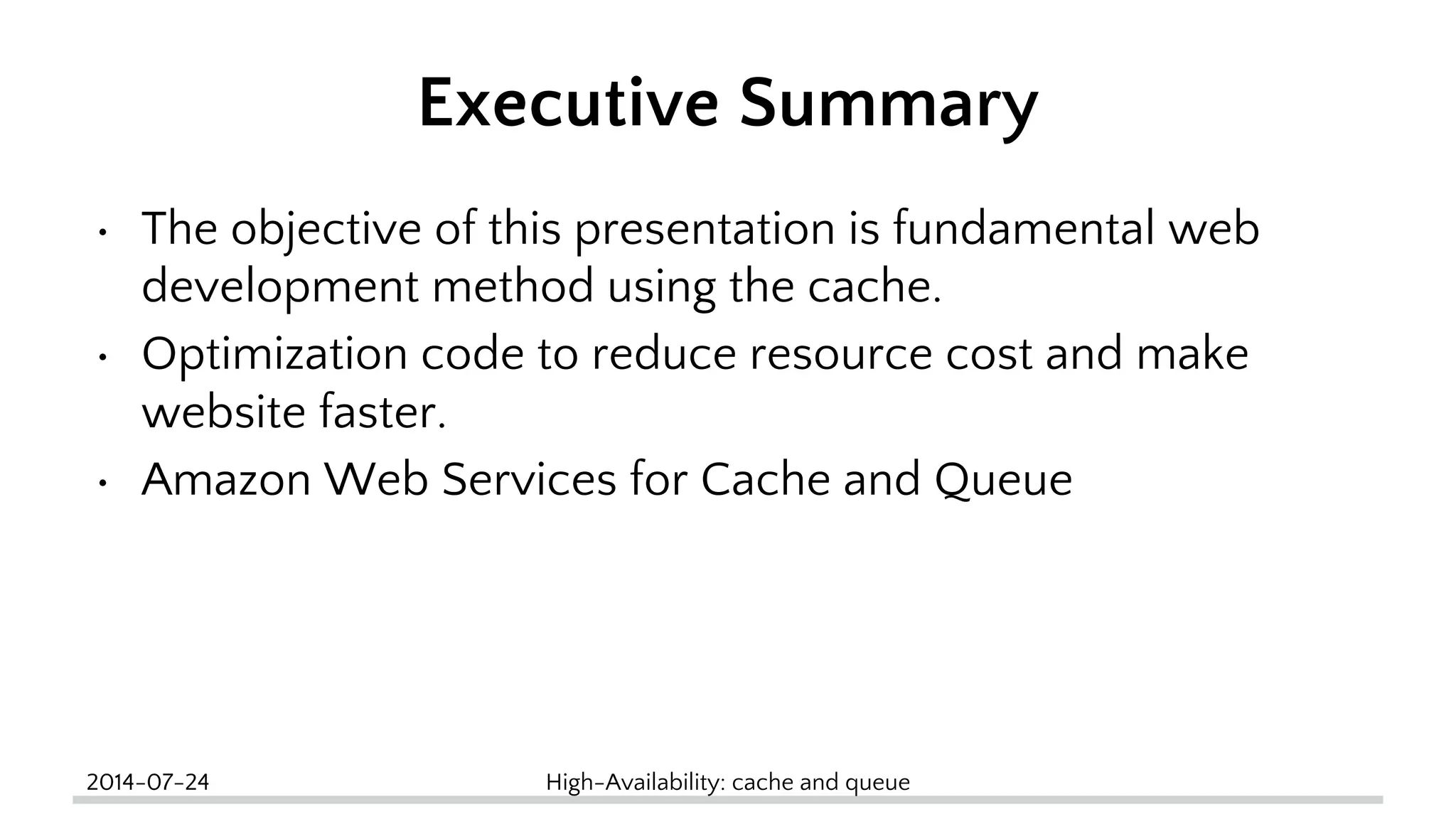

2. Executive Summary
• The objective of this presentation is fundamental web
development method using the cache.
• Optimization code to reduce resource cost and make
website faster.
• Amazon Web Services for Cache and Queue
2014-07-24 High-Availability: cache and queue

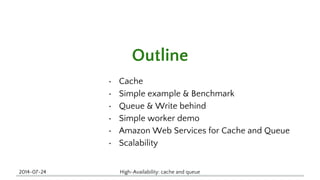

3. Outline
• Cache
• Simple example & Benchmark
• Queue & Write behind
• Simple worker demo
• Amazon Web Services for Cache and Queue
• Scalability
2014-07-24 High-Availability: cache and queue

4. Caching
• Cache can help reduce database loads.
• Instead of going to the database, data can be loaded from
in-memory cache
• Times faster than database.
2014-07-24 High-Availability: cache and queue

5. Simple implementation
No cache
2014-07-24 High-Availability: cache and queue

6. Get cache
2014-07-24 High-Availability: cache and queue

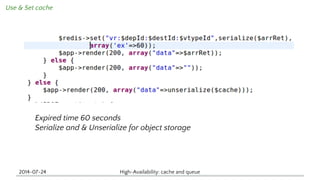

7. Use & Set cache
Expired time 60 seconds
Serialize and & Unserialize for object storage
2014-07-24 High-Availability: cache and queue

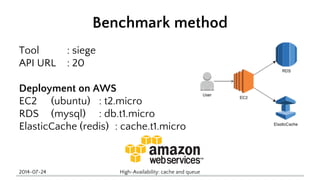

8. Benchmark method
Tool : siege
API URL : 20
Deployment on AWS
EC2 (ubuntu) : t2.micro
RDS (mysql) : db.t1.micro
ElasticCache (redis) : cache.t1.micro
2014-07-24 High-Availability: cache and queue

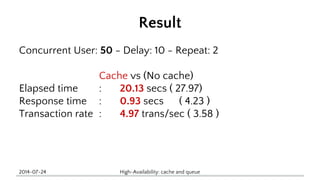

9. Result
Concurrent User: 50 - Delay: 10 - Repeat: 2
Cache vs (No cache)
Elapsed time : 20.13 secs ( 27.97)
Response time : 0.93 secs ( 4.23 )
Transaction rate : 4.97 trans/sec ( 3.58 )
2014-07-24 High-Availability: cache and queue

10. Result
Concurrent User: 100 - Delay: 10 - Repeat: 2
Cache vs (No cache)
Elapsed time : 30.97 secs ( 27.10) ???
Response time : 5 secs ( 3.84 ) ???
Transaction rate : 6.46 trans/sec ( 7.38 ) ???
2014-07-24 High-Availability: cache and queue

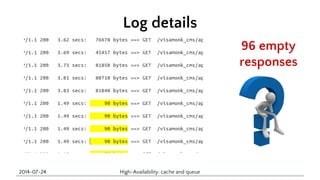

11. Log details
2014-07-24 High-Availability: cache and queue
96 empty
responses

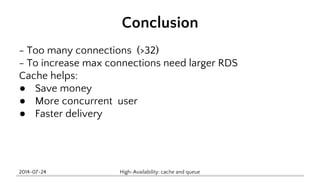

12. Conclusion
- Too many connections (>32)
- To increase max connections need larger RDS
Cache helps:
● Save money
● More concurrent user
● Faster delivery
2014-07-24 High-Availability: cache and queue

13. What could be cached?
• Database query
• Variable & Object
• View page & Template
• API
2014-07-24 High-Availability: cache and queue

14. Redis is more than cache
• It's a "NoSQL" key-value data stores
• It's a data structures server
Applications: Counting stuff, Pub/Sub, Queues, Real time
analysis, Leaderboards and related problems ...
2014-07-24 High-Availability: cache and queue

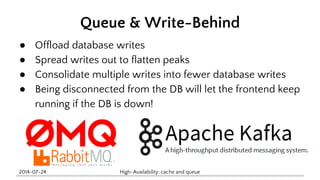

15. Queue & Write-Behind
● Offload database writes
● Spread writes out to flatten peaks
● Consolidate multiple writes into fewer database writes
● Being disconnected from the DB will let the frontend keep
running if the DB is down!
2014-07-24 High-Availability: cache and queue

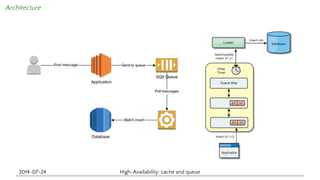

16. Architecture
2014-07-24 High-Availability: cache and queue

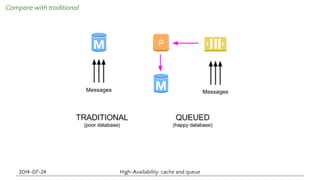

17. Compare with traditional
2014-07-24 High-Availability: cache and queue

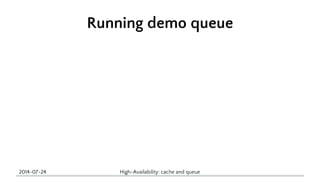

18. Running demo queue
2014-07-24 High-Availability: cache and queue

19. Amazon ElasticCache
• Saves administrative cost
• Provides replication features for the Redis engine
• Automatically detects and replaces failed nodes
• Availability Zone redundancy
2014-07-24 High-Availability: cache and queue

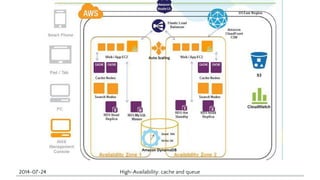

20. 2014-07-24 High-Availability: cache and queue

21. Amazon Simple Queue Service
• Runs within Amazon’s high-availability data centers
• All messages are stored redundantly across multiple
servers and data centers
• Unlimited number of services to read and write
• Unlimited number of messages at any time
• Inexpensive
2014-07-24 High-Availability: cache and queue

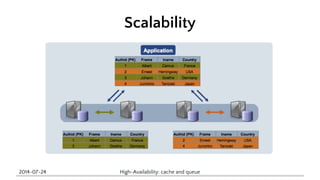

22. Scalability
2014-07-24 High-Availability: cache and queue
