The designer created hidden closets in a transition space between a dining room and adjacent room by installing two closet doors that meet perfectly in the middle to close off the dining room. The doors appear to be a single paneled wall and their hidden hinges allow them to seamlessly join and disappear from view when closed, disguising the closets. Precision was needed to execute this illusion given the irregular walls, and features like lowered ceilings and matching panels further obscure the storage space behind an inconspicuous facade.

1. Hidden Closet
Transition

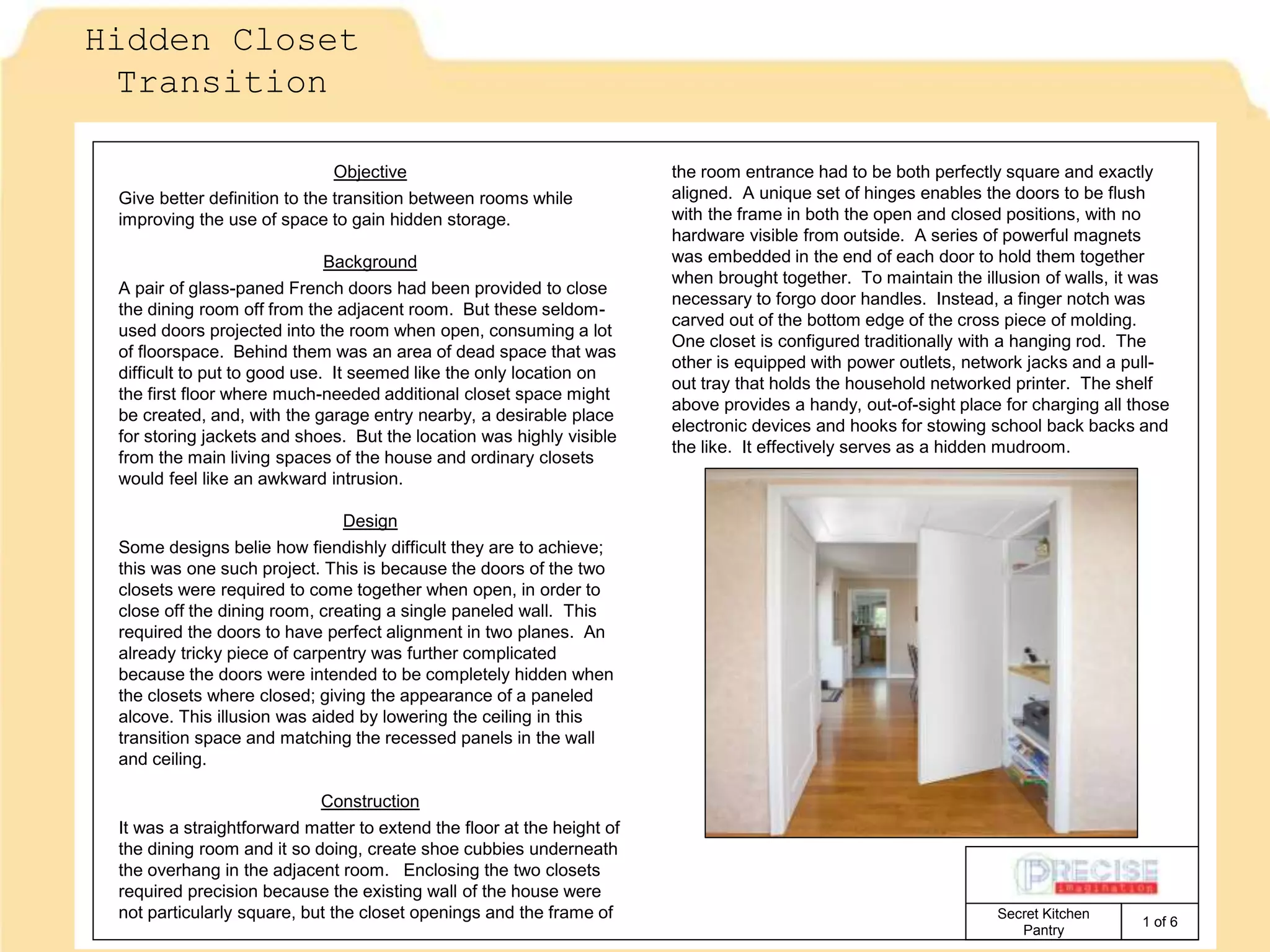

2. Objective
Give better definition to the transition between rooms while
improving the use of space to gain hidden storage.
Background
A pair of glass-paned French doors had been provided to close
the dining room off from the adjacent room. But these seldom-
used doors projected into the room when open, consuming a lot
of floorspace. Behind them was an area of dead space that was
difficult to put to good use. It seemed like the only location on
the first floor where much-needed additional closet space might
be created, and, with the garage entry nearby, a desirable place
for storing jackets and shoes. But the location was highly visible
from the main living spaces of the house and ordinary closets
would feel like an awkward intrusion.
Design
Some designs belie how fiendishly difficult they are to achieve;
this was one such project. This is because the doors of the two
closets were required to come together when open, in order to
close off the dining room, creating a single paneled wall. This
required the doors to have perfect alignment in two planes. An
already tricky piece of carpentry was further complicated
because the doors were intended to be completely hidden when
the closets where closed; giving the appearance of a paneled
alcove. This illusion was aided by lowering the ceiling in this
transition space and matching the recessed panels in the wall
and ceiling.
Construction
It was a straightforward matter to extend the floor at the height of
the dining room and it so doing, create shoe cubbies underneath
the overhang in the adjacent room. Enclosing the two closets
required precision because the existing wall of the house were
not particularly square, but the closet openings and the frame of 1 of 6
Secret Kitchen
Pantry
the room entrance had to be both perfectly square and exactly
aligned. A unique set of hinges enables the doors to be flush
with the frame in both the open and closed positions, with no
hardware visible from outside. A series of powerful magnets
was embedded in the end of each door to hold them together
when brought together. To maintain the illusion of walls, it was
necessary to forgo door handles. Instead, a finger notch was
carved out of the bottom edge of the cross piece of molding.
One closet is configured traditionally with a hanging rod. The
other is equipped with power outlets, network jacks and a pull-
out tray that holds the household networked printer. The shelf
above provides a handy, out-of-sight place for charging all those
electronic devices and hooks for stowing school back backs and
the like. It effectively serves as a hidden mudroom.
Hidden Closet
Transition

3. 2 of 6
Secret Kitchen
Pantry
Floorplan
Hidden Closet
Transition
Extend dining room floor and drop a
paneled ceiling in this area
(extend existing cold air return and add
shoe storage nook underneath)
Remove
existing
French
doors
This wall finished like existing room
Retain
existing
molding
Closets with hidden doors x2
This closet to have
internal power outlets
Tap into existing 2” HVAC flexible supply to
route air near ceiling in this room Closet doors joined
to close room
Garage entry

4. 6 of 6
Secret Kitchen
Pantry
Some design inspiration
Hidden Closet
Transition

5. 6 of 6
Secret Kitchen
Pantry

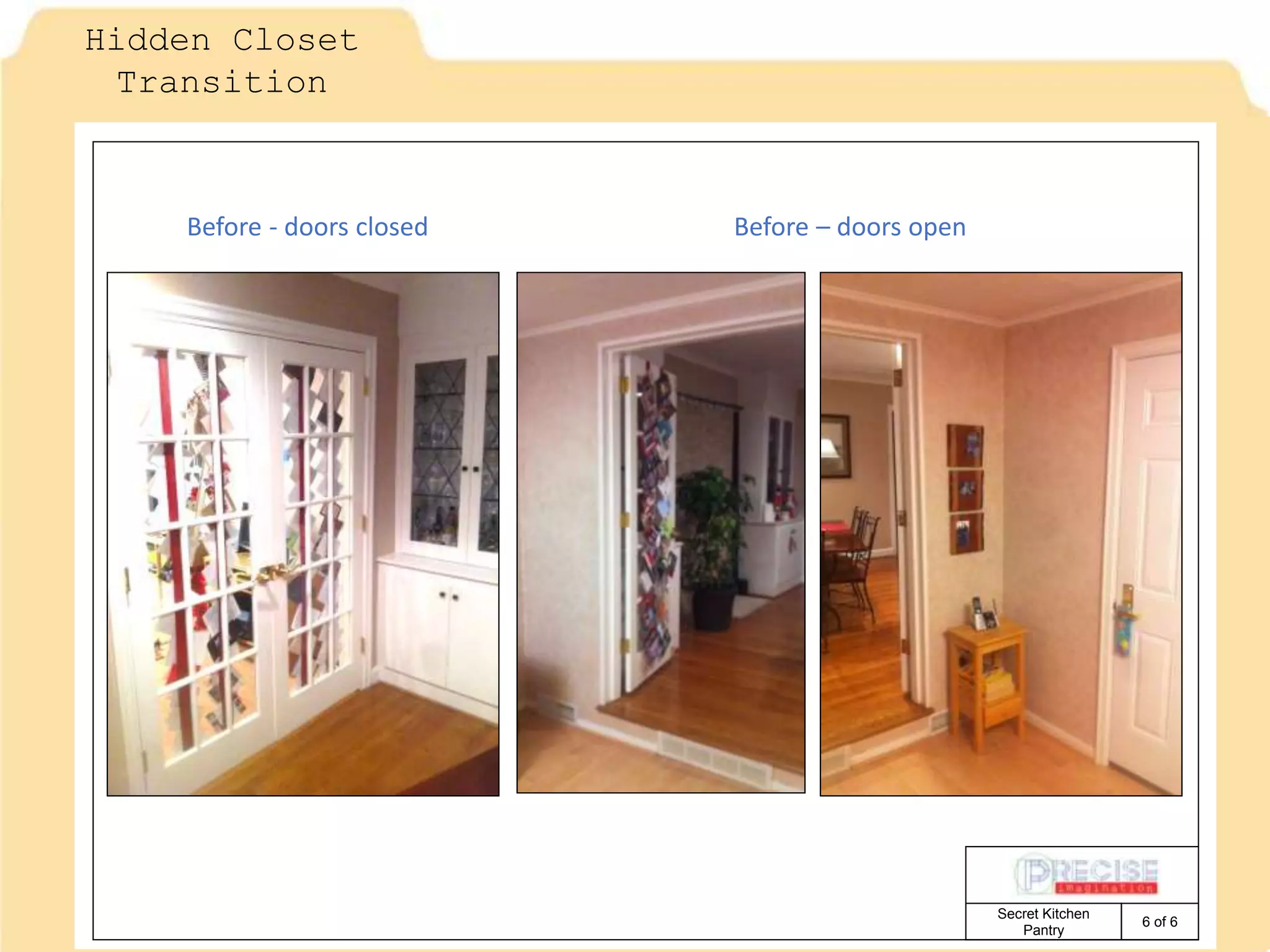

Before - doors closed
Hidden Closet
Transition
Before – doors open

6. 6 of 6
Secret Kitchen
Pantry
Hidden Closet
Transition

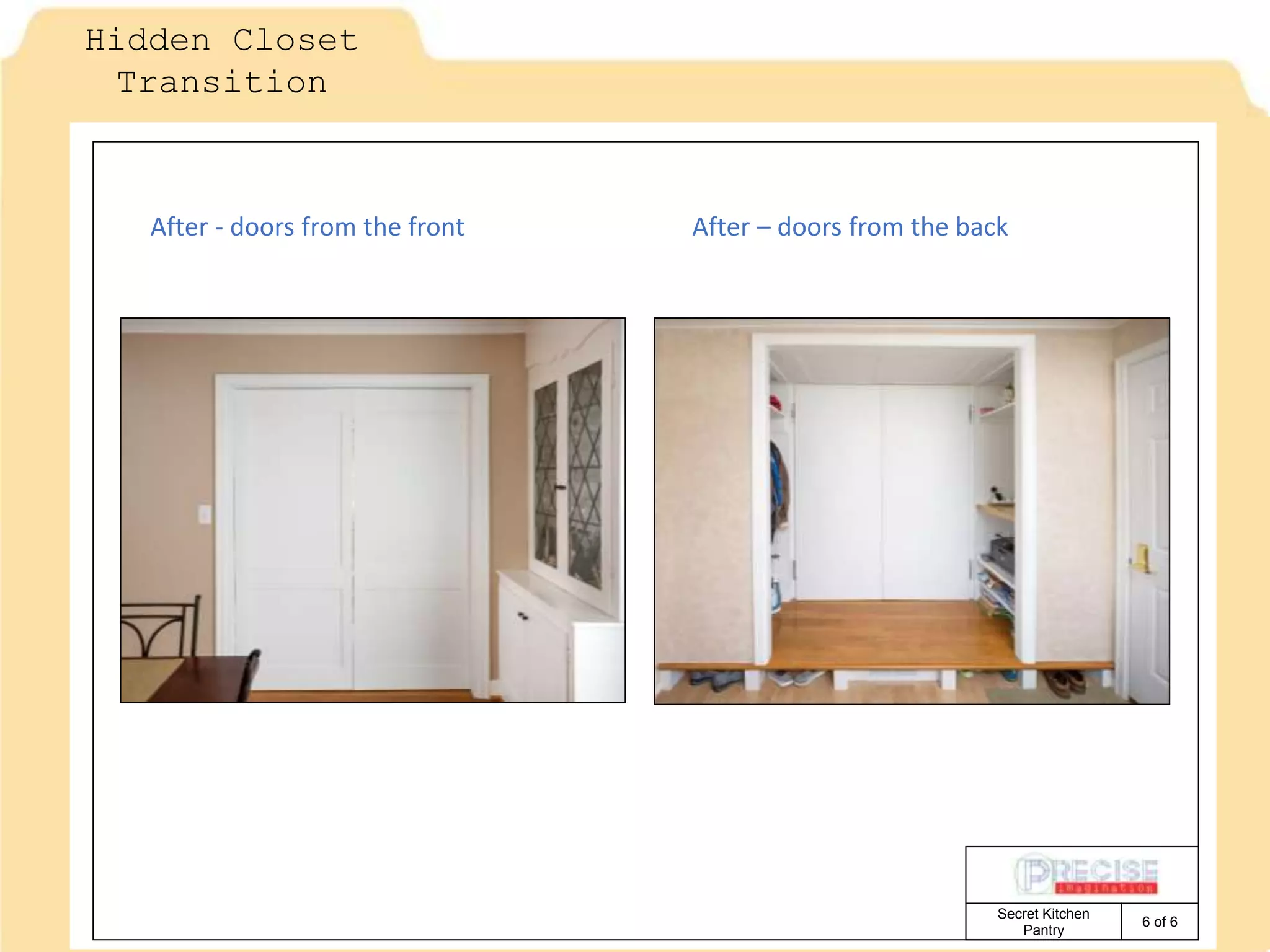

After - doors from the front After – doors from the back

7. 6 of 6
Secret Kitchen
Pantry
Hidden Closet
Transition
After – closets closed
