1. Unrestricted © Verifa 2018
1
1
WELCOME to the 1st
Continuous Delivery Evening
&
JAM Helsinki Meetup

2. Welcome & Introduction
Unrestricted © Verifa 2018
2
2
• General Info about Venue
• What is Continuous Delivery Evening
• What is JAM
• Who are Verifa

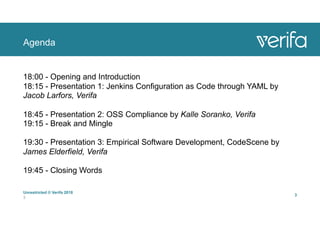

3. Agenda
Unrestricted © Verifa 2018
3
3
18:00 - Opening and Introduction
18:15 - Presentation 1: Jenkins Configuration as Code through YAML by
Jacob Larfors, Verifa
18:45 - Presentation 2: OSS Compliance by Kalle Soranko, Verifa
19:15 - Break and Mingle
19:30 - Presentation 3: Empirical Software Development, CodeScene by
James Elderfield, Verifa
19:45 - Closing Words

4. Jenkins Configuration as
Code
Continuous Delivery Evening / JAM Meetup Helsinki verifa.io

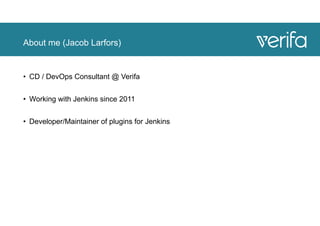

5. About me (Jacob Larfors)
• CD / DevOps Consultant @ Verifa
• Working with Jenkins since 2011
• Developer/Maintainer of plugins for Jenkins

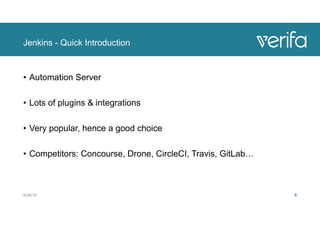

6. Jenkins - Quick Introduction
• Automation Server
• Lots of plugins & integrations
• Very popular, hence a good choice
• Competitors: Concourse, Drone, CircleCI, Travis, GitLab…
8/28/18 6

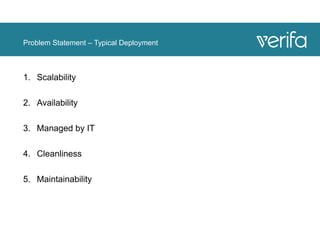

7. Problem Statement – Typical Deployment
1. Scalability
2. Availability
3. Managed by IT
4. Cleanliness
5. Maintainability

8. Solution Statement
Well, kinda… how do we manage these container(s)?

9. Solution Statement (continued)
1. Building the Docker image
• Create self provisioning, ready for production Jenkins instance
2. Orchestrating the Container

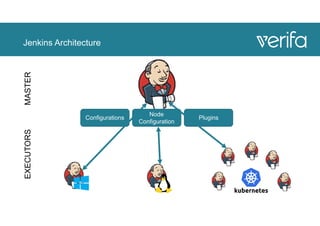

10. Jenkins Architecture
MASTER
Configurations
Node
Configuration
Plugins
EXECUTORS

11. Dockerizing Jenkins Master – Basic Dockerfile
FROM jenkins/jenkins:lts
# Skip initial setup
ENV JAVA_OPTS -Djenkins.install.runSetupWizard=false
RUN /usr/local/bin/install-plugins.sh < /usr/share/jenkins/ref/
plugins.txt
COPY jenkins.yaml /usr/local/jenkins.yaml
ENV CASC_JENKINS_CONFIG /usr/local/jenkins.yaml
8/28/18 11

12. Dockerizing Jenkins Master – Groovy, but not so groovy
import com.michelin.cio.hudson.plugins.rolestrategy.RoleBasedAuthorizationStrategy
import com.michelin.cio.hudson.plugins.rolestrategy.RoleMap
import com.synopsys.arc.jenkins.plugins.rolestrategy.RoleType
import hudson.security.HudsonPrivateSecurityRealm
import io.jenkins.systemgroovy.plugins.OwnershipBasedSecurityHelper
import jenkins.model.Jenkins
import jenkins.security.QueueItemAuthenticatorConfiguration
import hudson.model.*
import org.jenkinsci.plugins.authorizeproject.GlobalQueueItemAuthenticator
import org.jenkinsci.plugins.authorizeproject.strategy.TriggeringUsersAuthorizationStrategy
boolean createAdmin = Boolean.getBoolean("io.jenkins.dev.security.createAdmin")
println("=== Installing the Security Realm")
def securityRealm = new HudsonPrivateSecurityRealm(false)
……

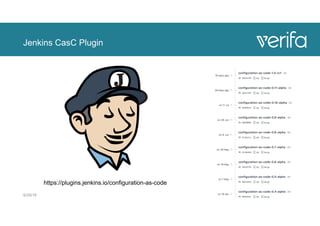

13. Jenkins CasC Plugin
8/29/18 13
https://plugins.jenkins.io/configuration-as-code

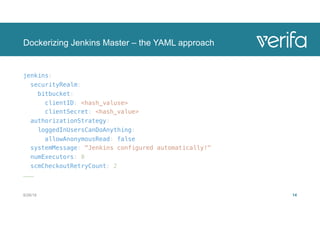

14. Dockerizing Jenkins Master – the YAML approach
jenkins:
securityRealm:
bitbucket:
clientID: <hash_valuse>
clientSecret: <hash_value>
authorizationStrategy:
loggedInUsersCanDoAnything:
allowAnonymousRead: false
systemMessage: "Jenkins configured automatically!"
numExecutors: 0
scmCheckoutRetryCount: 2
………
8/28/18 14

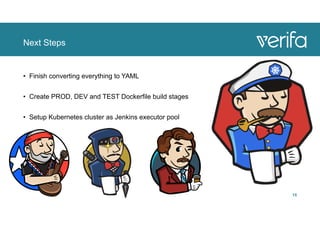

15. Next Steps
• Finish converting everything to YAML
• Create PROD, DEV and TEST Dockerfile build stages
• Setup Kubernetes cluster as Jenkins executor pool
8/28/18 15
