ASID Competition Perspectives Harbor House

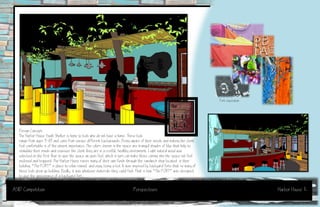

Design Concept
The Harbor House Youth Shelter is home to kids who do not have a home. These kids
range from ages - and come from various different backgrounds. Being aware of their needs and making the client
feel comfortable is of the utmost importance. The colors chosen in the space are tranquil shades of blue that help to
stimulate their minds and reassure the client they are in a restful, healthy environment. Light natural wood was
selected on the first floor to give the space an open feel, which in turn can make those coming into the space not feel
enclosed and trapped. The Harbor House raises many of their own funds through the sandwich shop located in their
building. The FORT is place to relax rewind, and enjoy being a kid. It was inspired by backyard forts that so many of
these kids grew up building. Really, it was whatever materials they could find. That is how The FORT was designed,
to give the appearance of a backyard fort.
Fort inspiration
the
.
Furniture, Fixtures, & Equipment:
1. Guest Seating- 32x 32 x 34
2. Task Chair- 15x 15 x 34
3. Freestanding u-shaped work station- 72x 84x 30
4. Lateral File- 36x 18x 64 
5. Freestanding u-shaped workstation-
6. Task chair- 15x 15 x 34
7. Pull- up chair- 15x 15 x 34
8. Conference Table- 42 diameter x 29
9. Meeting Room Chair- 15x 15 x 34
10. Meeting Room Table- 42x 42 x 29
11. Base and overhead cabinets- 10 lineal feet; base cabinets 24 deep, upper cabinets 15 deep.
12. Tire Table: 3 30diameter x 29 and 3 36 diameter x 29
13. Oil Barrel Dinning Chair- 16 diameter x 24
14. Ring Bar Stool- 18 diameter x 30
15. Commercial Toasting Oven- 24x 18
16. ADA Commercial Sink- 33x 22
17. Cash Register- 14x 18
Wall Types
General Notes
-All corridors must be a minimum of  w - turn radius at
changes of direction
-All door openings at minimum width of 
-Bathrooms are all accessible (barrier-free) with a - turn radius
-Door swings cannot encroach turn radius more than 
-Sinks all have clear knee access with a skull shield to prevent burns
-Walls in bathrooms covered in tile impervious to moisture up to
-A.F.F
-A partial glass wall in the Group Meeting Room keeps the visibility and openness of the space
ASID Competition st Level Floor Plan Harbor House
Furniture Schedule
Key Quantity Manufacturer Description FabricFinish Remarks
  Vahohaus Oil Drum Chair Seat recycled advertising canvases recycled oil drums
  Home Design Warehouse Ring Bar Stool Metal structure black leather seat stratigically bent scrap metal spray painted black
 , Kitsch-U-Like Recycled Rubber Car Tire Table rubber tire glass table top placed on top
.
Non-rated, finished flor to finished
ceiling, acoustically insulated.
Non-rated, slab to underside of
structure, acoustically insulated, water
resistant.
Rated  hr, slab to underside of
sturcture, acoustically insulated, fire-
rated GWB both sides.
6
6 6 6
42” Bar Countertop
34” Countertop

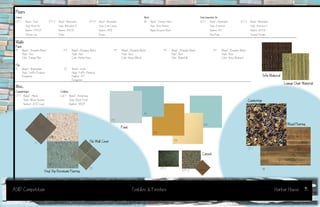

ASID Competition Textiles & Finishes Harbor House
Floors
Carpet Wood Vinyl Composition Tile
CPT- Manuf. Shaw CPT- Manuf. Mannington CPT- Manuf. Mannington W Manuf. Vintage Timber VCT- Manuf. Mannington VCT- Manuf. Mannington
Style Reed Tile Style Motivation III Style Color Canvas Style Strip Flooring Style Essentials Style Assurance II
Number  Number  Number BRZE Maple Recycled Wood Number  Number 
Siberian Sea Proton Bronze Blue Ridge Toasted Sesame
Walls
Paint
P Manuf. Benjamin Moore P Manuf. Benjamin Moore P Manuf. Benjamin Moore P Manuf. Benjamin Moore P Manuf. Benjamin Moore
Style Aura Style Aura Style Aura Style Aura Style Aura
Color Tranquil Blue Color Harbor Haze Color Honey Wheat Color Waterfall Color Spicy Mustard
Tile
T Manuf. Mannington T Manuf. IrisUs
Style Traffic Products Style Traffic Products
Duragreen Number V
Duragreen
Misc.
Countertops Ceiling
CT- Manuf. Alkemi Ceil- Manuf. Armstrong
Style Alkemi Anodize Style Black Finish
Number  Luxor Number 
.
P
P
P
P
P
VCT-
VCT-
T
T
CPT-
CPT-
CPT-
CT-
W
Carpet
Countertop
Tile Wall Cover
Vinyl Slip Resistant Flooring
Paint
Wood Flooring
Sofa Material
Lounge Chair Material
Notes and LightingElectrical Legend
-All furniture in The Fort is made from recycled materials.
-Countertops located at  A.F.F
-Bar Countertop located at  A.F.F
-Wire track lighting is wall mounted at  A.F.F
-Pendants hung beneath Fort roof faade at  A.F.F
-Exit Lighting and Emergency Lighting is wall mounted at  A.F.F

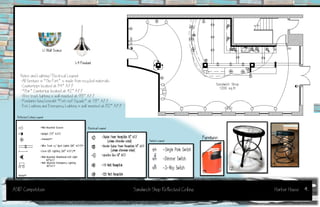

ASID Competition Sandwich Shop Reflected Ceiling Harbor House
.
.
.
Furniture
L Wall Sconce
L Pendant
Reflected Ceiling Legend
Electrical Legend
Switch Legend
.
Furniture, Fixtures, & Equipment:
1. Modern Line Sofa- 36x 31
2. Oval Coffee Table- 80 open x 37D x 18.5H
3. Television Cabinet- 52x 24x 60
4. 6 Lounge Chair- 34x 34 x 32
5. 2 Side Table- 24x 24
6. 6 Resident Desk- 42x 24x 34
7. 6 Desk Chair- 18x 18 x 26
8. 6 Resident ardrobe- 48x 24x 60
9. 6 Resident Single Bed- 39x 78
10. Kitchenette- 8 lineal feet w/ upper and lower cabinets
Ikea Akurum Cabinetry with metal legs and Nexus Birch Veneer front.
11. Counselor Task Chair- 15x 15 x 32
12. Freestanding u-shaped workstation- 72x 84x 30
13. 6 Computer Kiosk- 35x 22x 48
14. 6 Task Chair for Kiosk- 30x 26x 40
.
.
.
ASID Competition nd Level Floor Plan Harbor House
.
Furniture Schedule
Key Quantity Manufacturer Description FabricFinish Remarks
  Crate & Barrel Modern line sofa with metal legs Tightrope Raft Woven Blend Eco-Friendly Construction
  Crate & Barrel Abbot " Media ConsolePlasma Panel Set rich tobacco stain Solid poplar, poplar veneers and plywood
  Knoll Divina Lounge Seating Fibra material Nano-Tex w Dura-block
  Un Common Goods Handmade end table from reclaimed wood steel patchwood table Harvest rich autumn reds, ellos, greens, browns, and blues.
  Realspace Pro Quantum Recycled Mesh Mid-Back Task Chair Black frame, Black Fabric Contains recycled material
.
.
General Notes
-All corridors must be a minimum of
 w - turn radius at
changes of direction
-All door openings at minimum width of

-Bathrooms are all accessible
(barrier-free) with a - turn
radius
-Door swings cannot encroach turn
radius more than 
-Sinks all have clear knee access with
a skull shield to prevent burns
-Walls in bathrooms covered in tile
impervious to moisture up to
-A.F.F
-A partial glass wall in the Group
Meeting Room keeps the visibility and
openness of the space
.
Furniture
.

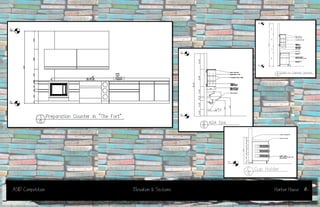

ASID Competition Elevation & Sections Harbor House .

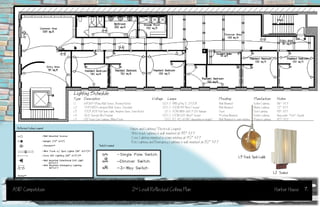

ASID Competition nd Level Reflected Ceiling Plan Harbor House
Notes and LightingElectrical Legend
-Wire track lighting is wall mounted at  A.F.F
-Cove Lighting mounted in crown molding at  A.F.F
-Exit Lighting and Emergency Lighting is wall mounted at  A.F.F
L Track Spot Light
L Sconce
Lighting Schedule
Type Description Voltage Lamps Mounting Manufacturer Notes
L  Tiffany Wall Sconce, Brushed Nickel () W gq- K Wall Mounted Kichler Lighting " A.F.F
L GRCH Lakewood Wall Sconce, Chocolate () W A Med C Incand Wall Mounted Maxim Lighting " A.F.F
L FJPOD Pod Spot Light, Amythst Glass, Satin Nickel () W MR GU. V Halogen Track Tech Lighting " A.F.F
L  Seaside Mini Pendant () W G Med F Incand *Ceiling Mounted Kichler Lighting Hung under "Fort" faade
L LED Track Cove Lighting, White Finish , , , W (depending on length) Wall Mounted in crown molding Progree Lighting " A.F.F
Reflected Ceiling Legend
Switch Legend
.
