ปั๊มนํ้า Grundfos รุ่น KPVS ปั๊มนํ้ารูปแบบ Splitcase แนวตั้ง เป็นปั๊มนํ้าขนาดใหญ่สำหรับใช้งานในโรงงานอุตสาหกรรมหนัก ได้ปริมาณนํ้าสูง ตัวเรือนเป็นเหล็กหล่อประกอบจากนอก สามารถสั่งพรีออเดอร์ได้ทันที

1. GES SIZING AND SELECTION
GRUNDFOS INSTRUCTIONS
DUPLEX
SYSTEM FLOW
USGPM
SYSTEM
HEAD
FT
CASING
SIZE
MAX
MOTOR
HP
208V
MAX
FLA
460V
MAX
FLA
BASE PACKAGE BASE+ACCESSORY PACKAGE BASE+ACCESSORY+BUFFER TANK PACKAGE
HEADER
SIZE
NPS
LENGTH
IN
WIDTH
IN
HEIGHT
IN
WEIGHT
LBS
LENGTH
IN
WIDTH
IN
HEIGHT
IN
WEIGHT
IN
EXPANSION
TANK
CAPACITY
US GAL
LENGTH
IN
WIDTH
IN
HEIGHT
IN
WEIGHT
LBS
BUFFER
TANK CAPACITY
US GAL
250
125 (1+1 SPARE)
50-95 2095-1/2 10 30.8 14 57 82 89 2500 79 82 91 2800 35 119 94 91 3300 120 4
500
250 (1+1 SPARE)
50-95 3095-7/8 15 46.2 21 60 85 94 3100 81 85 96 3800 211 134 103 96 4700 300
5
95-175 2013-5/6 25 74.8 34 54 90 86 3600 75 90 88 4300 211 128 108 92 5200 300
175-200 2095-1/2 25 74.8 34 60 87 89 3600 81 87 91 4300 211 134 105 92 5200 300
750
375 (1+1 SPARE)
50-100 4012-1/2 25 74.8 34 61 92 96 3800 89 92 98 4400 158 141 110 98 5300 300
6
100-200 3014-7/8 50 143 65 61 90 97 4400 89 90 99 5000 158 141 108 99 5900 300
1000
500 (1+1 SPARE)
50-115 4012-1/2 25 74.8 34 65 94 96 4600 93 94 98 5300 158 146 112 98 6200 300
8
115-200 3014-7/8 50 143 65 65 105 97 5200 93 105 99 5900 158 146 123 99 6800 300
1250
625 (1+1 SPARE)
50-145 4012-7/8 50 143 65 65 110 96 5200 93 110 98 6100 264 152 131 110 7500 500
145-200 4015-9/0 75 211 96 71 120 107 6100 102 120 109 7000 264 158 141 110 8400 500
1500
750 (1+1 SPARE)
50-140 4012-7/8 50 143 65 65 110 96 5200 93 110 107 6200 370 152 131 110 7600 500
140-200 4015-9/0 75 211 96 71 120 107 6100 102 120 109 7100 370 158 141 110 8500 500
2000
1000 (1+1 SPARE)
50-150 5012-7/8 75 211 96 74 128 101 6900 115 128 107 8200 370 174 149 110 9600 500
10
150-200 4015-9/0 100 273 124 78 130 107 8100 115 130 109 9400 370 174 151 110 10800 500
2500
1250 (1+1 SPARE)
50-70 6012-3/4 40 114 52 78 118 107 6800 119 118 109 8200 370 – – – – –
12
70-140 5012-7/8 75 211 96 78 131 101 7900 119 131 107 9300 370 – – – – –
140-200 5015-9/0 125 343 156 78 134 115 10800 119 134 117 12200 370 – – – – –
3000
1500 (1+1 SPARE)
50-90 6012-3/4 50 143 65 78 118 107 6900 119 118 109 8800 528 – – – – –
90-200 5015-9/0 125 343 156 78 134 115 10800 126 134 117 12700 528 – – – – –
3500
1750 (1+1 SPARE)
50-140 6012-3/4 100 273 124 78 144 107 9100 126 144 130 11800 792 – – – – –
140-200 5015-9/0 125 343 156 78 142 115 10800 126 142 130 13500 792 – – – – –
4000
2000 (1+1 SPARE)
50-135 6012-3/4 100 273 124 81 146 107 10100 127 146 110 12700 660 – – – – –
14
135-200 5015-9/0 150 396 180 81 144 115 12300 127 144 117 14900 660 – – – – –
4500
2250 (1+1 SPARE)
50-80 8012-5/6 60 169 77 83 131 121 9800 143 131 130 13900 792 – – – – –
16
80-125 6012-3/4 100 273 124 83 148 107 11100 143 148 130 15200 792 – – – – –
125-200 8015-3/4 250 – 302 89 142 130 15700 149 142 132 19800 792 – – – – –
5000
2500 (1+1 SPARE)
50-135 8012-5/6 125 343 156 83 159 121 12800 143 159 130 16900 792 – – – – –
135-200 8015-3/4 250 – 302 89 164 130 15700 149 164 132 19800 792 – – – – –

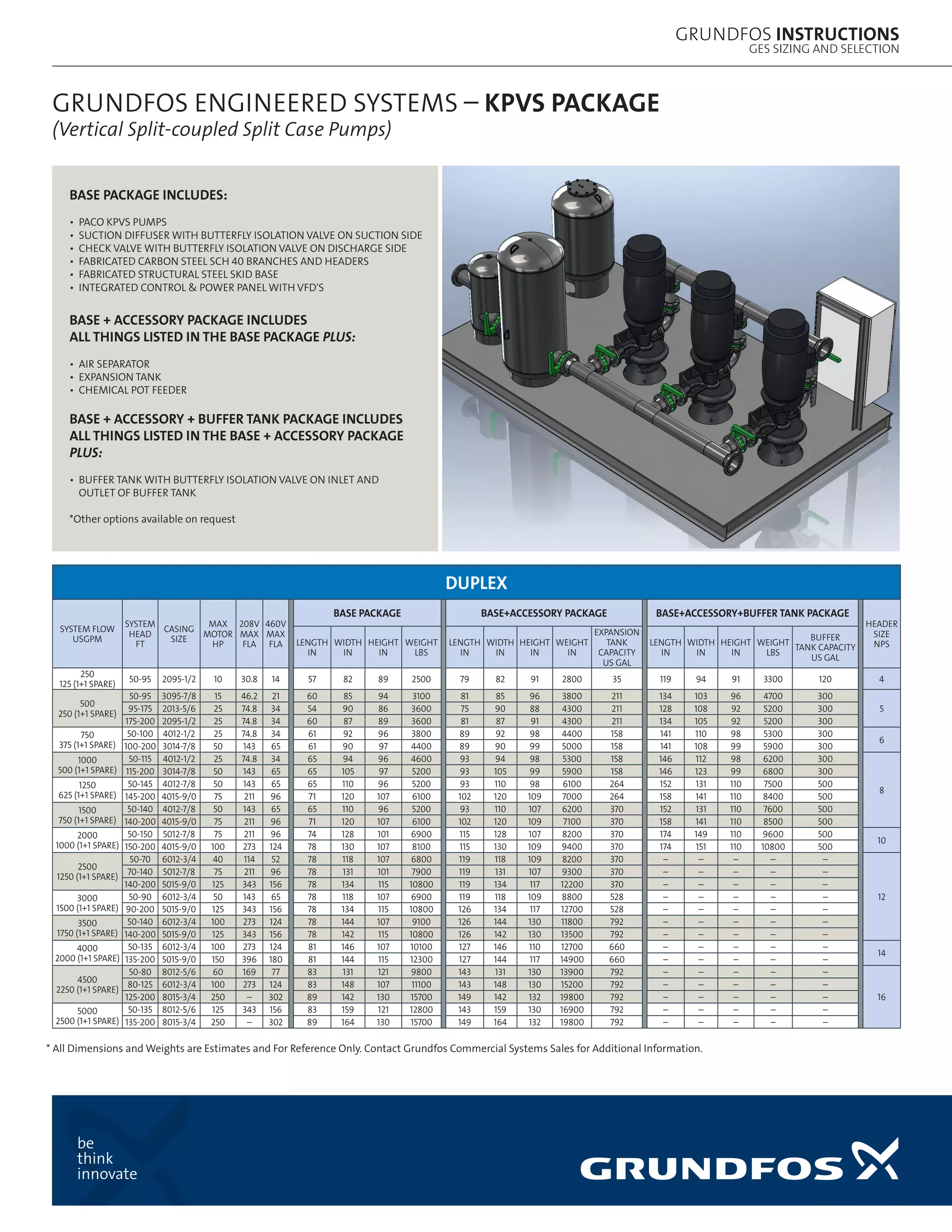

BASE PACKAGE INCLUDES:
• PACO KPVS PUMPS
• SUCTION DIFFUSER WITH BUTTERFLY ISOLATION VALVE ON SUCTION SIDE
• CHECK VALVE WITH BUTTERFLY ISOLATION VALVE ON DISCHARGE SIDE
• FABRICATED CARBON STEEL SCH 40 BRANCHES AND HEADERS
• FABRICATED STRUCTURAL STEEL SKID BASE
• INTEGRATED CONTROL & POWER PANEL WITH VFD'S
BASE + ACCESSORY PACKAGE INCLUDES
ALL THINGS LISTED IN THE BASE PACKAGE PLUS:
• AIR SEPARATOR
• EXPANSION TANK
• CHEMICAL POT FEEDER
BASE + ACCESSORY + BUFFER TANK PACKAGE INCLUDES
ALL THINGS LISTED IN THE BASE + ACCESSORY PACKAGE
PLUS:
• BUFFER TANK WITH BUTTERFLY ISOLATION VALVE ON INLET AND
OUTLET OF BUFFER TANK
*Other options available on request

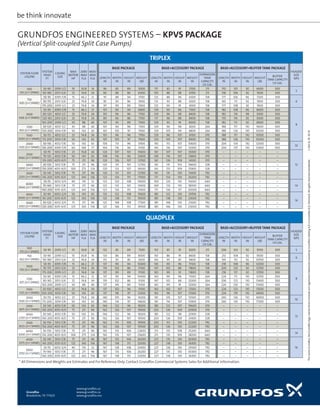

GRUNDFOS ENGINEERED SYSTEMS – KPVS PACKAGE
(Vertical Split-coupled Split Case Pumps)
* All Dimensions and Weights are Estimates and For Reference Only. Contact Grundfos Commercial Systems Sales for Additional Information.
