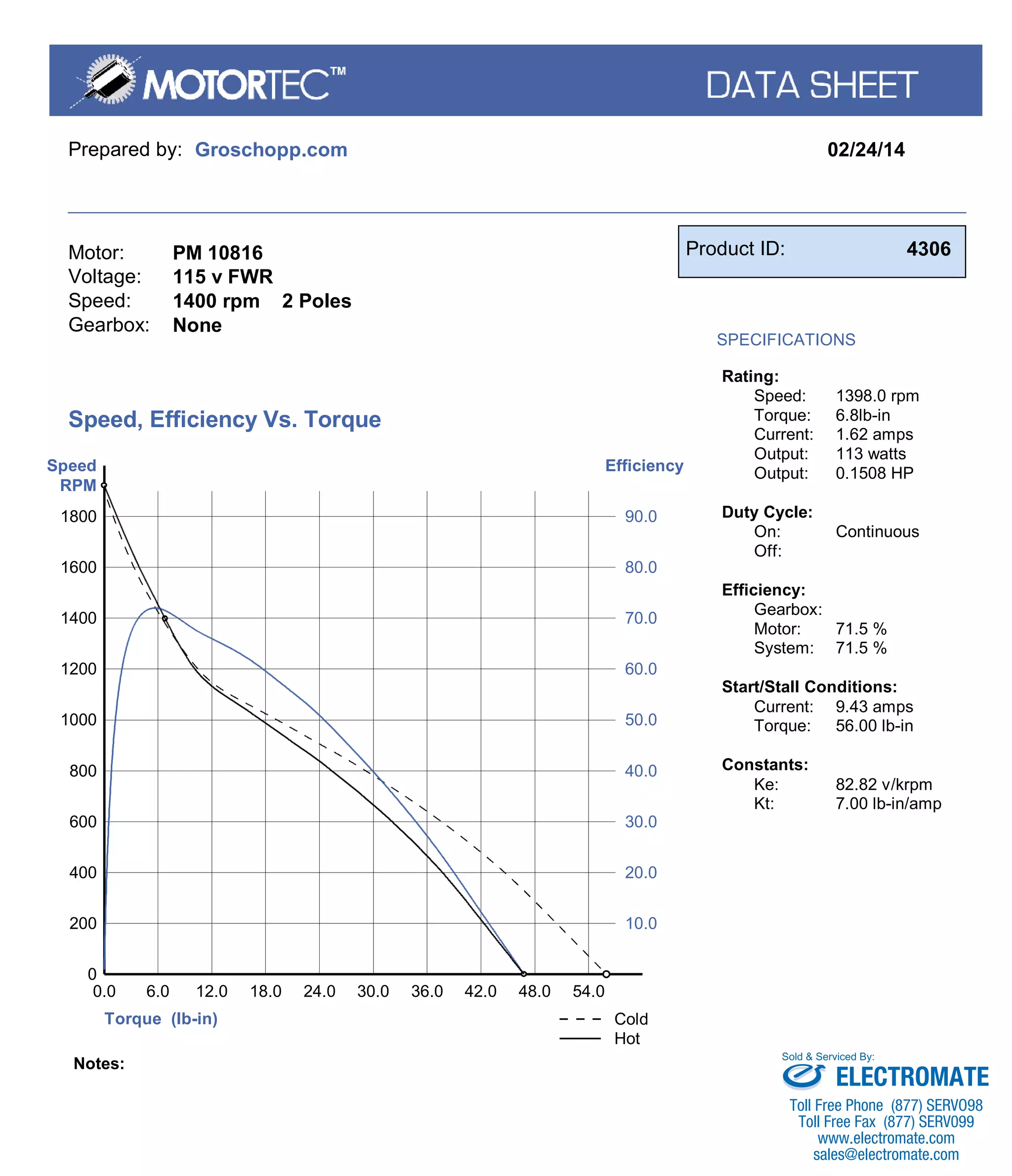

The document provides specifications for a 115V DC motor. It lists the motor's voltage, speed, power rating, torque, current draw, efficiency ratings, and start/stall conditions. Performance curves show torque and efficiency at varying speeds from 0 to 1800 RPM. The motor has a continuous duty cycle and is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 10816
115 v FWR
1400 rpm 2 Poles
None
Product ID: 4306
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
1398.0 rpm
6.8lb-in
1.62 amps
113 watts
0.1508 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
71.5 %
71.5 %
Start/Stall Conditions:
Current:
Torque:
9.43 amps
56.00 lb-in
Constants:
Ke: 82.82 v/krpm
Kt: 7.00 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
200
0
0.0
6.0
400
12.0
600
18.0
800
24.0
1000
30.0
1200
36.0
1400
42.0
1600
48.0
1800
54.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
