This document summarizes ServiceMix 4, which is built on top of Apache Felix Karaf. It provides an overview of how ServiceMix 4 is constructed from various Apache projects like Felix, Camel and ServiceMix. It also describes key Karaf concepts like the command shell, features, blueprint services and the web console. Finally, it discusses how ServiceMix adds support for JBI and NMR on top of Karaf.

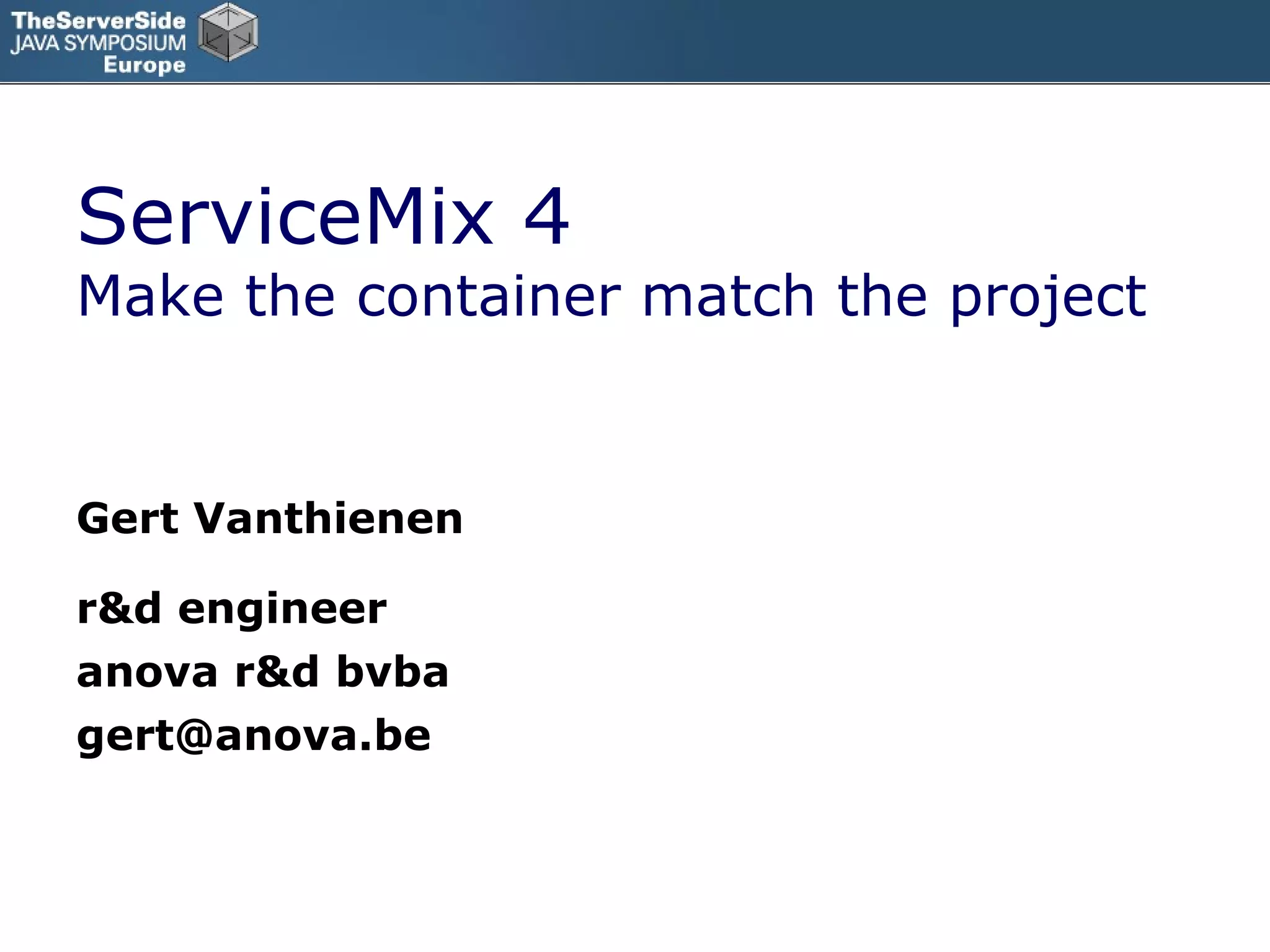

1. ServiceMix 4 Make the container match the project Gert Vanthienen r&d engineer anova r&d bvba [email_address]

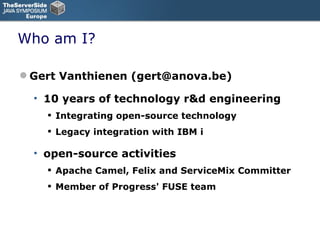

2. Who am I? Gert Vanthienen (gert@anova.be) 10 years of technology r&d engineering Integrating open-source technology Legacy integration with IBM i open-source activities Apache Camel, Felix and ServiceMix Committer Member of Progress' FUSE team

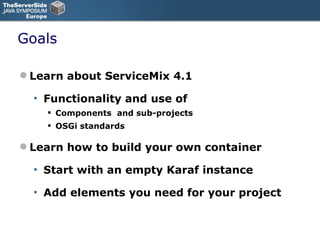

3. Goals Learn about ServiceMix 4.1 Functionality and use of Components and sub-projects OSGi standards Learn how to build your own container Start with an empty Karaf instance Add elements you need for your project

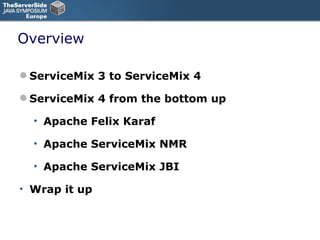

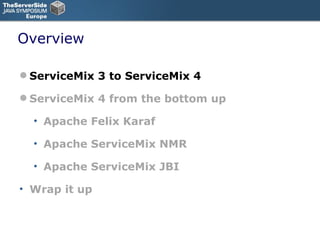

4. Overview ServiceMix 3 to ServiceMix 4 ServiceMix 4 from the bottom up Apache Felix Karaf Apache ServiceMix NMR Apache ServiceMix JBI Wrap it up

5. Overview ServiceMix 3 to ServiceMix 4 ServiceMix 4 from the bottom up Apache Felix Karaf Apache ServiceMix NMR Apache ServiceMix JBI Wrap it up

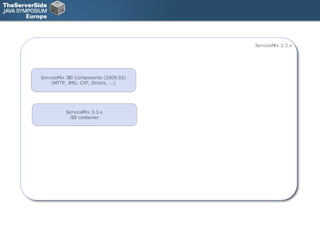

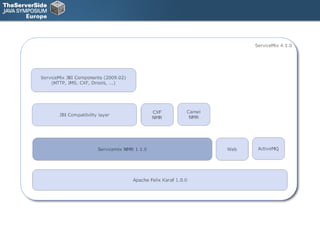

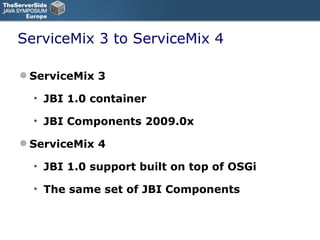

6. ServiceMix 3 to ServiceMix 4 ServiceMix 3 JBI 1.0 container JBI Components 2009.0x ServiceMix 4 JBI 1.0 support built on top of OSGi The same set of JBI Components

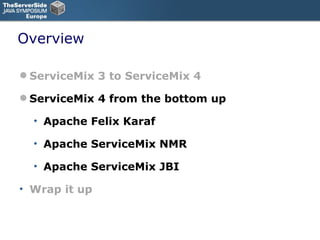

9. Overview ServiceMix 3 to ServiceMix 4 ServiceMix 4 from the bottom up Apache Felix Karaf Apache ServiceMix NMR Apache ServiceMix JBI Wrap it up

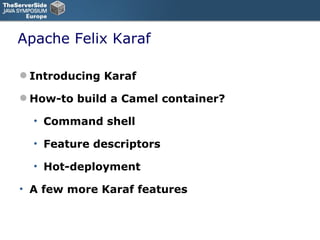

11. Apache Felix Karaf Introducing Karaf How-to build a Camel container? Command shell Feature descriptors Hot-deployment A few more Karaf features

12. Apache Felix Karaf Introducing Karaf How-to build a Camel Container? Command shell Feature descriptors Hot-deployment A few more Karaf features

13. Introducing Karaf A flexible OSGi-based server runtime Choice of OSGi runtime: Apache Felix Eclipse Equinox Manage the container using: command shell web console

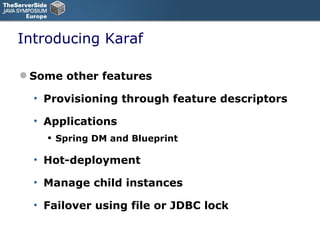

14. Introducing Karaf Some other features Provisioning through feature descriptors Applications Spring DM and Blueprint Hot-deployment Manage child instances Failover using file or JDBC lock

15. Apache Felix Karaf Introducing Karaf Create Camel Container Command shell Feature descriptors Hot-deployment A few more Karaf features

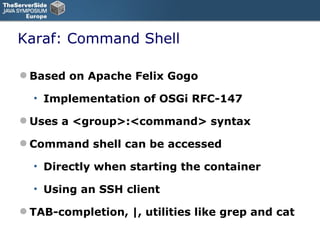

16. Karaf: Command Shell Based on Apache Felix Gogo Implementation of OSGi RFC-147 Uses a <group>:<command> syntax Command shell can be accessed Directly when starting the container Using an SSH client TAB-completion, |, utilities like grep and cat

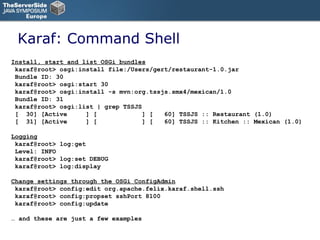

17. Karaf: Command Shell Install, start and list OSGi bundles karaf@root> osgi:install file:/Users/gert/restaurant-1.0.jar Bundle ID: 30 karaf@root> osgi:start 30 karaf@root> osgi:install -s mvn:org.tssjs.smx4/mexican/1.0 Bundle ID: 31 karaf@root> osgi:list | grep TSSJS [ 30] [Active ] [ ] [ 60] TSSJS :: Restaurant (1.0) [ 31] [Active ] [ ] [ 60] TSSJS :: Kitchen :: Mexican (1.0) Logging karaf@root> log:get Level: INFO karaf@root> log:set DEBUG karaf@root> log:display Change settings through the OSGi ConfigAdmin karaf@root> config:edit org.apache.felix.karaf.shell.ssh karaf@root> config:propset sshPort 8100 karaf@root> config:update … and these are just a few examples

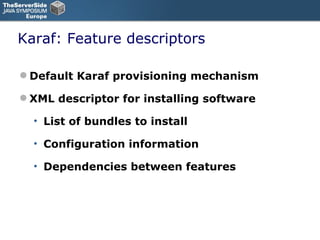

18. Karaf: Feature descriptors Default Karaf provisioning mechanism XML descriptor for installing software List of bundles to install Configuration information Dependencies between features

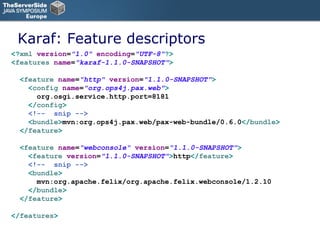

19. Karaf: Feature descriptors <? xml version = &quot;1.0&quot; encoding = &quot;UTF-8&quot; ?> < features name = &quot;karaf-1.1.0-SNAPSHOT&quot; > < feature name = &quot;http&quot; version = &quot;1.1.0-SNAPSHOT&quot; > < config name = &quot;org.ops4j.pax.web&quot; > org.osgi.service.http.port=8181 </ config > <!-- snip --> < bundle > mvn:org.ops4j.pax.web/pax-web-bundle/0.6.0 </ bundle > </ feature > < feature name = &quot;webconsole&quot; version = &quot;1.1.0-SNAPSHOT&quot; > < feature version = &quot;1.1.0-SNAPSHOT&quot; > http </ feature > <!-- snip --> < bundle > mvn:org.apache.felix/org.apache.felix.webconsole/1.2.10 </ bundle > </ feature > </ features >

20. Karaf: Feature descriptors A feature can be installed Using command shell Using the web console karaf@root> features:install webconsole karaf@root> features:list State Version Name Repository [uninstalled] [2.5.6.SEC01 ] spring karaf-1.1.0-SNAPSHOT [uninstalled] [1.2.0 ] spring-dm karaf-1.1.0-SNAPSHOT [installed ] [1.1.0-SNAPSHOT] http karaf-1.1.0-SNAPSHOT [installed ] [1.1.0-SNAPSHOT] webconsole karaf-1.1.0-SNAPSHOT

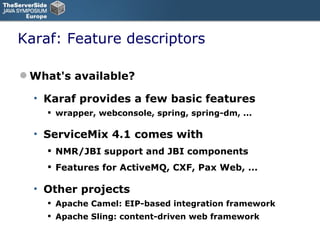

21. Karaf: Feature descriptors What's available? Karaf provides a few basic features wrapper, webconsole, spring, spring-dm, ... ServiceMix 4.1 comes with NMR/JBI support and JBI components Features for ActiveMQ, CXF, Pax Web, ... Other projects Apache Camel: EIP-based integration framework Apache Sling: content-driven web framework

22. Karaf: Hot-deployment Hot-deployment based on Felix FileInstall Karaf supports deployment of Bundles Expanded bundles XML files (Spring, Blueprint and feature) An extensible mechanism Spring XML files with Spring feature installed JBI artifacts with JBI feature installed WAR files with web feature installed

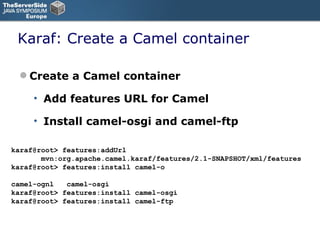

23. Karaf: Create a Camel container Create a Camel container Add features URL for Camel Install camel-osgi and camel-ftp karaf@root> features:addUrl mvn:org.apache.camel.karaf/features/2.1-SNAPSHOT/xml/features karaf@root> features:install camel-o camel-ognl camel-osgi karaf@root> features:install camel-osgi karaf@root> features:install camel-ftp

24. Karaf: Create a Camel container Deploy the route in a Spring XML <? xml version = &quot;1.0&quot; ?> < beans xmlns = &quot;http://www.springframework.org/schema/beans&quot; xmlns:xsi = &quot;http://www.w3.org/2001/XMLSchema-instance&quot; xsi:schemaLocation = &quot; http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd http://camel.apache.org/schema/spring http://camel.apache.org/schema/spring/camel-spring.xsd&quot; > < camelContext xmlns = &quot;http://camel.apache.org/schema/spring&quot; > < route > < from uri = &quot;ftp://ck@ftp.resto.eu/recipes?password=secret&quot; /> < to uri = &quot;file:/home/recipes/in&quot; /> </ route > </ camelContext > </ beans >

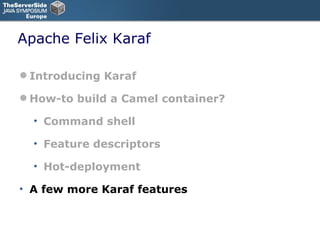

25. Apache Felix Karaf Introducing Karaf How-to build a Camel container? Command shell Feature descriptors Hot-deployment A few more Karaf features

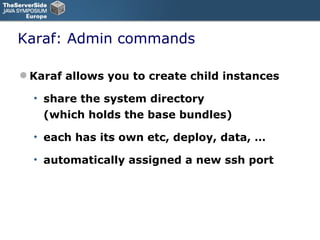

26. Karaf: Admin commands Karaf allows you to create child instances share the system directory (which holds the base bundles) each has its own etc, deploy, data, … automatically assigned a new ssh port

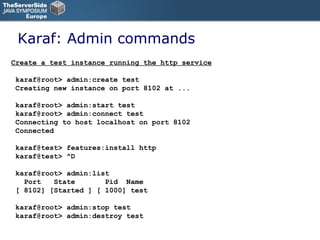

27. Karaf: Admin commands Create a test instance running the http service karaf@root> admin:create test Creating new instance on port 8102 at ... karaf@root> admin:start test karaf@root> admin:connect test Connecting to host localhost on port 8102 Connected karaf@test> features:install http karaf@test> ^D karaf@root> admin:list Port State Pid Name [ 8102] [Started ] [ 1000] test karaf@root> admin:stop test karaf@root> admin:destroy test

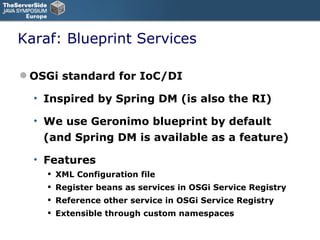

28. Karaf: Blueprint Services OSGi standard for IoC/DI Inspired by Spring DM (is also the RI) We use Geronimo blueprint by default (and Spring DM is available as a feature) Features XML Configuration file Register beans as services in OSGi Service Registry Reference other service in OSGi Service Registry Extensible through custom namespaces

29. Karaf: Blueprint Services Blueprint is a first-class citizen in Karaf Installed by default Used internally for Karaf/ServiceMix Hot-deployment Plain XML configuration files OSGI-INF/blueprint/*.xml in bundles Lifecycle states available in osgi:list

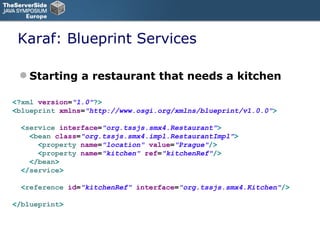

30. Karaf: Blueprint Services Starting a restaurant that needs a kitchen <? xml version = &quot;1.0&quot; ?> < blueprint xmlns = &quot;http://www.osgi.org/xmlns/blueprint/v1.0.0&quot; > < service interface = &quot;org.tssjs.smx4.Restaurant&quot; > < bean class = &quot;org.tssjs.smx4.impl.RestaurantImpl&quot; > < property name = &quot;location&quot; value = &quot;Prague&quot; /> < property name = &quot;kitchen&quot; ref = &quot;kitchenRef&quot; /> </ bean > </ service > < reference id = &quot;kitchenRef&quot; interface = &quot;org.tssjs.smx4.Kitchen&quot; /> </ blueprint >

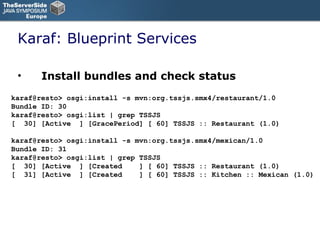

31. Karaf: Blueprint Services Install bundles and check status karaf@resto> osgi:install -s mvn:org.tssjs.smx4/restaurant/1.0 Bundle ID: 30 karaf@resto> osgi:list | grep TSSJS [ 30] [Active ] [GracePeriod] [ 60] TSSJS :: Restaurant (1.0) karaf@resto> osgi:install -s mvn:org.tssjs.smx4/mexican/1.0 Bundle ID: 31 karaf@resto> osgi:list | grep TSSJS [ 30] [Active ] [Created ] [ 60] TSSJS :: Restaurant (1.0) [ 31] [Active ] [Created ] [ 60] TSSJS :: Kitchen :: Mexican (1.0)

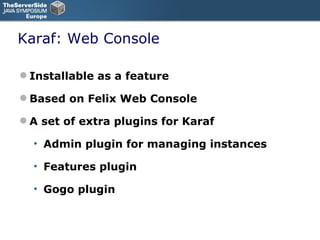

32. Karaf: Web Console Installable as a feature Based on Felix Web Console A set of extra plugins for Karaf Admin plugin for managing instances Features plugin Gogo plugin

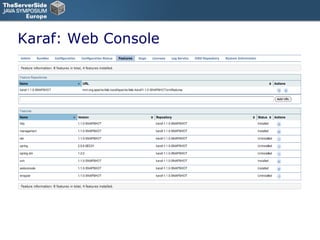

33. Karaf: Web Console

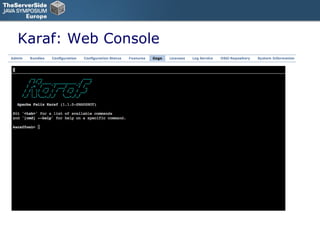

34. Karaf: Web Console

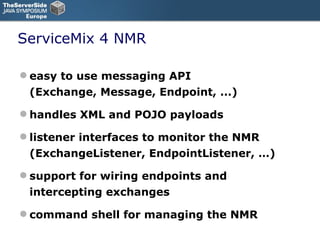

36. ServiceMix 4 NMR easy to use messaging API (Exchange, Message, Endpoint, ...) ‏ handles XML and POJO payloads listener interfaces to monitor the NMR (ExchangeListener, EndpointListener, …) ‏ support for wiring endpoints and intercepting exchanges command shell for managing the NMR

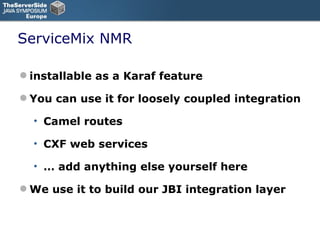

37. ServiceMix NMR installable as a Karaf feature You can use it for loosely coupled integration Camel routes CXF web services … add anything else yourself here We use it to build our JBI integration layer

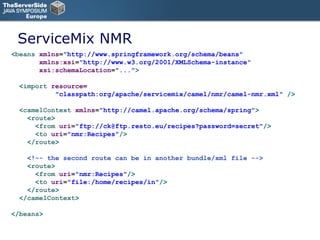

38. ServiceMix NMR < beans xmlns = &quot;http://www.springframework.org/schema/beans&quot; xmlns:xsi = &quot;http://www.w3.org/2001/XMLSchema-instance&quot; xsi:schemaLocation = &quot;...&quot; > < import resource = &quot;classpath:org/apache/servicemix/camel/nmr/camel-nmr.xml&quot; /> < camelContext xmlns = &quot;http://camel.apache.org/schema/spring&quot; > < route > < from uri = &quot;ftp://ck@ftp.resto.eu/recipes?password=secret&quot; /> < to uri = &quot;nmr:Recipes&quot; /> </ route > <!-- the second route can be in another bundle/xml file --> < route > < from uri = &quot;nmr:Recipes&quot; /> < to uri = &quot;file:/home/recipes/in&quot; /> </ route > </ camelContext > </ beans >

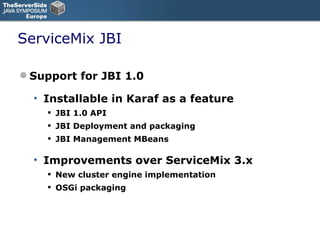

40. ServiceMix JBI Support for JBI 1.0 Installable in Karaf as a feature JBI 1.0 API JBI Deployment and packaging JBI Management MBeans Improvements over ServiceMix 3.x New cluster engine implementation OSGi packaging

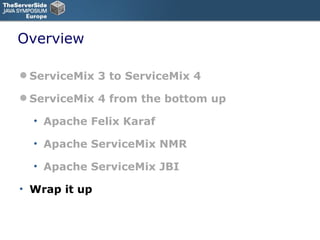

41. Overview ServiceMix 3 to ServiceMix 4 ServiceMix 4 from the bottom up Apache Felix Karaf Apache ServiceMix NMR Apache ServiceMix JBI Wrap it up

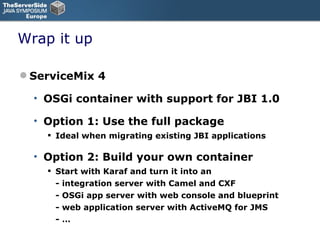

42. Wrap it up ServiceMix 4 OSGi container with support for JBI 1.0 Option 1: Use the full package Ideal when migrating existing JBI applications Option 2: Build your own container Start with Karaf and turn it into an - integration server with Camel and CXF - OSGi app server with web console and blueprint - web application server with ActiveMQ for JMS - …

43. References Interested? Want to get involved? Apache Felix Karaf http://felix.apache.org/site/apache-felix-karaf.html [email_address] Apache ServiceMix http://servicemix.apache.org [email_address]
