The document outlines various general signs related to safety and emergencies, indicating the availability and locations of first aid equipment, emergency exits, and essential services. Each sign is designated with a specific code and describes its purpose, such as directing individuals to escape routes, indicating first aid stations, and safety installations. Additionally, it includes signs for facilities like toilets, wash stations, and emergency equipment.

2. GENERAL SIGNS - FIRST AID
EQUIPMENT - GA1
THIS SIGN INDICATES THAT
FIRST AID EQUIPMENT IS
AVAILABLE

3. GENERAL SIGNS - GENERAL
DIRECTION - GA2
THIS SIGN INDICATES DIRECTION
OF EMERGENCY EXITS/ESCAPE
ROUTES

4. GENERAL SIGNS - DIRECTION
TO ESCAPE ROUTE 1 - GA3
DIRECTION SIGN FOR ESCAPE
ROUTE IN THE EVENT OF AN
EMERGENCY.

5. GENERAL SIGNS - DIRECTION
TO ESCAPE ROUTE 2 - GA4
DIRECTION SIGN FOR ESCAPE
ROUTE IN THE EVENT OF AN
EMERGENCY

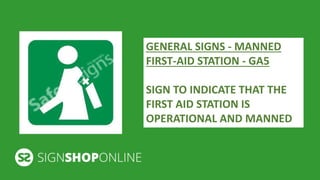

6. GENERAL SIGNS - MANNED
FIRST-AID STATION - GA5
SIGN TO INDICATE THAT THE
FIRST AID STATION IS
OPERATIONAL AND MANNED

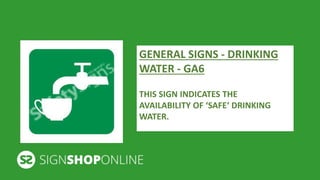

7. GENERAL SIGNS - DRINKING
WATER - GA6
THIS SIGN INDICATES THE
AVAILABILITY OF ‘SAFE‘ DRINKING
WATER.

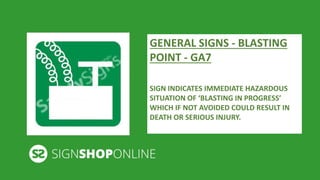

8. GENERAL SIGNS - BLASTING
POINT - GA7
SIGN INDICATES IMMEDIATE HAZARDOUS
SITUATION OF ‘BLASTING IN PROGRESS’
WHICH IF NOT AVOIDED COULD RESULT IN
DEATH OR SERIOUS INJURY.

9. GENERAL SIGNS - TRAVELING WAY
- GA8
THIS IS A DIRECTIONAL SIGN POINTING
THE WAY FORWARD

10. GENERAL SIGNS -
LOCOMOTIVE REFUELLING -
GA9
THIS SIGN INDICATES A
LOCOMOTIVE RE-FUELLING
POINT

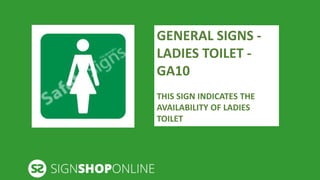

11. GENERAL SIGNS -
LADIES TOILET -
GA10
THIS SIGN INDICATES THE
AVAILABILITY OF LADIES
TOILET

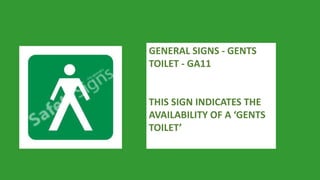

12. GENERAL SIGNS - GENTS
TOILET - GA11
THIS SIGN INDICATES THE
AVAILABILITY OF A ‘GENTS
TOILET’

13. GENERAL SIGNS - REFUGE
CHAMBER - GA12
THIS SIGN INDICATES THE AVAILABILITY
OF A REFUGE/PROTECTION CHAMBER
WHICH PROTECTS EMPLOYEES BY
CREATING A BREATHABLE ATMOSPHERE
WITHIN A SEALED ROOM.

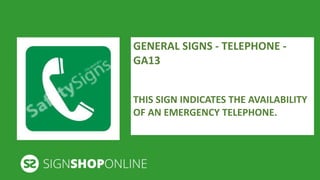

14. GENERAL SIGNS - TELEPHONE -
GA13
THIS SIGN INDICATES THE AVAILABILITY
OF AN EMERGENCY TELEPHONE.

15. GENERAL SIGNS -
WAITING PLACE - GA14
THIS SIGN INDICATES AN
‘EMERGENCY WAITING
PLACE’

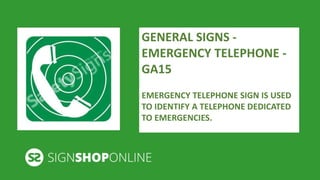

16. GENERAL SIGNS -
EMERGENCY TELEPHONE -
GA15
EMERGENCY TELEPHONE SIGN IS USED
TO IDENTIFY A TELEPHONE DEDICATED
TO EMERGENCIES.

17. GENERAL SIGNS - ELECTRIC
ISOLATOR SWITCH - GA16
ELECTRIC ISOLATOR SWITCH SIGN IS
USED TO SHOW THE LOCATION OF AN
ELECTRICAL ISOLATOR OR CUT-OFF
SWITCH.

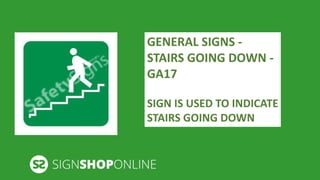

18. GENERAL SIGNS -
STAIRS GOING DOWN -
GA17
SIGN IS USED TO INDICATE
STAIRS GOING DOWN

19. GENERAL SIGNS - STAIRS
GOING UP - GA18
EMERGENCY EVACUATION
SIGN SHOWING ‘STAIRS GOING
UP’

20. GENERAL SIGNS - STAIRS
GOING UP - GA18
EMERGENCY EVACUATION SIGN
SHOWING ‘STAIRS GOING UP’

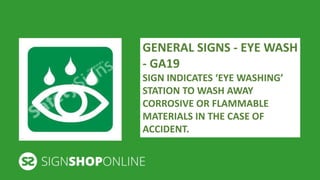

21. GENERAL SIGNS - EYE WASH
- GA19
SIGN INDICATES ‘EYE WASHING’
STATION TO WASH AWAY
CORROSIVE OR FLAMMABLE
MATERIALS IN THE CASE OF
ACCIDENT.

22. GENERAL SIGNS - SAFETY SHOWER
- GA20
SIGN INDICATES ‘SAFETY SHOWER’
STATION TO WASH AWAY
CORROSIVE OR FLAMMABLE
MATERIALS IN THE CASE OF
ACCIDENT.

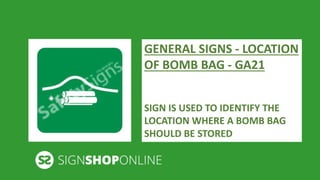

23. GENERAL SIGNS - LOCATION
OF BOMB BAG - GA21
SIGN IS USED TO IDENTIFY THE
LOCATION WHERE A BOMB BAG
SHOULD BE STORED

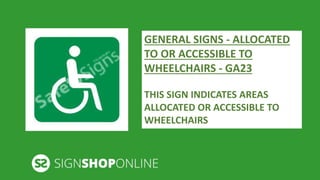

24. GENERAL SIGNS - ALLOCATED
TO OR ACCESSIBLE TO
WHEELCHAIRS - GA23
THIS SIGN INDICATES AREAS
ALLOCATED OR ACCESSIBLE TO
WHEELCHAIRS

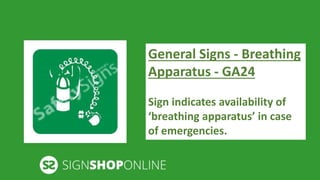

25. General Signs - Breathing
Apparatus - GA24
Sign indicates availability of
‘breathing apparatus’ in case
of emergencies.

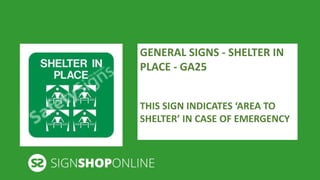

26. GENERAL SIGNS - SHELTER IN
PLACE - GA25
THIS SIGN INDICATES ‘AREA TO
SHELTER’ IN CASE OF EMERGENCY

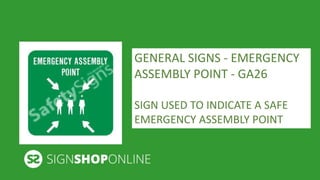

27. GENERAL SIGNS - EMERGENCY
ASSEMBLY POINT - GA26
SIGN USED TO INDICATE A SAFE
EMERGENCY ASSEMBLY POINT

28. GENERAL SIGNS - TAP FOR
WASHING HANDS - GA27
SIGN SHOWS AVAILABILITY OF TAP TO
WASH HANDS.

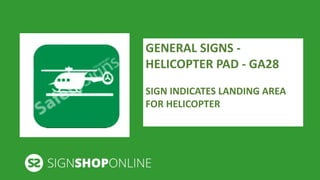

29. GENERAL SIGNS -
HELICOPTER PAD - GA28
SIGN INDICATES LANDING AREA
FOR HELICOPTER

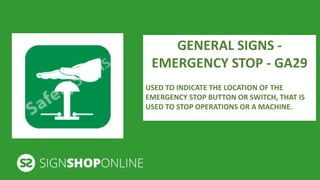

30. GENERAL SIGNS -
EMERGENCY STOP - GA29
USED TO INDICATE THE LOCATION OF THE
EMERGENCY STOP BUTTON OR SWITCH, THAT IS
USED TO STOP OPERATIONS OR A MACHINE.
