The document describes a fully automatic fuel pump test rig featuring data acquisition systems programmed with LabVIEW. It includes components like solenoid valves, flow meters, pressure gauges, and fittings made of SS316. The system allows for detailed reporting in both analytical and graphical modes for individual tested parts.

2. Fuel Pump Test Rig

3. Fuel pump test bench fully automatic industrial computer. Data acquisition systems
with LAB View programming, Individual tested part record report to be saved in
both analytical and graphical mode. Also includes solenoid valves of flow meter,
Manual needle valve, Pressure gauges, Pressure transmitters and tubing and
fittings of SS316 without cooling system.
INTRODUCTION

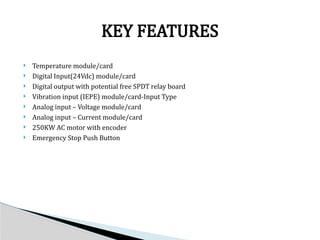

5.  Temperature module/card
 Digital Input(24Vdc) module/card
 Digital output with potential free SPDT relay board
 Vibration input (IEPE) module/card-Input Type
 Analog input – Voltage module/card
 Analog input – Current module/card
 250KW AC motor with encoder
 Emergency Stop Push Button
KEY FEATURES

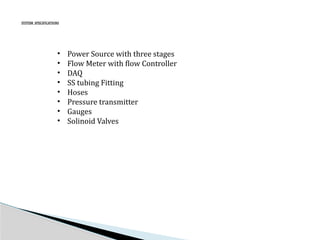

7. SYSTEM SPECIFICATIONS
• Power Source with three stages
• Flow Meter with flow Controller
• DAQ
• SS tubing Fitting
• Hoses
• Pressure transmitter
• Gauges
• Solinoid Valves

9.  Fuel Pump Test Bench Fully Automatic
 Industrial Computer
 Acquisition System with LAB
 View Programing

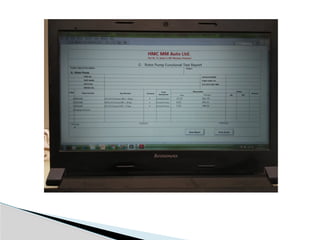

 Report to be saved in both analytical and graphical
mode
 Flow Meters
 Needle Valve
Key Features

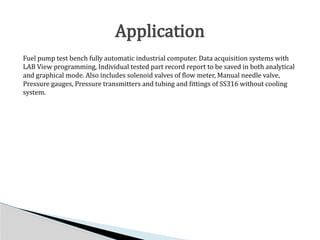

11. Fuel pump test bench fully automatic industrial computer. Data acquisition systems with
LAB View programming, Individual tested part record report to be saved in both analytical
and graphical mode. Also includes solenoid valves of flow meter, Manual needle valve,
Pressure gauges, Pressure transmitters and tubing and fittings of SS316 without cooling
system.
Application

13. Thank You
