This document provides information on wheelchair seating and cushion products from FormAlign, including: - A chart listing various contour backrest options with different wheelchair widths, backrest heights, and internal trunk widths. - Descriptions of features like adjustable laterals, height adjustable backrests, and a BAC system to adjust to asymmetrical backs. - Information on support backrests, lateral pads, headrests, and brackets. - Details on FormAlign's range of harnesses and cushions, including product codes and sizes. - Company contact information is listed at the bottom.

1. www.formalign.com
Wheelchair
Seating

2. Contour Backrest
WHEELCHAIR WIDTH BACKREST HEIGHT
INTERNAL
TRUNK WIDTH
PRODUCT CODE
12”
14” 10” FGA1001
16” 10” FGA1002
18” 10” FGA1003
14”
16” 12” FGA1004
18” 12” FGA1005
20” 12” FGA1006
16”
18” 14” FGA1007
20” 14” FGA1008
22” 14” FGA1009
18”
18” 16” FGA1010
20” 16” FGA1011
22” 16” FGA1012
20”
18” 18” FGA1013
20” 18” FGA1014
22” 18” FGA1015

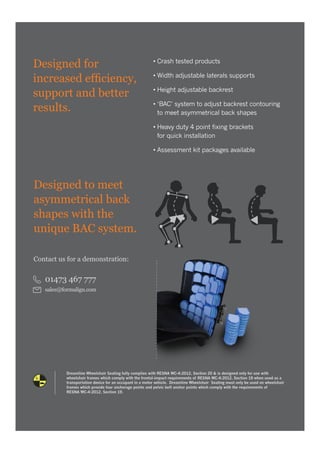

3. Designed for
increased efficiency,
support and better
results.
• Crash tested products
• Width adjustable laterals supports
• Height adjustable backrest
• ‘BAC’ system to adjust backrest contouring
to meet asymmetrical back shapes
• Heavy duty 4 point fixing brackets
for quick installation
• Assessment kit packages available
Dreamline Wheelchair Seating fully complies with RESNA WC-4:2012, Section 20 & is designed only for use with
wheelchair frames which comply with the frontal-impact requirements of RESNA WC-4:2012, Section 19 when used as a
transportation device for an occupant in a motor vehicle. Dreamline Wheelchair Seating must only be used on wheelchair
frames which provide four anchorage points and pelvic belt anchor points which comply with the requirements of
RESNA WC-4:2012, Section 19.
Designed to meet
asymmetrical back
shapes with the
unique BAC system.
Contact us for a demonstration:
01473 467 777
sales@formalign.com

4. Support Backrest
WHEELCHAIR
WIDTH
BACKREST
HEIGHT
PRODUCT CODE
12"
14" FGA1016
16" FGA1017
18" FGA1018
14"
16" FGA1019
18" FGA1020
20" FGA1021
16"
18" FGA1022
20" FGA1023
22" FGA1024
18"
18" FGA1025
20" FGA1026
22" FGA1027
20"
18" FGA1028
20" FGA1029
22" FGA1030
HEIGHT & WIDTH
ADJUSTABLE, NON-
SWING LATERAL PAD
LO-RISER SWING-AWAY
LATERAL BRACKET
SWING-AWAY
LATERAL BRACKET
QUICK LOCK
HEADREST
CURVED
LATERAL PAD
STRAIGHT
LATERAL PAD
TEARDROP
LATERAL PAD

5. Align Harness Range
FormAlign provide a wide range
of harnesses to meet your needs.
For more information or price range
please contact our team:
01473 467 777
sales@formalign.com
www.formalign.com
Align Cushion Range
Low profile cushion
Minimal affect to chair dynamics
Medium to high level pressure care
Sealed Gel – waterproof
Four way stretch, wipeable covers
Non-Slip Base
Max. User Weight: 100kgs
PRODUCT CODE SIZE (INCHES)
FG9014 16x16x1
FG9011 17x17x1
Gel Overlay Cushion
Anatomically shaped memory foam
Increased level of support and
pressure distribution
Integral gel providing high level pressure care
Four way stretch, wipeable cover
Non slip base
Max. User weight: 100kgs
Anatomically shaped memory foam
Increased level of support and
pressure distribution
Low to medium level pressure care
Four way stretch, wipeable cover
Non Slip Base
Max. User weight: 100kgs
PRODUCT CODE SIZE (INCHES)
FG9015 15x15x2.5
FG9016 16x16x2.5
FG9017 18x18x2.5
PRODUCT CODE SIZE (INCHES)
FG9019 16x16x2.5
FG9020 17x17x2.5
FG9021 18x18x2.5
Anatomic Foam Cushion Anatomic Foam/Gel Cushion

6. FormAlign
33 Knightsdale Road
Ipswich IP1 4JJ
01473 467 777
sales@formalign.com
www.formalign.com
Part of Form-AL Group Ltd.
