1. descon.com
Descon Integrated Projects (Pvt) Limited
HAGFR SMARTPLANT
ENTERPRISE
PROJECT
HABSHAN ACID GAS FLARE RECOVERY PROJECT NO. 5265
GASCO AGREEMENT NO. 13526503
CLIENT
ABU DHABI GAS INDUSTRIES LTD. (GASCO)
EPC CONTRACTOR
DESCON ENGINEERING
DATE
11TH SEPTEMBER 2013

2. descon.com
Descon Integrated Projects (Pvt) Limited
• M.Umair Saleem
SmartPlant Foundation
• Zarrar Butt
SmartPlant 3D
• Asim Shehzad
SmartPlant
Instrumentation
• Tayyab
SmartPlant P&ID
• Fahad Naeem
SmartPlant Electrical
• Abdul Basit
SmartPlant Technical
Coordinator
SmartPlant Enterprise Core Team

3. descon.com
Descon Integrated Projects (Pvt) Limited

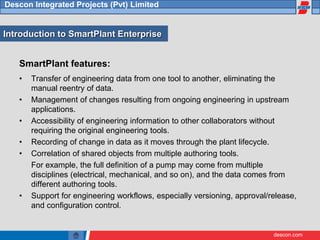

SmartPlant features:
• Transfer of engineering data from one tool to another, eliminating the
manual reentry of data.
• Management of changes resulting from ongoing engineering in upstream
applications.
• Accessibility of engineering information to other collaborators without
requiring the original engineering tools.
• Recording of change in data as it moves through the plant lifecycle.
• Correlation of shared objects from multiple authoring tools.
For example, the full definition of a pump may come from multiple
disciplines (electrical, mechanical, and so on), and the data comes from
different authoring tools.
• Support for engineering workflows, especially versioning, approval/release,
and configuration control.
Introduction to SmartPlant Enterprise

4. descon.com
Descon Integrated Projects (Pvt) Limited

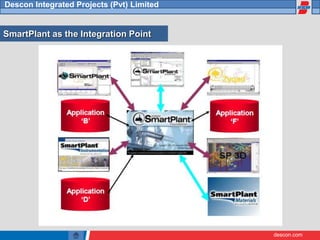

SmartPlant as the Integration Point

5. descon.com
Descon Integrated Projects (Pvt) Limited

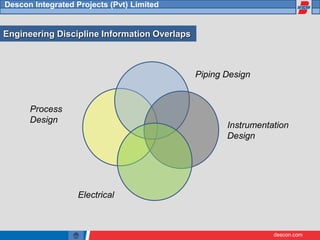

Engineering Discipline Information Overlaps
Process
Design
Piping Design
Instrumentation
Design
Electrical

6. descon.com
Descon Integrated Projects (Pvt) Limited

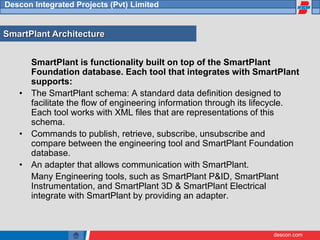

SmartPlant is functionality built on top of the SmartPlant
Foundation database. Each tool that integrates with SmartPlant
supports:
• The SmartPlant schema: A standard data definition designed to
facilitate the flow of engineering information through its lifecycle.
Each tool works with XML files that are representations of this
schema.
• Commands to publish, retrieve, subscribe, unsubscribe and
compare between the engineering tool and SmartPlant Foundation
database.
• An adapter that allows communication with SmartPlant.
Many Engineering tools, such as SmartPlant P&ID, SmartPlant
Instrumentation, and SmartPlant 3D & SmartPlant Electrical
integrate with SmartPlant by providing an adapter.
SmartPlant Architecture

7. descon.com
Descon Integrated Projects (Pvt) Limited

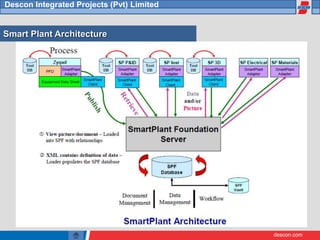

Smart Plant Architecture

8. descon.com
Descon Integrated Projects (Pvt) Limited
SPF DESKTOP CLIENT

9. descon.com
Descon Integrated Projects (Pvt) Limited
Starting the Desktop Client

10. descon.com
Descon Integrated Projects (Pvt) Limited

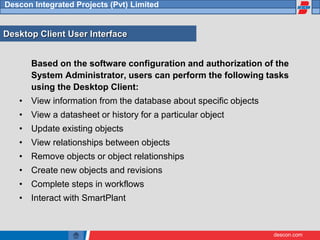

Desktop Client User Interface
Based on the software configuration and authorization of the
System Administrator, users can perform the following tasks
using the Desktop Client:
• View information from the database about specific objects
• View a datasheet or history for a particular object
• Update existing objects
• View relationships between objects
• Remove objects or object relationships
• Create new objects and revisions
• Complete steps in workflows
• Interact with SmartPlant

11. descon.com
Descon Integrated Projects (Pvt) Limited

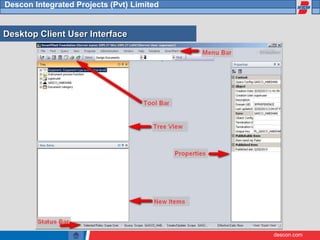

Desktop Client User Interface

12. descon.com
Descon Integrated Projects (Pvt) Limited
DATA RETRIEVED BY SMARTPLANT
P&ID

13. descon.com
Descon Integrated Projects (Pvt) Limited
SmartPlant Instrumentation to SmartPlant P&ID Data Exchange
SmartPlant
Instrumentation
SmartPlant
Foundation
SmartPlant
P&ID
Instrument
Index
Instrument
Index
Retrieved:
Instrument Loops
Loop Function
Loop Tag Prefix
Loop Tag Sequence No
Loop Tag Suffix
Instrument Index
(Inline/Offline Instruments)
Construction Status
Location
Instrument Class
Piping Materials Class
Instrument Type Modifier
Loop Tag Suffix
Tag Prefix
Tag Sequence No
Tag Suffix
Measured Variable Code
Service
Updating Instrument
Creating Instrument

14. descon.com
Descon Integrated Projects (Pvt) Limited

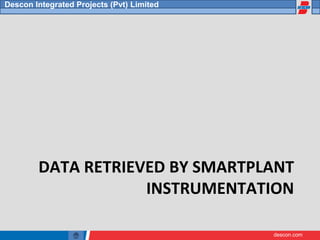

DATA RETRIEVED BY SMARTPLANT
INSTRUMENTATION

15. descon.com
Descon Integrated Projects (Pvt) Limited
SmartPlant P&ID to SmartPlant Instrumentation Data Exchange
SmartPlant
P&ID
SmartPlant
Foundation
SmartPlant
Instrumentation
P&ID
Drawing
P&ID
Drawing
Retrieved:
Inline/Offline Instruments
Construction Status
Instrument Class
Instrument Tag
Location
Piping Materials Class
Instrument Loops
Loop Tag
Details:
Valid line types are primary, secondary, and connect to process (no other signal lines
supported)
Lines need a line number & fluid code
Inline instrument types retrieved are flow, pressure, control, temperature, level
Offline instruments retrieved according to Process Function (recorder, transmitter,
converter, etc.)
Association of instruments to lines or equipment supported
Loop association maintained
Control System Function is retrieved as an instrument in SmartPlant Instrumentation.
Piping
NPD
Line Number
Piping Materials Class
Schedule/Thickness
Line Process Data (Min/Max/Norm for Temp,
Pressure, Flow Rate, Viscosity, etc…)
Control System Function
Name
Construction Status
Equipment
Equipment Tag

16. descon.com
Descon Integrated Projects (Pvt) Limited

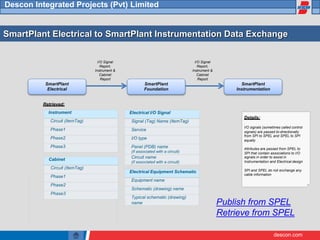

SmartPlant Electrical to SmartPlant Instrumentation Data Exchange
I/O Signal
Report,
Instrument &
Cabinet
Report
I/O Signal
Report,
Instrument &
Cabinet
Report
SmartPlant
Electrical
SmartPlant
Foundation
SmartPlant
Instrumentation
Retrieved:
signals) are passed bi-directionally
equally
SPI that contain associations to I/O
Electrical Equipment Schematic
Equipment name
Schematic (drawing) name
Typical schematic (drawing)
name
Cabinet
Circuit (ItemTag)
Phase1
Phase2
Phase3
Details:
I/O signals (sometimes called control
from SPI to SPEL and SPEL to SPI
Attributes are passed from SPEL to
signals in order to assist in
Instrumentation and Electrical design
SPI and SPEL do not exchange any
cable information
Electrical I/O Signal
Signal (Tag) Name (ItemTag)
Service
I/O type
Panel (PDB) name
(if associated with a circuit)
Circuit name
(if associated with a circuit)
Instrument
Circuit (ItemTag)
Phase1
Phase2
Phase3
Publish from SPEL
Retrieve from SPEL

17. descon.com
Descon Integrated Projects (Pvt) Limited
DATA RETRIEVED BY SMARTPLANT 3D

18. descon.com
Descon Integrated Projects (Pvt) Limited

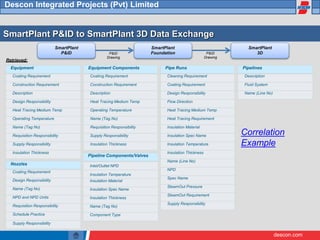

SmartPlant P&ID to SmartPlant 3D Data Exchange
SmartPlant
P&ID
SmartPlant
Foundation
SmartPlant
3D
P&ID
Drawing
P&ID
Drawing
Retrieved:
Pipelines
Description
Fluid System
Name (Line No)
Equipment Equipment Components Pipe Runs
Coating Requirement Coating Requirement Cleaning Requirement
Construction Requirement Construction Requirement Coating Requirement
Description Description Design Responsibility
Design Responsibility Heat Tracing Medium Temp Flow Direction
Heat Tracing Medium Temp Operating Temperature Heat Tracing Medium Temp
Operating Temperature Name (Tag No) Heat Tracing Requirement
Name (Tag No) Requisition Responsibility Insulation Material
Requisition Responsibility Supply Responsibility Insulation Spec Name
Supply Responsibility Insulation Thickness Insulation Temperature
Insulation Thickness Insulation Thickness
Pipeline Components/Valves
Name (Line No)
Nozzles Inlet/Outlet NPD
NPD
Coating Requirement
Insulation Temperature
Spec Name
Design Responsibility Insulation Material
SteamOut Pressure
Name (Tag No) Insulation Spec Name
SteamOut Requirement
NPD and NPD Units Insulation Thickness
Supply Responsibility
Requisition Responsibility Name (Tag No)
Schedule Practice Component Type
Supply Responsibility
Correlation
Example

19. descon.com
Descon Integrated Projects (Pvt) Limited

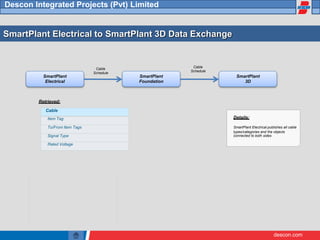

SmartPlant Electrical to SmartPlant 3D Data Exchange
SmartPlant
Electrical
SmartPlant
Foundation
SmartPlant
3D
Cable
Schedule
Cable
Schedule
Retrieved:
types/categories and the objects
Details:
SmartPlant Electrical publishes all cable
connected to both sides
Cable
Item Tag
To/From Item Tags
Signal Type
Rated Voltage

20. descon.com
Descon Integrated Projects (Pvt) Limited
SmartPlant Foundation to SmartPlant 3D Data Exchange
SmartPlant
Foundation PBS
SmartPlant
Foundation
SmartPlant
3D
Plant
Breakdown
Structure
Plant
Breakdown
Structure
Retrieved:
Functional Unit
Name
Functional Area
Name
Plant
Name

21. descon.com
Descon Integrated Projects (Pvt) Limited

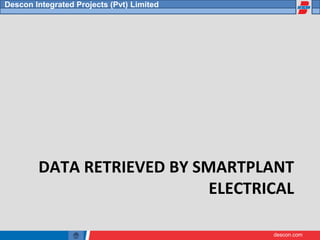

DATA RETRIEVED BY SMARTPLANT
ELECTRICAL

22. descon.com
Descon Integrated Projects (Pvt) Limited

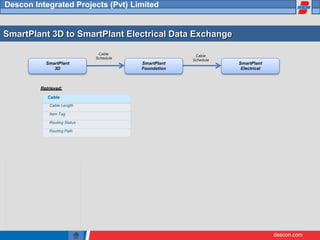

SmartPlant 3D to SmartPlant Electrical Data Exchange
SmartPlant
3D
SmartPlant
Foundation
SmartPlant
Electrical
Cable
Schedule
Cable
Schedule
Retrieved:
Cable
Cable Length
Item Tag
Routing Status
Routing Path

23. descon.com
Descon Integrated Projects (Pvt) Limited

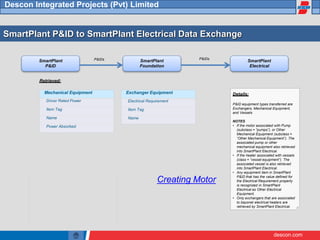

SmartPlant P&ID to SmartPlant Electrical Data Exchange
SmartPlant
P&ID
SmartPlant
Foundation
SmartPlant
Electrical
P&IDs
P&IDs
Retrieved:
Mechanical Equipment
Driver Rated Power
Item Tag
Name
Power Absorbed
Exchanger Equipment
Electrical Requirement
Item Tag
Name
Details:
P&ID equipment types transferred are
Exchangers, Mechanical Equipment,
and Vessels
NOTES
• If the motor associated with Pump
(subclass = “pumps”), or Other
Mechanical Equipment (subclass =
“Other Mechanical Equipment”). The
associated pump or other
mechanical equipment also retrieved
into SmartPlant Electrical.
• If the heater associated with vessels
(class = “vessel equipment”). The
associated vessel is also retrieved
into SmartPlant Electrical.
• Any equipment item in SmartPlant
P&ID that has the value defined for
the Electrical Requirement property
is recognized in SmartPlant
Electrical as Other Electrical
Equipment.
• Only exchangers that are associated
to bayonet electrical heaters are
retrieved by SmartPlant Electrical.
Creating Motor

24. descon.com
Descon Integrated Projects (Pvt) Limited

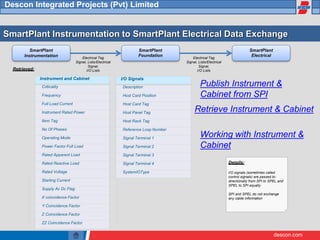

SmartPlant Instrumentation to SmartPlant Electrical Data Exchange
Electrical Tag
Signal, Lists/Electrical
Signal,
I/O Lists
SmartPlant SmartPlant
Foundation
SmartPlant
Electrical
Instrumentation
Retrieved:
Details:
I/O signals (sometimes called
control signals) are passed bi-
directionally from SPI to SPEL and
SPEL to SPI equally
SPI and SPEL do not exchange
any cable information
I/O Signals
Description
Host Card Position
Host Card Tag
Host Panel Tag
Host Rack Tag
Reference Loop Number
Signal Terminal 1
Signal Terminal 2
Signal Terminal 3
Signal Terminal 4
SystemIOType
Instrument and Cabinet
Criticality
Frequency
Full Load Current
Instrument Rated Power
Item Tag
No Of Phases
Operating Mode
Power Factor Full Load
Rated Apparent Load
Rated Reactive Load
Rated Voltage
Starting Current
Supply Ac Dc Flag
X coincidence Factor
Y Coincidence Factor
Z Coincidence Factor
ZZ Coincidence Factor
Electrical Tag
Signal, Lists/Electrical
Signal,
I/O Lists
Retrieve Instrument & Cabinet
Working with Instrument &
Cabinet
Publish Instrument &
Cabinet from SPI

25. descon.com
Descon Integrated Projects (Pvt) Limited
DATA RETRIEVED BY SMARTPLANT
ENGINEERING MANAGER

26. descon.com
Descon Integrated Projects (Pvt) Limited

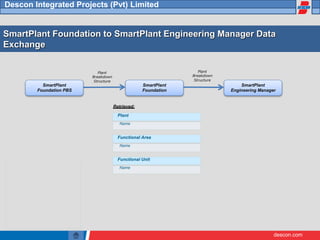

SmartPlant Foundation to SmartPlant Engineering Manager Data
Exchange
SmartPlant
Foundation PBS
SmartPlant
Foundation
SmartPlant
Engineering Manager
Plant
Breakdown
Structure
Plant
Breakdown
Structure
Retrieved:
Functional Unit
Name
Functional Area
Name
Plant
Name

27. descon.com
Descon Integrated Projects (Pvt) Limited
SPF PUBLISH DOCUMENTS

28. descon.com
Descon Integrated Projects (Pvt) Limited

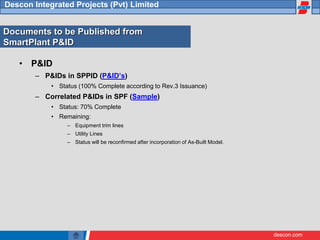

Documents to be Published from
SmartPlant P&ID
• P&ID
– P&IDs in SPPID (P&ID’s)
• Status (100% Complete according to Rev.3 Issuance)
– Correlated P&IDs in SPF (Sample)
• Status: 70% Complete
• Remaining:
– Equipment trim lines
– Utility Lines
– Status will be reconfirmed after incorporation of As-Built Model.

29. descon.com
Descon Integrated Projects (Pvt) Limited

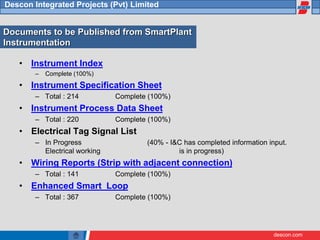

Documents to be Published from SmartPlant
Instrumentation
• Instrument Index
– Complete (100%)
• Instrument Specification Sheet
– Total : 214 Complete (100%)
• Instrument Process Data Sheet
– Total : 220 Complete (100%)
• Electrical Tag Signal List
– In Progress (40% - I&C has completed information input.
Electrical working is in progress)
• Wiring Reports (Strip with adjacent connection)
– Total : 141 Complete (100%)
• Enhanced Smart Loop
– Total : 367 Complete (100%)

30. descon.com
Descon Integrated Projects (Pvt) Limited

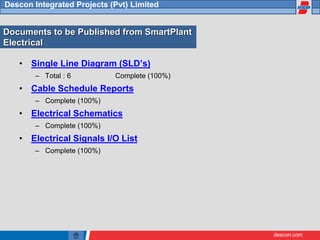

Documents to be Published from SmartPlant
Electrical
• Single Line Diagram (SLD’s)
– Total : 6 Complete (100%)
• Cable Schedule Reports
– Complete (100%)
• Electrical Schematics
– Complete (100%)
• Electrical Signals I/O List
– Complete (100%)

31. descon.com
Descon Integrated Projects (Pvt) Limited

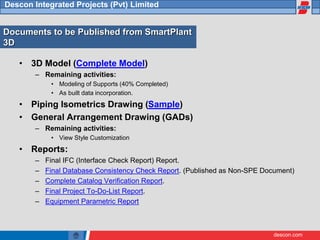

Documents to be Published from SmartPlant
3D
• 3D Model (Complete Model)
– Remaining activities:
• Modeling of Supports (40% Completed)
• As built data incorporation.
• Piping Isometrics Drawing (Sample)
• General Arrangement Drawing (GADs)
– Remaining activities:
• View Style Customization
• Reports:
– Final IFC (Interface Check Report) Report.
– Final Database Consistency Check Report. (Published as Non-SPE Document)
– Complete Catalog Verification Report.
– Final Project To-Do-List Report.
– Equipment Parametric Report

32. descon.com
Descon Integrated Projects (Pvt) Limited

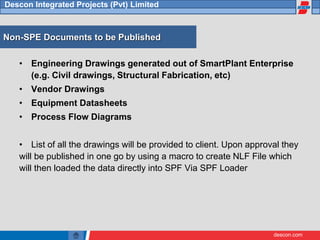

Non-SPE Documents to be Published
• Engineering Drawings generated out of SmartPlant Enterprise
(e.g. Civil drawings, Structural Fabrication, etc)
• Vendor Drawings
• Equipment Datasheets
• Process Flow Diagrams
• List of all the drawings will be provided to client. Upon approval they
will be published in one go by using a macro to create NLF File which
will then loaded the data directly into SPF Via SPF Loader

33. descon.com
Descon Integrated Projects (Pvt) Limited

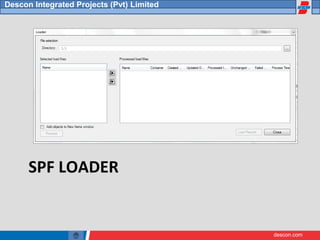

SPF LOADER

34. descon.com
Descon Integrated Projects (Pvt) Limited

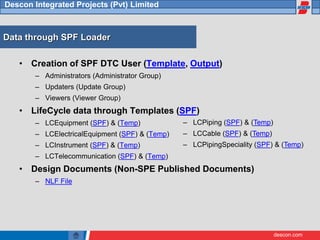

Data through SPF Loader
• Creation of SPF DTC User (Template, Output)
– Administrators (Administrator Group)
– Updaters (Update Group)
– Viewers (Viewer Group)
• LifeCycle data through Templates (SPF)
– LCEquipment (SPF) & (Temp)
– LCElectricalEquipment (SPF) & (Temp)
– LCInstrument (SPF) & (Temp)
– LCTelecommunication (SPF) & (Temp)
• Design Documents (Non-SPE Published Documents)
– NLF File
– LCPiping (SPF) & (Temp)
– LCCable (SPF) & (Temp)
– LCPipingSpeciality (SPF) & (Temp)

35. descon.com
Descon Integrated Projects (Pvt) Limited
SMARTPLANT BACKUP

36. descon.com
Descon Integrated Projects (Pvt) Limited

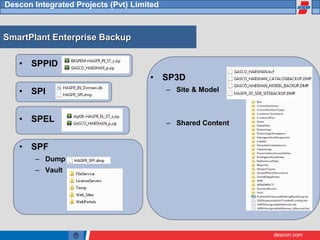

SmartPlant Enterprise Backup
• SPPID
• SPI
• SPEL
• SPF
– Dump
– Vault
• SP3D
– Site & Model
– Shared Content

37. descon.com
Descon Integrated Projects (Pvt) Limited
SMARTPLANT FOUNDATION
TRAINING

38. descon.com

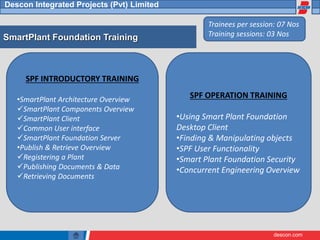

Descon Integrated Projects (Pvt) Limited
SPF INTRODUCTORY TRAINING
•SmartPlant Architecture Overview
SmartPlant Components Overview
SmartPlant Client
Common User interface
SmartPlant Foundation Server
•Publish & Retrieve Overview
Registering a Plant
Publishing Documents & Data
Retrieving Documents
SmartPlant Foundation Training
SPF OPERATION TRAINING
•Using Smart Plant Foundation
Desktop Client
•Finding & Manipulating objects
•SPF User Functionality
•Smart Plant Foundation Security
•Concurrent Engineering Overview
Trainees per session: 07 Nos
Training sessions: 03 Nos

39. descon.com
Descon Integrated Projects (Pvt) Limited
