This document discusses various types of telecom fraud involving SMS messages: - Spamming involves sending unsolicited SMS messages to subscribers. - Flooding involves sending a large number of messages to one or more destinations. - Faking originates fake SMS messages from the international C7 Network by manipulating addresses. - Spoofing illegally uses an HPLMN SMS-C by manipulating the originating number. - GT scanning sends SMS messages to all Global Title addresses to find unsecured SMS-Cs. - Open SMS-Cs accept SMS submissions from non-clients and deliver them for free. - Operators are aware of risks but existing solutions are not sufficient to eliminate vulnerabilities in SS7

1. Fighting
Telecom Fraud.
Explaining SMS
SS7 Fraud
Source:https://www.gsma.com/newsroom/wp-content/uploads//IR.70-v4.0.pdf
Martyn Sukys, 2016 Malta

2. SMS call flow

3. Spamming
Spamming is an action where the
subscriber receives an unsolicited
SMS. As an unsolicited SMS, the
subscriber did not request to receive
this message.

4. Flooding
The act of flooding is when a large number of messages are sent to one or more
destinations. These messages may be either valid or invalid. The value or
parameter used to define flooding is the extraordinary number of messages sent.

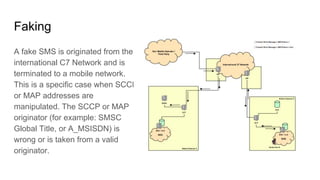

5. Faking
A fake SMS is originated from the
international C7 Network and is
terminated to a mobile network.
This is a specific case when SCCP
or MAP addresses are
manipulated. The SCCP or MAP
originator (for example: SMSC
Global Title, or A_MSISDN) is
wrong or is taken from a valid
originator.

6. Spoofing
The spoofing case is related to
an illegal use of the HPLMN
SMS-C by a third party. In this
case, a SMS MO with a
manipulated A-MSISDN (real or
wrong) is coming into the
HPLMN network from a foreign
VLR (real or wrong SCCP
Address).

7. GT Scanning
The GT scanning is the fact to send SMS MO to all Global Title address from
one mobile operator in order to find unsecured SMS-C (SMS-C that are not
controlling the A number).

8. Open SMS-C
An open SMS-C is a SMS-C that
accepts SMS submissions from
mobile subscribers that are not
clients of the open SMS-C
operator. The SMS-C delivers the
submitted SMS to the destination
subscriber for free.

9. Operators are aware of the risks
Operators take measures to reduce the risk of threat exploitation. They succeed in reducing subscriber and network data
leakage. In 2016, all analyzed networks used SMS Home Routing, and every third network had signaling traffic filtering and
blocking enabled.
Existing solutions are not sufficient
Despite additional protection measures, all the networks were prone to vulnerabilities caused by occasional incorrect setup
of equipment or faults in SS7 network architecture that cannot be eliminated using existing tools. Only a comprehensive
approach that combines security analysis, network setup maintenance, regular monitoring of signaling traffic, and timely
detection of illegitimate activities can ensure a higher level of protection against criminals.
