1. C O L L E C T I O N
RAILING
fiberondecking.com

2. It’s the first feature to be noticed, and the one that leaves the most lasting impression. You lean on it
during casual conversations. Grasp it as you descend the stairs. Even use it as an impromptu table.
The right railing complements your space as well as your style. And always provides a solid,
safe surround.
Browse these pages to find everything you need to create your ideal railing system: designer
colors, elegant profiles, and plenty of infill options. All easy to maintain, built to last, and sure to
draw rave reviews.
2
The decking may get top billing,
but it’s the railing
that steals the show

3. 4
Strong is stylish
Designed to impress, Symmetry™ Railing is the ideal balance of looks and strength. The satin finish
is elegant yet durable. Three outstanding color choices make it easy to coordinate your railing with
your home or deck. And with its clever sub-rail reinforcement and innovative, low-maintenance
composite construction, Symmetry Railing will remain strong, sturdy, and beautiful for years
to come.
An exceptional rail for your exceptional space
• Satin finish adds understated elegance; composite construction ensures lasting durability
• Reinforced top rail and 5x5 post sleeve provides strong, sturdy feel
• Longer rail spans (up to 12 ft.) enable better sight lines
• Sculpted top rail features flat center portion, an ideal spot to rest your drink
• Hidden hardware keeps the look clean
SYMMETRYR A I L I N G Tranquil White Simply Brown Serene Black

4. 6
12-ftR A I L S PA N S
12-ft
To view available configurations, turn to page 17.
Center-punched
balusters
Hidden hardware
Improved design for faster, easier installations
• Aluminum sub-rail adds strength and stability, allowing for longer rail spans and fewer required
rail posts
• Center-punched balusters enable easier screw alignment
• Side installation method for balusters saves time
• Pre-drilled rails ensure code-compliant baluster spacing
• Bottom rail and top sub-rail (H-channel) include pre-drilled holes for angled installations
• Kits available in 6 ft., 8 ft., 10 ft., and 12 ft. lengths for both line and stair applications
• Brackets for both line and stair applications are included in every kit, eliminating the need to order
these separately
Aluminum
sub-rails

5. 8
Engineered for enjoyment
Horizon® Railing is designed for those who appreciate a custom space, and want the free time to
enjoy it. Made from premium composite materials and available in a range of colors and infill
options, Horizon lets you create a surround that’s safe, stylish, and so easy to maintain.
Ready for anything
• Drink-friendly flat top rail is perfect for entertaining
• Permanent bonded finish protects against moisture, stains, and UV rays
• Heavy-duty metal mounting brackets work in various line, stair, and 45° angle configurations
• Pre-routed rails ensure code-compliant spacing of metal and composite balusters
• Pre-routed dagger system reduces baluster installation time
HORIZONR A I L I N G White Bronze Dark Walnut Black
To view available configurations, turn to page 18.

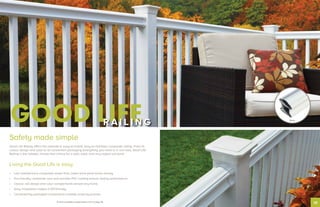

6. 10
Safety made simple
Good Life Railing offers the ultimate in easy-to-install, easy-to-maintain composite railing. From its
classic design and color to its convenient packaging (everything you need is in one box), Good Life
Railing is the reliable, hassle-free choice for a safe, solid, and very stylish surround.
Living the Good Life is easy
• Low maintenance composite saves time; lower price point saves money
• Eco-friendly composite core and durable PVC coating ensure lasting performance
• Classic rail design and color complements almost any home
• Easy installation makes it DIY-friendly
• Conveniently packaged components simplify ordering process
GOOD LIFER A I L I N G White
To view available configurations, turn to page 18.

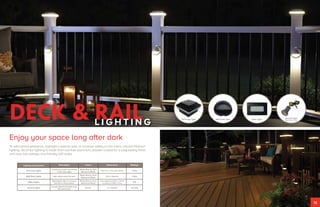

7. Enjoy your space long after dark
To add instant ambiance, highlight a special spot, or increase safety on the stairs, choose Fiberon®
lighting. All of our lighting is made from rust-free aluminum, powder-coated for a long-lasting finish,
and uses low-voltage, eco-friendly LED bulbs.
12
DECK & RAILL I G H T I N G
Post Cap Light Side Post Light Riser Light
Accent Light
(Bronze only)
Lighting Components Description Colors Dimensions Wattage
Post Cap Lights
Translucent acrylic lens shines
a soft, warm light.
White, Bronze, Dark
Walnut and Black
Fits 4 in. x 4 in. post sleeve 1 Watt
Side Post Lights Light shines down the post.
White, Bronze, Dark
Walnut and Black
3.5 in. diameter 1 Watt
Riser Lights
Rectangular light is recessed
into riser or fascia board.
White, Bronze, Dark
Walnut and Black
Face plate is 2-3/4 in. x 4-1/2
in. Lens is 1-1/8 in. x 3 in.
N/A
Accent Lights
Circular light that installs flush
into deck board.
Bronze 1 in. diameter .35 watts

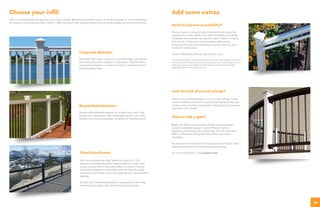

8. 14
Choose your infill
Infill can dramatically change the look of your railing. Whether you prefer classic or modern design, or want something
to maximize a spectacular look, Fiberon offers plenty of high-quality options that are long lasting and low maintenance.
Composite Balusters
Available with either a square or beveled edge, composite
balusters add classic appeal to any space. Fiberon offers
composite balusters in colors to match or complement all
Fiberon railing lines.
Round Metal Balusters
Round metal balusters appear to recede from view. Their
shape and composition add contemporary flair, yet never
detract from the surroundings. Available in versatile black.
ClearVisionSystem
Have an outstanding view? Make the most of it. The
Fiberon ClearVisionSystem® features 65-inch-wide clear,
acrylic panels that fit into either black or white channels.
ClearVisionSystem is compatible with all Fiberon railing
lines, and is the ideal choice for waterfront or mountainside
settings.
Please note: ClearVisionSystem is approved for use only
with decks no higher than 30 inches above ground.
Add some extras
Need to improve accessibility?
Fiberon makes it easy to build a handrail that meets the
requirements of the Americans with Disabilities Act (ADA).
Handrails are available by special order in 104-in. lengths
that can be connected using available ADA joiners.
Products will work with Symmetry, Horizon, Natural, and
Good Life railing lines.
Colors: White/Black/Brown; gloss finish only.
Components include: round handrail kits; wall return kit; straight wall return
kit; bracket kit; 90-degree corner; end loop; post return; joint rings; rail end
caps; wall return cover plates; and 90-degree insert corner brackets,
adjustable joiners and straight joiners.
Love the look of curved railings?
Fiberon recommends Bugh, Inc. for curved railings. These
master craftsmen can bend any Fiberon railing to help you
create a one-of-a-kind masterpiece. All projects are custom.
Lead time is 3+ weeks.
Want to add a gate?
Bugh, Inc. offers professionally made, pre-assembled
custom composite gates to match Fiberon Horizon,
Symmetry, and Good Life railing lines. For the dedicated
DIYer, a Universal Composite Gate Frame Kit is also
available.
All products are available to ship nationwide. Please note:
Gate products are for decorative purposes only.
For more information, visit bughinc.com.

9. 16
3 simple steps to your ideal railing system The difference between rail kits and sections
Fiberon railing is sold in kits or sections. Rail Sections include balusters whereas rail kits do not.
For more detailed information, see railing charts on pages 17-18.
CLEARVISIONSYSTEM CLEARVISIONSYSTEM CLEARVISIONSYSTEM
1
2
3
Choose your rail
style and color
Symmetry Railing Horizon Railing Good Life Railing
Choose your
balusters or infill
Add post sleeves,
caps, and base
mouldings
Tranquil White
Tranquil White
BLACK METAL
BALUSTERS
BLACK METAL
BALUSTERS
Simply Brown
Simply Brown
BEVELED BALUSTERS
Tranquil White Simply Brown Serene Black White WhiteBronze Dark Walnut Black
POST SLEEVE BASE MOULDINGS POST SLEEVE BASE MOULDINGS POST SLEEVE BASE MOULDINGS
Tranquil White Simply Brown Serene Black White WhiteBronze Dark Walnut Black
POST SLEEVE CAPS POST SLEEVE CAPS POST SLEEVE CAPS
SQUARE BALUSTERS SQUARE BALUSTERS
Serene Black
Serene Black
CABLE RAIL CABLE RAIL
White
White White
WhiteBronze
Bronze
Dark Walnut
Dark Walnut
Black
Black
5 in. x 5 in. POST SLEEVE 4 in. x 4 in. POST SLEEVE 4 in. x 4 in. POST SLEEVE
Tranquil White Simply Brown Serene Black White WhiteBronze Dark Walnut Black
Post Cap Post Cap
Top Rail
Bottom Rail
Post Base Moulding Post Base Moulding
Post
Sleeve
Post
Sleeve
Balusters
3
1
2
Here’s a quick rundown of your options:
Symmetry Railing
• Rail Kits include top and bottom rails (either routed or unrouted) and mounting hardware. They are available in all
three Symmetry Railing colors and in various lengths.
• Rail Sections include top and bottom rails (routed only), beveled balusters, and mounting hardware. They are
available in various lengths, all in white.
Horizon Railing
• Rail Kits include top and bottom rails, mounting hardware, and square baluster inserts (although you can use other
balusters or infill). They are available in all four Horizon Railing colors and in various lengths.
• Rail Sections include top and bottom rails, mounting hardware, baluster inserts, and either composite balusters or
metal balusters. The sections are available in white only, and in various lengths.
Good Life Railing
• Rail Sections are available in white. The sections include top and bottom rails, mounting hardware, and matching
white composite balusters. Various lengths are available. Rail kits are not offered for Good Life.
Rail Section Rail Kit

10. Symmetry™ Railing Components
Available Lengths
t. 6 ft. 8 ft. 10 ft. 12 ft.
Line/Stair rail kits - routed (all colors) ✓ ✓ ✓ ✓
Line/Stair rail kits - unrouted (all colors) - designed for custom infil options ✓
Line/Stair rail sections with beveled balusters, 36 in. rail heights (White only) ✓ ✓
Infill Options
Available Heights
36 in. 42 in.
Beveled Composite Balusters (all colors) ✓ ✓
Round Metal Balusters (Black) ✓ ✓
ClearVisionSystem (Black or White channel) ✓
Post Sleeves
Available Lengths
39 in. 45 in. 108 in.
Post Sleeves (all colors) 5 in. x 5 in. ✓ ✓ ✓
Post Caps and Skirts
Dimensions
4 in. x 4 in. 5 in. x 5 in.
Pyramid Post Caps (all colors) ✓
Post Skirts (all colors) ✓
• Rail kits include top and bottom rails, H-channel, U-channel (if applicable), and hardware.
• Un-routed rail kits include un-routed top and bottom rails, H-channel, and hardware.
• Rail sections include top and bottom rails, H-channel, U-channel (if applicable), beveled balusters with screws, and line/stair hardware pack.
• Rail sections include top and bottom rails,
hardware, and square composite balusters.
Good Life Railing Components
Available Lengths
6 ft. 8 ft.
Rail sections with matching composite balusters
• Line sections available in 36 in. and 42 in. rail heights
• Stair sections available in 36 in. and 42 in. rail heights
✓
✓
✓
✓
Infill Options
Available Heights
36 in. 42 in.
Square Composite Balusters (White) ✓ ✓
ClearVisionSystem (White channel) ✓
Post Sleeves Available Lengths
Post Sleeves (White) 4 in. x 4 in. 39 in. 48 in. 108 in.
Post Caps and Skirts
Dimensions
4 in. x 4 in. 5 in. x 5 in.
Harbour Post Caps (White) ✓
Post Skirts (White) ✓
18
• Line and stair rail kits include top and bottom rails, hardware, and square baluster inserts
• Rail sections with square composite balusters include top and bottom rails, hardware, square composite balusters, and baluster inserts.
• Rail sections with round metal balusters include top and bottom rails, hardware, round metal balusters, and baluster inserts.
Horizon® Railing Components
Available Lengths
6 ft. 8 ft.
Line rail kits (Black, Dark Walnut, Bronze) ✓ ✓
Rail sections for Square Composite Balusters (White only)
• Line sections available in 36 in. and 42 in. rail heights
• Stair sections available in 42 in. rail heights
✓
✓
✓
✓
Rail sections for Round Metal Balusters (White only)
• Line sections available in 36 in. and 42 in. rail heights
• Stair sections available in 42 in. rail heights
✓
✓
✓
✓
Infill Options
Available Heights
36 in. 4 42 in. 2 in.
Composite Balusters (all colors) ✓ ✓
Round Metal Balusters (Black) ✓ ✓
ClearVisionSystem (Black or White channel) ✓
Post Sleeves Available Lengths
Post Sleeves (White) 4 in. x 4 in. 39 in.
Post Sleeves (all colors) 4 in. x 4 in. 48 in. 108 in.
Post Caps and Skirts
Dimensions
4 in. x 4 in. 5 in. x 5 in.
Harbour Post Caps (all colors) ✓
Post Skirts (all colors) ✓
Available Railing Configurations
H Rail Profile U Rail Profile
Top Rail Profile:
2.974 in. x 2.974 in.
Bottom Rail Profile:
2 in. x 2 in.
Top Rail Profile:
3.75 in. x 2.25 in.
Bottom Rail Profile:
3.5 in. x 1.75 in.
Top Rail Profile:
2.97 in. x 2.97 in.
Bottom Rail Profile:
2 in. x 3.5 in.

11. Fiberon, Paramount, Horizon, Permatech, ProTect Advantage, Good Life, Symmetry
Phantom and ClearVisionSystem are trademarks of Fiber Composites, LLC,
registered in the U.S. and other countries.
MKTLITBROCHURERLG12/15
fiberondecking.com
1.800.573.8841
Made in the USA

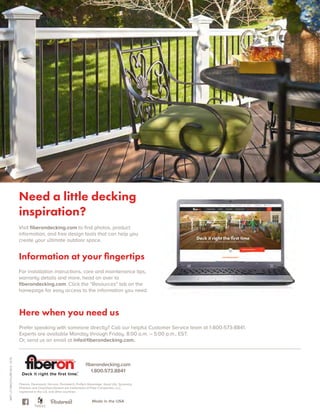

Need a little decking
inspiration?
Visit fiberondecking.com to find photos, product
information, and free design tools that can help you
create your ultimate outdoor space.
Information at your fingertips
For installation instructions, care and maintenance tips,
warranty details and more, head on over to
fiberondecking.com. Click the “Resources” tab on the
homepage for easy access to the information you need.
Here when you need us
Prefer speaking with someone directly? Call our helpful Customer Service team at 1-800-573-8841.
Experts are available Monday through Friday, 8:00 a.m. – 5:00 p.m., EST.
Or, send us an email at info@fiberondecking.com.
