- 1. Fero Strata Platesoffer optimal surface support when used in conjunction with Fero friction stabilisers, wriggle bolts, solid bolts and cable bolts. A Division of Fero Group Strata Support Plates

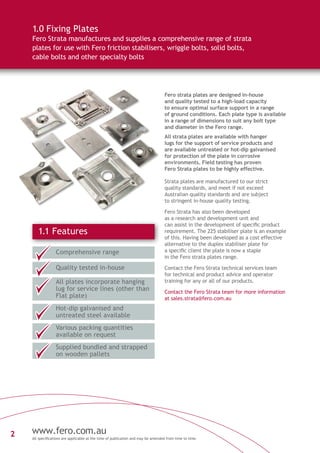

- 2. 2 www.fero.com.au All specificationsare applicable at the time of publication and may be amended from time to time. Fero strata plates are designed in-house and quality tested to a high-load capacity to ensure optimal surface support in a range of ground conditions. Each plate type is available in a range of dimensions to suit any bolt type and diameter in the Fero range. All strata plates are available with hanger lugs for the support of service products and are available untreated or hot-dip galvanised for protection of the plate in corrosive environments. Field testing has proven Fero Strata plates to be highly effective. Strata plates are manufactured to our strict quality standards, and meet if not exceed Australian quality standards and are subject to stringent in-house quality testing. Fero Strata has also been developed as a research and development unit and can assist in the development of specific product requirement. The 225 stabiliser plate is an example of this. Having been developed as a cost effective alternative to the duplex stabiliser plate for a specific client the plate is now a staple in the Fero strata plates range. Contact the Fero Strata technical services team for technical and product advice and operator training for any or all of our products. Contact the Fero Strata team for more information at sales.strata@fero.com.au 1.1 Features Comprehensive range Quality tested in-house Hot-dip galvanised and untreated steel available Various packing quantities available on request Supplied bundled and strapped on wooden pallets All plates incorporate hanging lug for service lines (other than Flat plate) 1.0 Fixing Plates Fero Strata manufactures and supplies a comprehensive range of strata plates for use with Fero friction stabilisers, wriggle bolts, solid bolts, cable bolts and other specialty bolts

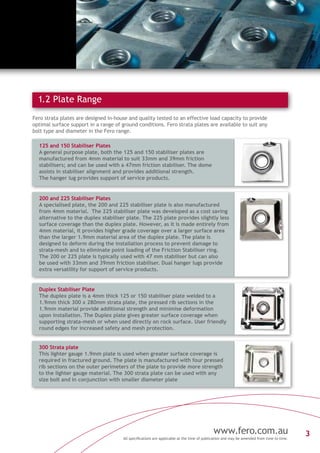

- 3. 3www.fero.com.au All specifications areapplicable at the time of publication and may be amended from time to time. 1.2 Plate Range Fero strata plates are designed in-house and quality tested to an effective load capacity to provide optimal surface support in a range of ground conditions. Fero strata plates are available to suit any bolt type and diameter in the Fero range. 125 and 150 Stabiliser Plates A general purpose plate, both the 125 and 150 stabiliser plates are manufactured from 4mm material to suit 33mm and 39mm friction stabilisers; and can be used with a 47mm friction stabiliser. The dome assists in stabiliser alignment and provides additional strength. The hanger lug provides support of service products. 300 Strata plate This lighter gauge 1.9mm plate is used when greater surface coverage is required in fractured ground. The plate is manufactured with four pressed rib sections on the outer perimeters of the plate to provide more strength to the lighter gauge material. The 300 strata plate can be used with any size bolt and in conjunction with smaller diameter plate Duplex Stabiliser Plate The duplex plate is a 4mm thick 125 or 150 stabiliser plate welded to a 1.9mm thick 300 x 280mm strata plate, the pressed rib sections in the 1.9mm material provide additional strength and minimise deformation upon installation. The Duplex plate gives greater surface coverage when supporting strata-mesh or when used directly on rock surface. User friendly round edges for increased safety and mesh protection. 200 and 225 Stabiliser Plates A specialised plate, the 200 and 225 stabiliser plate is also manufactured from 4mm material. The 225 stabiliser plate was developed as a cost saving alternative to the duplex stabiliser plate. The 225 plate provides slightly less surface coverage than the duplex plate. However, as it is made entirely from 4mm material, it provides higher grade coverage over a larger surface area than the larger 1.9mm material area of the duplex plate. The plate is designed to deform during the installation process to prevent damage to strata-mesh and to eliminate point loading of the Friction Stabiliser ring. The 200 or 225 plate is typically used with 47 mm stabiliser but can also be used with 33mm and 39mm friction stabiliser. Dual hanger lugs provide extra versatility for support of service products.

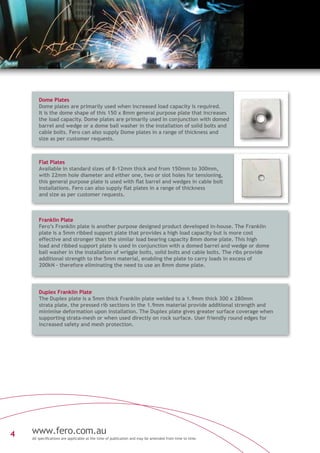

- 4. www.fero.com.au All specifications areapplicable at the time of publication and may be amended from time to time. 4 Franklin Plate Fero’s Franklin plate is another purpose designed product developed in-house. The Franklin plate is a 5mm ribbed support plate that provides a high load capacity but is more cost effective and stronger than the similar load bearing capacity 8mm dome plate. This high load and ribbed support plate is used in conjunction with a domed barrel and wedge or dome ball washer in the installation of wriggle bolts, solid bolts and cable bolts. The ribs provide additional strength to the 5mm material, enabling the plate to carry loads in excess of 200kN – therefore eliminating the need to use an 8mm dome plate. Duplex Franklin Plate The Duplex plate is a 5mm thick Franklin plate welded to a 1.9mm thick 300 x 280mm strata plate, the pressed rib sections in the 1.9mm material provide additional strength and minimise deformation upon installation. The Duplex plate gives greater surface coverage when supporting strata-mesh or when used directly on rock surface. User friendly round edges for increased safety and mesh protection. Dome Plates Dome plates are primarily used when increased load capacity is required. It is the dome shape of this 150 x 8mm general purpose plate that increases the load capacity. Dome plates are primarily used in conjunction with domed barrel and wedge or a dome ball washer in the installation of solid bolts and cable bolts. Fero can also supply Dome plates in a range of thickness and size as per customer requests. Flat Plates Available in standard sizes of 8-12mm thick and from 150mm to 300mm, with 22mm hole diameter and either one, two or slot holes for tensioning, this general purpose plate is used with flat barrel and wedges in cable bolt installations. Fero can also supply flat plates in a range of thickness and size as per customer requests.

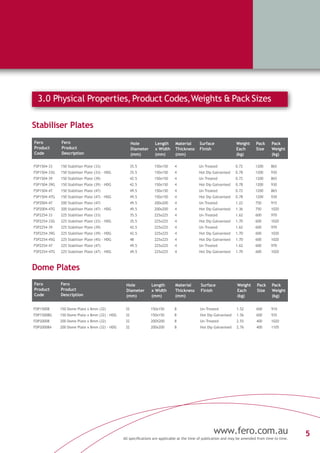

- 5. 5www.fero.com.au All specifications areapplicable at the time of publication and may be amended from time to time. 3.0 Physical Properties,Product Codes,Weights & Pack Sizes Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) FSP1504-33 150 Stabiliser Plate (33) 35.5 150x150 4 Un-Treated 0.72 1200 865 FSP1504-33G 150 Stabiliser Plate (33) - HDG 35.5 150x150 4 Hot Dip Galvanised 0.78 1200 930 FSP1504-39 150 Stabiliser Plate (39) 42.5 150x150 4 Un-Treated 0.72 1200 865 FSP1504-39G 150 Stabiliser Plate (39) - HDG 42.5 150x150 4 Hot Dip Galvanised 0.78 1200 930 FSP1504-47 150 Stabiliser Plate (47) 49.5 150x150 4 Un-Treated 0.72 1200 865 FSP1504-47G 150 Stabiliser Plate (47) - HDG 49.5 150x150 4 Hot Dip Galvanised 0.78 1200 930 FSP2004-47 200 Stabiliser Plate (47) 49.5 200x200 4 Un-Treated 1.22 750 915 FSP2004-47G 200 Stabiliser Plate (47) - HDG 49.5 200x200 4 Hot Dip Galvanised 1.36 750 1020 FSP2254-33 225 Stabiliser Plate (33) 35.5 225x225 4 Un-Treated 1.62 600 970 FSP2254-33G 225 Stabiliser Plate (33) - HDG 35.5 225x225 4 Hot Dip Galvanised 1.70 600 1020 FSP2254-39 225 Stabiliser Plate (39) 42.5 225x225 4 Un-Treated 1.62 600 970 FSP2254-39G 225 Stabiliser Plate (39) - HDG 42.5 225x225 4 Hot Dip Galvanised 1.70 600 1020 FSP2254-45G 225 Stabiliser Plate (45) - HDG 48 225x225 4 Hot Dip Galvanised 1.70 600 1020 FSP2254-47 225 Stabiliser Plate (47) 49.5 225x225 4 Un-Treated 1.62 600 970 FSP2254-47G 225 Stabiliser Plate (47) - HDG 49.5 225x225 4 Hot Dip Galvanised 1.70 600 1020 Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) FDP15008 150 Dome Plate x 8mm (32) 32 150x150 8 Un-Treated 1.52 600 910 FDP15008G 150 Dome Plate x 8mm (32) - HDG 32 150x150 8 Hot Dip Galvanised 1.56 600 935 FDP20008 200 Dome Plate x 8mm (32) 32 200X200 8 Un-Treated 2.55 400 1020 FDP200084 200 Dome Plate x 8mm (32) - HDG 32 200x200 8 Hot Dip Galvanised 2.76 400 1105 Stabiliser Plates Dome Plates

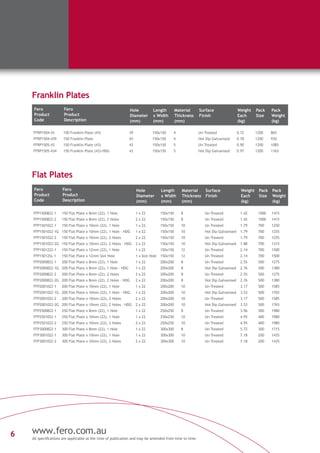

- 6. 6 www.fero.com.au All specificationsare applicable at the time of publication and may be amended from time to time. Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) FFP1500822-1 150 Flat Plate x 8mm (22), 1 Hole 1 x 22 150x150 8 Un-Treated 1.42 1000 1415 FFP1500822-2 150 Flat Plate x 8mm (22), 2 Holes 2 x 22 150x150 8 Un-Treated 1.42 1000 1415 FFP1501022-1 150 Flat Plate x 10mm (22), 1 Hole 1 x 22 150x150 10 Un-Treated 1.79 700 1250 FFP1501022-1G 150 Flat Plate x 10mm (22), 1 Hole - HDG 1 x 22 150x150 10 Hot Dip Galvanised 1.79 700 1255 FFP1501022-2 150 Flat Plate x 10mm (22), 2 Holes 2 x 22 150x150 10 Un-Treated 1.79 700 1255 FFP1501022-2G 150 Flat Plate x 10mm (22), 2 Holes - HDG 2 x 22 150x150 10 Hot Dip Galvanised 1.88 700 1315 FFP1501222-1 150 Flat Plate x 12mm (22), 1 Hole 1 x 22 150x150 12 Un-Treated 2.14 700 1500 FFP15012SL-1 150 Flat Plate x 12mm Slot Hole 1 x Slot Hole 150x150 12 Un-Treated 2.14 700 1500 FFP2000822-1 200 Flat Plate x 8mm (22), 1 Hole 1 x 22 200x200 8 Un-Treated 2.55 500 1275 FFP2000822-1G 200 Flat Plate x 8mm (22), 1 Hole - HDG 1 x 22 200x200 8 Hot Dip Galvanised 2.76 500 1380 FFP2000822-2 200 Flat Plate x 8mm (22), 2 Holes 2 x 22 200x200 8 Un-Treated 2.55 500 1275 FFP2000822-2G 200 Flat Plate x 8mm (22), 2 Holes - HDG 2 x 22 200x200 8 Hot Dip Galvanised 2.76 500 1380 FFP2001022-1 200 Flat Plate x 10mm (22), 1 Hole 1 x 22 200x200 10 Un-Treated 3.17 500 1585 FFP2001022-1G 200 Flat Plate x 10mm (22), 1 Hole - HDG 1 x 22 200x200 10 Hot Dip Galvanised 3.53 500 1765 FFP2001022-2 200 Flat Plate x 10mm (22), 2 Holes 2 x 22 200x200 10 Un-Treated 3.17 500 1585 FFP2001022-2G 200 Flat Plate x 10mm (22), 2 Holes - HDG 2 x 22 200x200 10 Hot Dip Galvanised 3.53 500 1765 FFP2500822-1 250 Flat Plate x 8mm (22), 1 Hole 1 x 22 250x250 8 Un-Treated 3.96 500 1980 FFP2501022-1 250 Flat Plate x 10mm (22), 1 Hole 1 x 22 250x250 10 Un-Treated 4.95 400 1980 FFP2501022-2 250 Flat Plate x 10mm (22), 2 Holes 2 x 22 250x250 10 Un-Treated 4.95 400 1980 FFP3000822-1 300 Flat Plate x 8mm (22), 1 Hole 1 x 22 300x300 8 Un-Treated 5.72 300 1715 FFP3001022-1 300 Flat Plate x 10mm (22), 1 Hole 1 x 22 300x300 10 Un-Treated 7.18 200 1435 FFP3001022-2 300 Flat Plate x 10mm (22), 2 Holes 2 x 22 300x300 10 Un-Treated 7.18 200 1435 Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) FFRP1504-43 150 Franklin Plate (43) 39 150x150 4 Un-Treated 0.72 1200 865 FFRP1504-439 150 Franklin Plate 43 150x150 4 Hot Dip Galvanised 0.78 1200 930 FFRP1505-43 150 Franklin Plate (43) 43 150x150 5 Un-Treated 0.90 1200 1085 FFRP1505-434 150 Franklin Plate (43)-HDG 43 150x150 5 Hot Dip Galvanised 0.97 1200 1165 Flat Plates Franklin Plates
- 7. 7www.fero.com.au All specifications areapplicable at the time of publication and may be amended from time to time. Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) FSP324-50 300 Strata Plate x 240 (50) 50 300x240 1.9 Un-Treated 1.17 700 820 FSP324-50G 300 Strata Plate x 240 (50) - HDG 50 300x240 1.9 Hot dip Galvanised 1.25 700 875 FSP324-50PG 300 Strata Plate 240 (50) - Galv 50 300x240 1.9 Galvanised 1.17 700 820 FSP328-50 300 Strata Plate (50) 50 300x280 1.9 Un-Treated 1.28 700 895 FSP328-50PG 300 Strata Plate (50) - Galv 50 300x280 1.9 Hot dip Galvanised 1.28 700 895 FSP328-50G 300 Strata Plate (50) - HDG 50 300x280 1.9 Galvanised 1.36 700 955 Strata Plates Fero Product Code Fero Product Description Hole Diameter (mm) Length x Width (mm) Material Thickness (mm) Surface Finish Weight Each (kg) Pack Size Pack Weight (kg) Top Bottom Top Bottom FDSP32815-33 300 Duplex Stabiliser Plate (33) 35.5 150 x 150 300 x 280 4 1.9 Un-Treated 2.03 300 610 FDSP32815-33G 300 Duplex Stabiliser Plate (33) - HDG 35.5 150 x 150 300 x 280 4 1.9 Hot dip Galvanised 2.13 300 640 FDSP32815-39 300 Duplex Stabiliser Plate (39) 42.5 150 x 150 300 x 280 4 1.9 Un-Treated 2.03 300 610 FDSP32815-39G 300 Duplex Stabiliser Plate (39) - HDG 42.5 150 x 150 300 x 280 4 1.9 Hot dip Galvanised 2.13 300 640 FDSP32815-47 300 Duplex Stabiliser Plate (47) 49.5 150 x 150 300 x 280 4 1.9 Un-Treated 2.03 300 610 FDSP32815-47G 300 Duplex Stabiliser Plate (47) - HDG 49.5 150 x 150 300 x 280 4 1.9 Hot dip Galvanised 2.13 300 640 FDDP328158-32 300 Duplex Dome Plate (32) 32 150 x 150 300 x 280 8 1.9 Un-Treated 2.72 300 815 FDDP328158-32G 300 Duplex Dome Plate (32) - HDG 32 150 x 150 300 x 280 8 1.9 Hot dip Galvanised 2.90 300 870 FDFP328154-43 300 Duplex Franklin Plate (43) 43 150 x 150 300 x 280 4 1.9 Un-Treated 2.03 300 610 FDFP328154-43G 300 Duplex Franklin Plate (43) - HDG 43 150 x 150 300 x 280 4 1.9 Hot dip Galvanised 2.13 300 640 Duplex Plates
