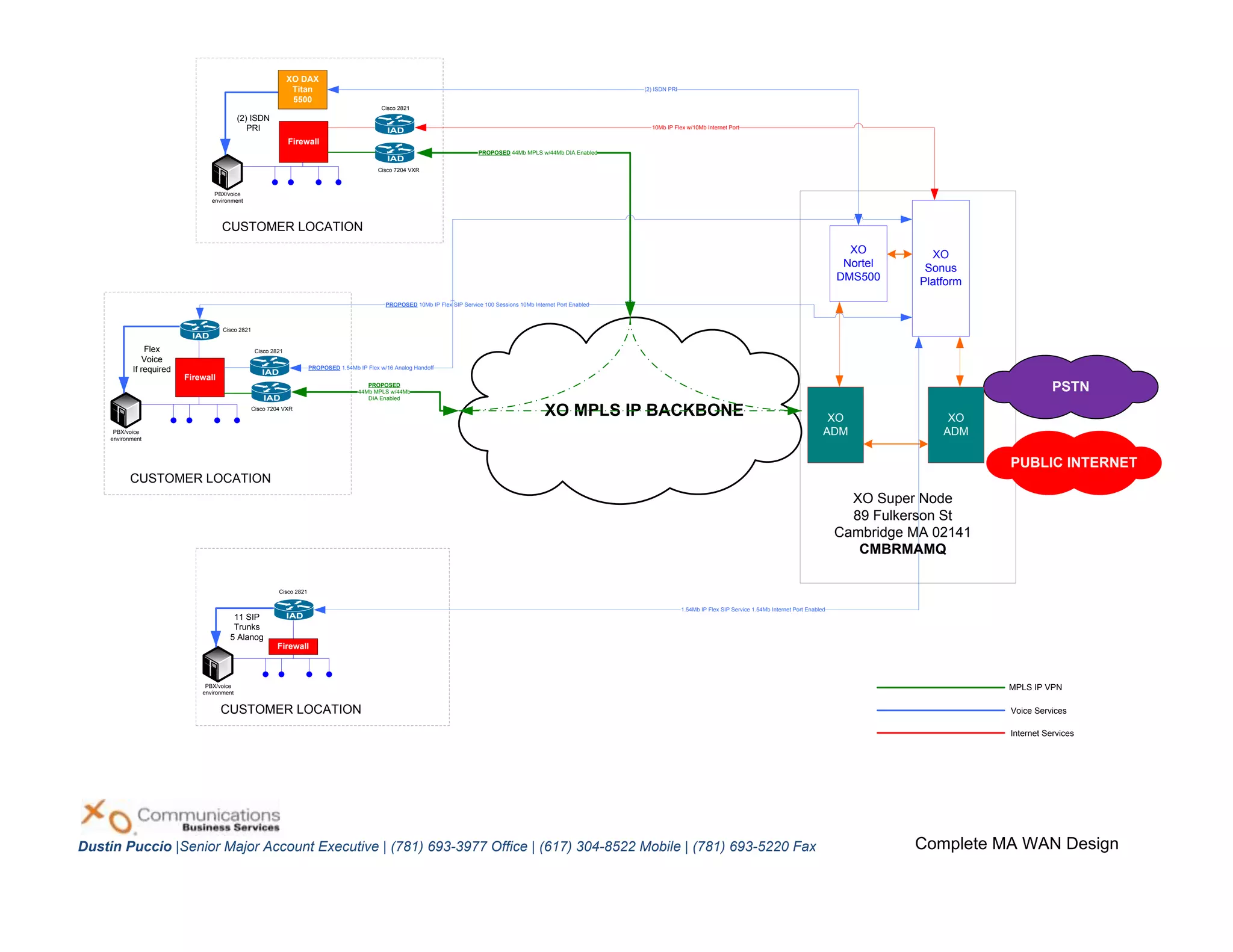

The document outlines a proposed telecommunications infrastructure involving multiple Cisco devices and services, including ISDN PRI, MPLS, and internet connectivity options for a customer location. It details the specifications for voice services, internet services, and network design components. Key contacts and their roles are provided, along with geographical information for the customer site.

1. XO DAX
Titan (2) ISDN PRI
5500
Cisco 2821
(2) ISDN
PRI IAD 10Mb IP Flex w/10Mb Internet Port
Firewall
PROPOSED 44Mb MPLS w/44Mb DIA Enabled
IAD
Cisco 7204 VXR
PBX/voice
environment
CUSTOMER LOCATION
XO XO
Nortel Sonus
DMS500 Platform
PROPOSED 10Mb IP Flex SIP Service 100 Sessions 10Mb Internet Port Enabled
Cisco 2821
IAD
Flex Cisco 2821
Voice
If required PROPOSED 1.54Mb IP Flex w/16 Analog Handoff
IAD
Firewall
PROPOSED
44Mb MPLS w/44Mb PSTN
IAD DIA Enabled
Cisco 7204 VXR
XO MPLS IP BACKBONE XO XO
PBX/voice ADM ADM
environment
PUBLIC INTERNET
CUSTOMER LOCATION
XO Super Node
89 Fulkerson St
Cambridge MA 02141
CMBRMAMQ
Cisco 2821
1.54Mb IP Flex SIP Service 1.54Mb Internet Port Enabled
11 SIP IAD
Trunks
5 Alanog
Firewall
PBX/voice MPLS IP VPN
environment
CUSTOMER LOCATION Voice Services
Internet Services
Dustin Puccio |Senior Major Account Executive | (781) 693-3977 Office | (617) 304-8522 Mobile | (781) 693-5220 Fax Complete MA WAN Design
