This 3-page document contains a bill of materials, isometric view, and exploded view for a construction project using light natural wood profiles. The bill of materials lists 8 pieces of 40x40mm profile at 420mm length, 4 pieces at 500mm, and 16 standard fastening sets. The isometric view shows the assembled construction. The exploded view separates the components for clarity.

1. Page 1/3 Project : example 1, 0b1cfa7b62e0ecf90dff693c4a171cd61

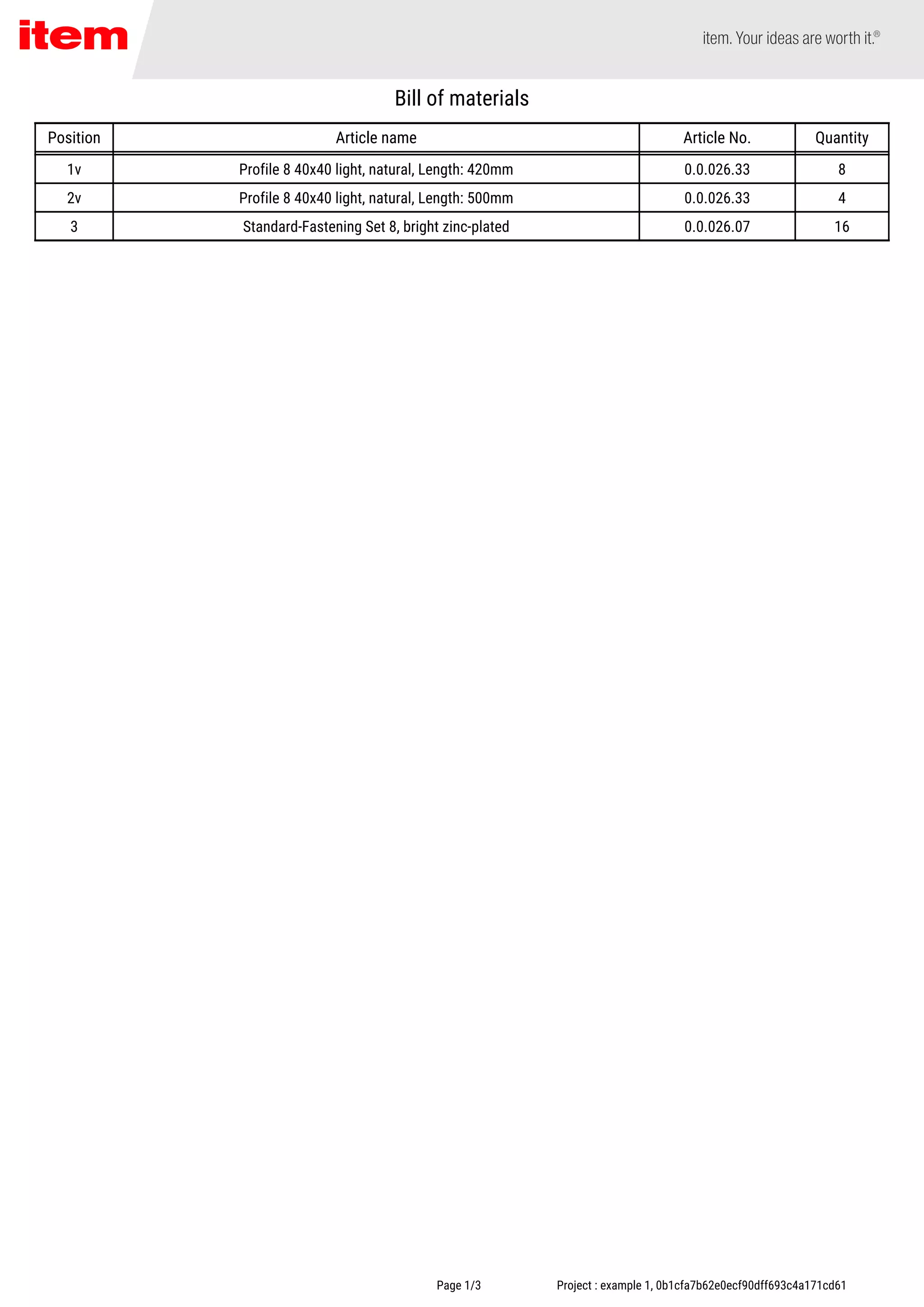

Bill of materials
Position Article name Article No. Quantity
1v Profile 8 40x40 light, natural, Length: 420mm 0.0.026.33 8
2v Profile 8 40x40 light, natural, Length: 500mm 0.0.026.33 4
3 Standard-Fastening Set 8, bright zinc-plated 0.0.026.07 16

2. Page 2/3 Project : example 1, 0b1cfa7b62e0ecf90dff693c4a171cd61

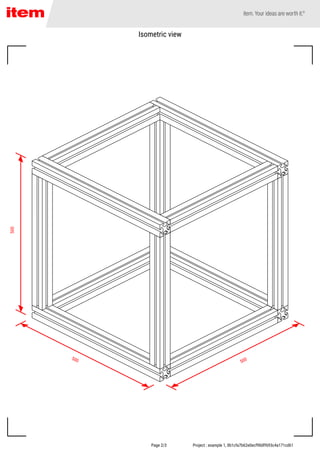

Isometric view
500
500
500

3. Page 3/3 Project : example 1, 0b1cfa7b62e0ecf90dff693c4a171cd61

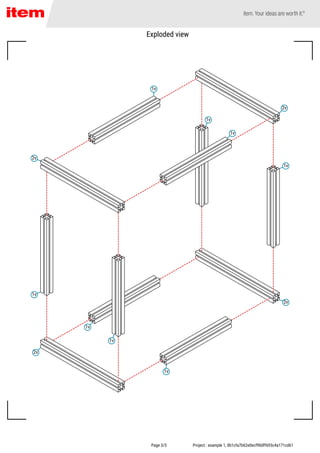

Exploded view
2v
1v
2v
1v
1v
2v
1v
1v
1v
2v
1v
1v
