The eTrice Eclipse Project aims to provide modeling tools for embedded systems using the Real Time Object Oriented Modeling (ROOM) language. It will include graphical and textual editors for ROOM, code generators for multiple languages, and debugging support. The project is currently in an incubation phase, with prototypes of ROOM editors and code generation for Java. Future plans include expanding language support and gathering an open source community to contribute to the project.

1. The eTrice Eclipse Project
Thomas Schütz & Henrik Rentz-Reichert
Protos Software GmbH
Eclipse Summit Europe 2010, Ludwigsburg

2. © 2010 protos Software GmbH 2 03.11.2010

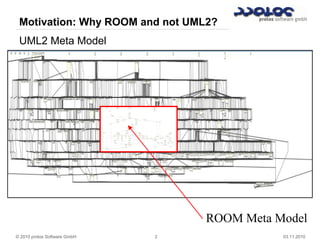

Motivation: Why ROOM and not UML2?
UML2 Meta Model
ROOM Meta Model

3. © 2010 protos Software GmbH 3 03.11.2010

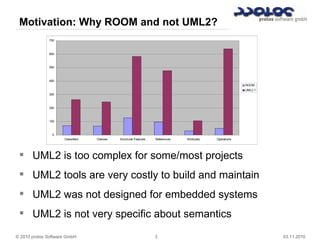

Motivation: Why ROOM and not UML2?
 UML2 is too complex for some/most projects
 UML2 tools are very costly to build and maintain
 UML2 was not designed for embedded systems
 UML2 is not very specific about semantics
0
100
200
300
400
500
600
700
Classifiers Classes Structural Features References Attributes Operations
ROOM
UML2.1

4. © 2010 protos Software GmbH 4 03.11.2010
Scope of eTrice
 provide an implementation of the modeling language Real Time Object
Oriented Modeling (ROOM)
 build ready to use editors for ROOM models (textual and graphical)
 create code generators and portable target runtime libraries for Java, C++,
and C (and …)
 provide built-in support for model level debugging of the running target
software: state machine animation, data inspection and manipulation and
message injection
 provide built-in possibilities for sequence diagram creation from the running
software
 support heterogenous distributed systems out of the box
 eTrice is a Modeling Toolset for eventdriven, distributed embedded
systems

5. © 2010 protos Software GmbH 5 03.11.2010

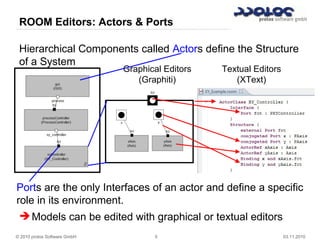

Hierarchical Components called Actors define the Structure
of a System
ROOM Editors: Actors & Ports
Ports are the only Interfaces of an actor and define a specific
role in its environment.
Graphical Editors
(Graphiti)
Textual Editors
(XText)
Models can be edited with graphical or textual editors

6. © 2010 protos Software GmbH 6 03.11.2010
ROOM Editors: Statemachines
hierarchical Statemachines define the dynamical behaviour
of Actors

7. © 2010 protos Software GmbH 7 03.11.2010

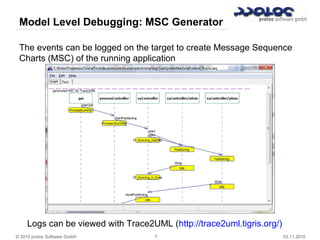

Model Level Debugging: MSC Generator
The events can be logged on the target to create Message Sequence
Charts (MSC) of the running application
Logs can be viewed with Trace2UML (http://trace2uml.tigris.org/)

8. © 2010 protos Software GmbH 8 03.11.2010
Project Plan: Current Status
Organizational:
 incubation phase
 gathering of community
Technical:
 precursor tool Trice since 1998 -> new implementation with Eclipse
 prototype:
 ROOM grammar for static structure and behaviour
 XText editors
 codegenerator and middleware for Java
 first graphical editor (Actor Structure)

9. © 2010 protos Software GmbH 9 03.11.2010

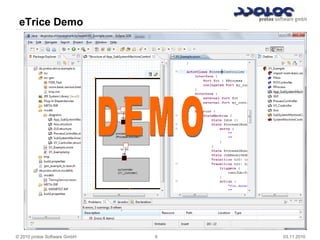

eTrice Demo

10. © 2010 protos Software GmbH 10 03.11.2010

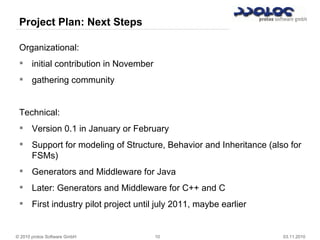

Project Plan: Next Steps
Organizational:
 initial contribution in November
 gathering community
Technical:
 Version 0.1 in January or February
 Support for modeling of Structure, Behavior and Inheritance (also for
FSMs)
 Generators and Middleware for Java
 Later: Generators and Middleware for C++ and C
 First industry pilot project until july 2011, maybe earlier

11. © 2010 protos Software GmbH 11 03.11.2010
Thank you for your attention
Thomas Schütz ts@protos.de
Henrik Rentz-Reichert hrr@protos.de
http://www.eclipse.org/proposals/etrice
