1. JIMMA UNIVERSITY
INSTITUTE OF HEALTH
FACULTY OF HEALTH SCIENCES
SCHOOL OF MEDICAL LABORATORY
DEPARTEMENT OF CLINICAL CHEMISTERY
ADVANCED ENZYMOLOGY

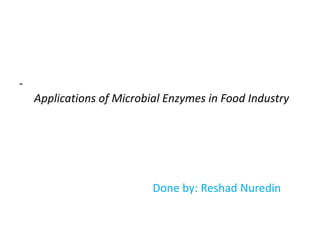

2. -
Applications of Microbial Enzymes in Food Industry
Done by: Reshad Nuredin

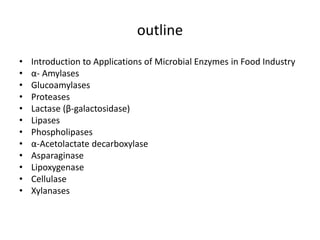

3. outline
• Introduction to Applications of Microbial Enzymes in Food Industry
• α- Amylases
• Glucoamylases
• Proteases
• Lactase (β-galactosidase)
• Lipases
• Phospholipases
• α-Acetolactate decarboxylase
• Asparaginase
• Lipoxygenase
• Cellulase
• Xylanases

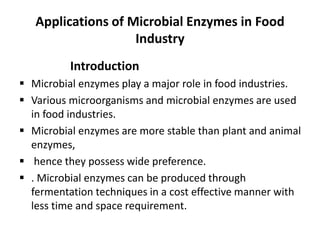

4. Applications of Microbial Enzymes in Food
Industry
Introduction
▪ Microbial enzymes play a major role in food industries.
▪ Various microorganisms and microbial enzymes are used
in food industries.
▪ Microbial enzymes are more stable than plant and animal
enzymes,
▪ hence they possess wide preference.
▪ . Microbial enzymes can be produced through
fermentation techniques in a cost effective manner with
less time and space requirement.

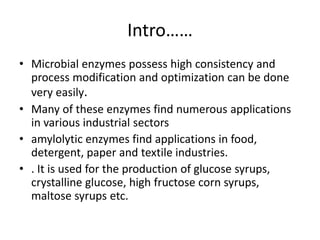

5. Intro……
• Microbial enzymes possess high consistency and
process modification and optimization can be done
very easily.
• Many of these enzymes find numerous applications
in various industrial sectors
• amylolytic enzymes find applications in food,
detergent, paper and textile industries.
• . It is used for the production of glucose syrups,
crystalline glucose, high fructose corn syrups,
maltose syrups etc.

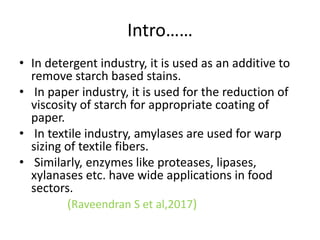

6. Intro……
• In detergent industry, it is used as an additive to
remove starch based stains.
• In paper industry, it is used for the reduction of
viscosity of starch for appropriate coating of
paper.
• In textile industry, amylases are used for warp
sizing of textile fibers.
• Similarly, enzymes like proteases, lipases,
xylanases etc. have wide applications in food
sectors.
(Raveendran S et al,2017)

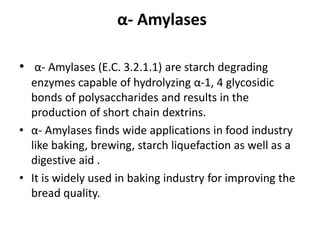

7. α- Amylases
• α- Amylases (E.C. 3.2.1.1) are starch degrading
enzymes capable of hydrolyzing α-1, 4 glycosidic
bonds of polysaccharides and results in the
production of short chain dextrins.
• α- Amylases finds wide applications in food industry
like baking, brewing, starch liquefaction as well as a
digestive aid .
• It is widely used in baking industry for improving the
bread quality.

8. Conti……
• . During the baking process, α- amylases are
added to dough of bread and results in the
conversion of starch to smaller dextrins which
are subsequently fermented by yeast.
• It improves the taste, crust colour and toasting
qualities of bread.
• Enzymatic conversion of starch involves three
steps - gelatinization, liquefaction And
saccharification.

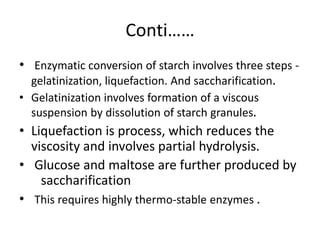

9. Conti……
• Enzymatic conversion of starch involves three steps -
gelatinization, liquefaction. And saccharification.
• Gelatinization involves formation of a viscous
suspension by dissolution of starch granules.
• Liquefaction is process, which reduces the
viscosity and involves partial hydrolysis.
• Glucose and maltose are further produced by
saccharification
• This requires highly thermo-stable enzymes .

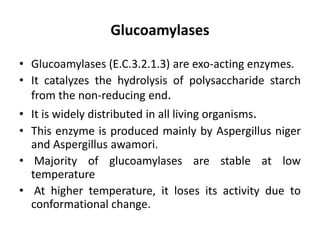

10. Glucoamylases
• Glucoamylases (E.C.3.2.1.3) are exo-acting enzymes.
• It catalyzes the hydrolysis of polysaccharide starch
from the non-reducing end.
• It is widely distributed in all living organisms.
• This enzyme is produced mainly by Aspergillus niger
and Aspergillus awamori.
• Majority of glucoamylases are stable at low
temperature
• At higher temperature, it loses its activity due to
conformational change.

11. Conti…….
• It is widely used for the production of high glucose
syrups as well as high fructose syrups.
• It improves bread crust colour and improves quality
of high fiber baked products.
• It converts the starch present in flour to maltose and
fermentable sugars.
• Glucoamylase plays an important role in the
production of sake and soya sauce.
• It is used for the production of light beer.

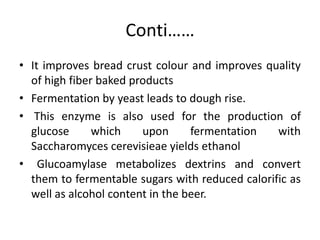

12. Conti……
• It improves bread crust colour and improves quality
of high fiber baked products
• Fermentation by yeast leads to dough rise.
• This enzyme is also used for the production of
glucose which upon fermentation with
Saccharomyces cerevisieae yields ethanol
• Glucoamylase metabolizes dextrins and convert
them to fermentable sugars with reduced calorific as
well as alcohol content in the beer.

13. Protease
• Proteases are widely used in detergent,
pharmaceutical followed by food industries.
• It represents 60% of industrial enzymes on the
market .
• Proteases are enzymes which catalyze the hydrolysis
of peptide bond.
• based on the site of action on polypeptide chains,
Proteases are divided into two:
• exo-peptidases and endo-peptidases.

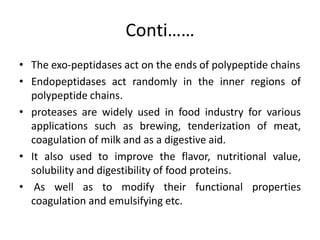

14. Conti……
• The exo-peptidases act on the ends of polypeptide chains
• Endopeptidases act randomly in the inner regions of
polypeptide chains.
• proteases are widely used in food industry for various
applications such as brewing, tenderization of meat,
coagulation of milk and as a digestive aid.
• It also used to improve the flavor, nutritional value,
solubility and digestibility of food proteins.
• As well as to modify their functional properties
coagulation and emulsifying etc.

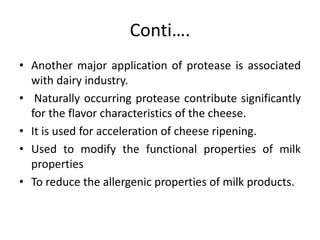

15. Conti….
• Another major application of protease is associated
with dairy industry.
• Naturally occurring protease contribute significantly
for the flavor characteristics of the cheese.
• It is used for acceleration of cheese ripening.
• Used to modify the functional properties of milk
properties
• To reduce the allergenic properties of milk products.

16. Lactase (β-galactosidase)
• Hydrolysis of lactose is an important biotechnological
application in food industry.
• The enzyme β-galactosidase catalyzes the hydrolysis
of lactose.
• The enzyme β-galactosidase can be obtained from
numerous biological systems including plants,
animals and microorganisms.
• β-galactosidase from yeasts with a pH optima of 6.5-
7.0 are generally used for the hydrolysis of lactose in
milk of whey.

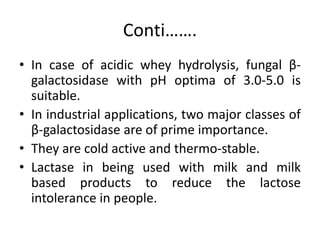

17. Conti…….
• In case of acidic whey hydrolysis, fungal β-
galactosidase with pH optima of 3.0-5.0 is
suitable.
• In industrial applications, two major classes of
β-galactosidase are of prime importance.
• They are cold active and thermo-stable.
• Lactase in being used with milk and milk
based products to reduce the lactose
intolerance in people.

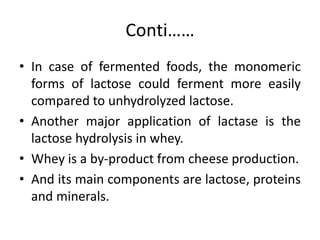

18. Conti……
• In case of fermented foods, the monomeric
forms of lactose could ferment more easily
compared to unhydrolyzed lactose.
• Another major application of lactase is the
lactose hydrolysis in whey.
• Whey is a by-product from cheese production.
• And its main components are lactose, proteins
and minerals.

19. Lipase
• Lipases are enzymes which catalyze the
hydrolysis of long chain triglycerides.
• Lipase is naturally present in the stomach and
pancreas of humans and other animal species.
• In order to digest fats and lipids.
• Microbial lipases are produced by bacteria,
fungi and yeast.
• enzymes contribute approximately 90 % of
global lipase market.

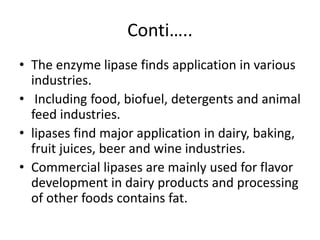

20. Conti…..
• The enzyme lipase finds application in various
industries.
• Including food, biofuel, detergents and animal
feed industries.
• lipases find major application in dairy, baking,
fruit juices, beer and wine industries.
• Commercial lipases are mainly used for flavor
development in dairy products and processing
of other foods contains fat.

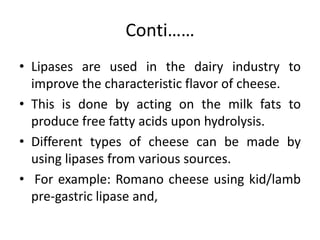

21. Conti……
• Lipases are used in the dairy industry to
improve the characteristic flavor of cheese.
• This is done by acting on the milk fats to
produce free fatty acids upon hydrolysis.
• Different types of cheese can be made by
using lipases from various sources.
• For example: Romano cheese using kid/lamb
pre-gastric lipase and,

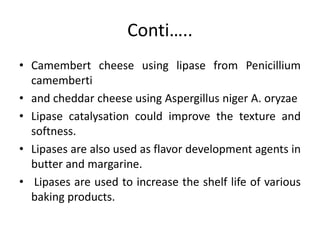

22. Conti…..
• Camembert cheese using lipase from Penicillium
camemberti
• and cheddar cheese using Aspergillus niger A. oryzae
• Lipase catalysation could improve the texture and
softness.
• Lipases are also used as flavor development agents in
butter and margarine.
• Lipases are used to increase the shelf life of various
baking products.

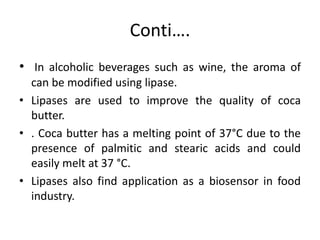

23. Conti….
• In alcoholic beverages such as wine, the aroma of
can be modified using lipase.
• Lipases are used to improve the quality of coca
butter.
• . Coca butter has a melting point of 37°C due to the
presence of palmitic and stearic acids and could
easily melt at 37 °C.
• Lipases also find application as a biosensor in food
industry.

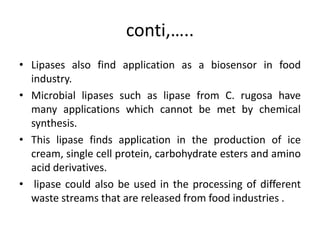

24. conti,…..
• Lipases also find application as a biosensor in food
industry.
• Microbial lipases such as lipase from C. rugosa have
many applications which cannot be met by chemical
synthesis.
• This lipase finds application in the production of ice
cream, single cell protein, carbohydrate esters and amino
acid derivatives.
• lipase could also be used in the processing of different
waste streams that are released from food industries .

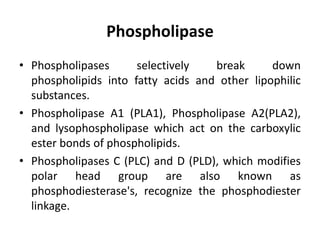

25. Phospholipase
• Phospholipases selectively break down
phospholipids into fatty acids and other lipophilic
substances.
• Phospholipase A1 (PLA1), Phospholipase A2(PLA2),
and lysophospholipase which act on the carboxylic
ester bonds of phospholipids.
• Phospholipases C (PLC) and D (PLD), which modifies
polar head group are also known as
phosphodiesterase's, recognize the phosphodiester
linkage.

26. Conti…….
• Phospholipases are widely used in food industry.
• the most important one is in the production of oils,
dairy industry and in the manufacture of several
bakery items.
• Phospholipases are also find applications in the
degumming of various vegetables oils, cheese
manufacture and bread manufacture .
• The PLA 2 commercialized by DSM Food
Specialties(Netherlands) with the trade name
Maxapal ® A2 has been reported by Zhao et al.

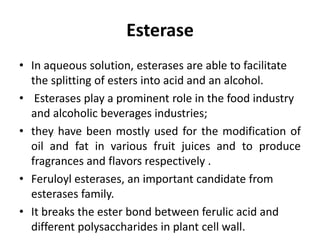

27. Esterase
• In aqueous solution, esterases are able to facilitate
the splitting of esters into acid and an alcohol.
• Esterases play a prominent role in the food industry
and alcoholic beverages industries;
• they have been mostly used for the modification of
oil and fat in various fruit juices and to produce
fragrances and flavors respectively .
• Feruloyl esterases, an important candidate from
esterases family.
• It breaks the ester bond between ferulic acid and
different polysaccharides in plant cell wall.

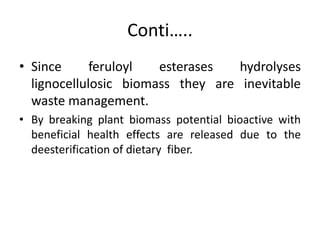

28. Conti…..
• Since feruloyl esterases hydrolyses
lignocellulosic biomass they are inevitable
waste management.
• By breaking plant biomass potential bioactive with
beneficial health effects are released due to the
deesterification of dietary fiber.

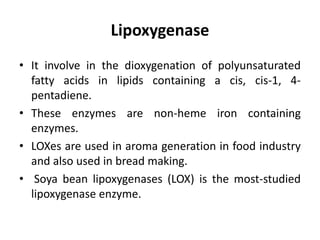

29. Lipoxygenase
• It involve in the dioxygenation of polyunsaturated
fatty acids in lipids containing a cis, cis-1, 4-
pentadiene.
• These enzymes are non-heme iron containing
enzymes.
• LOXes are used in aroma generation in food industry
and also used in bread making.
• Soya bean lipoxygenases (LOX) is the most-studied
lipoxygenase enzyme.

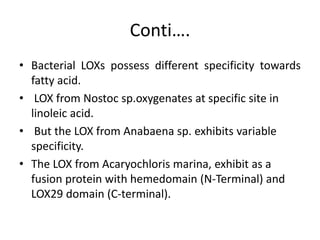

30. Conti….
• Bacterial LOXs possess different specificity towards
fatty acid.
• LOX from Nostoc sp.oxygenates at specific site in
linoleic acid.
• But the LOX from Anabaena sp. exhibits variable
specificity.
• The LOX from Acaryochloris marina, exhibit as a
fusion protein with hemedomain (N-Terminal) and
LOX29 domain (C-terminal).

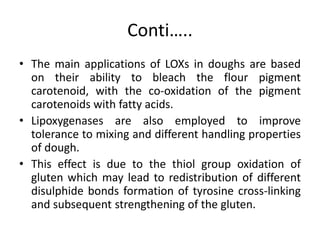

31. Conti…..
• The main applications of LOXs in doughs are based
on their ability to bleach the flour pigment
carotenoid, with the co-oxidation of the pigment
carotenoids with fatty acids.
• Lipoxygenases are also employed to improve
tolerance to mixing and different handling properties
of dough.
• This effect is due to the thiol group oxidation of
gluten which may lead to redistribution of different
disulphide bonds formation of tyrosine cross-linking
and subsequent strengthening of the gluten.

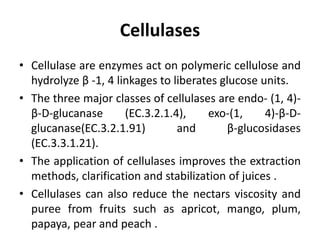

32. Cellulases
• Cellulase are enzymes act on polymeric cellulose and
hydrolyze β -1, 4 linkages to liberates glucose units.
• The three major classes of cellulases are endo- (1, 4)-
β-D-glucanase (EC.3.2.1.4), exo-(1, 4)-β-D-
glucanase(EC.3.2.1.91) and β-glucosidases
(EC.3.3.1.21).
• The application of cellulases improves the extraction
methods, clarification and stabilization of juices .
• Cellulases can also reduce the nectars viscosity and
puree from fruits such as apricot, mango, plum,
papaya, pear and peach .

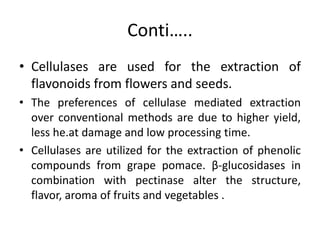

33. Conti…..
• Cellulases are used for the extraction of
flavonoids from flowers and seeds.
• The preferences of cellulase mediated extraction
over conventional methods are due to higher yield,
less he.at damage and low processing time.
• Cellulases are utilized for the extraction of phenolic
compounds from grape pomace. β-glucosidases in
combination with pectinase alter the structure,
flavor, aroma of fruits and vegetables .

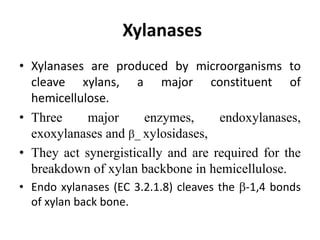

34. Xylanases
• Xylanases are produced by microorganisms to
cleave xylans, a major constituent of
hemicellulose.
• Three major enzymes, endoxylanases,
exoxylanases and _ xylosidases,
• They act synergistically and are required for the
breakdown of xylan backbone in hemicellulose.
• Endo xylanases (EC 3.2.1.8) cleaves the -1,4 bonds
of xylan back bone.

35. Conti…….
• Exoxylanases (EC.3.2.1.37) hydrolyses - 1,4 bonds of
xylan from the non-reducing ends and releasing
xylooligosaccharides.
• - xylosidases cleaves the xylobiose and xylo
oligosaccharides to release xylose.
• The major enzyme functions of xylanases are
performed by a catalytic module .
• And few classes possess an additional carbohydrate
binding module (CBM) for binding to substrates.

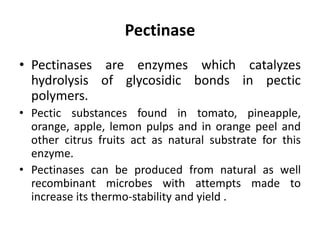

36. Pectinase
• Pectinases are enzymes which catalyzes
hydrolysis of glycosidic bonds in pectic
polymers.
• Pectic substances found in tomato, pineapple,
orange, apple, lemon pulps and in orange peel and
other citrus fruits act as natural substrate for this
enzyme.
• Pectinases can be produced from natural as well
recombinant microbes with attempts made to
increase its thermo-stability and yield .

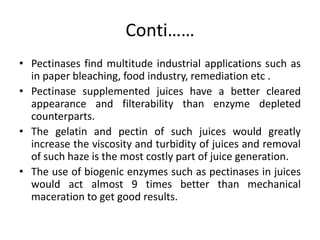

37. Conti……
• Pectinases find multitude industrial applications such as
in paper bleaching, food industry, remediation etc .
• Pectinase supplemented juices have a better cleared
appearance and filterability than enzyme depleted
counterparts.
• The gelatin and pectin of such juices would greatly
increase the viscosity and turbidity of juices and removal
of such haze is the most costly part of juice generation.
• The use of biogenic enzymes such as pectinases in juices
would act almost 9 times better than mechanical
maceration to get good results.

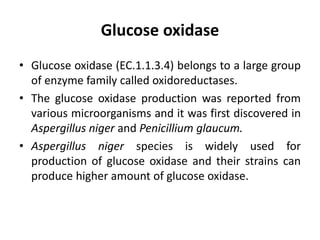

38. Glucose oxidase
• Glucose oxidase (EC.1.1.3.4) belongs to a large group
of enzyme family called oxidoreductases.
• The glucose oxidase production was reported from
various microorganisms and it was first discovered in
Aspergillus niger and Penicillium glaucum.
• Aspergillus niger species is widely used for
production of glucose oxidase and their strains can
produce higher amount of glucose oxidase.

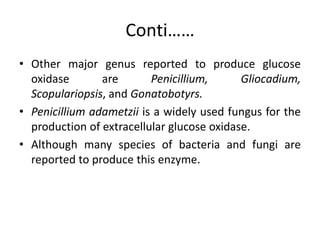

39. Conti……
• Other major genus reported to produce glucose
oxidase are Penicillium, Gliocadium,
Scopulariopsis, and Gonatobotyrs.
• Penicillium adametzii is a widely used fungus for the
production of extracellular glucose oxidase.
• Although many species of bacteria and fungi are
reported to produce this enzyme.

40. Laccase
• Laccases (EC 1.10.3.2) comes under the cluster of
oxidases which is representing the largest subgroup of
multi copper enzymes.
• The commonly known as blue oxidases used for studying
their potential to oxidize phenolic compound and
therefore applied in several industrial sectors.
• These enzymes have different specificity for
substrate and a wide range of oxidizable substrates
which further depends on the type of microbial
sources producing the enzyme.

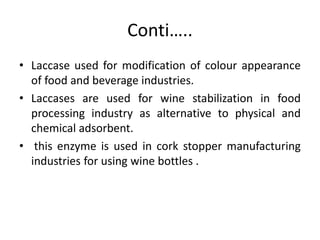

41. Conti…..
• Laccase used for modification of colour appearance
of food and beverage industries.
• Laccases are used for wine stabilization in food
processing industry as alternative to physical and
chemical adsorbent.
• this enzyme is used in cork stopper manufacturing
industries for using wine bottles .

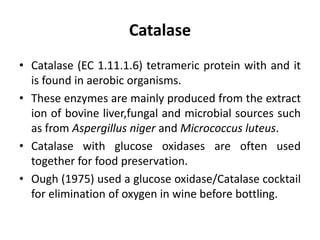

42. Catalase
• Catalase (EC 1.11.1.6) tetrameric protein with and it
is found in aerobic organisms.
• These enzymes are mainly produced from the extract
ion of bovine liver,fungal and microbial sources such
as from Aspergillus niger and Micrococcus luteus.
• Catalase with glucose oxidases are often used
together for food preservation.
• Ough (1975) used a glucose oxidase/Catalase cocktail
for elimination of oxygen in wine before bottling.

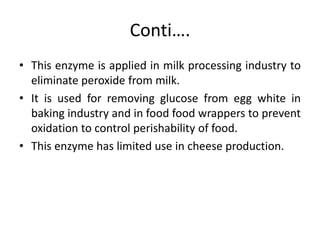

43. Conti….
• This enzyme is applied in milk processing industry to
eliminate peroxide from milk.
• It is used for removing glucose from egg white in
baking industry and in food food wrappers to prevent
oxidation to control perishability of food.
• This enzyme has limited use in cheese production.

44. Peroxidase
• Peroxidases (EC 1.11.1.7) are oxido-reductases proteins
that contain iron (III) protoporphyrin IX as the prosthetic
group.
• It catalyses the reduction of peroxides and oxidation of
wide range of inorganic and organic compounds.
• Peroxidase catalyzes the wide ranges of substrates using
H2O2 or other peroxides.
• This enzyme is used in food industry for producing flavor,
color and texture and improving nutrition quality of food.

45. Conti….
• In the food industry the thermal inactivation of
peroxidases are used to measure the efficiency of
blanching treatment, which will further enhance the
shelf life of food.
• While the other effect of peroxidases are undesirable
like browning of fruits and off flavors of vegetables.

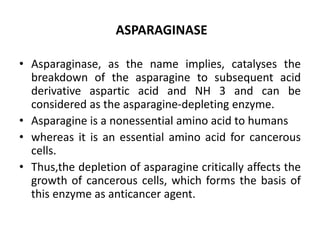

46. ASPARAGINASE
• Asparaginase, as the name implies, catalyses the
breakdown of the asparagine to subsequent acid
derivative aspartic acid and NH 3 and can be
considered as the asparagine-depleting enzyme.
• Asparagine is a nonessential amino acid to humans
• whereas it is an essential amino acid for cancerous
cells.
• Thus,the depletion of asparagine critically affects the
growth of cancerous cells, which forms the basis of
this enzyme as anticancer agent.

47. DEBITTERING ENZYMES – NARINGINASE
• Naringinase (EC 3.2.1.40) is mainly responsible for the
breakdown of naringin, the principle bitter flavanone
glycoside found in citrus fruits .
• Fungal sources of naringinase are found to be more
predominantly used than the bacterial ones due to
increased yield.
• Naringinase has a major role in food processing as a
debittering enzyme supplemented to fruit juices.
• The use of naringinase is also noted in tomato pulp
preparation, kinnow peel waste treatment and prunin
preparation .

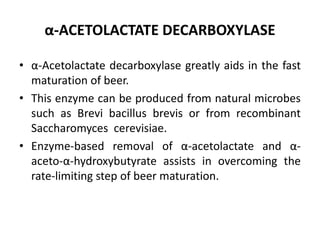

48. α-ACETOLACTATE DECARBOXYLASE
• α-Acetolactate decarboxylase greatly aids in the fast
maturation of beer.
• This enzyme can be produced from natural microbes
such as Brevi bacillus brevis or from recombinant
Saccharomyces cerevisiae.
• Enzyme-based removal of α-acetolactate and α-
aceto-α-hydroxybutyrate assists in overcoming the
rate-limiting step of beer maturation.

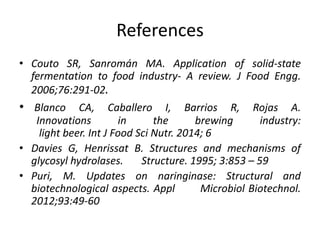

49. References
• Couto SR, Sanromán MA. Application of solid-state
fermentation to food industry- A review. J Food Engg.
2006;76:291-02.
• Blanco CA, Caballero I, Barrios R, Rojas A.
Innovations in the brewing industry:
light beer. Int J Food Sci Nutr. 2014; 6
• Davies G, Henrissat B. Structures and mechanisms of
glycosyl hydrolases. Structure. 1995; 3:853 – 59
• Puri, M. Updates on naringinase: Structural and
biotechnological aspects. Appl Microbiol Biotechnol.
2012;93:49-60

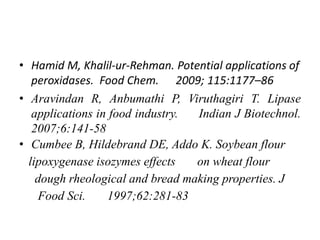

50. • Hamid M, Khalil-ur-Rehman. Potential applications of
peroxidases. Food Chem. 2009; 115:1177–86
• Aravindan R, Anbumathi P, Viruthagiri T. Lipase
applications in food industry. Indian J Biotechnol.
2007;6:141-58
• Cumbee B, Hildebrand DE, Addo K. Soybean flour
lipoxygenase isozymes effects on wheat flour
dough rheological and bread making properties. J
Food Sci. 1997;62:281-83
