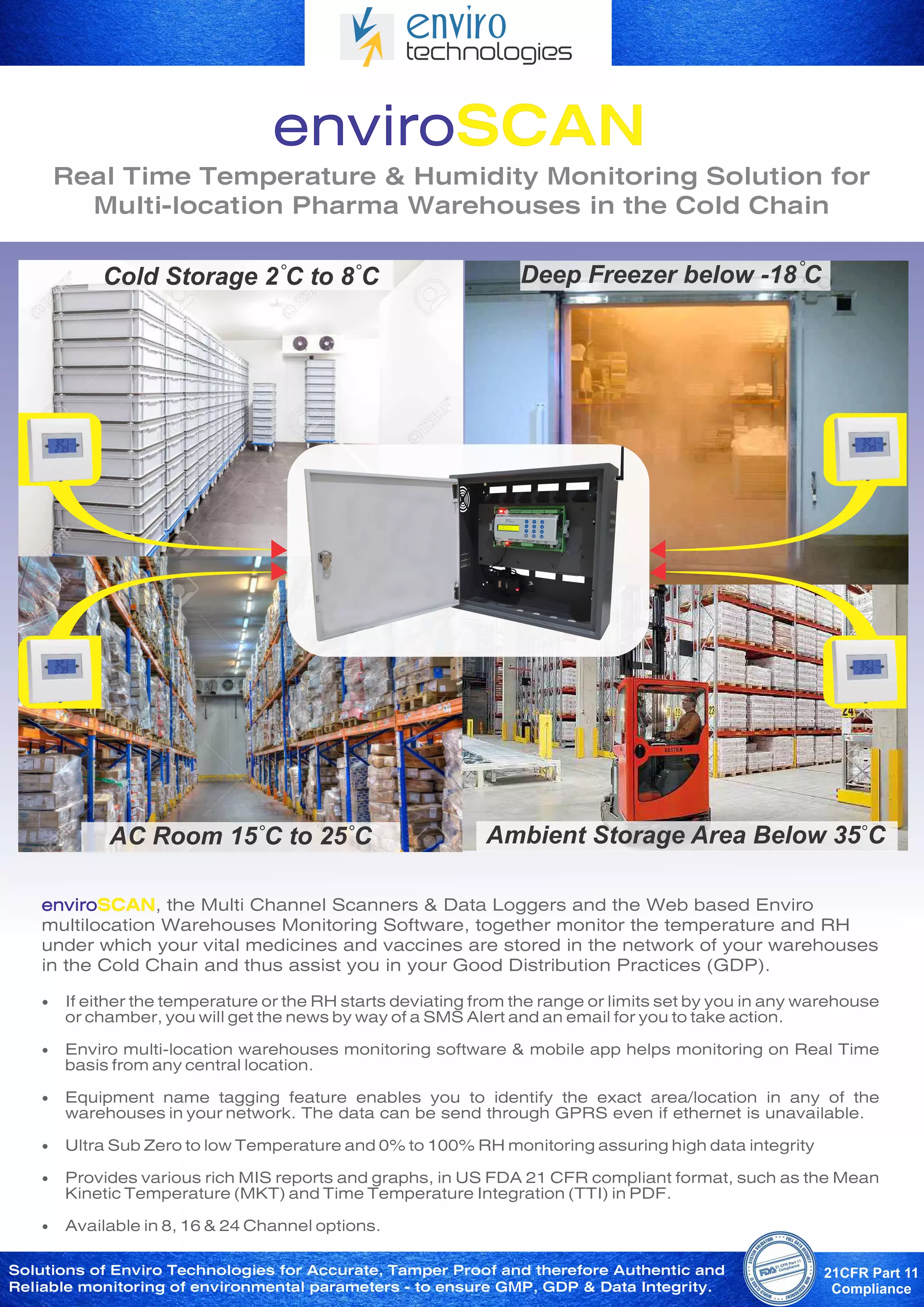

1. Real Time Temperature & Humidity Monitoring Solution for
Multi-location Pharma Warehouses in the Cold Chain
enviroSCAN, the Multi Channel Scanners & Data Loggers and the Web based Enviro
multilocation Warehouses Monitoring Software, together monitor the temperature and RH
under which your vital medicines and vaccines are stored in the network of your warehouses
in the Cold Chain and thus assist you in your Good Distribution Practices (GDP).
• If either the temperature or the RH starts deviating from the range or limits set by you in any warehouse
or chamber, you will get the news by way of a SMS Alert and an email for you to take action.
• Enviro multi-location warehouses monitoring software & mobile app helps monitoring on Real Time
basis from any central location.
• Equipment name tagging feature enables you to identify the exact area/location in any of the
warehouses in your network. The data can be send through GPRS even if ethernet is unavailable.
• Ultra Sub Zero to low Temperature and 0% to 100% RH monitoring assuring high data integrity
• Provides various rich MIS reports and graphs, in US FDA 21 CFR compliant format, such as the Mean
Kinetic Temperature (MKT) and Time Temperature Integration (TTI) in PDF.
• Available in 8, 16 & 24 Channel options.
Cold Storage 2 C to 8 C
AC Room 15 C to 25 C Ambient Storage Area Below 35 C
Solutions of Enviro Technologies for Accurate, Tamper Proof and therefore Authentic and
Reliable monitoring of environmental parameters - to ensure GMP, GDP & Data Integrity.
Deep Freezer below -18 C

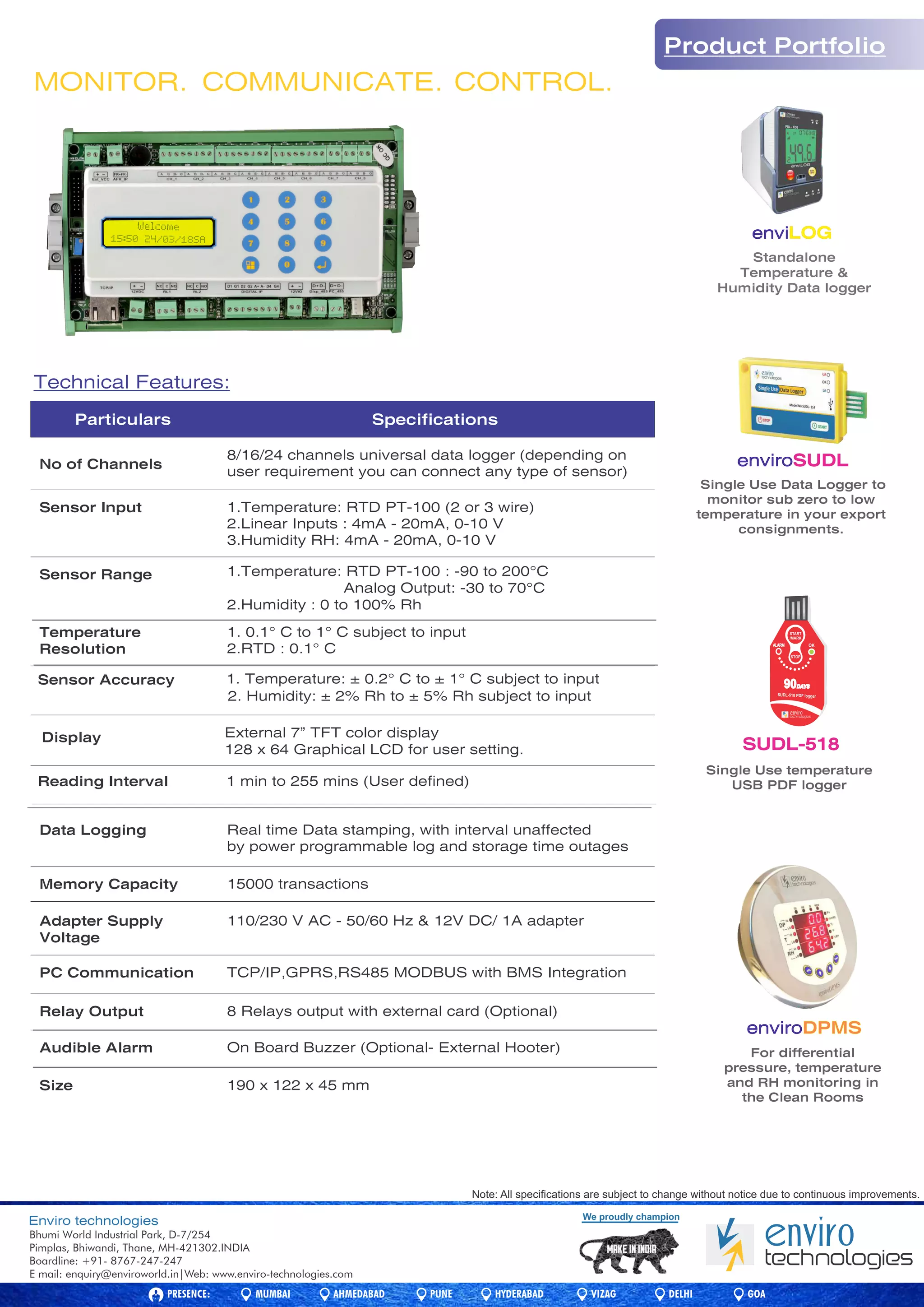

2. No of Channels
8/16/24 channels universal data logger (depending on
user requirement you can connect any type of sensor)
Sensor Input 1.Temperature: RTD PT-100 (2 or 3 wire)
2.Linear Inputs : 4mA - 20mA, 0-10 V
3.Humidity RH: 4mA - 20mA, 0-10 V
Sensor Range 1.Temperature: RTD PT-100 : -90 to 200°C
Analog Output: -30 to 70°C
2.Humidity : 0 to 100% Rh
Temperature
Resolution
1. 0.1° C to 1° C subject to input
2.RTD : 0.1° C
Reading Interval 1 min to 255 mins (User defined)
Sensor Accuracy 1. Temperature: ± 0.2° C to ± 1° C subject to input
2. Humidity: ± 2% Rh to ± 5% Rh subject to input
Display External 7” TFT color display
128 x 64 Graphical LCD for user setting.
Data Logging Real time Data stamping, with interval unaffected
by power programmable log and storage time outages
Memory Capacity 15000 transactions
Adapter Supply
Voltage
110/230 V AC - 50/60 Hz & 12V DC/ 1A adapter
PC Communication TCP/IP,GPRS,RS485 MODBUS with BMS Integration
Relay Output 8 Relays output with external card (Optional)
Audible Alarm On Board Buzzer (Optional- External Hooter)
Size 190 x 122 x 45 mm
Particulars Specifications
Technical Features:
Product Portfolio
Note: All specifications are subject to change without notice due to continuous improvements.
