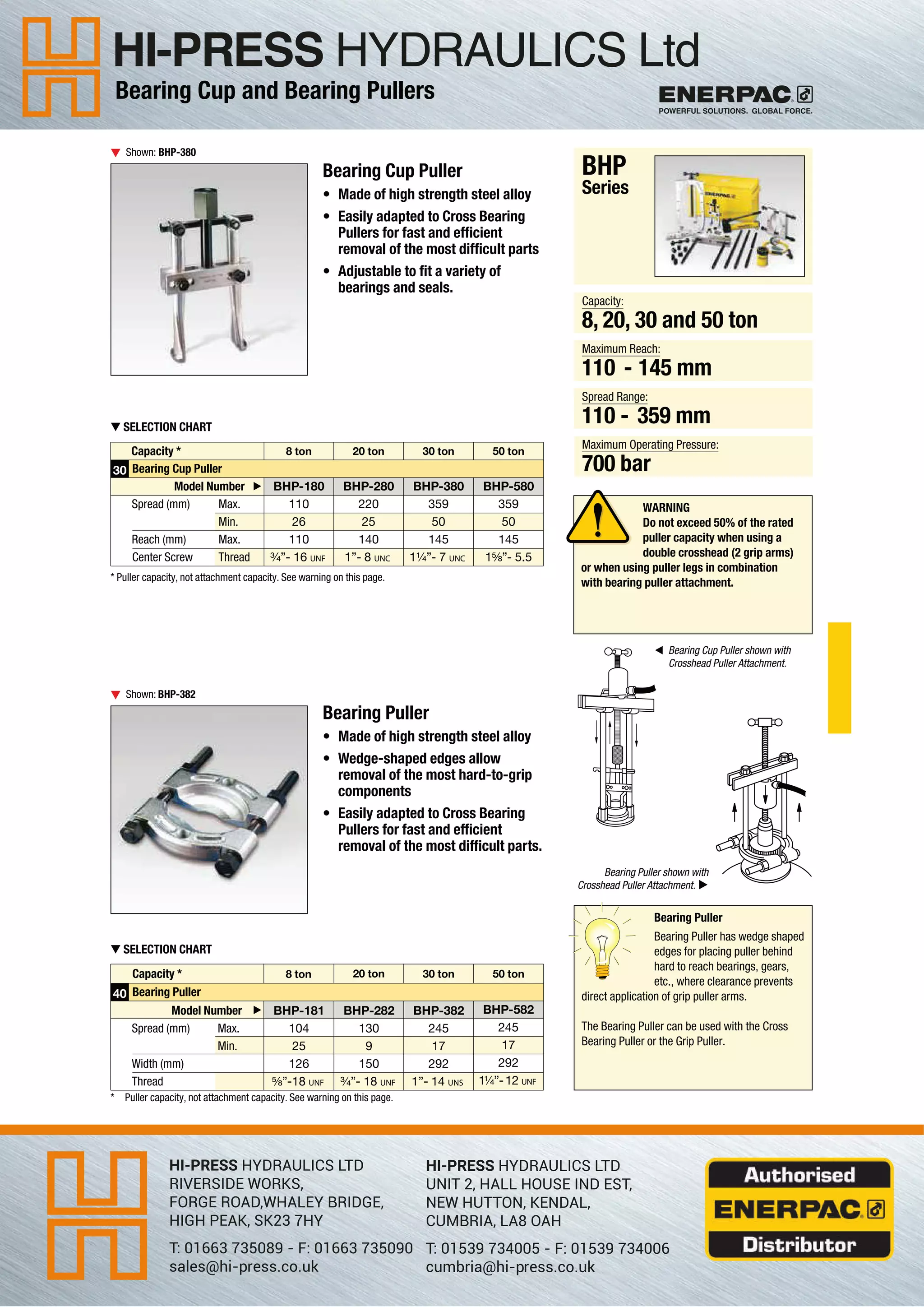

Enerpac bhp-series-bearing-puller
This document provides information on bearing cup and bearing pullers from Enerpac, including: 1. A selection chart that lists eight models of bearing pullers and two models of bearing cup pullers, specifying their capacity, spread range, maximum reach, and thread size. 2. Descriptions of the bearing puller and bearing cup puller tools, which have wedge-shaped edges to remove hard-to-grip components and can be adapted to crosshead puller attachments. 3. A warning not to exceed 50% of the rated puller capacity when using attachments or multiple grip arms.
Enerpac bhp-series-bearing-puller
- 1. 147www.enerpac.com 30 40 ▼ ▼ ▶ ▶ BHP-280 220 25 140 1”- 8 UNC BHP-180 110 26 110 ¾”-16 UNF BHP-380 359 50 145 1¼”- 7 UNC BHP-580 359 50 145 1⅝”- 5.5 BHP-282 130 9 150 ¾”- 18 UNF BHP-181 104 25 126 ⅝”-18 UNF BHP-382 245 17 292 1”- 14 UNS BHP-582 245 17 292 1¼”-12 UNF Bearing Cup and Bearing Pullers Bearing Puller Bearing Puller has wedge shaped edges for placing puller behind hard to reach bearings, gears, etc., where clearance prevents direct application of grip puller arms. The Bearing Puller can be used with the Cross Bearing Puller or the Grip Puller. 20 ton8 ton 30 ton 50 ton Spread (mm) Max. Min. Width (mm) Thread 20 ton8 tonCapacity * 30 ton 50 ton Model Number * Puller capacity, not attachment capacity. See warning on this page. Shown: BHP-380 Shown: BHP-382 Bearing Cup Puller • Made of high strength steel alloy • Easily adapted to Cross Bearing Pullers for fast and efficient removal of the most difficult parts • Adjustable to fit a variety of bearings and seals. Bearing Puller • Made of high strength steel alloy • Wedge-shaped edges allow removal of the most hard-to-grip components • Easily adapted to Cross Bearing Pullers for fast and efficient removal of the most difficult parts. Bearing Puller Capacity * ▼ SELECTION CHART ▼ SELECTION CHART Bearing Cup Puller Model Number Spread (mm) Max. Min. Reach (mm) Max. Center Screw Thread BHP Series Capacity: 8, 20, 30 and 50 ton Spread Range: 110 - 359 mm Maximum Reach: 110 - 145 mm Maximum Operating Pressure: 700 bar WARNING Do not exceed 50% of the rated puller capacity when using a double crosshead (2 grip arms) or when using puller legs in combination with bearing puller attachment. ◀ Bearing Cup Puller shown with Crosshead Puller Attachment. Bearing Puller shown with Crosshead Puller Attachment. ▶ * Puller capacity, not attachment capacity. See warning on this page. HI-PRESS HYDRAULICS LTD RIVERSIDE WORKS, FORGE ROAD,WHALEY BRIDGE, HIGH PEAK, SK23 7HY T: 01663 735089 - F: 01663 735090 sales@hi-press.co.uk HI-PRESS HYDRAULICS LTD UNIT 2, HALL HOUSE IND EST, NEW HUTTON, KENDAL, CUMBRIA, LA8 OAH T: 01539 734005 - F: 01539 734006 cumbria@hi-press.co.uk HI-PRESS HYDRAULICS Ltd Bearing Cup and Bearing Pullers
