En un mundo hiperconectado,
las bases de datos de grafos
son tu arma secreta
Javier Ramirez
Technical Evangelist. Amazon Web Services

MAD · NOV 22-23 · 2019
Six degrees of Bacon
SAGIndie from Hollywood, USA - Flickr
CC BY 2.0

© 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

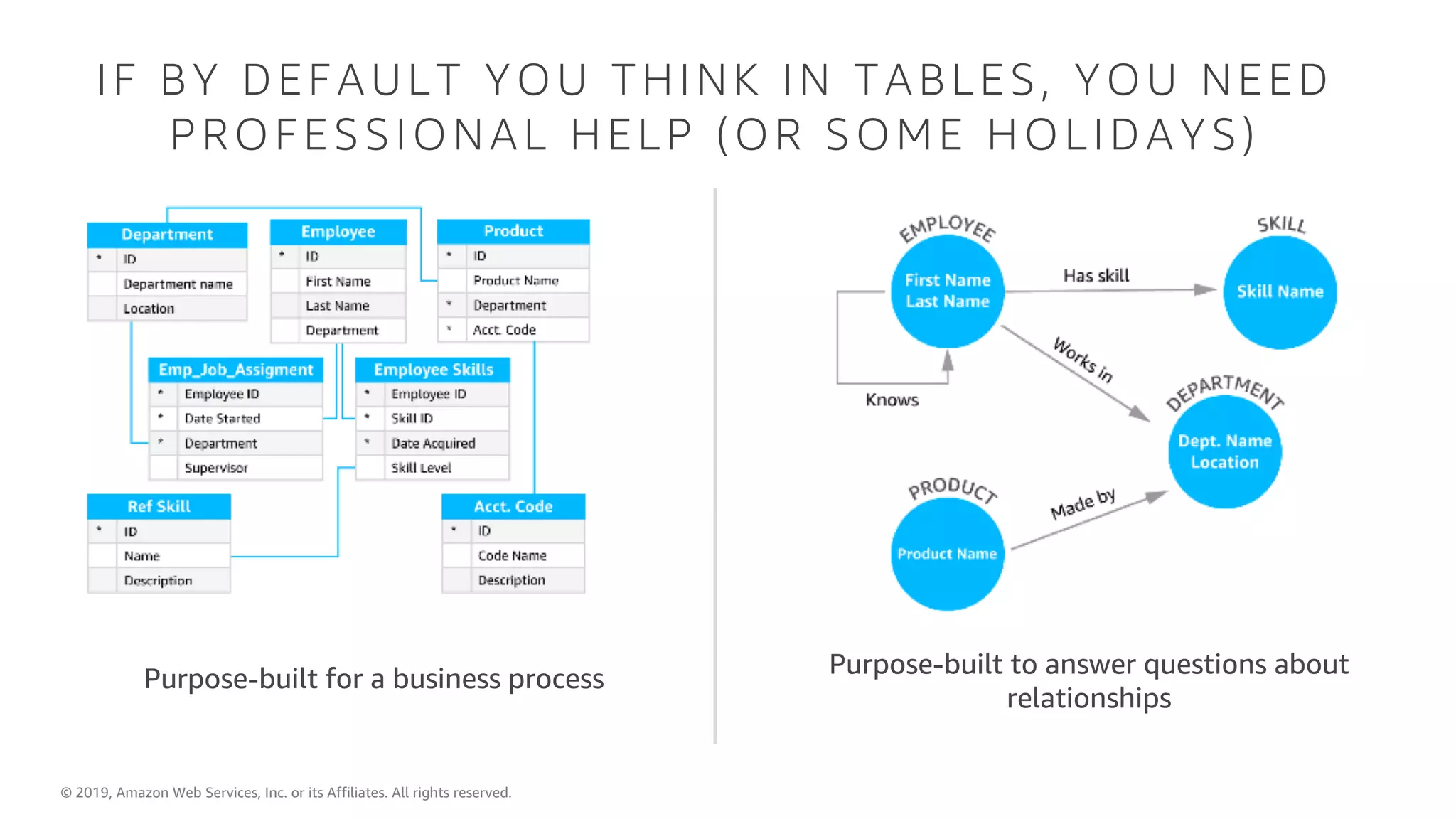

IF BY DEFAULT YOU THINK IN TABLES, YOU NEED
PROFESSIONAL HELP (OR SOME HOLIDAYS)
Purpose-built for a business process
Purpose-built to answer questions about
relationships

HIGHLY CONNECTED DATA
Retail Fraud DetectionRestaurant RecommendationsSocial Networks

US E C A S E S FO R HI GHLY C O NNE C T E D D A T A
Social Networking
Life Sciences Network & IT OperationsFraud Detection
Recommendations Knowledge Graphs

RECOMMENDATIONS BASED ON RELATIONSHIPS

KNOWLEDGE GRAPH APPLICATIONS
What museums should Alice
visit while in Paris?
Who painted the Mona Lisa?
What artists have paintings
in The Louvre?

NA VI GA T E A WE B O F GLO BA L T A X PO LI C I E S
“Our customers are increasingly required to navigate a complex web of global tax policies and
regulations. We need an approach to model the sophisticated corporate structures of our
largest clients and deliver an end-to-end tax solution. We use a microservices architecture
approach for our platforms and are beginning to leverage Amazon Neptune as a graph-based
system to quickly create links within the data.”
said Tim Vanderham, chief technology officer, Thomson Reuters Tax & Accounting

Thomson Reuters’ financial knowledge graph as a service

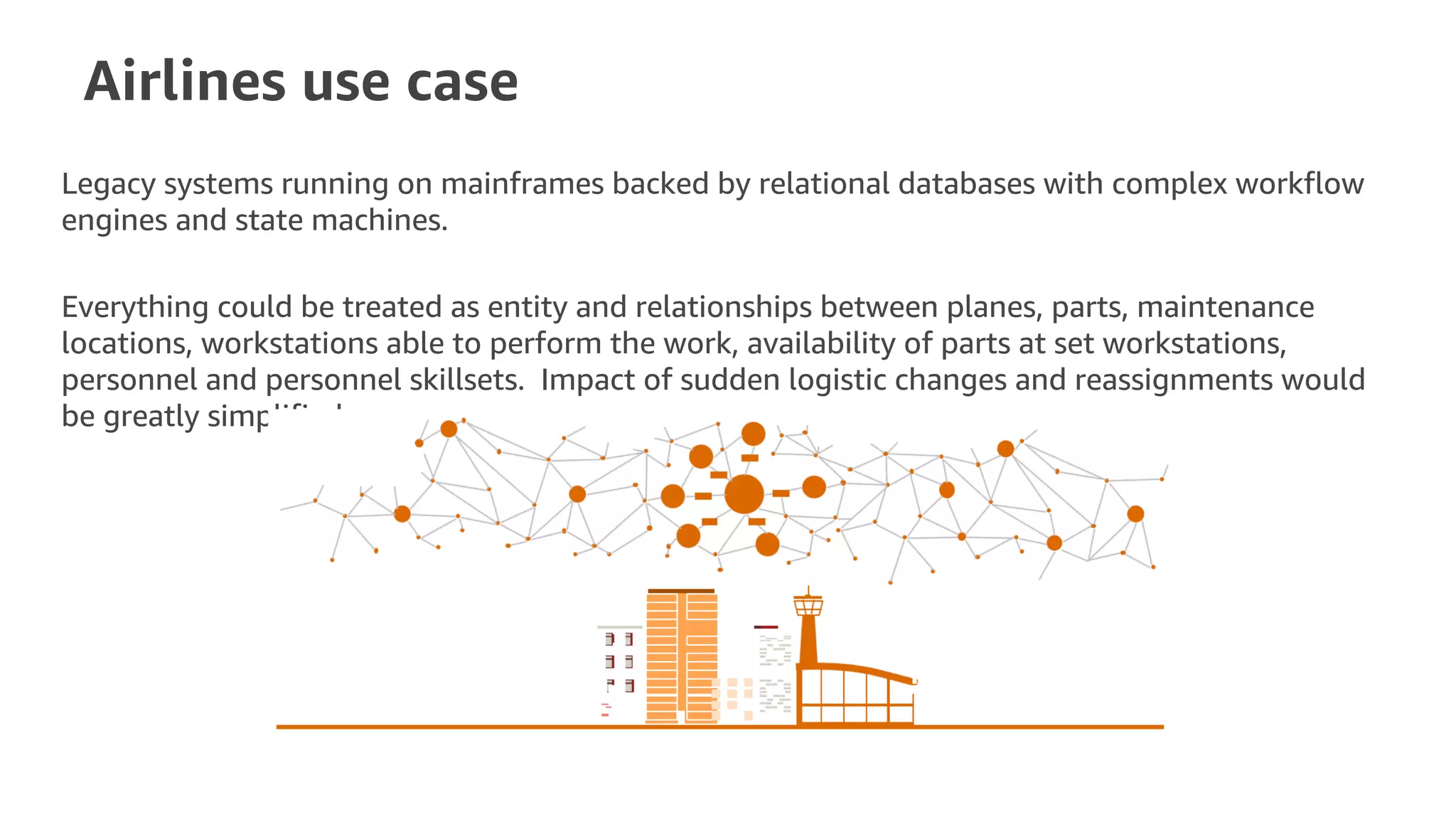

Airlines use case
Legacy systems running on mainframes backed by relational databases with complex workflow
engines and state machines.
Everything could be treated as entity and relationships between planes, parts, maintenance
locations, workstations able to perform the work, availability of parts at set workstations,
personnel and personnel skillsets. Impact of sudden logistic changes and reassignments would
be greatly simplified.

Cyber security at a major Telco

Challenges Building Apps with Highly Connected DataRELATIONAL DATABASE CHALLENGES BUILDING
APPS WITH HIGHLY CONNECTED DATA
Unnatural for
querying graph
Inefficient
graph processing
Rigid schema inflexible
for changing data

A G RA PH DA T A BA SE IS OPT IMIZ E D F OR E F F ICIE NT
ST ORA G E A ND RE T RIE VA L OF H IG H L Y CONNE CT E D DA T A

GRAPHS ARE INTUITIVE.
TRIADIC CLOSURE – CLOSING TRIANGLES
FRIEND
FRIEND
Terry
Bill
Sarah
FRIEND

RECOMMENDING NEW CONNECTIONS
Terry

IMMEDIATE FRIENDSHIPS
FRIEND
Terry
Bill

MEANS AND MOTIVE
FRIEND
FRIEND
Terry
Bill
Sarah

RECOMMENDATION
FRIEND
FRIEND
Terry
Bill
Sarah

Open Source Apache TinkerPop
Gremlin Traversal Language
W3C Standard
SPARQL Query Language
R E S O U R C E D E S C R I P T I O N
F R A M E W O R K ( R D F )
P R O P E R T Y G R A P H
LEADING GRAPH MODELS AND FRAMEWORKS.
2 MODELS, 2 QUERY LANGUAGES

Property graph
Data model
• Vertices
• Edges
• Properties
• Labels
Gremlin 3.4.1
• Imperative traversal
language

RDF
Data model
• Triples
• subject-predicate-
object
SPARQL 1.1
• Declarative pattern
matching language

Property Graph versus RDF
Property Graph RDF
Abstraction level Vertices and connecting edges Triples (or quads)
Data model Naturally supports edge properties,
strongly typed literals
Multiple graphs, custom
datatypes (with loose typing
constraints)
Data reuse and
publishing
Typically application-specific model,
not primarily designed for data sharing
Access to Linked Open Data
useful in many domains, ease
of data publishing and sharing
by use of global URIs and
shared vocabulary

Gremlin versus SPARQL
Property Graph RDF
Standardisation Apache Tinkerpop spec as de-facto
standard – Neptune has some
implementation differences
Based on W3C standards,
with different standards on
top (LDP, R2RML, etc)
Query language
features
Path extraction, iterative looping,
coin flips – closer to an algorithmic
approach
Optional selection of
patterns, variable selection,
nested subqueries
Approach DSL-like graph traversals (low fanout
queries) – path extraction
Clause-based pattern
matching (high fanout
queries) – entity extraction
Learning curve Easy to get started with simple
queries, steep learning curve for
complex queries
Initial learning curve steeper,
but easier to generalize to
complex queries

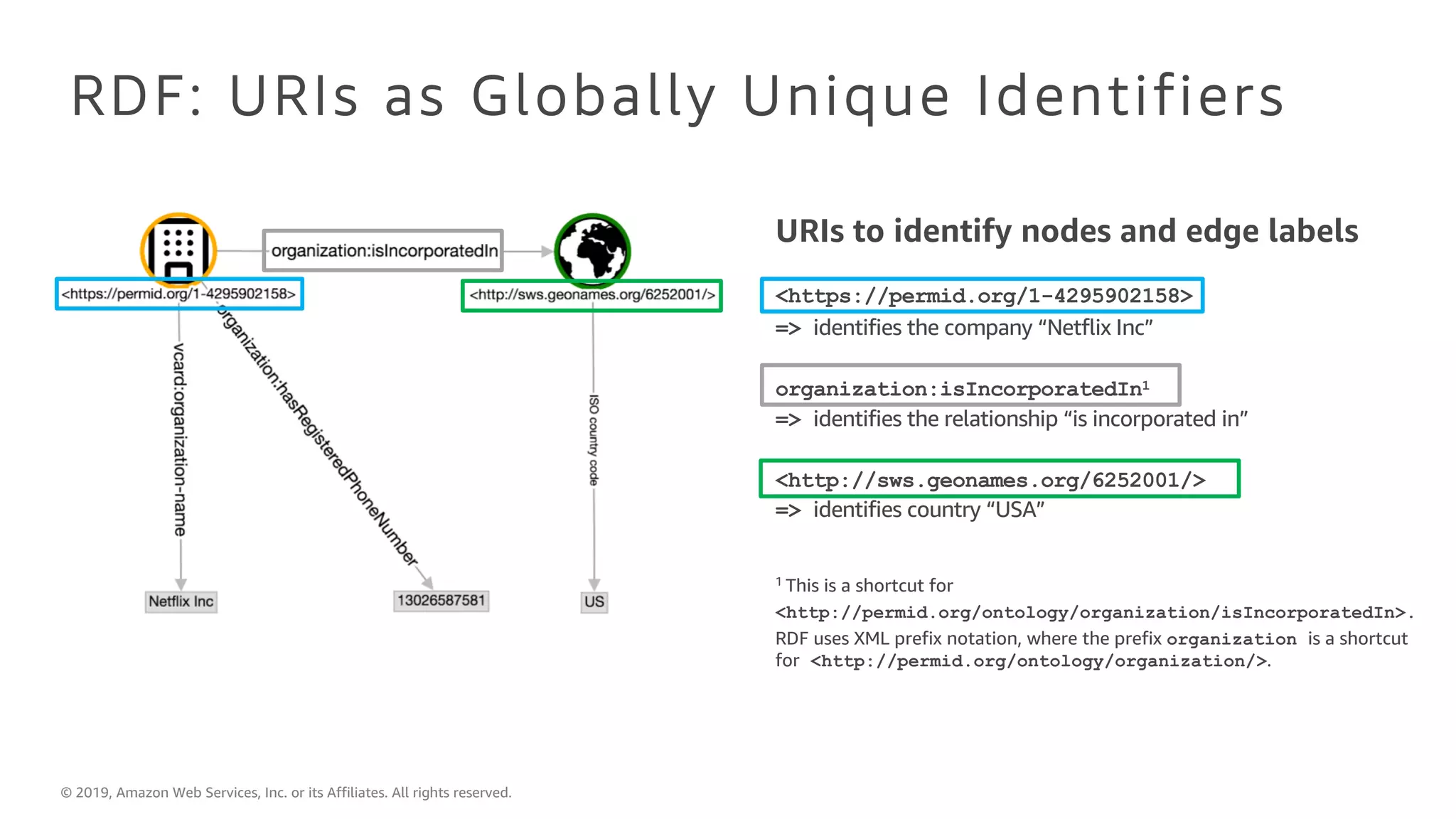

RDF: URIs as Globally Unique Identifiers
URIs to identify nodes and edge labels
<https://permid.org/1-4295902158>
=> identifies the company “Netflix Inc”
organization:isIncorporatedIn1
=> identifies the relationship “is incorporated in”
<http://sws.geonames.org/6252001/>
=> identifies country “USA”
1 This is a shortcut for
<http://permid.org/ontology/organization/isIncorporatedIn>.
RDF uses XML prefix notation, where the prefix organization is a shortcut
for <http://permid.org/ontology/organization/>.

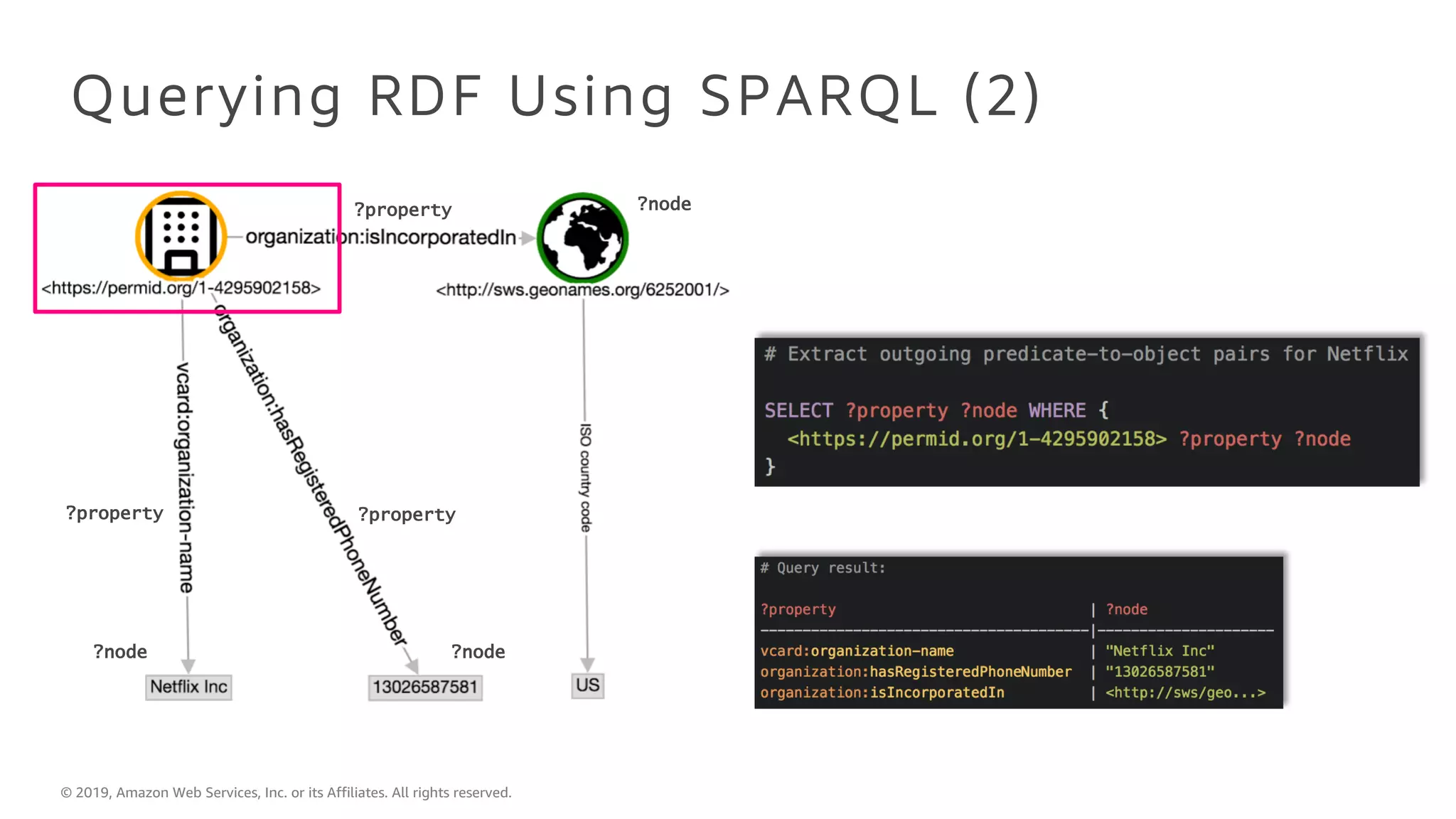

Querying RDF Using SPARQL (2)
?property
?property
?property
?node ?node
?node

The Power of URIs: Linked Data
Linking across datasets by referencing globally unique URIs
GeoNames
Wikidata
PermID
Example: PermID (re)uses <http://sws.geonames.org/6252001/>
as a global Identifier for the USA, which is an identifier rooted in GeoNames.

The Linked Open Data Cloud
Linking Open Data cloud diagram 2017, by Andrejs Abele, John P. McCrae, Paul
Buitelaar, Anja Jentzsch and Richard Cyganiak. http://lod-cloud.net/ (CC-BY-SA)
Example: SNOMED CT (Systematized Nomenclature of Medicine –Clinical Terms)

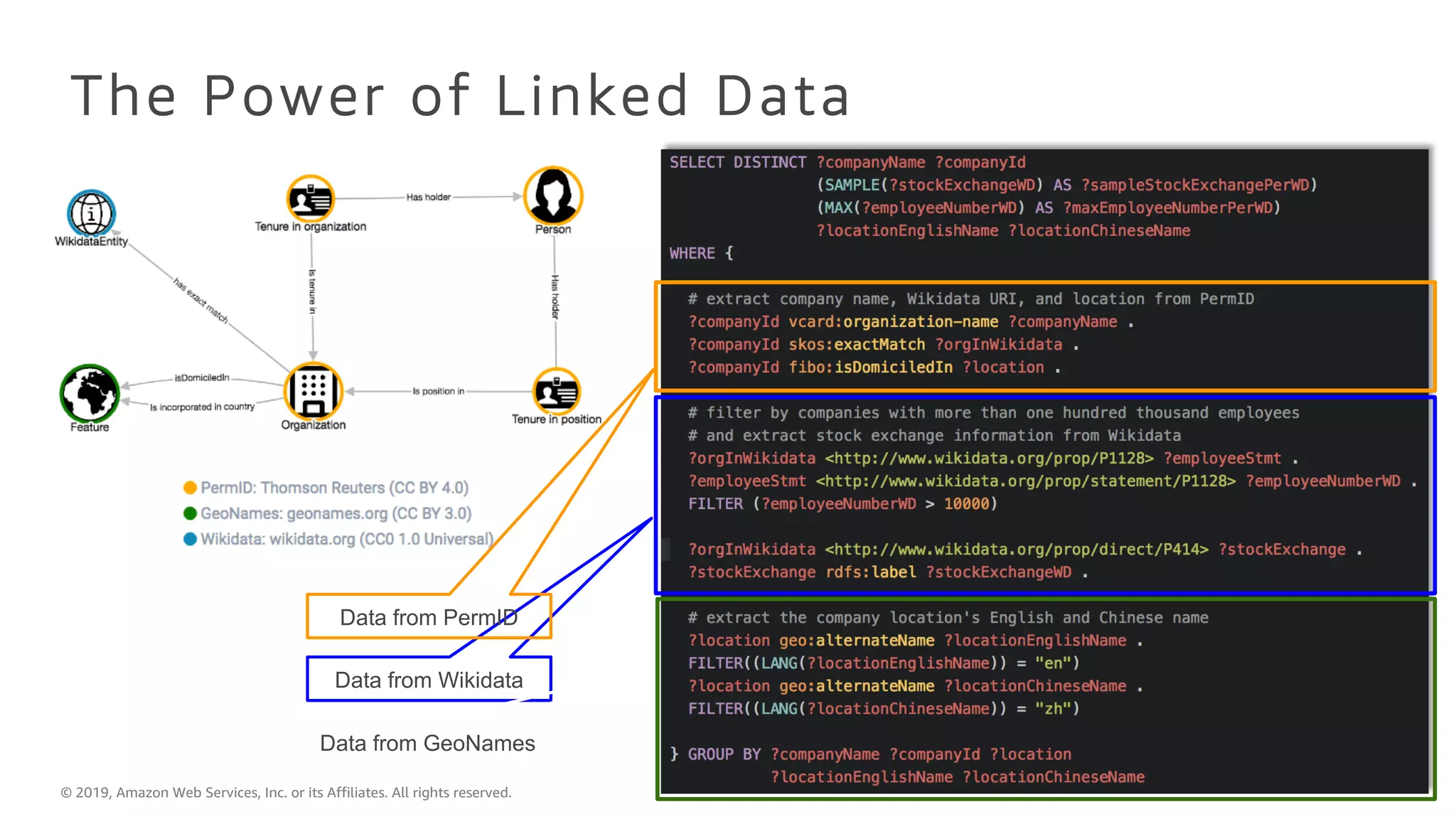

The Power of Linked Data
Data from Wikidata
Data from PermID
Data from GeoNames

PROPERTY GRAPH
A property graph is a set of vertices and edges with respective properties (i.e. key/value pairs)
• Vertex represents entities/domains
• Edge represents directional relationship
between vertices.
• Each edge has a label that denotes the
type of relationship
• Each vertex & edge has a unique identifier
• Vertex and edges can have properties
• Properties express non-relational information about the vertices and edges
FRIENDname:
Bill
name:
Sarah
UserUser
Since 11/29/16

Edges – the routes to success
Performance depends on how much of the graph a query
must “touch”
• Choose domain-meaningful edge labels
• Discover only what is absolutely necessary
• “Grey out” unnecessary portions of the graph

How fine-grained should my edge labels be?
Is it an open or extensible set of label values?
Do you need to query across values in the set? (e.g. all addresses)

Bi-directional relationships
Ignore edge direction in queries g.V().hasLabel('Person')
.
both('FRIENDS')

Uni-directional relationships
Be explicit about edge direction in queries g.V().hasLabel('Person')
.
out('FOLLOWS')
g.V().hasLabel('Person')
.
in('FOLLOWS')

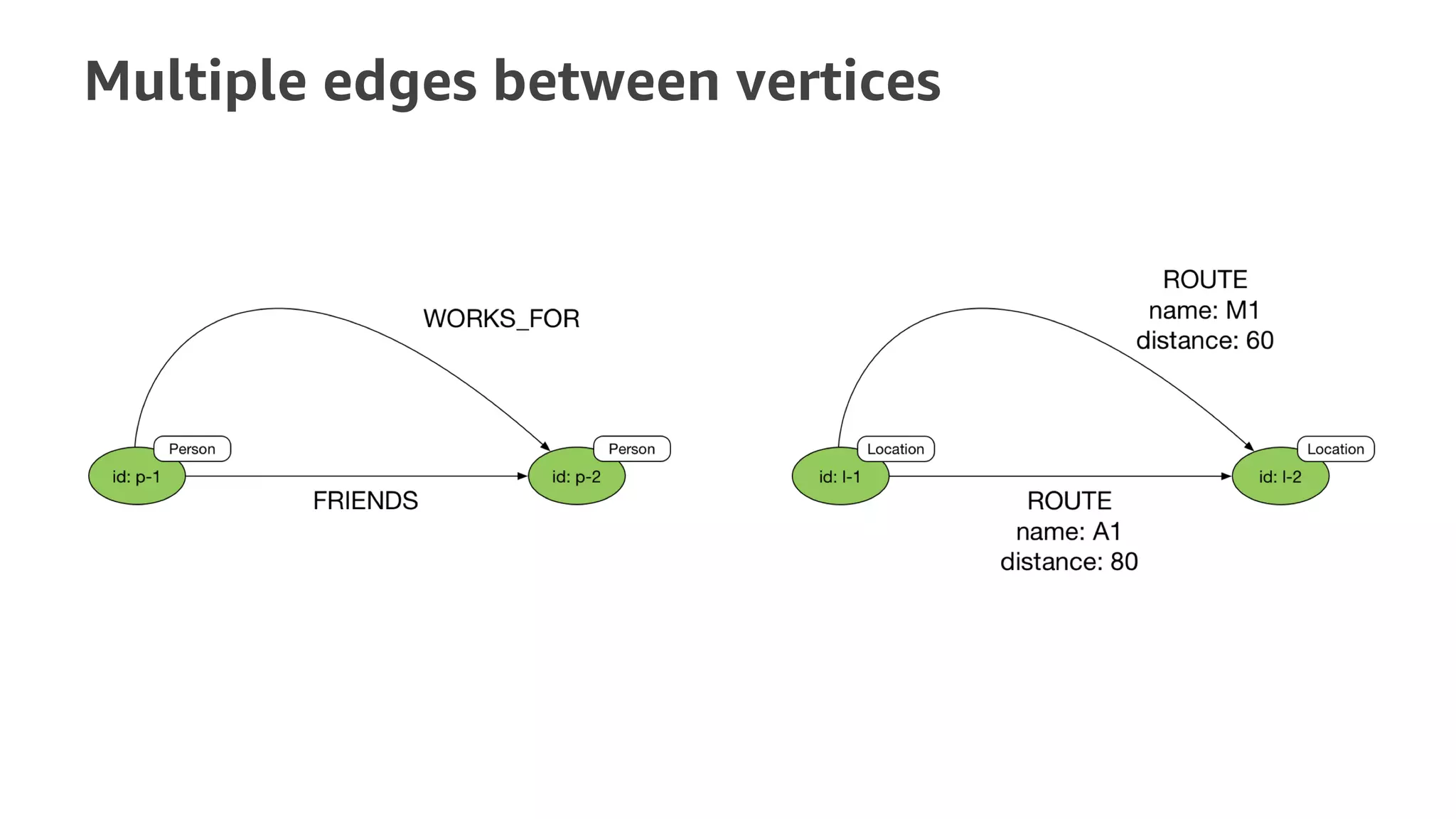

Multiple edges between vertices

MAD · NOV 22-23 · 2019
Relational DBs should really be called “row
databases”Did you ever felt you were overcomplicating your db schema adding
intermediate tables to model a complex relationship?
Did you ever use some obscure hack to query hierarchical or nested data?
Did you experience very degraded performance when having to join many
tables (or to self-join a table)?

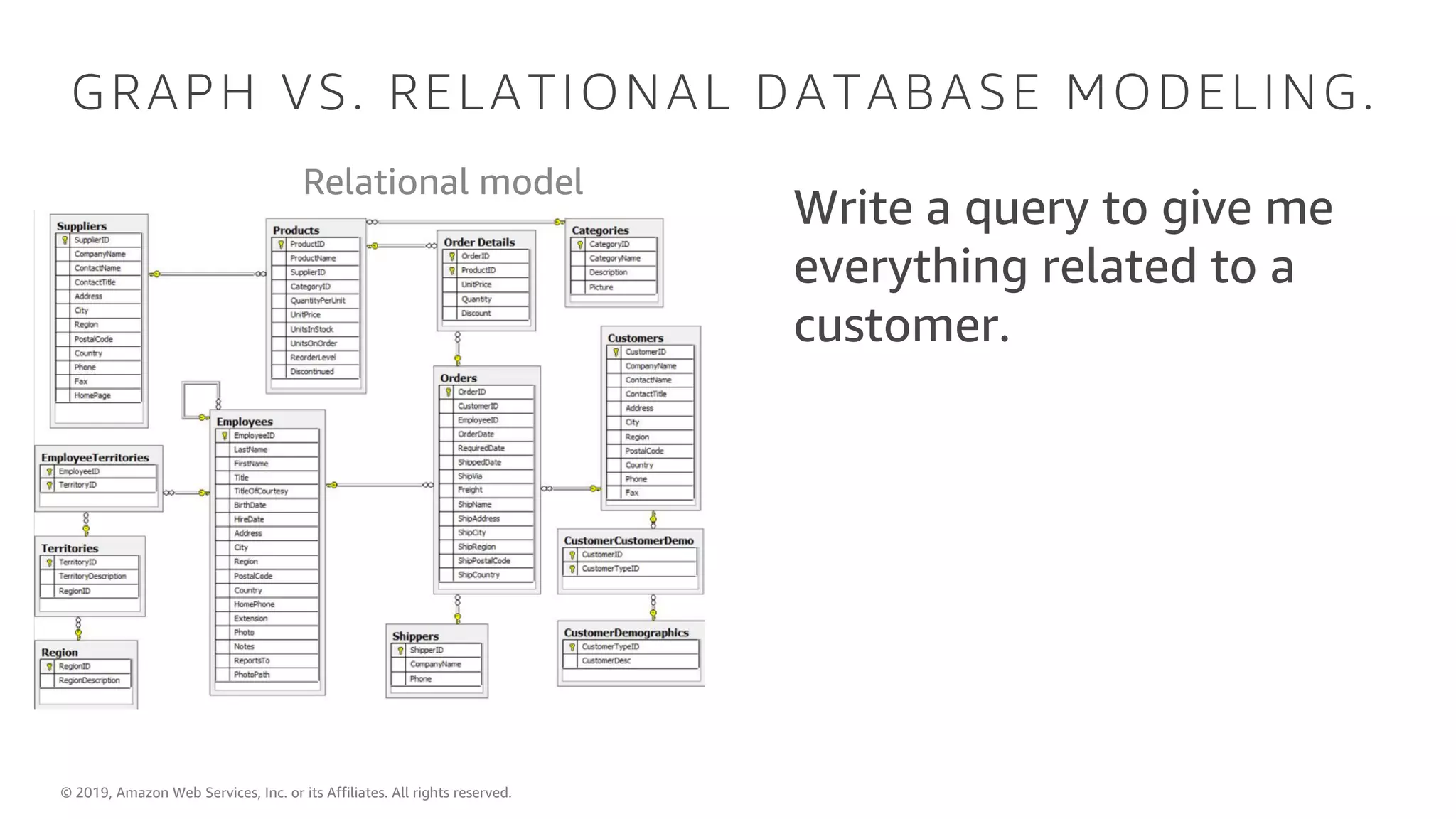

GRAPH VS. RELATIONAL DATABASE MODELING.
Relational model
Write a query to give me
everything related to a
customer.

Relational model Write a query to give me everything related to a
customer.
You will probably need a
mega join or a mega union.

Relational model Write a query to give me everything related to a
customer.
You will probably need a mega join or a
megaunion.
What if we add two or three
more tables in a couple of
weeks? What happens with
your code?

* Source : http://www.playnexacro.com/index.html#show:article
Relational model Graph model subset
CompanyName:
Acme
…
Customers
OrderDate:
8/1/2018
…
Order
PURCHASED
HAS_DETAILS
UnitPrice:
$179.99
…
Order
DetailsProductName:
“Echo”
…
Product
HAS_PRODUCT
CompanyName:
“Amazon”
…
SupplierSUPPLIES

SQL RELATIONAL DATABASE QUERY
SELECT distinct c.CompanyName
FROM customers AS c
JOIN orders AS o ON /* Join the customer from the order */
(c.CustomerID = o.CustomerID)
JOIN order_details AS od /* Join the order details from the order
*/
ON (o.OrderID = od.OrderID)
JOIN products as p /* Join the products from the order details
*/
ON (od.ProductID = p.ProductID)
WHERE p.ProductName = ’Echo'; /* Find the product named ‘Echo’ */
Find the name of companies that purchased the ‘Echo’.

SPARQL DECLARATIVE GRAPH QUERY
PREFIX sales_db: <http://sales.widget.com/>
SELECT distinct ?comp_name WHERE {
?customer <sales_db:HAS_ORDER> ?order ; #customer graph pattern
<sales_db:CompanyName> ?comp_name . #orders graph pattern
?order <sales_db:HAS_DETAILS> ?order_d . #order details graph pattern
?order_d <sales_db:HAS_PRODUCT> ?product . #products graph
pattern
?product <sales_db:ProductName> “Echo” .
}
* Source : http://www.playnexacro.com/index.html#show:article

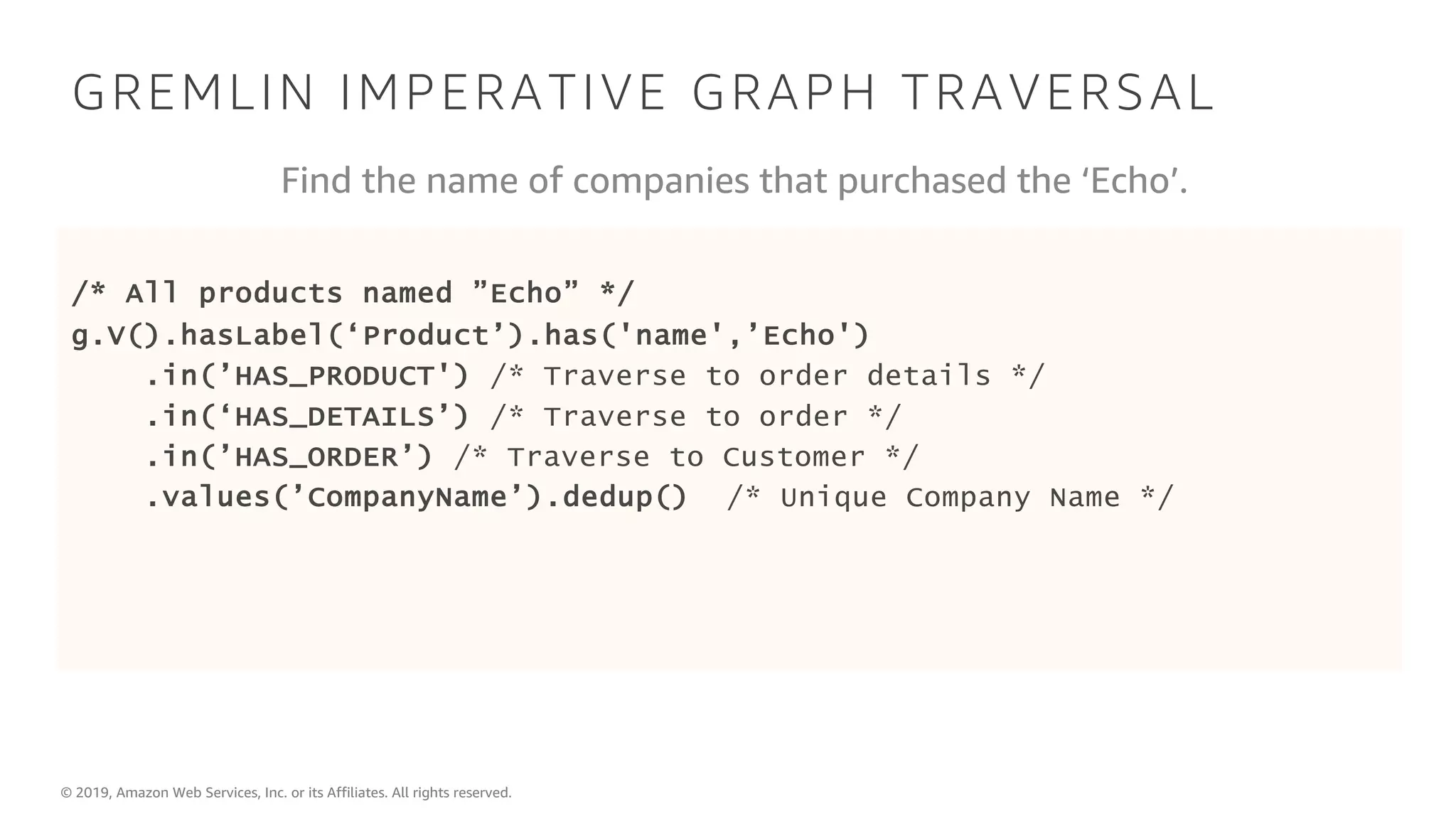

GREMLIN IMPERATIVE GRAPH TRAVERSAL
/* All products named ”Echo” */
g.V().hasLabel(‘Product’).has('name',’Echo')
.in(’HAS_PRODUCT') /* Traverse to order details */
.in(‘HAS_DETAILS’) /* Traverse to order */
.in(’HAS_ORDER’) /* Traverse to Customer */
.values(’CompanyName’).dedup() /* Unique Company Name */

TRIADIC CLOSURE – CLOSING TRIANGLES
FRIEND
FRIEND
Terry
Bill
Sarah
FRIEND

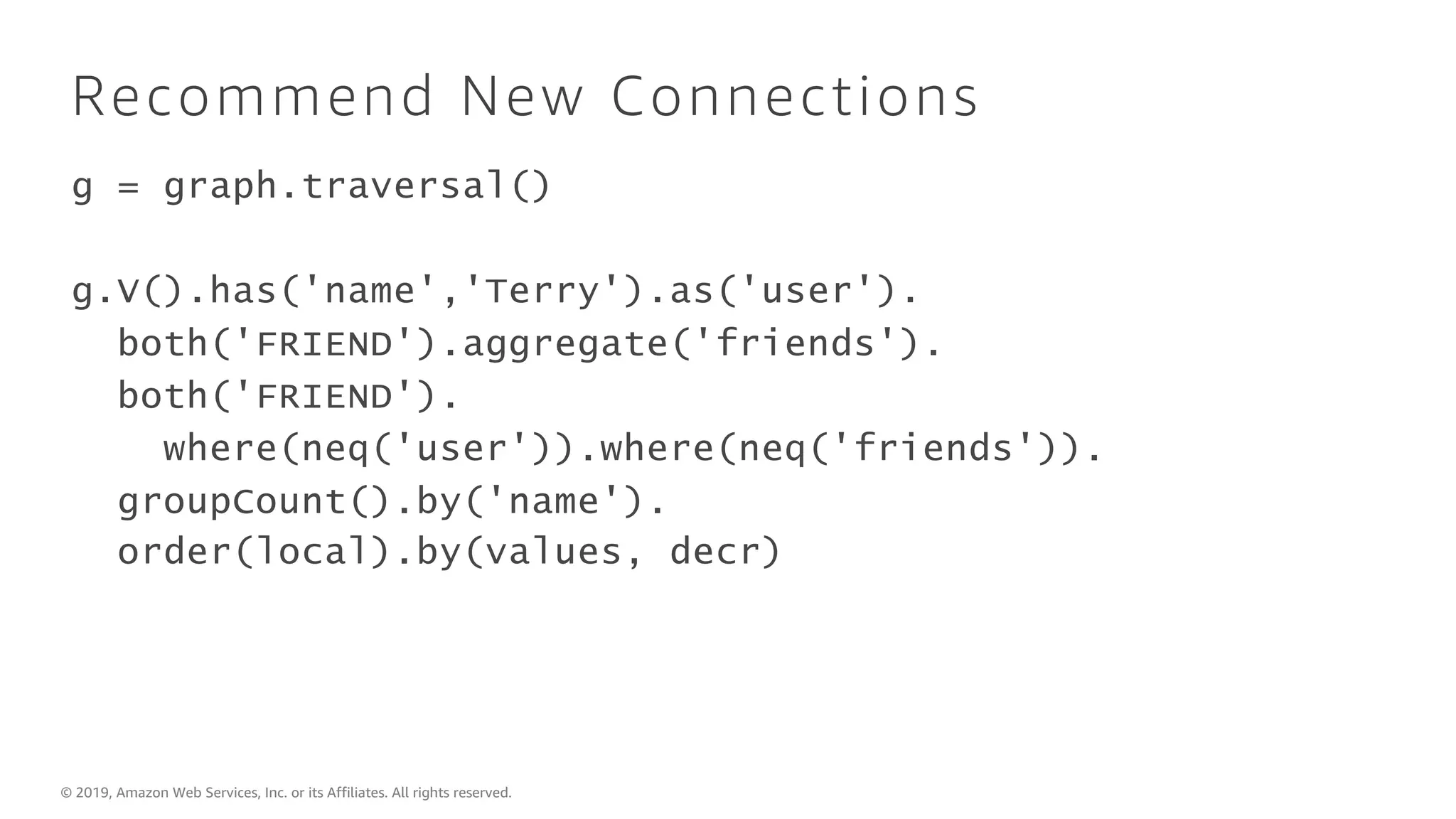

Recommend New Connections
g = graph.traversal()
g.V().has('name','Terry').as('user').
both('FRIEND').aggregate('friends').
both('FRIEND').
where(neq('user')).where(neq('friends')).
groupCount().by('name').
order(local).by(values, decr)

FIND TERRY
both('FRIEND').

FIND TERRY’S FRIENDS
both('FRIEND').

AND THE FRIENDS OF THOSE FRIENDS
both('FRIEND').
user
friend
fof
FRIEND
FRIEND

...WHO AREN’T TERRY AND AREN’T FRIENDS
WITH TERRY
both('FRIEND').
user
friend
fof
X
FRIEND
FRIEND

CHALLENGES OF EXISTING GRAPH DATABASES
Difficult to maintain
high availability
Difficult to scale
Limited support for
open standards
Too expensive

AMAZON NEPTUNE
F u l l y m a n a g e d g r a p h d a t a b a s e
FAST RELIABLE OPEN
Query billions of
relationships with
millisecond latency
6 replicas of your data
across 3 AZs with full
backup and restore
Build powerful
queries easily with
Gremlin and SPARQL
Supports Apache
TinkerPop & W3C
RDF graph models
EASY

AMAZON NEPTUNE HIGH LEVEL ARCHITECTURE
Bulk load
from
Amazon S3
Database
Mgmt.

Fully Managed Service
Easily configurable via the console
Multi-AZ high availability
Support for up to 15 read replicas
Supports encryption at rest
Supports encryption in transit (TLS)
Backup and restore, point-in-time
recovery
B E N E F I T S

• Secure deployment in a VPC
• Increased availability through
deployment in two subnets in two
different Availability Zones (AZs)
• Cluster volume always spans three
AZ to provide durable storage
• See the Amazon Neptune
Documentation for VPC setup details
AMAZON NEPTUNE: VPC DEPLOYMENT

BATTLE-TESTED CLOUD-NATIVE STORAGE ENGINE
OVERVIEW
Data is replicated 6 times across 3 Availability Zones

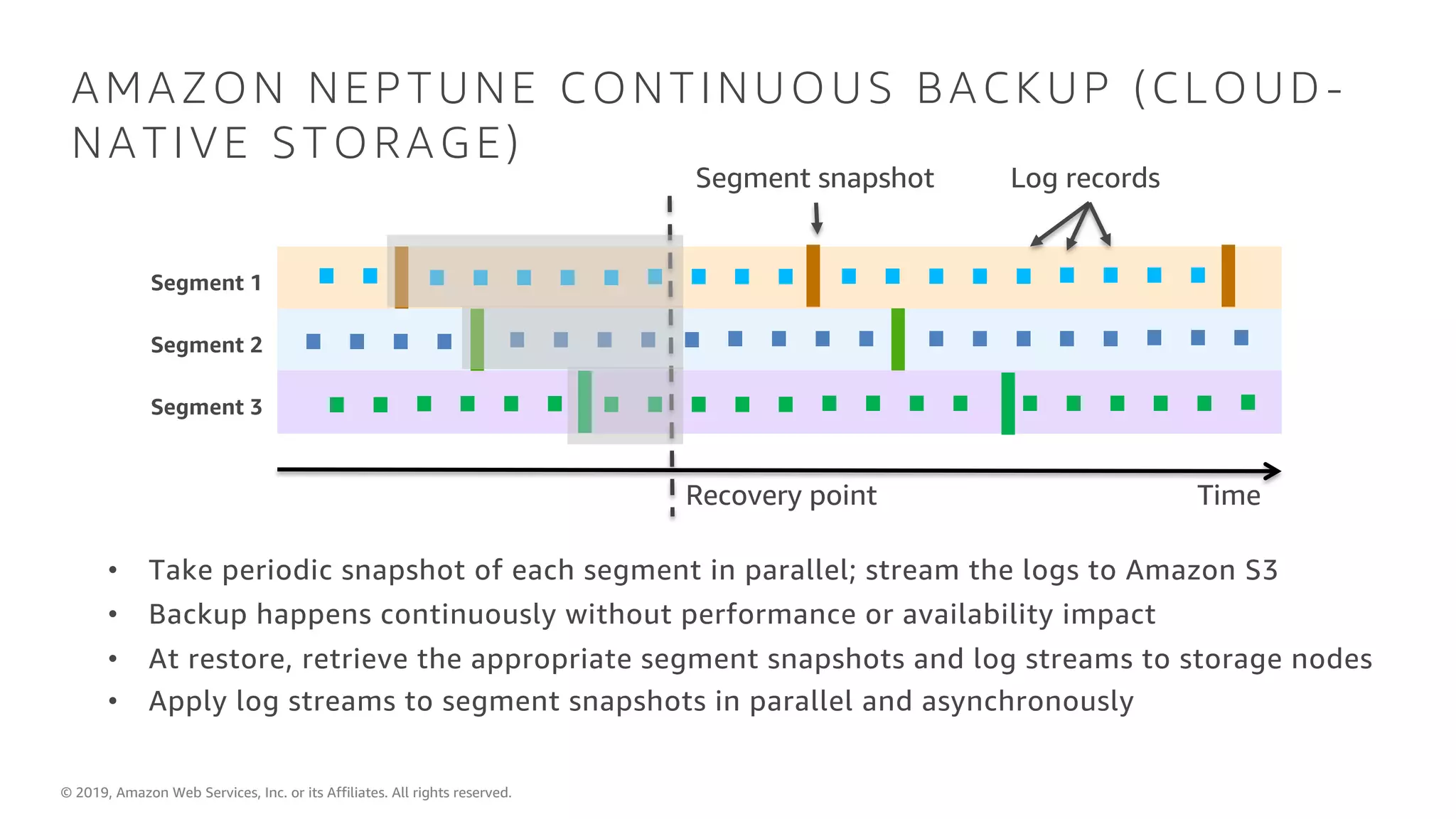

Continuous backup to Amazon S3
(built for 11 9s durability)
Continuous monitoring of nodes and disks for repair
10 GB segments as unit of repair or hotspot rebalance
Quorum system for read/write; latency tolerant
Quorum membership changes do not stall writes
Storage volume automatically grows up to 64 TB
AZ 1 AZ 2 AZ 3
Amazon S3
Amazon
Neptune
Storage
Node
Storage
Node
Storage
Node
Storage
Node
Storage
Node
Storage
Node
Storage
Monitoring

AMAZON NEPTUNE HIGH AVAILABILITY AND FAULT
TOLERANCE (CLOUD-NATIVE STORAGE)
What can fail?
Segment failures (disks)
Node failures (machines)
AZ failures (network or datacenter)
Optimizations
4 out of 6 write quorum
3 out of 6 read quorum
Peer-to-peer replication for repairs
AZ 1 AZ 2 AZ 3
Caching
Amazon
Neptune
AZ 1 AZ 2 AZ 3
Caching
Amazon
Neptune

AMAZON NEPTUNE READ REPLICAS
Availability
• Failing database nodes are
automatically detected and replaced
• Failing database processes are
automatically detected and recycled
• Replicas are automatically promoted
to primary if needed (failover)
• Customer specifiable fail-over order
AZ 1 AZ 3AZ 2
Primary
Node
Primary
Node
Primary
Master
Node
Primary
Node
Primary
Node
Read
Replica
Primary
Node
Primary
Node
Read
Replica
Cluster
and
Instance
Monitoring
Performance
• Customer applications can scale out read
traffic across read replicas
• Read balancing across read replicas

AMAZON NEPTUNE FAILOVER TIMES ARE
TYPICALLY < 30 SECONDS
Replica-Aware App Running
Failure Detection DNS Propagation
Recovery
Database
Failure
1 5 - 2 0 s e c 3 - 1 0 s e c
App
Running

AMAZON NEPTUNE CONTINUOUS BACKUP (CLOUD-
NATIVE STORAGE)
• Take periodic snapshot of each segment in parallel; stream the logs to Amazon S3
• Backup happens continuously without performance or availability impact
• At restore, retrieve the appropriate segment snapshots and log streams to storage nodes
• Apply log streams to segment snapshots in parallel and asynchronously
Segment snapshot Log records
Recovery point
Segment 1
Segment 2
Segment 3
Time

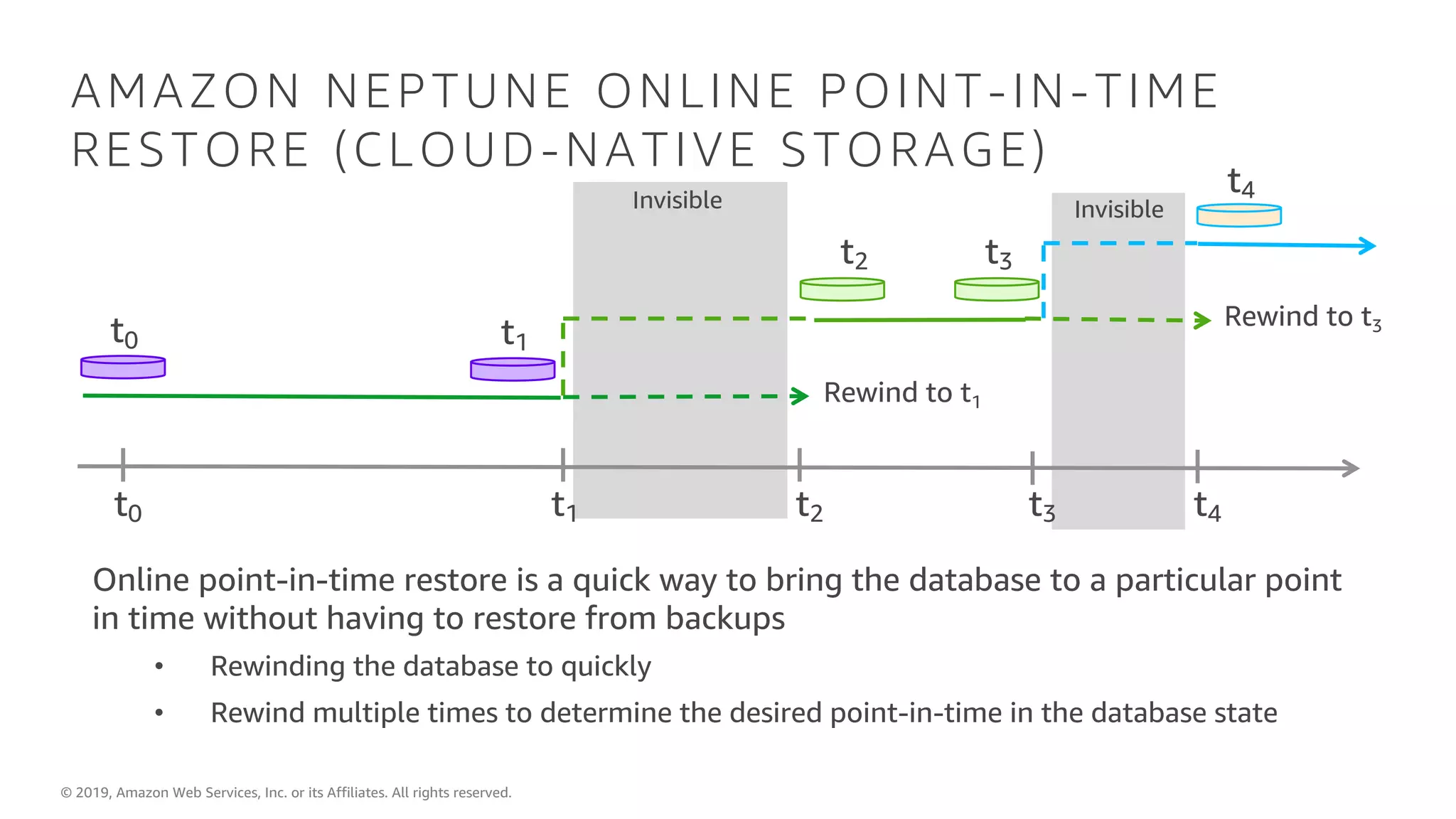

AMAZON NEPTUNE ONLINE POINT-IN-TIME
RESTORE (CLOUD-NATIVE STORAGE)
Online point-in-time restore is a quick way to bring the database to a particular point
in time without having to restore from backups
• Rewinding the database to quickly
• Rewind multiple times to determine the desired point-in-time in the database state
t0 t1 t2
t0 t1
t2
t3 t4
t3
t4
Rewind to t1
Rewind to t3
Invisible Invisible

DEMO TIME
https://aws.amazon.com/blogs/database/analyze-amazon-neptune-graphs-
using-amazon-sagemaker-jupyter-notebooks/
https://github.com/aws-samples/amazon-neptune-
samples/tree/master/gremlin/collaborative-filtering
https://aws.amazon.com/blogs/database/let-me-graph-that-for-you-part-1-air-
routes/

Example scenario
Employment history application
• People, companies, roles
Use cases
1. Find the companies where X has worked, and their roles at those
companies
2. Find the people who have worked for a company at a specific
location during a particular time period
3. Find the people in more senior roles at the companies where X
worked

Identify entities, relationships, and attributes
Find the companies where X has worked, and their roles at
those companies
Which companies has X worked for, and in what roles?
Companies Company Entity
X Person Entity
Worked for Worked for Relationship
Roles Role Attribute?

Identify candidate vertices, labels, and
properties
Company Entity Vertex Company
Person Entity Vertex Person
Worked for Relationship Edge WORKED_FOR
Role Attribute? Property? role
name
CompanyPerson

Entity or attribute? Vertex or property?
Is role an entity or an attribute?
• Does it have identity (or is it a value type)? X
• Is it a complex type (with multiple fields)? X
• Are there any structural relations between values? ?
Keep it simple
• Prefer properties to vertices/edges until the need arises

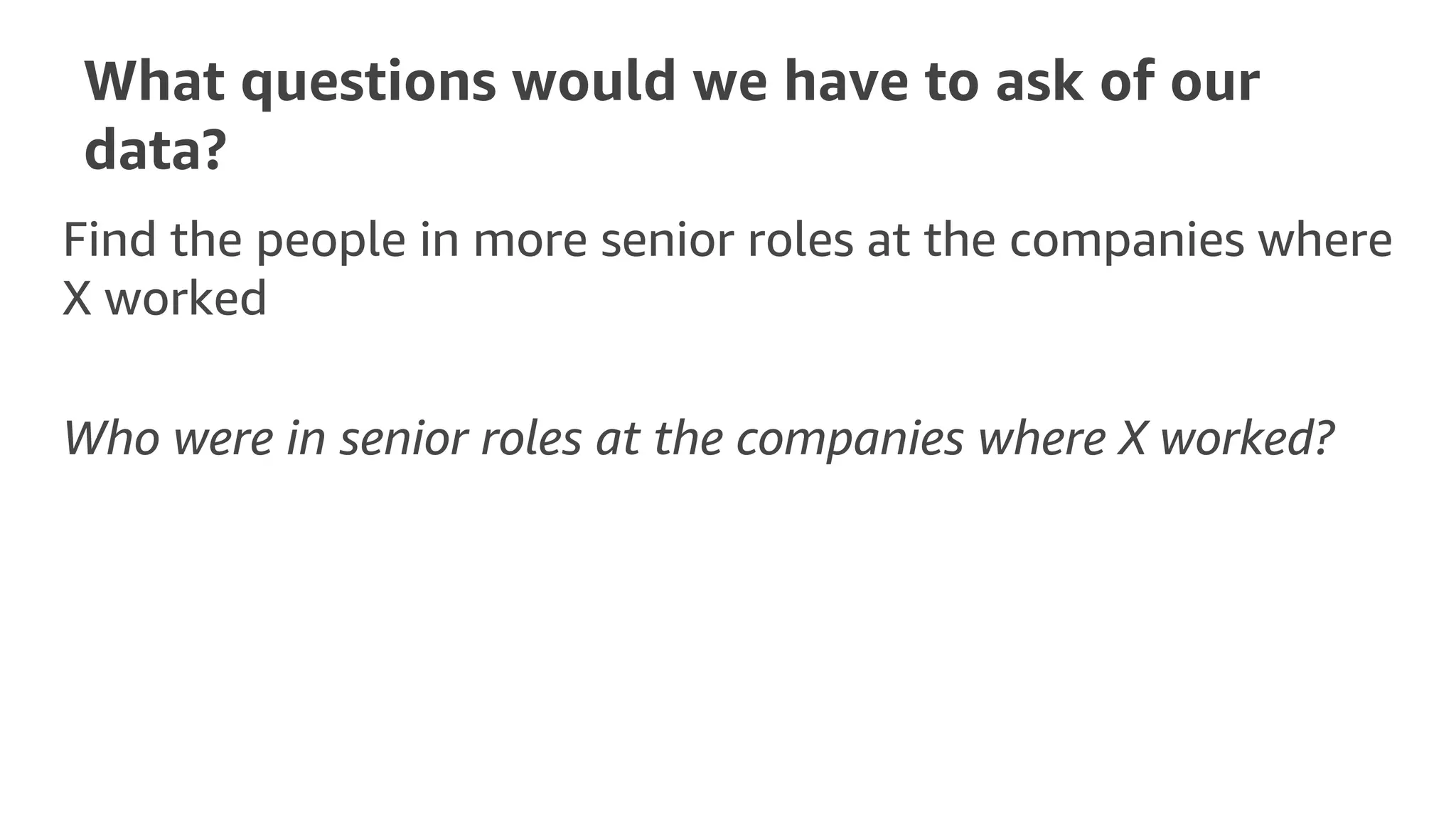

What questions would we have to ask of our
data?
Find the people in more senior roles at the companies where
X worked
Who were in senior roles at the companies where X worked?

Entity or attribute? Vertex or property?
Is role an entity or an attribute?
• Does it have identity (or is it a value type)? X
• Is it a complex type (with multiple fields)? X
• Are there any structural relations between values? ✓
Model structural relations with edges
• Promote role to being a vertex

Traversal 3
Who were in more senior roles at the companies where Li
worked?

© 2018, Amazon Web Services, Inc. or its affiliates. All rights reserved.

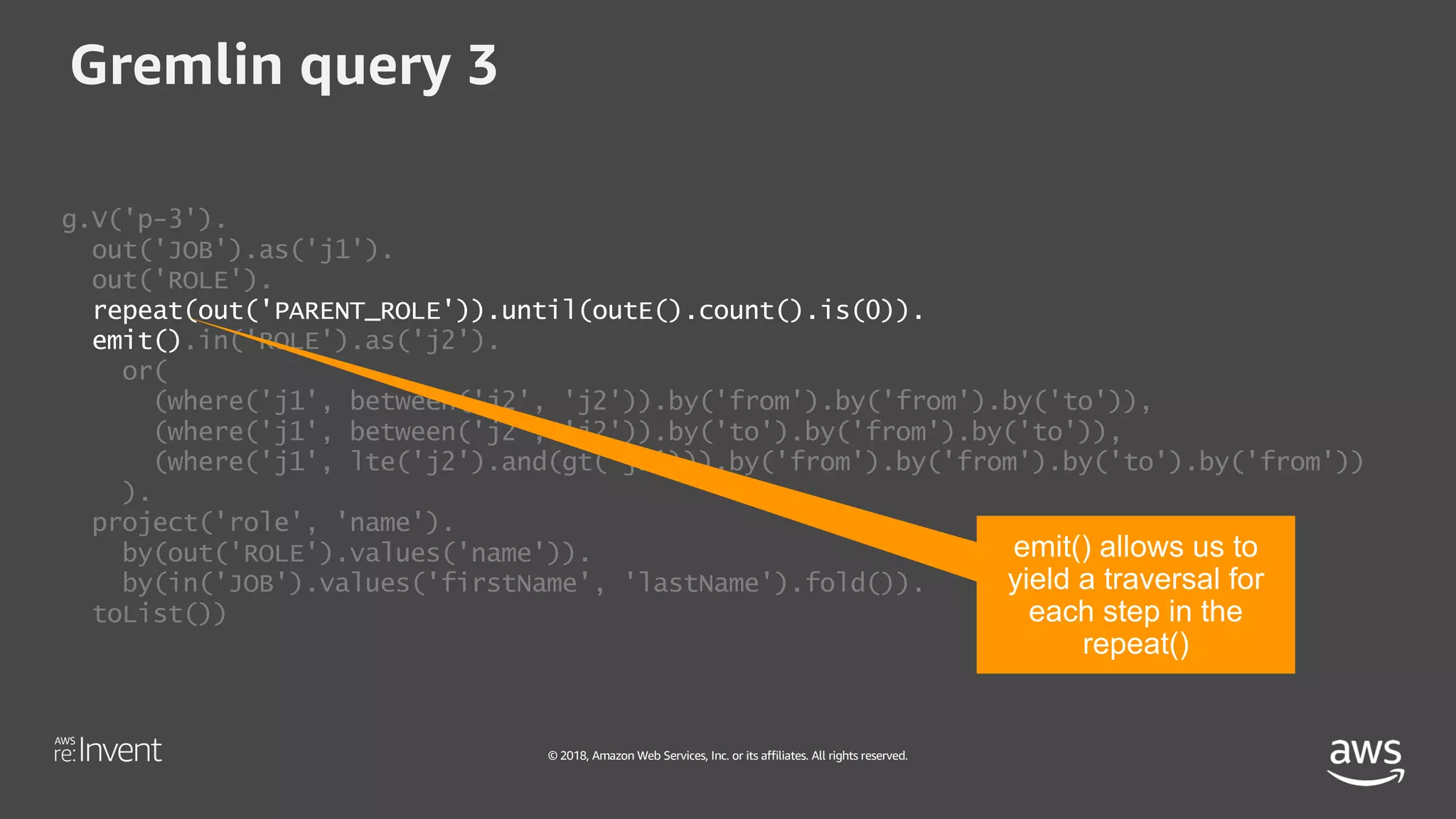

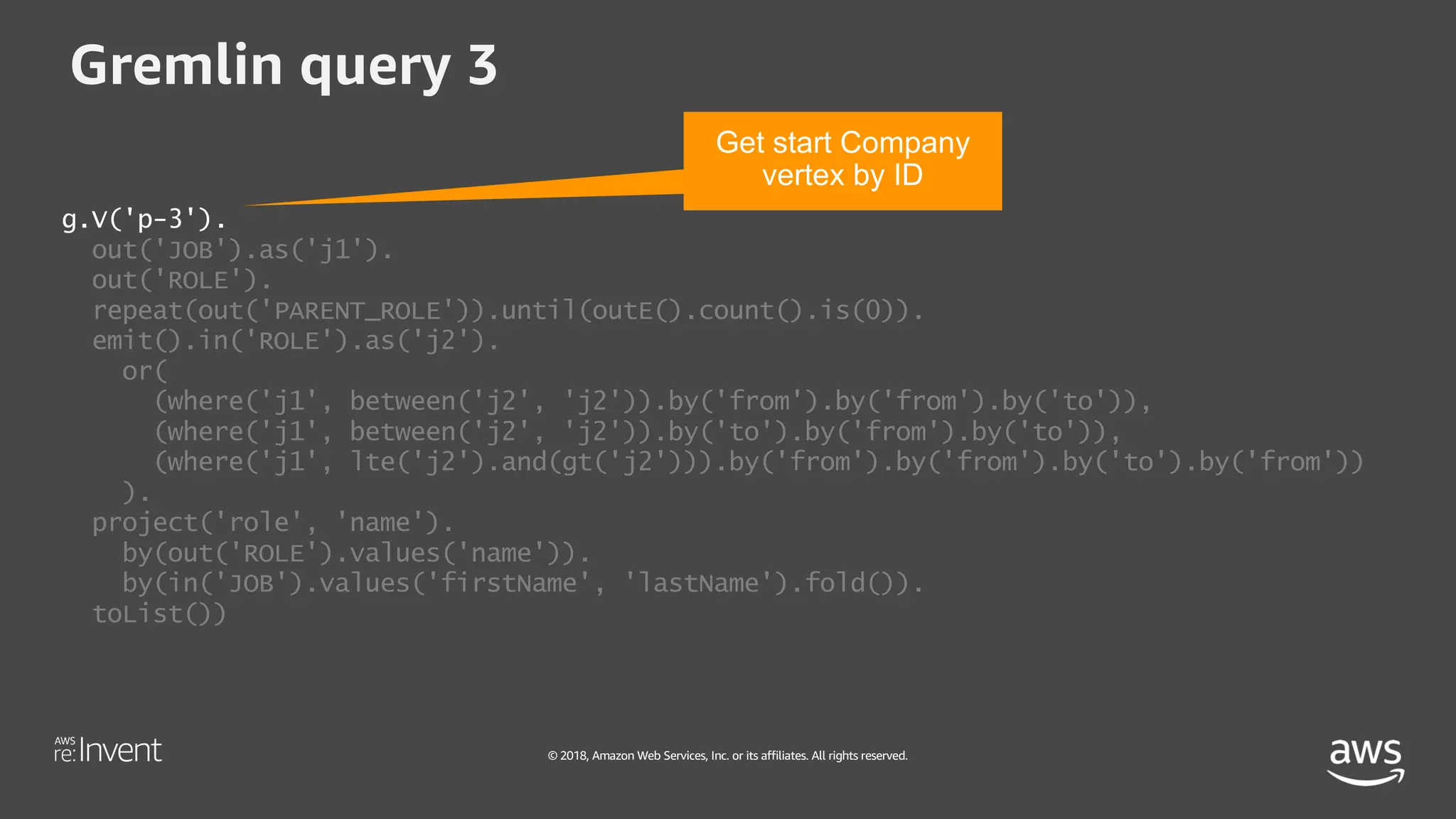

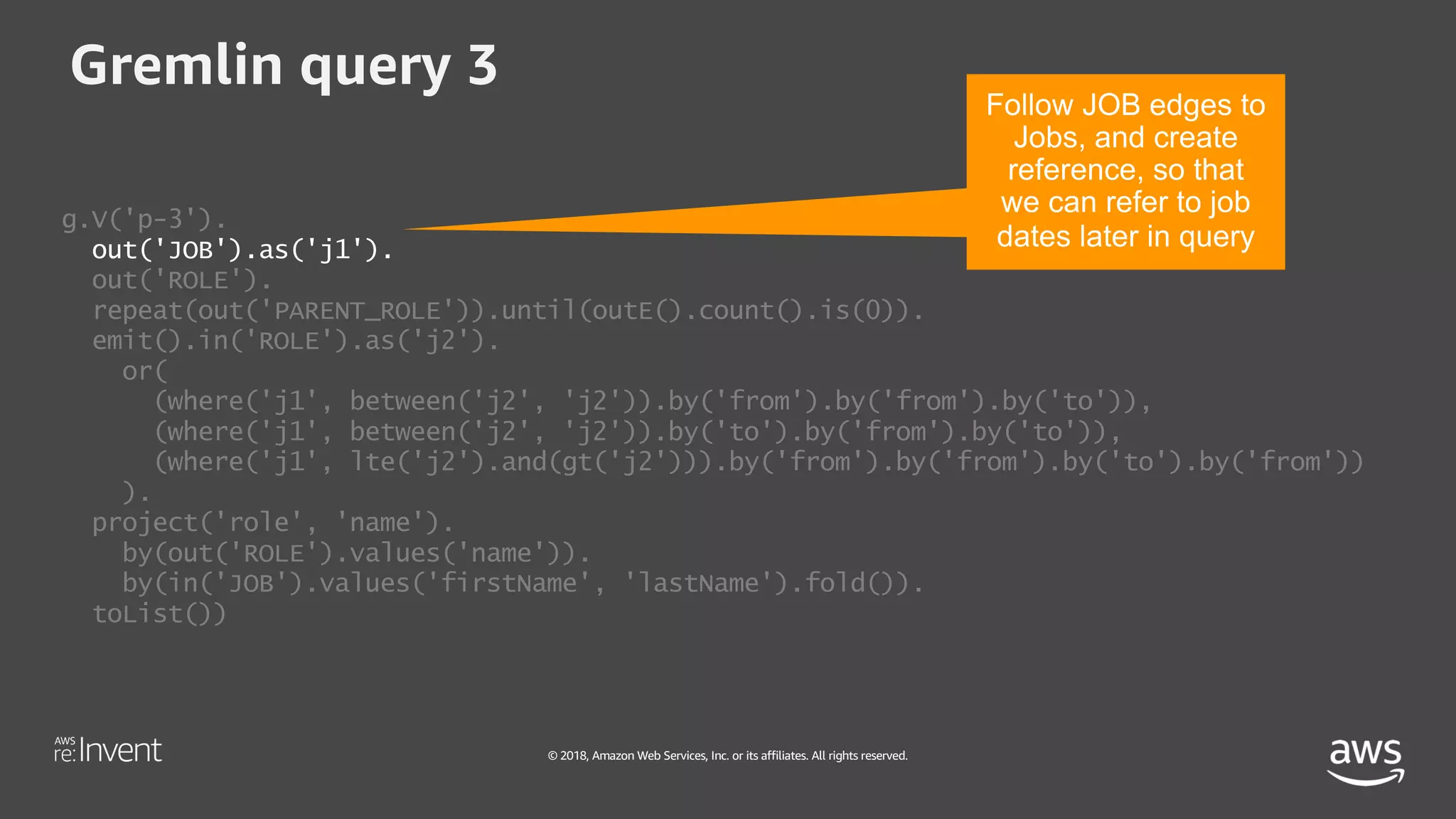

Gremlin query 3
g.V('p-3').
out('JOB').as('j1').
out('ROLE').
repeat(out('PARENT_ROLE')).until(outE().count().is(0)).
emit().in('ROLE').as('j2').
or(
(where('j1', between('j2', 'j2')).by('from').by('from').by('to')),
(where('j1', between('j2', 'j2')).by('to').by('from').by('to')),
(where('j1', lte('j2').and(gt('j2'))).by('from').by('from').by('to').by('from'))
).
project('role', 'name').
by(out('ROLE').values('name')).
by(in('JOB').values('firstName', 'lastName').fold()).
toList())

Wrapping up
Graphs can be applied to a huge number of use cases
A graph database fits more naturally and performs much faster than other
databases when working with highly connected data
Scaling out a graph database is not easy. Amazon Neptune makes your
life easier

¡Gracias!
Javier Ramirez
Technical Evangelist. Amazon Web Services

Appendix I
Converting Other Data Models to Graph

Mapping relational to graph (RDF)
W3C DirectMapping
• “Out-of-the-box” schema for mapping relational data to RDF
• https://www.w3.org/TR/rdb-direct-mapping/
R2RML
• Standard that allows you to specify mappings from relations to
graph
• Rules defined over logical tables
• https://www.w3.org/TR/r2rml/
Tooling
• D2RQ – access relational database as virtual, read-only RDF graph

Table
12 … Alice
id … f_name
37 … Bob

Foreign keys
12 … Alice
id … f_name
37 … Bob
512 12 home High St
655 37 work Main St
700 12 work Any St
id p_id type addr_1

Join tables
12 … Alice
id … f_name
37 … Bob
512 … Any Co
655 … Example
Co
700 … Example.
com
id … name
12 512 2012 2015
37 512 2011 2016
p_id c_id from to
37 655 2016 2017
12 700 2015 2017

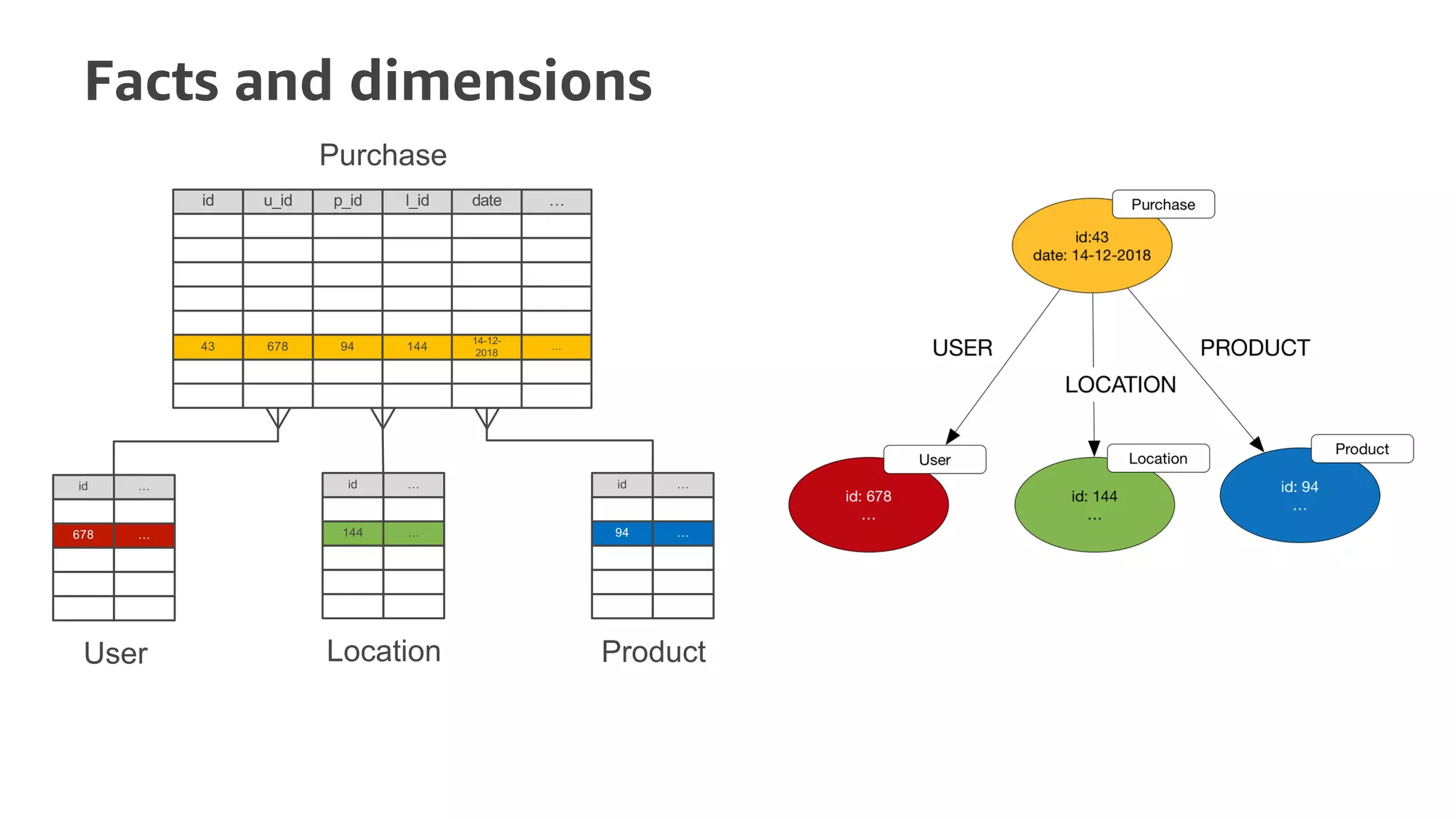

Facts and dimensions
id
43
u_id
678
p_id
94
l_id
144
date
14-12-
2018
…
…
id
94
…
…
id
678
…
…
id
144
…
…

Documents
{ id: order-1
delivery-address: {
// address-1
}
payment-address: {
// address-1
}
{ id: order-2
delivery-address: {
// address-1
}
{ id: order-3

Key-Value
Alice TX Austin:Dev
37 Bob TX Dallas:Dev 555-0100
99 Dan TX 2016 Austin:Ops 555-0199
id f_name state start city:dept tel

Data load options
Bulk loader API
• Load data from S3
into Neptune
• Low overhead,
optimized for large
datasets
• Good for append-
only loads
Online endpoints
• Gremlin or SPARQL
Bulk load
from S3
Database
Mgmt.

Appendix II
Ignition One. Customer use case presented at
AWS Atlanta Summit
https://www.slideshare.net/AmazonWebServic
es/using-amazon-neptune-to-power-identity-
resolution-at-scale-adb303-atlanta-aws-
summit

En un mundo hiperconectado, las bases de datos de grafos son tu arma secreta

Recommended

Recommended

More Related Content

Similar to En un mundo hiperconectado, las bases de datos de grafos son tu arma secreta

Similar to En un mundo hiperconectado, las bases de datos de grafos son tu arma secreta (20)

More from javier ramirez

More from javier ramirez (20)

Recently uploaded

Recently uploaded (20)

En un mundo hiperconectado, las bases de datos de grafos son tu arma secreta
