This document provides steps to check electrical systems during a blackout, including: 1) Checking the incoming power to common busbars PC A and PC B, then the circuit breaker and emergency diesel generator incoming power. 2) Manually opening and closing various circuit breakers if breakers are open to check voltages and supplies. 3) Operating the emergency diesel generator control room interface, starting the generator, and manually closing breakers to energize systems. 4) Checking additional breakers between the emergency power center and essential MCC to route power as needed.
Electrical Checks for Blackout document.pdf
- 1. Electrical Checks forBlack Out Common PC A Incoming Common PC B Incoming Check for CB Open EDG Incoming Check for CB Close If Breaker OPEN Reset Trip Reset PDM Close Breaker Manually Open Breaker Manually Check Emergency MCC Incoming Supplies If Not 1 Select Local 1 2 3
- 2. Engine Running Voltage Normal Check for Breaker Close ThenHARD PRESS If Breaker OPEN Emergency Diesel Generator Control Room EDG HMI 2 1
- 3. Charger Switch ON Water Preheat ON OperationMode Island EDG Selector Switch Positions Direct Start Command to EDG Jumper for Start Command 3
- 4. 3Pole PT Breaker ON Control BreakerON ON Breaker Close Voltage Normal Emergency Diesel Generator Local Breaker Panel 4

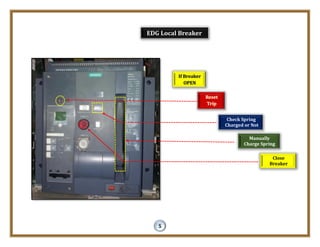

- 5. Manually Charge Spring Close Breaker If Breaker OPEN Reset Trip CheckSpring Charged or Not EDG Local Breaker 5
- 6. Check for CBOpen Normal Supply 52AR Standby Supply 52AS Change Selector Switch to 4(Essential) Coupler Open Open Breaker Manually If Not PEECC Coupler 52AC 6 1 2 3
- 7. Close Breaker Manually If Not Essential Supply52AE PEECC Emergency Power Breaker In EMCC If Breaker OPEN Voltage Normal Reset Trip Reset PDM Close Breaker Manually Check for Breaker Close PEECC to EMCC Breaker Close If Not 7 If Yes 1 2 3 4
