The Drop Bottom Box Dumper is designed to lift special metal bins with hinged bottoms. It hangs on the truck carriage between the forks. To use it, the forks drive under the bin, engage the lifting hook on the bin's lip, and raise up. This opens the hinged floor and releases the product inside. Application details are needed to determine the unit's features for each use case, such as the truck type, product, bin size and weight, lifting hook details, and required stroke. The unit can be installed on a fork positioner or sideshifter to handle bins. Cascade does not supply the drop bottom bins.

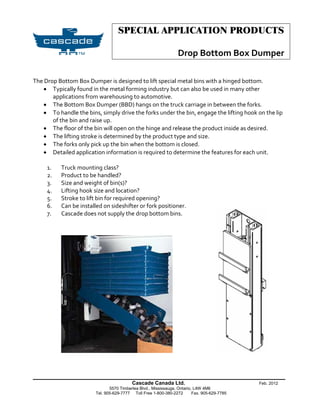

1. SPECIAL APPLICATION PRODUCTS
Drop Bottom Box Dumper
The Drop Bottom Box Dumper is designed to lift special metal bins with a hinged bottom.
 Typically found in the metal forming industry but can also be used in many other
applications from warehousing to automotive.
 The Bottom Box Dumper (BBD) hangs on the truck carriage in between the forks.
 To handle the bins, simply drive the forks under the bin, engage the lifting hook on the lip
of the bin and raise up.
 The floor of the bin will open on the hinge and release the product inside as desired.
 The lifting stroke is determined by the product type and size.
 The forks only pick up the bin when the bottom is closed.
 Detailed application information is required to determine the features for each unit.
1. Truck mounting class?
2. Product to be handled?
3. Size and weight of bin(s)?
4. Lifting hook size and location?
5. Stroke to lift bin for required opening?
6. Can be installed on sideshifter or fork positioner.
7. Cascade does not supply the drop bottom bins.
______________________________________________________________
Cascade Canada Ltd. Feb. 2012
5570 Timberlea Blvd., Mississauga, Ontario, L4W 4M6
Tel. 905-629-7777 Toll Free 1-800-380-2272 Fax. 905-629-7785

2. SPECIAL APPLICATION PRODUCTS
Drop Bottom Box Dumper
Unit installed on a hydraulic Used for dumping scrap
“C” series fork positioner steel for recycling
Unit installed on truck
carriage between forks
Front View Rear View
